DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.

3
Safety instructions ..................................................................................................4
Description of the appliance ...................................................................................8
Installation ............................................................................................................10
Operation..............................................................................................................12
Baking in the oven – practical hints......................................................................21
Test dishes.................................................................................................................24
Cleaning and maintenance...................................................................................26
Troubleshooting....................................................................................................31
Technical data.......................................................................................................32
TABLE OF CONTENTS

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched o󰀨 before
replacing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.

5
SAFETY INSTRUCTIONS
● Ensure that small items of household equipment, including connection leads, do
not touch the hot oven as the insulation material of this equipment is usually not
resistant to high temperatures.
● Do not leave the oven unattended when frying. Oils and fats may catch re due
to overheating or boiling over.
● Do not put pans weighing over 15 kg on the opened door of the oven.
● Do not use harsh cleaning agents or sharp metal objects to clean the door as they
can scratch the surface, which could then result in the glass cracking.
● Do not use the oven in the event of a technical fault. Any faults must be xed by
an appropriately qualied and authorised person.
● In the event of any incident caused by a technical fault, disconnect the power and
report the fault to the service centre to be repaired.
● The rules and provisions contained in this instruction manual should be strictly
observed. Do not allow anybody who is not familiar with the contents of this instruc-
tion manual to operate the oven.
● The appliance has been designed only for cooking. Any other use (for example
for heating) does not comply with its operating prole and may cause danger.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.

6
HOW TO SAVE ENERGY
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
●Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
● Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
●Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer, set ap-
propriately shorter cooking times according
to the dish being prepared.
●Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
●Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

7
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the
instruction manual or the packaging shows
that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

8

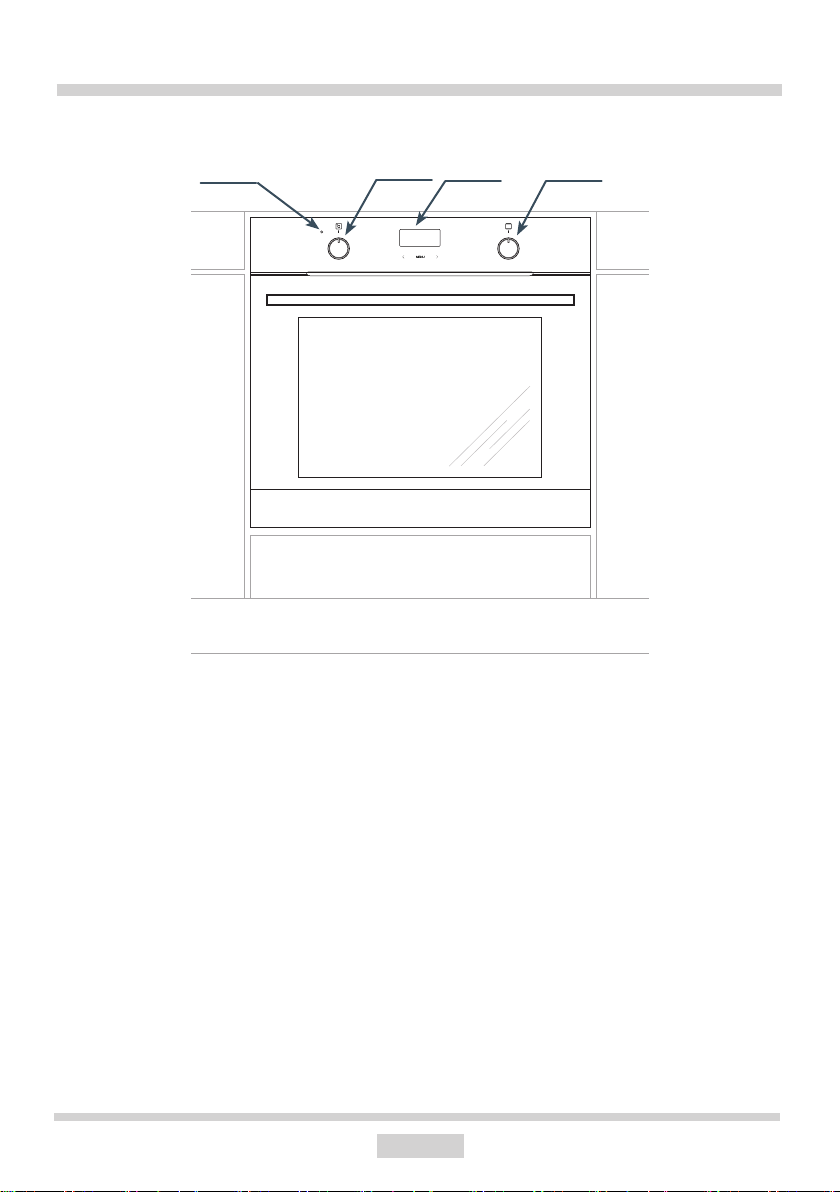

DESCRIPTION OF THE APPLIANCE
P Electronic programmer
1. Oven function knob
2. Temperature regulator knob
3. Temperatureregulator signal light
2
P
31

*optional
9
SPECIFICATIONS OF THE APPLIANCE

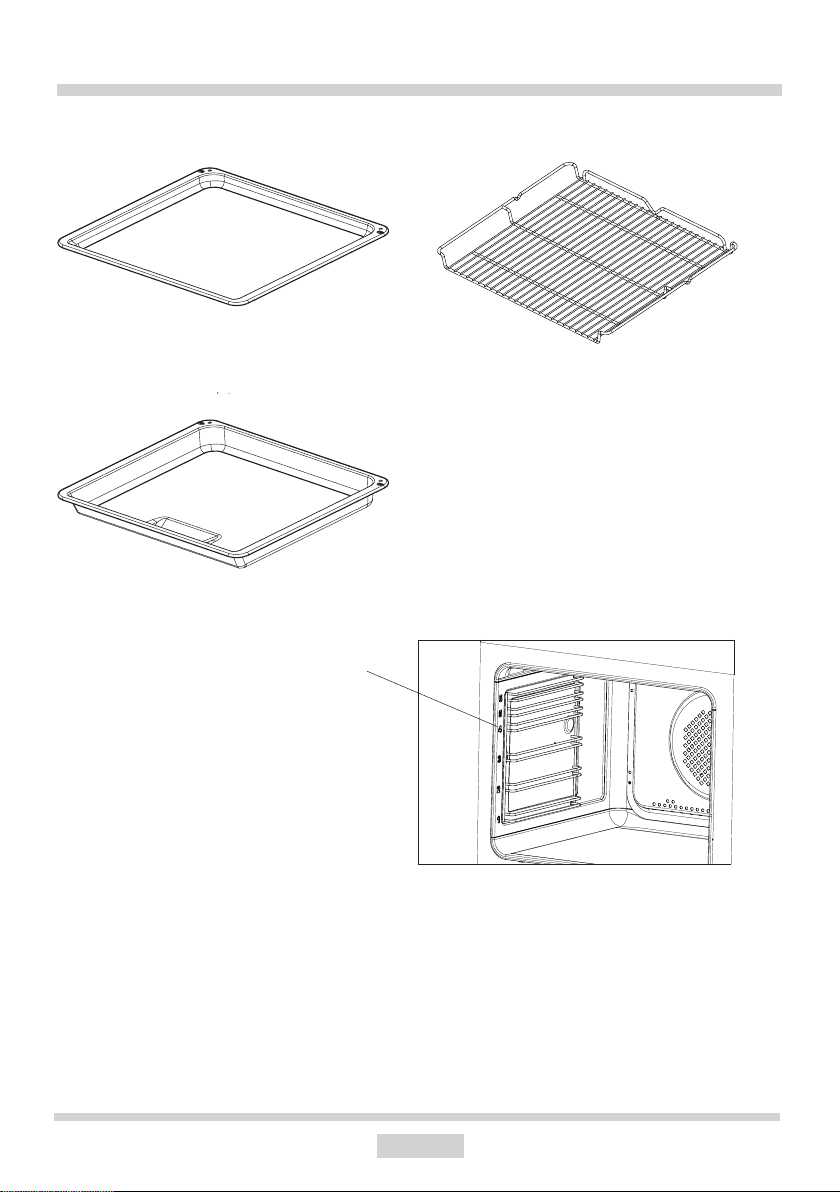

Cooker ttings:
Baking tray* Grill grate
(drying rack)
Roasting tray*
Sideracks

10
INSTALLATION
Installing the oven
● The kitchen area should be dry and aired
and equipped with e󰀩cient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
● This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneer used on tted furniture must be
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
● Hoods should be installed according to
the manufacturer’s instructions.

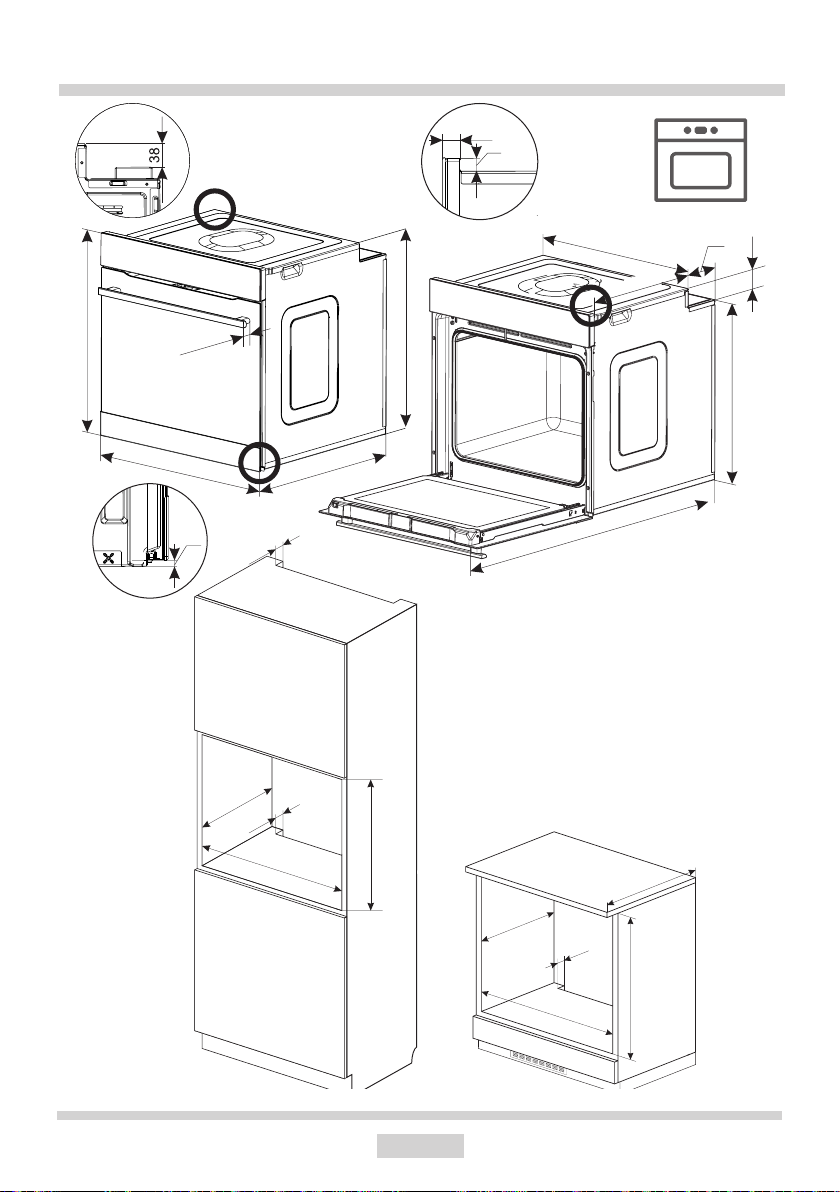

● Make an opening with the dimensions
given in the diagram for the oven to be
tted.
● Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
● Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
● The oven is manufactured to work with
a one-phase alternating current (230V
1N~50 Hz) and is equipped with a 3 x 1,5
mm2 connection lead of 1,5 m length with
a plug including a protection contact.
● A connection socket for electricity supply
should be equipped with a protection
pin and may not be located above the
cooker. After the cooker is positioned, it is
necessary to make the connection socket
accessible to the user.
● Before connecting the oven to the socket,
check if:
- the fuse and electricity supply are able to
withstand the cooker load,
- the electricity supply is equipped with an
e󰀩cacious ground system which meets
the requirements of current standards
and provisions,
- the plug is within easy reach.
Electrical connection
Important!
If the xed power supply cable is damaged,
it should be replaced at the manufacturer
or at an authorized servicing outlet, or by a
qualied person to avoid danger.

11
INSTALLATION
56
523
550
429
1034
116
7
600
595
40
40
560
40
560
560
560
600
16
25
595
595
570
max50
595
578

12
OPERATION
Before rst use
• Remove all packaging elements, par-
ticularly those protecting the interior of
the oven chamber during transport.
• Remove all the accessories from inside
of the oven and wash them thoroughly
in warm water with gentle washing up
liquid.
• Remove the protective foil from the sur-
faces of the telescopic runners.
• Use warm water with the addition of
mild detergent to wash the inside of the
chamber. Do not use hard brushes or
sponges. They could damage the coat-
ing of the inside of the chamber.
Warm up the oven chamber
• Turn on the ventilation in the room or
open a window.
• Turn the function selector knob and set
the position or (there is a detailed
description of these functions later in
the instructions).
Rotate the temperature adjustment knob
and set the temperature to 250°C. The
oven should operate for a minimum of 30
minutes; while it is operating the oven pro-
duces a smell, which is only present at the
beginning but will eventually go away as the
appliance is used. This is perfectly normal
and is part of the process of warming up the
oven chamber.

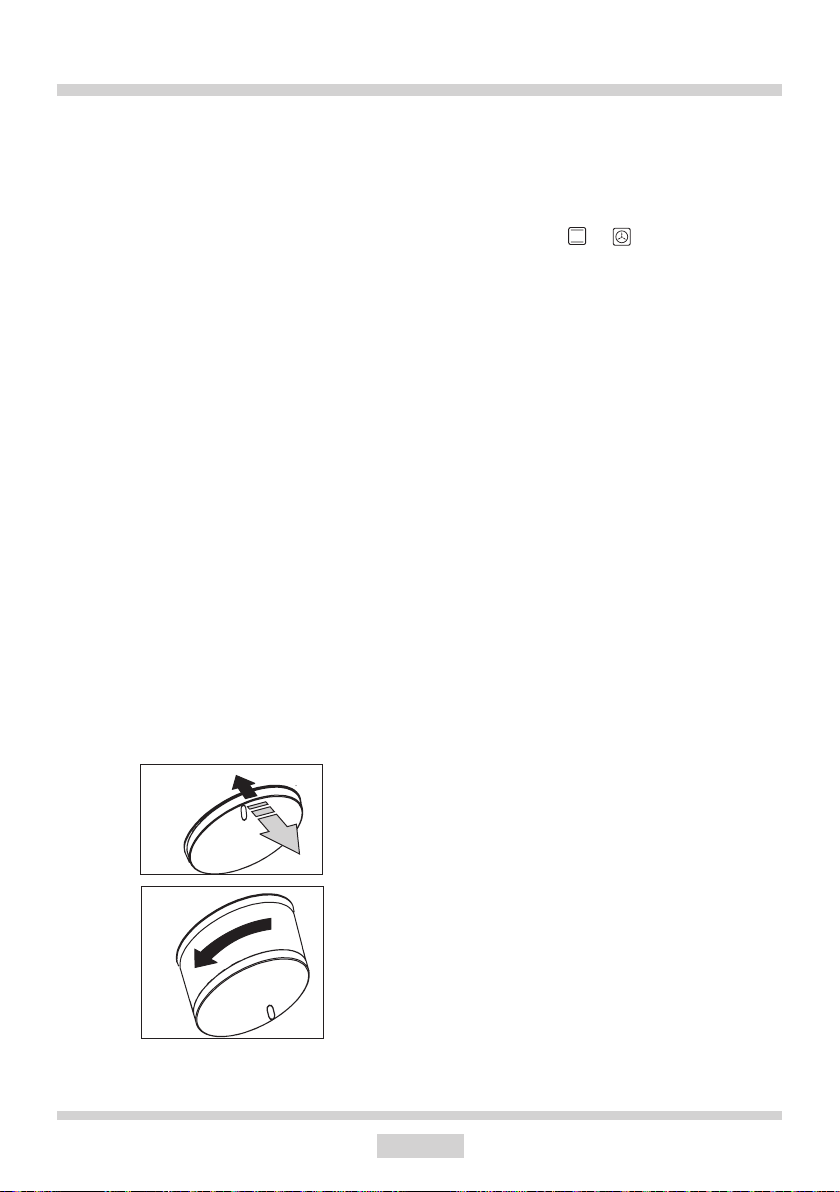

Push-pull knobs
The oven function knob and the temperature
regulator knob are concealed in the front
panel. To set the function and/or settings,
gently press and release the knob. The knob
will pop out of the panel. You can now set the
appropriate function and/or settings.
The electronic prgrammer is equipped with
electronic sensors which are switched on by
touching or pressing the sensor surface for at
least one second.
Each sensor reaction is conrmed by the beep.
Keep the sensor surface clean at all times.
Important!
In ovens equipped with the electronic pro-
grammer, the time “0.00” will start ashing
in the display eld upon connection to the
power supply.
The programmer should be set with the cur-
rent time. (See Electronic programmer ). If the
current time is not set operation of the oven
is impossible.

13
OPERATION

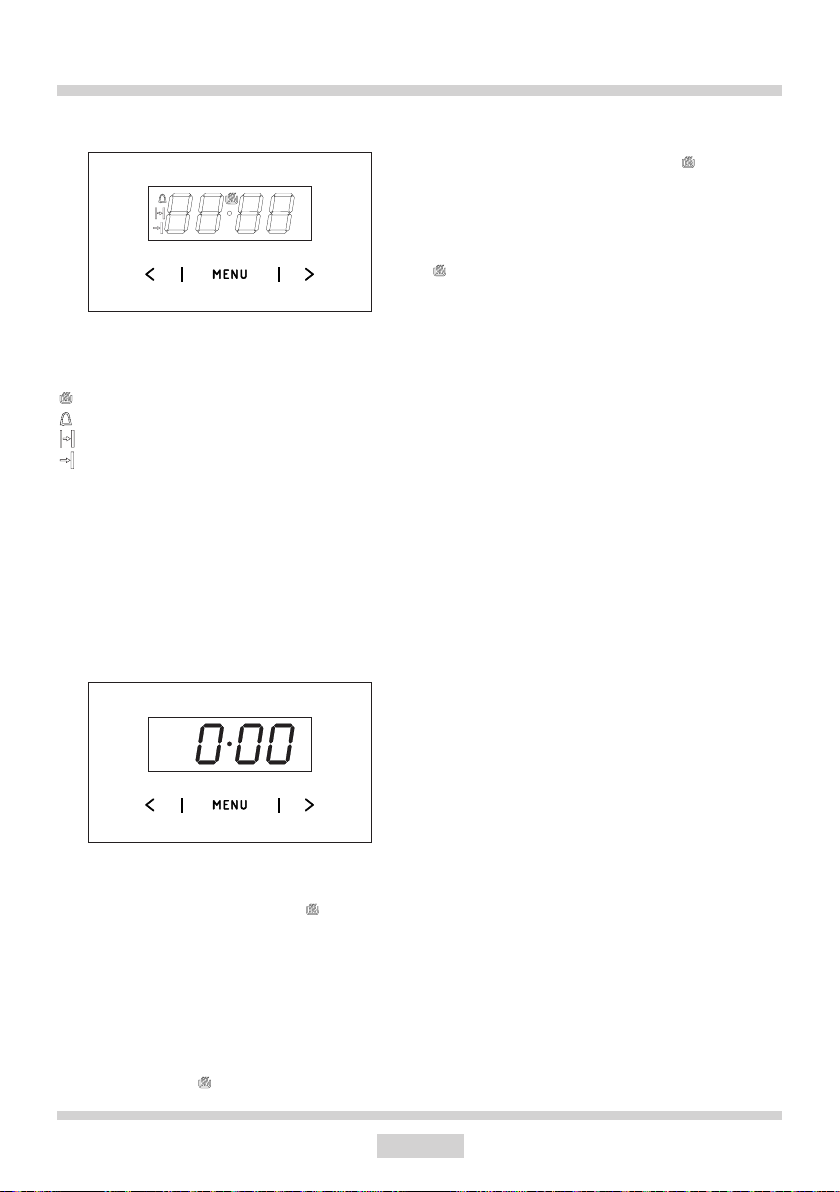

Set and adjust the current time - Power
On mode
When the appliance is plugged into the elec-
trical mains supply, or when power is restored
after power outage, the digital display will
show ashing 0.00
MENU — select the mode of operation
>— higher setting sensor
<— lower setting sensor
— appliance on indicator
— Kitchen timer
— Duration
— End Time
l Touch and hold down the MENU sensor or
simultaneously touch and hold </ >until
you hear a beep and the symbol is
shown on the display. The dot under the
symbol will start to ash.
l Touch </ >within 7 seconds to set the
current time.
To store the new time setting, wait approxi-
mately 7 seconds after time has been set.
The dot below the symbol will stop ashing.
You can adjust the time later. To do this touch
< /> simultaneously and adjust the current
time while the dot below the symbol is
ashing.
Note:
The oven can be turned on when you see the
symbol on the display.
Standby mode
In this mode, the current time, minute mind-
er, timed operation or delayed timed opera-
tion status is displayed. Touch MENU to cycle
through available menu items. Available
MENU items:
• Set Minute Minder
• Set Duration
• Set End Time
• Set OpenUp! (opens the door automati-
cally)
• Standby
Electronic programmer

14
Kitchen Timer
You can active the Kitchen Timer at any time,
regardless of the status of other functions.
The Kitchen Timer can be set from 1 minute
up to 23 hours and 59 minutes.
To set the Kitchen Timer:
l Touch MENU, then the display will show
blinking :
l Use the </ >, sensors to set the Kitchen
Timer. The display will show the set time
and Kitchen Timer symbol . Once the
set time elapses, alarm sounds and the
icon ashes,
l Touch and hold </ >or MENU to mute the
alarm. The will be o󰀨 and the display will
show the current time after approximately
7 seconds.
Note!
If no button is touched, alarm will turn o󰀨
automatically after approximately 7 minutes.
OPERATION
Timed operation
To set the appliance to switch o󰀨 after a
specic duration:
l set the function selector knob and the
temperature selector knob to your pre-
ferred settings,
l Touch MENU repeatedly until the display
shows dur (duration) briey and the
symbol will be ashing,
l set the desired duration from 1 minute to
10 hours using the
</ >sensors.
The set duration will be memorised after
about 7 seconds. The display will show the
current time and the symbol.
Once the duration time has elapsed the
oven will turn o󰀨 automatically. You will hear
an alarm and the and symbols will be
ashing,
l Set the oven function selector knob and
the temperature selector knob in o󰀨 posi-
tion.,
l Touch and hold </ >or MENU to mute the
alarm. The and will be o󰀨 and the
display will show the current time after
approximately 7 seconds.

15
OPERATION
Delayed timed operation
In order to set the appliance to switch o󰀨 at a
specic time after a set Duration has elapsed,
set the Duration and the End Time:
l Touch MENU repeatedly until the display
shows dur (duration) briey and the
symbol will be ashing,
l set the desired duration from 1 minute to
10 hours using the
</ >sensors,
l Touch MENU repeatedly until the display
shows End briey and the symbol will
be ashing,
l set the End Time using the </ >, sensors,
a maximum of 23 hours and 59 minutes
ahead,
l set the function selector knob and the
temperature selector knob to preferred
settings. The and functions are now
active. The appliance will switch on at
End Time minus Duration (i.e. if the set
Duration is 1 hour and the set End Time
is 14:00, the appliance will automatically
switch on at 13:00).
Once the Duration time has elapsed the oven
will turn o󰀨 automatically. You will hear an
alarm and the and will be ashing,
l Set the oven function selector knob and
the temperature selector knob in o󰀨 posi-
tion.,
l Touch and hold </ >or MENU to mute the
alarm. The and will be o󰀨 and the
display will show the current time after
approximately 7 seconds.
Cancel settings
Timer and delayed timed function settings
may be cancelled at any time.
Cancel automatic function settings:
l simultaneously touch the </ >, sensors
Cancel timer settings:
l Touch the MENU sensor to select the
Kitchen Timer,
l simultaneously touch the </ >sensors

16
OPERATION

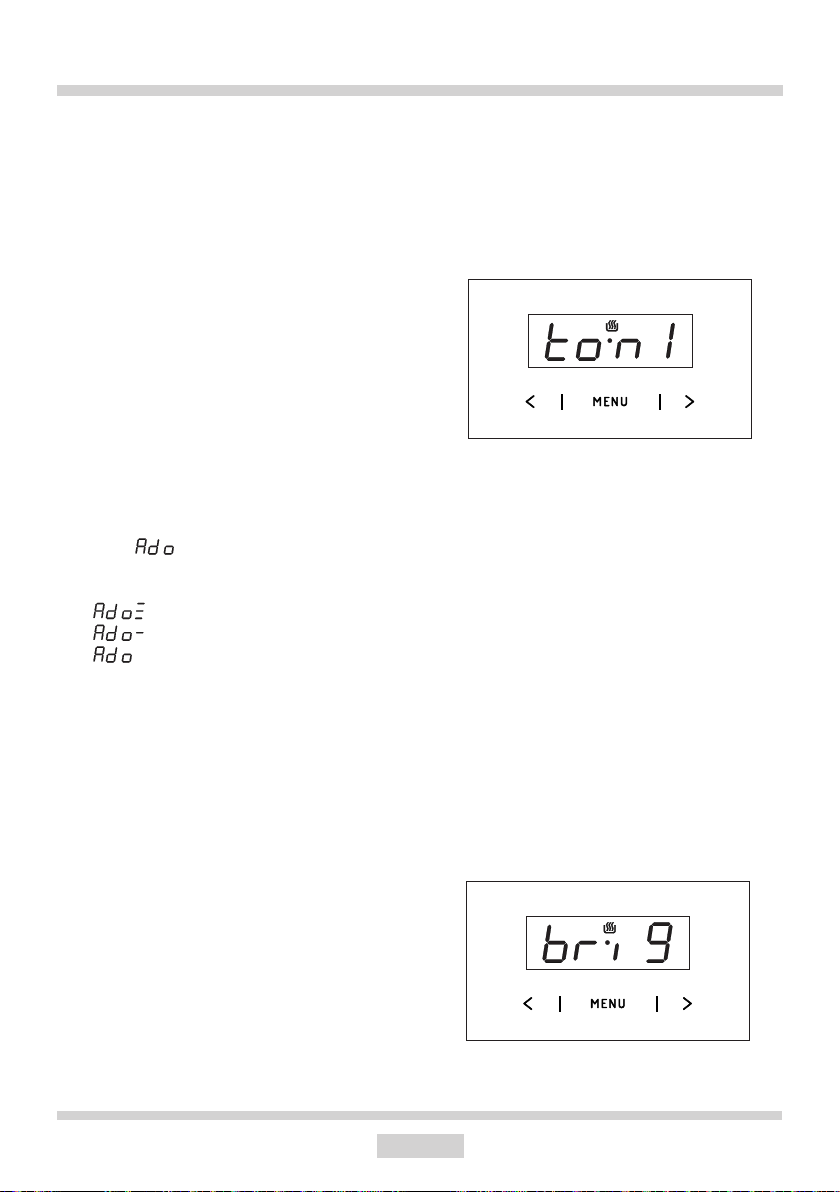

Change the beep tone
You can change the beep tones as follows:
l simultaneously touch the </ >, sensors
l Touch MENU repeatedly to select the ton
(tone). The display will be ashing:
l Use the </ >sensors to select your pre-
ferred tone:
Use >to select the setting 1 to 3
Use <to select the setting 3 to 1
Adjust display brightness
You can adjust display brightness 1 to 9,
where 1 is the darkest and 9 is the brightest.
The brightness setting applies to an inac-
tive control panel, i.e. when no controls are
touched for 7 seconds.
You can adjust display brightness as follows:
l Simultaneously touch the </ >sensors,
l Touch MENU repeatedly to select the bri
(brightness) setting — the settings can
be accessed in sequence ton (tone) and
bri (brightness).
The OpenUp! function
This function allows you to open the oven
door by touching the handle. There are two
opening modes to choose from – One time
and Always. In On-time mode you can touch
the handle to open the door once only each
time you set a heating function. In Always
mode you can always touch the handle to
open the door when you set a heating func-
tion.
IMPORTANT: The OpenUp! function is not
available when:
• Function knob is set to “0.”
• The appliance is Power On mode.
• Pyrolytic cleaning is in progress (ovens
with pyrolytic cleaning function).
To enable the function touch and hold MENU
until the message is shown on the
display. Use the <and >to select on of the
following:
• One Time OpenUp!
• Always OpenUp!
• Disable OpenUp!
To open the oven door, touch the metal strip
of the oven door handle. You need to touch
the handle for at least 0.5 second. The sen-
sitivity of the handle allows you to open the
door with your hand or a covered part of the
body, e.g. the elbow or the knee.
Regardless of the OpenUp! settings, the
door can be opened manually in any situa-
tion by pulling the handle.
Note: When OpenUp! function is active in
Always mode, door can be easily opened
inadvertently. We recommend to closely
supervise children or to deactivate the Ope-
nUp! function.

17
l Use the </ >sensors to select your pre-
ferred brightness:
Use > to select the setting 1 to 9
Use < to select the setting 9 to 1
Note:
The display is at its brightest setting when
active, i.e. a control was touched within the
last 7 seconds.
OPERATION
Night Mode
The display is dimmed during the night hours
22:00 — 06:00.
Oven door
Oven door must be closed during operation.
If the door remains open for more than 60
seconds and the function knob is in a posi-
tion other than “0”, you will hear a beep to
alert you that the door must be closed. The
following message will be shown .
Touch any sensor or close the oven door to
mute the beeping.
Limit the operating time
For safety reasons, the oven operation is
time limited.
If there is no delayed timed heating function
set and you have not turned the function
knob, the appliance will turn o󰀨 after 10 hours
of operation.

18
OPERATION
The oven can be switched o󰀨 by setting both
of these knobs to the position l/0.
Caution!
When selecting any heating function (switch-
ing a heater on etc.) the oven will only be
switched on after the temperature has ben
set by the temperature regulator knob.

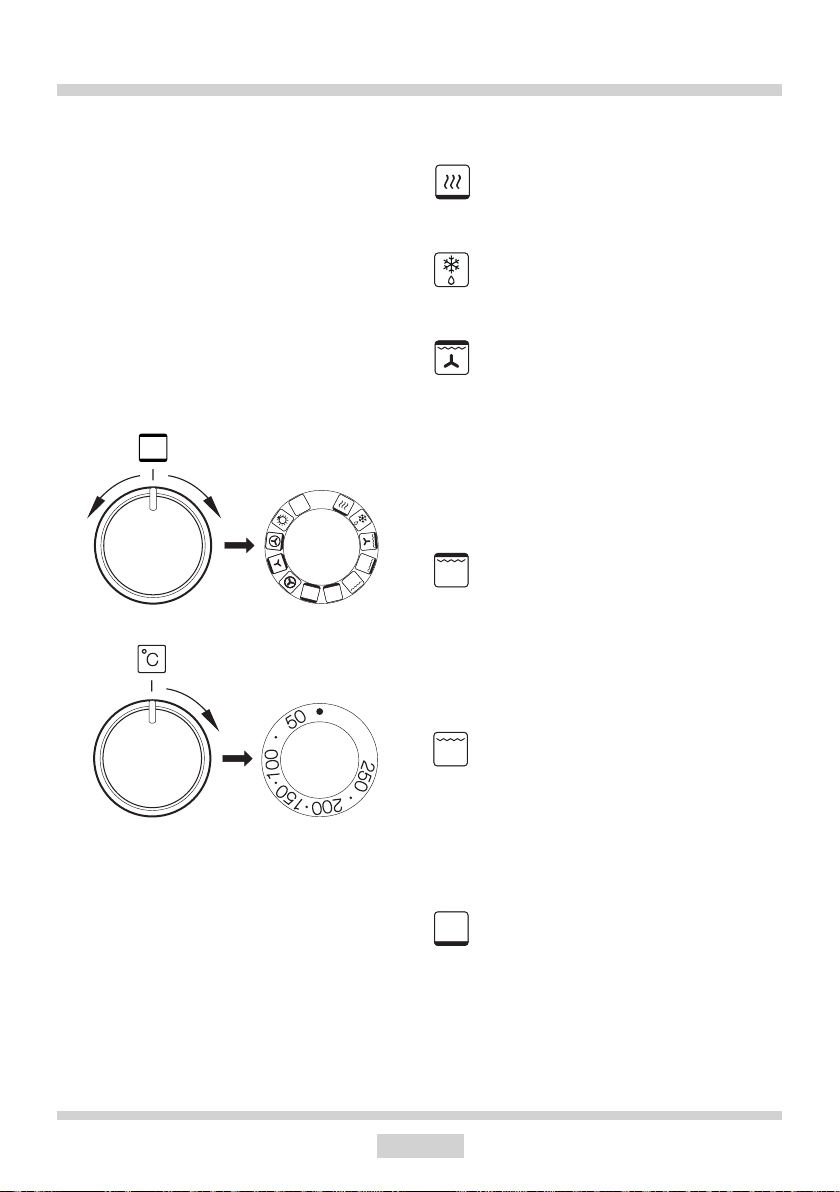

Oven with automatic air circulation
(including a fan and ring heater)
The oven can be heated up using the bottom
and top heaters, the grill or the ultra-fan he-
ater. Operation of the oven is controlled by
the oven function knob – to set a required
function you should turn the knob to the se-
lected position, and the temperature regulator
knob – to set a required function you should
turn the knob to the selected position.
0 Oven is o󰀨
Roaster on.
Roasting is used for cooking of small
portions of meat: steaks, schnitzel,
fish, toasts, Frankfurter sausages,
(thickness of roasted dish should not
exceed 2-3 cm and should be turned
over during roasting).
Defrosting
Only fan is on and all heaters are o󰀨.
Fan and combined grill on
When the knob is turned to this posi-
tion, the oven activates the combined
grill and fan function. In practice, this
function allows the grilling process to
be speeded up and an improvement
in the taste of the dish. You should
only use the grill with the oven door
shut.
Enhanced roaster (super roaster)
In this setting both roaster and top
heater are on. This increases tem-
perature in the top part of the oven’s
interior, which makes it suitable for
browning and roasting of larger por-
tions of food.
Rapid Preheating
Ring heater and roaster on. Use to
preheat the oven.
Oven functions and operation.
0
Eco
Bottom heater on
When the knob is set to this position
the oven is heated using only the
bottom heater. Baking of cakes from
the bottom until done (moist cakes
with fruit stu󰀩ng).

19
OPERATION
Top and bottom heaters on
Set the knob in this position for co-
nventional baking. This setting is ideal
for baking cakes, meat, sh, bread
and pizza (it is necessary to preheat
the oven and use a baking tray) on
one oven level.
Top heater, bottom heater and fan
are on.
This knob setting is most suitable
for baking cakes. Convection baking
(recommended for baking).
Convection with ring heating ele-
ment
Setting the knob in this position allows
the oven to be heated up by a heating
element with air circulation forced by a
rotating fan tted in the central part of
the back wall of the of and chamber.
Lower baking temperatures than in
the conventional oven can be used.
Heating the oven up in this manner
ensures uniform heat circulation aro-
und the dish being cooked in the oven.
Convection with ring heating ele-
ment and bottom heater on
With this setting the convection fan
and bottom heater are on, which in-
creases the temperature at the bottom
of the cooked dish. Intense heat from
the bottom, moist cakes, pizza.
Switching on the oven is indicated by tem-
peratureregulator signal light. If the light goes
out, it means the oven has reached the set
temperature. If a recipe recommends plac-
ing dishes in a warmed-up oven, this should
be not done before the signal light goes out
for the rst time. When baking, the light will
temporarily come on and go out (to maintain
the temperature inside the oven).
Independent oven lighting
Set the knob in this position to light up
the oven interior.
Eco heating
This is an optimised heating function
designed to save energy when pre-
paring food. At this knob position, the
oven lighting is o󰀨.
Eco

20
OPERATION
Warning!
When using function grill it is recommended
that the oven door is closed.
When the grill is in use accessible parts can
become hot.
It is best to keep children away from the oven.
Use of the grill
In order to switch on the grill you need to:
lSet the oven knob to the position marked
grill,
l Heat the oven for approx. 5 minutes (with
the oven door shut).
lInsert a tray with a dish onto the appropri-
ate cooking level; and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
lClose the oven door.
For grilling with the function grill and
combined grill the temperature must be
set to 220ºC, but for the function fan and
grill it must be set to a maximum of 190ºC.
