Amica ASC200WH/1 User manual

TYPE
10226.3eEdQW
10226.3eEdQX
10226.3eEdQS
MODEL
ASC200WH/1
ASC200SS/1
ASC200BL/1
INSTRUCTION MANUAL
BUILT-IN ELECTRIC OVEN
IO-CBI-1334 / 8506492
(06.2019 / v2)

2
DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 8
Operation........................................................................................................................... 10
Baking in the oven – practical hints ............................................................................... 13
Test dishes ........................................................................................................................ 16
Cleaning and maintenance.............................................................................................. 18
Installation instructions................................................................................................... 21
Specications ................................................................................................................... 24

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.
Accessible parts may become hot during use. Young
children should be kept away.
Warning: Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result
in shattering of the glass.

5
SAFETY INSTRUCTIONS
● Ensurethatsmallitemsofhouseholdequipment,includingconnectionleads,do
nottouchthehotovenastheinsulationmaterialofthisequipmentisusuallynot
resistant to high temperatures.
● Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchredue
to overheating or boiling over.
● Donotputpansweighingover15kgontheopeneddooroftheoven.
● Donotuseharshcleaningagentsorsharpmetalobjectstocleanthedoorasthey
can scratch the surface, which could then result in the glass cracking.
● Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedby
anappropriatelyqualiedandauthorisedperson.
● Intheeventofanyincidentcausedbyatechnicalfault,disconnectthepowerand
report the fault to the service centre to be repaired.
● Therulesandprovisionscontainedinthisinstructionmanualshouldbestrictly
observed. Do not allow anybody who is not familiar with the contents of this instruc-
tion manual to operate the oven.
● Theappliancehasbeendesignedonlyforcooking.Anyotheruse(forexample
forheating)doesnotcomplywithitsoperatingproleandmaycausedanger.
Warning:Ensurethattheapplianceisswitchedo󰀨
before replacing the lamp to avoid the possibillity of
electric shock.
You should not use steam cleaning devices to clean
the appliance.

6
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
 Switch o󰀨 the oven in good time and
make use of residual heat.
For long cooking times, switch o󰀨 heating
zones5to10minutesbeforenishingcook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the oven in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
HOW TO SAVE ENERGY

7
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronicequipment.Asymbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

8
DESCRIPTION OF THE APPLIANCE
Function Selector
Control
Thermostat Control
Thermostat Lamp L
Oven Indicator
Lamp R

9
SPECIFICATIONS OF THE APPLIANCE

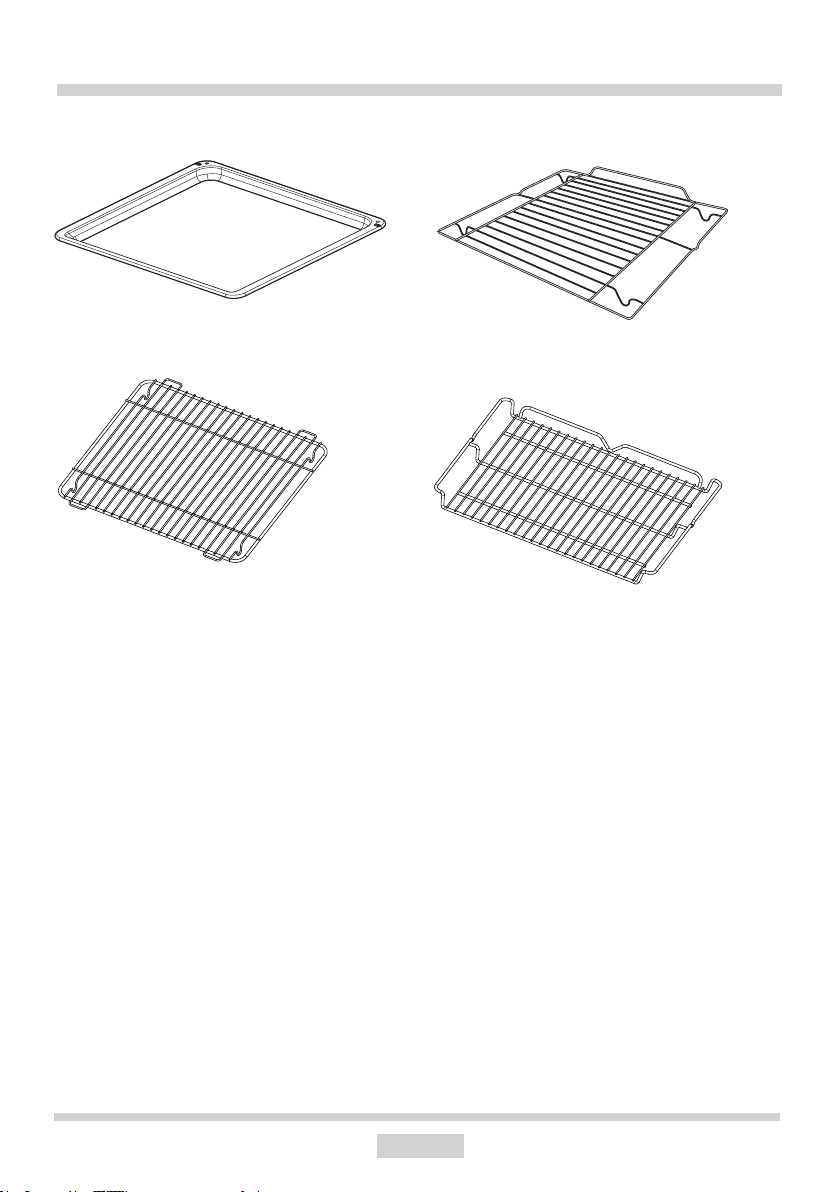

Cookerttings:
Baking tray
*All images are for indication only; please refer to your individual unit for actual item.
Grill Rack
Grill grate
(drying rack)
Wire Shelf

10
OPERATION
Before using the appliance for the
rst time
Important!
To clean the oven, only use a cloth
well rang out with warm water to
which a little washing-up liquid has
been added.
First start – preliminary cleaning
To remove residues of fat and oil accumulated
during the manufacturing process and dust
accumulated during storage and transport,
the preliminary cleaning of the equipment
should be carried out. This way our health
is protected and tasty cakes and roasts are
provided.
Caustic agents and abrasive powders
should be avoided as they can damage
the surface.
Preliminary heating
1. Remove packaging elements from the
oven chamber.
2. Turn on ventilation in the room or open a
window.
3. Start the oven at the temperature of 2500C.
4. Heat the oven for around 30 minutes.
The smell that is emitted during the rst
heating of the oven is connected with
vapouring of residues of fat and oil used to
protect the oven for the time of storing.

11
OPERATION

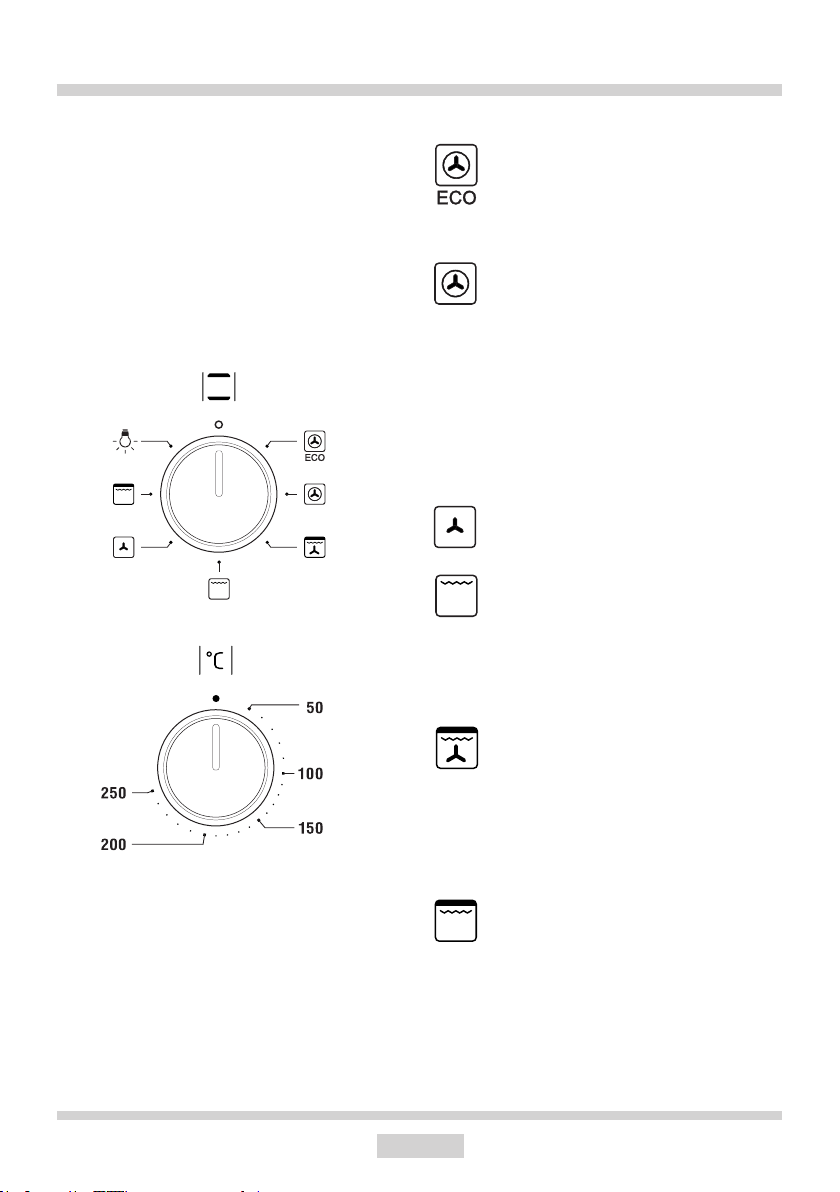

Oven functions and operation.
Theovencanbeswitchedo󰀨bysettingboth
of these Controls to the position “”/“o”.
Caution!
When selecting any heating function (switch-
ing a heater on etc.) the oven will only be
switched on after the temperature has ben
set by the Thermostat Control.
oOveniso󰀨
Fan oven
Using the circular element and the fan
with a temperature between 50°C and
250°C, this cooking function blows the
air into and around the oven cavity.
Heating in this manner helps to ensure
uniform heat circulation. Both cooking
temperatures and cooking times can
bereducedforamoreenergye󰀩cient
cooking process.
Defrost
Onlyfanisonandallheatersareo󰀨.
Half grill
This function radiates the heat from the
grill element.
This fully temperature variable grill
can be set between 50°C and 250°C
maximum.
Fanned full grill
This function radiates the heat from
the grill element and the top element
with fan.
This function allows the grilling pro-
cess to be speeded up and an impro-
vement in the taste of the dish.
Full grill
This function radiates the heat from
the grill element and the top element.
This fully temperature variable grill is
ideal for grilling a full family meal. It
can be set between 50°C and 250°C
maximum.
The oven can be heated up using the top
heater, the grill or the ultra-fan heater. Opera-
tion of the oven is controlled by the Function
SelectorControl–tosetarequiredfunction
you should turn the Control to the selected
position, and the Thermostat Control – to set
arequiredtemperatureyoushouldturnthe
Control to the selected position.
ECO Heating
This is an optimised heating function
designed to save energy when prepa-
ring food. When using this function, the
ovenlightisintentionallylefto󰀨.

Use of the grill
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
In order to switch on the grill you need to:
Set the Function Selector Control to the
position marked grill.
Heat the oven for approx. 5 minutes (with
the oven door shut).
Insert a tray with a dish onto the appropri-
ate cooking level; and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
Close the oven door.
For grilling with the function grill and
combined grill the temperature must be
set to 250ºC, but for the function fan and
grill it must be set to a maximum of 190ºC.
Warning!
When using function grill it is
recommended that the oven
door is closed.
When the grill is in use ac-
cessible parts can become
hot.
It is best to keep children
away from the oven.
12
OPERATION

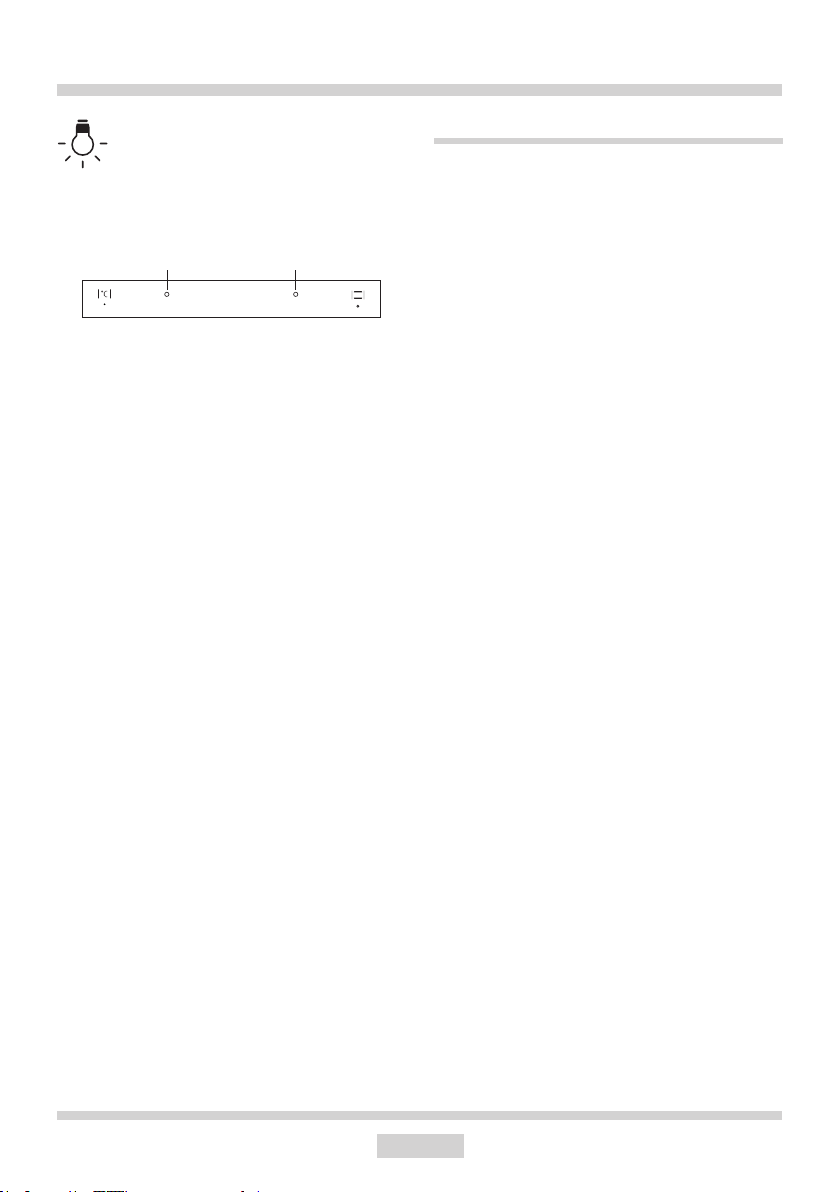

Switching on the oven is indicated by two
signal lights, R, L, turning on. The Rlight
turned on means the oven is working. If the L
light goes out, it means the oven has reached
the set temperature. If a recipe recommends
placing dishes in a warmed-up oven, this
should be not done before the Llight goes out
forthersttime.Whenbaking,theLlight will
temporarily come on and go out (to maintain
the temperature inside the oven).
L R
Light
The oven light will be turned on.

13
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roastingyoushouldalsobastethemeatwithitsjuicesorwithhotsaltywater–do
not pour cold water over the meat.
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct heat
better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
when using the ultra-fan function it is not necessary to initially heat up the oven
chamber, for other types of heating you should warm up the oven chamber before
the cake is inserted;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
 afterswitchingo󰀨theovenitisadvisabletoleavethecakeinsideforabout5min.;
temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees
lower than in normal baking (using top and bottom heaters);
the baking parameters given in Table are approximate and can be corrected based
on your own experience and cooking preferences;
 ifinformationgiveninrecipebooksissignicantlydi󰀨erentfromthevaluesincluded
in this instruction manual, please apply the instructions from the manual.

14
BAKING IN THE OVEN – PRACTICAL HINTS
Type of
dish
Oven
functions
Temperature
°C
Level Time
(min.)
180 - 200 2 - 3 50 - 70
180 - 200 2 50 - 70
190 - 210 2 - 3 45 - 60
200 - 220 2 90 - 120
200 - 220 2 90 - 160
180 - 200 2 80 - 100
ECO Heating
ECO Heating an optimised heating function designed to save energy when
preparing food.
You cannot reduce the cooking time by setting a higher temperature; preheating
the oven is not recommended.
Do not change the temperature setting and do not open the oven door during
cooking.

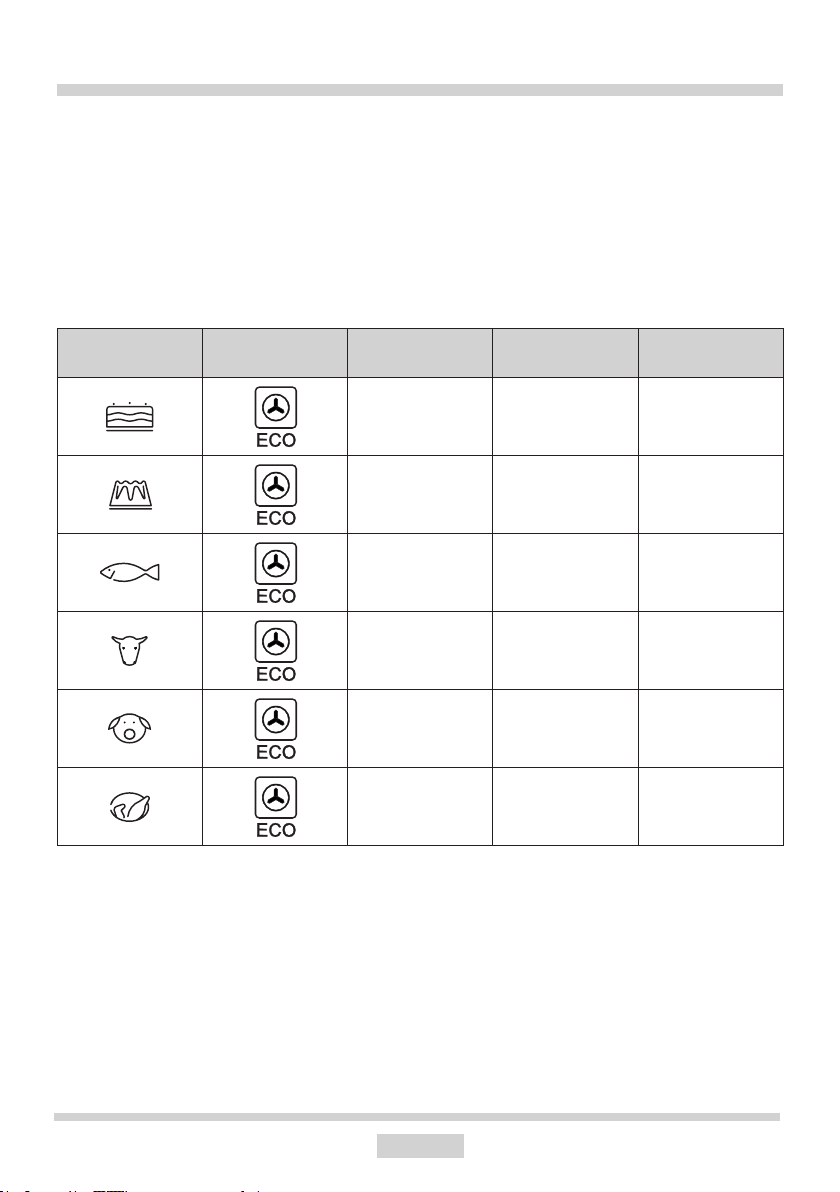

Recommended setting for ECO Heating

15
Type of
dish
Oven
functions
Temperature
°C
Level Time
(min.)
155 - 170 1) 3 25 - 40 2)
160 - 180 2 - 3 45 - 60
190 2 - 3 60 - 70
230 - 250 4 14 - 18
160 - 180 2 120 - 160
160 - 190 2 90 - 120
180 - 190 2 70 - 90
175 - 190 2 60 - 70
170 - 190 3 40 - 50
The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be
reduced by about 5-10 minutes.
1) Preheat
2) Baking smaller items
Note:TheguresgiveninTablesareapproximateandcanbeadaptedbasedonyourownexperience
and cooking preferences.
BAKING IN THE OVEN – PRACTICAL HINTS

16
TEST DISHES. According to standard EN 60350-1.
Type of dish Accessory Level Type
of heating
Temperature
(0C)
Baking
time 2)
(min.)
Small cakes
Baking tray 3 160 - 170 1) 25 - 40 2)
Baking tray 3 155 - 170 1) 25 - 40 2)
Baking tray 3 155 - 170 1) 25 - 40 2)
Baking tray
Roasting tray
2 + 4
2 - baking tray
or roasting tray
4 - baking tray
155 - 170 1) 25 - 50 2)
Shortbread
Baking tray 3 150 - 160 1) 30 - 40 2)
Baking tray 3 150 - 170 1) 25 - 35 2)
Baking tray 3 150 - 170 1) 25 - 35 2)
Baking tray
Roasting tray
2 + 4
2 - baking tray
or roasting tray
4 - baking tray
160 - 175 1) 25 - 35 2)
Fatless sponge
cake
Wire rack +
black baking
tin
diameter 26cm
3 170 - 180 1) 30 - 45 2)
Apple pie
Wire rack + 2
black baking
tins
diameter 20cm
2
black baking
tins placed
after the dia-
gonal,
back right,
front left
180 - 200 1) 50 - 70 2)
Baking
1) Preheat, do not use Rapid preheat function.
2) The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should
be reduced by about 5-10 minutes.

17
TEST DISHES. According to standard EN 60350-1.
Type of dish Accessory Level Type
of heating
Temperature
(0C)
Time
(min.)
White bread
toast
Wire rack 4 250 1) 1,5 - 2,5
Wire rack 4 250 2) 2 - 3
Beef burgers
Wire rack +
roasting tray
(to gather
drops)
4 - wire rack
3 - roasting
tray
250 1) 1st side 10 - 15
2nd side 8 - 13
Grilling
1) Preheat for 5 minutes, do not use Rapid preheat function.
2) Preheat for 8 minutes, do not use Rapid preheat function.
Type of dish Accessory Level Type
of heating
Temperature
(0C)
Time
(min.)
Whole chicken
Wire rack +
roasting tray
(to gather
drops)
2 - wire rack
1 - roasting
tray
180 - 190 70 - 90
Wire rack +
roasting tray
(to gather
drops)
2 - wire rack
1 - roasting
tray
180 - 190 80 - 100
Roasting
The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be
reduced by about 5-10 minutes.

Important!
Do not use any abrasive agents,
harsh detergents or abrasive ob-
jects for cleaning.
Only use warm water with a small
amount of dishwashing liquid to
clean the front of the appliance.
Do not use washing powders or
creams.
18
CLEANING AND MAINTENANCE
By ensuring proper cleaning and mainte-
nance of your cooker you can have a sig-
nicantinuenceonthecontinuingfault-free
operation of your appliance.
Before you start cleaning, the cooker must
be switched o󰀨 and you should ensure
that all knobs are set to the “O󰀨” position.
Do not start cleaning until the cooker has
completely cooled.
●The oven should be cleaned after every
use. When cleaning the oven the lighting
should be switched on to enable you to
see the surfaces better.
●The oven chamber should only be washed
with warm water and a small amount of
washing-upliquid.
●After cleaning wipe over chamber dry.
●Use a soft, moisture absorbing cloth to
clean surfaces

CLEANING AND MAINTENANCE
Door removal
In order to obtain easier access to the oven
chamber for cleaning, it is possible to remove
the door. To do this, tilt the safety catch part
ofthehingeupwards(g.A).Closethedoor
lightly, lift and pull it out towards you. In order
totthedoorbackontothecooker,dothe
inverse.Whentting,ensurethatthenotchof
the hinge is correctly placed on the protrusion
ofthehingeholder.Afterthedooristtedto
the oven, the safety catch should be carefully
lowered down again. If the safety catch is not
set it may cause damage to the hinge when
closing the door.
Removing the inner panel
1. Usingaatscrewdriverunhooktheup-
per door slat, prying it gently on the sides
(g.B).
2. Pulltheupperdoorslatloose.(g.B,C)
Tilting the hinge safety catches
A
B
C
19

CLEANING AND MAINTENANCE
3. Pull the inner glass panel from its seat
(in the lower section of the door). Re-
movetheinnerpanel(g.D).
4. Clean the panel with warm water with
some cleaning agent added.
Carry out the same in reverse order to
reassemble the inner glass panel. Its
smooth surface shall be pointed up-
wards.
Important! Do not force the upper
strip in on both sides of the door at
the same time. In order to correctly t
the top door strip, rst put the left end
of the strip on the door and then press
the right end in until you hear a “click”.
Then press the left end in until you hear
a “click”.
Removal of the internal glass panel
D
1
2
3
1
2
3
1
2
3
Replacement of the oven light bulb
In order to avoid the possibil-
ity of an electric shock ensure
that the appliance is switched
o󰀨beforereplacingthebulb.
Set all control knobs to the position “”/“0”
and disconnect the mains plug,
unscrew and wash the lamp cover and
then wipe it dry.
unscrew the light bulb from the socket,
replace the bulb with a new one – a high
temperature bulb (300°C) with the follow-
ing parameters:
- voltage 230 V
- power 25 W
- thread E14.
Screw the bulb in, making sure it is prop-
erly inserted into the ceramic socket.
Screw in the lamp cover.
Oven light bulb
20
