Amos TEC 2602 User manual

TEC 2602（Version：AMOSTEC2602OP20150317）
Slide Dryer
Operation Manual
www.amos-scientific.com
AMOS SCIENTIFIC PTY.LTD. ABN37 159 778 140

ForeWord
Thank you for purchasing our
Slide Dryer. Presented in this
《Operation Manual 》are the
functions and operation methods of
the Slide Dryer and the matters
needs attention for safety reasons.
Please carefully read this manual
before using so that you can
understand its functions better and
make full use of the products. If you
have any questions, please contact
us and we will provide best service
for you at any time.
Please keep this 《Operation
Manual》appropriately for later
consultation.

Contents
1. Safety Matters..............................................................................................................1
1.1 Safety attentions…………………………………………………………….....………….1
1.2 Conditions of installation……………………………………………………….....……..1
1.3 delivery inspection………………………………………………………….....………….1
2. Functions characteristics apply condition...................................................................2
3. Main structures Of Slide Dryer ..................................................................................2
4. Technical Data................................................................................................................3
5. Operation Manual .........................................................................................................3
5.1Explaination Of Functional Keys......................................................................................3
5.2Instructions..........................................................................................................................4
5.3Function Declaration Of Alarm.........................................................................................4
6.Layout Of Components＆Wire Diagram Of Electric Equipment...................................5
7. Schematic Diagram........................................................................................................................6.
8. Cleaning ＆Maintenance...........................................................................................................7
9.Trouble shooting.............................................................................................................7

TEC2602 Slide Drier AMOSTEC2602OP20150317
---1---
1. Safety Matters
1.1 Safety attentions
●Please read these explicit rules. Act in violation of them can affect normal operation of the
equipment, causing damages to the equipment or resulting in dangers.
Use 220VAC±10% at50HZ or 110VAC±10% at60HZ
The input power supply must have good earth connection
The equipment should be installed far away from flammable and explosive objects
Don’t open the equipment without authorization to prevent high voltage shock
Only professional maintenance worker are allowed to repair this product
Use fuses with correct capacity
Ensure that the power supply socket and circuit are able to withstand at least two times
The equipment should be installed far away from any interference source
Caution: Hot .
Electrical Protection Ratings: I class, B type
Shell protection grade: IP53
Baleful liquid Leak-in proof degree: Normal (enclosed equipment without liquid leak-in
proof)
Working system: Continuous running
1.2 Conditions of installation
(1) More than 20cm of space around the equipment for heat dissipation.
(2) Free of water-drop ,steam, dust(including oily dust and flying dust)
(3) Free of corrosive, flammable and explosive gas and liquid
(4) Stable and avoid vibration
(5) Free of electromagnetic interference
(6) Ambient temperature and relative humidity at -10℃—+50℃and less than 90%,respectively
1.3 Delivery inspection
Although the product quality has already been inspected before leaving the factory, the following
inspection is necessary at delivery because the products be damaged and accessories get missing during

TEC2602 Slide Drier AMOSTEC2602OP20150317
---2---
transportation.
(1) Open the packing boxes and check the contents to make sure that there is the product, operation
manual, certificate, packing list and accessories.
(2) Check the nameplate to make sure that the product is the one you ordered.
(3)Make sure that the product and accessories do not get damaged or missing during transportation.
2. Functions characteristics apply condition
The Slide Dryer is made of sheet aluminum and has the advantages of artistic appearance, non
touchable temperature control, stable performance, program control system and easy and reliable
operation. It is mainly used for flattening and drying of the microtome sections of tissues.

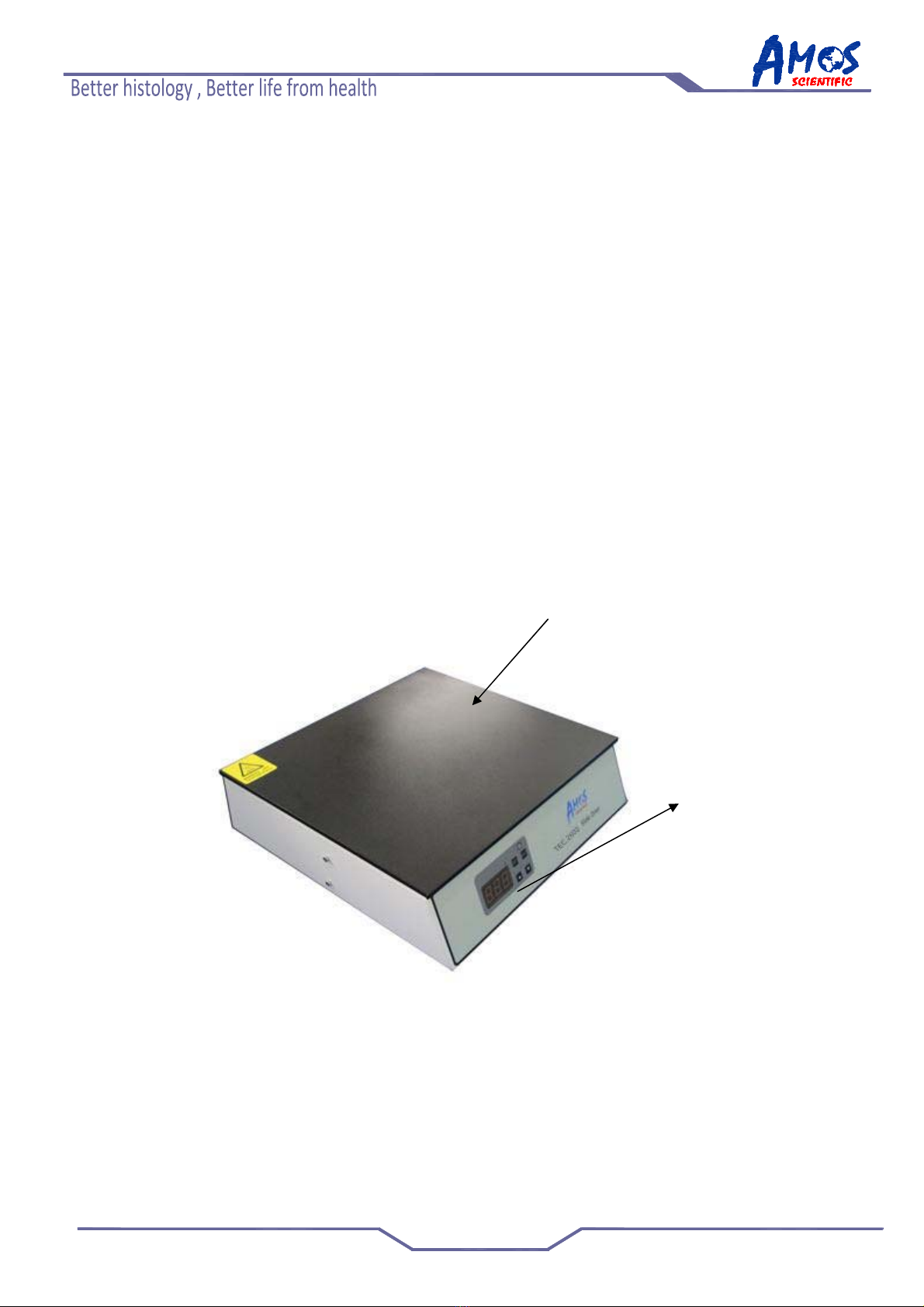

3.Main structures of Slide Dryer
Table of Slide Dryer
Key board

TEC2602 Slide Drier AMOSTEC2602OP20150317
---3---
4. Technical Data
●Table top: 324mm×272mm
●Temperature range: ambient temperature ~90℃
●Temperature control accuracy: ±1℃
●Rated voltage: 220V±10% at 50Hz or 110V±10% at 60Hz
●Fuse : 220V/3A or 110V/5A
●Rated power: 350W
●Outside dimensions (mm): 324(W) ×300(D) ×85(H)
●Weight:2.75kg
5. Operation Manual

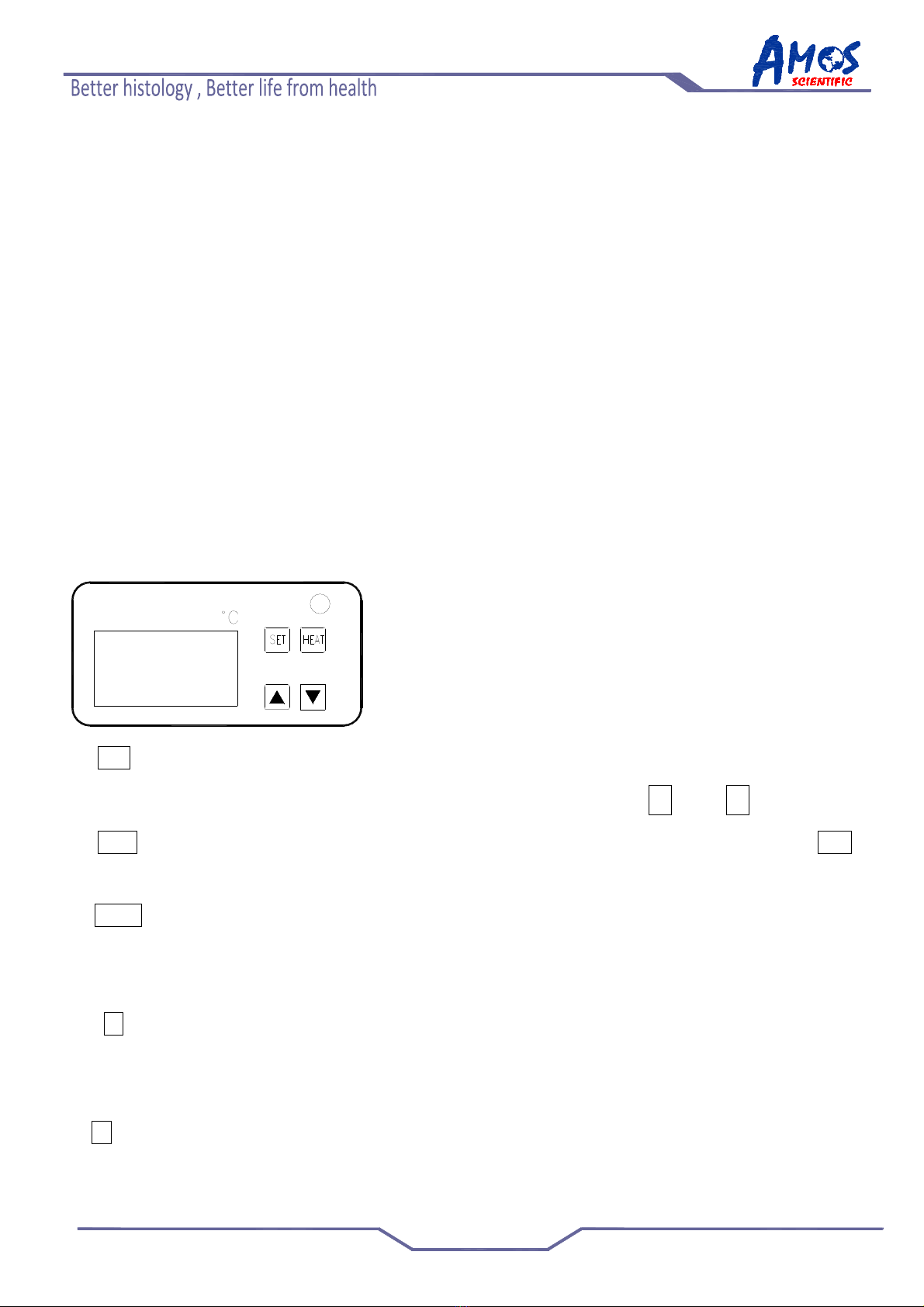

● 5.1 Explanation of Functional keys
SET---Used for setting temperature. Press this button, the indicator lamp will be light up, and the
setting temperature value display on the LED. Adjust the temperature by ▲ and ▼ , and press
SET to exit the setting status. Or the system will test and exit the setting status automatically if SET
not pressed to exit.
HEAT----Press this key to select HEAT ON or HEAT OFF, the machine is on the heating mode if the
red indicator lamp lights up. And machine is heating off if the lamp lights off.
The buzzer sounds is single that indicate the operation is effective.
▲----Press the key to increase the temperature degree short press the button as 1
degree to plus, long press the button to plus as 0.1 at beginning to 1 after a period time
and then keep quickly as 1 plus.
▼----- Press the key to decrease the temperature degree ,press the button quickly as
1 degree to decrease, long press the button to decrease as 0.1 at beginning to 1 after a

TEC2602 Slide Drier AMOSTEC2602OP20150317
---4---
period time and then keep quickly as 1 decrease.
● 5.2 Instructions
1) Before operation, check whether every part of the machine is in normal
condition.
2) Connect the machine to power on and turn on the power switch at the back
cover. Right now the buzzer sounds and the LED display the ambient temperature,
which means the machine is in normal working state.
3) Now you can operate the machine according to the explanation of key
instructions mentioned above.
4)Temperature error and regulation
The unit with high precision of temperature control already been adjust at factory before shipping,
if customer feel the temperature control accuracy cann't meet demand, please calibration as the
method:
For example: If the setting temperature is 48℃, After the unit is heating up thirty minutes about
later, test the water temperature is Twater=49.3℃by thermometer.
Calculation of the value necessary to compensate Tc=Tsetting-Twater（-1.3℃）
Press SET enter into the setting status, the green indicator lamp will light up, long press HEAT
4 seconds more, LED display the current temperature compensation (-4 ℃~+6 ℃). If the
temperature compensation displayed 2℃which request to plus the Tc(-1.3℃）to get the new
compensate Tc'（2℃-1.3℃=0.7℃），press ▲Or ▼to adust , and exit after five seconds
automatically.
● 5.3 Function Declaration Of Alarm
If the buzzer is sounds continuously, that means the machine malfunctioned :
E01 After power on and heating, the temperature don't changes, the possible reasons is the digital
sensor measurement failure or heating film, solid state relay is damaged or disconnected.
E02 the digital sensor measures the temperature is over 100 degree, the solid state relay or sensor
meet problem.
E03 the digital sensor measures the temperature is under -10 degree, please preclude the ambient
temperature reason firstly. If the ambient temperature within the requirement, the possible reason is
the digital sensor is damaged, no signal input, please replace the new sensor.

TEC2602 Slide Drier AMOSTEC2602OP20150317
---5---
6.Layout Of Components＆Wire Diagram Of Electric Equipment

TEC2602 Slide Drier AMOSTEC2602OP20150317
---6---

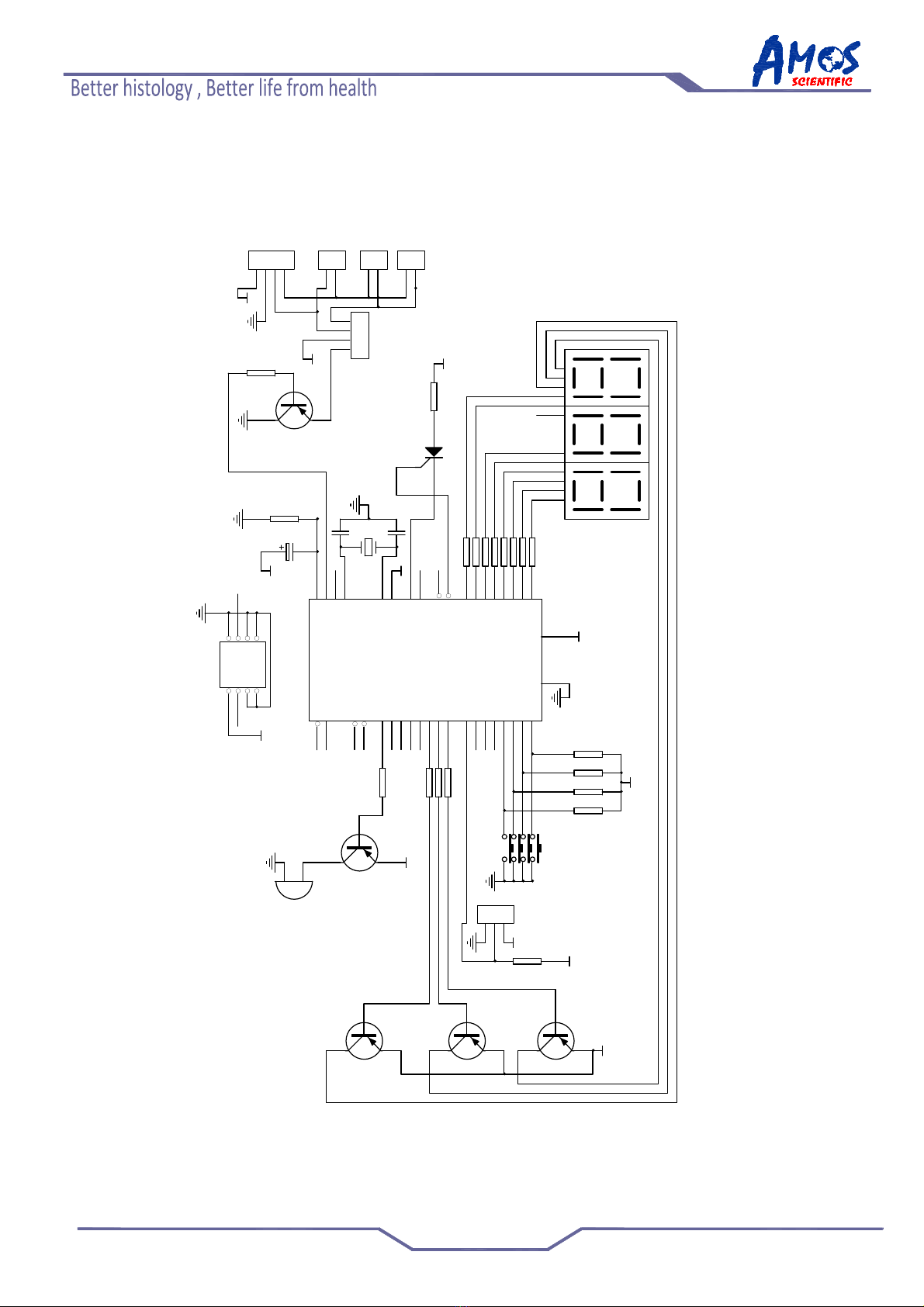

7. Schematic Diagram
EA/VP
31
X1
19
X2
18
RESET
9
RD 17
WR 16
INT0
12 INT1 13
T0
14 T1 15
P10
1
P11
2
P12
3
P13
4
P14
5
P15
6
P16
7
P17
8
P00 39 P01 38 P02 37 P03 36 P04 35 P05 34 P06 33 P07 32 P20 21 P21 22 P22 23 P23 24 P24 25 P25 26 P26 27 P27 28
PSEN 29
ALE/P 30
TXD
11 RXD 10
VCC 40
GND 20
+5V
C3
89S52
+5V
1
2
3
4
SSR1
+5V
+5V
+5VC1
C2
S1 S2 S3 S4
R19 R20R18R17
+5V
1 2 3
DS18 B2 0
+5V
+5V
+5V
R16
R13
R14
1 2 3 4
IC 1 (DC )
+5V
R10 R11 R12
R4 R3 R7 R2 R1 R6 R5 R8
R9
+5V R15
Y1
1 2
INP UT
1 2
220V
B1
T1
T5
T2 T3
T4
1 2 3 4 5 6 7 8
24c02
+5V
P2.4 P2.5 S-CPU
1 2
FAN LED
8912356 101 42711
LED3

TEC2602 Slide Drier AMOSTEC2602OP20150317
---7---
8. Cleaning ＆Maintenance
●Prior to operation, please earnestly read this Operation Manual and carry out by this
Manual.
●Keep the instrument cleaning. Please clean up the remaining substance and dirt
after work finished.
●Forbid using sharp hard object to harm the worktable.

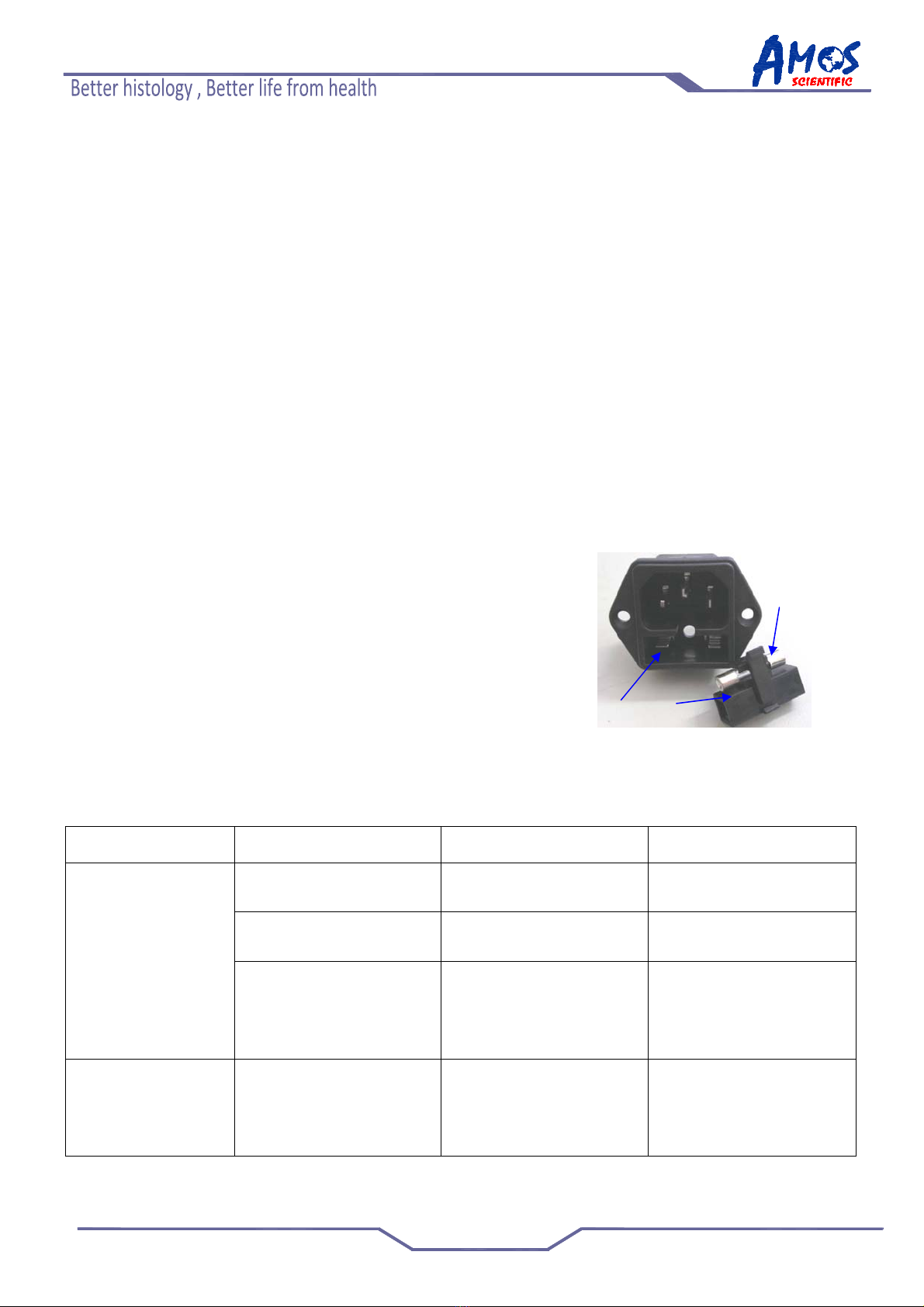

●Install fuse as figure(1) shown then put it into the installation part as figure(2)shown.At
last put the whole installation into the receptacula as figure(3)shown.
●Before replacing the fuse must turn off the power switch and disconnect the
power.Specification of fuse: 3A（220V）,5A(110V).
9.Trouble shooting
Symptom Cause Judgment Remedy
No display
Poor connection of power
supply
Connection again Connection well
Switch at the rear of the
equipment not on
Turn on Turn on
Fuse blow
Take out the fuse to check its
internal resistance by
multimeter, if the value is
infinite, the fuse is broken
Replace a new one
Buzzer sounds Temperature sensor was
damaged
Connect a new sensor to
terminal to start machine, if
all be okay, it means the
sensor is broken
Replace a new one
2
3
1

Standard Accessories List
No Accessory Name Qty Notes
1 Slide Dryer 1 unit
2 Power Cord 1pc
3 Fuse 2pcs
4 Operation Manual 1pc

Published by:
AMOSSCIENTIFICPTY.LTD
7 Gabrielle Court,Bayswater North VIC 3153 Melbourne , Australia
Tel: [phone] Fax: [phone]
ABN 37 159 778 140
www.amos-scientific.com
