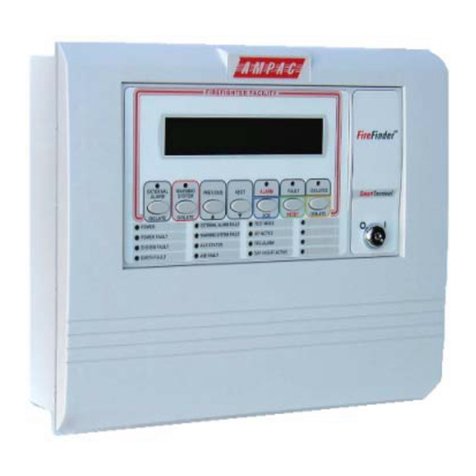

SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
SmartTerminal
Smart Terminal
LoopSense EN54
Installation, Commissioning &
Operation
MAN 1557-6

2
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
Table of Contents
Page No.
1Introduction.............................................................................................................................3
2Mechanical ..............................................................................................................................4
2.1 Mounting the Enclosure..............................................................................................4
2.1.1 Enclosure Details.........................................................................................4
2.1.2 Fixing the Chassis to the Wall......................................................................4
2.1.3 Board Removal / Replacement....................................................................5
2.1.4 Removing the Knockouts.............................................................................6
3Installation & Cabling..............................................................................................................7
3.1 SmartTerminal Termination Board Interconnection.....................................................7
3.2 FACP Comms............................................................................................................7
4Setting the Address................................................................................................................8
5Setting the SmartTerminal in LoopMaster.............................................................................9
6Operation...............................................................................................................................11
7Controls and Indicators........................................................................................................12
7.1 LCD Screen Format .................................................................................................16
8Specifications........................................................................................................................18
9Trouble Shooting Chart ........................................................................................................19

3
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
1 Introduction
SmartTerminal has been designed for use with the LoopSense series of FACP’s.
4 line by 40 character LCD with backlight and navigation keys keys allow the
SmartTerminal to be used for FACP operation and interrogation. Note the backlight is only
energised when alarms are present, a key has been pressed or controls enable key switch is
enabled
Buzzer and system Reset.
System expansion capabilities / options:
A wide range of secure user functions. This includes the ability to disable / re-enable a large
number of system functions.
Flush or surface mountable enclosure.
Controls have tactile and audible feedback of operation.
All terminals cater for 2.5mm cables.
SmartTerminal connects to the LoopSense Fire Alarm Control Panel (FACP) via the RS485
multidrop communication port. Generally it is designed to be used anywhere where the status of the
FACP is required to be monitored by local personnel and limited control is required.
Front panel controls that allow the resetting of alarms and activation/silencing of alarm
devices. Enabling operational access to the controls is via a key-switch;
Reports events from devices that are accessible to the host FACP. For example if the host
FACP is configured with global access then the connected SmartTerminal reports events
from all devices. If the host FACP is configured as local then the connected SmartTerminal
reports events from devices that are directly connected to the host FACP.
SmartTerminal essentially consists of two PCBs;
1. SmartTerminal Termination Board. A Termination Board is mounted in each SmartTerminal
to protect and interface the RS485 communications and 27VDC supply to the LCD Board
2. BRD82ICC –Control, LCD Communications and LCD Driver Board
SmartTerminal can be supplied in two styles;
1. BX05: Slim line SmartTerminal
2. BX1: Standard SmartTerminal
Note:A maximum of 30 SmartTerminal’s may be connected to the communications bus over a
distance of approximately 1.2Kms

4
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
2 Mechanical
SmartTerminal is supplied in an ABS cabinet and consists of;
The Main Card, with all controls and indicators mounted directly onto it
1 X Termination Board
2 X ABS door keys
2 X 003 Enable / Disable keys
2 X Jumper links
The front door of the ABS version is locked by way of two clips on the right hand side of the cabinet.
A special locating key which has two raised pins that are inserted into the side of the cabinet unlocks
the door.
DOOR RELEASE PINS
DOOR RELEASE PINS
Figure 1: ABS Door Key
2.1 Mounting the Enclosure
The panel MUST be mounted in an area that is NOT subject to conditions likely to affect its
performance, e.g. damp, salt-air, water ingress, extremes of temperature, abuse etc. is at an easily
accessible height and such that the indicators are at eye level.
Typical locations for the panel are the first and most obvious point of contact for emergency services
or a security office that is likely to be permanently staffed.
2.1.1 Enclosure Details
The LCDA can be surface or semi-flush mounted, is supplied with a detachable front door,
mountable back box and a minimum of two separate PCBs.
2.1.2 Fixing the Chassis to the Wall
Taking into account the weight of the panel securely mount it by using the three keyhole mounting
holes in the backpan, two in the top and one in the bottom. Use suitably sized screws and plugs for
the type of mounting surface.
Caution: Any dust or swarf created during the fixing process must be kept out of the cabinet and
great care should be taken not to damage any wiring or components.

5
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
2.1.3 Board Removal / Replacement
If a PCB has to be removed the following precautions should be observed;
Removing the door will provide better access to the boards and will ensure the hinges are
not accidentally stressed.
Personal anti- static procedures must be followed.
When disconnecting the RJ45 style connecting cable from the PCB, make sure that the
cable remains connected to at least one board to prevent it being misplaced.
Push Tab Inwards
and Gently Pull
the Connector
From the Socket
Connector
Note: Care should be taken when detaching this connector as it is necessary to depress the
small locking tab to unlock the connector from its base. To reconnect the cable the connector must
first be correctly aligned then pushed into the socket so it locks into position.
Carefully remove the retaining screws at each corner of the board taking care not to damage
any of the components.
Place each board into anti- static storage once removed.

6
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
2.1.4 Removing the Knockouts
The knock-outs should be removed with a sharp tap in the rim of the knock-out using a flat broad-
bladed screwdriver. Note: Use of excessive force could damage the enclosure around the knock-out.
Note: BX05 shown the BX1 is set out in a similar manner.
Note: Any unused knock-outs must be securely blanked off.
TO REMOVE THE FRONT DOOR
SLIDE THE TOP AND BOTTOM
HINGE PINS OUT OF THE HINGES
TAP AROUND
RIM TO
REMOVE
KNOCKOUTS
FRONT DOOR
KEY SUPPLIED
TAPED TO TOP
OF ENCLOSURE
ENABLE / DISABLE KEY
SUPPLIED TAPED TO INSIDE
OF ENCLOSURE
CONTROL
PANEL CLIPS
INTO FRONT DOOR
INSERT KEY
TABS HERE
TO UNLOCK
ENCLOSURE
CONNECT BRD82LTB
CN1 TO BRD82ICC
CN5
BRD82ICC
BRD82LTB
HINGE PIN 1
HINGE PIN 2
Figure 2: Exploded View
BRD82LTB
KNOCKOUTS
CN1
R 6mm.
12 mm
KEY HOLE
MOUNTING
HOLE
0V
POWER OUT
POWER IN
+24V
RS4 85 IN RS485 OU T
03/05/2006 BRD82LTB2-
TB2 TB1 TB4
TB3
LK1
COM
-
+
COM
-
+
0V
+24V
195mm
39 mm
324mm
213mm
127mm
304mm
175mm
Figure 3: Typical Layout (Externally Powered) and Location of Keyholes

7
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
3 Installation & Cabling
The SmartTerminal is then connected to the FACP as shown below.
TERMINATION BOARD No.1 ( BRD82LTB2 )
SmartTerminal 1 SmartTerminal 2
(IF FITTED)
SHIELDED COMMS CABLE
TO NEXT LCDA
MAXIMUM OF 30
LK1 MUST BE FITTED TO
THE LAST BOARD ON
THE COMMS BUS
+24VDC
TERMINATION BOARD No.2 ( BRD82LTB2 )
TO
LCD TO
LCD
CN1
0V
POWER OUT
POWER IN
+24V
RS485
IN
RS485
OUT
03/05/2006 BRD82LTB2-
TB2 TB1 TB4
TB3
LK1 NOT FITTED
COM
-
+
COM
-
+
0V
+24V
CN1
0V
POWER OUT
POWER IN
+24V
RS485 IN RS485 OUT
03/05/2006 BRD82LTB2-
TB2 TB1 TB4
TB3
COM
-
+
COM
-
+
0V
+24V
+24V
0V
VDC
IN VDC
OUT
0V
USB
0V
AUX OUT1
3
2
1
OUT2
OUT1
+VE
COMMS
SGD
+VE +VEA+
0V+27V
INPUTS MONITOR ED O/PSLOOP 1 LOOP 2
B-RS485+ RS485- SHD 2+ 3+ 4+COM 1+ 2+ AUX OUT2 2- 3- 4-3+1+ 4+1-
ETH +27V 0V
DIAG NOSTICS RS232
RS485
TERM
LOAD
RESET
HLI
PORT
PWR IN
N/O CN/C N/O CN/C N/O CN/C
RELAY 1 RELAY 2 R ELAY 3 COMMS
A- B+ B+A- B-A+
JTAG
JTAG
SEL
1
2
3
DIAGNOSTICS
CN11
TB1 U2U1 U4U3 TB6
R47
R1
CN1
D4
D1 D2
CN10
CN2
CN8
TB4
TB2 TB5TB3
SW1
D3
K3
R38
R4 R5 R6 R7
10K 10K 10K 10K 10K 10K 10K 10K
CONTROLS
SHIELD
MAIN CONTROL BOARD
Figure 4: Connecting SmartTerminal to the FACP
3.1 SmartTerminal Termination Board Interconnection
Terminal Block
TB1 (RS485 OUT) TB2 (RS485 IN)
Purpose
1 (Pin Number)
RS485 +ve
2
RS485 -ve
3
SCREEN
Terminal Block
TB4 (27VDC OUT) TB3 (27VDC IN)
1 (Pin Number)
0V
2
+24VDC
3.2 FACP Comms
Terminal Block
TB1 (RS 485 OUT)
Purpose
1 (Pin Number)
RS485 +ve
2
RS485 -ve
3
SCREEN
Terminal Block
TB4 (27VDC OUT)Number
Purpose
1
0V
2
+24VDC

8
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
4 Setting the Address
Zone 29-32 Zone 25-28 Zone 21-24 Zone 17-20 Zone 13-16 Zone 9-12 Zone 5-8 Zone 1-4
22/09/2009
BRD82ZICC4-
DIAGNOSTIC /
CONFIG LED
CONFIG
RESET
PRINTER
KEYSWITCH
PWR LINK PWR LINK
FAULT BUZZER
SERIALPARALLEL
COMMS
BUZZER
SILENCE
LCD CONNECTOR
LCD BL
JTAG
FRONT PANEL
INTERFACE
R36
R35
R34
R33
ZDN1
ZD2
ZD1
R32
R31
R30
Q8
N1236
D44
D41
D45
TH1
RN7
RN8
U15 RN16 U16
U7
Q1
R16
U10 C21
C9
U5
U4
RN2
R10
C1
X1
U1
U11
U3
U8
U13
U9
U6
RN1
RN5
RN4
RN3
RN10
RN20
RN11
RN15
RN12
RN6
R8 R5
R6
R3
R4
R26
R23
R27
R13
R25
R21
R11
R2
R14
R1
R18
R28
Q7
Q2
Q3
Q5
LK1
D18
D49
D48
D36
D37
D12
D11
D10
D9
D43 D42 D40
D47
D46
D38
D34
D39
D35
D8
D7
D6
D5
D4
D3
D2
CN10CN9
CN6
CN5
CN4
CN1
CN3
CN2
CN8 CN7
C34
C29
C11
C3
C7
C27
C30
C26
C4
C28
C16
C35
C17
C25
C2
C14
C8
C20
C22
C10
C36
C15
C23
C37
C19
C18
+
BZ1
Q4
R12
C13
C31
C12
R7
R24
RN9
C24
R29
R22
R20
R17
C5
R15
Q6
R19
SW28
SW27
R9
C33
C32
D1
D13
D14
D15
D16
D17
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
RN19
RN14
RN18
RN13
RN17
U14U12
U2
Q9
Q10
R37
D33
2
1
8
7
6
5
4
3
BRD82ZICC
Main Control PCB
CN2
CN6
LCD
Figure 5: LCD Printed Circuit Board Layout
Open the front door; locate the “CONFIG” button situated on the left hand side of the PCB and press
for 3 seconds. The buzzer and “Config” LED will double beep and flash respectively to indicate that
the Configuration mode has been entered. The LCD will now display the Configuration screen. This
screen consists of the code version number, current address and four adjustment markers. These
markers A-, A+, C-, and C+ are used to indicate the keys that adjust the address and LCD contrast.
Use the “PREVIOUS (A-) and NEXT” (A+) keys to select the desired address. The default value for
this address is 255 which is not a valid SmartTerminal address. The user must then select an
address value from 1 to 30, i.e. the same address as that set in the FACP. The keys corresponding
to C- (ACK) and C+ (RESET) are used in a similar manner to decrease and increase the LCD
contrast level. There is audible feedback for all key presses.
Once the address has been set press the “CONFIG” button again for 3 seconds and the screen will
return to its default and the “DIANOSTIC” LED will return to a slow flash. This slow flash indicates
SmartTerminal and the FACP are communicating normally i.e. the LED flashes if communications
data is being received from the FACP.
Note: If the address is not set within the time out period of approximately 75 seconds
SmartTerminal will return to its normal state.

9
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
5 Setting the SmartTerminal in LoopMaster
This section assumes the engineer has experience in the use of LoopMaster and hence has an
understanding of it operation. To commence the programming go to the “Tree View” within
LoopMaster as shown below.
The Tree View
Figure 6
The above shows the expanded view of the SmartTerminal add on type. In the case above the panel
in question has 1 SmartTerminal assigned to it, entitled ‘Panel Add-on 1’.
Selecting one of these add ons will update the Details Pane with the respective module’s
information, while double-clicking on the add-on will open its editing dialog box.
The SmartTerminal Menu
Right-clicking on the SmartTerminal add on parent item from the Tree View opens the menu,
It contains an option to add a panel Add-on to the panel.
Right-clicking on an existing SmartTerminal add on from the Tree View opens the menu,
It contains an option to add another or remove the current Add-on or via
the ‘Edit Properties’ option to open the Add on editing dialog box.
Note: that it is possible to have a maximum of 30 SmartTerminal add ons per panel, however,
this value will reduce as other add-on types are added (the entire panel can have a maximum of 30
add-ons, of any type, at any one time).
The Details View
Figure 7
The above is displayed as part of the SmartTerminal Details Pane representation of the information
available to the configuration of the data. It is displayed at the top portion of the Details Pane and is
a non-editable, accurate representation of editable fields for a SmartTerminal.

10
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
The List View
Figure 8
The SmartTerminal add on List View appears immediately below the SmartTerminal add on Details
View and consists of a summary of all available SmartTerminal add ons assigned to the current
panel. In the above, there are 2 add on SmartTerminal’sassigned to this panel, entitled ‘Panel Add-
on 1’ and ‘Panel Add-on 5’ respectively.
Double-clicking on an entry in the list opens the editing dialog box for that particular SmartTerminal.
Editing
Figure 9
The SmartTerminal add on editing dialog box consists of two types of fields:
1. Non-editable (informational) fields:
Panel –The panel number this module belongs to,
Address –The hardware address of this particular module; addresses can be in the
range of 1 to 30,
Reference –The reference number of this module
2. Editable fields:
Multicast Type –The user can select one or more Multicast Types for this module to
process,
External –If this checkbox is checked then this add on is to be used on the external
bus,
Descriptor –Allows the user to enter a 40 character descriptor describing this add
on

11
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
6 Operation
The operation of SmartTerminal can be considered to be in one of three states, these are;
1. Power up - when the SmartTerminal is initialising
2. Normal - when the SmartTerminal address has been set and is communicating with the
FACP, reporting normal / abnormal conditions and controlling the FACP via the front panel
controls
3. Fault where the SmartTerminal is in fault and/or is unable to communicate with the FACP.
Power Up
The LCD displays a message telling the operator SmartTerminal is being powered up and that the
hardware is being initialised. Once the hardware has been successfully initialised set the address
and SmartTerminal should automatically transition to the normal state. Should a failure occur on
power up press the “RESET” button located on the LCD PCB (see Figure 5) and check the address
is correct.
Normal
The Normal state is entered from the “Power-up”or a return from the “Fault”state and is displayed
on the LCD if the SmartTerminal is communicating with the FACP and operating correctly. In this
state the front panel Power indicator is illuminated.
Fault
SmartTerminal enters the Fault state upon;
A hardware failure
LCD module failure or
A loss of communications with the FACP (indicated by the “DIAGNOSTIC” LED – not
flashing and the “no communications“ message being displayed)
In a Fault condition the front panel NORMAL indicator is extinguished and the details of the fault are
displayed on the LCD. The FACP will also indicate a fault in a similar manner.

12
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
7 Controls and Indicators
All controls, except for the Enable / Disable keyswitch, are of a momentary push button style.
Figure 10: SmartTerminal Front Panel Layout
KEYSWITCH
Access levels
There are two levels of access.
Access level 1 only the previous and next front panel controls are operative. All other controls
operate in access level two.
Access level 2 is entered when the key-switch is in the ENABLED position.
Keyswitch disabled Keyswitch enabled
Figure 11: Keyswitch in the Disabled / Enabled Positions
(Yellow) The LED is illuminated when a device has been activated and the device is
configured to have a delay before operating the brigade output and alarm devices.
The LED is turned off when the delay expires and the brigade output and alarm devices are
activated or the delay is overridden by the use of the delay override.
Override When zones and/or detectors are configured with delays, at the FACP then the operation
of alarm devices (sounders and strobes) or the activation of the brigade alarm output can be delayed
from when the zone/detector goes into alarm.
The delay can be overridden by pressing the OVERRIDE key. This will cause the alarm devices and
brigade output to be activated immediately
Active at access level 1 and 2.

13
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
(Yellow) The LED is illuminated when the sounders have been
silenced in response to a FIRE condition, indicating the resound function is active.
Silence / Resound Press to silence the alarm devices (associated LED illuminated).
Press again to re-enable the alarm devices (associated LED extinguished).
Active at access level 2 only.
(Red)Illuminated when one or more devices are in the pre-alarm condition and not
disabled.
Primary Function
Press to display the previously displayed LCD screen
Secondary Function
Set SmartTerminal address –A –(minus) decrement number
Active at access level 1 and 2
(Red) Illuminated when the FIRE output is active as a result of a fire condition.
Primary Function
Press to display the next displayed LCD entry
Secondary Function
Set SmartTerminal address –A + (plus) increment number
Active at access level 1 and 2

14
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
(Red) The LED is illuminated when one or more devices are
reporting a FIRE condition and are not disabled.
Silence Buzzer
Silences the panel buzzer. Buzzer is activated under the following conditions:
Alarm condition
Devices –missing, out of calibration, wrong type, reporting an internal error
Loops –short circuit or open circuit
Monitored inputs and outputs on loop devices are in fault
Sounders –missing, wrong type or reporting an internal error
Modules within the panel –missing, wrong type or hardware error
Main and secondary power supply fault
In Configuration mode this key decreases the LCD contrast.
Push button –held down for 3 seconds commences a lamp test. Lamp test is to test all indicators,
segments on the LCD and the buzzer.
Active at access level 1 and 2.
(Yellow) LED is illuminated when there are one or more faults on the system. Faults
can be;
Devices –missing, out of calibration, wrong type, reporting an internal error
Loops –short circuit or open circuit
Monitored inputs and/or outputs on loop devices in fault
Monitored inputs and/or outputs within the FACP in fault
Modules within the panel –missing, wrong type or hardware error
Modules or stations external to the panel –missing, wrong type or hardware error
(SmartTerminal)
Main and secondary supplies
Reset
Returns the FACP to its default power up state. This means all detectors in alarm are reset to normal
and all indicators and outputs are updated accordingly.
In Configuration mode this key increases the LCD contrast.
Active at access level 2 only.

15
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
(Yellow) The LED is illuminated when one or more zone detectors,
loop devices or panel outputs are disabled.
Evacuate
Turns on all alarm devices (visual and aural) outputs and activates the Fire indicator. The SILENCE /
RESOUND or RESET control shall turn off all alarm devices (visual and aural).
Active at access level 2 only
(Green) Illuminated to show the presence of power. Flashes when mains have
failed.
(Yellow) Illuminated when the FACP is unable to provide mandatory functions.
LED is latched, until cleared by reset.
(Yellow) Illuminated when there is an earth fault detected on the panel.
(Yellow) Illuminated steady if any of the alarm devices (sounders and/or
strobes) have been disabled and flashes if any of the alarm devices (sounders and/or strobes) are in
fault. Disable has priority over fault.
(Yellow) Illuminated steady if the fire output has been disabled and flashes if
the fire output is in fault (open or short circuit condition). Disable has priority over fault.
(Yellow) Illuminated when the FACP is in the test mode. Possible tests are
alarm, fault, walk, lamp and loop.
(Red) Illuminated when a Zone is in alarm

16
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
7.1 LCD Screen Format
There are 3 events that can be reported and displayed by SmartTerminal. The types of event are;
Fire
Faults and
Disables.
The types of events are only associated with sensors and detectors hence faults associated with
modules, loops O/C –S/C, power supplies and so forth are not reported on the LCD.
The SmartTerminal has front panel LED’s for each type of event. When SmartTerminal is
configured not to report a type of event and that event type is present (and the corresponding front
panel LED is illuminated on the SmartTerminal), then a standard information screen is displayed on
the LCD stating the system is not normal and the operator should see the FACP.
Alarm: If configured the screen format for reporting loop / sensor / zone fire condition is:
Zzzz Alarm
<zone descriptor>
<date> <time> CONTROL*
ZONE FIRE XXX OF XXX DEVICE►
Fault: If configured the screen format for reporting loop / sensor / zone fault condition is:
Zzzz FAULT
<zone descriptor>
<date> <time> CONTROL*
FAULT XXX OF XXX DEVICE►
Note: The fault types only relate to devices.
In the event of a loss of communications, for a period of greater than 15 seconds the SmartTerminal
will default to the No Communications screen. The format for this screen is:
No Communication
Device Isolate / Disables: If configured the screen format for reporting loop / sensor / zone disable
condition is:
Zzzz Isolate
<zone descriptor>
<date> <time> CONTROL*
ZONE PRE-ALARM XXX OF XXX DEVICE►
Pre-alarm: If configured the screen format for reporting loop / sensor / zone Pre-alarm condition is:
Zzzz PRE-ALARM
<zone descriptor>
<date> <time> CONTROL*
ZONE DISABLED XXX OF XXX DEVICE►

17
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
Normal / Default: The format for reporting that everything is normal is:
<DATE> <TIME> ACCESS LEVEL: 1
<USER DESCRIPTOR LINE 1>
<USER DESCRIPTOR LINE 2>
<SYSTEM STATUS> <DAY MODE-MAN I/O>
The screen is only displayed when there are no alarms, fault or disables on the panel.
The default screen is only displayed when there are no device alarms, device faults or device
disables present on the system. The highest priority current system status will be displayed and can
be one of the following listed in order of highest to lowest priority:
“SYSTEM ALARM”
“SYSTEM PRE-ALARM”
“SYSTEM FAULT”
“SYSTEM ISOLATE”
“SYSTEM NORMAL”
Config: The Config screen displays the following
VX.X (software version number
Address
A- A+ C- C+
A - A +: adjusts the address 1 to 30, 30 being the maximum number of SmartTerminal’s that can be
connected to the FACP, (default is 255 which is not a valid address).
The function keys perform the following;
A –Press “Previous” A+ press “Next”
C - C+: decreases [-] and increases [+] the LCD contrast level.
The function keys perform the following;
C –Press “Silence Buzzer” C+ press “Reset”

18
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
8 Specifications
MECHANICAL
Dimensions ABS Cabinet BX05: (mm)
Dimensions ABS Cabinet BX1: (mm)
195mm (H) x 345mm (W) x 50mm (D)
300mm (H) x 360mm (W) x 100mm (D)
ENVIROMENTAL
Temperature:
Humidity:
-5ºC to + 55ºC
25% to 75% non condensing
INPUT POWER
Operating Voltage (nominal):
Operating Voltage (minimum):
Quiescent Current @ 26.5VDC:
Maximum Current:
Cabling Requirements:
Optional 27VDC Power Supply:
Batteries:
27VDC
18VDC
12.4mA (back light, off buzzer off”)
43.8mA (back light on, buzzer on)
2 core 1.5 to 2.5mm²
1.8A plus 400mA Battery Charging
12Ahr
27VDC OUTPUTS
Auxiliary 27VDC Distribution Protection:
Cabling Requirements:
24VDC 500mA Monitored
2 core 1.5 to 2.5mm²
COMMUNICATIONS
Internal to FACP:
External to FACP:
Cabling Requirements:
Fault monitoring:
Maximum Number of SmartTerminal’s per FACP:
Maximum Distance (from FACP):
RS485
RS485
Twisted pair plus power
O/C, S/C
30
1.2Kms.
LCD
4 line X 40 character - backlit

19
SMART TERMINAL LOOPSENSE EN54 INSTALLATION &COMMISSIONING
9 Trouble Shooting Chart
Problem
Solution
Normal Supply LED not illuminated
Check supply voltage it should be set to 27.2VDC.
Nominal fault voltages are - Low = (<18VDC)
High = (> 28VDC )
FACP Earth Fault LED illuminated
Check all input and output cabling and wiring assemblies
for short to ground
FACP System Fault LED illuminated
Ensure correct panel configuration
Check all connections for loose wiring
FACP Warning System Fault LED
illuminated
Check correct E.O.L is fitted
Check wiring is connected correctly
RS485 Communication Bus not
working
Refer FACP LCD. This may identify where there is a break
in the communication line
Check the SmartTerminal Diagnostic Config LED is
flashing. If not the FACP is not communicating with the
SmartTerminal. Check the RS485 cabling.
If flashing check the SmartTerminal’s address.
UNCONTROLLED DOCUMENT
NOTE: Due to AMPAC’s commitment to continuous improvement specifications may change without notice.
