1) SAFETY
This manual contains information and warnings that must be followed for operating the
instrument safely and maintaining the instrument in a safe operating condition. If the
instrument is used in a manner not specified by the manufacturer, the protection provided by
the instrument may be impaired.
The meter meets the requirements for double insulation to IEC61010-2-032(1994),
EN61010-2-032(1995), UL3111-2-032(1999):
Category III 600 Volts ac and dc.
PER IEC61010 OVERVOLTAGE INSTALLATION CATEGORY
OVERVOLTAGE CATEGORY II
Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be
supplied from the fixed installation.
Note – Examples include household, office, and laboratory appliances.
OVERVOLTAGE CATEGORY III
Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.
Note – Examples include switches in the fixed installation and some equipment for industrial
use with permanent connection to the fixed installation.
OVERVOLTAGE CATEGORY IV
Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.
Note – Examples include electricity meters and primary over-current protection equipment.
TERMS IN THIS MANUAL
WARNING identifies conditions and actions that could result in serious injury or even death
to the user.
CAUTION identifies conditions and actions that could cause damage or malfunction in the
instrument.
www. .com [e-mail]1.800.561.8187

2
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
The meter is intended only for indoor use.
To avoid electrical shock hazard, observe the proper safety precautions when working with
voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential shock hazard
to the user.
Inspect test leads, connectors, and probes for damaged insulation or exposed metal before
using the instrument. If any defects are found, replace them immediately.
Do not touch test lead tips or the circuit being tested while power is applied to the circuit
being measured. To avoid accidentally short circuit of bare (uninsulated) hazardous live
conductors or busbars, switch them off before insertion and removal of the current clamp
jaws. Contact with the conductor could result in electric shock. Keep your hands/fingers
behind the hand/finger barriers that indicate the limits of safe access of the meter and the
test leads during measurement.
CAUTION
Disconnect the test leads from the test points before changing meter functions.
INTERNATIONAL ELECTRICAL SYMBOLS
!Caution ! Refer to the explanation in this Manual
Caution ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation
Fuse
AC--Alternating Current
DC--Direct Current
2) CENELEC Directives
The instruments conform to CENELEC Low-voltage directive 73/23/EEC and
Electromagnetic compatibility directive 89/336/EEC
www. .com [e-mail]1.800.561.8187

3
3) PRODUCT DESCRIPTION
This user's manual uses only representative model(s) for illustrations. Please refer
specification details for function availability to each model.
1) Transformer Clamp Jaws for AC
current magnetic field pick up
2) Jaw marking lines for ACA position
error indication
3) Hand/Finger Barrier to indicate the
limits of safe access to the jaws during
current measurements
4) Push-buttons for special functions &
features
5) Input Jack for all functions EXCEPT
non-invasive ACA current function
6) Common (Ground reference) Input
Jack for all functions EXCEPT
non-invasive ACA current function
7) Slide-switch Selector to turn the
power ON/OFF and Select a function
8) LCD display
9) Jaw trigger for opening the
transformer clamp jaws
10) Jaw center Indicators, at where
best ACA accuracy is specified
www. .com [e-mail]1.800.561.8187

4
4
) OPERATION
ACV & DCV functions
Set the slide-switch function-selector to the position. Default at last selected function.
Press SELECT button to toggle between ACV and DCV measurement functions. There is no
LCD annunciator for DC. LCD annunciator “ ” turns on to indicate AC is selected.

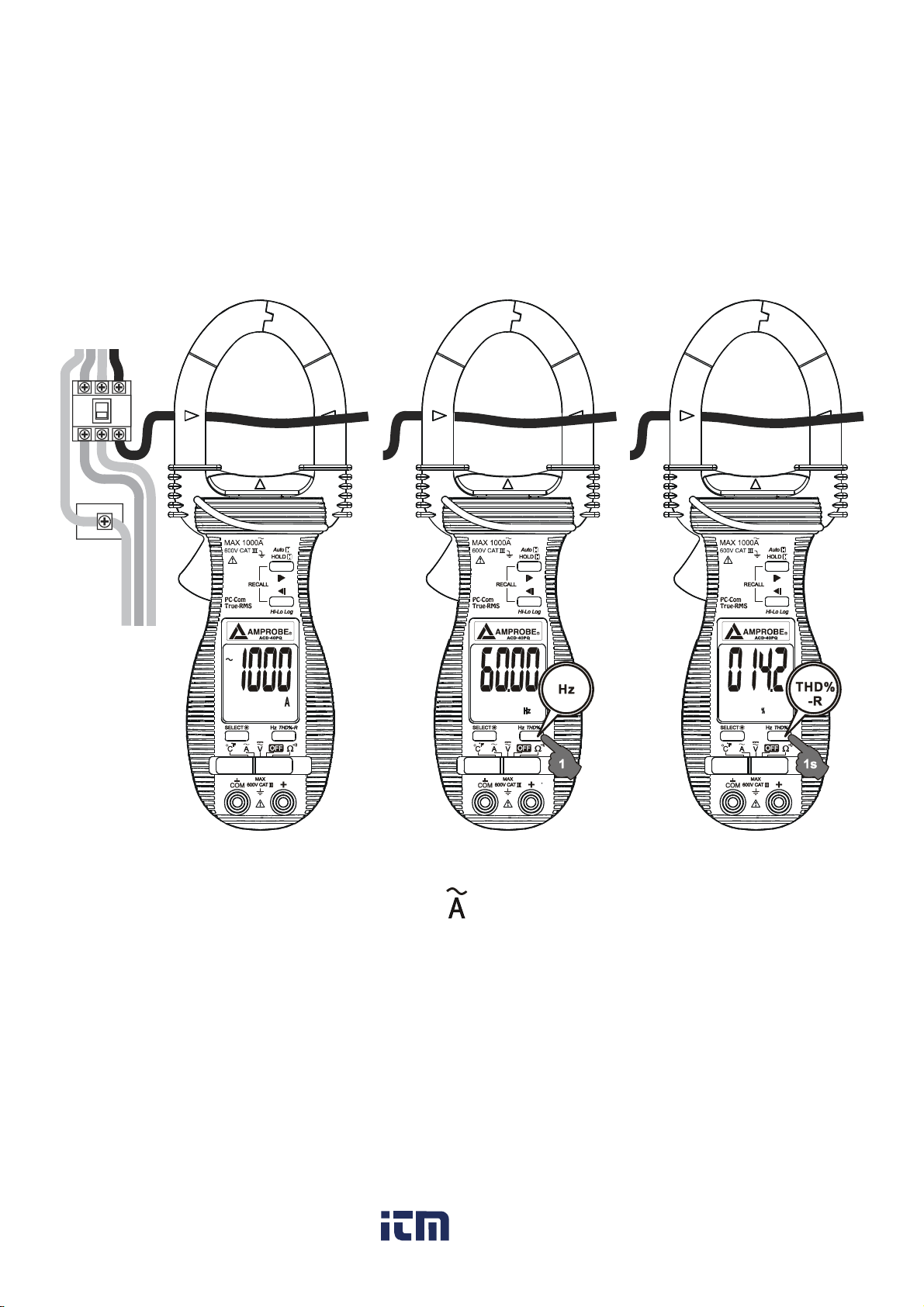

Line-level Frequency function
When voltage or current function is selected, press Hz button momentarily toggles to
Line-level Frequency function. Frequency trigger levels vary automatically with function
ranges.
T
HD%-R Total Harmonic Distortion - RMS function (ACD-40PQ only)
THD%-R = (Total Harmonics RMS / Total RMS) x 100%
Total Harmonic Distortion - RMS (THD%-R) is the percentage ratio of the Total Harmonics
RMS value to the Total (Overall) RMS value of a voltage or current signal, and is given by
the above expression. An ideal sinusoidal waveform has a value of 0 %. A badly distorted
sinusoidal waveform may have a much higher THD%-R value of approaching one hundred
(100% is the maximum theoretical reading).
www. .com [e-mail]1.800.561.8187

5
When voltage or current function is selected, press and hold THD%-R button for one
second or more toggles to Total Harmonic Distortion - RMS measurement function. The LCD
annunciator “%” turns on.
Note:
Specified accuracy at ACA fundamental > 5A; ACV fundamental > 50V.
The meter displays “---.- %” when ACA fundamental < 1A; ACV fundamental <8.5V
ACA Current clamp-on function
Set the slide-switch function-selector to the position. Inputs are made through the clamp
jaws for non-invasive ACA current measurements.
CAUTION
●For non-invasive ACA current measurements, press the jaw trigger and clamp the jaws
around only one single conductor of a circuit for load current measurement. Make sure the
jaws are completely closed, or else it will introduce measurement errors. Enclosing more
than one conductor of a circuit will result in differential current (like identifying leakage
current) measurement.
●Adjacent current-carrying devices such as transformers, motors and conductor wires will
affect measurement accuracy. Keep the jaws away from them as much as possible to
minimize influence. www. .com [e-mail]1.800.561.8187

6
Temperature function
Set the slide-switch function-selector to the oC/oF position. Default at last selected
function. Press SELECT button to toggle between oC and oF measurement functions.
Be sure to insert the banana-plug type-K temperature bead probe TPK-59 at correct
polarities.
Ω/functions
Set the slide-switch function-selector to the Ω/function position. Default at last selected
function. Press SELECT button to toggle between Ωand measurement functions.
Hi-Lo Logging mode
Hi-Lo Logging is an innovative feature. It minimizes product cost for maximum monitoring
speed and period making field monitoring simpler and more affordable. Hi-Lo Logging
captures the most important surges (Hi) & sages (Lo) using one-minute intervals. That is, the
meter uses its highest update rate to compare and capture the highest and lowest readings
in every one-minute time interval. It can log up to 5400 pairs of Hi/Lo readings and thus 5400
minutes of total logging period.
www. .com [e-mail]1.800.561.8187

7
Press and hold the “Hi-Lo Log” button for one second or more to start “ ” a new Hi-Lo
Logging session. All previously logged data is erased! Annunciators “Max Min” flashes and
real-time measurement readings are being displayed. Press SELECT button momentarily
toggles to display logged data item number (number of one-minute time intervals). “ ”
displays in the secondary display.
Press the HOLD button momentarily to pause. The LCD annunciator “ ” flashes. Press the
HOLD button momentarily again to continue. Press and hold the “Hi-Lo Log” button for one
second or more again to stop “ ” and end the Hi-Lo Logging session. The meter can now
be switched off.
www. .com [e-mail]1.800.561.8187

8

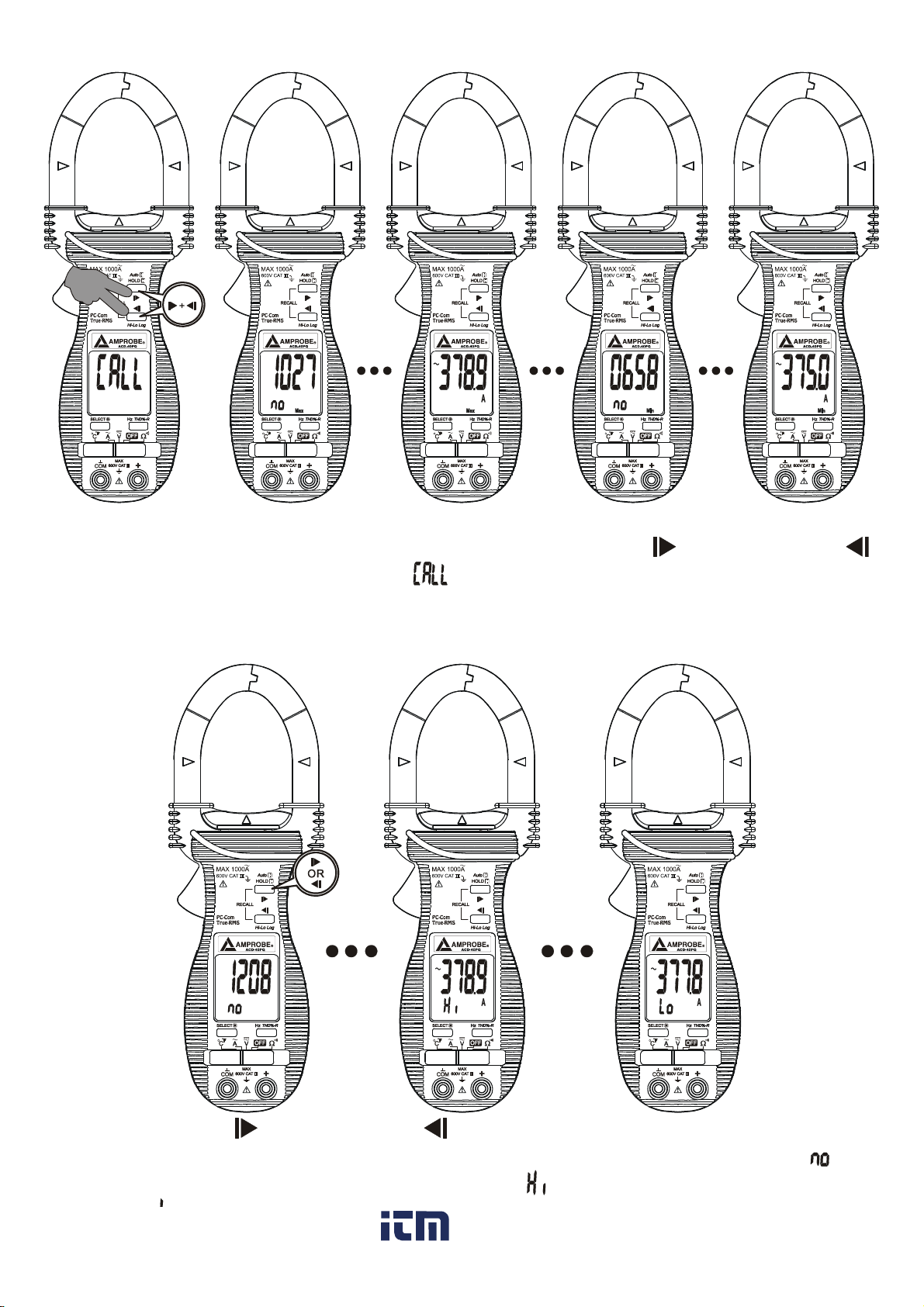

To recall the data, switch on the meter, then press the forward “ ” and backward “ ”
arrow buttons at the same time to recall “ ” the logged data. The meter displays in turn the
absolute maximum item number, absolute maximum reading, absolute minimum item
number, and then absolute minimum reading (of the whole logging period).
Press the forward “ ” (or backward “ ”) arrow button momentarily to read the next
logged data item. The meter displays in turn the one-minute item interval number “ ” (the
count of one-minute time intervals), Hi-reading “ ” (the highest reading), and then
Lo-reading “ ” (the lowest reading) of that one-minute item interval. Press-and-hold the
www. .com [e-mail]1.800.561.8187

9
button can quickly scroll the logged items. The meter gives short beeps when the last (or
he first) item is reached.t
Note:
1. When the meter’s memory is full or the meter battery is low, the meter will stop (end) the
Hi-Lo logging session and go back to the normal measuring mode.
2. The data is stored to the non-volatile memory shortly after every one-minute item interval
to maximize data safety. However, the end-of-data sign can be stored only after the Hi-Lo
logging session is ended with a session stop “ ”. Therefore, always stop “ ” the Hi-Lo
logging properly before sliding the slide-switch function-selector to the next function position.
3. After the Hi-Lo logging session hais ended, you can switch off the meter for
transportation, storage, or even battery changing. The logged data can also be downloaded
to PC computers through the optional purchase RS232 KIT2 interface kit. Also see RS232C
C computer interface capabilities section.P
Auto feature

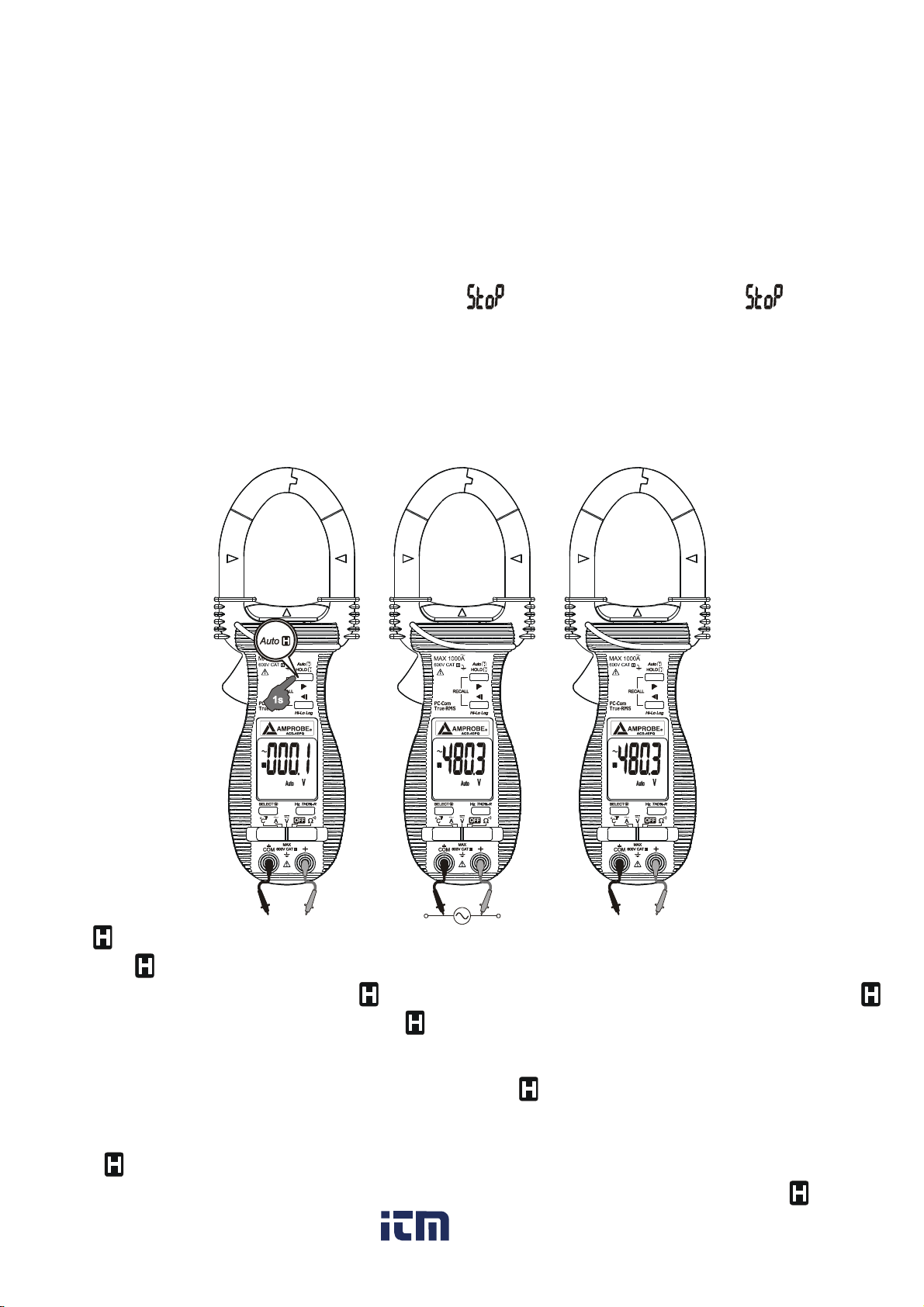

The Auto (Automatic-Hold) feature automatically captures and displays significant stable
readings. Press and hold the Auto button for one second or more to toggle to the Auto
ode. The LCD annunciators “Auto” & “ ”turn on.m
WARNING
To avoid electric shock hazard, do not use the Auto (Automatic-Hold) mode to determine
if a circuit is live. Unstable readings will not be captured and displayed.
HOLD feature
The Hold feature freezes the display for later viewing. Press the HOLD button
momentarily to toggle to the Hold mode. The annunciator “ ” turns on.
