30XR-A Digital Multimeter

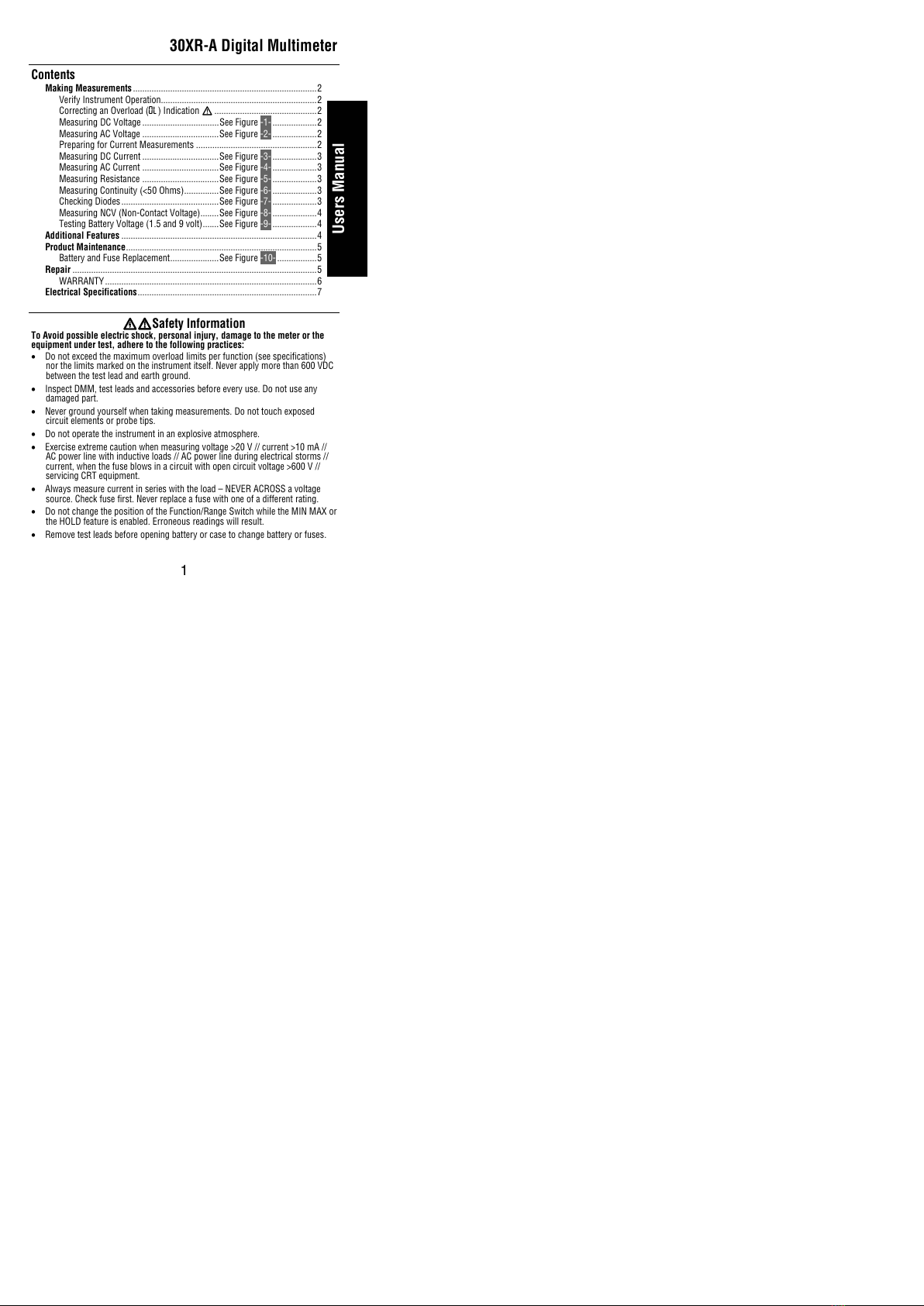

Contents
Making Measurements...............................................................................2
Verify Instrument Operation...................................................................2
Correcting an Overload (o) Indication W............................................2
Measuring DC Voltage .................................See Figure -1- ...................2
Measuring AC Voltage .................................See Figure -2- ...................2
Preparing for Current Measurements ....................................................2
Measuring DC Current .................................See Figure -3-...................3
Measuring AC Current .................................See Figure -4- ...................3
Measuring Resistance .................................See Figure -5-...................3
Measuring Continuity (<50 Ohms)...............See Figure -6- ...................3
Checking Diodes..........................................See Figure -7- ...................3
Measuring NCV (Non-Contact Voltage)........See Figure -8-...................4
Testing Battery Voltage (1.5 and 9 volt).......See Figure -9- ...................4
Additional Features ....................................................................................4
Product Maintenance..................................................................................5
Battery and Fuse Replacement.....................See Figure -10- .................5
Repair .........................................................................................................5
WARRANTY...........................................................................................6

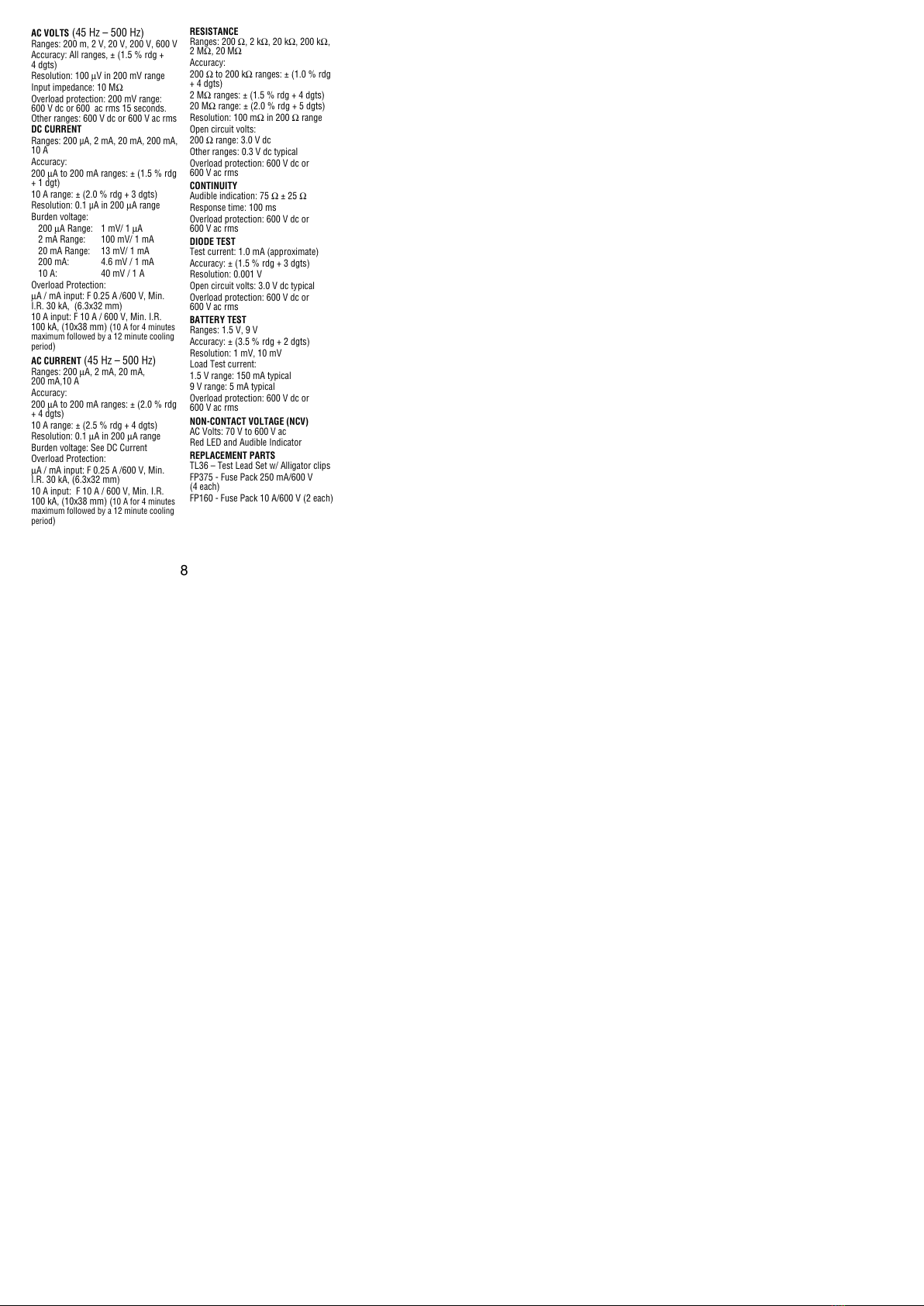

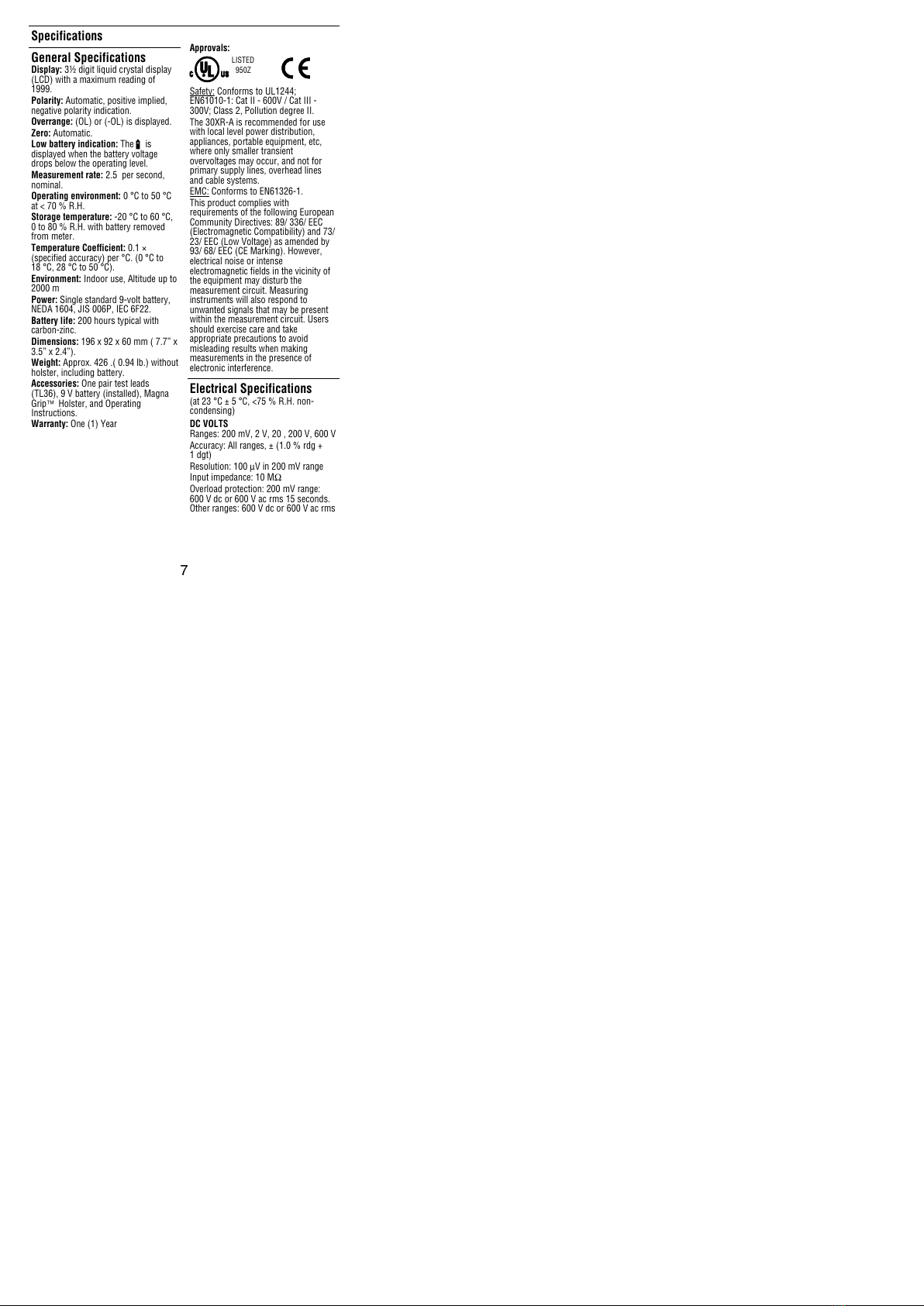

Electrical Specifications.............................................................................7
XWSafety Information
To Avoid possible electric shock, personal injury, damage to the meter or the
equipment under test, adhere to the following practices:
•Do not exceed the maximum overload limits per function (see specifications)
nor the limits marked on the instrument itself. Never apply more than 600 VDC
between the test lead and earth ground.
•Inspect DMM, test leads and accessories before every use. Do not use any
damaged part.
•Never ground yourself when taking measurements. Do not touch exposed
circuit elements or probe tips.
•Do not operate the instrument in an explosive atmosphere.
•Exercise extreme caution when measuring voltage >20 V // current >10 mA //
AC power line with inductive loads // AC power line during electrical storms //
current, when the fuse blows in a circuit with open circuit voltage >600 V //
servicing CRT equipment.
•Always measure current in series with the load – NEVER ACROSS a voltage
source. Check fuse first. Never replace a fuse with one of a different rating.
•Do not change the position of the Function/Range Switch while the MIN MAX or
the HOLD feature is enabled. Erroneous readings will result.
•Remove test leads before opening battery or case to change battery or fuses.
Users Manual
All manuals and user guides at all-guides.com

2
Symbols Used in this Manual
B Battery WRefer to the manual
TDouble insulated XDangerous Voltage
FDirect Current JEarth Ground
BAlternating Current RAudible tone
P Complies with EU directives
I Fuse
@ Underwriters
Laboratories, Inc
Making Measurements
Verify Instrument Operation
Before attempting to make a measurement, verify that the instrument is operational
and the battery is good. If the instrument is not operational, have it repaired before
you attempting to make a measurement.
Correcting an Overload (0o) Indication W
An oor indication may appear on the display to indicate that an overload condition
exists. For voltage and current measurements, an overload should be immediately
corrected by selecting a higher range. If the highest range setting does not
eliminate the overload, interrupt the measurement until the problem is identified
and eliminated. The oindication is normal for some functions; for example,
resistance, continuity, and diode test.

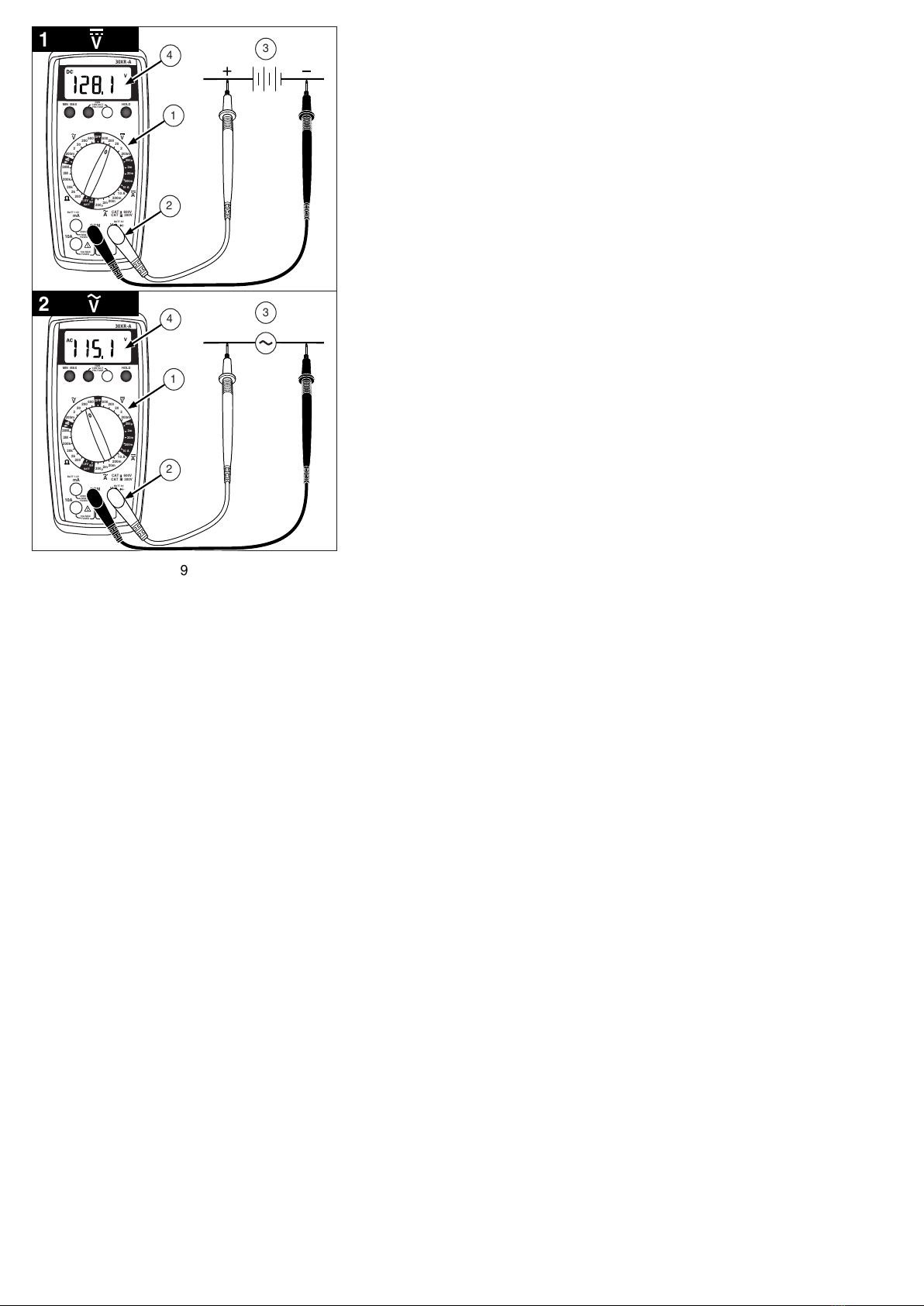

Measuring DC Voltage See Figure -1-
1. Set the Range Switch to an appropriate L range.
Select the highest range and work down if the voltage level is unknown.
2. Connect the Test Leads: Red to VΩG, Black to COM.
3. Connect the Test Probes to the circuit test points.
4. Read the display, and, if necessary, fix any overload (o) conditions.
Measuring AC Voltage See Figure -2-
1. Set the Range Switch to an appropriate K range.
Select the highest range and work down if the voltage level is unknown.
2. Connect the Test Leads: Red to VΩG, Black to COM.
3. Connect the Test Probes to the circuit test points.
4. Read the display, and, if necessary, fix any overload (o) conditions.
Preparing for Current Measurements
•Turn off circuit power before connecting the test probes.
•Allow the meter to cool between measurements if current measurements
approach or exceeds 10 amps.
•A warning tone sounds if you connect a test lead to a current input before you
select a current range.
•Open circuit voltage at the measurement point must not exceed 600 V.
•Always measure current in series with the load. Never measure current across
a voltage source.
All manuals and user guides at all-guides.com

3
Measuring DC Current See Figure -3-
1. Set the Range Switch to an appropriate Arange.
Select the highest range and work down if the current level is unknown.
2. Connect the Test Leads: Red to mA or 10 A, Black to COM.
3. Turn off power to the circuit being measured.
4. Open the test circuit (X) to establish measurements points.
5. Connect the Test Probes in series with the load.
6. Turn on power to the circuit being measured.
7. Read the display, and, if necessary, fix any overload (o) conditions.
Measuring AC Current See Figure -4-
1. Set the Range Switch to an appropriate ? range.
Select the highest range and work down if the current level is unknown.
2. Connect the Test Leads: Red to mA or 10 A, Black to COM
3. Turn off power to the circuit being measured.
4. Open the test circuit (X) to establish measurements points.
5. Connect the Test Probes in series with the load.
6. Turn on power to the circuit being measured.
7. Read the display, and, if necessary, fix any overload (o) conditions.

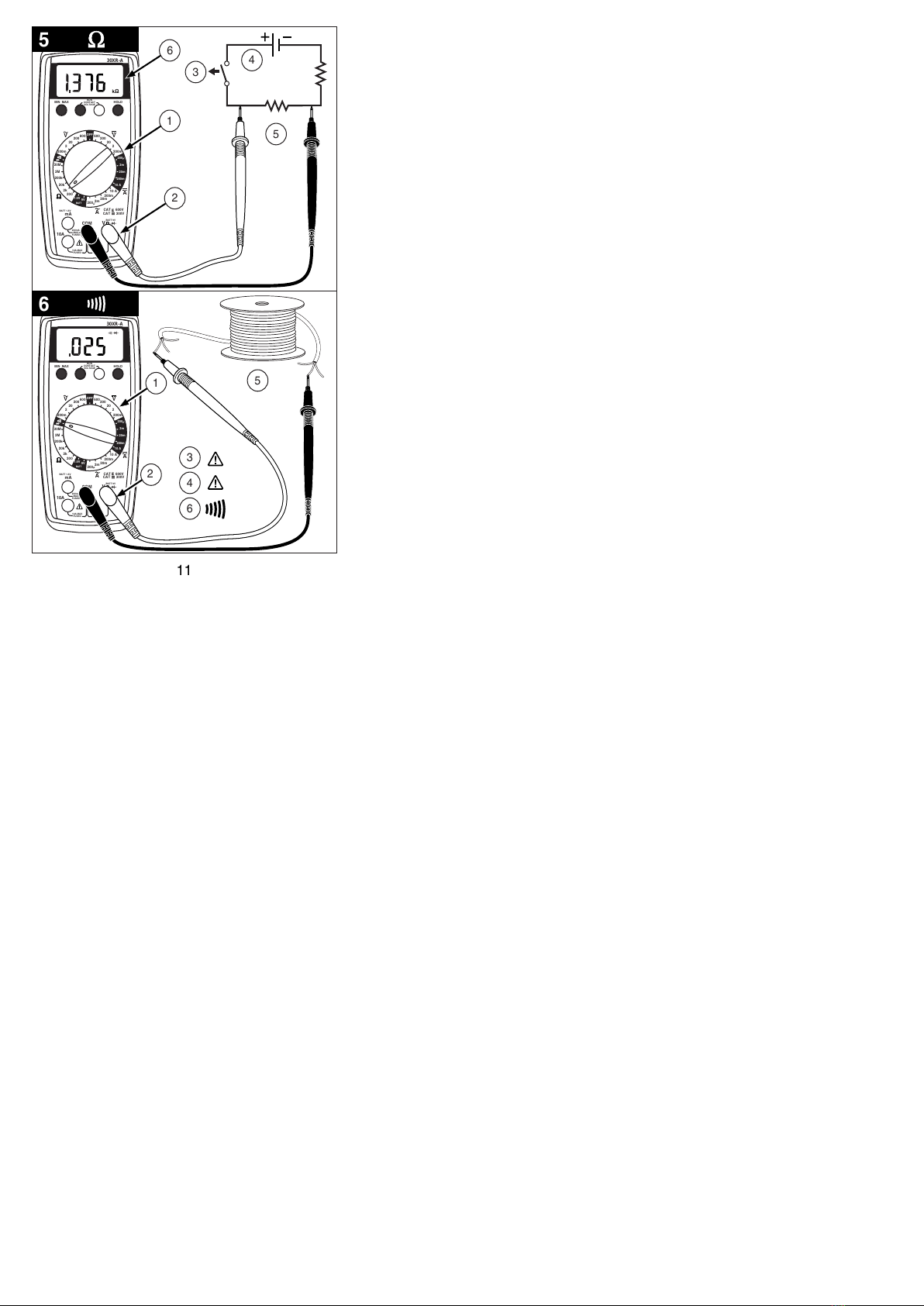

Measuring Resistance See Figure -5-
1. Set the Range Switch to an appropriate Ωrange.
Select the highest range and work down if the resistance level is unknown.
2. Connect the Test Leads: Red to VΩG, Black to COM.
3. Turn off power to the circuit being measured. Never measure resistance across
a voltage source or on a powered circuit.
4. Discharge any capacitors that may influence the reading.
5. Connect the Test Probes across the resistance.
6. Read the display. If oappears on the highest range, the resistance is too large
to be measured.
Measuring Continuity (<50 Ohms) See Figure -6-
1. Set the Range Switch to R.
2. Connect the Test Leads: Red to VΩG, Black to COM.
3. Turn off power to the circuit being measured.
4. Discharge any capacitors that may influence the reading.
5. Connect the Test Probes across the resistance.
6. Listen for the tone that indicates continuity (< 50 Ohms).
Checking Diodes See Figure -7-
1. Set the Range Switch to G.
2. Connect the Test Leads: Red to VΩG, Black to COM.
3. Turn off power to the circuit being measured.
4. Free at least one end of the diode from the circuit.
5. Connect the Test Probes across the diode.
6. Read the display. A good diode has a forward voltage drop of about 0.6 V. An
open or reverse biased diode will read o.
All manuals and user guides at all-guides.com

4
Measuring NCV (Non-Contact Voltage) See Figure -8-
1. Range switch may be set to OFF or any function/range.
2. Test leads are not used for the NCV test.
3. Press the NCV button. The display goes blank, a tone sounds and the red LED
next to the NCV button on the front panel lights up to verify that the instrument
is operational. While pressing the button hold the top-center of the meter
(sensor location) close to the conductor/circuit in question.
4. If a voltage of in the range of 70 to 600 V ac is present, a tone sounds and the
red LED next to the NCV button on the front panel lights up.
Testing Battery Voltage (1.5 and 9 volt) See Figure -9-
1. Set the Range Switch to the appropriate BATT setting, 1.5 V or 9 V.
2. Connect the Test Leads: Red to BATT 1.5 V or BATT 9 V, Black to COM.
3. Connect the Test Probes across the battery. The meter applies an appropriate
load to the battery.
4. Read the display. A good 1.5 volt battery should measure >1.2 V, and a good
9 volt battery should measure > 7.2 V.
Additional Features
Input Lead Warning
The 30XR-A emits a continuous tone to indicate that the user has placed the unit in
a potentially dangerous configuration. Specifically, a test lead is in a current
connector and the Range Switch is set to measure some other function. If, in this
configuration, the DMM is connected to a voltage source, very high and potentially
dangerous current could result. The meter includes fast acting fuses as additional
protection for all current ranges.
MIN MAX Measurements
XWWARNING
To avoid erronoeus readings, do not change the position of the
Function/Range Switch while the MIN MAX function is enabled.
The MIN MAX function works within the active measurement mode to capture and
display the minimum or maximum reading associated with that measurement.
Pressing the MIN MAX button for less than 1 second enables the function and
shows MIN or MAX along with the appropriate minimum or maximum reading on
the display. Each subsequent press toggles between the two modes. To exit the
function, press the MIN MAX button for more than 1 second.
HOLD Measurements XWWARNING
To avoid erronoeus readings, do not change the position of the
Function/Range Switch while the HOLD function is enabled.
The HOLD function is used to make a measurement and hold the reading after
removing the leads from the test circuit. Pressing the HOLD button during a
measurement will capture and hold the reading. Pressing the HOLD button again
will release the display for subsequent measurements.
All manuals and user guides at all-guides.com
all-guides.com

5
Product Maintenance
Cleaning
To clean the meter, use a soft cloth moistened with water. Using benzene, alcohol,
acetone, ether, paint thinner, lacquer thinner, ketone or other solvents may deform
or discolor the meter and its display.
Troubleshooting
If the meter appears to operate improperly, check the following items first.
1. Review the operating instructions to ensure the meter is being used properly.
2. Inspect and test the continuity of the test leads.
3. Make sure the battery is in good condition. The low battery symbol Bappears
when the battery falls below the level where accuracy is guaranteed. Replace a
low-battery immediately.
4. Check the condition of the fuses if the current ranges operate incorrectly.
XWWARNING
To avoid electrical shock remove the test leads from both the
meter and the test circuit before accessing the battery or the
fuses.
Battery and Fuse Replacement See Figure -10-
To access these parts, you must first remove the cover from the battery
compartment. The battery cover is on the rear of the meter and is held in place with
two screws. After removing these screws, you can easily remove and replace the
battery. To replace the mA fuse, pry it from its clips using a small screwdriver. A
spare mA fuse is located between the battery and the mA fuse.
Battery: 9 V NEDA mA Fuse: Fast Blow 250 mA/600 V (Amprobe®FP375)
To replace the 10 A fuse, remove the battery, remove the four rear-case screws,
separate the case, remove the 10 A fuse cover, and remove and replace the 10 A
fuse. Re-install the fuse cover.
10 A Fuse: Fast Blow 10 A/600 V, minimum interrupt rating 30 kA (10 x 38 mm)
fuse (Amprobe®FP160) or equivalent.
All manuals and user guides at all-guides.com

7
Specifications
General Specifications
Display: 3½ digit liquid crystal display
(LCD) with a maximum reading of
1999.
Polarity: Automatic, positive implied,
negative polarity indication.
Overrange: (OL) or (-OL) is displayed.
Zero: Automatic.
Low battery indication: The Bis
displayed when the battery voltage
drops below the operating level.
Measurement rate: 2.5 per second,
nominal.
Operating environment: 0 °C to 50 °C
at < 70 % R.H.
Storage temperature: -20 °C to 60 °C,
0 to 80 % R.H. with battery removed
from meter.
Temperature Coefficient: 0.1 ×
(specified accuracy) per °C. (0 °C to
18 °C, 28 °C to 50 °C).
Environment: Indoor use, Altitude up to
2000 m
Power: Single standard 9-volt battery,
NEDA 1604, JIS 006P, IEC 6F22.
Battery life: 200 hours typical with
carbon-zinc.
Dimensions: 196 x 92 x 60 mm ( 7.7” x
3.5” x 2.4”).
Weight: Approx. 426 .( 0.94 lb.) without
holster, including battery.
Accessories: One pair test leads
(TL36), 9 V battery (installed), Magna
Grip™Holster, and Operating
Instructions.
Warranty: One (1) Year
Approvals:
>LISTED
950Z P
Safety: Conforms to UL1244;
EN61010-1: Cat II - 600V / Cat III -
300V; Class 2, Pollution degree II.
The 30XR-A is recommended for use
with local level power distribution,
appliances, portable equipment, etc,
where only smaller transient
overvoltages may occur, and not for
primary supply lines, overhead lines
and cable systems.
EMC: Conforms to EN61326-1.
This product complies with
requirements of the following European
Community Directives: 89/ 336/ EEC
(Electromagnetic Compatibility) and 73/
23/ EEC (Low Voltage) as amended by
93/ 68/ EEC (CE Marking). However,
electrical noise or intense
electromagnetic fields in the vicinity of
the equipment may disturb the
measurement circuit. Measuring
instruments will also respond to
unwanted signals that may be present
within the measurement circuit. Users
should exercise care and take
appropriate precautions to avoid
misleading results when making
measurements in the presence of
electronic interference.
Electrical Specifications
(at 23 °C ± 5 °C, <75 % R.H. non-
condensing)
DC VOLTS
Ranges: 200 mV, 2 V, 20 , 200 V, 600 V
Accuracy: All ranges, ± (1.0 % rdg +
1 dgt)
Resolution: 100 μV in 200 mV range
Input impedance: 10 MΩ
Overload protection: 200 mV range:
600 V dc or 600 V ac rms 15 seconds.
Other ranges: 600 V dc or 600 V ac rms
All manuals and user guides at all-guides.com

8
AC VOLTS (45 Hz – 500 Hz)
Ranges: 200 m, 2 V, 20 V, 200 V, 600 V
Accuracy: All ranges, ± (1.5 % rdg +
4 dgts)
Resolution: 100 μV in 200 mV range
Input impedance: 10 MΩ
Overload protection: 200 mV range:
600 V dc or 600 ac rms 15 seconds.
Other ranges: 600 V dc or 600 V ac rms
DC CURRENT
Ranges: 200 µA, 2 mA, 20 mA, 200 mA,
10 A
Accuracy:
200 μA to 200 mA ranges: ± (1.5 % rdg
+ 1 dgt)
10 A range: ± (2.0 % rdg + 3 dgts)
Resolution: 0.1 µA in 200 μA range
Burden voltage:
200 μA Range: 1 mV/ 1 μA
2 mA Range: 100 mV/ 1 mA
20 mA Range: 13 mV/ 1 mA
200 mA: 4.6 mV / 1 mA
10 A: 40 mV / 1 A
Overload Protection:
μA / mA input: F 0.25 A /600 V, Min.
I.R. 30 kA, (6.3x32 mm)
10 A input: F 10 A / 600 V, Min. I.R.
100 kA, (10x38 mm) (10 A for 4 minutes
maximum followed by a 12 minute cooling
period)
AC CURRENT (45 Hz – 500 Hz)
Ranges: 200 μA, 2 mA, 20 mA,
200 mA,10 A
Accuracy:
200 μA to 200 mA ranges: ± (2.0 % rdg
+ 4 dgts)
10 A range: ± (2.5 % rdg + 4 dgts)
Resolution: 0.1 μA in 200 μA range
Burden voltage: See DC Current
Overload Protection:
μA / mA input: F 0.25 A /600 V, Min.
I.R. 30 kA, (6.3x32 mm)
10 A input: F 10 A / 600 V, Min. I.R.
100 kA, (10x38 mm) (10 A for 4 minutes
maximum followed by a 12 minute cooling
period)
RESISTANCE
Ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ,
2 MΩ, 20 MΩ
Accuracy:
200 Ωto 200 kΩranges: ± (1.0 % rdg
+ 4 dgts)
2 MΩranges: ± (1.5 % rdg + 4 dgts)
20 MΩrange: ± (2.0 % rdg + 5 dgts)
Resolution: 100 mΩin 200 Ωrange
Open circuit volts:
200 Ωrange: 3.0 V dc
Other ranges: 0.3 V dc typical
Overload protection: 600 V dc or
600 V ac rms
CONTINUITY
Audible indication: 75 Ω± 25 Ω
Response time: 100 ms
Overload protection: 600 V dc or
600 V ac rms
DIODE TEST
Test current: 1.0 mA (approximate)
Accuracy: ± (1.5 % rdg + 3 dgts)
Resolution: 0.001 V
Open circuit volts: 3.0 V dc typical
Overload protection: 600 V dc or
600 V ac rms
BATTERY TEST
Ranges: 1.5 V, 9 V
Accuracy: ± (3.5 % rdg + 2 dgts)
Resolution: 1 mV, 10 mV
Load Test current:
1.5 V range: 150 mA typical
9 V range: 5 mA typical
Overload protection: 600 V dc or
600 V ac rms
NON-CONTACT VOLTAGE (NCV)
AC Volts: 70 V to 600 V ac
Red LED and Audible Indicator
REPLACEMENT PARTS
TL36 – Test Lead Set w/ Alligator clips
FP375 - Fuse Pack 250 mA/600 V
(4 each)
FP160 - Fuse Pack 10 A/600 V (2 each)
All manuals and user guides at all-guides.com

9
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTAGE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
3
4
2
1
V
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTAGE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
3
4
2
V
2
1
1
30XR-A
30XR-A
All manuals and user guides at all-guides.com

10
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTAGE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
MAX
600V
600V
2
3
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTAGE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
7
4
2
1
1
5
5
36
4
36
4
A
A
7
30XR-A
30XR-A
All manuals and user guides at all-guides.com
all-guides.com

11
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTAGE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
2
3
5
4
1
6
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTAGE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
2
15
3
4
6
5
6
30XR-A
30XR-A
All manuals and user guides at all-guides.com

12
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTAGE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
MAX
600V
600V
6
2
7
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
8
NCV
1
1
3
5
4
2
MAX
600V
600V
200mA
MAX
FUSED
10AMAX
FUSED
CAT 600V
CAT 300V
HOLD
30
XR-A
MIN MAX
V
BATT9V
BATT1.5V
COM
10A
mA
V
600
600200200
200m
200m
20M
2M
20k
200k
2k
200200m
20m
20
202
2
V
A
10A
2002m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
3
4
30XR-A
30XR-A
All manuals and user guides at all-guides.com

13
(2)
(4)
MAX
600V
600V
200mA
MAX
FUSED
10A MAX
FUSED
CAT 600V
CAT 300V
HOLD
MIN MAX
NON
CONTACT
VOLTA GE
V
BATT 9V
BATT 1.5V
COM
10A
mA
V
600
600 200
200
200m200m
20M
2M
20k
200k
2k
200 200m
20m
20
20 2
2
V
A
10 A
200 2m
BATT
OFF
2m
200m
200
20m
A
10 A
1.5V 9V
4
9
2
1
BATT
3
(2)
10
30XR-A
All manuals and user guides at all-guides.com
