AMSAN AM-FPL9 User manual

PLEASE READ THE PRODUCT MANUAL ENTIRELY BEFORE INSTALLING OR
OPERATING THE LIFT.

1
IMPORTANT INFORMATION
•The shipment should be thoroughly inspected as soon as it is received. Any freight
damage or missing items must be noted on the freight bill before signing and reported
to the freight carrier with a freight claim established. Buyer should claim the
compensation from the freight carrier if any damage happens to the equipment during
shipping. Please refer to our website for detailed shipping policies and procedures.
•Make sure you have additional help or heavy-duty lifting equipment when unloading
and assembling the lift.
•Read and understand this installation and operation manual entirety before
attempting to install or operate the lift. Keep this manual near the product for future
references. Make sure all operators read this manual.
•The lift should only be operated by authorized personnel. Keep children and untrained
personnel away from the lift.
•Do not make any modifications to the Lift; this voids the warranty and increases the
chances of injury or property damage. •
•Do not use the lift while tired or under the influence of drugs, alcohol, or medication
•Manufacturer or distributor assumes no responsibility for loss or damage of any kind,
expressed or implied, resulting from improper installation or use of this lift. Always use
professional installation companies.
•All persons using the equipment must be responsible, qualified, and carefully follow
the operation and safety guidelines contained in this manual.
•A level floor is required for proper lift installation and operation.
•DO NOT install this lift on any asphalt surface. Lift must be installed on concrete
surface a minimum of 12” thick and 3,000 psi tensile strength with steel or fiber mesh.
Reinforcement. New concrete must be adequately cured by at least 28 days minimum.
•DO NOT install this lift over concrete expansion joints or cracks. (Consult with your
building engineer)
•DO NOT install this lift on an upper floor without written authorization from your
building engineer. Should only be installed on a ground floor without a basement.
•DO NOT attempt to lift only part of a vehicle. This lift is intended to raise the entire body
of a vehicle only. This will bend the arms and void the warranty.
•NEVER lift any persons or vehicles containing persons. This lift is designed to lift empty
vehicles only.
•Any vehicle whose weight is above 9,000lb is not allowed to be raised on this machine.
•All wiring must be performed by a licensed, certified Electrician.
•Do not perform any maintenance until main electrical power has been disconnected
from the lift and cannot be re-energized until all procedures are complete.
•Always lower lift to full locked position before getting underneath the lift. Failure to
heed this caution can result in serious injury or death.
•INSPECT your lift daily. Never operate if it malfunctions or if it has broken or damaged
parts. Repairs should be made with original equipment parts.
•Never start motor under a load, ensure lift is sitting on locks or on the ground before
commencing to lift a vehicle. Failure to notice this caution can cause motor damage
and void motor warranty.
•All information in this manual is believed to be correct at time of publication. The
design, material and specifications are subject to change without notice.

Four post parking lift AM-FPL9
2
TABLE OF CONTENTS
Contents
SAFETY INSTRUCTIONS AND CAUTIONS ......................................................................................3
CAUTION SIGNS....................................................................................................................3
SAFETY CAUTION SIGNALS ......................................................................................................4
LIFTING CAPACITY.................................................................................................................6
SAFETY PROCEDURES............................................................................................................. 6
LIFT COMPONENTS .................................................................................................................8
LIFT DIMENSIONS ..................................................................................................................9
LIFT TECHNICAL DATA .............................................................Error! Bookmark not defined.
INSTALLATION .....................................................................................................................11
SPACE REQUIREMENTS ......................................................................................................... 11
FOUNDATION REQUIREMENTS................................................................................................. 11
ANCHORING GUIDELINES ......................................................................................................12
TOOLS RECOMMENDED.........................................................................................................13
INSTALLATION INSTRUCTIONS................................................................................................13
3.2 OPERATION...................................................................................................................19
1 CHECK POINTS BEFORE USING LIFT ....................................................................................20
2 SHIPPING.....................................................................................................................20
3 TROUBLE SHOOTING .......................................................................................................21
4 HYDRAULIC DIAGRAM.....................................................................................................22
5 EXPLODED DRAWING ......................................................................................................23

Four post parking lift AM-FPL9
3
SAFETY INSTRUCTIONS AND CAUTIONS
CAUTION SIGNS
Pay special attention to this symbol as it means unsafe
or hazards practices which can lead to severe personal
injury or death or damage to the lift or property.
Read and follow the instructions next to this symbol to
avoid big casualty and heavy damage to the lift.
The section besides this signal lists the notice points
and security requirements during the process of
normally using, maintenance and care of the lift.

Four post parking lift AM-FPL9
4

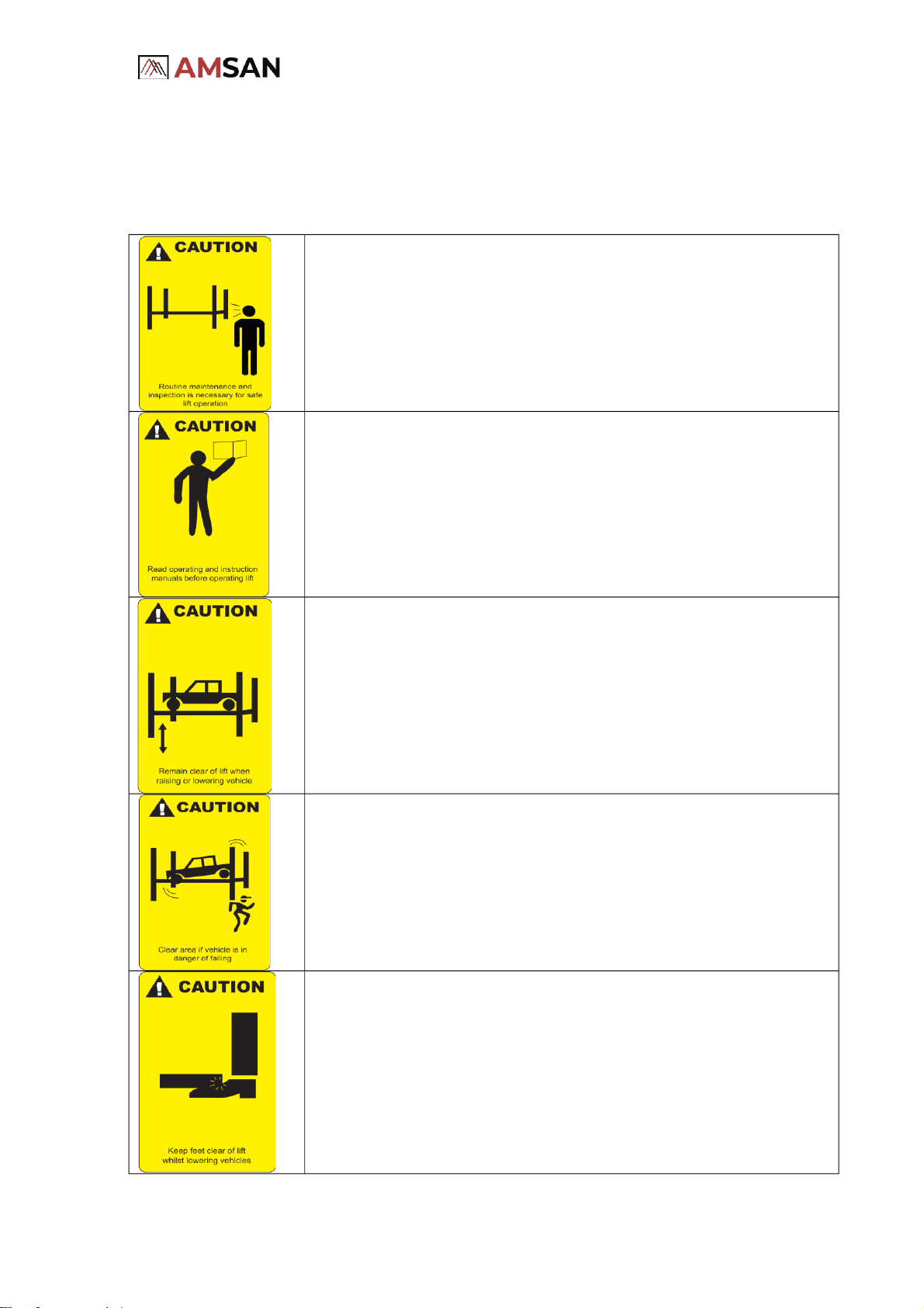

SAFETY CAUTION SIGNALS
Please read Safety Signage carefully, understand and
remember them.
Routine maintenance and inspection are necessary for safe lift
operation
Read operating and instruction manuals before operating lift
Remain clear of lift when raising or lowering vehicle
Clear area if vehicle is in danger of falling
Keep feet clear of lift while lowering vehicles

Four post parking lift AM-FPL9
5

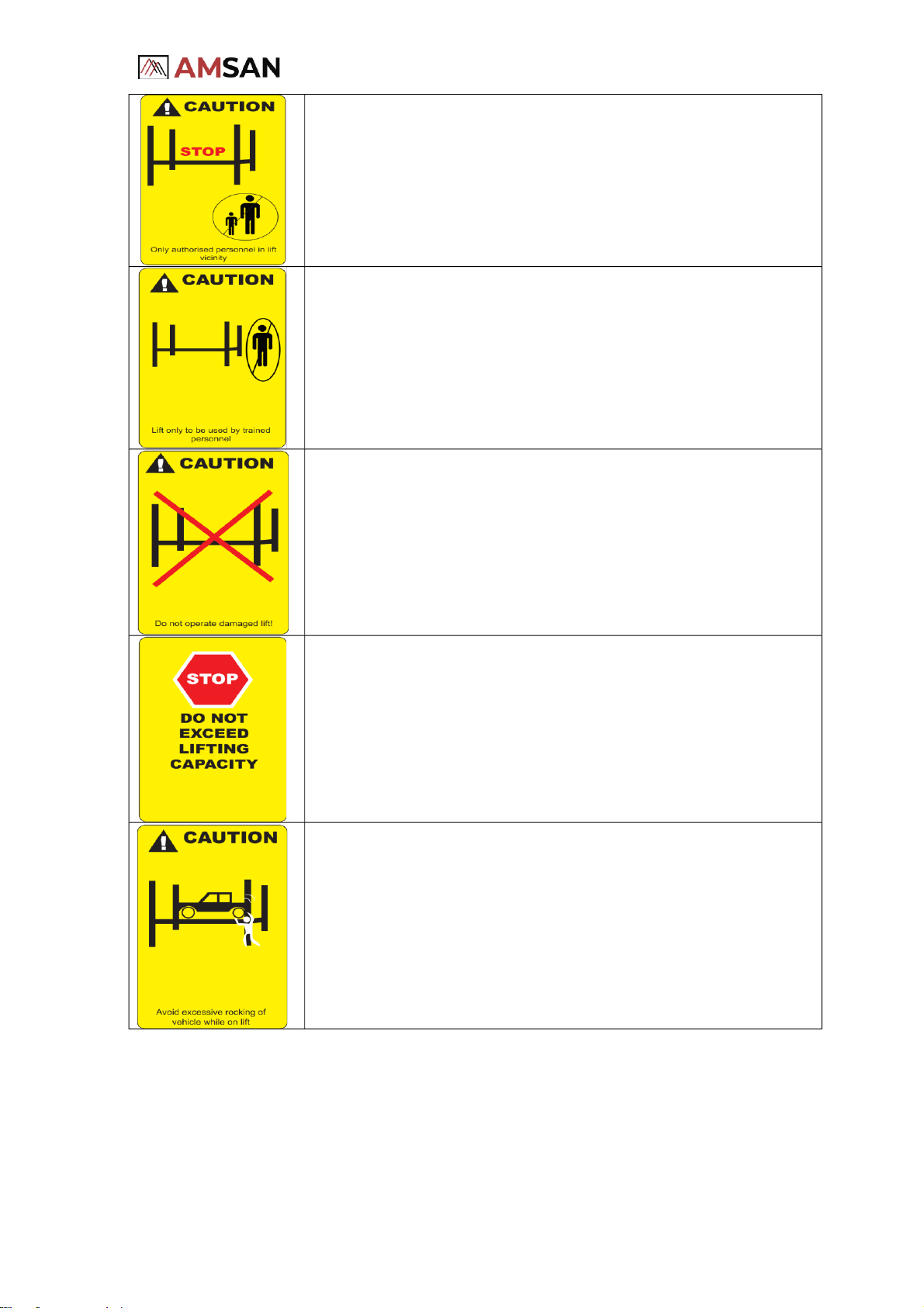

Only authorized personnel in lift surrounding area
Lift only to be used by trained personnel
Do not operate damaged lift
Do not exceed lifting capacity
Avoid excessive shaking of vehicle while on lift

Four post parking lift AM-FPL9
6
LIFTING CAPACITY
SAFETY PROCEDURES
⚫Operating controls are designed to close when released.
Do not block open or override them.
⚫NEVER overload your lift. Manufacturer’s rated capacity
is shown on name plate affixed to the lift. ALWAYS be
clear of the gross weight of vehicle.
⚫NEVER use the lift to raise one end or one side of vehicle.
⚫NEVER raise vehicle with anyone inside it. No one
should be in the lift area during operation.
⚫ALWAYS keep lift area free of obstructions, grease, oil,
trash, and other debris. Before lowering lift, be sure tool
trays, stands, etc. are removed from under vehicle.
Release locking devices before attempting to lower lift.
⚫Adequate ventilation should be provided when working
with internal combustion engines.
⚫Use only manufacturer’s recommended attachments.
⚫KEEP HANDS AND FEET CLEAR from any moving parts.
Keep feet clear of lift when lowering. Avoid pinch points.
⚫GUARD AGAINST ELECTRIC SHOCK. This lift must have
ground connection during using to protect the operator
from electric shock. Never connect the green power cord
wire to a live terminal. This is for ground only.
Lifting Capacity
AM-FPL9
9,000 LB

Four post parking lift AM-FPL9
7
⚫DANGER! The power unit used on this lift contains high voltage.
⚫Always unplug equipment from electrical outlet when not in
use. Never use the cord to pull the plug from the outlet. Grasp
plug and pull to disconnect.
⚫MAINTAIN WITH CARE. Keep lift clean for better and safe
performance. Follow manual for proper lubrication and
maintenance instructions. Keep control handles and/or
buttons dry, clean, and free from grease and oil.
⚫STAY ALERT. Watch what you are doing. Use common sense.
Be aware.
⚫CHECK FOR DAMAGED PARTS. Check the working
condition of moving parts, breakage of parts or any
condition that may affect its operation. Do not use lift if
any component is broken or damage.
⚫NEVER remove safety related components from the lift. Do
not use lift if safety related components are damaged or
missing.
⚫ALWAYS wear safety glasses. Every day eyeglasses should
have impact resistant lenses. They are not safety glasses.
READ AND UNDERSTAND ALL SAFETY WARNINGS &
PROCEDURES BEFORE OPERATING LIFT. POST THESE SAFETY
TIPS WHERE THEY WILL BE A CONSTANT REMINDER TO YOUR
LIFT OPERATOR. FOR SPECIFIC INFORMATION OF THE LIFT,
ALWAYS REFER TO THE LIFT MANUFACTURER’S MANUAL.
Improper installation can cause accelerated wear, resulting in
catastrophic failure such as property damage and body injury.
Manufacturer will assume no liability for loss or damage of any
kind, caused by not following the operation manual. Read this
installation manual thoroughly before attempting to install or
operate the lift.

Four post parking lift AM-FPL9
8
LIFT COMPONENTS

Four post parking lift AM-FPL9
9

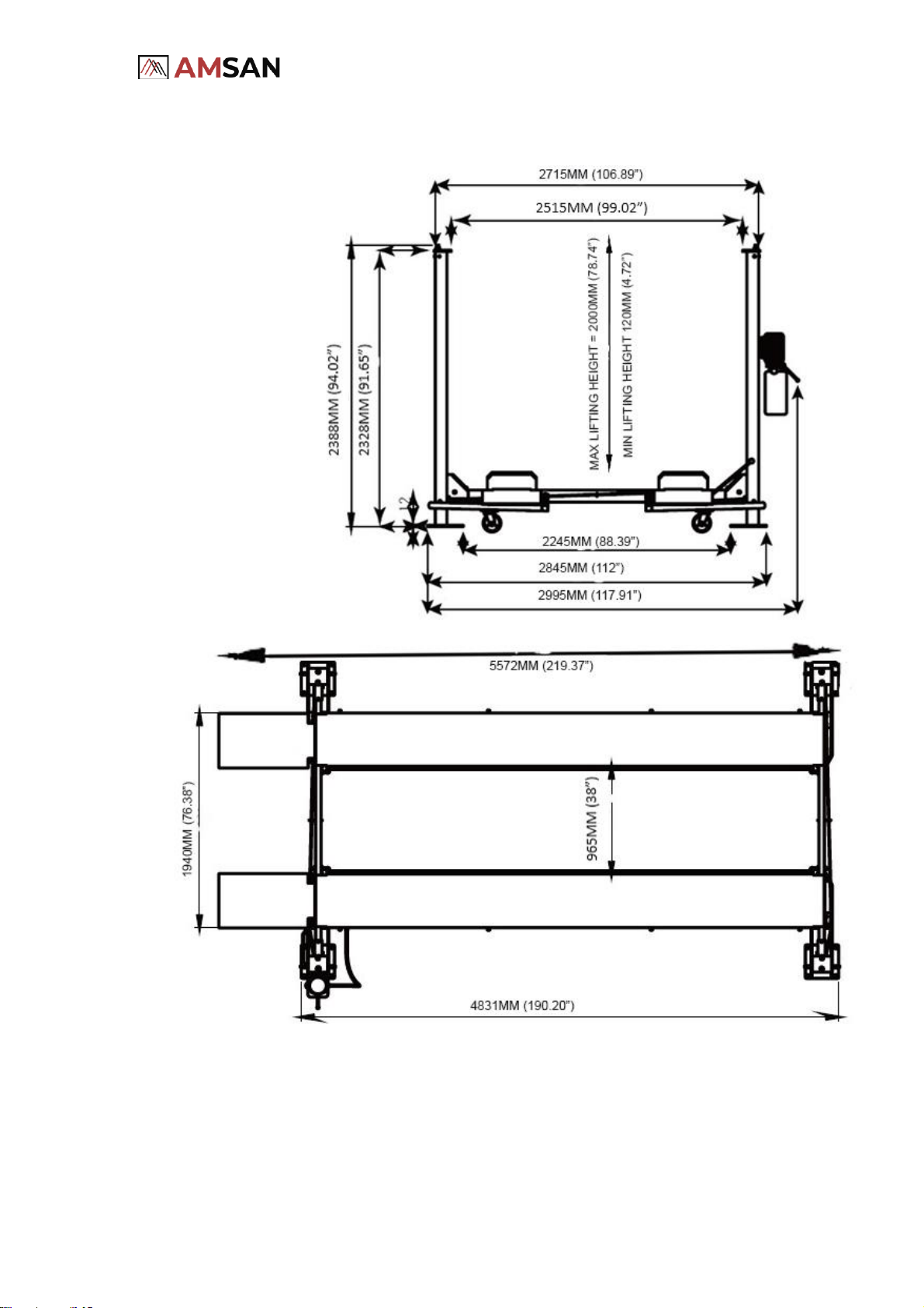

LIFT DIMENSIONS

Four post parking lift AM-FPL9
10
TECHNICAL SPECIFICATIONS
Overall Height
2388MM (94.02")
Time to Full Rise/Drop
50 seconds
Maximum Lifting Height
2000MM (78.74")
Minimum Height
120MM (4.72")
Overall Length (No Ramp)
4831MM (190.20")
Overall Length (With Ramp)
5572MM (219.37")
Power Unit
110 VAC / 1PH / 60HZ
Noise Level
≤70dB(A)
Drive Through Clearance
2245MM (88.39")
Overall Width
2995MM (117.91")
Width Between Runways
965MM (38")

11
Four post parking lift AM-FPL9
INSTALLATION
SPACE REQUIREMENTS
⚫You must consult the architectural plans for the desired
location. Make sure there are no contradictions
between how you want to build and how the plans indicate.
⚫The area where the lift will be located should be free of
overhead obstructions such as heaters, building supports,
electrical wires and so on. Also make there is enough
clearance around the lift for driving vehicles getting on or off
the lift.
FOUNDATION REQUIREMENTS
⚫Visually inspect the site where the lift is to be installed and
check for cracked or defective concrete
⚫DO NOT install or use this lift on expansion seams or on
cracked or defective concrete.
⚫DO NOT install or use this lift on any asphalt surface or any
surface other than concrete.
⚫Lift is designed for INDOOR INSTALLATION ONLY.
⚫This lift must be installed on a solid level concrete floor with
no more than 3-degrees of slope.
⚫Lift buyers are responsible for any special regional structural
and/or seismic anchoring requirements specified by any
other agencies and/or codes such as the Uniform Building
Code (UBC) and/or International Building Code (IBC).
⚫All models MUST be installed on 3000 PSI concrete and have

12
Four post parking lift AM-FPL9
a minimum of 12” thickness with steel or fiber mesh. New
concrete must be adequately cured by at least 30 days
minimum.
ANCHORING GUIDELINES
⚫Please carefully remove all the parts from the package.
⚫Use a concrete rotary hammer drill with 3/4” drill bit. Do not
use excessively worn or incorrectly sharpened drill bits.
⚫Keep the drill in a vertical position when drilling. Do not apply
excessive pressure and let the drill do the work. Try to lift the
drill up sporadically and clean residue in the hole. Power blow
dust from the hole for better holding.
⚫Drill the holes 1.25" deeper than the length of the anchor bolts.
Try to drill through the concrete so that when you move the
lift to a new location, you may hammer down the anchor bolts
instead of cutting them off.
⚫Assemble the washers and nuts onto the anchor bolts. Thread
the nuts onto the anchor bolts where the tops of the nuts are
just above the top of the bolts, as shown in figure below.
Using a hammer, carefully tap the anchor bolts into the
concrete until the washer rests against the baseplate. Do not
damage the nuts or threads. Try not to use an impact wrench
to tighten the nut. Tighten the nut two or three turns after the
concrete is cured (30-day minimum cure). In case where the
concrete is very hard, tighten only one or two turns.

13
Four post parking lift AM-FPL9
TOOLS RECOMMENDED
Chalk Line
4 Foot Level
Set of Metric Wrenches/Sockets
Flat Screwdriver
Adjustable Wrench
Hex-Key / Allen Wrench Set
Locking Pliers
Needle Nose Pliers
Tape Measure
Rotary Hammer Drill
Step Ladder
3/4" Masonry Bit
Hammer
3 Gallons of Hydraulic Oil*
Crow Bar
Forklift
*Recommended Oil: ISO 32, ISO 46 Hydraulic Oil or Dexron III ATF
INSTALLATION INSTRUCTIONS
ONLY TRAINED INSTALLERS SHOULD PERFORM LIFT INSTALLATION WORK.
Step 1.
⚫Please remove all the packaging and then remove the power
unit from the top. Cross Rail or Bar

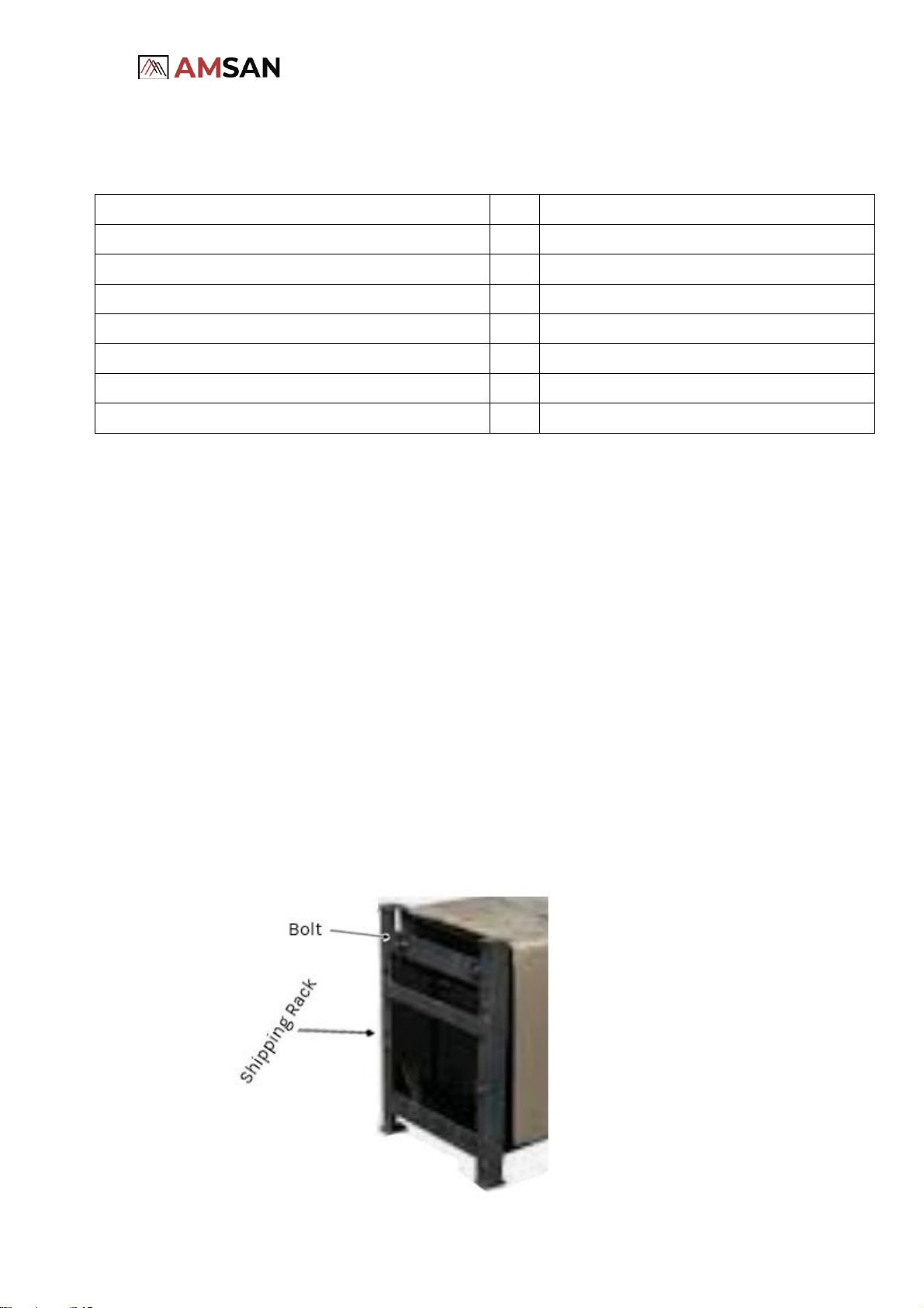

⚫Remove shipping racks from both sides by removing the
bolts. Please see the picture below.

14
Four post parking lift AM-FPL9
⚫After removing the shipping racks holding the two runways
together, remove top runway out of the skid and place it on
the side.
⚫Remove 4 posts, two cross rails, two ramps and all the other
parts off the bottom runway.
⚫Contact us if there are any parts missing.
⚫Please make sure you read the space, foundation and
installation requirements and anchoring guidelines
thoroughly in previous pages. The area where the lift will be
located should be free of overhead obstructions such as
heaters, building supports, electrical wires and so on. Also
make there is enough clearance around the lift for driving
vehicles getting on or off the lift.
⚫By using a chalk, draw an outline of the base plate on the
installation ground and establish the position for all the four
posts
⚫Double check all dimensions and make sure that the layout
is square.
Step 2.
⚫Ascertain the side where the power unit post will be located.
Please remember this is the post where your main electrical
power supply will be connected.
⚫Double check all dimensions and make sure that the layout
is square and aligned with the chalk line.
⚫Lay down rear posts on the ground and remove the top plates
form top of the posts and install the Cross rail in the posts by
sliding the plastic guide blocks into the column channel. The
safety latch must be positioned in the same level from the
ground and make safety latch facing towards the outside of
the lift when you stand the columns back up. Manually hold

15
Four post parking lift AM-FPL9
the lock lever down on each side of the cross rail and slide
the cross rail down until it rests on the safety lock position
closest to the floor. Repeat the procedure for the front posts
to install the cross rails. Stand the assembled posts up in
positions indicated on the floor plan.
⚫Start with installing runway that has cylinder already
installed in it. This runway will be placed on the cross rail
with the hose Connection facing out toward the power side
post. With an assistant, pick up and place one end of the
runway on the cross rail, and then pick up and place the other
end on the opposite cross rail (if you have three assistants,
place both ends at the same time). Use a large screwdriver or
aligning punch to align the mounting holes in the cross
rails with the mounting holes of the runway. Do not leave the
tracks unbolted –install the mounting bolts immediately!
Install M12X100 mounting bolts and M12 washers thru the
ramp brackets and wheel stops. Make sure the bolt head is on
the flat side of the bracket. Install the two ramp brackets and
two wheels stop with bolts and washers as you secure the
main runway to the cross rail. Secure the bolts with M12
washers and nuts placed hand tight. Now, install the offside
runway and again secure with ramp brackets, wheel stops
with M12X100 bolts and nuts. After both runways are
installed, tighten all bolts M12X100 bolts.

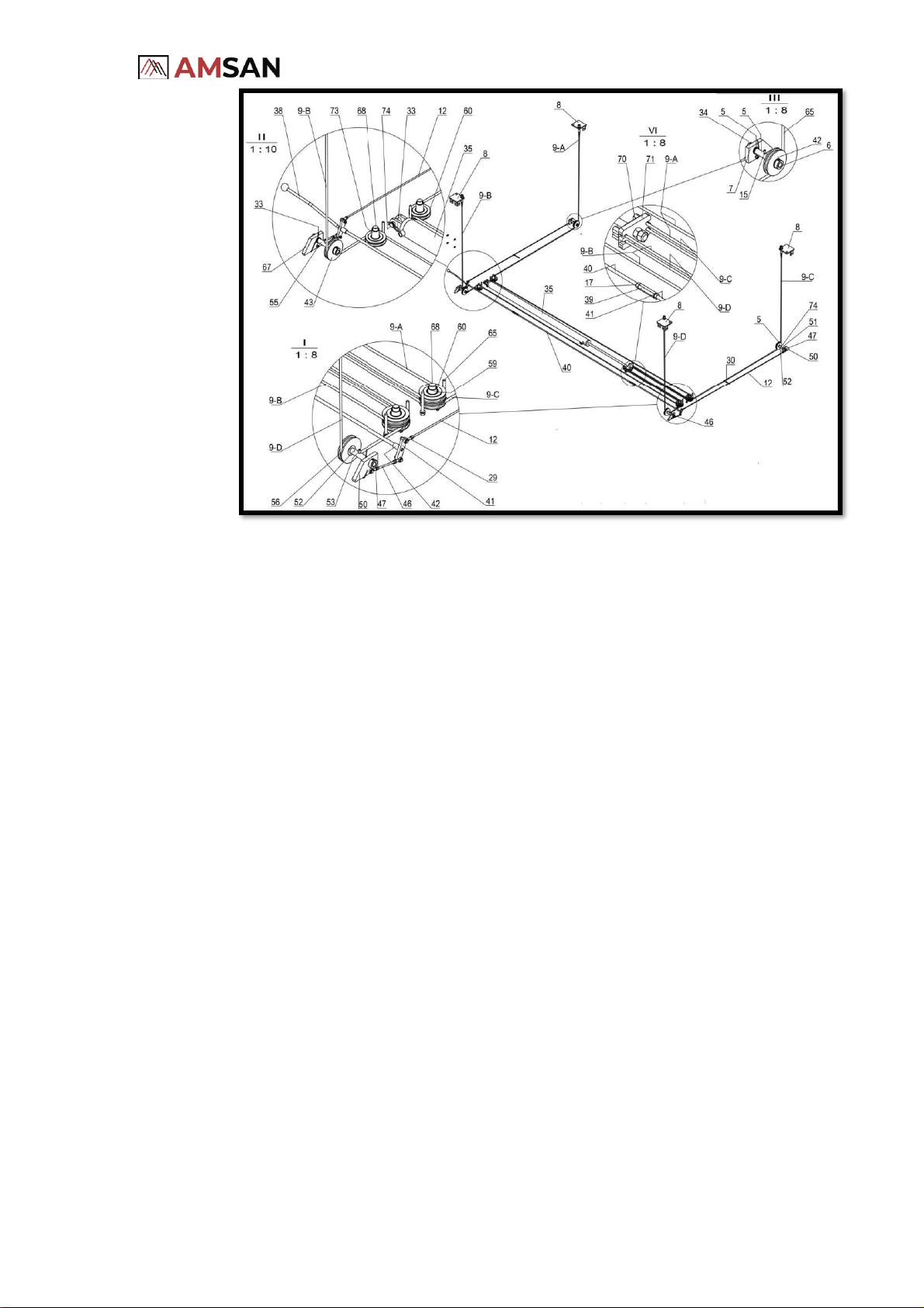

⚫Install the cylinder connecting metal plate as shown in below
figure. Reference this diagram for installing cables.

16
Four post parking lift AM-FPL9
⚫Find the post plates (4 each), M12x170 bolts (4 each), M12x30
bolts (4 each), M12 nuts (8 each) and M12 flat washers (16
each), holes for cable face towards the center of the lift.
Secure all 4 post caps with M12x30 bolts. Place the bolts with
washers in through channel and secure with washers and
nuts on the outside of the post cap. Install the M12x170 bolts
through the post and top cap. Install from outside of the post
and secure with a nut on the inside of the post. Tighten the
M12x30 and M12x170 bolts.
⚫Pass the bolt end of the cable through the opening of the
offside runway, then run cable 90 degrees around the pulley
of the cross rail. Secure the threaded ends into the hole in the
top of the post caps and secure them with washer and nut.
⚫Safety Latch Linkage Installation: Locate and identify the
components needed to install the safety latch linkage rods.
Install the spacers from on the straight threaded end of the
M12X1270 bent rod and the threaded end of the M12X3200
straight safety latch linkage rod.
⚫Install the M12X1270 bent safety latch linkage rod into the
power side runway adjacent to back end of the cylinder

17
Four post parking lift AM-FPL9
(opposite the cylinder rod). Safety latch linkage rod should
pass through guide tubes on underside of runway.
⚫Install the M12X3200 straight safety latch linkage rod into
the power side runway from the opposite end. The rod should
pass through two guides on the underside of the power side
runway.
⚫Install the 90 fitting w/O-Ring in the base of power unit pump
next to the lever operated release valve. IT IS NOT NECESSARY
TO USE TEFLON TAPE ON O-RING FITTINGS.
⚫Connect the 1800MM hose to the fitting on the power unit.
Attach the other end of the 1800MM hose to outside fitting in
power side runway.
⚫Place a funnel into vent cap hole and fill hydraulic oil in the
power unit reservoir about 10 liters. Recommended Oil: ISO 32,
ISO 46 Hydraulic Oil or Dexron III ATF
⚫Relocating or changing components may cause problems.
Each component in the system must be compatible; an
undersized or restricted line will cause a drop in pressure. All
valve, pump, and hose connections should be sealed and/or
capped until just before use. All parts should be supplied
from manufacture.
⚫Air hoses can be used to clean fittings and other
components. However, the air supply must be filtered and dry
to prevent contamination. Most important -cleanliness -
contamination is the most frequent cause of malfunction or
failure of hydraulic equipment.
⚫Check Pulley Cover and Lock Ladder: Before proceeding,
double check to make sure the locking ladder for the cross-
rail cable pulleys are tight and secure. Check the pulley cover
(2-RIGHT and 2 LEFT) over the shaft located on the pulley side
of each cross-rail. CHECK the pulley and cover are firm
against the locking ladder already in place. Check the
additional lock ladder on the outside of the shaft is tight and
secure. To prevent personal injury or death, cross-rail lock

18
Four post parking lift AM-FPL9
ladder must be tight. If they are ever removed -always make
sure the locking ladders are tight and secure.
⚫Check the cross-rail locking assembly before use. Make
sure all bolts and ladders are tight and secure. The
assembly is pre-installed from the factory, but parts may
come loose during shipping.
⚫After installation is completed and before start up, be sure
to inspect and tighten all bolts.
⚫Start Up: Make sure power unit reservoir is full with 10L of ISO
32, ISO 46 Hydraulic Oil or Dexron III ATF oil and lubricate
inside the posts for slide blocks run smoothly.
⚫Initial Operation: Press the UP SWITCH on the power unit.
Raise the lift slowly until all the slack in the cables are taken
out. Raise the lift until the safety latch closest to the
power unit comes within 25MM to the bottom of the lowest
lock position. Tighten the cable by adjusting nut on top of
each post cap until all remaining safety latches come within
25MM to the bottom of the lowest lock position. If cables are
adjusted evenly the lift should be raising equally and all four
safety latches engage simultaneously.
⚫IF LIFT DOES NOT RISE: Check hose connections. Fluid should
be pumping through the hose. Check fluid level.
⚫NOTE: There will be some initial stretching of the cables in the
beginning. It will be necessary to readjust the cables a week or
so after first use. Run the lift up and down a few times to make
sure that the safety latches are engaging consistently, and that
the safety latch release is functioning properly. Re-adjust if
necessary.
⚫When lowering the lift PAY CAREFUL ATTENTION. ALWAYS
make sure that all FOUR SAFETY LATCHES are disengaged. If
one of the latches locks on descent, STOP immediately and
raise until it is clear of the stop.
⚫Install the approach ramps on the entry side of the lift. Drive a
vehicle onto the lift tracks then install the rear wheel chocks.
Run the lift up and down a few times to ensure that the latches

19
Four post parking lift AM-FPL9
are engaging uniformly, and that the safety latch release is
functioning properly. Re-adjust if necessary.
⚫Run the lift up and down at least three times, before putting a
vehicle on it for the first time. This is to bleed the air out of the
cylinder and power unit.
3.2 OPERATION
To raise the lift
⚫Position the vehicle at the center of the platform. Check to
make sure that the vehicleis secured.
⚫Press GREEN button to raise the vehicle
⚫To rest the lift in standing position at the desired height by
releasing GREEN button.
⚫Always ensure that the lift rests on the safety locks before
any attempt is made to work under or near the vehicle.
To lower the lift
⚫Be sure the safety area is free of people and objects.
⚫Raise the lift a little bit by pushing GREEN button to clear off the
safety lock.
⚫Press the release handle and at the same time also press
unloading handle on the power unit to lower the lift.
⚫Lower the lift completely
