AMSTRON MedXP 400 User manual
User Manual
MedXP 400
Designed to be the most exible
mobile power solution
Certied Medical Grade Battery
R
• Product: Rechargeable Li-ion Battery
• Model: MedXP-400
• Derivation Model: MedXP-400-BASE, MedXP-400-AUX
• Battery Cell Spec: 3.6V, 3350mAh, 432Whr (Total Power
Combined)
• Charging Voltage/Current : 4.2V/ 3.4A max (per cell)
• Output Power: Max 180 Watt
• IEC 60601-1 (3.1 Edition) and UL Certied 62133 / TUV
Certied IEC62133 for battery packs

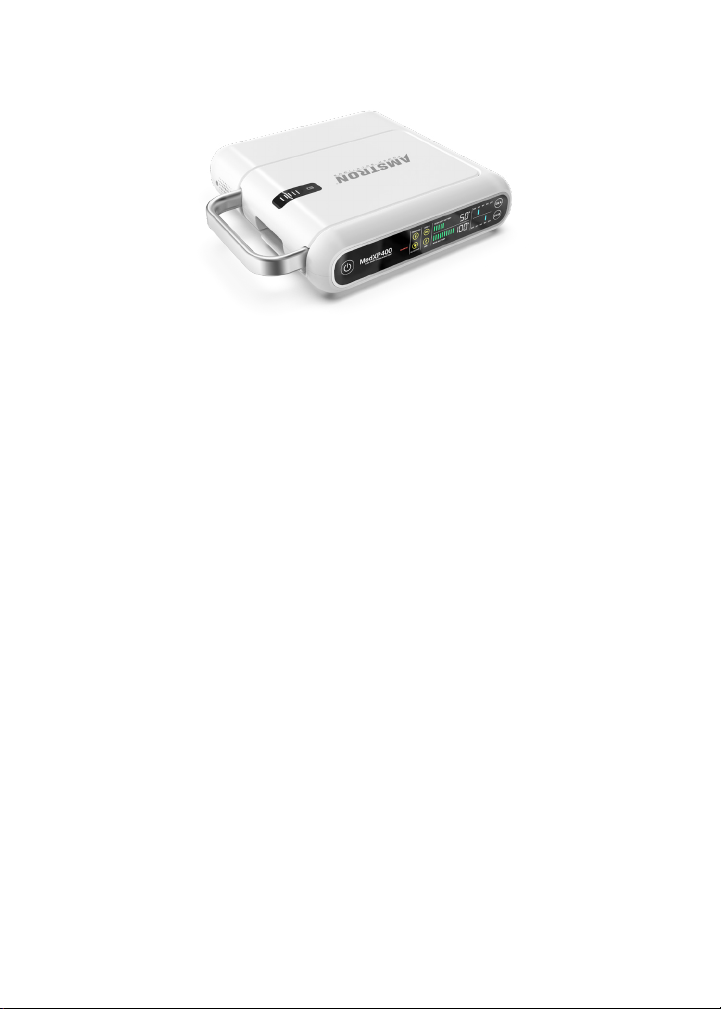

Overview
• The MedXP-400 includes a base unit or main battery pack, a re-
movable auxiliary pack, 2 DC output cables, AC Adapter, and a bag
of DC tips.
• When using both main and auxiliary batteries together, the auxiliary
pack can be safely removed without disturbance to your device.
• The MedXP-400 battery is delivered at 30% capacity based on
shipping regulations. Please fully charge before use.
• Please use and store the MedXP-400 in a cool, dry area.
Charging
• To charge the MedXP-400, use only the AC adapter provided.
• The MedXP-400 can be fully charged in under 6 hours. Howev-
er, charge time may increase if your device is being used while
charging.
• During charging, the main battery pack will charge rst and the
auxiliary pack will charge second. During discharge, the auxiliary
battery will be depleted rst.
• A green LED bar will blink within the battery level bars to show main
base battery charging or AUX battery charging.
• A charging icon will be lit on the face of the battery to indicate the
battery is receiving power from the AC Adapter.

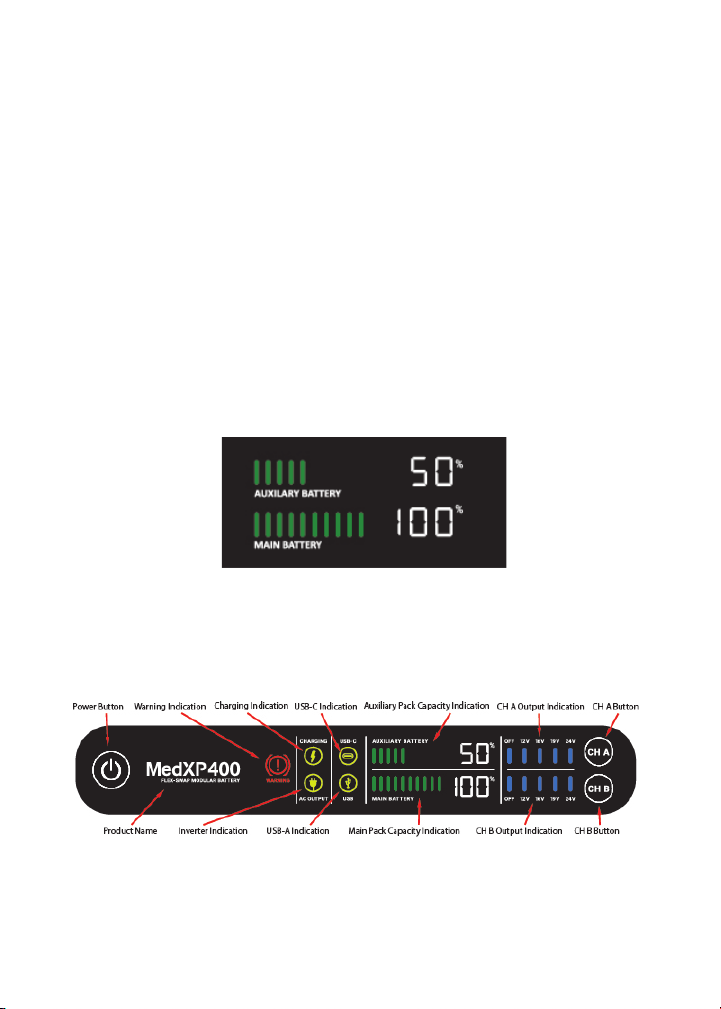

LCD Display and Touch Panel
Power On and Selecting/Changing the DC Voltage
1. Press the Power button for 2 seconds to turn on the MedXP-400.
2. Press the CH A or CH B button for 3 seconds. Once the blue volt-
age indicator bar begins to blink, the voltage may be changed.
3. Use the CH A or CH B button to select the desired voltage (12V,
16V, 19V, 24V), then hold down for 3 seconds to save. The indi-
cator bar will stop blinking and the newly selected voltage will be
saved.
• The voltage will automatically reset to “OFF” mode if a new voltage
is not selected.
• Once the new voltage is saved, it will remain the default setting
when the MedXP-400 is powered off and on again.

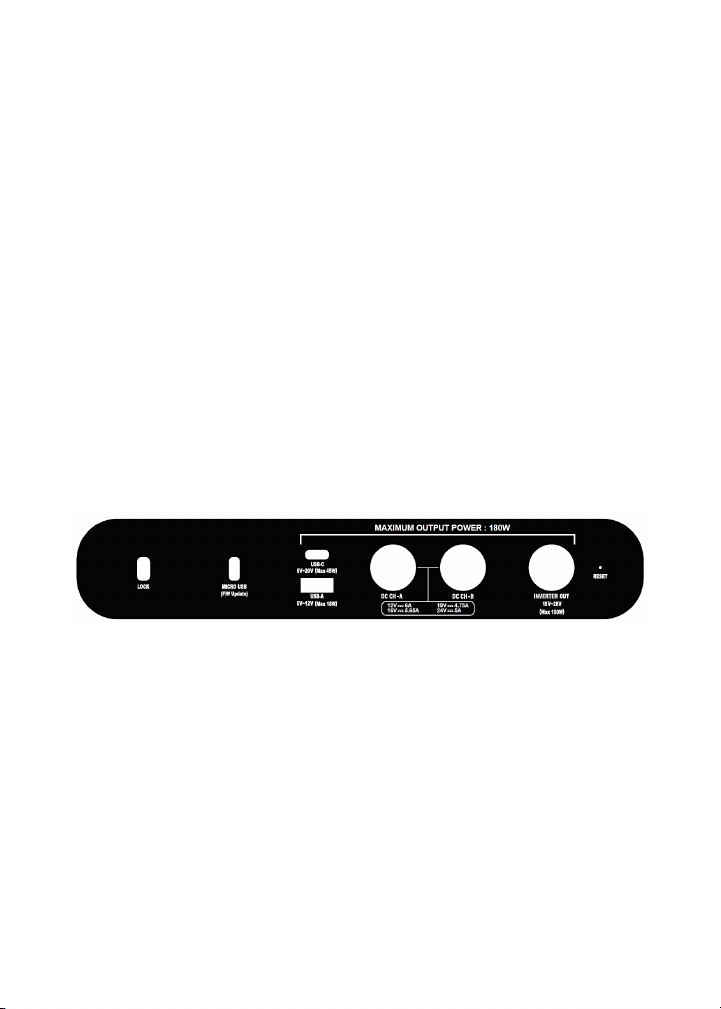

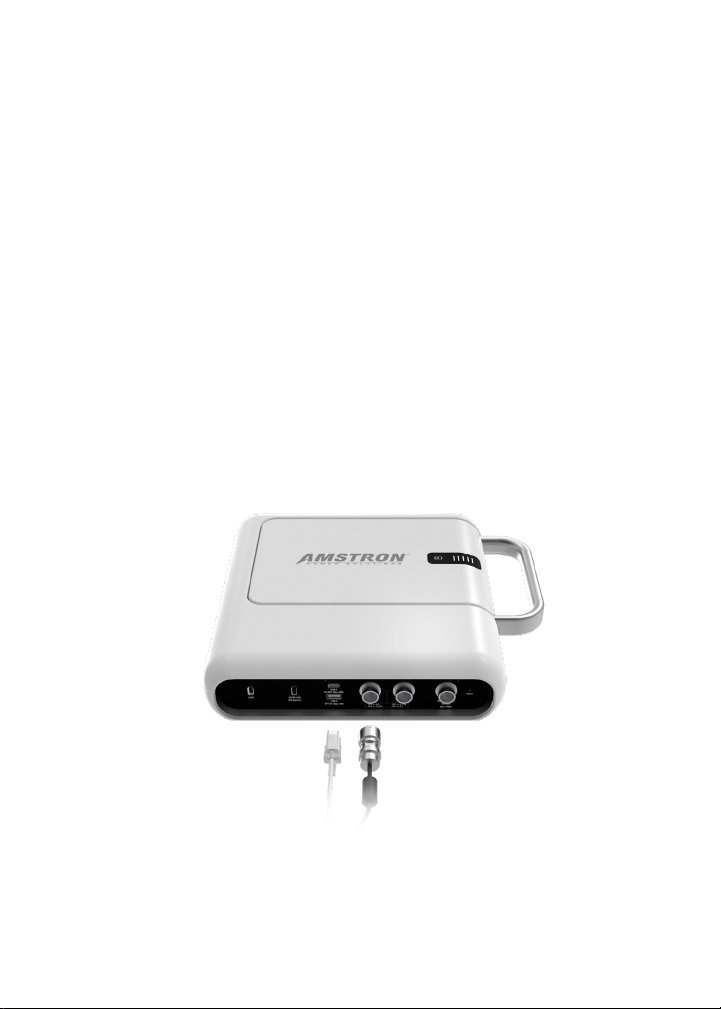

Connecting Your Device
1. First select the voltage (See instructions above).
2. Connect the interchangeable tip to the DC output cable. (See
diagram) Be sure to select the correct size tip for your device. If
you are unsure of which tip to use, contact your local dealer or the
manufacturer for assistance.
3. Align the red dots to connect the circular end of the DC output
cable to the selected output port of the MedXP-400. (See diagram)
4. Plug the interchangeable tip into the charge port of your device.
5. Check your device to conrm it is being charged.
• If using an inverter, connect the inverter cable to the inverter output
port of the MedXP-400. Turn on the inverter. The “AC output” icon
will light up on the LCD display once the inverter is connected and
turned on.

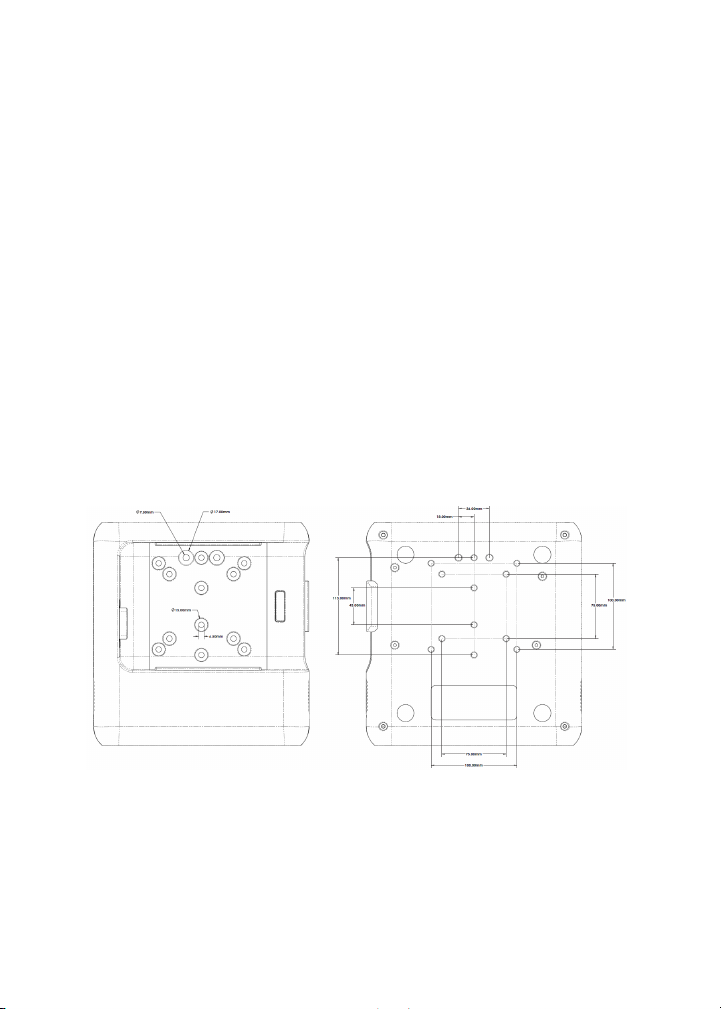

Mounting the Battery
• The MedXP-400’s Integrated Mounting Solution is a unique feature
that allows the user to mount the unit directly onto a medical cart
or other mobile workstation, eliminating the need to purchase a
separate holster.
• Remove the AUX battery pack to reveal several hole patterns for
mounting
• Ensure the head of the screw ts down into the hole cavity. Any
exposure would hinder the AUX battery to slide properly back into
place. (mounting screws are not provided)
• The MedXP-400 can be mounted in any orientation needed.
• The AUX battery handle can be removed for a space saving option.

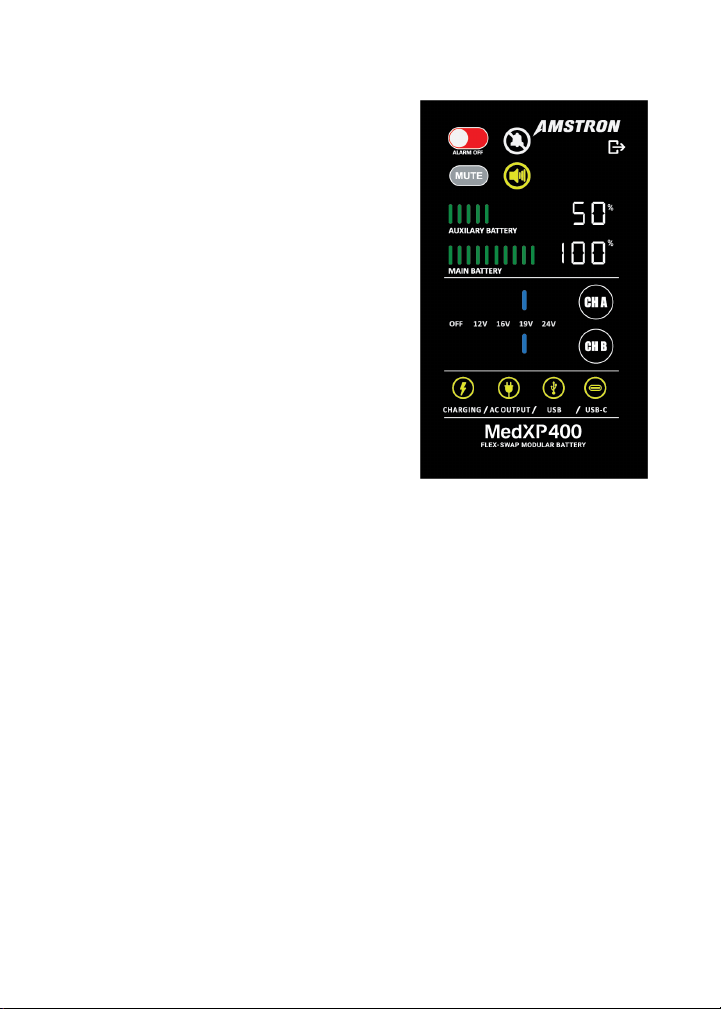

On-Screen Software
• Ask your dealer for the latest
version of the On-Screen software
le for your MedXP-400 battery
System
• Install the .exe le on the computer
you want to have On-Screen mon-
itoring of the MedXP-400 battery
system.
• Use a USB to Micro-USB cable
(not supplied) to connect the com-
puter to the Micro-USB port on the
back of the battery.
• The On-Screen interface looks
and acts like the battery interface
for easy-to-read battery levels,
DC output selections and system
icons.
• The low battery Alarm feature can
be turned ON or OFF by a slider bar. When ON, an alarm will sound
when the total battery capacity reaches 10% and again at 5%. A
mute button is provided to silence the alarm.
Warning Light
The warning light will appear to indicate any of the following:
• Low capacity: Under 5%
• To recover, charge the MedXP-400 with the included AC adapter.
Once capacity is restored, the light will turn off.
• Overvoltage protection: 29.5V
• Undervoltage protection: 17.0V
• High temperature protection: System 75°C , Cell pack 55°C
• Overpower protection: System 160W, Inverter 135W
• CH A&B output (12V @72w/ 16V @90W/ 19V@ 90W/ 24V
@120W)
DC Output Cutoff
The DC output will cut off once it has reached the following limits:
• Total output: 181W
Once output exceeds 180W, it will shut down in this sequence: Inverter
-> CH B -> CH A. To recover, turn the power off and on again.
• Inverter output: 151W
To recover, turn the power off and on again.
• CH A & CH B: 12V@72W / 16V@90W / 19V@90W / 24V@120W
Output will auto-recover once voltage is adjusted to a lower setting.
Specications
Output voltages QC2.0 5V, 9V, 12V, 18W Max
USB PD3.0 45W Max
Output Power 12V 72W, 16V 90W
19V 90W, 24V 120W
Maximum output power : 180W
Capacity Main base pack : 145Wh
Auxiliary pack : 289Wh
Total 434Wh
Dimension 10” Wide x 10.5” Deep x 2.75”
High
Weight Main base pack : 4.85 lbs
Auxiliary pack : 3.95 lbs
Total weight: 8.80 lbs
Display WVA LCD Display.
Charging time Under 6 hours
Origin Republic of Korea
Warranty
The MedXP-400 has a 12 month warranty from the date of purchase
against defects in materials and workmanship. During this period,
defects will be repaired or the product will be replaced without charge.
This warranty does not cover damages caused by misuse, neglect, and
normal wear and tear of the lithium-ion battery cells. If you have ques-
tions or problems, please contact the dealer from whom the MedXP-400
was purchased. Under no circumstances will the manufacturer be liable
for any of the following: loss of damage to programs, records, or data;
loss or damage to computer or other devices; any other incidental or
consequential damage caused by the user or the user’s mishandling of
this product.
Caution
• LITHIUM-ION BATTERIES CAN BE DANGEROUS IF MISHAN-
DLED.
• DISPOSE OF BATTERY PROPERLY. CONTACT YOUR LOCAL
RECYCLING CENTER FOR INSTRUCTIONS.
• KEEP AWAY FROM CHILDREN.
• DO NOT DROP, PUNCTURE, IMMERSE IN WATER OR OTHER
LIQUIDS.
• KEEP AWAY FROM DIRECT SUNLIGHT, FIRE OR HEAT.
• THE BATTERY USED IN THIS DEVICE MAY PRESENT A FIRE
OR CHEMICAL BURN HAZARD IF MISHANDLED.
• DO NOT DISASSEMBLE, HEAT ABOVE 60°C(140°F), OR INCIN-
ERATE.
• USE SPECIFIED CHARGER ONLY.
• EXPLOSION MAY OCCUR IF DAMAGED.
• DO NOT SHORT-CIRCUIT.
Customer Service
For problems or inquiries regarding this product, please contact the
dealer from whom the MedXP-400 was purchased. Or you can contact
the manufacturer directly at:
Amstron Power Solution, Inc.
28381 Constellation Road
Valencia CA, 91355
www.amstron.com
818-504-1634
