Overview
The NXB-CCG-K NetLinx® Clear Connect™ Gateway (FG2606-868) connects AMX NetLinx Controllers with
Lutron's Clear Connect Occupancy Sensors. The Gateway includes a web interface for simplified integration,
configuration, and programming of Clear Connect devices. When integrated with an AMX NetLinx Controller, installers
now have a simple and cost-effective path to offer smart room automation that includes light and AV control from a
single interface, occupancy sensing, scheduled shutdown, and energy management.
Common Applications
The NXB-CCG-K is ideal for new and retrofit applications looking for the least costly way to add AV control to a room.
The NXB-CCG-K is designed to interface with Lutron's Clear Connect Occupancy Sensors.
Features
Clear Connect Enabled – Lutron's patented RF Technology uses a quiet band that is essentially free of
interference, ensuring reliable communication between system devices.
Create Light & Control Events with Room Occupancy – Use the Clear Connect Wireless Occupancy
Sensor with RMS to automatically power-up and shut-down the lights and AV equipment to maximize energy
conservation.
Simple Web Configuration – Browse to the NetLinx Clear Connect Gateway URL (page 9) to quickly add
Clear Connect Enabled Occupancy/Vacancy Sensors.
The NXB-CCG-K can control up to 31 devices at one time (the NXB-CCG-K and 30 devices within its network), and
can configure up to ten devices at a time through its Web Interface Pages (page 9).
FIG. 1 NXB-CCG-K ClearConnect Wireless Gateway
Antenna
Power/Status LED
RF LED
Ethernet LED
CAT5 Cable
Port
USB Cable
Port 5VDC Power
Jack
1”
(25.4 mm)
2.56”
(65.1 mm)
Reset
Button

NXB-CCG-K NetLinx ClearConnect Gateway
2NXB-CCG-K NetLinx® Clear Connect™ Gateway
Product Specifications
NXB-CCG-K (FG2606-868) Specifications
Power Requirements: • Power Consumption: 600mA @ 5VDC, DC adapter optional (5V DC,
3A).
•Surge Protection: To withstand surge voltages without damage or loss
of operation, in accordance with IEEE C62.41-1991 Recommended
Practice on Surge Voltages in Low-Voltage AC Power Circuits.
•Power Failure Memory: If power is interrupted, the NXB-CCG-K will
return to its previous state when power is restored.
Front Panel Components:
Power/Status LED: Displays power status and other system status indicators.
RF LED: Displays the Tx / Rx activity on the RF link.
Ethernet LED: Displays the connection status and Tx / Rx activity on the Ethernet link.
Rear Panel Components:
CAT5 Cable Port: Maximum cable length: 328 ft (100 m).
USB Cable Port: Manufacturer use only.
Reset Button: Press and hold for 30 seconds to restore the system to the Factory Default
settings.
Power Jack (to DC adapter) (IEC PELV / NECR Class 2). This product should be connected to a safety
isolating supply conforming with EN61558.
Operating Environment: • 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing.
• Indoor use only.
ESD Protection: ESD protection to withstand electrostatic discharge without damage or
memory loss, in accordance with IEC 61000-4-2.
Communications: • The NXB-CCG-K communicates to other Clear Connect devices through
RF.
• All devices (except wired accessory dimmers/switches) must be located
within 30 feet (9 m) of the NXB-CCG-K.
Auto Discovery: Supports the ZeroConf auto discovery protocol.
Dimensions (HWD): • Without antenna: 1 1/8” x 2 5/8” x 4 7/16” (2.86 cm x 6.60 cm x 11.23 cm)
• With antenna: 6 1/2” x 2 5/8” x 4 7/16” (17.15 cm x 6.60 mm x 112.27
mm)
Weight: 0.3 lbs (136.08 g)
Certifications: • CE
Included Accessories: • NXB-CCG-K Installation Guide (93-2606-68)
Other AMX Equipment: • CCD3-OCRB-P-WH, 868 MHz Ceiling Mount Occupancy/Vacancy
Sensor (FG2606-44-WH)
• PS-CCG 5 VDC, 3A Power Supply With 2.1mm Barrel Connector
(FG423-61)
Proper orientation of the antenna helps ensure maximum range and the best
performance. The NXB-CCG-K should be positioned centrally to the devices being
controlled, and as high and clear of obstructions as possible. The NXB-CCG-K
utilizes an omni-directional antenna, which produces a circular pattern perpendicular
to the antenna. For best performance, the antenna should be positioned vertically (tip
up or down, not sideways). Try to keep the antenna at least 2 feet from metallic
objects.

Installation
3
NXB-CCG-K NetLinx® Clear Connect™ Gateway
Installation
Important Notes
Codes
Install in accordance with all local and national electrical codes.
Cleaning
To clean, wipe with a clean damp cloth. DO NOT use any chemical cleaning solutions.
DC Adapter Power
RF Device Placement
All dimmers, switches, keypads and shades / draperies must be located within 30 ft (9 m) of the NXB-CCG-K (FIG. 2).
Using a DC adapter not rated at the proper specifications could damage the NXB-
CCG-K and possibly overheat the DC adapter.
FIG. 2 RF Configuration
30 feet (9 m) maximum
NXB-CCG-K
Power Source
Lutron switches/dimmers
Proper orientation of the antenna helps ensure maximum range and the best
performance. The NXB-CCG-K should be positioned centrally to the devices being
controlled, and as high and clear of obstructions as possible. The NXB-CCG-K
utilizes an omni-directional antenna, which produces a circular pattern perpendicular
to the antenna. For best performance, the antenna should be positioned vertically (tip
up or down, not sideways). Try to keep the antenna at least 2 feet from metallic
objects.

Installation
4NXB-CCG-K NetLinx® Clear Connect™ Gateway
Installation
1. Find a suitable location for the NXB-CCG-K.
2. Mount vertically (FIG. 3) or horizontally (FIG. 4), using two #6 (M3) screws (FIG. 5). When mounting, allow 7 in
(177.8 mm) clearance for the antenna and ensure convenient access to the power plug. In order to achieve proper RF
performance, do not mount unit in a metal enclosure.
3. Attach the DC adapter cord to the power jack on the NXB-CCG-K and insert the DC adapter plug into a receptacle
(FIG. 2).

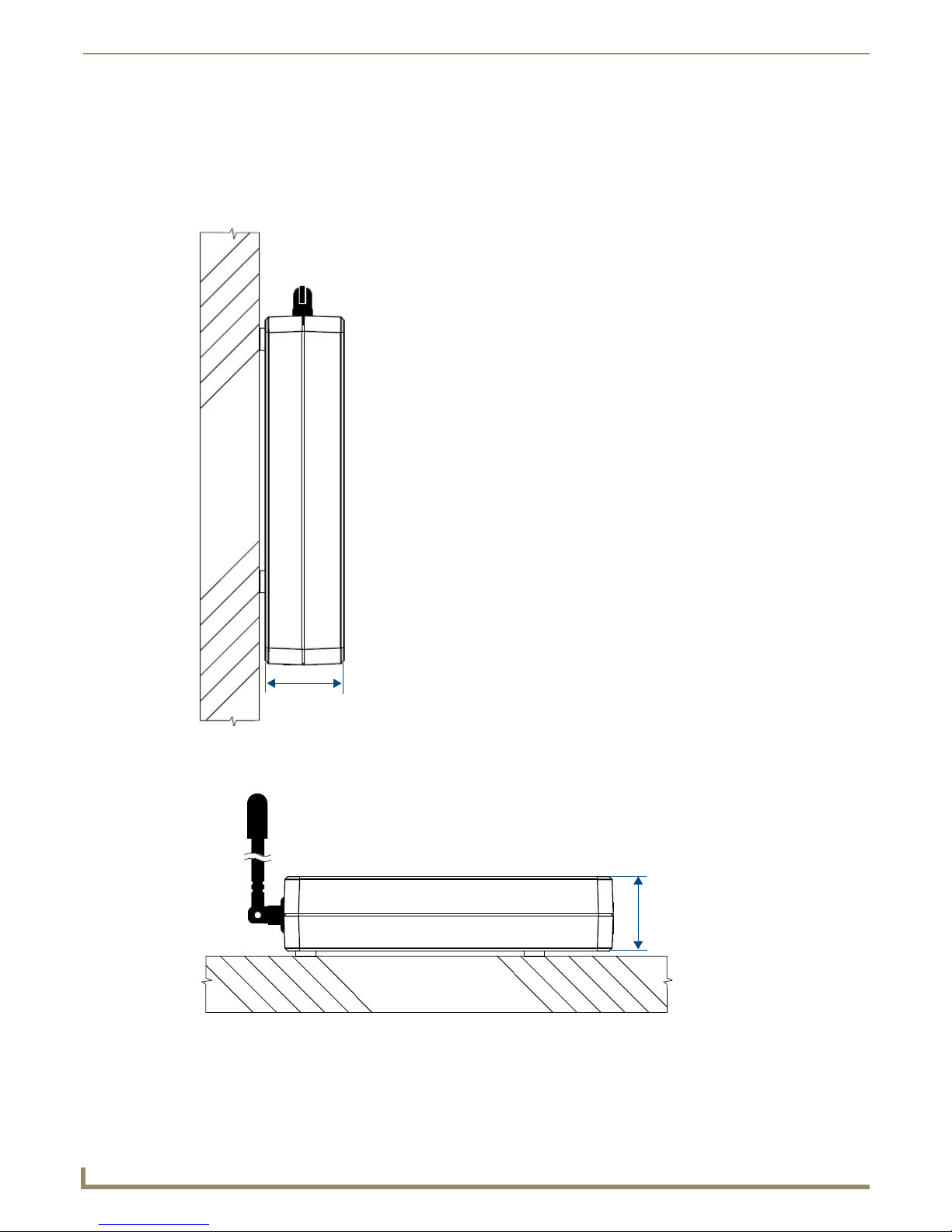

FIG. 3 NXB-CCG-K - Vertical Installation
FIG. 4 NXB-CCG-K - Horizontal Installation
1”
(25.4 mm)
Wall
Level Surface
1”
(25.4 mm)

Installation
5
NXB-CCG-K NetLinx® Clear Connect™ Gateway
4. Use CAT5 Ethernet cable to connect the NXB-CCG-K to the chosen network’s Master. Please refer to the Ethernet
Pin Numbering diagram (FIG. 6) for the correct connection.
Ethernet Pin Numbering
The numbering for pins in the Ethernet port is as follows:
Returning an NXB-CCG-K to Factory Default Settings
1. Press and hold the Reset button (FIG. 1) on the device for 20 seconds.
2. The Power/Status LED will start flashing slowly for approximately10 seconds, after which it will start rapidly
flashing for approximately 20 seconds and then remain on.
3. The device has been returned to its factory default settings.

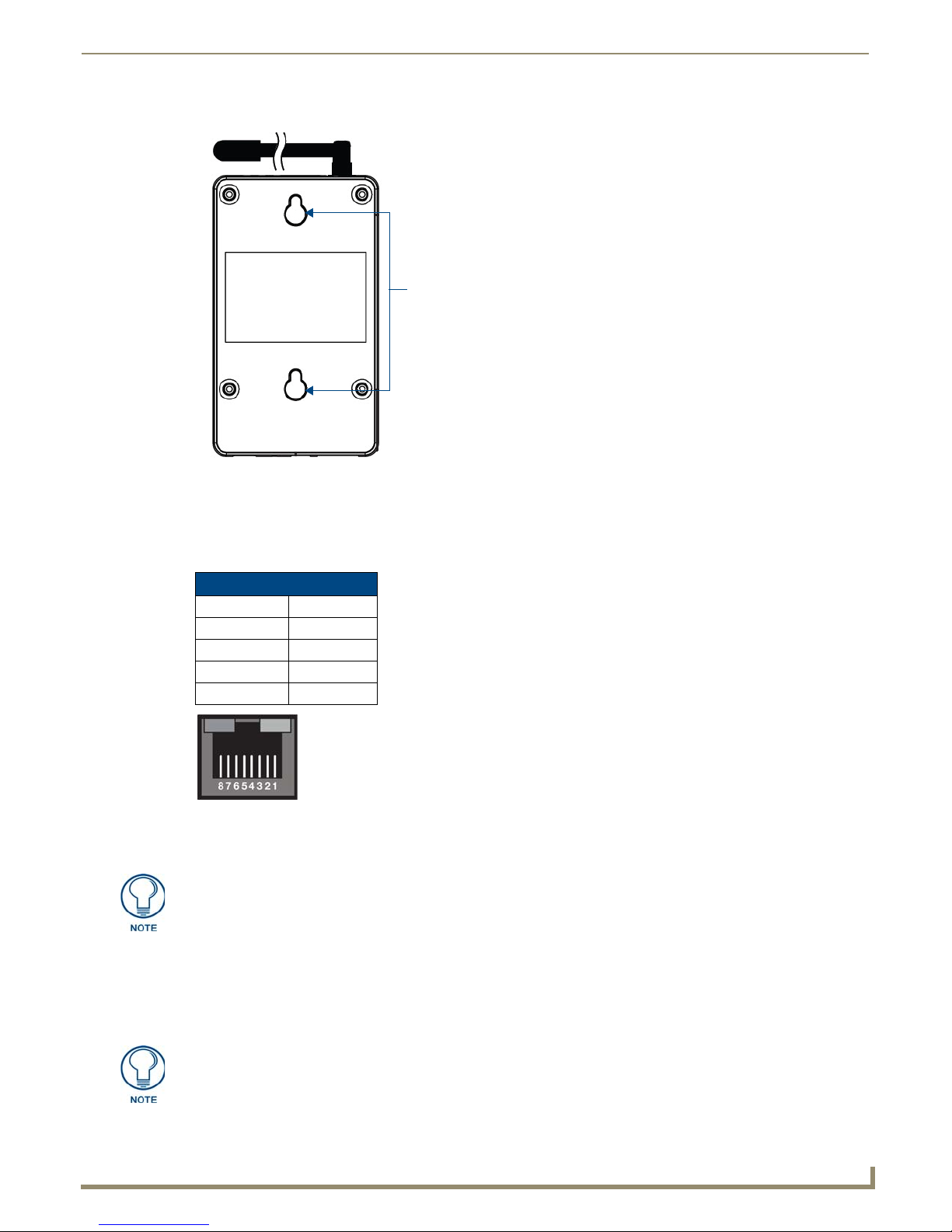

FIG. 5 Underside of NXB-CCG-K
FIG. 6 Ethernet Pin Numbering
Ethernet Pin Numbering
Ethernet: Pin #:
T+Ve 1
T-Ve 2
R+Ve 3
R-Ve 6
2.62"
(67.0 mm)
Returning an NXB-CCG-K to factory default settings will erase all programming from
it and all system devices and will require all Clear Connect devices to be
reprogrammed into the system
Returning the NXB-CCG-K to its factory default settings does not do the same for any
connected Lutron Clear Connect devices. They may have to be returned to factory
defaults separately before being reattached to the NXB-CCG-K’s network.

Installation
6NXB-CCG-K NetLinx® Clear Connect™ Gateway
Connecting To the NXB-CCG-K
Automatic Detection
The NXB-CCG-K supports mDNS or ZeroConfig. This allows the device to be automatically detected on a network with
a ZeroConfig-capable browser or Apple’s Bonjour plug-in. The Safari web browser has a Bonjour browser built into it in
the Bookmarks window.
ZeroConfig in Safari
To use the Safari browser:
1. Click the Bookmarks icon in the top left corner.
2. Click “Bonjour” in the collections list.
3. Select the icon that corresponds to the host name of the NXB-CCG-K or select it from the bookmark list (FIG. 7).
ZeroConfig in Other Browsers
Some standalone ZeroConfig browsers exist that vary in their feature set. Most of them will allow you to discover the
devices on the network and find the IP addresses. The NXB-CCG-K will, by default, have the host name “NXB-CCG-K-
“, followed by the serial number of the device.
Other browsers have plug-ins that can be downloaded and installed for use in autodetecting the NXB-CCG-K via the
ZeroConfig protocol.
ZeroConfig in NetLinx Studio
Netlinx Studio has a built in ZeroConfig browser to find the NXB-CCG-K and display its web page interface. NetLinx
Studio is available at www.amx.com.
In newer versions of Safari, the Bonjour plug-in must be enabled before use.
The Bonjour plug-in is not available in the mobile version of Safari.

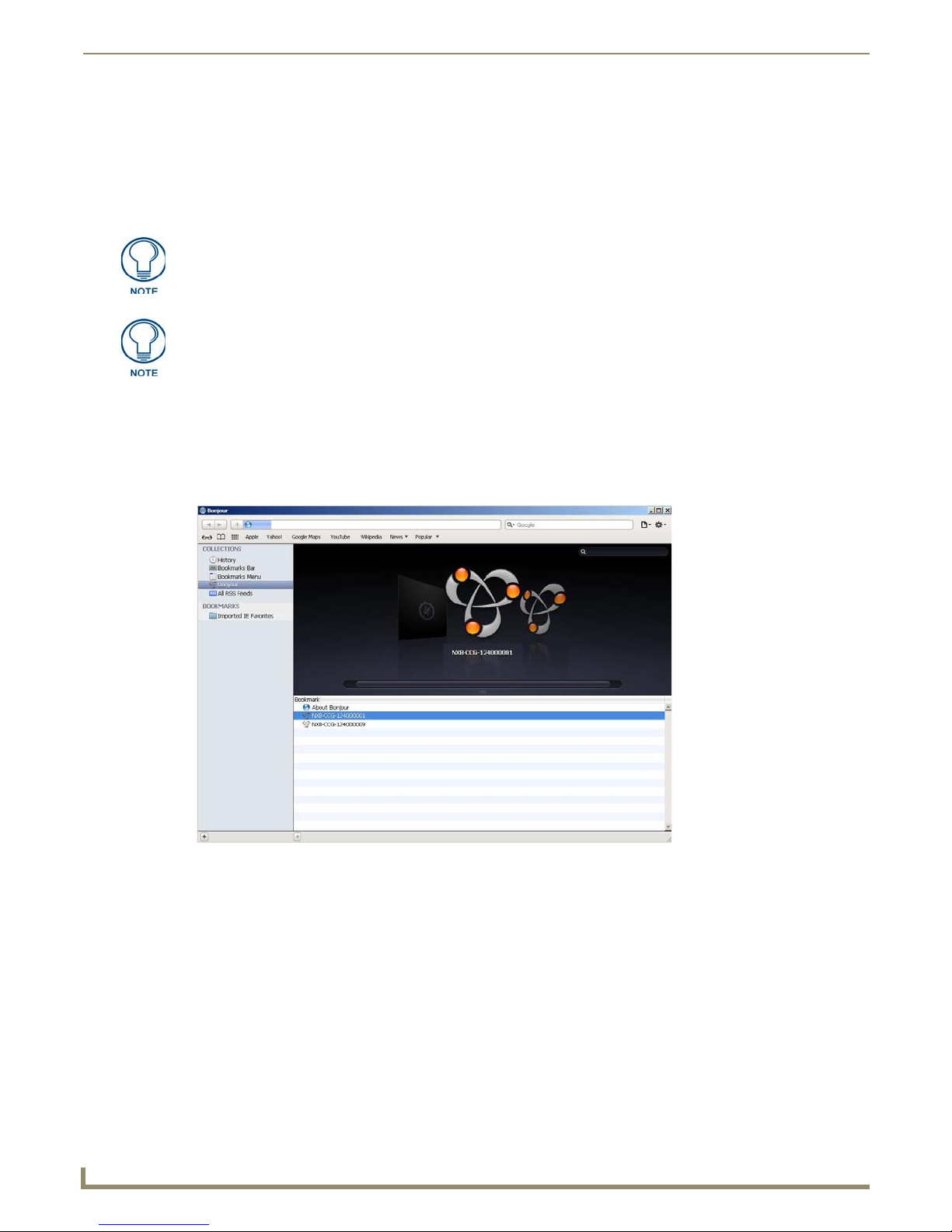

FIG. 7 Bonjour browser layout

Installation
7
NXB-CCG-K NetLinx® Clear Connect™ Gateway
XML Integration File
The NXB-CCG-K can generate an XML file to assist with further integration efforts, The file is generated as a text file
(FIG. 8).
The Lutron Integration Protocol credentials can also be added to the web address to automate this process (example:
“[IP address of NXB-CCG-K]/xml?login=<username>&password=<password>”).
FIG. 8 XML Integration File example

Troubleshooting
8NXB-CCG-K NetLinx® Clear Connect™ Gateway
Troubleshooting
If you should have issues with installing an NXB-CCG-K or with setting up a network, consider the following options:
Ensure power is connected to the NXB-CCG-K
Ensure a network connection is made between the NXB-CCG-K and a router/PC
Factory default the NXB-CCG-K
Place a router between the NXB-CCG-K and the controlling PC
Refresh the NXB-CCG-K web page
Cycle power to the NXB-CCG-K
Ensure power is connected to all devices being programmed in the system
Ensure recommended device spacing, with a maximum of 30 feet (9.14 meters) between devices, and a
minimum of 10 feet (3.05 meters) between NXB-CCG-Ks.

Web Interface Pages
9
NXB-CCG-K NetLinx® Clear Connect™ Gateway
Web Interface Pages
Overview
The NXB-CCG-K feature a built-in zero-configuration networking client that allows you to determine the unit’s IP
address via NetLinx Studio v3.0 (or higher), or a similar zero-configuration client or browser. Entering the device’s IP
address in an enabled browser (Mozilla Firefox and Apple Safari for PCs and Firefox and Safari for Macintoshes) allows
the device to be accessed in that browser. Once contact is established, and a username and password entered, the Web
interface pages may be reached and updated.
Zero-configuration (or Zero-Config) technology provides a general method to discover services on a local area network.
In essence, it allows you to set up a network without any configuration.
Accessing the Web Interface Pages
The NXB-CCG-K uses Web-based interface pages that can be accessed through most Web browsers. Enter the device’s
IP address (obtainable either through a ZeroConf-enabled browser or through NetLinx Studio) to access the Login page
(FIG. 9).
To access the Web Interface pages:
1. From any computer or Netbook that has access to the LAN on which the NXB-CCG-K resides, open a web browser
and type the IP address of the target NXB-CCG-K unit in the Address Bar.
2. In the Login page, enter your username and password.
For reference, the top right corner of the screen displays the version of the software currently running on the NXB-CCG-
K.
The Web Interface Pages are available via http or https. The http page will be enabled by default and will be the default
page upon first logging in. If desired, you can change the URL to https to access the secure web page. You can also
disable the http page completely in the Settings page (page 10)
This product contains licensed software; see the SOFTWARE NOTICES AND
LICENSES link on the Web interface login screen for software notices and license
information.

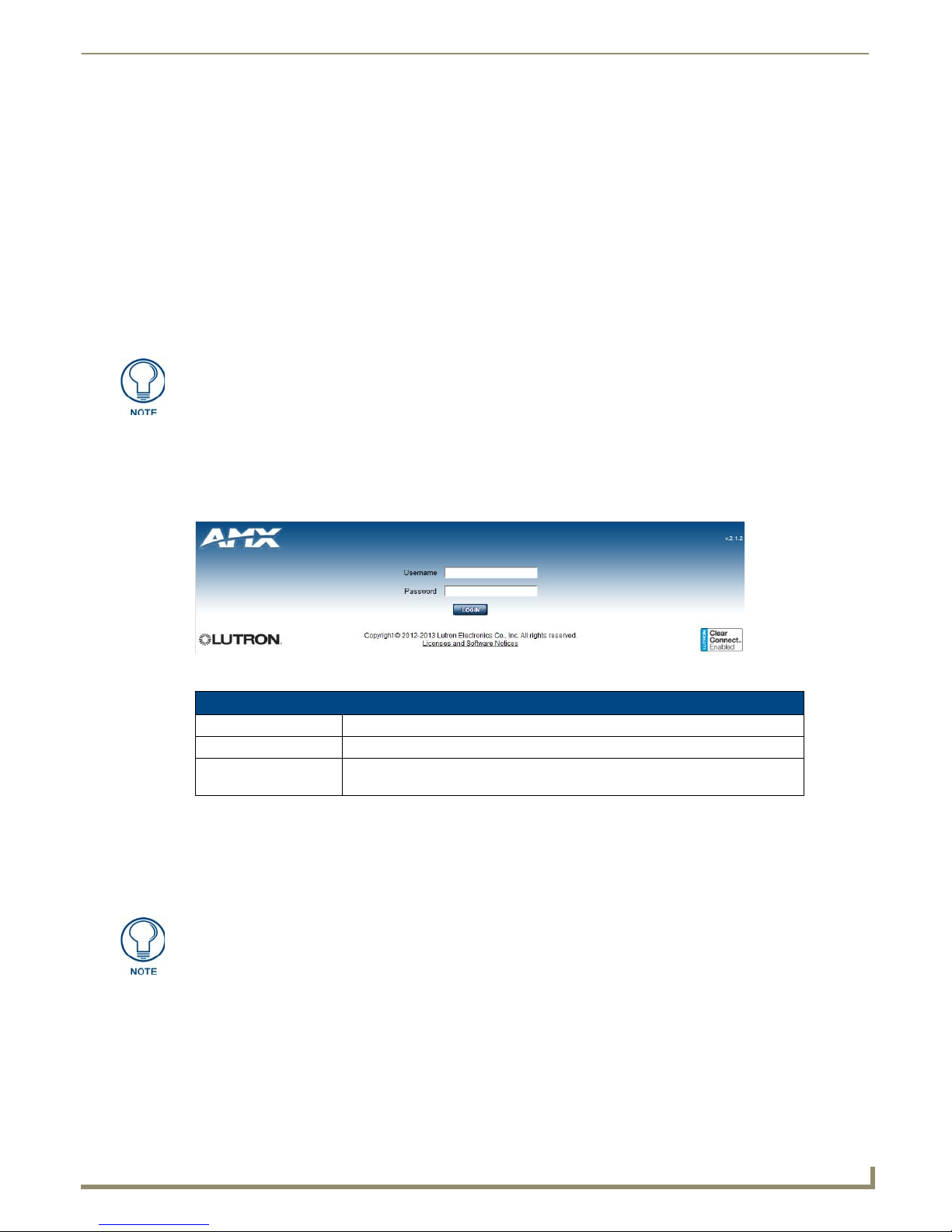

FIG. 9 Login page
Login Page
Username: Enter the username (default: admin).
Password: Enter the password for the device (default: 1988).
Licenses and Software
Notices: Click this link to view the current software license and notices concerning the software version.
The default username and password are admin and 1988.

Web Interface Pages
10 NXB-CCG-K NetLinx® Clear Connect™ Gateway
Configure Page
Once logged in, the Web interface defaults to the Settings tab of the Configure page. From here, the administrator may
access other tabs and pages to add or change Web and integration logins and passwords, change network or security
settings, add devices to a network, or control the programming of buttons on an individual device.
Settings Tab
The NXB-CCG-K’s network settings can be modified via the Settings tab of the Configure page (FIG. 10).
FIG. 10 Configure - Settings tab
Settings Tab
Network Settings:
DHCP: Allows enabling or disabling of DHCP functionality.When Disabled, the other Network
Settings entries are editable.
CCT IP Address: Displays the IP address of the device.
Subnet Mask: Displays the device’s subnet mask.
Gateway: Displays the device’s gateway address.
DNS Server 1: Displays the device’s main DNS server address.
DNS Server 2: Displays the devices optional secondary DNS server address.
Host Name: Displays the device’s host name on the network.
Zero Configuration: Allows enabling or disabling of ZeroConfig functionality.
Security Settings:
Telnet: Enables or disables Telnet functionality.
Telnet Port: Displays the device’s Telnet port.
HTTPS Only: Enables or disables the ability of the device to be accessed solely through a secure
page.
Language: Allows the interface to be switched between one of four languages: English, French,
Spanish, and German.

Web Interface Pages
11
NXB-CCG-K NetLinx® Clear Connect™ Gateway
From the Settings tab, DHCP functionality may be enabled or disabled. When DHCP is disabled, the IP address, subnet
mask, gateway, and two DNS servers can be set manually. The DNS name may also be set at this time.
In the Network Settings section, ZeroConfig autodetection may also be disabled, but this is not recommended.
For security purposes, the raw integration port can be disabled or changed via the Telnet enable/disable buttons and the
Telnet port field.
Using the HTTPS Only buttons, the non-encrypted HTTP page may be enabled or disabled. If this is enabled, this forces
users to connect to the device through the encrypted HTTPS page only.
Language Settings
Using the Language section of the Settings tab, the Web Interface pages’ language may be changed to one of four
options. English is the default interface language, but the Web Interface pages may be changed to French, Spanish, or
German.
To change the Web Interface pages to a new language:
1. From the Language section, click on the language you wish to use. This enables the Change Language button
(FIG. 11).
2. Click on the Change Language button to switch the Web Interface language. This may take several seconds
(FIG. 12).
3. The Web Interface pages will now display information in the chosen language (FIG. 13). You may switch back to
any of the four languages at any time.
Settings Tab (Cont.)
Reset: Click this button to return the page to its previous settings without saving any changes.
Update: Click this button to save and update all changes.
FIG. 11 Language section and Change Language button
FIG. 12 Updating Language Settings
FIG. 13 Web interface in French

Web Interface Pages
12 NXB-CCG-K NetLinx® Clear Connect™ Gateway
Web Logins Tab
The Web Logins tab of the Configure page controls management of web logins (FIG. 14).
Adding a Web Login
To add a web login:
1. Click the Add Web Login button to open the Add Web User window (FIG. 15).
2. Enter the new web login username and password in the appropriate fields.
3. Click Create or press Enter on your keyboard to create and save the login.
4. The new web login will now appear in the Web Logins tab.
FIG. 14 Configure - Web Logins tab
Web Logins Tab
Username: Displays the usernames for each of the current web logins.
Change Password: Click this link to change the password for the web login.
Delete User: Click this link to delete the user. This feature is disabled if only one user is listed.
Add Web Login: Click this button to add a new web login to the current list.
The Web Logins tab will allow up to five separate web login entries. You must enter at
least one for the administrator.

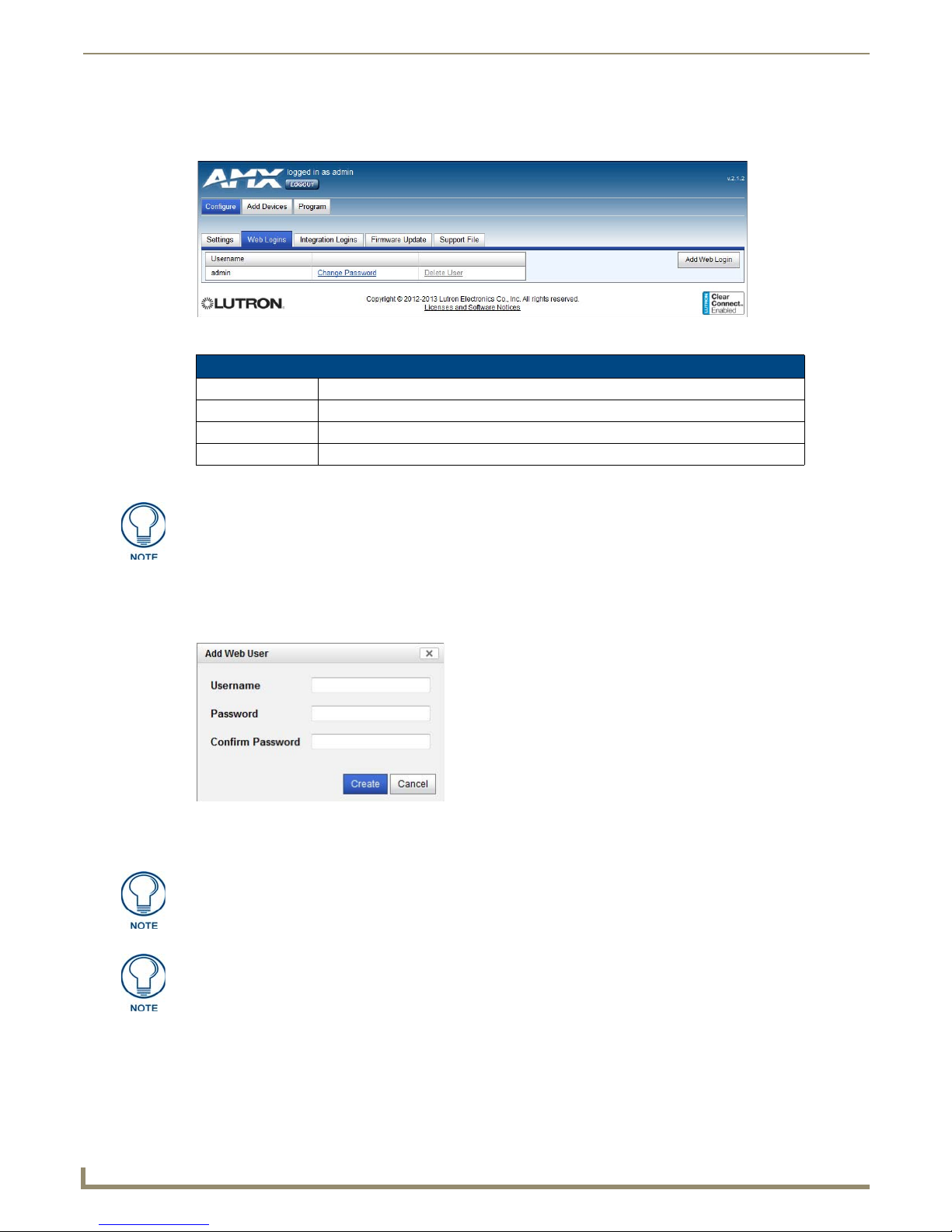

FIG. 15 Add Web User window
You may not duplicate a user name that already exists.
The Web Login Password allows most special characters. Do not use periods,
quotation marks, apostrophes, or the plus sign.

Web Interface Pages
13
NXB-CCG-K NetLinx® Clear Connect™ Gateway
Changing the Password of a Web Login
To change a web login’s password:
1. In the Web Logins tab, click the Change Password link on the appropriate web login to open the Change Password
window (FIG. 16).
2. Enter and confirm the new password.
3. Click Change or press Enter on your keyboard to confirm the new password.
Deleting a Web Login
To delete a login:
1. In the Web Logins tab, click the Delete User link on the appropriate web login to open the Delete User window
(FIG. 17).
2. Confirm that you wish to delete that web login by clicking Ye s .
3. If only one web login is visible in the Web Logins tab, this login may not be deleted, and the Delete User link is
disabled.
Integration Logins Tab
The Integration Logins tab on the Configure page allows management of integration logins (FIG. 18).

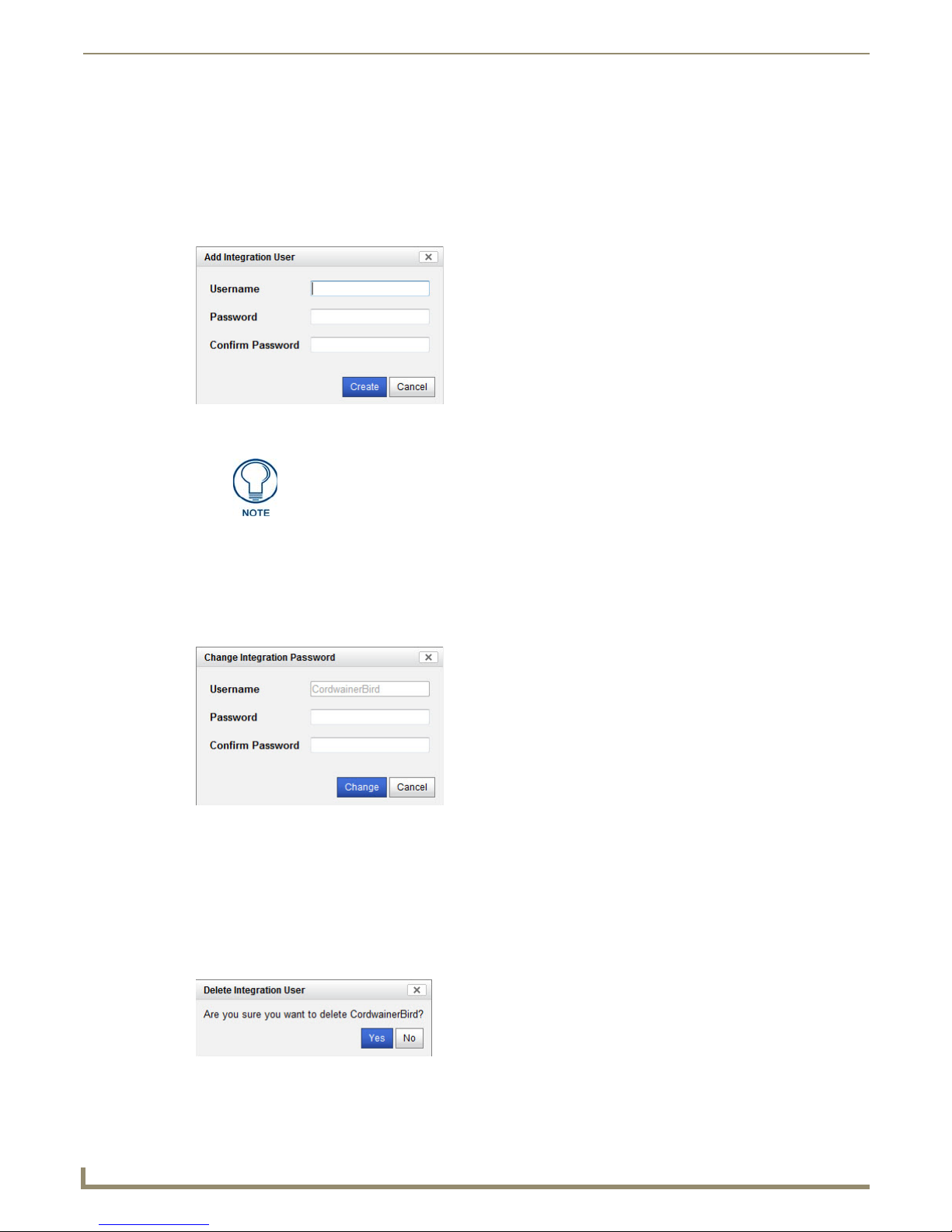

FIG. 16 Change Password window
FIG. 17 Delete User prompt
FIG. 18 Configure - Integration Logins tab
Integration Logins Tab
Username: Displays the usernames for each of the current integration logins.
Change Password: Click this link to change the password for the integration login.
Delete User: Click this link to delete the user.
Add Integration
Login: Click this button to add a new integration login to the current list

Web Interface Pages
14 NXB-CCG-K NetLinx® Clear Connect™ Gateway
You may have up to 10 integration logins at one time, with a minimum number of zero. The logins that are created in this
tab can be used via SSH or raw socket integration.
Adding an Integration Login
To add a new user login:
1. From the Configure page, select the Integration Logins tab.
2. Click the New Integration Login button to open the Add Integration User window (FIG. 19).
3. Enter the new username and password and click Create.
4. The new username will appear in the Integration Logins tab.
Changing the Password of an Integration Login
To change a user’s password:
1. From the Configure page, select the Integration Logins tab.
2. In the appropriate user entry, select Change Password to open the Change Integration Password window (FIG. 20).
3. Enter and confirm the new password and click Change.
4. The new password is now enabled.
Deleting an Integration Login
To remove a login:
1. From the Configure page, select the Integration Logins tab.
2. In the appropriate user entry, select Delete User to open the Delete Integration User window (FIG. 17).
3. Confirm that you wish to remove this user by clicking Yes .
FIG. 19 Add Integration User window
The Integration Login Password allows most special characters. Do not use periods,
quotation marks, apostrophes, or the plus sign.
FIG. 20 Change Password window
FIG. 21 Delete User window

Web Interface Pages
15
NXB-CCG-K NetLinx® Clear Connect™ Gateway
4. The login will no longer appear in the Integration Login tab.
Firmware Update Tab
Firmware updates may be made through the Firmware Update tab (FIG. 22). This section allows you to select a .lef
firmware update file and upload it to the NXB-CCG-K.
Uploading a Firmware File
To upload a firmware file:
1. Download the appropriate firmware file and save it to your desktop or storage disk.
2. If you know the exact path of the file on your network, enter it in the Firmware Path field. If you do not know the
exact path, click the Browse... button to search for the .lef file.
3. Once a file has been chosen to upload, the Update Firmware button is now enabled. Clicking on this button will
start the Update Firmware process (FIG. 23).
4. Upon completion of the firmware update process, a pop-up dialog will be displayed with the status of the update
(FIG. 24). Upon success, you may have to refresh and/or login to the web page again.
FIG. 22 Firmware Update tab
Firmware Update Tab
Firmware Path: Enter the path to where the firmware is located on your system. Use the Browse button
to open a window to find the firmware on your system or network.
Update Firmware: Click this button when the firmware file has been selected.
The file to be downloaded must be a valid .lef file provided by Lutron or the update
will not succeed
FIG. 23 Retrieving Information prompt
DO NOT remove power from the NXB-CCG-K during the Update Firmware process.
FIG. 24 Firmware Update Successful

Web Interface Pages
16 NXB-CCG-K NetLinx® Clear Connect™ Gateway
Some firmware update failures may cause the NXB-CCG-K to reboot. If this occurs, wait till the startup feedback is
complete and then login to the Web Interface pages to try to update again. Ensure that you are uploading a valid firmware
update file provided by Lutron.
Support File Tab
The NXB-CCG-K supports extracting device logs from the device for troubleshooting purposes. These may be extracted
through the Support File tab (FIG. 25).
Extracting a log from the NXB-CCG-K
To extract a log from the NXB-CCG-K:
1. From the Support File tab, click the Extract Logs button.
2. If you do not wish to extract device logs, click the Create Support File button.
3. A Lutron log file will be downloaded into the default Downloads directory of the browser. This file can then be used
by Lutron to view the device logs for troubleshooting and debugging.
Downgrading the firmware to a previous version will delete the current programming
on the NXB-CCG-K.
FIG. 25 Administration - Logging tab
