AMX AXB-MIDI User manual

axb-midi midi interface
The versatile AXB-MIDI can receive data from two independent MIDI IN A
and MIDI IN B ports to provide automated control of audio mixers, routers,
and other MIDI-compatible devices. MIDI IN A and IN B arecombined to
THRU and OUT, and can be re-patched under software control. Internally-
generated MIDI commands are sent to OUT.
MIDI bus activity can be monitored from four front-panel LED indicators.
The MIDI Interface can extend control up to 3,000 feet using the AXlink
data/power bus. The optional AC-RK Accessory Rack Kit is available for
rack mounting.

5.450
5.55
[138.4 MM]
[141.0 MM]
IN A THRU IN B OUT
AXP
GND
AXM
PWR
AXlink
1.51
[38.4 MM]

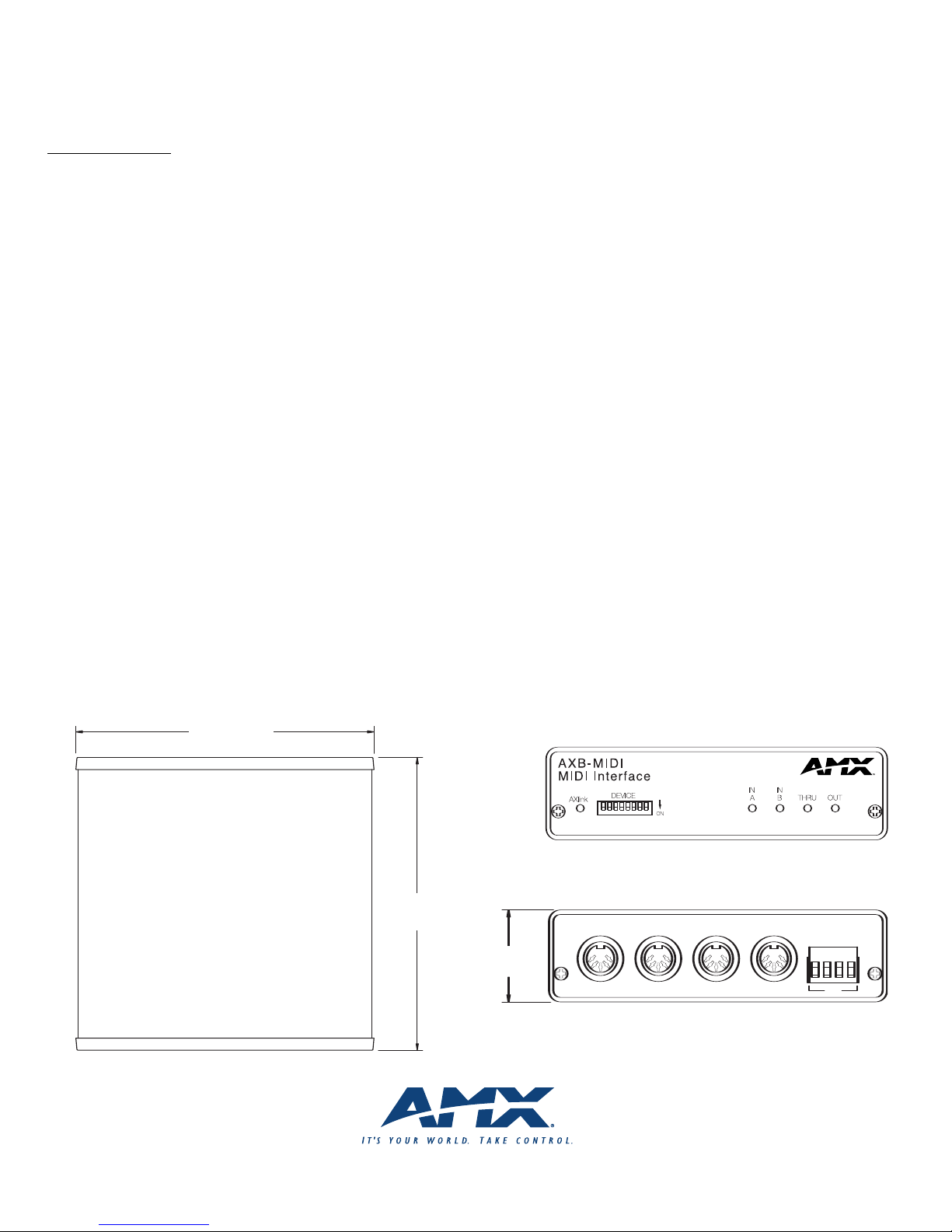

AXB-MIDI (Top)
AXB-MIDI (Front)
AXB-MIDI (Rear)
55.5 [141.0 MM]
5.450
[138.4 MM]
1.51
[38.4 MM]
axb-midi midi interface
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
©2006 AMX. All rights reserved. AMX and the AMX logo are all trademarks of AMX. AMX reserves the right to alter specifications without notice at any time.
AXB-MIDI (FG5913)
•Receives two MIDI IN data streams
•Transmits system-generated MIDI
commands to MIDI OUT
•Combines data from MIDI IN A and
MIDI IN B into the MIDI THRU and
OUT (default setting)
•Repatches MIDI IN commands under
software control to THRU, OUT, and the
AXlink data/power bus
•Axcess device for pass-through and
control of Musical Digital Interface
(MIDI) protocol signals
•Acts a a MIDI matrix switc[her
•Decodes and encodes MIDI protocol
signals and routes the signals
according to the programming within
an Axcess Central Controller
•Mounts in equipment rack with
optional AC-RK AccessoryRack Kit
POWER
•75 mA @ 12 VDC
DIMENSIONS (HWD)
•1.51" x 5.55" x 5.45"
(3.84 cm x 14.10 cm x 13.84 cm)
ENCLOSURE
•Metal with black matte finish
INPUT BUFFER
•3,072 bytes
OUTPUT BUFFER (AXLINK)
•6,143 bytes
FRONT PANEL
DIP SWITCH
•8-position DIP switch sets the AXlink
address for the MIDI
•Baud rate settings are: 300 - 38,400
(bps) (default)
LEDS
•AXlink: Green LED lights to indicate
that the AXB-MIDI is operational and
interfacing with the Central Controller
(when blinking once per second).
•IN A LED: Red LED lights to indicate
that there is MIDI data present on the
IN A connector.
•IN B LED: Red LED lights to indicate
that there is MIDI data present on the
IN B connector.
•THRU LED: Red LED lights to indicate
MIDI A/B signal passing through
without any changes.
•OUT LED: Red LED lights to indicate MIDI
data is being transmitted through the OUT
connector (after the AXB-MIDI receives
AXlink control commands or MIDI signals
from the Central Controller).
MAX. LENGTH OF DATA PACKETS
•64
OPTIONAL ACCESSORIES
•12 VDC power supply (PS2.8)
•Five-pin DIN MIDI cable
•AC-RK Accessory Rack Kit (Module)
WEIGHT
• 1 lb. 5 oz (488 grams)
REAR PANEL
MIDI CONNECTORS
•Four 5--pin (female) DIN MIDI
connectors (IN A, INB, THRU, and OUT)
PWR CONNECTOR
•4-pin (male) green captive-wire
connector for AXlink control signaling
and 12 VDC power from the Central
Controller
