AMX Video Decoder MAX-CSD10 User manual

encoder / decoder
FOUND IN TRANSLATION

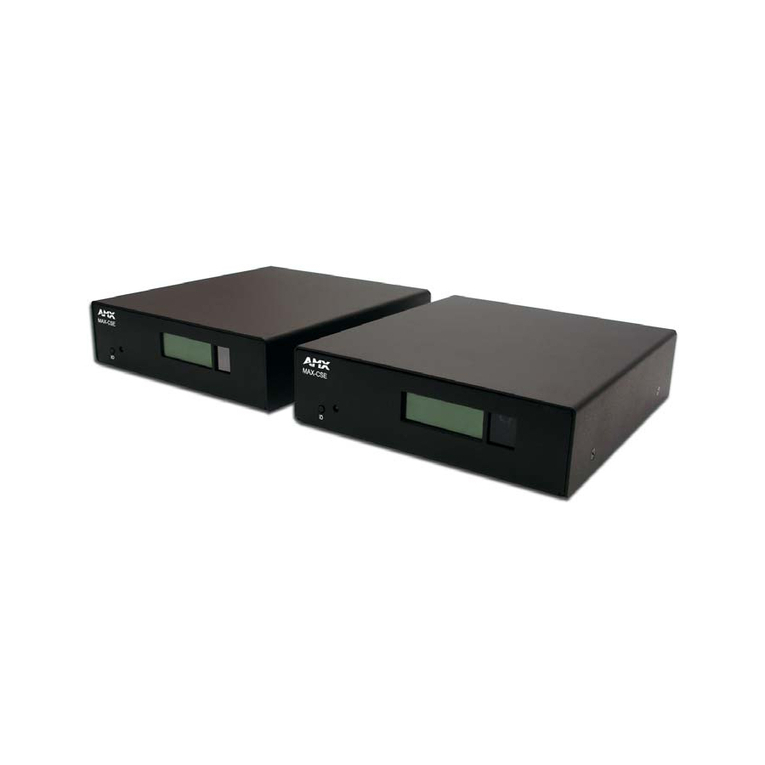

The MAX-CSE MAX Commercial Solutions Encoder and MAX-CSD10
MAX Commercial Solutions Decoder allow audio and video signals to be
delivered in real-time across any IP network for broadcast to a virtually
limitless number of destinations – classrooms, boardrooms, training
facilities, retail storebranches and other commercial settings.
OVER THE IP NETWORK ...
The Encoder provides real-time encoding of analog audio or video
content into MPEG2/4 formats for deliveryacross any IP network directly
to the MAX-CSD10 Decoder or Modero VG Series Touch Panel for
immediate playback.
... TO POINT OF DESTINATION
The Decoder is engineered to provide real-time decoding of digital video
content into Composite or S-Video for viewing on a display device such
as a television, plasma screen, projector and AMX Modero Touch Panel.

MAX-CSE (FG 2178-70)
POWER
•Power Over Ethernet (POE)
•12VDC: for use with NetLinx PSN power supply
(not included); overrides POE when used.
CURRENT DRAW
•500mA @ 12V (6W)
VIDEO INPUT
•Composite Video
•S-Video
AUDIO INPUT
•Analog Stereo (RCA connectors - Red, White)
•Microphone (1/8” stereo)
SUPPORTED RESOLUTIONS
•NTSC (480i)
•PAL (576i)
SUPPORTED VIDEO CODECS
•MPEG-2
•MPEG-4
•Adjustable Bit Rate: up to 6 Mbps
SUPPORTED AUDIO CODECS
•MPEG Audio Level 2 (MP2)
•MPEG Audio Level 4 (MP4)
FRONT PANEL COMPONENTS
•LCD Display
•IR Receiver: receives 38kHz AMX IR codes.
•Status LED: blinks to indicate system and
communication status.
•ID Pushbutton: sets the NetLinx ID (Device only)
assignment for the device.
REAR PANEL CONNECTORS
•COMPOSITE IN: RCA Composite Video Input
•12VDC PWR: accepts a 2-pin 3.5mm captive-wire
connector for (optional) 12 VDC power supply
(overrides POE).
•ETHERNET:RJ-45 Ethernet port provides 10/100 network
communication and POE.
Green LEDs indicate communication activity, connections,
speeds, and mode information.
•S-VIDEO IN: Mini-Din4 port for S-video input.
•AUDIO R/L: RCA connectors (Red, White) for analog
stereo input.
•MIC: mini-stereo microphone input jack.
•RS-232/422/485: 9-pin (DB-9) Serial portsupports
RS-232 / RS-422 / RS-485 data output.
-300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400,
115,200 Baud
-8or 9 Data bits
- 1 or 2 Stop bits
-Even, Odd, Mark, Space and None parity settings
-CTS and RTS handshaking
-XON/XOFF handshaking
•IR: 2-pin (male) green captive-wire connector for IR/Serial
control output (softwareselectable, 1.142Mhz carrier).
•I/O: two digital Input/Output ports, for contact closure
control (accepts a 4-pin 3.5mm captive-wireconnector).
OPERATING ENVIRONMENT
•Operating Temperature: -10°to 40°C
(14° to 113° F)
•Storage temperature: -30º to 70º C
(22º to 158° F)
•Operating Relative Humidity: 5% to 85%
(non-condensing)
•Operation intended for indoor use only.
DIMENSIONS (HWD)
•1.52”" x 5.54" x 6.95" (3.86 cm x 14.07 cm x 17.67 cm)
WEIGHT
•1.95 lbs (0.88 kg)
OPTIONAL ACCESSORIES
• AC-RK AccessoryRack Kit (FG515)
•PSN2.8: Power supply (FG423-17)
•PSN4.4: Power supply(FG423-45)
•PSN6.5: Power supply (FG423-41)

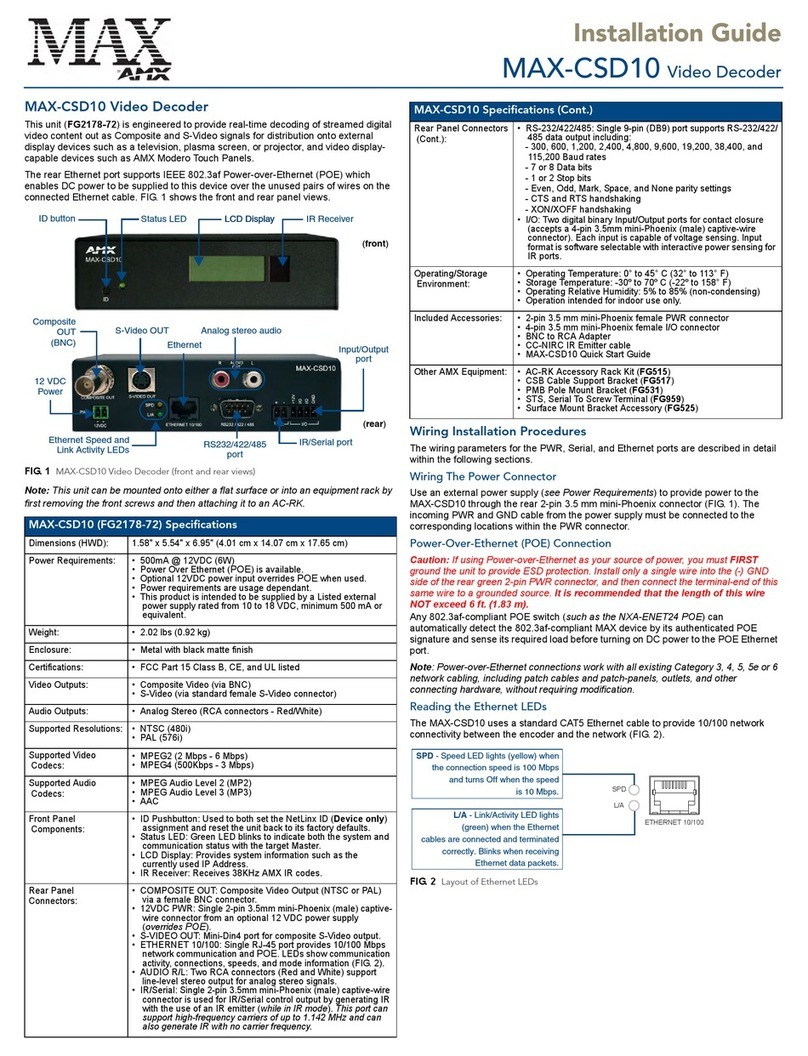

MAX-CSD10 (FG 2178-72)
POWER
•Power Over Ethernet (POE)
•12VDC: for use with NetLinx PSN power supply
(not included); overrides POE when used.
CURRENT DRAW
•500mA @ 12V (6W)
VIDEO OUTPUT
•Composite Video
•S-Video
AUDIO OUTPUT
•Analog Stereo (RCA connectors - Red, White)
SUPPORTED RESOLUTIONS
•NTSC (480i)
•PAL (576i)
SUPPORTED VIDEO CODECS
•MPEG-2
•MPEG-4
•Adjustable Bit Rate: up to 6 Mbps
FRONT PANEL COMPONENTS
•LCD Display
•IR Receiver: receives 38kHz AMX IR codes.
•Status LED: blinks to indicate system and communication
status.
•ID Pushbutton: sets the NetLinx ID (Device only)
assignment for the device.
REAR PANEL CONNECTORS
•COMPOSITE OUT:RCA Composite Video Input
•12VDC PWR: accepts a 2-pin 3.5mm captive-wire
connector for (optional) 12 VDC power supply
(overrides POE).
•ETHERNET: RJ-45 Ethernet port provides 10/100
network communication and POE.
Green LEDs indicate communication activity,
connections, speeds, and mode information.
•S-VIDEO OUT:Mini-Din4 portfor S-video output.
•AUDIO R/L: RCA connectors (Red, White) for analog
stereo output.
•RS-232/422/485: 9-pin (DB-9) Serial port supports
RS-232 / RS-422 / RS-485 data output.
-300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, -
115,200 Baud
-8or 9 Data bits
- 1 or 2 Stop bits
-Even, Odd, Mark, Space and None parity settings
-CTS and RTS handshaking
-XON/XOFF handshaking
•IR: 2-pin (male) green captive-wire connector for IR/Serial
control output (software selectable, 1.142Mhz carrier).
•I/O: two digital Input/Output ports, for contact closure
control (accepts a 4-pin 3.5mm captive-wireconnector).
OPERATING ENVIRONMENT
•Operating Temperature: -10° to 40° C (14° to 113° F)
•Storage temperature: -30º to 70º C (22º to 158°F)
•Operating Relative Humidity: 5% to 85%
(non-condensing)
•Operation intended for indoor use only.
DIMENSIONS (HWD)
•1.52”" x 5.54" x 6.95" (3.86 cm x 14.07 cm x 17.67 cm)
WEIGHT
•1.95 lbs (0.88 kg)
OPTIONAL ACCESSORIES
•AC-RK Accessory Rack Kit (FG515)
•PSN2.8: Power supply (FG423-17)
•PSN4.4: Power supply(FG423-45)
•PSN6.5: Power supply (FG423-41)
encoder / decoder
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
©2006 AMX. All rights reserved. AMX and the AMX logo are all trademarks of AMX. AMX reserves the right to alter specifications without notice at any time.

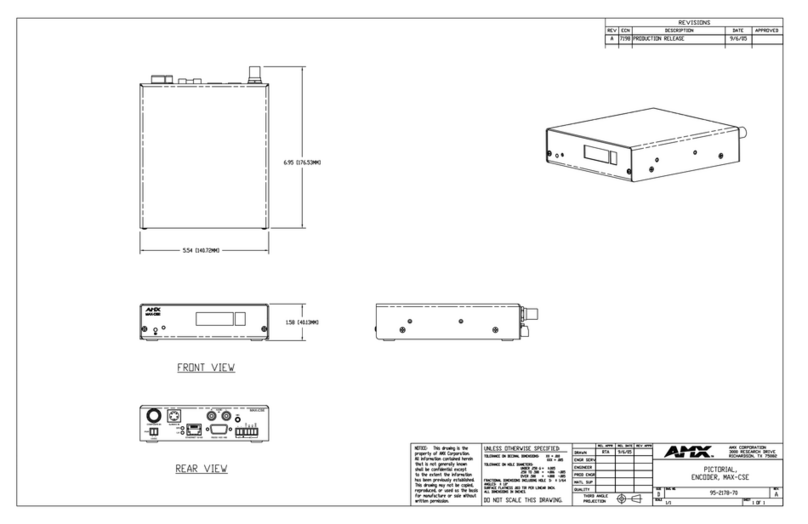

MAX-CSE
(FG 2178-70)

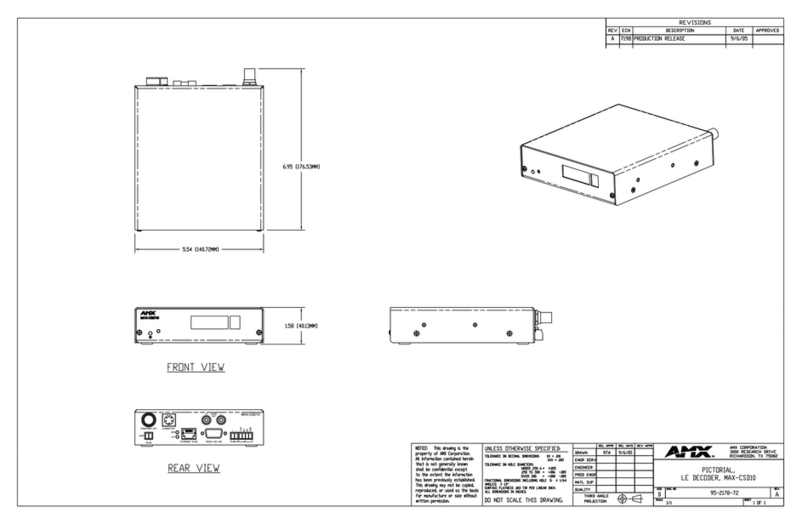

MAX-CSD10
(FG 2178-72)
5.540
1.520
6.141
6.896
5.540
1.520
6.141
6.896
