Anchor Navi-Trac User manual

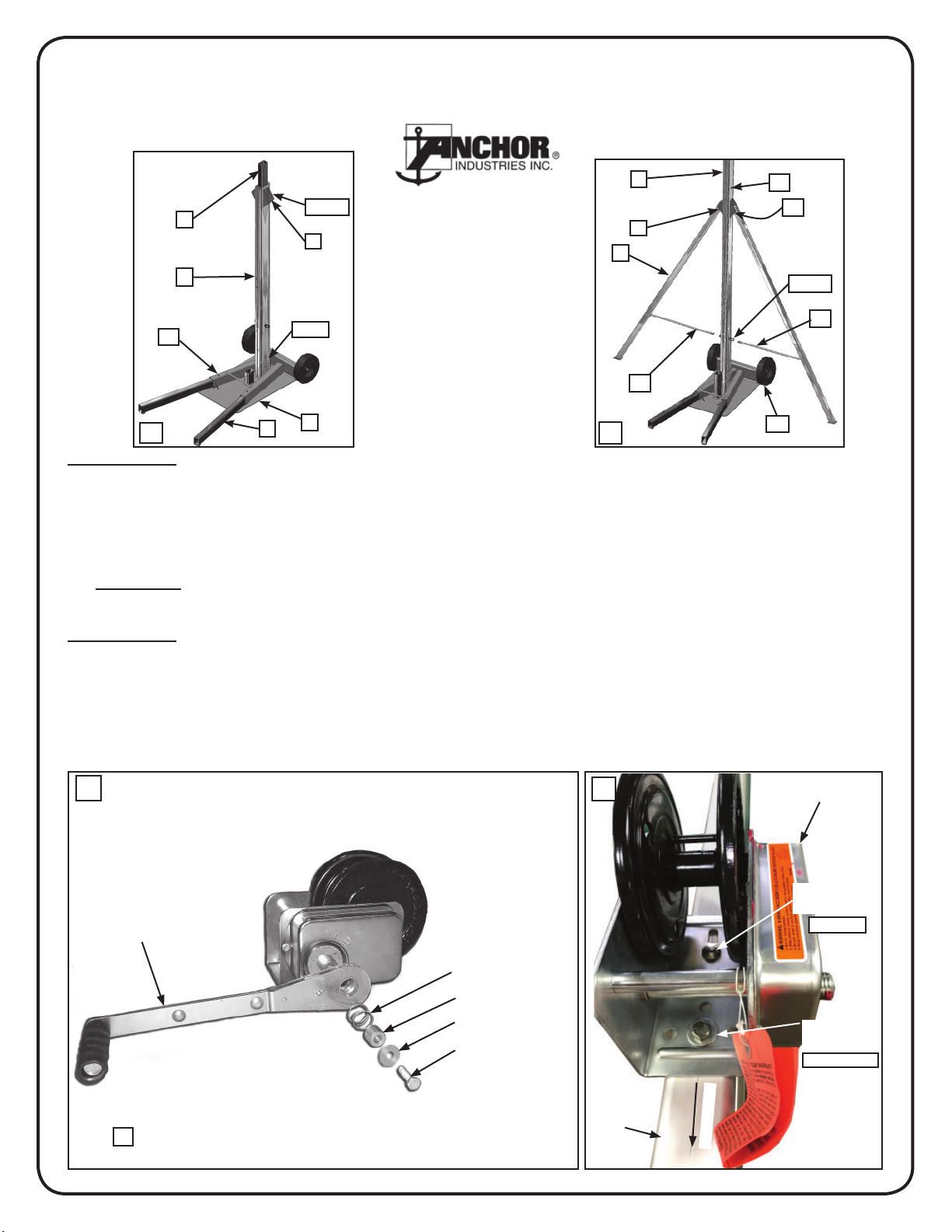

See Image “A”
1. Attach the lower end (2-hole pattern) of the Bottom Post (#5) to the rear most splice stub of the Base Weldment (#1) using Hex
Hd Cap Screw & Nut (#9 & 10). The single, centered channel of the post should face forward.
2. Insert the Leg Inserts (#2) and pin with (#14).
3. The Turf Wheels (#21) have been pre-installed.
4. One at a time, remove the bolts & nuts (#10 & 16) holding the splice at the top of the Bottom Post (#5) install the Hinges for
Brace (#8) on each side of the bottom post. Secure the hinges by replacing the same hardware (10 & 16).
See Image “B”
5. Install the Brace Weldments (#4) to the Brace Hinges (#8) on both sides of the bottom post (use tension lock pin #15) at the
brace hinge (#8).
6. Lean the Frame Lift over, as needed, to slide the Top Post (#7) onto the Splice of the bottom post and secure (tension lock pin
#15).
7. To limit the spread of the Brace Weldments, install Eyes (#12 & 13) into the bottom post and attach the snap with web (#18)
between the brace and the bottom post.
5
9,10
1
610,16
2
14
A
8
8
B
7
4
15
15
12,13
11
21
18
Phone: [phone]
Fax: [phone]
Web: www.anchorinc.com
7701 Highway 41 N.
Evansville, Indiana 47725
C
Spring
Shaft Extension
Washer
Bolt
Handle
Loose
Winch Assembly
For warnings, maintenance and
replacement parts, refer to the
Dutton-Lainson booklet that is
shipped with this winch (the B1500)
EC5557 NTTJ 919
Assembly Instructions
Navi-Trac Tent Jack
Bottom
Post
Winch Assembly
Carriage Bolt
(under wheel)
Hex Bolt w/
washer
To Bottom
D
25, 30 & 26
29 & 26
24

E
Lifting Web
Winch
Assembly
Bottom Post
Winch Assembly
properly mounted
Warning:
Always position winch assembly as shown in
image “E”. Do not attach upside down - winch
brake system may fail.

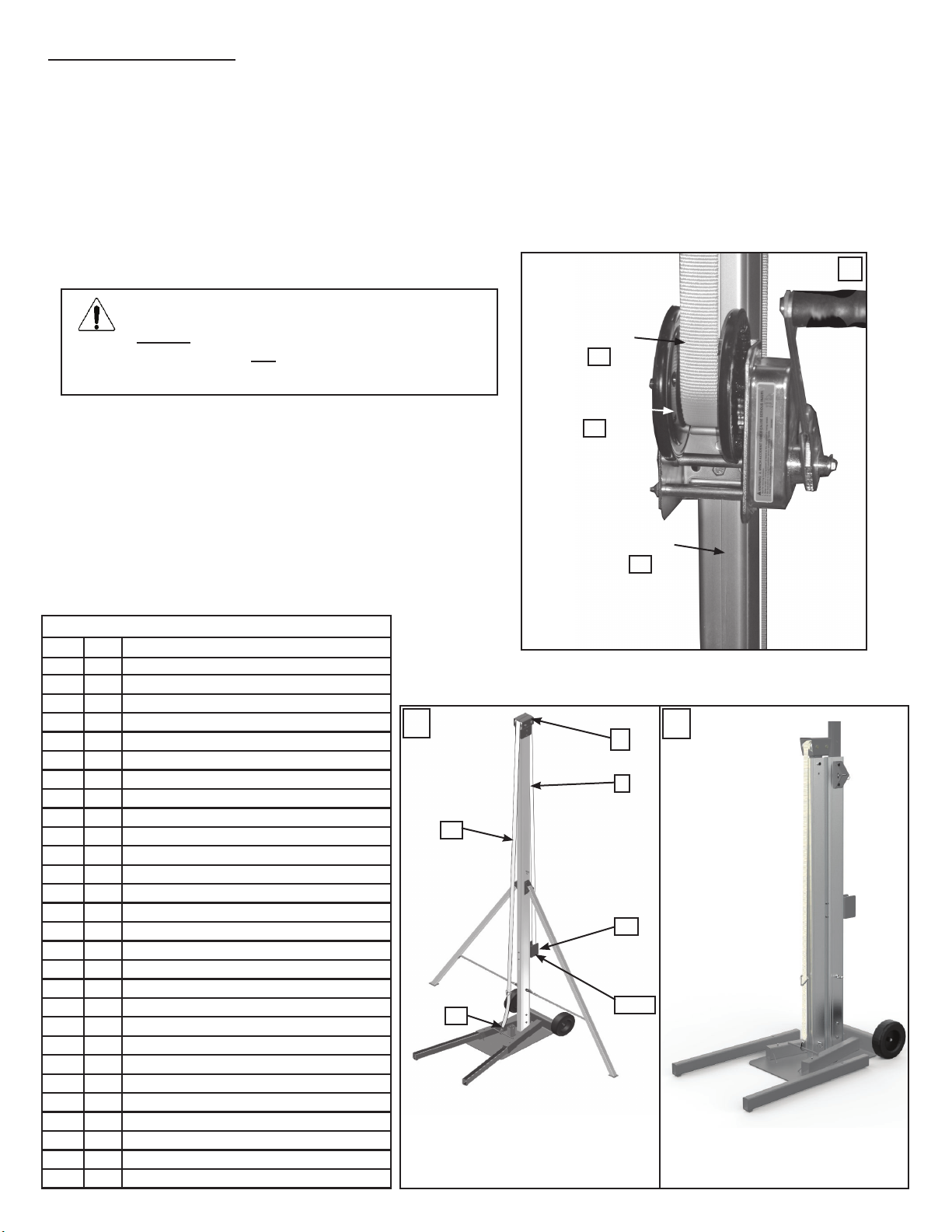

See Images “C, D, E & F”
8. While the Frame Lift is leaned over, attach the pre-assembled lifting web and winch assembly starting with the Winch Assembly
(#24) to the Bottom Post (use hdw #25, 26, 29 & 30). See images C, D and E.
9. Next, feed the web assembly to the top and insert the Web Top Weldment (#3) into the top of the Top Post (#7) and secure with
accompanying hardware. The Snap Hook (#27) should hang at the front of the Lift and can be secured to the reinforcement rod of
the base plate when not in use. See Image “G” for storage of the Frame Lift when not in use.
10. Follow the instructions in the Navi-Trac Assembly Manual for proper positioning and use of the Navi-Trac Frame Lift for assembling
and standing the Navi-Trac frame.
3
24
25,26
7
28
28
24
5
27
F
The Top Post can be stored on
the front splice stub of the base
plate when not in use.
PART LIST
ITEM # QTY DESCRIPTION
11
BASE WELDMENT
22
LEG INSERT
31
WEB GUIDE TOP WELDMENT
42
BRACE WELDMENT
51
BOTTOM POST
61SPLICE TOP POST
71
TOP POST
82
HINGE FOR BRACE
92
1/2” x 3” HEX HD CAP SCREW
10 4 1/2” ST’D NC NYLOCK NUT
11 2 1” POLYPRO WEB
12 1 1/2” x 3 1/4” EYE BOLT
13 1 1/2” EYE NUT
14 2 1/2” x 3 1/4” FAS PIN
15 3 1/2” x 2 3/4” TENSION LOCK PIN
16 2 1/2”-13 x 3 1/4” HEX HD CAP SCREW
18 2 WEB WITH SNAP
21 2 3 1/2” x 10 1/2” DIA. TURF WHEEL
22 2 1/2”-13 x 5” HEX HD CAP SCREW
23 2 1/2”-13 HEX NUT
24 1 WINCH ASSEMBLY
25 1 3/8”-16 x 5 1/2” HEX HD CAP SCREW
26 2 3/8”-16 UNC HEX NUT
27 1 SNAP HOOK
28 25’-6” 1 1/2” POLYESTER WEB
29 1 3/8” X 5 1/2” CARRIAGE BOLT
30 1 3/8” WASHER
G

Thank you for purchasing an Anchor product. In return, we pledge quality, service and craftsmanship and are available for
any questions you may have or assistance you may need.
7701 Highway 41 N
Evansville, IN 47725
Phone: [phone]
Fax: [phone]
1-800-544-4445
email: [email protected]
www.anchorinc.com
Anchor products are of superior design and operate best within the parameters of these instructions. It is imperative that
the instructions be carefully read and completely followed. Please read assembly instructions before the use of this product.
Because this product may be used on a variety of Anchor tent products, you should also read the installation instructions for
the specific tent with which this tool is to be used. Tent installation instructions are available at: www.anchorinc.com.
WARNING:
1. Use for installation of framed tent products only. Read relevant tent installation instructions.
2. Never exceed the maximum operating load stated within these instructions. Excess load may cause premature failure
and could result in serious personal injury.
3. Do not oil or grease the brake mechanism of this frame lift.
4. Never apply load to winch with web fully extended. Keep at least three full turns of web on the reel at all times.
5. During use, be sure web is neither twisted nor wrapped around the pole.
6. Follow instructions carefully, paying particular attention to all safety or cautionary comments.
Proper safety equipment should be used at all times to insure a safe operation. We suggest a careful evaluation be made to
determine safety equipment needed, such as hard hats, steel-toe shoes, safety glasses and other as required.
Disclaimer - Anchor Industries disclaims and excludes all express or implied warranties of merchantability and fitness for a
particular purpose. The product is sold “as is” and no warranty shall apply. The user shall determine the suitability of the
product for the intended use and assumes all risk and liability. Anchor Industries shall not be liable in tort or in contract for
any loss or damage, direct, incidental or consequential arising out of the use of or the inability to use the product.
