AND Density Determination Kit AD-1653 BM Series User manual

DENSITY DETERMINATION KIT
Applicable analytical balance models
BM series
GH series
HR-i series
GR series
HR series
HAseries
1WMPD4000728B
AD-1653
AD-1653

© 2012 A&D Company, Limited. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, or translated into
any language in any form by any means without the written permission of A&D Company,
Limited.
The contents of this manual and the specifications of the instrument covered by this
manual are subject to change for improvement without notice.

1
CONTENTS
1. INTRODUCTION ...............................................................................................2
1.1. Precautions........................................................................................................2
2. UNPACKING THE KIT.......................................................................................3
3. DENSITY MEASUREMENT PRINCIPLES ........................................................4
3.1. Density...............................................................................................................4
3.2. Specific Gravity..................................................................................................4
3.3. Archimedes’ Principle of Density Measurement.................................................4
3.4. Density of a Solid...............................................................................................5
3.5. Density of a Liquid .............................................................................................5
4. ERROR FACTORS............................................................................................6
4.1. Buoyancy of Air..................................................................................................6
4.2. Volume of Float..................................................................................................6
4.3. Temperature of Liquid........................................................................................7
4.4. Influence of Wire................................................................................................7
4.5. Surface Tension.................................................................................................7
4.6. Bubbles..............................................................................................................7
5. MEASURING THE DENSITY OF A SOLID........................................................8
5.1. Assembling the Kit: BM / GH / HR-i Series......................................................8
5.2. Assembling the Kit: GR Series........................................................................9
5.3. Assembling the Kit: HR Series ......................................................................10
5.4. Assembling the Kit: HA Series.......................................................................11
5.5. Measuring the Density of a Solid .....................................................................12
6. MEASURING THE DENSITY OF A LIQUID.....................................................14
6.1. Assembling the Kit:..........................................................................................14
6.2. Measuring the Density of a Liquid....................................................................15
7. FREQUENTLYASKED QUESTIONS..............................................................16

2
1. INTRODUCTION
Thank you for purchasing the AD-1653 Density Determination Kit.
This manual describes how to use the AD-1653 Density Determination Kit.
The AD-1653, when combined with one of our electronic balances (BM series, GH series, HR-i series,
GR series, HR series and HA series), allows the density of a solid and liquid to be measured easily.
Before using the AD-1653, please read this manual thoroughly and keep it at hand for future reference.
1.1. Precautions
This density determination kit allows the density of a solid or liquid to be measured. However, the
results of measurements may be affected by various factors that could cause errors, and thus we
can not guarantee these results.
Do not use the density determination kit for measuring the density of chemically active substances.
After using the density determination kit, clean all surfaces to remove rust and oxides.
A balance is a precision instrument. Avoid shocks and excessive loads.
Maintain the air, sample and liquid at a constant temperature during the measurement.

3
2. UNPACKING THE KIT
Diameter of 0.2 mm
Float Wire Float hook Thermometer
B44342 B49799 C42200 B44813
Density pan stand Beaker stand Beaker Thermomeler clamp
B31161 B31158 PYLEX-300ML 1-608-02
Density pan Attachment for FX (obsolete product) Attachment for HX (obsolete product)
1653-1 C42219 C42220
Tweezers Beaker stand spacer
SHIKAYO C42223 (3 pcs)
Balance weight (small) Balance weight (large)
B48920 C43701 (2 pcs) Kit box
Stores the kit after use

4
3. DENSITY MEASUREMENT PRINCIPLES
3.1. Density
Density refers to the total mass of a sample per unit volume.
M
ρ=
V
ρ: Density
M : Mass
V : Volume
3.2. Specific Gravity
Specific gravity refers to the ratio of the density of a sample to the density of pure water at 4°C under a
pressure of 1013.25 hPa.
M
ρ=
Vρ4
ρ: Specific gravity
M : Mass
V : Volume
ρ4 : Density of water at 4°C
(0.99997 g/cm3≈1.000 g/cm3)
3.3. Archimedes’ Principle of Density Measurement
The AD-1653 is combined with an electronic balance to measure the density of a sample based on the
Arichimedes’ principle.
Arichimedes’ principle
A body immersed in a liquid (or a gas) is subject to an upward force equal to
the weight of the liquid (or the gas) it displaces. The upward force is buoyancy.
(Unit: g/cm3, etc.)
(No unit)

5
3.4. Density of a Solid
The density of a solid can be obtained according to the weight of the sample in air, the weight of the
sample in liquid and the density of the liquid.
A
ρ= x (ρ0- d) + d
A - B
ρ: Density of sample
A : Weight of sample in air
B : Weight of sample in liquid
ρ0 : Density of liquid
d : Density of air (approx. 0.001 g/cm3)
3.5. Density of a Liquid
To measure the density of a liquid, a float with a known volume is used.
The density of a liquid can be obtained according to the weight of the float in air, the weight of the float
in liquid and the volume of the float.
A - B
ρ= +d
V
ρ: Density of liquid
A : Weight of float in air
B : Weight of float in liquid
V : Volume of float
d : Density of air (approx. 0.001 g/cm3)

6
4. ERROR FACTORS
There are several things that can affect the accuracy of a density measurement.
4.1. Buoyancy of Air
A density measurement is influenced by an upward force of 0.0010 to 0.0014 g/cm3 (buoyancy of
air).
The density of air can be obtained by the equation below:
0.0012932 P (hPa)
d = x
1 + 0.0036728 x t (°C) 1013.25
d : Density of air (g/cm3)
t : Air temperature (°C)
P : Atmospheric pressure (hPa)
When measurement accuracy of three significant digits is necessary, add 0.001 g/cm3 to the
measured value to compensate for the error due to the air density.
4.2. Volume of Float
The tolerance of the measured value of the volume of the float is ±0.01 cm3.
In liquid density measurement, the decimal places beyond the second decimal place of the
measured value contain errors.
When measurement accuracy to the third decimal place or beyond is necessary, measure the
volume of the float using distilled water.
A - B
V = - 0.0035
ρ- d
V : Volume of float (cm3)
A : Weight of float in air (g)
B : Weight of float in liquid (g)
ρ: Density of distilled water at t°C (g/cm3)
d : Buoyancy of air at t°C (g/cm3)
0.0035 : Correction value for the wire (diameter of 1 mm) of the density pan
connecting the upper and lower pans (when the beaker provided
with this kit is used)

7
4.3. Temperature of Liquid
The density of the liquid that is used for measuring the density of a solid varies with the liquid
temperature. Therefore, the decimal places beyond the first decimal place of the measured value
contain errors.
Obtain the density of a liquid according to the temperature from Table 1 for distilled water or from
other reference documents for other liquids.
When measurement accuracy to the third decimal place or beyond is necessary, use a thermometer
with a tolerance of ±0.2°C or less.
4.4. Influence of Wire
In solid density measurement, the surface of the liquid rises when a solid sample is placed on the
density pan, which is immersed in the liquid, At this time, the buoyancy corresponding to the weight
of the raised liquid is exerted on the wire (diameter of 1 mm) connecting the upper and lower pans.
If the surface of the liquid rises 1 mm, the buoyancy exerted on the wire is about 0.8 g/cm3.
To minimize the error due to the buoyancy, select a sample with a smaller volume or correct the
value by calculation.
In liquid density measurement, a force (buoyancy ) is exerted on the wire (diameter of 0.2 mm)
suspending the float, when immersed in the liquid. Immersing the wire by 10 mm exerts a buoyancy
of about 0.3 mg on the wire. However, this buoyancy influence can be ignored. When obtaining the
liquid density, the difference between the weight of the float in air and in water is divided by the
volume of the float, as described in “3.5. Density of a Liquid”. This calculation reduces the error due
to buoyancy such that it is negligible.
4.5. Surface Tension
In solid density measurement, a force (surface tension) of about 5 mg is exerted on the pan between
the wire (diameter of 1 mm) of the density pan and the liquid surface.
The surface tension can be reduced by about 1 mg by adding a surfactant (for example, a wetting
agent used for developing photographs.)
Adding 0.1 mL (density: 1.2 g/cm3) of a surfactant to 200 mL of water will increase the density of water by
about 0.0001 g/cm3.
In liquid density measurement, a force (surface tension) of about 1 mg is exerted on the wire
(diameter of 0.2 mm) suspending the float. However, this surface tension influence can be ignored.
When obtaining the liquid density, the difference between the weight of the float in air and in water is
divided by the volume of the float, as described in “3.5. Density of a Liquid”. This calculation reduces
the error due to surface tension such that it is negligible.
4.6. Bubbles
The buoyancy of a bubble of 1 mm in diameter is about 0.5 mg. Bubble generation depends on the
shape and material of the sample, so take care when making measurements.
In solid density measurement, a surfactant may be added to reduce the influence of bubbles.

8
5. MEASURING THE DENSITY OF A SOLID
Assemble the kit as described in the procedure below. Note that the assembly procedure depends on
the balance model.

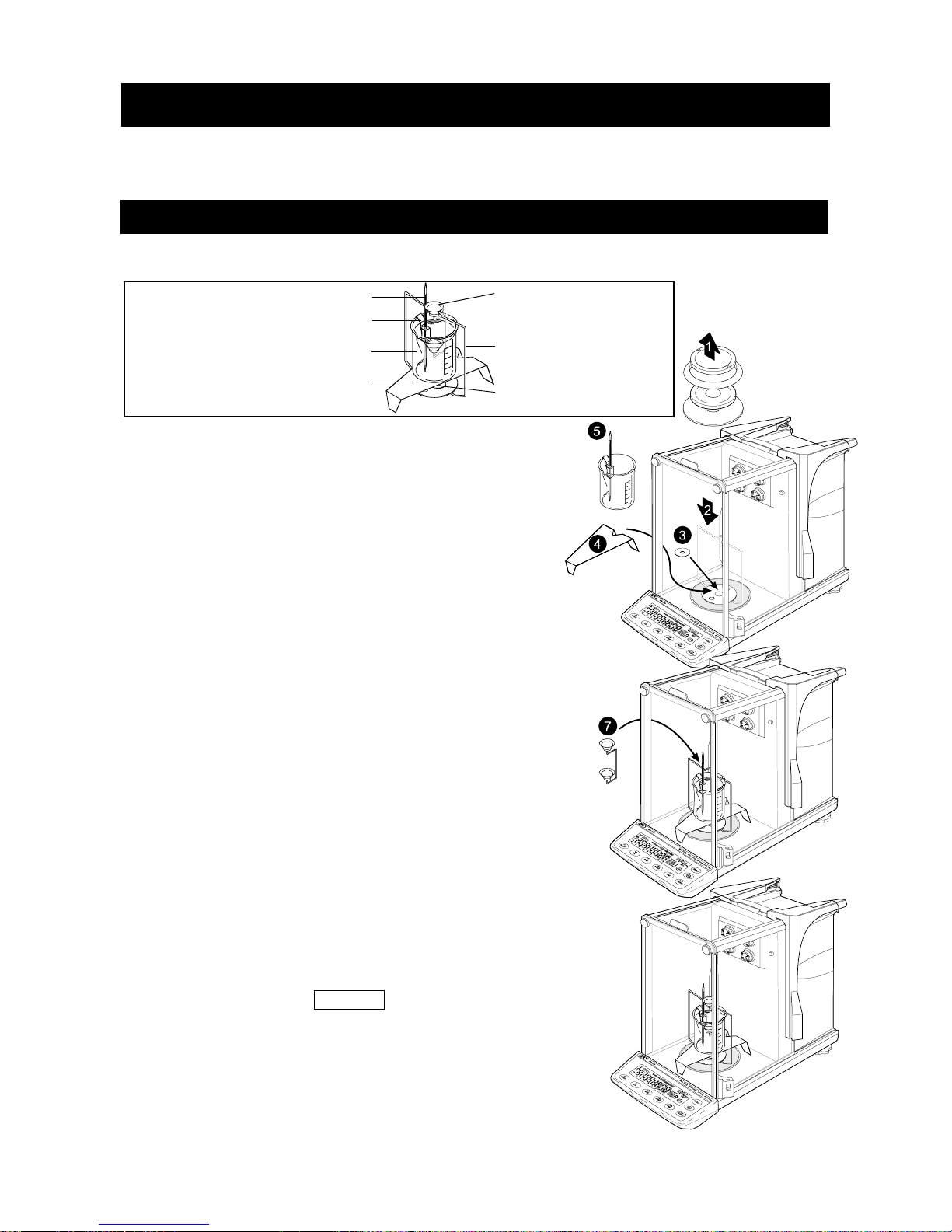

5.1. Assembling the Kit: BM / GH / HR-i Series
Note: The kit can not be used with the BM-20 and BM-22 of the BM series balances.
Assembled view
1. Remove the weighing pan, pan support, breeze
break ring and dust plate from the balance.
2. Place the density pan stand on the balance.
3. Place one balance weight (small) on the density
pan stand.
4. Place the beaker stand so that it does not touch
the density pan stand.
5. Attach the thermometer clamp to the beaker
and insert the thermometer into the
thermometer clamp.
6. Pour a liquid with a known density (such as
distilled water) into the beaker and place the
beaker on the beaker stand.
7. Place the density pan on the density pan stand.
8. Adjust the amount of the liquid so that the sample,
when placed on the lower pan (in the liquid), is
about 10 mm below the surface of the liquid.
9. When the value displayed on the balance is
stable, press the RE-ZERO key to set the
displayed value to zero.
Now the balance is ready for density measurement.
Note: The BM and GH series balances are equipped with a
density mode to calculate the density of a solid.
For details, refer to the instruction manual of each series.
Weighing pan
Breeze break ring
Pan support
Dust plate
Example: BM series
Thermomete
r
Thermometer clamp
Beake
r
Beaker stand
Density pan
Density pan stand
Balance weight (small,1pc)

9
1
5
2
3
4

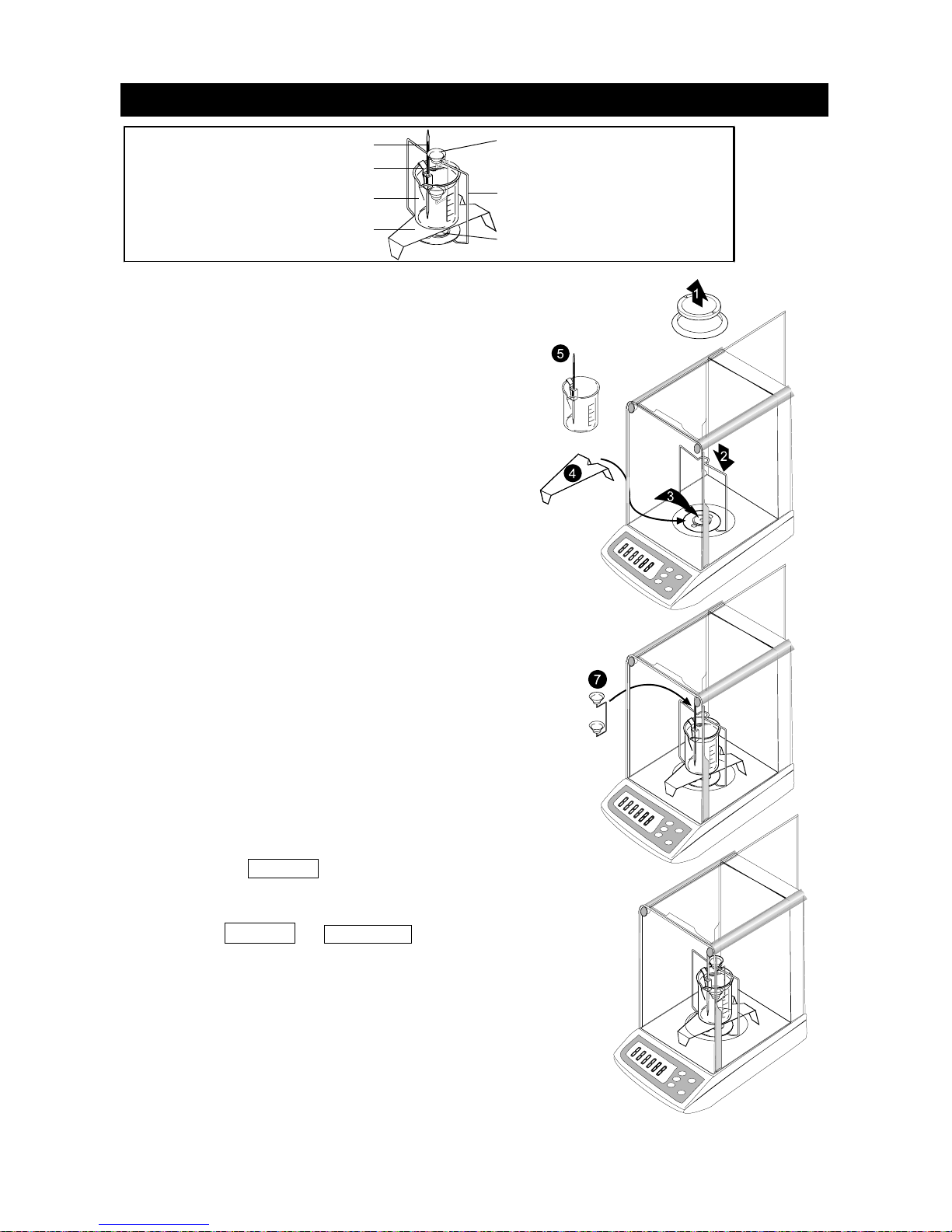

5.2. Assembling the Kit: GR Series
Assembled view
1. Remove the weighing pan and breeze break from
the balance.
2. Place the density pan stand on the balance.
3. Place one small balance weight and one large
balance weight on the density pan stand.
4. Place the beaker stand so that it does not touch
the density pan stand.
5. Attach the thermometer clamp to the beaker
and insert the thermometer into the
thermometer clamp.
6. Pour a liquid with a known density (such as
distilled water) into the beaker and place the
beaker on the beaker stand.
7. Place the density pan on the density pan stand.
8. Adjust the amount of the liquid so that the sample, when
placed on the lower pan (in the liquid), is about 10 mm
below the surface of the liquid.
9. When the value displayed on the balance is stable,
press the RE-ZERO key to set the displayed value
to zero.
Now the balance is ready for density measurement.
Note: The GR series balance is equipped with a density
mode to calculate the density of a solid.
For details, refer to the instruction manual of GR
series.
Weighing pan
Breeze brea
k
7
Thermomete
r
Thermometer clamp
Beake
r
Beaker stand
Density pan
Density pan stand
Balance weights (1 small, 1 large)

10

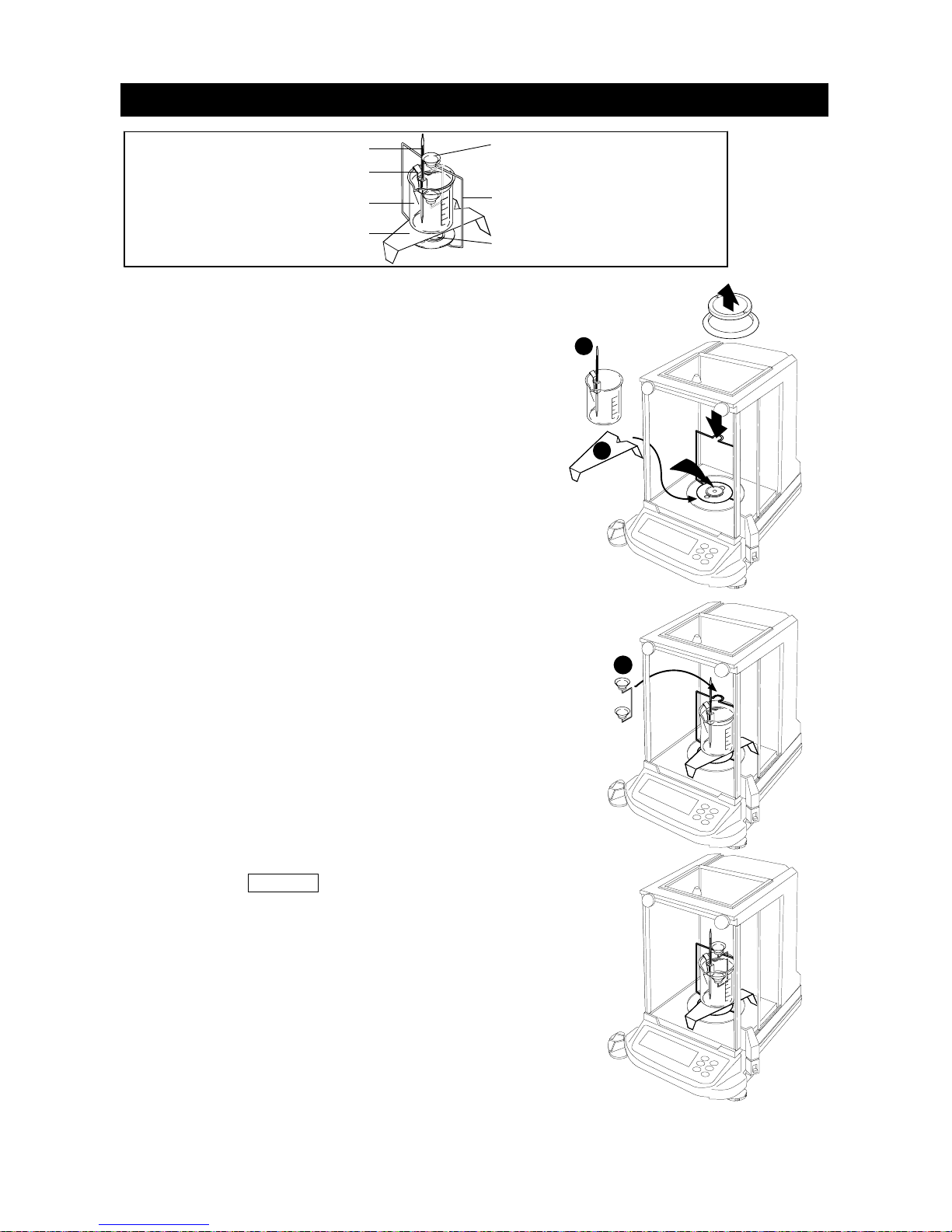

5.3. Assembling the Kit: HR Series
Assembled view
1. Remove the weighing pan and breeze break from
the balance.
2. Place the density pan stand on the balance.
3. Place one small balance weight and one large
balance weight on the density pan stand.
4. Place the beaker stand so that it does not touch
the density pan stand.
5. Attach the thermometer clamp to the beaker
and insert the thermometer into the
thermometer clamp.
6. Pour a liquid with a known density (such as
distilled water) into the beaker and place the
beaker on the beaker stand.
7. Place the density pan on the density pan stand.
8. Adjust the amount of the liquid so that the sample,
when placed on the lower pan (in the liquid), is about
10 mm below the surface of the liquid.
9. When the value displayed on the balance is stable,
press the RE-ZERO key to set the displayed value
to zero.
10. When -e or - - - - - is displayed
on the balance, perform a zero calibration.
Now the balance is ready for density measurement.
Weighing pan
Breeze brea
k
Thermomete
r
Thermometer clamp
Beake
r
Beaker stand
Density pan
Density pan stand
Balance weights (1 small, 1 large)

11
5.4. Assembling the Kit: HA Series
Note: Do not use the front door to open or close the balance.
Assembled view
1. Remove the weighing pan, balance weight, pan
support, breeze break ring and dust plate from
the balance.
2. Place the density pan stand on the balance.
3. (Only for HA-202M)
Place one balance weight (small) on the density
pan stand.
4. Place the beaker stand so that it does not touch
the density pan stand.
5. Attach the thermometer clamp to the beaker
and insert the thermometer into the
thermometer clamp.
6. Pour a liquid with a known density (such as
distilled water) into the beaker and place the
beaker on the beaker stand.
7. Place the density pan on the density pan stand.
8. Adjust the amount of the liquid so that the sample,
when placed on the lower pan (in the liquid), is about
10 mm below the surface of the liquid.
9. When the value displayed on the balance is stable,
press the RE-ZERO key to set the displayed value
to zero.
Now the balance is ready for density measurement.
Weighing pan
Breeze break ring
Balance weigh
t
Pan support
Dust plate
HA-202M only
Thermomete
r
Thermometer clamp
Beake
r
Beaker stand
Density pan
Density pan stand
Balance weights (1 small, only for HA-202M)

12
5.5. Measuring the Density of a Solid
The density of a solid is obtained by averaging the measured values.
1. Start the measurement when water temperature
becomes stable.
2. Press the RE-ZERO key to set the displayed
value to zero.
3. Place the sample on the upper pan and record
its weight in air (A).
4. Press the RE-ZERO key to set the displayed
value to zero.
5. Place the sample on the lower pan and record
its weight in water (B). At this time, ignore the
minus sign.
Note: Make sure that the sample is about 10
mm below the surface of the liquid.
6. Obtain the density of water according to the
temperature. (Refer to Table 1.)
Table 1 Density of distilled water (Unit: g/cm3)
At sea level (1 atmosphere), the density of water reaches maximum at 3.98°C.
Example display: BM
Temp. ( C)
0
10
20
30
40
50
60
70
80
90
+0
0.99984
0.99970
0.99820
0.99565
0.99222
0.98804
0.98320
0.97777
0.97180
0.96532
+1
0.99990
0.99961
0.99799
0.99534
0.99183
0.98758
0.98268
0.97720
0.97117
0.96465
+2
0.99994
0.99949
0.99777
0.99503
0.99144
0.98712
0.98216
0.97662
0.97054
0.96397
+3
0.99996
0.99938
0.99754
0.99470
0.99104
0.98665
0.98163
0.97603
0.96991
0.96328
+4
0.99997
0.99924
0.99730
0.99437
0.99063
0.98618
0.98110
0.97544
0.96927
0.96259
+5
0.99996
0.99910
0.99704
0.99403
0.99021
0.98570
0.98055
0.97485
0.96862
0.96190
+6
0.99994
0.99894
0.99678
0.99368
0.98979
0.98521
0.98001
0.97425
0.96797
0.96120
+7
0.99990
0.99877
0.99651
0.99333
0.98936
0.98471
0.97946
0.97364
0.96731
0.96050
+8
0.99985
0.99860
0.99623
0.99297
0.98893
0.98422
0.97890
0.97303
0.96665
0.95979
+9
0.99978
0.99841
0.99594
0.99259
0.98849
0.98371
0.97834
0.97242
0.96600
0.95906

13
7. Use the following equations to obtain the density.
•Three significant digits •Four or more significant digits
A A
ρ= x ρ0 ρ= x (ρ0– d) + d
| B | |B|
ρ: Density of sample (g/cm3)
A : Weight in air
B : Weight in water
ρ0 : Density of water
d : Density of air (g/cm3)
Example of recording sheet
Weight in air
(A)
(g)
Weight in
water (B)
(g)
Water temperature
(°C)
(g/cm3)
26
Water density
(g/cm3)
4.8102 0.5946
0.99678
8.06
(Calculated value)
Weight in air
(A)
(g)
Weight in
water (B)
(g)
Water
temperature
(°C)
Atmospheric
pressure
(
hPa)
(g/cm3)
26
Water
density
(g/cm3)
Air
density
(g/cm3)
4.8102 0.5946
0.99678 0.0012
8.055
(Calculated value)

14
6. MEASURING THE DENSITY OF A LIQUID
Assemble the kit as described in the procedure below.
6.1. Assembling the Kit:
Assembled view
1. For the procedure up to the setting of the
beaker stand, refer to the assembly procedure
for each balance model described in “5.
MEASURING THE DENSITY OF A SOLID”.
2. Attach the thermometer clamp to the beaker
and insert the thermometer into the
thermometer clamp.
3. Place the beaker on the beaker stand.
4. Connect the float to the float hook using the
wire. The length of wire must be about 50 mm.
5. Hook the float hook on the density pan stand.
6. When the value displayed on the balance is
stable, press the RE-ZERO key to set the
displayed value to zero.
Now the balance is ready for density measurement.
The volume of the
float is printed.
Example: 10.00 g/cm3
A
pprox. 50 mm
Thermomete
r
Thermometer clamp
Beake
r
Beaker stand
Float hook
Wire
Float
Density pan stand
Balance weight (depends on the balance model)

15
6.2. Measuring the Density of a Liquid
Use the following procedure to obtain the density of a liquid.
1. With the float hanging, press the RE-ZERO key
to set the displayed value to zero.
2. Pour the liquid of which you want to measure the
density into the beaker.
Note: Make sure that the float is about 10
mm below the surface of the liquid.
3. When the value displayed on the balance is
stable, record the value (A). At this time, ignore
the minus sign.
4. Substitute the measured value in the following
equation to obtain the density of the liquid.
| A |
ρ= + d
V
ρ: Density of liquid (g/cm3)
A : Buoyancy of float (g)
V: Volume of float (g/cm3)
d : Density of air (g/cm3)
Example: If the measured value (A) is 9.9704 g, the volume of the float (V, printed on the float
hook) is 10.00 g/cm3, the density of air (d) is 0.001 g/cm3 and the temperature indicated
by the thermometer is 25°C, then the density value is:
9.9704
+ 0.001 = 0.998 g/cm3 (25°C)
10.00
Example display: BM

16
7. FREQUENTLY ASKED QUESTIONS
Questions Answers
I’d like to measure the density of a resin
pellet or sheet, which floats in water. Is it
possible?
Use a liquid that has a lower density than water and
does not dissolve the sample, such as methanol
(density 0.798) or kerosene (density 0.80).
The density of the liquid used is measured using the
float provided with the kit.
Can a sample containing bubbles be
measured?
The density of a sample with bubbles can be measured
as it is. But as time passes, the bubbles disappear and
the apparent density may change.
A sample that floats in water due to the low density can
not be measured.
The measurement repeatability may be
affected by the water’s surface tension.
What can I do about this?
A few drops of a surfactant (for example, a mild
detergent for washing dishes) added to the water
reduce the influence of surface tension. A few drops of
a surfactant will affect the liquid density only a very
small amount.
When methanol is used in place of water, the influence of
surface tension is small, even without a surfactant.
When tap water is used, bubbles are
gradually generated on the sample
surface and a measurement error occurs.
What can I do about this?
Tap water contains dissolved gases such as oxygen
and carbon dioxide. When tap water is used, the
released dissolved gases generate bubbles. It is
recommended that pure water or distilled water, which
contains few dissolved gases, be used.
When I try to measure a highly water-
repellent material such as rubber,
bubbles stick to the sample. What can I
do about this?
Before measurement, soak the sample in the water with
an appropriate amount of surfactant added. Doing this
increases the sample surface hydrophilicity and makes
it more difficult for bubbles to stick to the sample
surface.
Up to what size of sample can be
measured?
In consideration of the density pan size, the maximum
sample size that can be measured is:
Diameter 25 mm
Height 30 mm
Mass 100 g
Can I measure the density of a liquid
with a high viscosity?
A liquid with a viscosity up to 500 mPa•s can be
measured. If the viscosity exceeds this value, the float
takes excessive time to sink and a measurement error
occurs.
Measuring adhesive is not recommended because the
adhesive sample may be difficult to remove from the
float.
Does using a semi-micro balance
improve accuracy?
The effects of surface tension cause errors in the
measurement value of around 0.2 to 1.0 mg.
In measurement using the 0.1 mg range, the magnitude
of error and the level of balance accuracy are almost
the same.
In measurement using the 0.01 mg range, the
magnitude of error greatly exceeds the level of balance
accuracy, so using a semi-micro balance is not
recommended.

3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN
Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148
A&D ENGINEERING, INC.
1756 Automation Parkway, San Jose, California 95131 U.S.A.
Telephone: [1] [phone] Fax: [1] [phone]
A&D INSTRUMENTS LIMITED <UK Office>
Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire
OX14 1DY United Kingdom
Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485
A&D INSTRUMENTS LIMITED <German Sales Office>
Große Straße 13 b 22926 Ahrensburg Deutschland
Telefon: [49] (0) 4102 459230 Telefax: [49] (0) 4102 459231
A&D Australasia Pty Ltd.
32 Dew Street, Thebarton, South Australia 5031 AUSTRALIA
Telephone: [61] (8) 8301-8100 Fax: [61] (8) 8352-7409
A&D KOREA Limited 한국에이.엔.디(주)
대한민국 서울시 영등포구 여의도동 36-2 맨하탄 빌딩 8층
( 8th Floor, Manhattan Bldg. 36-2 Yoido-dong, Youngdeungpo-ku, Seoul, KOREA )
전화: [82] (2) 780-4101 팩스: [82] (2) 782-4280
A&D RUS CO., LTD. Компания ЭЙ энд ДИ РУС
121357, Российская Федерация, г.Москва, ул. Верейская, дом 17
( Bldg. 17, Vereyskaya st., Moscow, 121357 RUSSIAN FEDERATION )
тел.: [7] [phone] факс: [7] [phone]
A&D Instruments India Private Limited
( 509, Udyog Vihar, Phase-, Gurgaon -122 016, Haryana, India )
: 91-124-4715555 : 91-124-4715599
