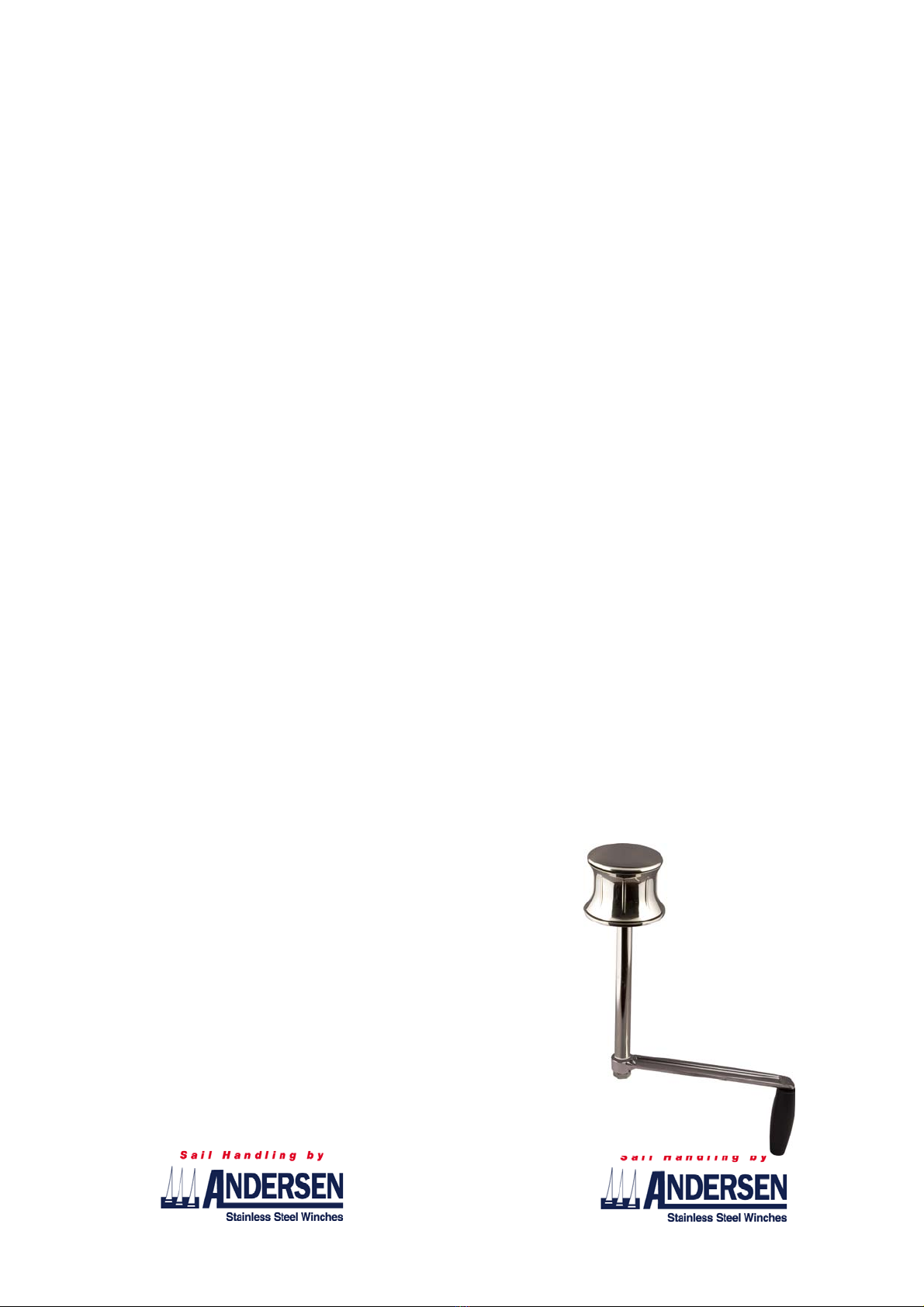

MOUNTING INSTRUCTION
WINCH 102
(Dismantling procedure according to Service Instruction, pos. 1-6 below)
1. Mark location of the bolt holes using the winch base (9) as a template.
2. Remove the base. Be sure that no dust comes into contact with the winch while
drilling the bolt holes.
3. Drill the bolt holes ø6.5mm. Centre hole ø23-ø25mm.
4. Clean the area.
5. Apply a light coat of bedding compound, ensuring that each hole is bedded.
6. Fasten base (9) into place using 6 pcs M6 countersunk head screws. Use large
washers or a backing plate.
7. Assamble in reverse order.
8. Check that the winch is functioning correctly.
SERVICE INSTRUCTION
WINCH 102
Maintenance interval 1-2 years, depending on use.
1. Remove nut (14)
2. Remove handle (13)
3. Remove shaft cover tube (11), should fall down once the handle is
4. removed*
5. Slide shaft & top (1) up through winch.
6. Remove drum (5).
7. Clean the winch with benzine.
8. Check pawls & springs (2,8) for ware and replace if necessary.
9. Reassemble the winch lightly greasing all moving parts.
*) If not regularly greased the shaft cover tube can be difficult to remove, especially on older
models, where the shaft cover tube is fitted directly on the shaft. To loosen the tube, tap it with a
rubber hammer, while supporting the other side with a wodden block. The tube can also be
loosened by tapping the shaft/top up with a rubber hammer. Be sure to tap the shaft with the nut
attached, to protect the thread.
Service Kit No. 15 (part no. 710015) contains service parts for this winch
PARTS LIST
WINCH 102
ver. 1.1
POS QTY DESCRIPTION PART NO.
1 (1) WINCH SHAFT/TOP 100MM 66710
(1) WINCH SHAFT/TOP 150MM 966715
(1) WINCH SHAFT/TOP 200MM 966718
2 1 PAWL W/SPRING 966301
3 1 CIRCLIP DIN471-A2-A8
4 1 BUSHING 966800
5 1 DRUM 100-101-102 963905
6 1 WASHER 967000
7 1 CIRCLIP DIN471-A2-A8
8 1 PAWL W/SPRING 966301
9 1 WINCH BASE 967100
10 1 BUSHING 967201
11 (1) SHAFT COVER TUBE 100MM 967210
(1) SHAFT COVER TUBE 150MM 967215
(1) SHAFT COVER TUBE 200MM 967220
12 1 BUSHING 967201
13 1 WINCH HANDLE 102 511021
14 1 NUT FOR HANDLE 967500
LIMITED WARRANTY
1.1 ANDERSEN issues a three-year warranty on all their products covering manufacturing and material
defects on condition that the products are used in normal fashion. The warranty shall apply for
three years from the moment ANDERSEN sell the product concerned (to the first buyer).
1.2 Within the period of the warranty, and in accordance with the terms of the warranty, ANDERSEN
undertake to replace or repair all defective components, which have been used in normal fashion.
1.3 The warranty is however subject to the limitations and exceptions outlined below.
Conditions and limitations:
2.1 ANDERSEN´s liability shall be limited to repair or replacement of components, which are defective
owing to manufacturing or material defects.
2.2 ANDERSEN assume no other liability than this, not even liability for indirect losses caused by
defect concerned, including operating losses, loss of profits, or damage caused to real property or
moveable property occurring while the product concerned is in the possession of the Buyer.
2.3 The Buyer alone shall bear the responsibility and risk involved as to whether the products are
suitable for the application intended. ANDERSEN assume no liability in this connection.
2.4 ANDERSEN assume no liability for defects which occur due to use of their products for purposes
for which they are not intended, or for defects which occur owing to incorrect installation, corrosion,
ultraviolet degradation, lack of maintenance, or any alteration or repair of the product carried out
incorrectly by the Buyer. Finally, ANDERSEN assume no liability for normal wear and tear, or for
depreciation in value.
2.5 ANDERSEN do not assume any liability for service carried out by anyone other than authorised
ANDERSEN representatives, unless such service is carried out pursuant to guidelines laid down by
ANDERSEN and in accordance with good craftsmanship.
2.6 The buyer shall inform ANDERSEN in writing of any defects with no undue delay once defects
have been registered. Products being dealt with under the warranty shall be returned to
ANDERSEN for repair unless any other agreement has been reached in writing.
2.7 ANDERSEN shall not cover costs incurred by the Buyer in connection with the transport or wages
involved in a warranty case. The Buyer in full shall meet such costs.
Exceptions:
3.1 The warranty is only valid for one year in respect of components bought for the products
concerned, such as electric motors, electric equipment, hydraulic pumps, motors and valves.
3.2 ANDERSEN assume no liability for consequential damage of ships, equipment, property or people
caused by defects in ANDERSEN products.
3.3 The company’s products are subject to continuous development, and consequently ANDERSEN
reserve the right to change designs and specifications without prior notice.
EXPLODED VIEW
WINCH 102
1
11
12
10
DETAIL, PAWL
MOUNTING
