IMPORTANT INFORMATION
NORMAL BLOOD PRESSURE FLUCTUATION
All physical activity, excitement, stress, eating, drinking, smoking, body posture and many
other activities or factors (including taking a blood pressure measurement) will influence blood
pressure value. Because of this, it is mostly unusual to obtain identical multiple blood
pressure readings.
Blood pressure fluctuates continually ----- day and night. The highest value usually appears in
the daytime and lowest one usually at midnight. Typically, the value begins to increase at
around 3:00AM, and reaches to highest level in the daytime while most people are awake and
active.
Considering the above information, it is recommended that you measure your blood pressure
at approximately the same time each day.
Too frequent measurements may cause injury due to blood flow interference, please always
relax a minimum of 1 to 1.5 minutes between measurements to allow the blood circulation in
your arm to recover. It is rare that you obtain identical blood pressure readings each time.

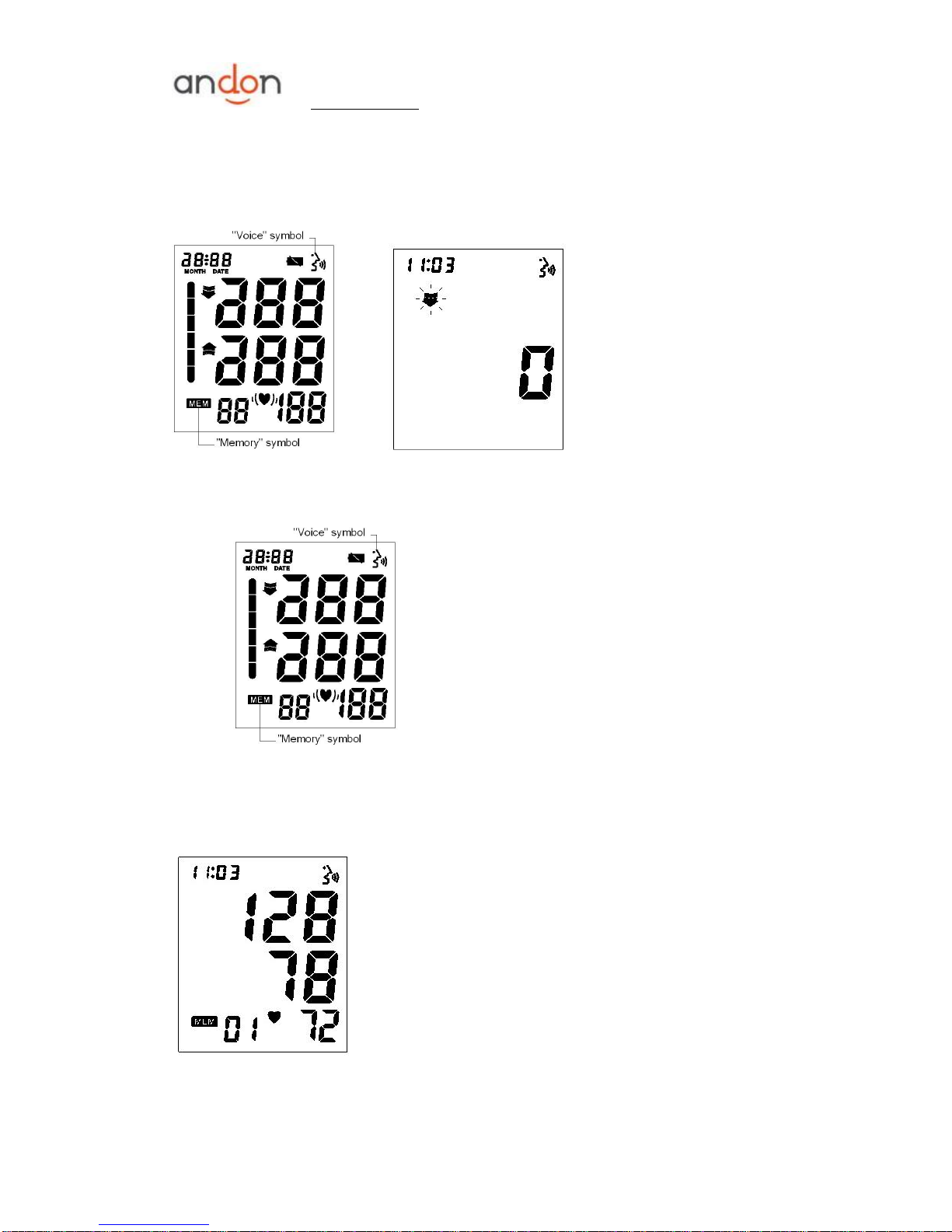

CONTENTS AND DISPLAY INDICATORS

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
3/19
INTENDED USE
Fully Automatic Electronic Sphygmomanometer is for use by medical professionals or at home
and is a non-invasive blood pressure measurement system intended to measure the diastolic
and systolic blood pressures and pulse rate of an adult individual by using a non-invasive
technique in which an inflatable cuff is wrapped around the upper arm. The cuff circumference
is limited to 22cm-48cm.
CONTRAINDICATION
It is inappropriate for people with serious arrhythmia to use this Electronic
Sphygmomanometer.
PRODUCT DESCRIPTION
Using Oscillometric methodology and silicon integrated pressure sensor technology; blood
pressure and heart rate are measured automatically and non-invasively. The LCD display
visually shows blood pressure, heart pulse rate measurements and irregular heartbeat (if any).
The most recent 60 measurements are stored in the memory with date and time. The voice
announces each displayed blood pressure, heart pulse rate measurements and irregular
heartbeat (if any). The Electronic Sphygmomanometer corresponds to the below standards:
IEC 60601-1:2005/EN 60601-1:2006/AC:2010 (Medical electrical equipment -- Part 1: General
requirements for basic safety and essential performance), IEC60601-1-2:2007/EN
60601-1-2:2007 /AC:2010 (Medical electrical equipment -- Part 1-2: General requirements for
basic safety and essential performance - Collateral standard: Electromagnetic compatibility -
Requirements and tests), EN 1060-1: 1995 + A1: 2002 + A2: 2009 (Non-invasive
sphygmomanometers - Part 1: General requirements), EN 1060-3: 1997 + A1: 2005 + A2:
2009 (Non-invasive sphygmomanometers - Part 3: Supplementary requirements for
electro-mechanical blood pressure measuring systems), ANSI/AAMI
SP-10:2002+A1:2003+A2:2006.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
4/19
SPECIFICATIONS
1. Product name: Blood Pressure Monitor
2. Model: KD-5904
3. Classification: Internally powered, Type BF applied part,IPX0,No AP or APG,Continuous
operation
4. Machine size: 145mm×104mm×55mm
5. Cuff circumference: 22cm-30cm, 30cm-42cm(Optional), 42cm-48cm(Optional)
6. Weight: about 300g (exclude batteries)
7. Measuring method: Oscillometric method, automatic inflation and measurement
8. Memory volume: 60 times with time and date stamp
9. Power source: DC:6V 600mA, batteries: 4 ×1.5V SIZE AA
10. Measurement range:
Cuff pressure: 0-300mmHg
Systolic: 60-260mmHg
Diastolic: 40-199mmHg
Pulse rate: 40-180 beats/minute
11. Accuracy:
Pressure: ±3mmHg
Pulse rate: ±5%
12. Environmental temperature for operation: 5℃～40℃(41℉～104℉)
13. Environmental humidity for operation: ≤90%RH
14. Environmental temperature for storage and transport: -20℃～55℃(-4℉～131℉)
15. Environmental humidity for storage and transport: ≤90%RH
16. Environmental pressure: 80KPa-105KPa
17. Battery life: Approx. 360 times
18. All components belonging to the pressure measuring system, including accessories:
Pump, Valve, LCD, Cuff and Sensor.
Note: These specifications are subject to change without notice.
NOTICE
1. Read all of the information in the operation guide and any other literature in the box before
operating the unit.
2. Stay quiet, calm and rest for 5 minutes before blood pressure measurement.
3. The cuff should be placed at the same level as your heart.
4. During measurement, neither speak nor move your body and arm.
5. Measuring on same arm for each measurement.
6. Please always relax at least 1 or 1.5 minutes between measurements to allow the blood
circulation in your arm to recover. Prolonged over-inflation (cuff pressure exceed 300 mmHg
or maintained above15 mmHg for longer than 3 minutes) of the bladder may cause ecchymoma
of your arm.
7. Consult your physician if you have any doubt about below cases:

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
5/19
1) The application of the cuff over a wound or inflammation diseases;
2) The application of the cuff on any limb where intravascular access or therapy, or an
arterio-venous (A-V) shunt, is present;
3) The application of the cuff on the arm on the side of a mastectomy;
4) Simultaneously used with other monitoring medical equipments on the same limb;
5) Need to check the blood circulation of the user.
8. This Electronic Sphygmomanometers is designed for adults and should never be used
on infants or young children. Consult your physician or other health care professionals
before use on older children.
9. Do not use this unit in a moving vehicle, This may result in erroneous measurement.
10. Blood pressure measurements determined by this monitor are equivalent to those
obtained by a trained observer using the cuff/stethoscope auscultation method, within the
limits prescribed by the American National Standard Institute, Electronic or automated
sphygmomanometers.
11. Information regarding potential electromagnetic or other interference between the blood
pressure monitor and other devices together with advice regarding avoidance of such
interference please see part ELECTROMAGNETIC COMPATIBILITY INFORMATION.
12. If Irregular Heartbeat (IHB) brought by common arrhythmias is detected in the procedure
of blood pressure measurement, a signal of will be displayed. Under this condition,
the Electronic Sphygmomanometers can keep function, but the results may not be
accurate, it’s suggested that you consult with your physician for accurate assessment.
There are 2 conditions under which the signal of IHB will be displayed:
1) The coefficient of variation (CV) of pulse period >25%.
2) The difference of adjacent pulse period≥0.14s, and the number of such pulse takes
more than 53 percentage of the total number of pulse.
13. Please do not use the cuff other than supplied by the manufacturer, otherwise it may bring
biocompatible hazard and might result in measurement error.
14. The monitor might not meet its performance specifications or cause safety hazard if
stored or used outside the specified temperature and humidity ranges in specifications.
15. Please do not share the cuff with other infective person to avoid cross-infection.
16. Medical AC adapter which output is DC 6.0V 600mA and complied with IEC 60601-1/EN
60601-1/UL 60601-1 and IEC 60601-1-2/EN 60601-1-2/UL 60601-1-2 is suitable for this
monitor. Please note that the monitor jack size: hole Φ5.5mm, center pin Φ2.0mm. Please
pay attention to polarity.
17. This blood pressure monitor is verified by auscultatory method. It is recommended that
you check annex B of ANSI/AAMI SP-10:2002+A1:2003+A2:2006 for details of verification
method if you need.
18. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
6/19
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
SETUP AND OPERATING PROCEDURES
1. BATTERY LOADING
a. Open battery cover at the back of the monitor.
b. Load four “AA” size batteries. Please pay attention to polarity.
c. Close the battery cover.
When LCD shows battery symbol , replace all batteries with new ones.
Rechargeable batteries are not suitable for this monitor.
Remove the batteries if the monitor will not be used for a month or more to avoid
relevant damage of battery leakage.
Avoid the battery fluid to get in your eyes. If it should get in your eyes, immediately
rinse with plenty of clean water and contact a physician.
The monitor, the batteries and the cuff, must be disposed of according to local
regulations at the end of their usage.
2. Clock Mode
Once you install the battery, with two “beep”, the LCD will display the time and date
by turns.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
7/19

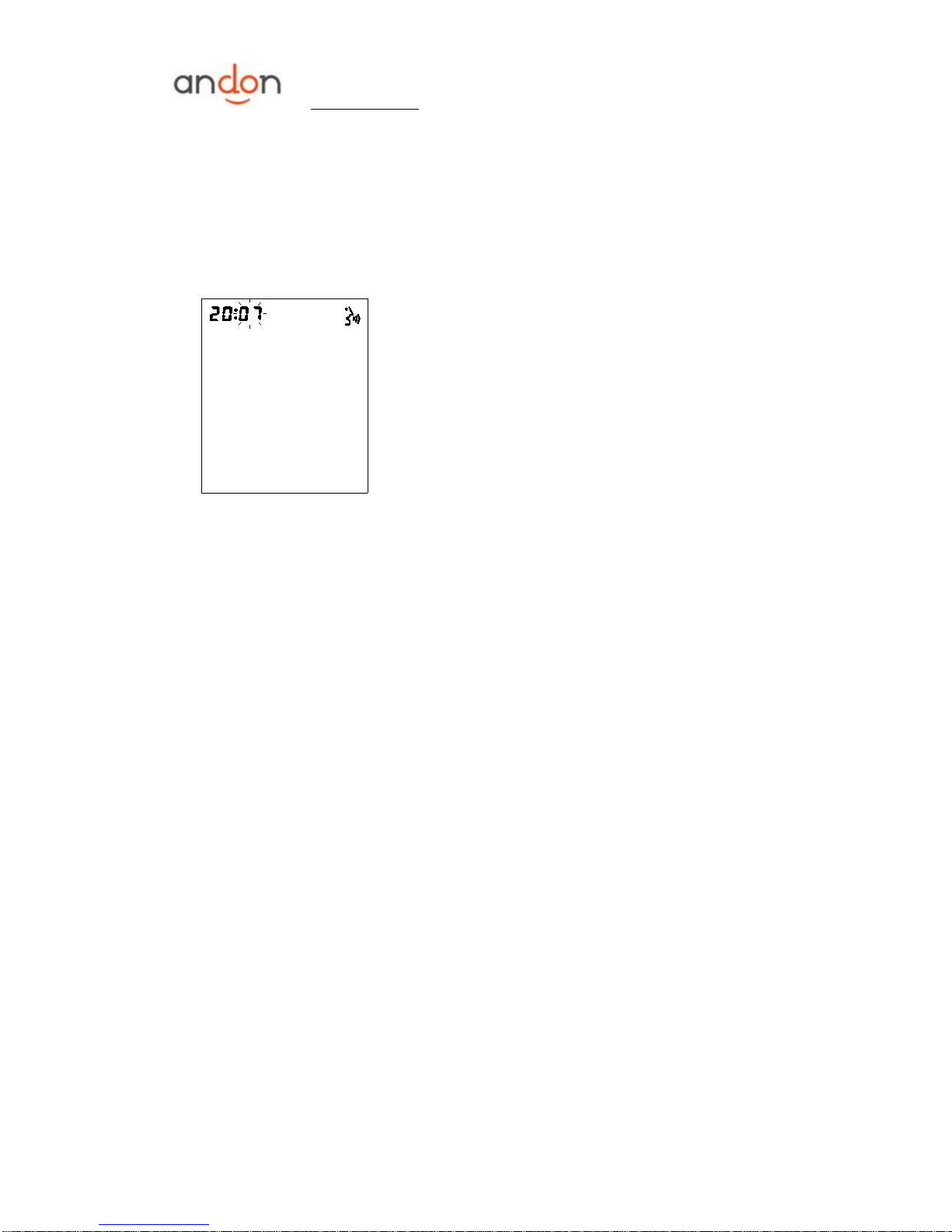

3. CLOCK AND DATE ADJUSTMENT
a. When the monitor is turned off, hold on the buttons “Mode”for 3 seconds and the
number of the year will blink on and off on the LCD display. In this mode, when the
button “Mode” is pressed and released, the day of the month will blink. Press and
release the button “Mode” again and the month will blink, Press and release the
button “Mode” again and the hours will blink, Press and release the button “Mode”
again and the minutes will blink.
b. When the year, month, day, hours or minutes that you wish to set is blinking, each
time that you press and release the button “+” the displayed number will increase by
one and button ”-“decrease by one. By holding down the button “+”/ ”-“ the displayed
number will continue to increase/decrease. Once you set the correct year, press and
release the button “Mode”. Then repeat this process to set the month, day, hour,
and minutes.
c. Note that the hours are displayed as 1 through 24 rather than 1AM through 12 Noon
and 1PM through 12 Midnight.
d. After setting the minutes, when you press and release the button “Mode”, you exit the
time and date adjusting mode and the numbers on the LCD display will no longer
blink.
e. When batteries are replaced, the time and date must be reset.
4. VOICE SETTING

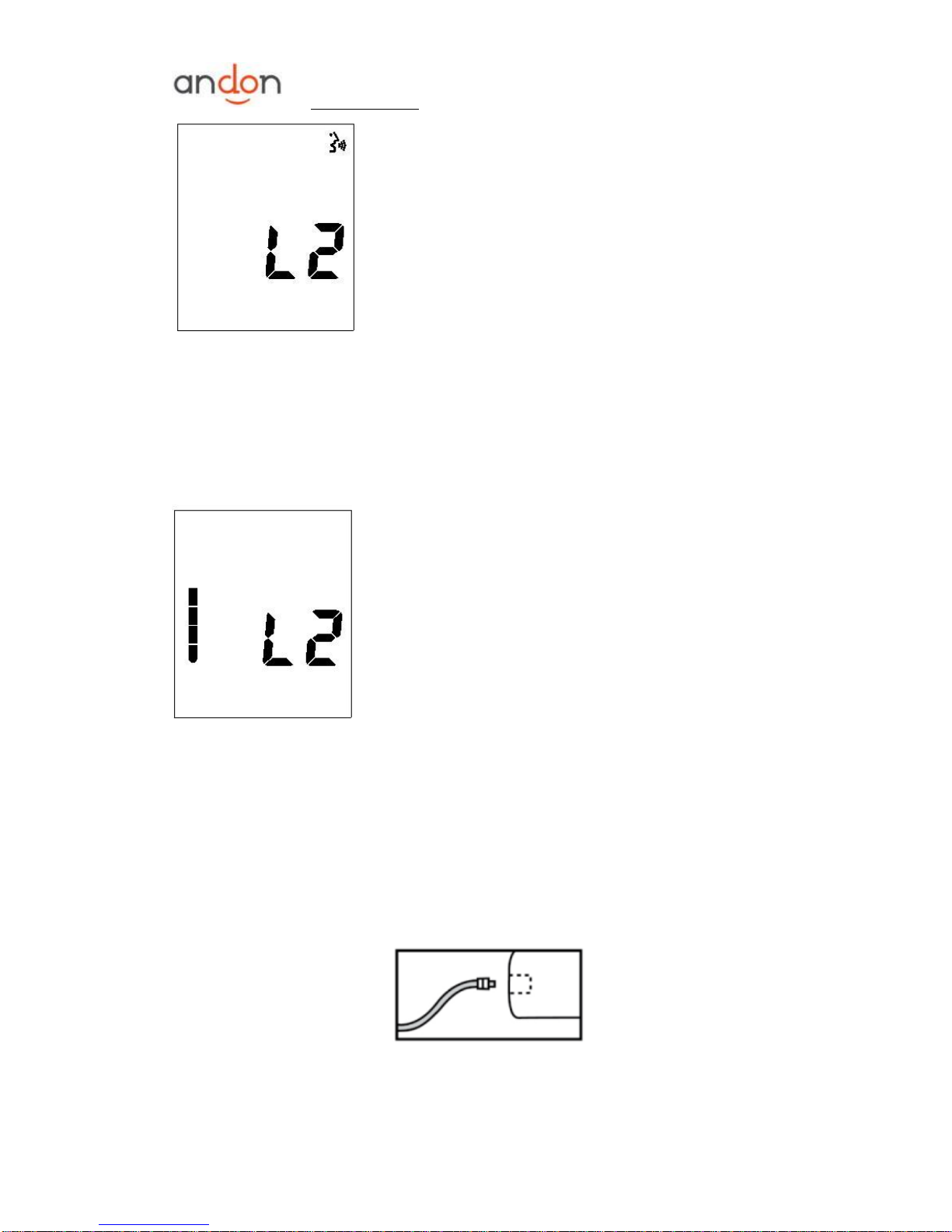

a. Voice processor language selection: When the monitor is in Clock Mode, press and
hold down the button “MEM” until “L1” appears on the LCD display and the voice
announces corresponding Language. If you continue to hold the button “MEM” down,
other language will announced and the corresponding language code will appear on
the LCD display. When the language of choice appears and is announced, release
the button “MEM”.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
8/19
b. Voice volume setting: Once you have selected a language, again press and hold
down the button “MEM”. A line of dashes will appear on the left side of the LCD
display and as each new dash appears the monitor will sound a chime. The amount
of dashes that appear and the louder the chime sounds, the louder the voice volume
is set. Release the button “MEM” when the volume is set at the loudness that you
desire. Once you have set the volume, the monitor will exit the language and volume
adjustment mode.
c. You can active/inactive the voice by press the Voice key during most state. When the
LCD is displaying the result, re-active the voice can make the monitor speak once
again.
5. CONNECTING THE CUFF TO THE MONITOR
Connect the cuff to the monitor by placing the rubber tube plug into the cuff socket on the
monitor. Make certain that the plug is completely inserted so that there will be no air
leakage during blood pressure measurements.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
9/19
Avoid compression or restriction of the connection tubing during measurement，
which may cause inflation error, or harmful injury due to continuous cuff pressure.

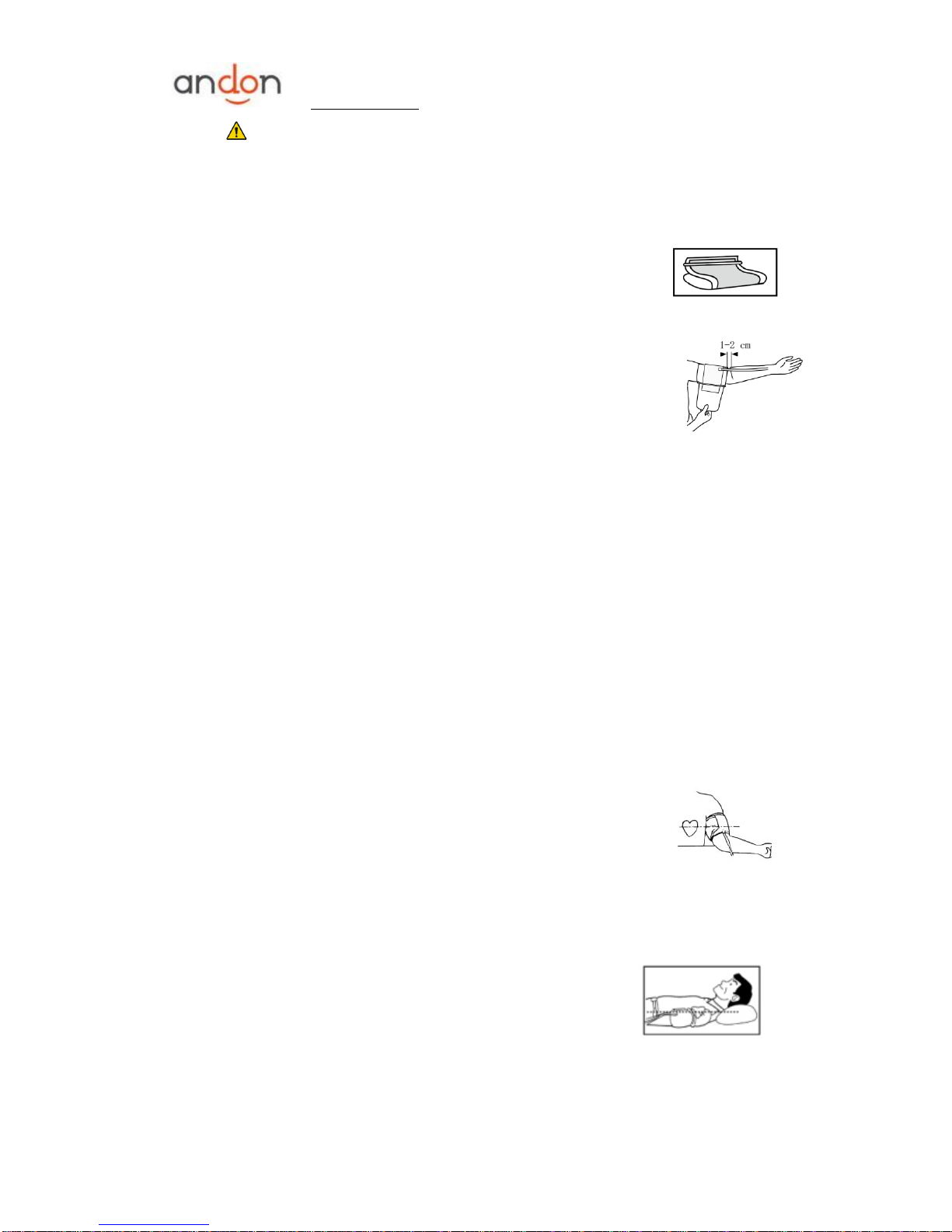

6. APPLYING THE CUFF
a. Pulling the cuff end through the medal loop (the cuff is
packaged like this already), turn it outward (away from your
body) and tighten it and close the Velcro fastener.
b. Place the cuff around a bare arm 1-2cm above the elbow joint.
c. While seated, place palm upside in front of you on a flat surface
such as a desk or table. Position the air tube in the middle of
your arm in line with your middle finger.
d. The cuff should fit comfortably, yet snugly around your arm.
You should be able to insert one finger between your arm and the cuff.
Note:
1. Please refer to the cuff circumference range in “SPECIFICATIONS”to make
sure that the appropriate cuff is used.
2. Measuring on same arm each time.
3. Do not move your arm, body, or the monitor and do not move the rubber tube
during measurement.
4. Stay quite, calm for 5 minutes before blood pressure measurement.
5. Please keep the cuff clean.If the cuff becomes dirty, remove it from the monitor
and clear it by hand in a mild detergent, then rinse it thoroughly in cold water.
Never dry the cuff in clothes dryer or iron it. Clean the cuff after the usage of
every 200 times is recommended.
7. BODY POSTURE DURING MEASUREMENT
Sitting Comfortably Measurement
a. Be seated with your feet flat on the floor, and don’t cross your
legs.
b. Place palm upside in front of you on a flat surface such as a
desk or table
c. The middle of the cuff should be at the level of the right atrium of the heart.
Lying Down Measurement
a. Lie on your back.
b. Place your arm straight along your side with your palm
upside.
c. The cuff should be placed at the same level as your
heart.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
10/19
8. TAKING YOUR BLOOD PRESSURE READING
a. With the cuff wrapped around your arm and your body in a comfortable position,
press and release the button “START”. You will hear a beep and the LCD display
will first verify itself, then it will set itself to read all zeros.

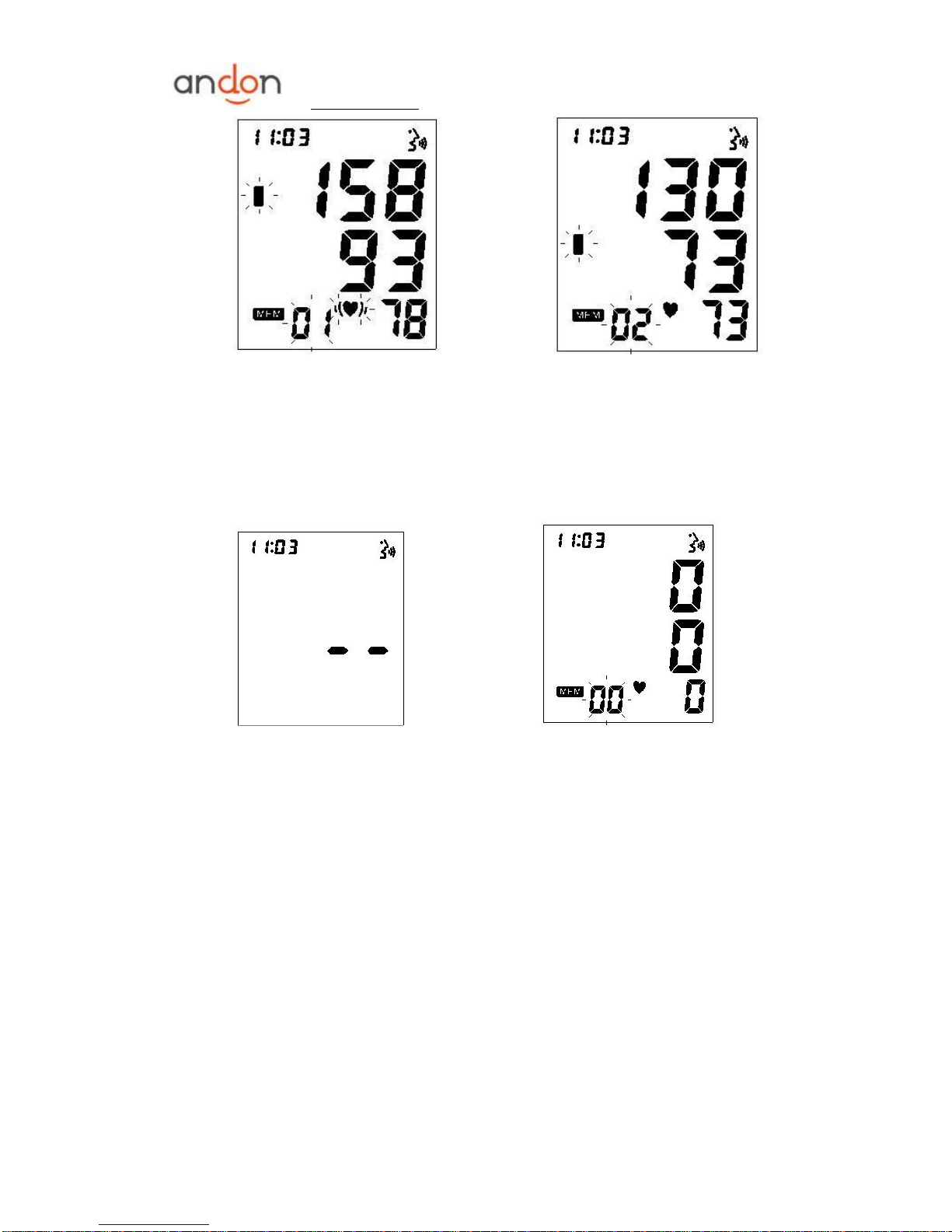

See the picture. You can check the LCD display according to the picture. Please
contact the service center if segment is missing.
If the monitor has previous blood pressure measurements in the memory, the LCD will
momentarily display the most recent measurement reading.
b. If the voice function is on, the monitor will speak out measurement tips and then
state.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
11/19

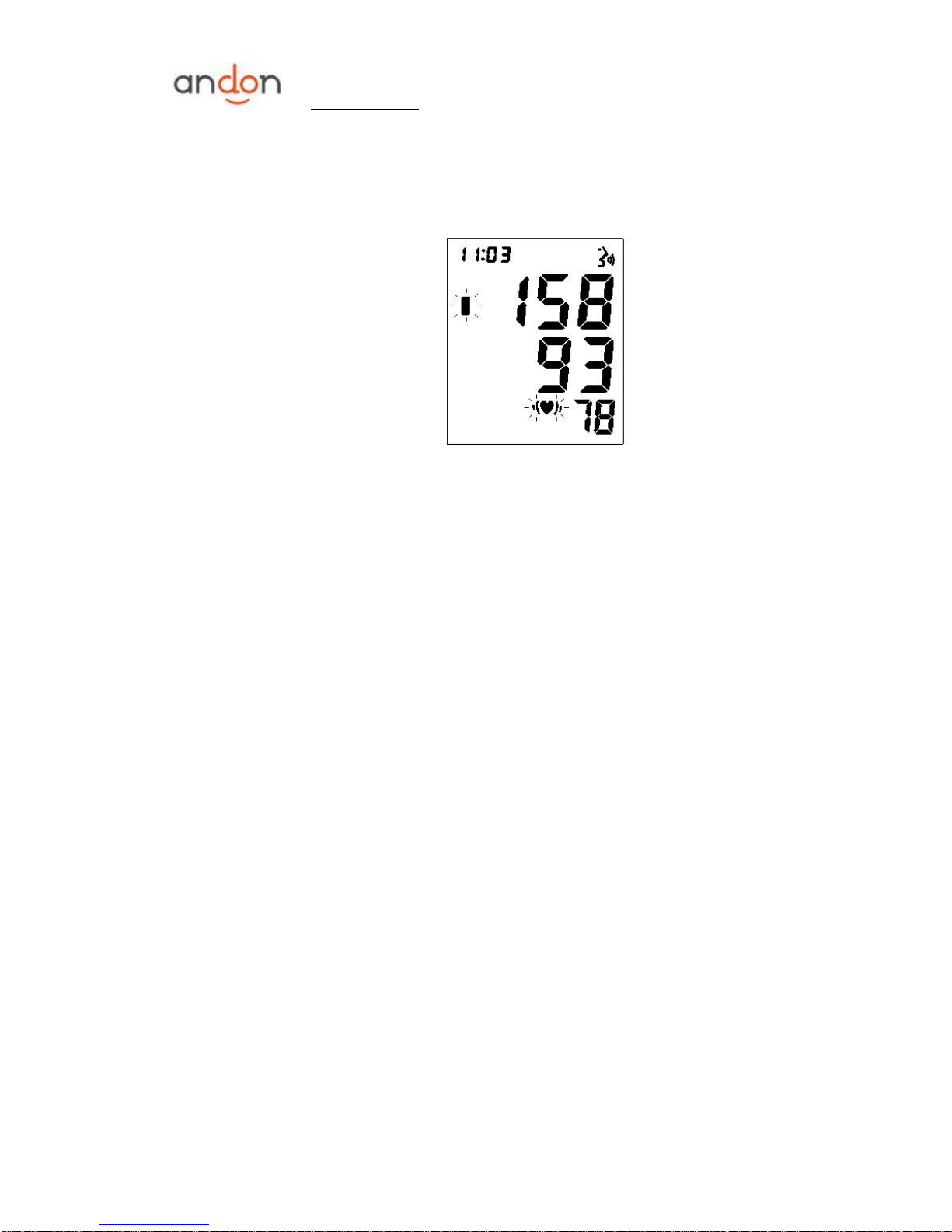

c. The monitor will pump up the cuff; then release the air pressure from the cuff; then
show the measurement on the LCD display. If the voice feature is activated, it will
announce the blood pressure, heart pulse rate measurements and irregular
heartbeat (if any) and it will state the classification of the measurements according
to the standards of the World Health Organization (WHO)
d. The monitor power will turn-off automatically after 1 minute of non-use.
Alternatively, you can press and hold the button “START” to manually turn off the
monitor.
Note: Please consult a health care professional for interpretation of pressure measurements.
9. DISPLAYING STORED RESULTS
a. When the monitor is turned off (the time and date remain displayed), press and
release the button “MEM”. The LCD display will show the number of measurements
in the memory; then the average of the last three measurements will be displayed.
After few seconds, the most recent measurement will be displayed. If more than one
measurement is in the memory, press and release the button “MEM” again and the
second most recent measurement will be displayed. Repeat this process to view each
measurement stored in the memory.
b. If the voice function is on, the voice will announce each measurement and irregular
heartbeat (if any) in the memory when the measurement is shown on the LCD display.
The voice will also state how each measurement is classified according to WHO
(World Health Organization).
c. After reading the measurements in the memory, press and release the button “MEM”
when display the last memory or press and release the button “START”, the monitor
will power off. When in the memory reading mode, the monitor will power-off
automatically after 1 minutes of non-use.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
12/19
10. DELETING MEASUREMENTS FROM THE MEMORY
When in the memory reading mode, pressing and holding the button “MEM” for 3 seconds
will delete all measurements from the memory once the monitor sounds three “beeps”. After
the “beeps” the LCD display will show two dashes unless you release the button “MEM”, then
the LCD display will show that no measurements are in the memory.
11. TURNING THE MONITOR POWER OFF
The monitor power will turn-off automatically after 1 minute of non-use after measurement
displaying and storing. Alternatively, you can press the button “START” to manually turn off
the monitor.
12. ASSESSING HIGH BLOOD PRESSURE FOR ADULTS
The following guidelines for assessing high blood pressure (without regard to age or gender)
have been established by the World Health Organization (WHO). Please note that other
factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration. Consult with
your physician for accurate assessment, and never change your treatment by yourself.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
13/19
Note: It is not intended to provide a basis of any type of rush toward emergency
conditions/diagnosis based on the color scheme and that the color scheme is meant only
to discriminate between the different levels of blood pressure.
13. TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION
LCD Display shows battery
symbol
Batteries are low
Install new batteries
LCD Display shows “EE 0”
Pressure system unstable
before measurement.
Re-test taking care to not
move your arm or the blood
pressure monitor
LCD Display shows “EE 1”
Systolic pressure detect fail
Measurement again
LCD Display shows “EE 2”
Diastolic pressure detect fail
Measurement again
LCD Display shows “EE 3”
Pneumatic system blocked or
cuff is to tight during inflation
Tighten cuff correctly and
refer to “CUFF Connecting”
LCD Display shows “EE 4”
Pneumatic system leakage or
cuff is to loose during inflation
Tighten cuff correctly and
refer to “CUFF Connecting”
LCD Display shows “EE 5”
Inflation above 300mmHg
Re-test taking care to not
move your arm or the blood
pressure monitor
LCD Display shows “EE 6”
Over 3 minutes while pressure
above 15 mmHg
Press the button “START”
LCD Display shows “EE 7”
EEPROM access error
Please contact the factory
LCD Display shows “EE 8”
Device parameter check error
Please contact the factory
LCD Display shows “EE 9”
MCU self-verity error
Please contact the factory
LCD Display shows “EE A”
Span error
Please contact the factory
LCD Display shows “EE b”
EEPROM backup error
Please contact the factory

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
14/19
BPM no response when you
press button. BPM hang
Incorrect operation
Take out batteries for 5 min
at least, and then reinstall
all batteries.

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
15/19
MAINTENANCE
1. Do not drop this monitor or subject it to strong impact.
2. Avoid high temperature and solarization. Do not immerse the monitor in water as this
will result in damage to the monitor.
3. If this monitor is stored near freezing, allow it to acclimate to room temperature before
use.
4. Do not attempt to disassemble this monitor.
5. If you do not use the monitor for a long time, please remove the batteries.
6. It is recommended the performance should be checked every 2 years or after repair.
Please contact the service center.
7. Clean the monitor with a dry, soft cloth or a soft cloth squeezed well after moistened with
water, diluted disinfectant alcohol, or diluted detergent.
8. No component can be maintained by user in the monitor. The circuit diagrams,
component part lists, descriptions, calibration instructions, or other information which will
assist the user’s appropriately qualified technical personnel to repair those parts of
equipment which are designated repairably can be supplied .
9. The monitor can maintain the safety and performance characteristics for a minimum of
10,000 measurements or three years, and the cuff integrity is maintained after 1,000
open–close cycles of the closure.
10. It is recommended the cuff should be disinfected 2 times every week if needed (For
example, in hospital or in clinique). Wipe the inner side (the side contacts skin) of the cuff
by a soft cloth squeezed after moistened with Ethyl alcohol (75-90%), then dry the cuff by
airing
EXPLANATION OF SYMBOLS ON UNIT
Symbol for” THE OPERATION GUIDE MUST BE READ”(The sign background colour:
blue.The sign graphical symbol: white)
Symbol for “WARNING”
Symbol for “TYPE BF APPLIED PARTS”(The cuff is type BF applied part)
Symbol for “ENVIRONMENT PROTECTION –Waste electrical products should not be
disposed of with household waste. Please recycle where facilities exist. Check with your local
Authority or retailer for recycling advice”.
Symbol for “MANUFACTURER”
Symbol for “COMPILES WITH MDD93/42/EEC REQUIREMENTS”
Symbol for “DATE OF MANUFACTURE”

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
16/19
NO. 31,Changjiang Road,Nankai District,Tianjin, P.R.China
EC REP
ANDON Health Co.,Ltd
AUTOMATIC BLOOD PRESSURE MONITOR
MODEL: KD-5907
6V
SN:
R
0197
Lotus Global Co.,Ltd
47 Spenlow House Bermondsey London SE16 4SJ
Symbol for “EUROPEAN REPRESENTATION”
SN Symbol for “SERIAL NUMBER”
Symbol for “KEEP DRY”
WARRANTY INFORMATION
Only charge the cost of components and transport.
SERVICE CENTER
ANDON HEALTH CO., LTD.
No. 3 Jinping Street, Ya An Road, Nankai District, Tianjin 300190, China.
Tel: [phone]
Lotus Global Co., Ltd.
15 Alexandra Road, London UK, NW8 0DP
Tel: [phone] Fax: [phone]
ELECTROMAGNETIC COMPATIBILITY INFORMATION
Table 1
For all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacture’s declaration - electromagnetic emissions
The KD-5904 is intended for use in the electromagnetic environment specified below.
The customer or the user of the KD-5904 should assure that it is used in such an
environment.
Emissions test
Compliance
Electromagnetic environment -
guidance
RF emissions
CISPR 11
Group 1
The KD-5904 uses RF energy only for its
internal function. Therefore, its RF
emissions are very low and are not likely
to cause any interference in nearby
electronic equipment.
RF emissions
CISPR 11
Class B
The KD-5904 is suitable for use in all
establishments other than domestic and
those directly connected to the public
low-voltage power supply network that
supplies buildings used for domestic
purposes.
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
Table 2
For all ME EQUIPMENT and ME SYSTEMS
NO. 31,Changjiang Road,Nankai District,Tianjin, P.R.China
EC REP
ANDON Health Co.,Ltd
AUTOMATIC BLOOD PRESSURE MONITOR
MODEL: KD-5907
6V
SN:
R
0197
Lotus Global Co.,Ltd
47 Spenlow House Bermondsey London SE16 4SJ

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
17/19
Guidance and manufacturer’s declaration - electromagnetic immunity
The KD-5904 is intended for use in the electromagnetic environment specified below. The
customer or the user of the KD-5904 should assure that it is used in such an environment.
IMMUNITY test
IEC 60601test level
Compliance level
Electromagnetic
environment -
guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be
wood, concrete
or ceramic tile. If
floors are
covered with
synthetic
material, the
relative humidity
should be at least
30 %.
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m
3 A/m
Power frequency
magnetic fields
should be at
levels
characteristic of a
typical location in
a typical
commercial or
hospital
environment.
Table 3
For ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacturer’s declaration - electromagnetic immunity
The KD-5904 is intended for use in the electromagnetic environment specified below. The
customer or the user of the KD-5904 should assure that it is used in such an environment.
IMMUNITY test
IEC 60601test level
Compliance
level
Electromagnetic environment
- guidance
Portable and mobile RF
communications equipment
should be used no closer to any
part of the KD-5904, including
cables, than the recommended
separation distance calculated
from the equation applicable to
the frequency of the transmitter.
Recommended separation
distance：

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
18/19
Radiated RF
IEC 61000-4-3
3 V/m 80 MHz to 2.5
GHz
3 V/m
80 MHz to 800
MHz
800 MHz to 2,5
GHz
Where P is the maximum output
power rating of the transmitter
in watts (W) according to the
transmitter manufacturer and d
is the recommended separation
distance in meters (m).
Field strengths from fixed RF
transmitters, as determined by
an electromagnetic site survey,a
should be less than the
compliance level in each
frequency range.b
Interference may occur in the
vicinity of equipment
marked with the following
symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the KD-5904 is used
exceeds the applicable RF compliance level above, the KD-5904 should be observed to
verify normal operation. If abnormal performance is observed, additional measures may be
necessary, such as re-orienting or relocating the KD-5904.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Table 4
For ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Recommended separation distances between
portable and mobile RF communications equipment and the KD-5904
The KD-5904 is intended for use in an electromagnetic environment in which radiated RF
Pd 2.1
Pd 3.2

DN:KD-5904-SMSY01 V3.0 Operation Guide
JS-KD5904-03-V2.0
19/19
disturbances are controlled. The customer or the user of the KD-5904 can help prevent
electromagnetic interference by maintaining a minimum distance between portable and
mobile RF communications equipment (transmitters) and the KD-5904 as recommended
below, according to the maximum output power of the communications equipment.
Rated maximum
output
power of
transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
80 MHz to 800 MHz
800 MHz to 2,5 GHz
0,01
0.12
0.12
0.23
0,1
0.38
0.38
0.73
1
1.2
1.2
2.3
10
3.8
3.8
7.3
100
12
12
23
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in meters (m) can be determined using the equation applicable to the
frequency of the transmitter, where P is the maximum output power rating of the transmitter
in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
Pd 2.1
Pd 2.1
Pd 3.2
