Andon KD-5985 User manual

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
1/22
MODEL KD-5985
Fully Automatic Arm Cuff Blood Pressure Monitor
(ELECTRONIC SPHYGMOMANOMETER)
OPERATION GUIDE
__________________________________________________________________________
INDEX
IMPORTANT INFORMATION .........................................................................2
PARTS AND DISPLAY INDICATORS ............................................................2
INTENDED USE..............................................................................................3
CONTRAINDICATION.....................................................................................3
PRODUCT DESCRIPTION..............................................................................3
SPECIFICATIONS...........................................................................................4
NOTICE ...........................................................................................................5
SETUP AND OPERATING PROCEDURES....................................................6
1. BATTERY LOADING AND AC ADAPTER LOADING.............................................6
2. SETTING....................................................................................................................7

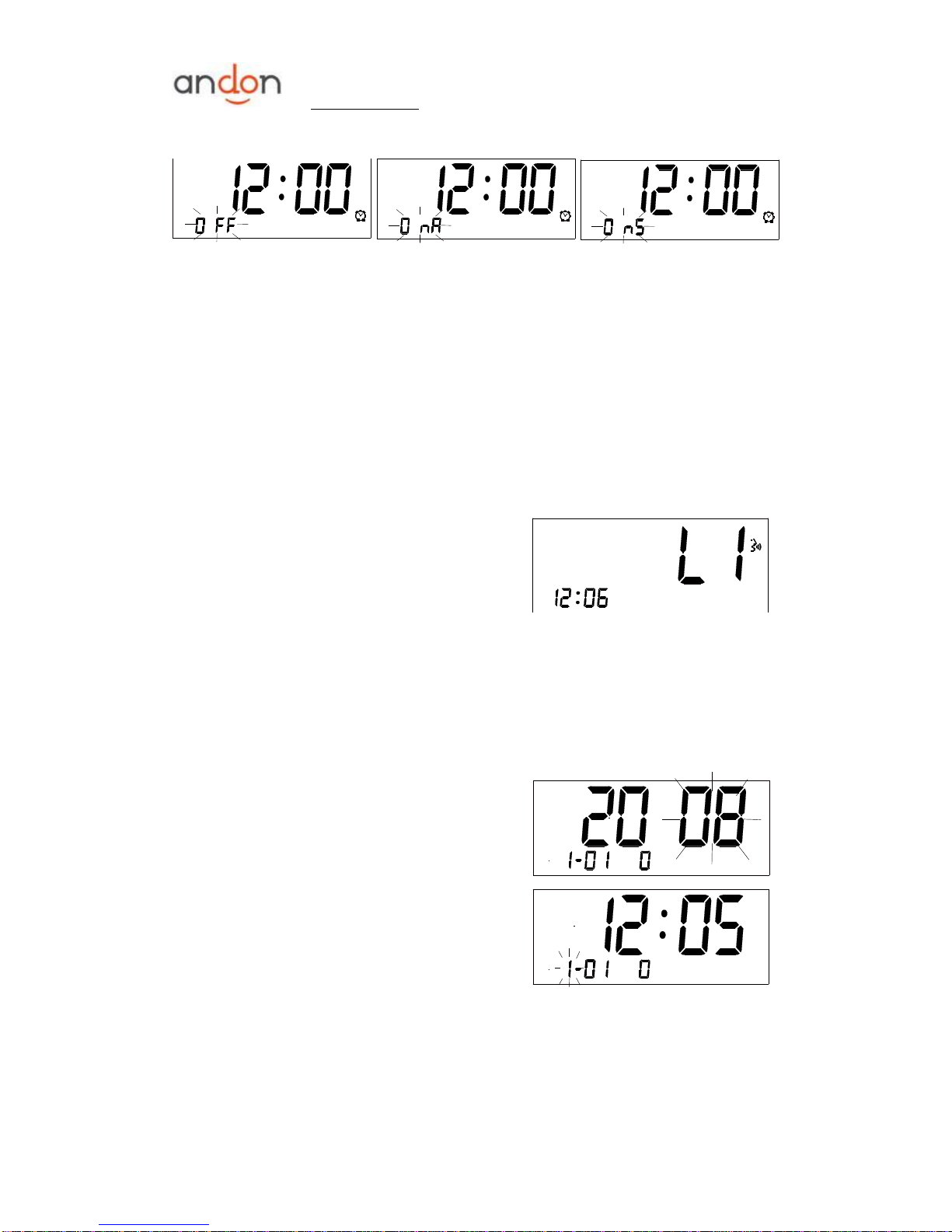

2.1 ALARM SETTING.......................................................................................................................7
2.2 VOICE SETTING .........................................................................................................................8
2.3 CLOCK AND DATE ADJUSTMENT .........................................................................................8

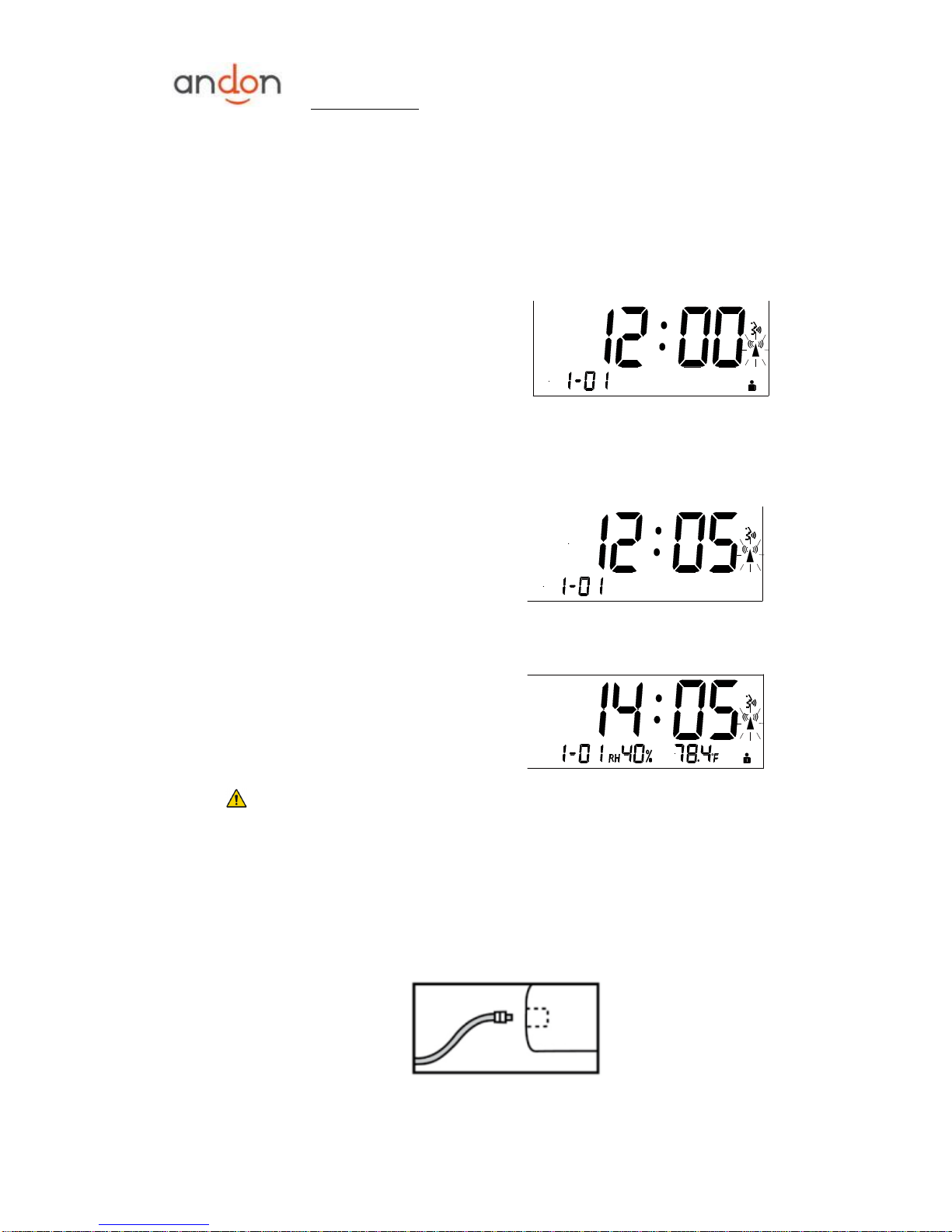

2.4 RCC(Radio Controlled Clock).......................................................................................................9

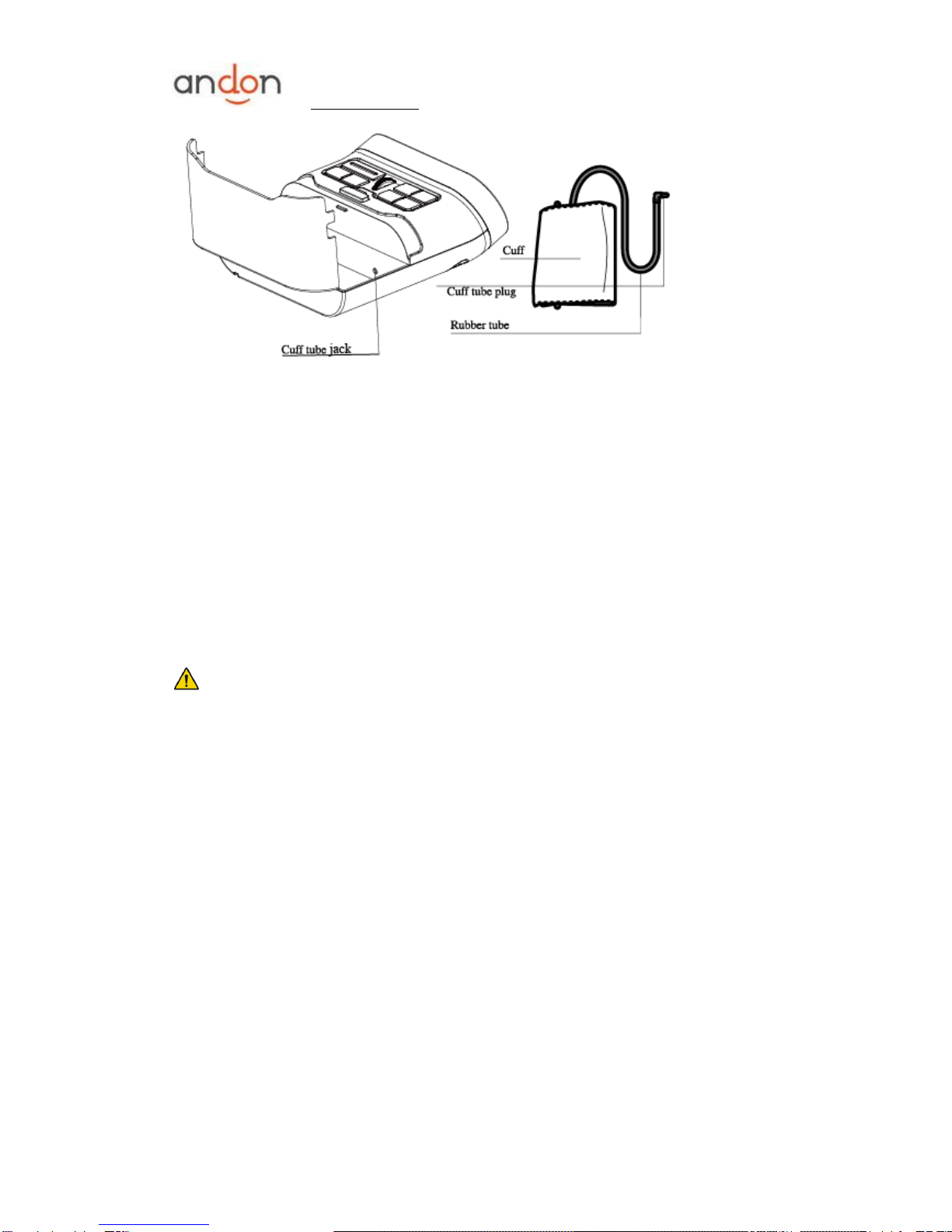

3. CONNECTING THE CUFF TO THE MONITOR........................................................9

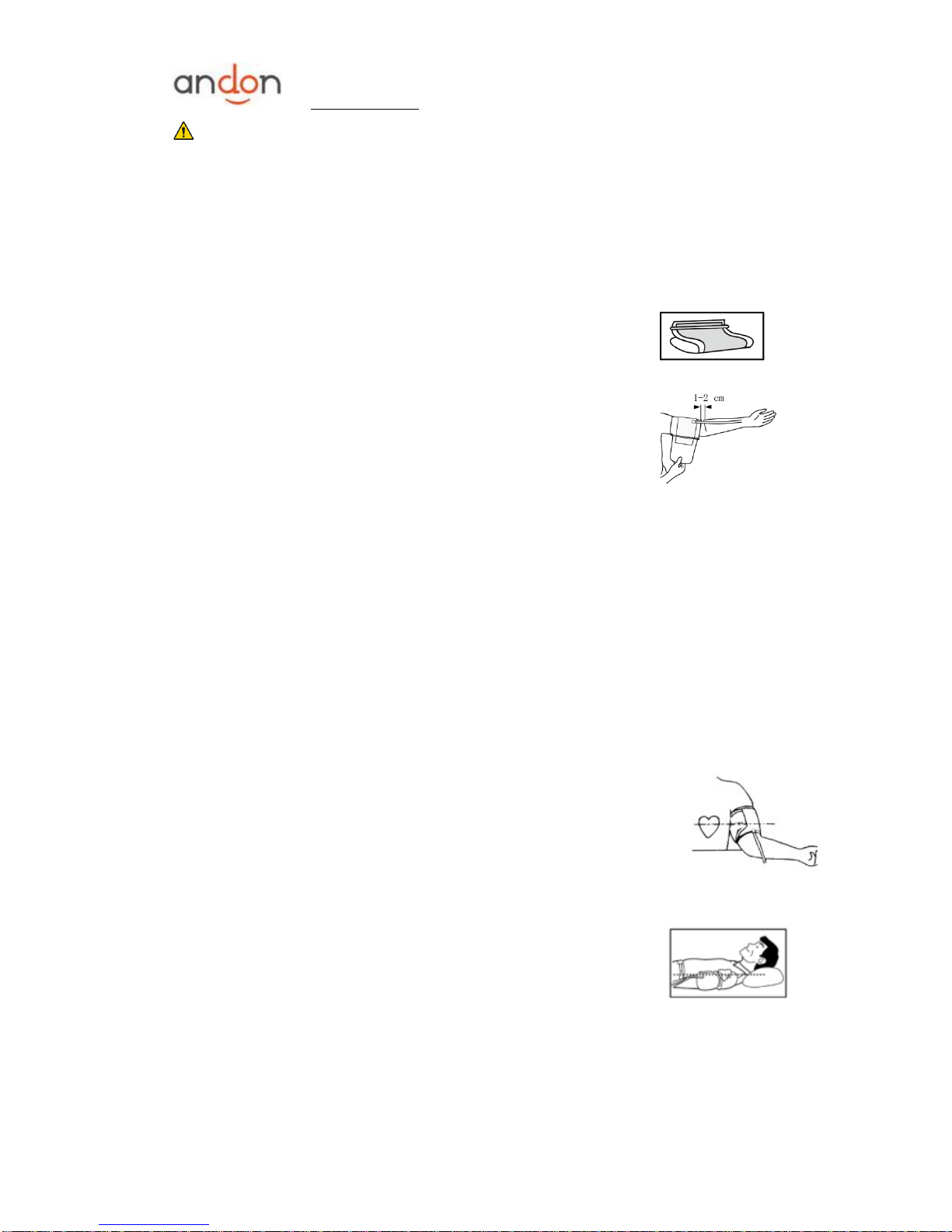

4. APPLYING THE CUFF............................................................................................10
5. BODY POSTURE DURING MEASUREMENT........................................................10
6. GROUP SELCET.....................................................................................................10
7. TAKING YOUR BLOOD PRESSURE READING ...................................................11

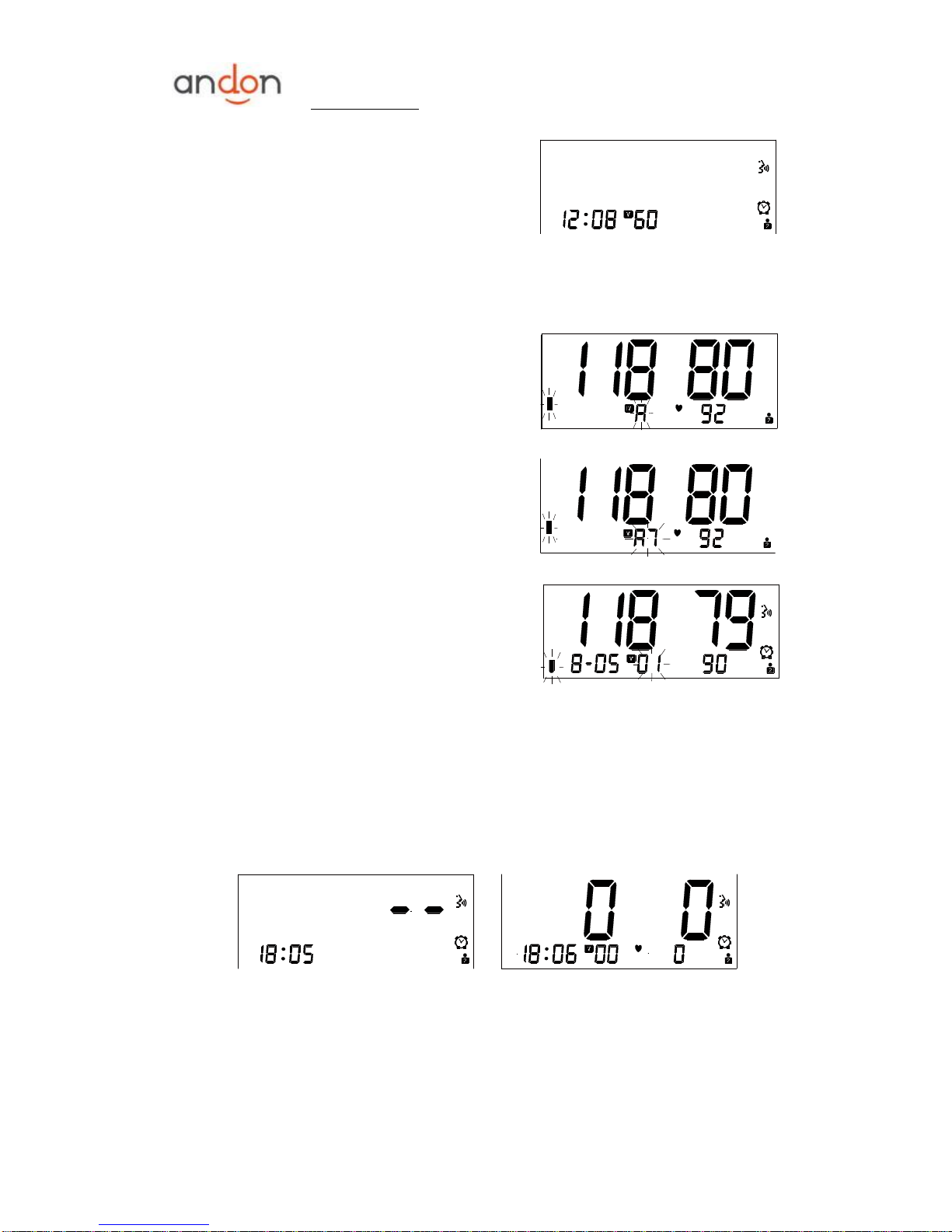

8. DISPLAYING STORED RESULTS .........................................................................11
9. DELETING MEASUREMENTS FROM THE MEMORY..........................................12
10. RADIO......................................................................................................................12
11. OTHERS...................................................................................................................13
12. ASSESSING HIGH BLOOD PRESSURE FOR ADULTS.......................................13
13. TECHNICAL ALARM DESCRIPTION.....................................................................15
14. TROUBLESHOOTING (1) .......................................................................................15
15. TROUBLESHOOTING (2) .......................................................................................15
MAINTENANCE ............................................................................................17
EXPLANATION OF SYMBOLS ON UNIT.....................................................17
WARRANTY INFORMATION........................................................................18
SERVICE CENTER .......................................................................................18
ELECTROMAGNETIC COMPATIBILITY INFORMATION............................18

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
2/22
IMPORTANT INFORMATION
NORMAL BLOOD PRESSURE FLUCTUATION
All physical activity, excitement, stress, eating, drinking, smoking and many other activities or
factors (including taking a blood pressure measurement) will influence blood pressure value.
Because of this, it is mostly unusual to obtain identical multiple blood pressure readings.
Blood pressure fluctuates continually day and night. The highest value usually appears in the
daytime and lowest one usually at midnight. Typically, the value begins to increase at around
3:00AM, and reaches to highest level in the daytime while most people are awake and active.
Considering the above information, it is recommended that you measure your blood pressure
at approximately the same time each day.
Too frequent measurements may cause injury due to blood flow interference, please always
relax a minimum moment of 1 to 1.5 minutes between measurements to allow the blood
circulation in your arm to recover. It is rare that you obtain identical blood pressure readings
each time.

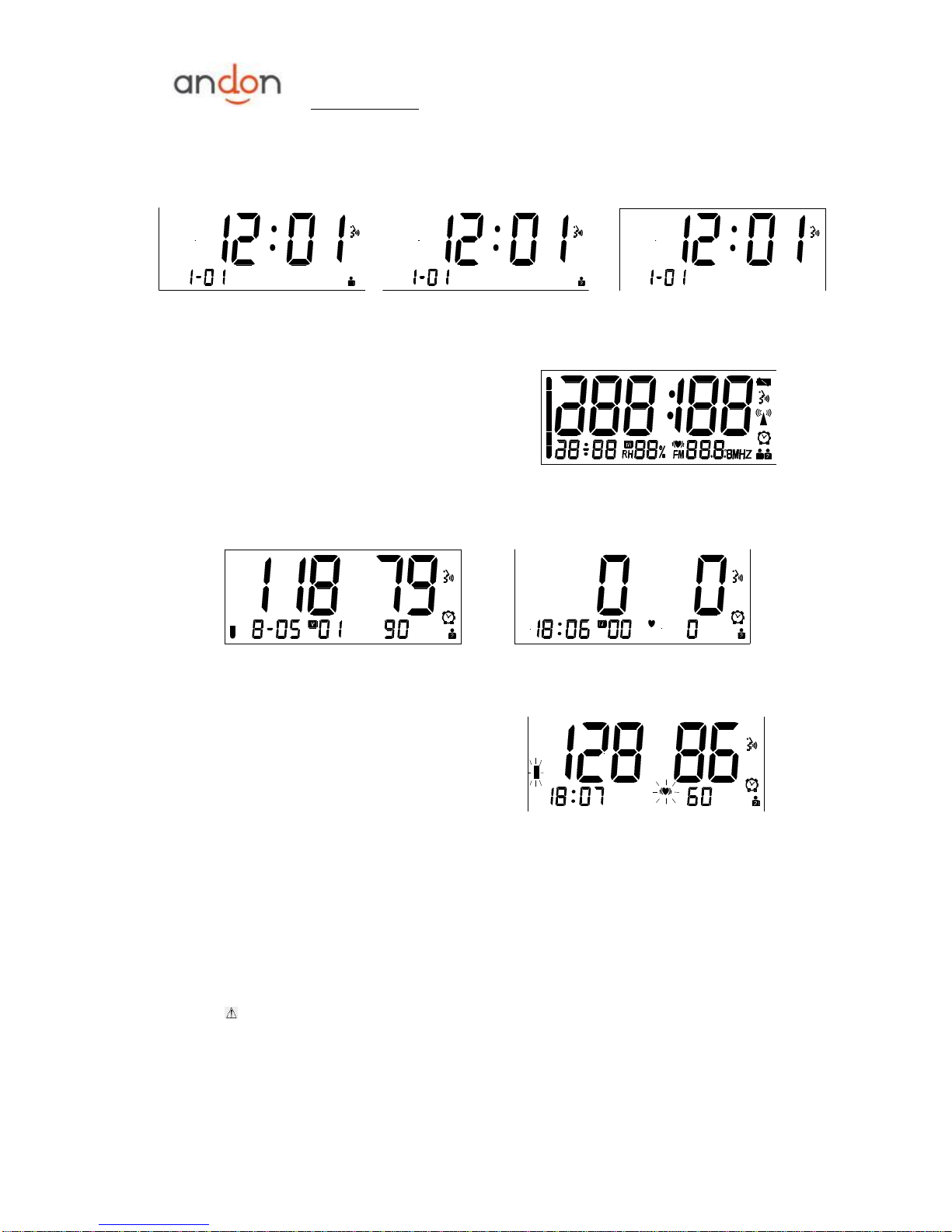

PARTS AND DISPLAY INDICATORS

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
3/22
INTENDED USE
Fully Automatic Electronic Sphygmomanometer is for use by medical professionals or at home
and is a non-invasive blood pressure measurement system intended to measure the diastolic
and systolic blood pressures and pulse rate of an adult individual by using a non-invasive
technique in which an inflatable cuff is wrapped around the upper arm. The cuff circumference
is limited to 22cm-48cm/8 21/32’’-18 29/32’’ (three kind of cuff circumference: 22cm-30cm/8
21/32’’-11 13/16’’, 30cm-42cm/11 13/16’’-16 17/32’’(Optional), 42cm-48cm/16 17/32’’-18
29/32’’(Optional)) .
CONTRAINDICATION
It is inappropriate for people with serious arrhythmia to use this Electronic
Sphygmomanometer.
PRODUCT DESCRIPTION
Based on Oscillometric methodology and silicon integrated pressure sensor, blood pressure
and pulse rate can be measured automatically and non-invasively. The LCD display will show
blood pressure and pulse rate. The most recent 2×60 measurements can be stored in the
memory with date and time stamp. The monitor can also show the average reading of the
measurements. The voice function will ease the operation. The blood pressure monitor
corresponds to the below standards: IEC 60601-1:2005/EN 60601-1:2006/AC:2010 (Medical
electrical equipment -- Part 1: General requirements for basic safety and essential
performance), IEC60601-1-2:2007/EN 60601-1-2:2007 /AC:2010 (Medical electrical
equipment -- Part 1-2: General requirements for basic safety and essential performance -
Collateral standard: Electromagnetic compatibility - Requirements and tests), IEC
80601-2-30：2009+Cor.2010/EN 80601-2-30:2010(Medical electrical equipment –Part 2-30:
Particular requirements for the basic safety and essential performance of automated
non-invasive sphygmomanometers)EN 1060-1: 1995 + A1: 2002 + A2: 2009 (Non-invasive
sphygmomanometers - Part 1: General requirements), EN 1060-3: 1997 + A1: 2005 + A2:

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
4/22
2009 (Non-invasive sphygmomanometers - Part 3: Supplementary requirements for
electro-mechanical blood pressure measuring systems), ANSI/AAMI
SP-10:2002+A1:2003+A2:2006.The radio control clock function will automatically amend the
real time. While the monitor is in Clock Mode, the monitor can also show measure the
Environmental temperature and humidity automatically every other about five second. The
LCD backlight will automatically adjust Light intensity according to its environment when the
monitor turn on. When use the AC adapter, the LCD backlight will automatically adjust Light
intensity according to its environment in the Clock Mode. With a radio chip, the monitor can be
used as a radio.
SPECIFICATIONS
1. Product name: Blood Pressure Monitor
2. Model: KD-5985
3. Classification: class II, Internally powered, Type BF applied part,IPX0,No AP or APG,
Continuous operation
4. Machine size: 203mm×180mm×81mm(approximate:8’’ ×7 3/32’’ ×3 3/16’’)
5. Cuff circumference: 22cm-30cm/8 21/32’’-11 13/16’’, 30cm-42cm/11 13/16’’-16
17/32’’(Optional), 42cm-48cm/16 17/32’’-18 29/32’’(Optional)
6. Weight: about 626g(approximate:22 3/32oz) (exclude batteries and cuff)
7. Measuring method: Oscillometric method, automatic inflation and measurement
8. Memory volume: 2×60times with time and date stamp
9. Power source: DC:6V 800mA, batteries: 4 ×1.5V SIZE AA
10. Measurement range:
Cuff pressure: 0-300mmHg
Systolic: 60-260mmHg
Diastolic: 40-199mmHg
Pulse rate: 40-180 beats/minute
11. Accuracy:
Pressure: ±3mmHg
Pulse rate: ±5%
12. Environmental temperature for operation: 5℃～40℃(41℉～104℉)
13. Environmental humidity for operation: ≤90%RH
14. Environmental temperature for measure range: 5℃～40℃(41℉～99.9℉)
15. Temperature accuracy: ±2℃(±3.6℉)
16. Environmental humidity for measure range: 25%RH-80%RH
17. Humidity accuracy: ±10%RH
18. Environmental temperature for storage and transport:: -20℃～55℃(-4℉～131℉)
19. Environmental humidity for storage and transport:: ≤90%RH
20. Environmental pressure: 80kPa-105kPa
21. Battery life: Approx. 180 times
22. All components belonging to the pressure measuring system, including accessories:
Pump, Valve, LCD, Cuff and Sensor.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
5/22
Note: These specifications are subject to change without notice.
NOTICE
1. Read all of the information in the operation guide and any other literature in the box before
operating the unit.
2. Stay quiet, calm and rest for 5 minutes before blood pressure measurement.
3. The cuff should be placed at the same level as your heart.
4. During measurement, neither speak nor move your body and arm.
5. Measuring on same arm for each measurement.
6. Please always relax at least 1 or 1.5 minutes between measurements to allow the blood
circulation in your arm to recover. Prolonged over-inflation (cuff pressure exceed 300 mmHg
or maintained above15 mmHg for longer than 3 minutes) of the bladder may cause ecchymoma
of your arm.
7. Consult your physician if you have any doubt about below cases:
1) The application of the cuff over a wound or inflammation diseases;
2) The application of the cuff on any limb where intravascular access or therapy, or an
arterio-venous (A-V) shunt, is present;
3) The application of the cuff on the arm on the side of a mastectomy;
4) Simultaneously used with other monitoring medical equipments on the same limb;
5) Need to check the blood circulation of the user.
8. This Electronic Sphygmomanometers is designed for adults and should never be used
on infants or young children. Consult your physician or other health care professionals
before use on older children.
9. Do not use this unit in a moving vehicle, This may result in erroneous measurement.
10. Blood pressure measurements determined by this monitor are equivalent to those
obtained by a trained observer using the cuff/stethoscope auscultation method, within the
limits prescribed by the American National Standard Institute, Electronic or automated
sphygmomanometers.
11. Information regarding potential electromagnetic or other interference between the blood
pressure monitor and other devices together with advice regarding avoidance of such
interference please see part ELECTROMAGNETIC COMPATIBILITY INFORMATION.
12. If Irregular Heartbeat (IHB) brought by common arrhythmias is detected in the procedure
of blood pressure measurement, a signal of will be displayed. Under this condition,
the Electronic Sphygmomanometers can keep function, but the results may not be
accurate, it’s suggested that you consult with your physician for accurate assessment.
There are 2 conditions under which the signal of IHB will be displayed:
1) The coefficient of variation (CV) of pulse period >25%.
2) The difference of adjacent pulse period≥0.14s, and the number of such pulse takes more
than 53 percentage of the total number of pulse.
13. Please do not use the cuff other than supplied by the manufacturer, otherwise it may bring
biocompatible hazard and might result in measurement error.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
6/22
14. The monitor might not meet its performance specifications or cause safety hazard if
stored or used outside the specified temperature and humidity ranges in specifications.
15. Please do not share the cuff with other infective person to avoid cross-infection.
16. The AC adapter which output is DC 6.0V, 800mA and complied with IEC 60601-1/EN
60601-1/UL 60601-1 and IEC 60601-1-2/EN 60601-1-2/UL 60601-1-2 is suitable for this
monitor, we suggest use ASP5-06008002EU (input: 100-240V, 50/60Hz, 200mA; output:
DC 6V, 800mA) or ASP5- 06008003UK (input: 100-240V, 50/60Hz, 200mA; output: DC
6V, 800mA) which are complied with IEC 60601-1/EN 60601-1/UL 60601-1 and IEC
60601-1-2/EN 60601-1-2/UL 60601-1-2, if use the monitor with AC adapter in USA, use
only ASP5-06008002JU(input: 100-240V, 50/60Hz, 200mA; output: DC 6V, 800mA) which
is complied with IEC 60601-1/EN 60601-1/UL 60601-1 and IEC 60601-1-2/EN
60601-1-2/UL 60601-1-2. Other adapters not approved for use with the monitor may
damage it. Please note that the monitor jack size: hole Φ5.5mm, center pin Φ2.0mm.
Please pay attention to polarity.
17. This blood pressure monitor is verified by auscultatory method. It is recommended that
you check annex B of ANSI/AAMI SP-10:2002+A1:2003+A2:2006 for details of verification
method if you need.
18. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
SETUP AND OPERATING PROCEDURES
1. BATTERY LOADING AND AC ADAPTER
LOADING
a. Open battery cover at the back of the monitor.
b. Load four ―AA‖ size batteries. Please pay attention to
polarity.
c. Close the battery cover.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
7/22
When LCD shows battery symbol , replace all batteries with new ones.
Rechargeable batteries are not suitable for this monitor.
Remove the batteries if the monitor will not be used for a month or more to avoid
relevant damage of battery leakage
Avoid the battery fluid to get in your eyes. If it should get in your eyes, immediately
rinse with plenty of clean water and contact a physician.
d. If you use the AC adapter, please make sure the
monitor turn off or no batteries. Then put the connector
plug of the adapter into the socket, at last connect the
other plug of the adapter to AC. The monitor can work
normally when use the AC adapter.
When disconnect the AC Adapter:
Remove the AC Adapter from the electrical outlet;
Remove the AC Adapter plug from the monitor socket.
Do not plug or unplug the power cord into the electrical outlet with wet hands.
Do not overload power outlets. Plug the device into the appropriate voltage outlet.
If the AC adapter is abnormal, please change the adapter.
Do not pull out the adapter when you are using the monitor.
Other adapters not approved for use with the monitor may damage it.
The monitor, the batteries and the cuff, must be disposed of according to local
regulations at the end of their usage.
2. SETTING
a. Once you install the battery or turn off the monitor, it will enter Clock Mode, and LCD
will display time and date.
b. While the monitor is in Clock Mode, press the
―SET‖ button, the data and time, VOICE
symbol, RCC symbol and ALARM symbol will
display, then the ALARM symbol will blink at
first. Press the button ―A+‖ repeatedly, the
VOICE symbol, the data and time, the RCC symbol will blink in turn. Also you can
press the button ―B-‖ repeatedly, but the order is opposite. The different symbol stand
for different setting option. When the accordingly symbol blink, press the ―SET‖ button
can be into the accordingly setting adjust status.
2.1 ALARM SETTING
a. When the ALARM symbol is blinking, press the ―SET‖ button the alarm option will
display on the LCD. Then the alarm enable or disable option is blinking, press the
button ―A+‖or ―B-‖enable alarm with alarm sound or enable alarm with radio sound
or disable the alarm. Press the button ―SET‖ repeatedly, the hour and the minute will
blink in turn, While the number is blinking, press the button ―A+‖ to increase the
number or press the button ―B-‖ to reduce the number. Keep on pressing the button "

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
8/22
A+", the number will increase fast. Keep on pressing the button ―B-‖, the number will
reduce fast.
b. You can turn off the monitor by pressing ―SET‖ button when enable or disable option is
blinking and it be set disable , then the setting is confirmed.
c. You can turn off the monitor by pressing ―SET‖ button when the minute is blinking,
then the alarm time is confirmed.
d. The monitor will turn off automatically after 1 minute of no operation with unchanged.
e. You can press START button turn off the monitor with unchanged.
f. While the monitor is in Clock Mode, you can set enable or disable alarm by keeping on
press the button ―ALARM‖.
g. While the alarm ring is ringing, press any button will break the ring, but if you set the
radio as alarm ring, you must press START to turn off the radio.
2.2 VOICE SETTING
When the VOICE symbol is blinking, press the
SET button you can adjust the voice language.
Now LCD display ―L0‖, ―L1‖, ―L2‖ … ―Ln‖ (n
means the number of language) circularly (see
picture 4). ―L0‖ represents closing voice function,
―L1‖ represents language 1, ―L2‖ represents language 2, …―L7‖ represents language 7.
You can select the wanted language by press the button ―A+‖ or ―B-‖ to increase the
number of language or reduce the number of language. If the voice function is be closed,
the VIOCE symbol will disappear. You can adjust the volume knob to adjusting the
volume at any moment. The monitor will turn off automatically after 1 minute of no
operation with the voice language unchanged.
2.3 CLOCK AND DATE ADJUSTMENT
a. When the time and date is blinking, press the
―SET‖ button, the year will blink at first. Press
the button ―SET‖repeatedly, the month, the
day, the hour, the minute and the time
difference will blink in turn. While the number
is blinking, press the button ―A+‖ to increase
the number, press the button ―B-‖ to reduce
the number. Keep on pressing the button "
A+", the number will increase fast. Keep on pressing the button "B-", the number will
reduce fast.
b. You can turn off the monitor by pressing ―SET‖button when the time difference is
blinking, then the time and date is confirmed.
c. The monitor will turn off automatically after 1 minute of no operation with the time and

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
9/22
date unchanged.
d. The monitor will turn off if you press the button ―START‖ with the time and date
unchanged.
e. Once you change the batteries, you should readjust the time and date.
2.4 RCC(Radio Controlled Clock)
a. Initial receiving:
Once you install the battery, the machine enters the RCC receiving mode. The RCC
symbol twinkles during the receiving process.
If clock data received, the time and date will be
adjusted automatically, and then enter the
Clock Mode. If no clock data received, the
machine enters Clock Mode and keeps the
time and date unchanged.
When the machine is in the RCC Mode, you can skip RCC receiving and enter the
Clock Mode by pressing ―START‖ button.
b. Forced RCC Receiving
When the monitor working in the SETTING
mode and the RCC symbol is blinking, press
the ―SET‖ button will enter forced RCC mode
and the RCC symbol is twinkling. If clock data
received, the time and date will be adjusted
automatically.
When the machine is in the RCC Mode, you can skip RCC receiving and enter the
Clock Mode by pressing ―START‖ button.
c. Periodical receiving
The machine will automatically receive the RCC
signal at the time 2:05 and 14:05 every day. You
can skip the receiving process by press the
button ―START‖ to enter clock mode.
We suggest use battery and avoid strong electromagnetism interference when the
RCC is working.
3. CONNECTING THE CUFF TO THE MONITOR
Insert the cuff tubing connector into the socket in the behind of the monitor. Make certain
that the connector is completely inserted to avoid air leakage during blood pressure
measurements.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
10/22
Avoid compression or restriction of the connection tubing during measurement，which
may cause inflation error, or harmful injury due to continuous cuff pressure.
4. APPLYING THE CUFF
a. Pulling the cuff end through the medal loop (the cuff is packaged like this already),
turn it outward (away from your body) and tighten it and close the Velcro fastener.
b. Place the cuff around a bare arm 1-2cm above the elbow joint.
c. While seated, place palm upside in front of you on a flat surface
such as a desk or table. Position the air tube in the middle of your
arm in line with your middle finger.
d. The cuff should fit comfortably, yet snugly around your arm.
You should be able to insert one finger between your arm and
the cuff.
Note:
Please refer to the cuff circumference range in
―SPECIFICATIONS‖ to make sure that the appropriate cuff is used.
Measuring on same arm each time.
Do not move your arm, body, or the monitor and do not move the rubber tube during
measurement.
Stay quiet, calm for 5 minutes before blood pressure measurement.
Please keep the cuff clean. If the cuff becomes dirty, remove it from the monitor and
clear it by hand in a mild detergent, then rinse it thoroughly in cold water. Never dry
the cuff in clothes dryer or iron it. Clean the cuff after the usage of every 200 times is
recommended.
5. BODY POSTURE DURING MEASUREMENT
Sitting Comfortably Measurement
a. Be seated with your feet flat on the floor, and don’t cross your legs.
b. Place palm upside in front of you on a flat surface such as a desk or
table
c. The middle of the cuff should be at the level of the right atrium of the heart.
Lying Down Measurement
a. Lie on your back.
b. Place your arm straight along your side with your palm upside.
c. The cuff should be placed at the same level as your heart.
6. GROUP SELCET

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
11/22
When the monitor is working in Clock mode, you can press the A+ or B- button to change the
memory bank. The monitor has there bank: user 1 user 2 and guest. There are especial
symbol stand for user 1 and use 2. If you select guest bank the especial symbols will
disappear and the measurement result doesn’t be stored.
7. TAKING YOUR BLOOD PRESSURE READING
a. After applying the cuff and your body is in a
comfortable position, press the ―START‖
button. A beep is heard and all display
characters are shown for self-test. You can
check the LCD display according to the right
picture. Please contact the service center if segment is missing.
b. After 1 second, the most recent result will be displayed with date and time. And LCD
will show 0 with current date and time if no memory stored in the selected bank.
c. If the voice function is switched on, the monitor will speak out measurement tips.
d. Then the monitor inflates the cuff until sufficient pressure has built up for a
measurement. Then the monitor slowly
releases air from the cuff and carries out the
measurement. Finally the blood pressure
and pulse rate will be calculated and
displayed on the LCD screen. The blood
pressure classification indicator and Irregular heartbeat symbol (if any) will blink on the
screen. If the voice function is on, it will announce the measurement result. The result
will be automatically stored in the current memory bank.
e. After measurement, the monitor will turn off automatically after 1 minute of no
operation. Alternatively, you can press the ―START‖button to turn off the monitor
manually.
f. During measurement, you can press the ―START‖button to turn off the monitor
manually.
Please consult a health care professional for interpretation of pressure
measurements.
8. DISPLAYING STORED RESULTS

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
12/22
a. Press ―MEM‖ button in Clock Mode to display the stored results. The amount of results
in current bank will be displayed. About 1
second later, the LCD will display the average
value of all results in this bank. If the voice
function is on, the monitor will announce the
average value. If no result stored, 0 will display
on the LCD. If the current bank is guest bank, the monitor will turn off with the LCD
backlight blink.
b. When the average of all results is displayed, press the MEM button, the LCD will
display the average of all the results which is
measured in last 7 days. If the voice function is
on, the monitor will announce the average
value. If no result stored, 0 will display on the
LCD.
c. When the average of the last 7 days is
displayed, press the ―MEM‖ button, the most
recent result will be displayed. Press ―A+‖
button to review the next result. Press ―B-‖
button to review the front result. In this way,
repeatedly pressing the ―A+‖or ―B-‖button
displays the respective results measured
previously.
d. When displaying the stored results, the monitor
will turn off automatically after 2 minutes of no
operation. You can also press the button
―START‖ to turn off the monitor manually.
9. DELETING MEASUREMENTS FROM THE MEMORY
When any result is displaying (exclude average value displaying), keep on pressing button
―MEM‖ for three seconds, all results in the current memory bank will be deleted after three
―beep‖. Until button ―MEM‖ is released, LCD will show 0. Press the button ―MEM‖ or
―START‖, the monitor will be turned off.
10. RADIO
a. While the monitor is in Clock Mode, press ―RADIO‖ button, it will enter Radio Mode.
After a moment, LCD will display frequency of a broadcasting station, the current time
and date.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
13/22
The radio support worldwide frequency band is 87 -108 MHz.
b. Pressure ―A+‖ button, the monitor will seek up for another broadcasting station base
on the frequency of current broadcasting station. Pressure ―B-+‖ button, the monitor
will seek down for another broadcasting station.
c. The monitor will turn off automatically after 5 minutes of no operation, the LCD
backlight will turn off if you use batteries, when you use the AC adapter, the LCD
backlight will automatically adjust Light intensity according to its environment.
d. Press the button ―START‖, the monitor will be turned off.
11. OTHERS
a. While the monitor is in Clock Mode, the monitor can also show the environmental
temperature and humidity automatically every other about five second. And the
temperature will display with Celsius or Fahrenheit by turns.
The monitor can’t be used as a thermometer or a hygrometer.
b. The LCD backlight will automatically adjust Light intensity according to its
environment when the monitor turn on. When use the AC adapter., the LCD backlight
will automatically adjust Light intensity according to its environment in the Clock
Mode.
c. If the voice function is on and you press the button in Clock Mode, the monitor will
speak the current time.
12. ASSESSING HIGH BLOOD PRESSURE FOR ADULTS
The following guideline for assessing high blood pressure (without regard to age or gender)
has been established by the World Health Organization (WHO). Please note that other
factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration. Consult
with your physician for accurate assessment, and never change your treatment by
yourself.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
14/22
It is not intended to provide a basis of any type of rush toward emergency
conditions/diagnosis based on the color scheme and that the color scheme is meant only
to discriminate between the different levels of blood pressure.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
15/22
13. TECHNICAL ALARM DESCRIPTION
The monitor will show 'SYS HI','SYS Lo' ,'DIA HI' or 'DIA Lo' as technical alarm on LCD
with no delay if the determined blood pressure (systolic or diastolic) is outside the rated range
specified in part SPECIFICACIONS. In this case, you should consult a physician or check if
your operation violated the instructions.
The technical alarm condition (outside the rated range) is preset in the factory and cannot be
adjusted or inactivated. This alarm condition is assigned as low priority according to IEC
60601-1-8.
The technical alarm is non-latching and need no reset. The signal displayed on LCD will
disappear automatically after about 8 seconds.
14. TROUBLESHOOTING (1)
PROBLEM
POSSIBLE CAUSE
SOLUTION
LCD Display shows
abnormal result
The cuff position was not correct
or it was not properly tightened
Apply the cuff correctly and
try again
Body posture was not correct
during testing
Review the ―BODY
POSTURE DURING
MEASUREMENT‖ sections
of the instructions and
re-test.
Speaking, arm or body
movement, angry, excited or
nervous during testing
Re-test when calm and
without speaking or moving
during the test
Irregular heartbeat
It is inappropriate for people
with serious arrhythmia to
use this blood pressure
monitor.
15. TROUBLESHOOTING (2)
PROBLEM
POSSIBLE CAUSE
SOLUTION
LCD Display shows
battery symbol
Low Battery
Change the batteries
LCD shows ―Er 0‖
Pressure system is unstable
before measurement
Don’t move and try again.
LCD shows ―Er 1‖
Fail to detect systolic pressure
LCD shows ―Er 2‖
Fail to detect diastolic pressure
LCD shows ―Er 3‖
Pneumatic system blocked or cuff
is too tight during inflation
Apply the cuff correctly and
try again
LCD shows ―Er 4‖
Pneumatic system leakage or

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
16/22
cuff is too loose during inflation
LCD shows ―Er 5‖
Cuff pressure above 300mmHg
Measure again after five
minutes. If the monitor is
still abnormal, please
contact the local distributor
or the factory.
LCD shows ―Er 6‖
More than 160 seconds with cuff
pressure above 15 mmHg
LCD shows ―Er 7‖
EEPROM accessing error
LCD shows ―Er 8‖
Device parameter checking error
LCD shows ―Er A‖
Pressure sensor parameter error
No response when you
press button or load
battery.
Incorrect operation or strong
electromagnetic interference.
Take out batteries for five
minutes, and then reinstall
all batteries.

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
17/22
MAINTENANCE
1. Do not drop this monitor or subject it to strong impact.
2. Avoid high temperature and solarization. Do not immerse the monitor in water as this
will result in damage to the monitor.
3. If this monitor is stored near freezing, allow it to acclimate to room temperature before
use.
4. Do not attempt to disassemble this monitor.
5. If you do not use the monitor for a long time, please remove the batteries.
6. It is recommended the performance should be checked every 2 years or after repair.
Please contact the service center.
7. Clean the monitor with a dry, soft cloth or a soft cloth squeezed well after moistened with
water, diluted disinfectant alcohol, or diluted detergent.
8. No component can be maintained by user in the monitor. The circuit diagrams,
component part lists, descriptions, calibration instructions, or other information which will
assist the user’s appropriately qualified technical personnel to repair those parts of
equipment which are designated repairably can be supplied.
9. The monitor can maintain the safety and performance characteristics for a minimum of
10,000 measurements or three years, and the cuff integrity is maintained after 1,000
open–close cycles of the closure.
10. It is recommended the cuff should be disinfected 2 times every week if needed (For
example, in hospital or in clinique). Wipe the inner side (the side contacts skin) of the cuff
by a soft cloth squeezed after moistened with Ethyl alcohol (75-90%), then dry the cuff by
airing.
EXPLANATION OF SYMBOLS ON UNIT
Symbol for‖ THE OPERATION GUIDE MUST BE READ‖(The sign background colour:
blue.The sign graphical symbol: white)
Symbol for ―WARNING‖
Symbol for ―TYPE BF APPLIED PARTS‖(The cuff is type BF applied part)
Symbol for ―ENVIRONMENT PROTECTION –Waste electrical products should not be
disposed of with household waste. Please recycle where facilities exist. Check with your local
Authority or retailer for recycling advice‖.
Symbol for ―MANUFACTURER‖
Symbol for ―CLASS Ⅱ‖
Symbol for ―COMPILES WITH MDD93/42/EEC REQUIREMENTS‖

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
18/22
NO. 31,Changjiang Road,Nankai District,Tianjin, P.R.China
EC REP
ANDON Health Co.,Ltd
AUTOMATIC BLOOD PRESSURE MONITOR
MODEL: KD-5907
6V
SN:
R
0197
Lotus Global Co.,Ltd
47 Spenlow House Bermondsey London SE16 4SJ
Symbol for ―DATE OF MANUFACTURE‖
Symbol for ―EUROPEAN REPRESENTATION‖
SN Symbol for ―SERIAL NUMBER‖
Symbol for ―KEEP DRY‖
WARRANTY INFORMATION
Only charge the cost of components and transport.
SERVICE CENTER
ANDON HEALTH CO., LTD.
No. 3 Jinping Street, Ya An Road, Nankai District, Tianjin 300190, China.
Tel: [phone]
Lotus Global Co., Ltd.
15 Alexandra Road, London UK, NW8 0DP
Tel: [phone] Fax: [phone]
ELECTROMAGNETIC COMPATIBILITY INFORMATION
Table 1
For all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacture’s declaration - electromagnetic emissions
The KD-5985 is intended for use in the electromagnetic environment specified below.
The customer or the user of the KD-5985 should assure that it is used in such an
environment.
Emissions test
Compliance
Electromagnetic environment -
guidance
RF emissions
CISPR 11
Group 1
The KD-5985 uses RF energy only for its
internal function. Therefore, its RF
emissions are very low and are not likely to
cause any interference in nearby electronic
equipment.
RF emissions
CISPR 11
Class B
The KD-5985 is suitable for use in all
establishments, including domestic
establishments and those directly
connected to the public low-voltage power
supply network that supplies buildings
used for domestic purposes.
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Complies
NO. 31,Changjiang Road,Nankai District,Tianjin, P.R.China
EC REP
ANDON Health Co.,Ltd
AUTOMATIC BLOOD PRESSURE MONITOR
MODEL: KD-5907
6V
SN:
R
0197
Lotus Global Co.,Ltd
47 Spenlow House Bermondsey London SE16 4SJ

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
19/22
Table 2
For all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacturer’s declaration - electromagnetic immunity
The KD-5985 is intended for use in the electromagnetic environment specified below. The
customer or the user of the KD-5985 should assure that it is used in such an environment.
IMMUNITY test
IEC 60601test level
Compliance level
Electromagnetic
environment -
guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be
wood, concrete or
ceramic tile. If
floors are
covered with
synthetic
material, the
relative humidity
should be at least
30 %.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power supply
lines
±1 kV for input/output
lines
±2 kV for power supply
lines
Mains power
quality should be
that of a typical
commercial or
hospital
environment.
Surge
IEC 61000-4-5
±1 kV line(s) to line(s)
±2 kV line(s) to earth
±1 kV line(s) to line(s)
±2 kV line(s) to earth
Mains power
quality should be
that of a typical
commercial or
hospital
environment.
Voltage dips,
short
interruptions and
voltage variations
on power supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0.5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 s
<5 % UT
(>95 % dip in UT)
for 0.5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 s
Mains power
quality should be
that of a typical
commercial or
hospital
environment. If
the user of the
KD-5985 requires
continued
operation during
power mains
interruptions, it is
recommended

DN:KD-5985-SMSY01 V3.0 Operation Guide
Template version:1
20/22
that the KD-5985
be powered from
an uninterruptible
power supply or a
battery.
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m
3 A/m
Power frequency
magnetic fields
should be at
levels
characteristic of a
typical location in
a typical
commercial or
hospital
environment.
NOTE: UTis the a.c. mains voltage prior to application of the test level.
Table 3
For ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacturer’s declaration - electromagnetic immunity
The KD-5985 is intended for use in the electromagnetic environment specified below. The
customer or the user of the KD-5985 should assure that it is used in such an environment.
IMMUNITY
test
IEC 60601test
level
Compliance
level
Electromagnetic environment -
guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms 150 kHz to
80 MHz
3 V/m 80 MHz to
2,5 GHz
3 Vrms
3 V/m
Portable and mobile RF
communications equipment should
be used no closer to any part of the
KD-5985, including cables, than the
recommended separation distance
calculated from the equation
applicable to the frequency of the
transmitter.
Recommended separation
distance：
80 MHz to 800 MHz
800 MHz to 2,5 GHz
Pd 2.1
Pd 2.1
Pd 3.2
