ANEMOI AIRSLIM 300M User manual

AIRSLIM [M]
Installation Manual
Issued January 2020
ANIM10FI Rev. F

AIRSLIM [M]
2
UPDATES
DATE
UPDATE
DESCRIPTION
29 / 01 / 2019
A
First Edition
02 / 05 / 2019
B
Incorporation Model 250M
13 / 05 / 2019
C
Update Technical Characteristics
17 / 06 / 2019
D
Update Technical Characteristics
02 / 09 / 2019
E
Wiring installation recommendations
29 / 01 / 2020
F
Update Technical Characteristics
Technical documents are regularly updated. Anemoi reserves the right to modify the contents of this manual, in full or in part,
without warning.

AIRSLIM [M]
3
TABLE OF CONTENTS
SAFETY..................................................................................................................................................................4
1INTRODUCTION............................................................................................................................................5
2TECHNICAL CHARACTERISTICS ...............................................................................................................6
3DIMENSIONS.................................................................................................................................................7
4DELIVERY .....................................................................................................................................................8
4.1 Package Dimensions & Weights............................................................................................................8
4.2 Packing List...........................................................................................................................................8
5MECHANICAL INSTALLATION..................................................................................................................10
5.1 Clearances ..........................................................................................................................................10
5.2 Installation Tools..................................................................................................................................12
5.3 Ceiling Fixation....................................................................................................................................12
5.4 Extension Rod Assembly.....................................................................................................................13
5.5 The cover.............................................................................................................................................16
5.6 Motor Assemby....................................................................................................................................17
5.7 Safety Cable Installation......................................................................................................................18
5.8 Controller Installation...........................................................................................................................19
5.9 Blades Assembly.................................................................................................................................20
5.10 Cover Fixation .....................................................................................................................................21
5.11 Guy Wires Fixation (Optional)..............................................................................................................22
6ELECTRICAL INSTALLATION ...................................................................................................................23
6.1 Connectors and Switches Location .....................................................................................................24
6.2 Power Connections..............................................................................................................................25
6.3 Control Connections............................................................................................................................26
6.4 Multi Fans Installation..........................................................................................................................27
6.5 Wiring installation recommendations...................................................................................................29
7MANTENAINCE...........................................................................................................................................31

AIRSLIM [M]
4
SAFETY
Before the installation, read the following warning and caution instructions:
WARNING!
Do NOT install, repair or clean the fan while it is in operation or connected to the power supply. Failure
to do so may result in serious injury or death.
Do NOT install, handle, repair or clean the fan with wet hands. Failure to do so may result in serious injury
or death.
Do NOT use wires with worn or damaged insulation. Doing so may result in serious or fatal electrical
shock, fire or other accidents.
Ensure that the wires are held securely and protected from abrasion, chaffing, overload or other
damage. Risk of serious or fatal electrical shock, fire or other accidents.
Turn Off power to the fan if you detect any damage. Risk of serious or fatal electrical shock, fire or other
accidents.
Do NOT connect a damaged fan to the power supply. Risk of serious or fatal electrical shock, fire or other
accidents.
CAUTION!
Use proper lifting equipment to handle the motor and blade boxes. Otherwise, the fan could be damaged
and there is risk of accident.
Follow the instructions and recommendations contained in this manual carefully. Failure to do so may
result in incorrect installation.

AIRSLIM [M]
5
1INTRODUCTION
The Anemoi AIRSLIM [M] fans have been designed to generate a huge volume of air from the ceiling in industrial
and commercial installations with roofs around 7m high.
This low consumption fan is used to increase comfort in summer by generating a smooth breeze and also in winter
using the heat located in the top coats of the building.
The main features are:
•Aluminium blades with matte black end caps.
•Integrated drive fixed to the down rod extension.
•Modbus RS485 connection for controller.
•Fire alarm stop as a NC relay.
•24VDC generated by the drive.
In addition, in combination with the traditional air conditioning systems, the use of fans allows generating
important energy savings of up 45% in winter and 25% in summer.

AIRSLIM [M]
6
2TECHNICAL CHARACTERISTICS
AIRSLIM 300M
AIRSLIM 350M
AIRSLIM 400M
GENERAL CHARACTERISTICS
Diameter
3m
3.6m
4.3m
Blades number
5 aluminium blades
Standard colour
Black matte colour and aluminium blades
MOTOR CHARACTERISTICS
Motor power
240W
240W
240W
Supply voltage
110VAC –240VAC single phase, 50/60 Hz
Maximum consumption
155W
240W
190W
Maximum consumption (A)
0.74 A
0.93 A
0.83 A
Maximum speed
112rpm
98rpm
74rpm
Protection degree
IP20
IP20
IP20
Sound level
< 40dBA
< 40dBA
< 40dBA
Total weight
29kg
32kg
35kg
Operating temperature
-10ºC / +60ºC without derating
Motor type
Permanent magnet motor connected by Modbus RS485
FAN PERFORMANCE
Airflow*
109,320m3/h
163,145m3/h
192,288m3/h
Recommended coverage**
364 m²
544 m²
641 m²
Maximum coverage***
510 m²
762 m²
897 m²
CONTROL
Controllers
Magnocontrol
OPTIONS
Extensions
Optional rod extensions of 500, 800, 1000, 1500 & 2000 mm
Colour
Optional paint or hydroprinting
Controller
Slimcontrol or Magnocontrol 10-25
REGULATION
Certifications
CE, CB for local IEC certification
Directives
2006/42/CE
2014/35/EU
Design and construction
IEC 60335-2-80
EN 60335-1
EN 62233
* Following AMCA 230-99 * Air Speed > 0.5 m/s ** Air Speed > 0.2 m/s

AIRSLIM [M]
7
3DIMENSIONS
The Anemoi AIRSLIM [M] comes in four different diameters. The height of the fan can also be adjusted by modifying
the length of the extension bar. The following figure shows the dimensions of the fan with a standard extension of
800 mm:




AIRSLIM [M]
8
4DELIVERY
The Anemoi AIRSLIM [M] fan is delivered in two wood boxes, one including the motor parts and the other the
blades. Handle the fan boxes carefully and with proper lifting equipment to avoid any damage.
CAUTION!
Use proper lifting equipment to handle the motor and blade boxes. Otherwise, the fan could be damaged
and there is risk of accident.
4.1 Package Dimensions & Weights
The dimensions and weights of these boxes are listed in the following table:
Model
Box
Width (mm)
Depth (mm)
Height (mm)
Weight (kg)
AIRSLIM 300M
Motor
600
600
300
25
Blades
2100
420
190
16
AIRSLIM 350M
Motor
600
600
300
25
Blades
2100
420
190
19
AIRSLIM 400M
Motor
600
600
300
25
Blades
2100
420
190
22
4.2 Packing List
The following tables include the different pieces sent inside the boxes. Please check the status and quantity of
the fan equipment and the supporting parts immediately after you have opened the box to make sure that the
goods received are in accordance with your order. If parts are missing or damaged, please inform our company's
responsible person immediately for revision.
Motor Box:
No.
Component name
Cantidad
1
Motor
1 pc
2
Ceiling bracket
1 pc
3
Ceiling trim
1 pc
4
Control board
1 pc
5
Lower engine cover
1 pc
5
Steel safety cable
1 pc
6
Installation manual
1 pc
7
Screws
Check below

AIRSLIM [M]
9
The motor box also includes the following screws:
Screw standard
Qty
Screw M10x70
4
Nut M10x70
4
Ring clamb for for the safety cable
2
U-shapedclamps for the control plate
2
Screw M6 
4
Screw M6x25
10
Nut M6
10
Washer M6
20
Blades Box:
No.
Component name
Qty
1
Fan Blade
5 pcs
2
Extension rod
1 pc

AIRSLIM [M]
10
5MECHANICAL INSTALLATION
CAUTION!
Follow the instructions and recommendations contained in this section carefully. Failure to do so may
result in incorrect installation.
The Anemoi AIRSLIM [M] fan is designed for ceiling installation. Ensure that the ceiling area chosen can hold the
weight of the fan and that there are no obstacles in its operating range. The maximum weight of the fan is about
30 kg.
Before installing the fan, it is necessary to sign and protect the working area to prevent anyone from going under
the fan. It is recommended to fence at least four meters around the lifting equipment.
Follow any national or local regulation regarding installations in height.
SAFETY!
Ensure that the ceiling area chosen can hold the weight and torque of the fan, and that there are no
obstacles in its operating range. Failure to do so may result in equipment damage or accident.
Ensure sign and protect the working area. Failure to do so may result in serious injury or death.
Ensure following any national or local regulation. Failure to do so may result in serious injury or death.
Do NOT install the fan while it is in operation or connected to the power supply. Doing so may result in
serious or fatal electrical shock.
5.1 Clearances
In order to ensure the maximum coverage of the Anemoi AIRSLIM [M], all obstacles that may be encountered
within the radius of the fan and between the horizontal height of the fan's static position and the ceiling should be
considered before installation, ensuring that the fan has an appropriate clearance in all directions when running.
If there are lamps above the fan blades, change their position if necessary, to avoid the strobe effect. Ensure that
the fan is installed at a height greater than four meters.
The next figure shows all clearances:

AIRSLIM [M]
11
If the fan is installed in an inclined roof, ensure that these minimum distances are achieved and add a higher
extension rod if necessary, to allow the fan take enough air and provide the maximum performance.
CAUTION!
Ensure that the minimum distances are achieved. Otherwise, the fan could be damaged.
It is recommended to protect the fan if there is the possibility to receive impacts.
CAUTION!
Protect the fan if there is the possibility to receive impacts. Otherwise, the fan could be damaged.

AIRSLIM [M]
12
5.2 Installation Tools
To install the fan, ensure having the following required tools:
No.
Name
Quantity
1
14mm fixed wrench
2
2
10mm fixed wrench
2
3
Phillips screwdriver
1
4
Level ruler 300mm
1
5
Cutting pliers
1
8
Small Screwdriver
1
9
Wire stripper
1
10
Insulating tape
1
5.3 Ceiling Fixation
The Anemoi AIRSLIM [M] comes with mounting brackets to anchor the fan to the ceiling. The fan is prepared to
be installed in inclined roofs.

AIRSLIM [M]
13
5.4 Extension Rod Assembly
CAUTION!
Ensure that power cables, control cables and safety cable pass through the ceiling bracket and through
the extension rod. Otherwise, the fan will be installed incorrectly.
Ensure to place the rectangular hole of the extension bar on the bottom. Otherwise, the fan will be installed
incorrectly.
The extension rod is assembled to the ceiling fixation by the Screws M10 x70mm provided by applying a
tightening torque of 37Nm. The extension rod has a rectangular hole in the side. This hole should be in the lower
part closest to the motor.

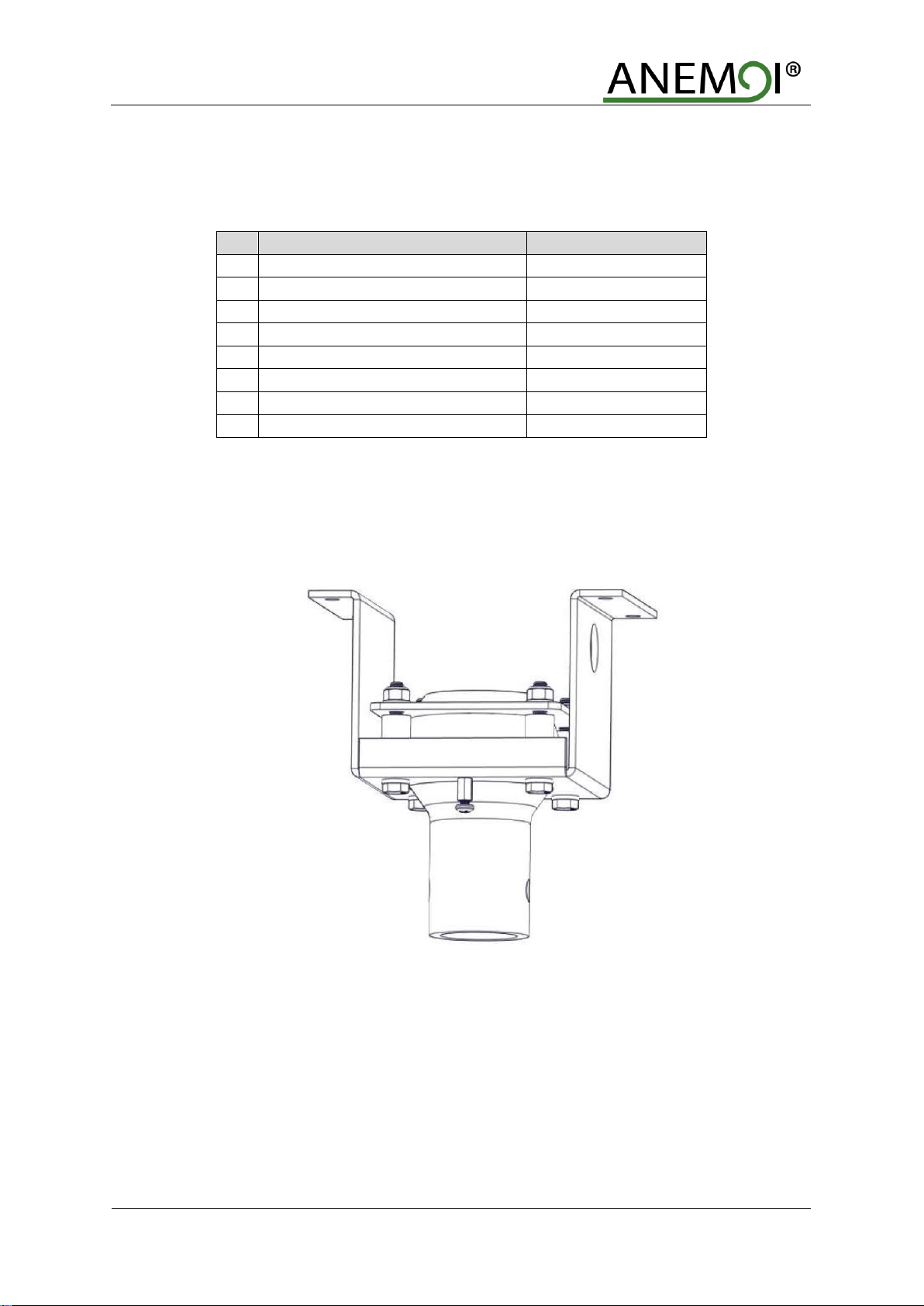

The following figure shows how to attach the extension rod to the roof anchor.
No.
Description
1
Lock nut M10
2
Screw M10x70mm
3
Extension Rod

AIRSLIM [M]
14
CAUTION!
Ensure that the M10 motor/extension bolts are correctly fastened. Failure to do so may result in equipment
damag.
Once the extension rod has been fixed to the roof fixing, the screws must be tightened to avoid the swinging of
the extension. To do this, it is necessary to use 10mm wrench. Use a level ruler to make sure the extension rod
is fully vertical.
CAUTION!
Ensure that the extension rod is in vertical position and completely fixed. Failure to do so may result in
equipment damage.

AIRSLIM [M]
15
The length of the extension rod can be customized according to the installation requirements between 500, 800,
1000, 1500 y 2000 mm. The variation of the extension rod length allows adjusting installation height of fan.
If the extension rod exceeds one meter, winds must be installed to avoid oscillations. The variation of the extension
rod allows adjusting the height at which the fan is installed.
The power cables, control cables and safety cable must pass through the ceiling bracket and through the extension
bar. The power and control cables will exit through the side hole while the safety cable through the bottom. The
following image shows the position of the cables:
¡PRECAUCIÓN!
Ensure that the cables pass correctly through the specific holes and that their length will allow them to
be connected on the control board. Failure to do so may result in equipment damage.
CAT6 control cable
Power cable
Safety cable

AIRSLIM [M]
16
5.5 The cover
The mounting bracket of the ceiling of the fan Anemoi AIRSLIM [M] should be covered with a cover. To fix the
cover, turn counterclockwise and tighten the two fixing screws as shown in the following figure:

AIRSLIM [M]
17
5.6 Motor Assemby
CAUTION!
Ensure that the cables which pass through the top of the motor are on the same side as the rectangular
window of the extension rod. Failure to do so may result in equipment damage.
Do not lift the motor weight alone. Failure to do so may result in serious injury or equipment damage.
The motor is fixed to the extension rod by the Screws M10 x70mm provided by applying a tightening torque of
37Nm.
The cables coming out of the motor must be on the same side as the rectangular window of the extension rod.
The safety cable must pass through the motor through the center.
Due to the weight of the motor, it is recommended that it be raised by two people to avoid personal injury and
damage to the fan.
The following figure shows the motor installation:
CAUTION!
Ensure that the M10 motor/extension screws are correctly fastened. Failure to do so may result in
equipment damage.
Keep all cables on the same side
Pass the safety cable through
the motor

AIRSLIM [M]
18
5.7 Safety Cable Installation
The motor box contains a steel safety cable that must be installed to protect the motor from falling once it is
installed. Place the safety cable in a fixed element of the ceiling.
•If the fan is installed in a concrete ceiling, drill the ceiling and insert a ring that supports the weight of the

•If the fan is installed in a steel or concrete beam, put the steel safety cable around the beam forming a
closed loop.
In the motor, the safety cable must be clamped with the two plates on the bottom. The cable will pass through
the part that remains open of the plate with the smaller diameter and will be fixed by the larger diameter plate in
the part of the hole. All this will be finally screwed with the M5x16mm screws provided as shown in the following
image:
No.
Description
1
Cafety cable
2
Small plate with opening
3
Large plate with lateral notch
The safety cable must be fixed with the two cable clamps. The ring clamps are included in the motor box.
CAUTION!
Ensure that the safety cable is correctly installed to prevent the fan from falling. Failure to do so may
result in serious personal injury or death and equipment damage.
Pass the safety cable
through the small plate

AIRSLIM [M]
19
5.8 Controller Installation
The fan motor is connected to a control board that is installed on the extension rod, just above the motor.
The control board carries a hole to pass the power and communications cables that come out through the hole
of the extension tube. The cables must be passed through this hole before proceeding to screw the plate to the
extension.
Use U-shaped clamps and four M6 screws provided by applying a tightening torque of 5Nm.
The following picture shows the installation of the control board:
Passage of power and communications cables

AIRSLIM [M]
20
5.9 Blades Assembly
The Anemoi AIRSLIM [M] fan has five blades. To assemble the blades, it is necessary to introduce and fix them
to the motor guides.
Use the M6x25 screws, M6 nuts and M6 washer provided by applying a tightening torque of 37Nm as shown in
picture:
No.
Description
1
Blade
2
Screw M6x25 + Washer M6
3
Nut M6 + washer M6
The fan blades should be installed with the concave part at the lower end.
CAUTION!
Tighten the blade screws correctly. Failure to do so may result in incorrect installation.
Check that there are no objects that can avoid the blades rotation. Failure to do so may result in equipment
damage.
