INSTRUCTION MANUAL
OIL-FREE SCROLL BASE MOUNT
ENCLOSURE AIR COMPRESSOR
SLBE-2/3/5
SLBE-2H/3H/5H
Thank you for purchasing our oil-free scroll air compressor.
●Before operation, be sure to read this instruction manual thoroughly for safe
and efficient use for a long operating lifetime.
●After reading it, store in a convenient place for immediate and future
reading.
Before use, be sure to fill in the blank spaces below for future repair and after service.
MODEL
SERIAL No.
Purchased from
Date of purchase
Date of use

1
Important information-Safety precautions
▪Important information
Be sure to read and understand this instruction manual.
The operator shall be fully conversant with the requirements stated within this instruction manual including important
warnings, cautions and operation.
The marks and symbols have the following meanings.
•Indications of warnings and cautions
WARNING
Indicates a potentially hazardous situation which, if not avoided, will result in
serious injury or loss of life.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury or property damage.
•Examples of warnings and cautions
Indicates「You must be careful」. We will explain briefly in or near the symbol.
（The example on the left is [Be careful about electric shock]）
Indicates「You must not do」. We will explain briefly in or near the symbol.
（The example on the left is [Do not touch]）.
Indicates 「You must do」. We will explain briefly in or near the symbol.
（The example on the left is [Be sure to ground it]）.
＊We shall not be responsible for any injury or damage caused by disregard of warnings, cautions or instruction.
Keep this booklet in an appropriate place for immediate reference.

2
Important information - Safety precautions
▪Safety precautions
WARNING
Install in a safe area.
Install in an area which is free of volatile, flammable gases or organic solvents.
They can cause explosion or fire.
Never install outdoors.
Do not install outdoors (This compressor is not water-proof)
If water splashes on electric equipment, it can cause electric shock or fire.
Turn off main electric source.
Be sure to turn off main electric source before inspection or wiring job.
If not, it can cause electric shock or serious bodily injury.
Ask qualified electrician.
Ask qualified electrician to perform electric wiring job.
If not, it can cause electric shock or fire.
Be sure to ground.
Be sure to do the grounding job.
If not, it can cause electric shock or fire.
Never use to compress other than air.
If done, it can cause explosion, fire or damage.
Never use with respiratory equipment which
directly intake compressed air.
If done, it can cause serious bodily injury.

3
Important information - Safety precautions
WARNING
Never use with equipment which is directly
concerned with human life.
If done, it can cause serious bodily injury.
Never touch
Never touch turning section (fan, pulley and belts) while main electric source is turned on.
If done, it can cause serious injury including entanglement of fingers or hands.
Release pressure
Be sure to release pressure from air receiver and make sure there is no pressure inside before
conducting any maintenance and inspection.
If not, parts can scatter and can cause serious injury.
Conduct maintenance and inspection
Conduct maintenance and inspection according to maintenance standards.
If not, it can cause fire and failure.

4
Important information - Safety precautions
CAUTION
Use at ambient temperature of 36 degree F to 104
degree F (during operation)
Drain will freeze at less than 36 degree F and cause failure.
More than 104 degree F will cause shorter lifetime or damage.
Use at an area which is free of dirt or dust.
If done, it can cause failure.
Use at an area which is free of corrosive gas.
If done, it can cause failure.
Ask specialist to perform repairs.
If not, it can cause failure and shorter lifetime.
Never touch.
Never touch each section of compressor during operation or soon after operation.
If done, it can cause burns.
Never alter the compressor.
If done, it can cause damage or shorter lifetime.
Use genuine parts.
Be sure to use our genuine parts when replacing parts during maintenance.
If not, it can cause failure or shorter lifetime.

5
Contents
Important information-Safety precautions
Appendix
▪Important information ------------------------------1

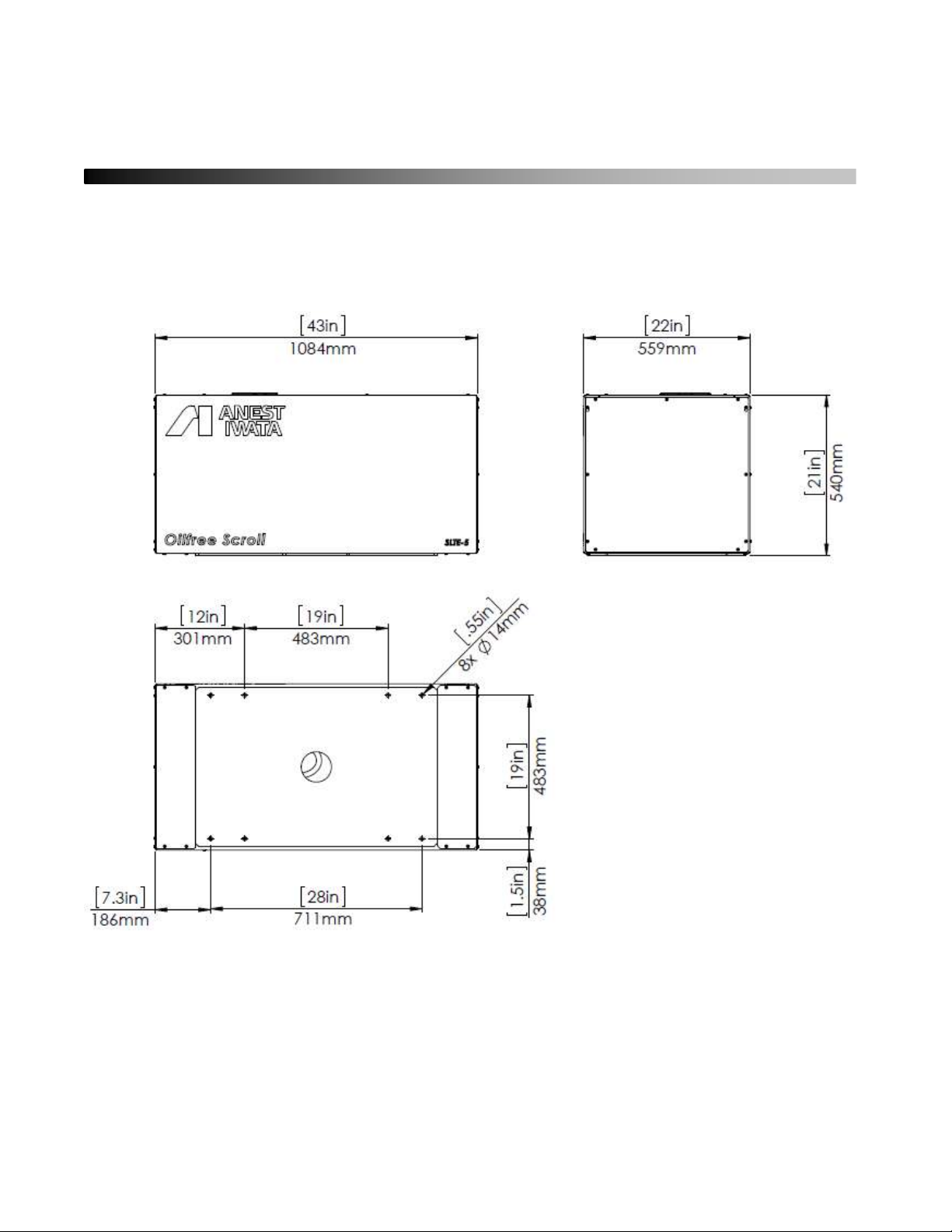

▪Outer dimensions -------------------------------------------18
▪Safety precautions------------------------------------2
▪Circuit diagram -----------------------------------------------19
Contents
Warranty
▪Contents ------------------------------------------------5
▪Warranty and remedies -----------------------------------22
Before use
▪Check the product -----------------------------------6
Installation
▪Precaution about installation ------------------------7
▪Piping ----------------------------------------------------8
▪Electrical wiring ---------------------------------------9
Operation
▪Before start up ----------------------------------------11
▪Start-up and operation -----------------------------11
Maintenance and inspection
▪Maintenance standards --------------------------------13
▪How to carry out maintenance ----------------------15
Troubleshooting guide
▪Compressor ------------------------------------------------16
Specifications
▪Compressor specifications -----------------------------17

6
Before use
▪Inspect the product
•Check that model name of the product is as you ordered.
Model name description;
•Check that there is no deformity or damage which occurred during shipment. Any shipping damage must be
immediately filed with the freight carrier.
•Check that the following accessories are included.
oCompressor instruction manual
oScroll pump instruction manual
SL; Scroll 2; 2HP 208; 208V
3; 3HP 230; 230V
BE; Base mount 5; 5HP 460; 460V
Enclosure
S; Single phase
T; Three phase
N/A;
115psi (Maximum pressure)
H;
145psi (Maximum pressure)
230
SL
BE
5
T
-
-

7
Installation
▪Precautions about installation
WARNING
Do not use in an area which is exposed to rain, steam or high humidity.
High Humidity can cause electric shock or fire.
Do not install in an area with corrosive gas (ammonia, acid, salinity, ozone gas and sulfur dioxide).
If done, it can cause shorter lifetime.
湿度が高 と感電・発火の原因になります。
WARNING
Install in an area which is free of explosive, flammable gases or organic solvents.
If done, it can cause explosion and fire.
Ambient temperature
Use at ambient temperature of 36 degree F to 104 degree F.
Less than 36 degree F will cause failure or freezing.
４０℃ よび年平均 30℃以上では故障の原因になります。
CAUTION
Install this product on a flat floor.
If not, it may cause vibration and noise and shorten life.
CAUTION
Install in an area which is free of dust.
Dust can cause increase temperature and wear, resulting in shorter lifetime and failure.

8
Installation
•Installation space
Secure the space around compressor for safe, inspection and maintenance.
Installation space
(inch)
Above
24 inches
Each Side
20 inches
•Ventilation
When using in totally closed room, install fan for ventilation.
Model
British Thermal Unit
BTU
SLBE-2**
5160
SLBE-3*
7570
SLBE-5*
12730
▪Piping
•Do not use any steel pipe and a smaller size than the compressor outlet connection.
•If the compressor stops and starts frequently, we recommend you to install air receiver. (option)
•When there is any riser piping, be sure to install drain collector or drain valve.
WARNING
Be sure to install the check valve on the downstream piping from the compressor outlet.
If not, it can cause serious failure.
WARNING
Be sure to install the safety valve on the downstream piping from the compressor outlet.
The pressure setting of the safety valve must be no higher than the maximum working pressure of
the tank and maximum designed pressure of the compressor.
If not, it can cause serious failure.

9
Installation
▪Electrical wiring
•Precautions about wiring
Turn off main electric source.
Be sure to turn off main electric source before inspection or wiring job.
If not, it can cause electric shock or serious bodily injury.
Ask qualified electrician.
Ask qualified electrician to perform electric wiring job.
If not, it can cause electric shock or fire.
Be careful about wiring.
Do not use cable of less than designated size.
If done, overheat of cable can cause fire.
Be sure to ground.
Be sure to do the grounding job.
If not, it can cause electric shock or fire.
•Wiring
Be sure to use the ring terminal to firmly connect the electric source to the designated place of the motor
terminal box. Please refer to the rating plate on the motor.
o115V/208V-230V, 1PH, 60Hz
Motor
Size
Power
Motor
Load
Non-time
Delay Fuse
Time Delay
Fuse
Inverse-time
circuit breaker
HP
V/PH
FLA
A
A
A
2
115V/1PH
24
60
45
60
208V/1PH
13.2
35
25
35
230V/1PH
12
30
25
30

10
Installation
o208V-230V/460V, 3PH, 60Hz
Motor
Size
Power
Motor
Load
Non-time
Delay Fuse
Time Delay
Fuse
Inverse-time
circuit breaker
HP
V/PH
FLA
A
A
A
2
208V/3PH
7.5
20
15
20
230V/3PH
6.8
20
15
20
460V/3PH
3.4
15
15
15
3
208V/3PH
10.6
30
20
30
230V/3PH
9.6
25
20
25
460V/3PH
4.8
15
15
15
5
208V/3PH
16.7
45
30
45
230V/3PH
15.2
40
30
40
460V/3PH
7.6
20
15
20

11
Operation
▪Before start up
•Make sure all safety warnings, labels, and instructions have been read and understood before continuing.
•Make sure any shipping materials, brackets, etc. are removed.
•Check that the electric power source and ground have been firmly connected.
•Make sure all pressure connections are tight.
•Check to be certain all safety relief valves, etc., are correctly installed.
•Check that all fuses, circuit breakers, etc., are the proper size.
•Make sure the inlet filter is correctly installed.
•Check that the drain valve is closed.
▪Start-up and operation
•Switch the electric source breaker on.
•Turn the pressure switch on.
•Open the discharge valve completely.
•Check that the compressor operates without excessive vibration, unusual noises or leaks.
•Close the discharge valve completely.

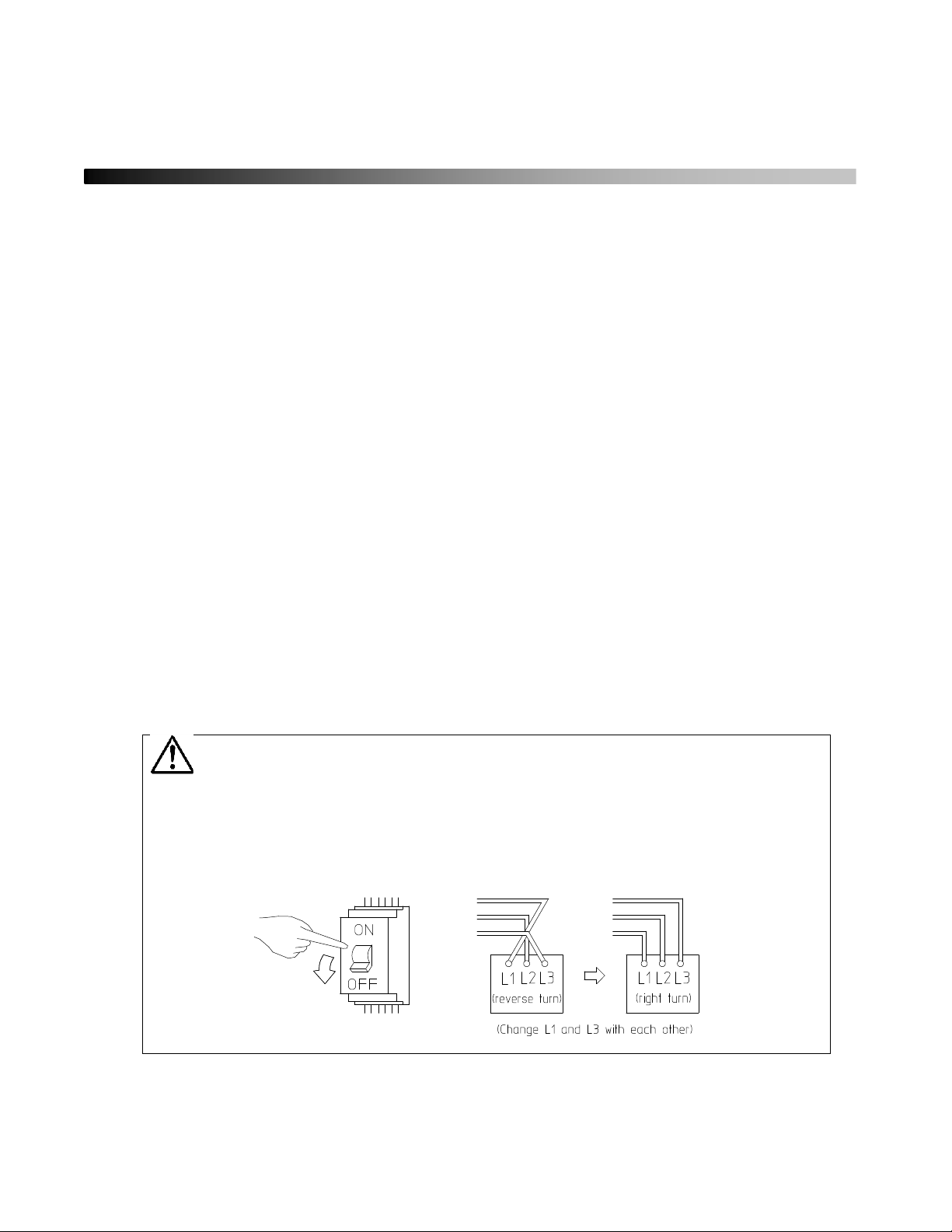

•If the pressure does not rise on a three phase unit, stop the unit and turn the electric source breaker off and
exchange the L1 and L2 connections inside the control box.
CAUTION
In case of reverse rotation, the pressure does not rise and abnormal sound is heard.
Immediately, turn the pressure switch off and turn the main electric source breaker off.
And, exchange the L1 and L2 connections inside the control box.

12
Operation
•Check the discharge pressure. Also make sure the compressor stops at the setting pressure as below.
Model
Cut-out pressure (psi)
SLBE-2, SLBE-3, SLBE-5
115
SLBE-2H, SLBE-3H, SLBE-5H
145
•Check the discharge pressure. Also make sure the compressor starts as pressure drops.
Model
Cut-in pressure (psi)
SLBE-2, SLBE-3, SLBE-5
85
SLBE-2H, SLBE-3H, SLBE-5H
115

13
Maintenance
Following maintenance is required at following interval. This interval is based on condition where ambient
temperature is at around 86 degree F. If your location is warmer or running condition is severer, maintain at a shorter
period. If warmer shorten the period approx. 30% from our recommendation at every 9 degree F. Standard
maintenance period is not our warranty period.
▪Standard maintenance period
•For 115psi models (SLBE-2*, SLBE-3 and SLBE-5)
Maintenance is to be done according to operating hours or period whichever comes first.
Item
Details
Maintenance period (every hours or periods)
Daily
Every
400
Every 2
months
Every
2,500
yearly
Every
5,000
Every 2
years
Every
10,000
Every 4
years
Every
20,000
Every 8
years
30,000
12 years
Drain
Air receiver
○
Noise, vibration
Check
○
Air intake filter
Clean
○
●
Whenever it is
dirty
Safety valve
Check function
○
V belt
Tension/replace
○
initial only
○
●☆
Not slack or
loose
Pressure gauge
Check
○
Magnetic switch
Check or replace
○☆
●☆
Motor, insulation
Check resistance
○☆
Change as
necessary
Motor
Check/replace
●☆
Pulley
Check
○☆
Change as
necessary
Pressure switch
Check function
○☆
Change as
necessary
After cooler
Clean
○☆
Change as
necessary
O rings
Replace
●☆
Use genuine
Parts
Check valve
Check function
●☆
Change as
necessary
Air end fan
FS-OS fin
Clean
○☆
Whenever it is
Dirty
Tip & dust seals
Insulation pipe
Grease up
Replace
●☆
Use genuine
Grease
Air end
●☆
○ Inspect ● Replace ☆Consult with distributor who sold it to you
＊Air intake filter is a wear part, and it is not free of charge even during warranty period. We suggest you keep it handy.

14
Maintenance
•For 145psi models (SLBE-2*H, SLBE-3H and SLBE-5H)
Maintenance is to be done according to operating hours or period whichever comes first.
Item
Detail
Maintenance period (every hours or period)
Daily
Every
400
Every 2
months
Every
2,500
yearly
Every
5,000
Every 2
years
Every
10,000
Every 4
years
Every
20,000
Every 8
years
30,000
12 years
Drain
Air receiver
○
Noise, vibration
○
Air intake filter
Clean
○
●
Whenever it is dirty
Safety valve
Check function
○
V belt
Tension/replace
○
Initial only
○
●☆
Not slack or loose
Pressure gauge
Check
○
Magnetic switch
Check or replace
○☆
●☆
Motor insulation
Check resistance
○☆
Change as
necessary
Motor
Check or replace
●☆
Pulley
Check
○☆
Change as
necessary
Pressure switch
Check function
○☆
Change as
necessary
After cooler
Clean
○☆
Change as
necessary
O rings
Replace
●☆
Use genuine
Parts
Check valve
Replace
●☆
Change as
necessary
Air end fan
FS-OS fin
Clean
○☆
Whenever it is dirty
Tip & dust seals
Insulation pipe
Grease up
Replace
●☆
Use genuine grease
Air end fan
FS-OS fin
Clean
○☆
Whenever it is
Dirty
Air end
●☆
○ Inspect ● Replace ☆ Consult with distributor who sold it to you
＊Air intake filter is a wear part and it is not free of charge even during warranty period. We suggest you keep it handy.

15
Maintenance
▪How to carry out maintenance
•Intake filter
Blow dust off of it with air gun and replace if it is too dirty.
•Safety valve
Lift up stem of safety valve at around max pressure and check if air blows out.
•Belt tension
Check if V belt makes slipping sound at the startup due to decrease of V belt tension.
If so, you must readjust belt tension or replace belt.
If belt tension is less than figure in below chart, need to adjust belt tension again.
An exclusive tool is necessary to measure belt tension.
Ask our distributor to readjust belt tension when you need to readjust it.
Model
Readjustment
standard load / Hz
Readjustment
target load / Hz
Tolerance ±5
Replacement new belt
target load / Hz
Tolerance ±5
SLBE-2*
SLBE-3*
SLBE-5*
75
98
105

16
Troubleshooting guide
If you have any problems, please refer to the below chart and remedy it.
As * marked items are difficult for you to remedy, please contact the shop you have purchased it from.
▪Compressor
Problem
Cause
Corrective action
Compressor unit does
not start
Electric source is not ON.
Turn on electric source
Electric source is not connected
correctly.
Connect it correctly
Pressure switch is in OPEN position
Reduce pressure in air receiver
Power is at supply
connection and
compressor does not
start
Over load relay has tripped
See last entry of Troubleshooting guide
Wrong or low voltage
Inspect incoming power supply and unit power rating.
Starter has failed
Inspect, repair or replace contactor assembly *
Pressure switch has failed
Inspect, repair or replace pressure switch assembly *
Motor has failed
Inspect, repair or replace motor *
Compressor is running
but will not make
pressure
Drive belts came off or too loose
Inspect, tighten or replace drive belts *
Clogged intake filter element
Clean or replace intake filter element
Discharge air is leaking
Inspect and repair
Pump has failed
Inspect, repair or replace pump *
Pump running in the wrong direction
Correct power connections
Excessive noise or
vibration
Drive belt has flipped or slipped
Inspect, repair or replace drive belt *
Motor has failed
Inspect, repair or replace motor*
Pump has failed
Inspect, repair or replace pump
Compressor running hot
Ambient temperature is high
Be sure not to exceed above 104 degree F
Pump running at high pressure
Check tank pressure and pump outlet are not obstructed
After cooler fins clogged
Clean after cooler
Clogged intake filter element
Clean or replace intake filter element
Compressor turns
on/off rapidly
Receiver tank has high level of water
Drain condensate
Check valve has failed
Inspect, repair or replace check valve *
Pressure switch has failed
Inspect, repair or replace pressure switch *
Safety valve blows off
Motor starter contacts welded shut
Inspect, repair or replace motor starter *
Pressure switch has failed
Inspect, repair or replace pressure switch *
Motor overload has
tripped
Pump has failed
Inspect, repair or replace pump *
Motor has hailed
Inspect, repair or replace motor*
Improper wiring
Inspect and rewire *
Wrong overload setting
Check setting of overload relay *
Low voltage
Check incoming power supply

17
Specifications
▪Compressor specifications
•2HP
Item
SLBE-2
SLBE-2H
Max. discharge pressure
psi
115
145
Air delivery (*1)
cfm
5.3
4.5
Air outlet
NPT 1/2”
Operating voltage
(1Phase, 115/208-230V, 60Hz)
3Phase, 208-230/460V, 60Hz
Dimensions (L×W×H) (*2)
In.
43 x 22 x 21
43 x 22 x 21
Approx. mass
Lbs.
270
270
*1. Air delivery means average discharge air volume at the maximum operating pressure converted into
atmospheric pressure. It is not a warranted figure.
*2.Dimensions is outer dimensions excluding extruding parts.
•3HP
Item
SLBE-3
SLBE-3H
Max. discharge pressure
psi
115
145
Air delivery (*1)
cfm
7.8
6.4
Air outlet
NPT 1/2”
Operating voltage
3Phase, 208-230/460V, 60Hz
Dimensions (L×W×H) (*2)
In.
43 x 22 x 21
43 x 22 x 21
Approx. mass
Lbs.
285
285
*1. Air delivery means average discharge air volume at the maximum operating pressure converted into
atmospheric pressure. It is not a warranted figure.
*2.Dimensions is outer dimensions excluding extruding parts.
•5HP
Item
SLBE-5
SLBE-5H
Max. discharge pressure
psi
115
145
Air delivery (*1)
cfm
14.8
11.7
Air outlet
NPT 1/2”
Operating voltage
3Phase, 208-230/460V, 60Hz
Dimensions (L×W×H) (*2)
In.
43 x 22 x 21
43 x 22 x 21
Approx. mass
Lbs.
310
310
*1. Air delivery means average discharge air volume at the maximum operating pressure converted into
atmospheric pressure. It is not a warranted figure.
*2.Dimensions is outer dimensions excluding extruding parts.

18
Appendix
▪Outer dimensions
•SLBE-2**, SLBE-3* and SLBE-5*

19
Appendix
▪Circuit diagram
•SLBE-2-S115 and SLBE-2H-S115
