Animo WKS User manual

WKS
gebruiksaanwijzing
user manual
betriebsanleitung
mode d'emploi

2015/04 Rev. 2.0
WKS

2015/04 Rev. 2.0
WKS
fig. 1
fig. 2
B
A
C
E
F
D
A B C D E
G

2015/04 Rev. 2.0
WKS
fig. 3
45
195 490
55
130
465
125

2015/04 Rev. 2.0
WKS
Nederlands......................................................... 1
English ............................................................... 7
Deutsch.............................................................. 13
Français ............................................................. 19
Dit apparaat voldoet aan de EMC-richtlijn 89/336/EEG, 92/31/EEG en de
laagspanningsrichtlijn 73/23/EEG
This appliance is in accordanc with the EMC-Directive 89/336/EEC,
92/31/EEC and the low voltage directive 73/23/EEC
Dieses Gerät wurde in Übereinstimmung gemäß EMV-Richtlinie 89/336/EWG,
92/31/EWG und Niederspannung-Richtlinie 73/23/EWG gebaut.
Cet appareil est conforme à la directive d'EMC 89/336/CEE, 92/31/CEE et à
la directive de basse tension 73/23/CEE.
Animo behoudt zich het recht voor om onderdelen op elk gewenst moment te wijzigen, zonder voorafgaande of directe kennisgeving aan de afnemer.
De inhoud van deze handleiding kan eveneens gewijzigd worden zonder voorafgaande waarschuwing. Deze handleiding is geldig voor de machine in
standaarduitvoering. Animo kan derhalve niet aansprakelijk worden gesteld voor eventuele schade voortvloeiende uit van de standaard uitvoering
afwijkende specificaties van de aan u geleverde machine. Voor informatie betreffende afstelling,onderhoudswerkzaamheden of reparaties waarin
deze handleiding niet voorziet, wordt u verzocht contact op te nemen met de technische dienst van uw leverancier. Deze handleiding is met alle
mogelijke zorg samengesteld, maar Animo kan geen verantwoording op zich nemen voor eventuele fouten in dit boek of de gevolgen daarvan.
Animo has the right to change parts of the machine at any time without preceding or direct announcements to the client. The contents of this manual
can also be changed without any announcements. This manual is to be used for the standard model/type of the machine. Thus Animo cannot be held
responsible for any damage resulting from the application of this manual to the version delivered to you. For extra information on adjustments
maintenance and repair, contact the technical department of your supplier. This manual has been written very carefully. However , Animo cannot be
held responsible neither for mistakes in the book nor for their consequences.
Animo behält sich das Recht vor, Einzelteile ohne vorherige Bekanntgabe an den Kunden zu ändern. Der Inhalt dieser Anleitung kann ebenfalls ohne
vorherige Bekanntgabe geändert werden. Diese Anleitung gilt für die Standardausführung der Maschine. Animo haftet daher nicht für Informationen
über Einstellungen, Wartungsarbeiten oder Reparaturen, die nicht in dieser Anleitung enthalten sind. Wenden Sie sich bitte an den Kundendienst
Ihres Händlers. Diese Anleitung wurde mit größtmögliche Sorgfalt hergestellt. Animo haftet jedoch nicht für etwaige Fehler in dieser Anleitung oder für
die Folgen solcher Fehler.
Animo se réserve le droit de modifier les pièces à n’importe quel instant, sans avis préalable et sans obligation de notification au client. Le contenu de
ce manuel est également sujet à modification sans avis préalable. Ce manuel s’applique au modèle standard de la machine. Par conséquent, Animo
n’est past responsable pour les dommages éventuels découlant de l’application de ce manuel aux modèles non standard. Pour les renseignements
sur certains réglages, les travaux d’entretien ou réparations qui ne seraient pas traités dans ce manuel, Animo ne peut ètre tenu responsable des
erreurs éventuelles ni des dommages qui en dècouleraient.
NL
GB
D
F

2015/04 Rev. 2.0
WKS
7
GB
GB
TABLE OF CONTENTS
1. GENERAL DESCRIPTION ................................................................................... 8
2. TECHNICAL DETAILS ......................................................................................... 8
3. INSTALLATION .................................................................................................... 9
3.1 Placing the WKS ............................................................................... 9
3.2 Connecting to the water supply system ............................................ 9
3.3 Connecting to the electricity supply system ...................................... 9
4. CONTROL PANEL ................................................................................................ 10
5. PREPARATIONS BEFORE USE .......................................................................... 10
6. USE OF THE WKS ............................................................................................... 10
6.1 Drawing off steam ............................................................................. 10
6.2 Drawing off hot water ....................................................................... 11
7. MAINTENANCE ................................................................................................... 11
7.1 Cleaning ............................................................................................ 11
7.1.1 Cleaning the steam draw-off ............................................................. 11
7.1.2 Cleaning the housing ........................................................................ 11
7.2 Descaling .......................................................................................... 11
8. SECURITY ........................................................................................................... 12
8.1 Water level in steam boiler too low .................................................... 12
8.2 Temperature security is switched off ................................................. 12
9. TRANSPORTATION ............................................................................................. 12

2015/04 Rev. 2.0
WKS
8GB
This instruction was designed for users of the ANIMO WKS type steam and hot water appliance.
Read this instruction very carefully as it will ensure proper and safe use of the appliance.
1. GENERAL DESCRIPTION
The ANIMO WKS type is a combined steam and hot water appliance. The device is provided with two
separate draining taps, enabling the user to drain steam and hot water. The steam draining tap can
be used to steam up milk, e.g. for a cup of cappuccino. The hot water water drain tap, on the other
hand, can be used for tea, grog and cup-a-soup. The appliance is provided with an overpressure
safety element that opens up as soon as the pressure in the steam boiler exceeds a specified safety
limit. The water level is indicated by means of lights. The bottom red light will light up as soon as the
water level gets too low. The upper green lamp will burn as long as the water level is safe. When a lot
of steam is used, the electronic control of the appliance will keep the working pressure of the steam
kettle at an optimum.

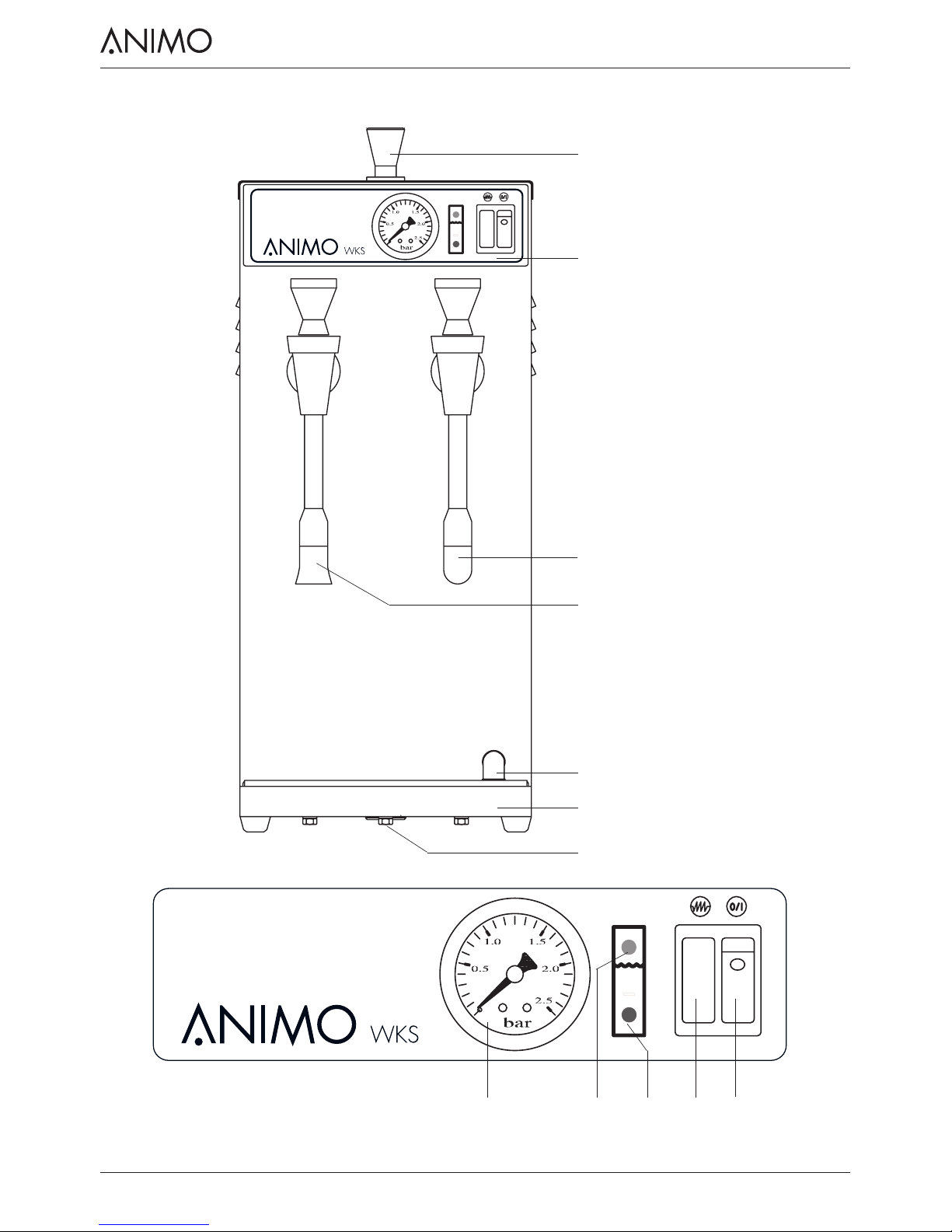

Figure 1 indicates the main components.
Figure 2 indicates the control elements.
Figure 1:
A - Overpressure safety element E - Outlet overpressure safety element
B - Control panel F - Drip tray and grid
C - Steam outlet tap G- Draining tap steam kettle
D - Hot water outlet tap
The machine is supplied with:
- Drip tray and grid
- Hose, 1.25 meters.
- Instruction
2. TECHNICAL DETAILS
Type : WKS
Voltage : 1N~ 220-240V
Power consumption : 3200W
Fuse : 16A
Frequency : 50-60Hz
Capacity steam or hot water : ± 25 L/h
Water capacity steam boiler : ± 3,5 L
Opening pressure for : 1 bar
Overpressure safety element
working pressure steam boiler : 0,6 bar
Level detection : elektronic
Wire length : 1,4 m
Dimensions : zie fig.4
Water hose : 3/4” coupling
Min. - Max. water pressure : 2-8 bars
Weight : ±10 kg
Power supply (50/60 Hz) Capacity Safety
220V 1 phase/zero 3000W 16A
230V 1 phase/zero 3200W 16A
240V 1 phase/zero 3400W 15A
Technical alterations are reserved

2015/04 Rev. 2.0
WKS
9
GB
Take note of the following remarks for
figure 4:
• IncasetheplugfittingoftheWKScannot
be plugged in your wall socket, you will
have to cut it off and replace it by a new
one.
• Thecutoffplugfittingshouldbedisposed
carefully, as it could be very dangerous
when plugged in a wall socket.
Take care of the following instructions when
installing a new plug fitting:
• Thegreen/yellowconductor(“EARTH”) 
must be connected to the clip that is marked
with an “E”, the “earth” symbol ( ) or that is
coloured green/yellow.
• Theblueconductor(“NEUTRAL”)mustbe
connected to the clip that is marked with the
letter “N” or is coloured black.
• Thebrownconductor(“Phase”)mustbe
connected to the clip that is marked with the
letter “L” or is coloured red.
IMPORTANT!
The 3-core mains cord (fig. 4) has the following
conductor code:
Green/yellow - Earth
Blue - Neutral
Brown - Phase
3. INSTALLATION
When placing and connecting the appliance,
the following instructions should be followed.
3.1 Placing the WKS
• Atcounterlevel.
• Onasolidflatsurface.
Such that it is near the water and electricity
supply system.
Such that it is not causing any damage in
case of leakage.
Such that the ventilation holes in the back
and sides of the appliance are not blocked.
3.2 Connecting the WKS to the water
supply system
• TheWKSrequiresawaterstopvalvetobe
near the appliance.
• Thewatersupplysystemshouldbewithin
reach of the 1,25 meters long water hose.
• Connectthewaterhosethatcomeswiththe
system to the cold water supply and to the
water connection point at the back of the
WKS.
3.3 Connecting the WKS to the electricity
supply system
Depending on the model, the appliance should
be connected according to the instructions in
the figures below.
• (Fig.4)Incaseof220V-240V1phasewith
plug fitting connection.
• (Fig.4)Incaseof220V-240V1phase
(3-core cable).
WARNING
* When the appliance is in use, some of the components will get very hot.
* In case of malfunctions and maintenance activities, that require opening of the appliance,
always disconnect from the electrical supply. Also, water tap should be closed and the pressure.
of the steam boiler must be released.
* Do not place the appliance in spaces where the temperature drops below zero, as there will
always remain some water in the system.
* Make sure that the appliance is only plugged in a wall socket with earth connection.
* The appliance should never be submerged or hosed off.
* Make sure that any repairs are always carried out by authorised service mechanics.
* In case the appliance is not used for a relatively long period of time. it is advisable to take the
plug fitting out of the plug box and to close the water drain.
!
Fig. 2
Green/Geel - Earth (E)
Blue - Neutral (N)
Brown - Live (L)

2015/04 Rev. 2.0
WKS
10 GB
4. CONTROL PANEL (FIG.2)
A - Manometer steam boiler
pressure
B - Water level safe (green)
C - Water level too low (red)
D - Indicator lamp heating
E - On/off switch
5. PREPARATIONS BEFORE
USE
Before starting to use the new appliance, the
following actions should be carried out.
1. Open the manual air drain tap and make
sure the coupling nuts do not leak.
2. Place the drip tray in front of the appliance.
3. Plug the plug fitting in the wall socket and
switch on the appliance with the on/off
switch (fig. 2E). The red lamp will light up
and the steam kettle will automatically be
filled.
4. When the red lamp goes out (fig. 2C) and
the green lamp lights up (fig. 2B), the
steam boiler starts heating.
5. Check the pressure on the manometer.
The pressure should not be more than
0,6 bar. If it gets higher, immediately
switch off the appliance and call your
dealer.
6. When the steam boiler has reached the
working pressure, check whether the
overpressure safety element functions
properly.
7. To do this, pull the black knob on top of the
cover (fig. 1A). Now steam escapes via the
outlet that is installed over the leak tray.
8. Now you can draw off hot water with the
left-hand draining tap (fig. 1D) or steam
with the right-hand draining tap (fig. 1C).
6. USE OF THE WKS
Switch on the appliance with the on/off switch
(fig. 2E) and wait until the manometer
indicates approximately 0,6 bar.
• Toheatdrinkswiththehelpofsteam,refer
to paragraph 6.1.
• Todrawoffhotwater,refertoparagraph
6.2.
6.1 Drawing off Steam (fig. 1C)
Make use of the steam draining tap when
heating milk and chocolate milk.
1. When heating drinks, never fill the cup to
the brim.
2. Put the draw-off opening of the steam
drain tap appr. 1 cm in the drink.
3. Open the steam drain tap. The steam will
now heat the drink.
4. Always make sure to first close the steam
drain tap, before removing the cup.
5. Open the steam drain tap to remove any
remnants of the drink from the draw-off
opening.
CAUTION
*Beware not to burn yourself - stop heating
the drink in time.
*Take into account that the volume of the
drink slightly increases when it is heated.
*The material in which the drink is heated
and/or poured must be resistant to
considerable changes in temperature.
!

2015/04 Rev. 2.0
WKS
11
GB
! Tip
• Duringtheheatingprocessthesteamwill
make a grating noise. The more muffled
the sound, the higher the temperature of
the drink.
• Whencarryingouttheafter-steam 
process, make sure to use an empty cup,
the make sure that the appliance does not
get dirty with remnants of the drink.
• Incasethesteamdrainingtapisnotused
regularly, make sure to open the tap once
before placing the cup. Any condensed
water in the steam outlet will then first be
removed.
6.2 Drawing off hot water (fig. 1D)
1. Place a cup or mug under the hot water
drain pipe.
2. Open the hot water drain tap.
3. Close the tap in time.
7. MAINTENANCE
• Forcleaningtheoutsidereferto
paragraph 7.1.
• Fordescalingthesteamkettle,referto
paragraph 7.2.
7.1 Cleaning
7.1.1 Cleaning the steam draw-off
• Regularlycleanthesteamdraintapoutlet
with a clean cloth (couple of times per day).
7.1.2 Cleaning the housing
• Theleaktraycanbewashedupina 
conventional manner.
• Thestainlesssteeloutsidecanbecleaned
with a clean damp cloth and then dried.
• However,donotuseanyabrasives,asthis
may result in scuffs or scratches.
7.2 Descaling
Use of the steam kettle can lead to scale
deposit. To ensure energy-saving and proper
functioning of the appliance, it should be
descaled regularly. As the steam kettle is
completely built-in in the housing, we strongly
advise the user for safety reasons not to carry
out the descaling process himself.
When should be descaled?
Depending on the use and hardness of the
water, we advise you to have the steam boiler
descaled by a service technician every 3 or 4
months.
We advise you to always have the appliance
descaled by an authorised service technician.
WARNING
*The water from the drain tap is a mixture of
steam and hot water with a temperature of
 ±100˚C.
WARNING
*The appliance should not be submerged or
hosed off.
*In case of maintenance, do not leave the
machine unattened
WARNING
*To descale the steam kettle the appliance
needs to be opened and partly
disassembled. As a result components are
opened up that have a high voltage and are
not covered. Always disconnect before
opening the machine!
!
!
!
