1. TECHNICAL PARAMETERS
Machine type GIF-2500
Use for materials Knit and woven materials
Speed of sewing 6 500 rpm
Stitch length 1,3 – 4,3 mm
Needle system and force UY128GAS (Nm. 65-90)
Foot stroke 7 mm with top cover / 8 mm without top cover
Weight Head 58 kg / Complete 86 kg
Dimensions Head 65x45x62 cm / Complete 107x55x140 cm
DESCRIPTION AND DETERMINATION:
Bottom and top cover machines are suitable for the production of home textiles, children's clothing,
swimwear, underwear, sportswear and other similar products where either the underlying elastic
stitch or top cover stitch is required
MACHINERY LIQUIDATION INSTRUCTIONS:
After the technical life of the machine has ended, transfer it to ANITA B, s.r.o. or another company
involved in the professional disposal of products.
www.garudan.cz

© ANITA
MP03400CZ_181010 5
2. SAFETY PRECAUTIONS
Do not put the sewing machine into operation until proper training is provided by an expert or
qualified person and unless you are familiar with safety precautions.
1. Every sewing machine may only be operated by properly trained personnel.
2. Consider the applicable safety regulations of your country.
3. The sewing machine may only be used for the activity for which it is intended. Other uses are
not permitted.
4. All safety precautions must be observed on the machine prior to commissioning or
operation.
5. Protective glasses are recommended for personal safety.
6. If modifications or changes are made to the machine, safety regulations must be followed.
Adjustments are only made on your own responsibility.
7. For the following work, the main switch of the machine must be switched off or the fork
must be pulled out of the power socket (use mechanically operated clutch motors without a
trip fuse to wait until the engine stops):
a) When threading the needles (needles), hooks, etc.,
b) When changing needles, presser foot, stitch plates, hooks, hooks, feeders, needle shields,
fingers, work conductors, etc.,
c) When leaving the workplace and leaving the workplace unattended.
d) Machine maintenance (during cleaning).
8. Repairs, maintenance and servicing of machines may only be carried out by an expert or a
qualified person. For repairs, only spare parts from the machine manufacturer must be used.
9. Work on the electrical installation of the machine may be carried out by an
electromechanician or under the supervision and control of a qualified person.
10. Work on parts and equipment under power is not permitted.
11. Before the maintenance and repair of pneumatic equipment, it is necessary to disconnect
the compressed air source. Residual compressed air must be drained before work starts.
12. It is the responsibility of the user if the safety measures in the operating instructions are not
observed.
13. Instructions for the use of the respective drive are an integral part of these operating
instructions and must be observed when working. In particular, "Security instructions".
www.garudan.cz

© ANITA
MP03400EN_181010 6
IMPORTANT NOTICE:
To avoid malfunctions or damage, please observe the following points:
1. Clean the machine thoroughly and then oily before using it for the first time.
2. Check that the mains voltage corresponds to the voltage stated on the engine rating plate. If
not, do not put the machine into operation at all.
3. When operating the machine, the hand wheel must be rotated towards the operator; If this
is not the case, switch off the engine.
4. Do not exceed 3/4 of the maximum machine speed in the first two weeks.
5. Always set the threaded lever to its highest position before removing the seam.
Safety instructions:
1. The machine may only be used for its intended purpose. When adjusting for other designs,
all applicable safety regulations must be observed.
2. The operation of the machine without protective equipment provided by the factory is not
permitted.
3. The machine may only be switched on and operated by a properly instructed person
(operator).
4. When replacing sewing tools, such as needles, presser foot, stitch plates, feeders and coils,
when leaving the workplace and during maintenance work, the machine must first be
switched off by mains switch or disconnected from the mains.
5. Work on wiring may only be carried out by electricians or by appropriately instructed
persons.
www.garudan.cz

© ANITA
MP03400CZ_181010 7
3. INSTALLING THE MACHINE INTO OPERATION
To avoid malfunctions or damage to the machine, the following precautions must be observed:
clean the machine from preservatives, drop 1-2 drops of oil into the hat, remove the front cover, and
lubricate the eyebolts of the needle bar and the thread of the thread lever.
Have the expert check that the electrical installation of the machine is OK, including the appropriate
electrical voltage. motor current and make sure that the handwheel of the machine rotates towards
the operator after the electric motor is connected (according to the arrow). In the first two weeks, do
not use the full machine speed, stitch only about 3/4 of the maximum speed.
ATTENTION!
Do not interfere with the electrical installation of the machine, call an expert-electromechanician.
Danger of electric shock.
When working on and near the machine, be careful not to cause injury. Ensure that no liquid can
flow into the electrical installation and cause a short-circuit or other electrical installation failure.
Observe generally valid safety regulations.
When working on the machine, be especially careful in the vicinity of the needle, cutting knives,
yarn levers and pressure elements of the work.
When pivoting the machine on the pedestal, take extra care to avoid overturning the machine with
the stand.
When folding the machine's head into the working position, grasp the head with both hands so
that there can be no injury between the folding machine and the base plate.
1. Before use:
a) Do not start the engine when the pedal is depressed.
b) Always switch off the main switch when leaving the workplace.
c) When repairing the machine or changing the needle, make sure the machine is turned off.
d) Ensure that the ground wires are firmly connected.
e) Do not use a large number of connections per node.
f) Observe the safe distance from noise sources.
g) Wait a few minutes after switching off the machine for any electronic motor operation.
h) If the system fails, first identify the type of error, clear the error, and then turn on the device
again.
i) Check the connection of all connectors and cables.
j) After a long machine shutdown or when installing a new machine 2 to 3 times, inflate the oil
to the marked position on the hem of the rim, pressure bars and rods.
k) Set the first 4 - 5 days of use for less than 3,000 rpm for a perfect fit. With the oil mark, make
sure the oil flows.
www.garudan.cz

© ANITA
MP03400EN_181010 8
2. Installation:
a) Motor, belt and belt cover:
The maximum sewing speed of this machine is 6500 s. p. m. and ordinary speed is 5000 s. p. m.
During the first 200 hours (or first month) of using the machine, please do not exceed 80% of the
ordinary speed which is 4000 s. p. m.
1) Use v belt according to the pulley and be sure the motor running direction is clockwise and
the motor belt tension can be pressed inward about 2 cm (Fig. A).
2) Don’t forget install the cover of the belt and pulley (Fig. B)
b) Table top installation:
Install the machine correctly referring to the
illustration. Set bolts and nuts to machine table and
put rubber cushions on bolts and rest the machine on
them securely.
If using rubber cushion to adjust the height of machine
then, must make sure there is no interference
between machine and table top, so can open up the oil
filter bolt and nut side cover without any problem.
www.garudan.cz

© ANITA
MP03400CZ_181010 9
4. LUBRICATION
1. Lubrication oil and cooling oil:
Please use Garudan m22, Mobil #10 or equivalent oil for lubrication oil and use silicone oil for cooling
oil.
2. Feeding oil:
The lubrication oil has been drained off completely before delivery, adding oil to the upper line of oil
gauge (c) by removing seal plug (a). Also, please make sure the oil flows out of nozzle (b) at the start
of operation.
Before starting a brand new machine or a machine which has not been used for more than a couple
of weeks, lubricate the needle bar first. Before using the machine, check the oil level is above the
mark L
3. Changing oil:
For the longer life of machine, change lubrication oil completely after 250 hours (or 4 weeks) of initial
operation initial operation.
A. After taking off belt cover, remove v-belt from motor pulley, and remove machine head from
machine table.
B. Loosen screw (d) and drain off all the oil from the machine.
C. After draining, tighten screw (d) back.
D. When replenishing oil please refer to paragraph 4-2 "feeding oil" above.
www.garudan.cz

© ANITA
MP03400EN_181010 10
4. Oil filter:
Although the machine is using oil pump lubrication and splashing lubrication systems, please check
and clean oil filter every month. And when no oil or very little oil comes out of nozzle even indicator
shows normal, please check oil filter and replace it if necessary.
5. Adding cooling oil:
Avoid needle breaking, stitch jumping or thread melting problems etc. Please fill cooling oil tank and
felt with silicone oil under some special circumstances, cannot use silicone oil or no need to use
silicone oil then, you can take felt off from.
5. NEEDLE
1. Needle selection:
Needle UY128gas of Groz Beckert is to be used. There are many sizes of needle according to the
thickness and kind of fabrics used.
2. How to replace the needle:
Replacing needle should be made correctly with the scarf facing rightly backward as shown in the
illustration.
www.garudan.cz

© ANITA
MP03400CZ_181010 11
3. Threading:
Threading should be made correctly referring to the illustration. Improper threading might cause skip
stitch, thread breakage and uneven seam etc. The threading for three needle machine is shown in the
illustration below. For two needle machine, threading is the same except only two needle threads.
A, B, C – needle thread D – top cover thread E – looper thread
www.garudan.cz

© ANITA
MP03400EN_181010 12
6. PROPER OPERATION ADJUSTMENT
Due to the thickness of fabrics, different materials different kinds of thread, Different stitch
requirements the changes of differential ratio, all is affecting the sewing performance. Thus, must
conduct the proper operation adjustment in order to get best sewing effects.
1. Pressure of presser foot:
To increase the pressure of presser foot, turn adjusting screw (b) clockwise after loosening lock nut
(a) and to decrease, turn it counterclockwise. Pressure of presser foot should be as weak as possible
so long as presser foot can operate properly.
2. Thread tension:
Different threads have different tensions and even same threads will have different tensions when go
through different threading holes. Each thread tension can be adjusted by individual tension nut to
increase thread tension, turn tension nut clockwise, to decrease thread tension, turn tension nut
counterclockwise. Please use least thread tension as long as it will not affect the sewing effects.
3. Adjusting stitch length:
Adjustment of stitch length can be made steplessly from 1.4mm/per stitch to 3.6mm/per stitch.
Stitch length Stitch number Stitch number
4,2mm
6 per inch
7 per 30 mm
3,6 mm
7 per inch
8 per 30 mm
2,4 mm
10,5 per inch
12,5 per 30 mm
1,4 mm
18 per inch
21 per 30mm
www.garudan.cz

© ANITA
MP03400CZ_181010 13
4. Stitch length adjustment:
Turn hand wheel. One graduation on the Circumference of hand wheel indicates a stitch length (m.
m). Which should be aligned with the mark (B). Then release hand.
5. Adjusting the needle thread take-up:
Different threads have different stretch tension and cause skip stitching thread breaking and
unstable stitching easily. This machine equipped with thread take-up, front needle thread guide, rear
thread guide and auxiliary thread tension control guide in order to give letter control of the looper
thread take-up and stabilize the stretching of looper thread.
The thread take-up and rear thread guide were set at standard position before shipment. As shown
on figure A/B. And also can be adjusted as arrow directions if necessary
Fig. A Fig. B
www.garudan.cz

© ANITA
MP03400EN_181010 14
Sometimes, it is not so easy to make loop for some kinds of thread and also make it difficult for
looper to catch the needle thread, causing skip stitch. In such case, can use auxiliary thread tension
control guide to stabilize the threads (Fig. C)
Fig. C Fig. D
In case the formation of needle thread loop is unstable when using stretchable thread, you can solve
this by adjusting the height of front needle thread guide, especially when looper move from right to
the left. If the left needle skip the stitch when using synthetic thread or right needle interfere with
the formation of thread loop when using blended thread, you can use front needle thread guide,
with needle bar at the lowest position, the center of thread hole of rear thread guide eyelet should
be even with the surface of front needle thread guide and front needle thread guide and rear thread
guide should be parallel with each other (Fig. D)
www.garudan.cz

© ANITA
MP03400CZ_181010 15
6. Adjusting the looper thread take-up:
When left needle comes down to the half point (Fig. E), the thread must get off from the highest
position of looper thread take-up. The adjustment is made by loosening screw, turn the looper
thread take-up to the proper position and tighten the screw (Fig F).
Fig. E Fig. F
To decrease the amount of looper thread in the seam move thread guide eyelet to
Aligning mark to increase, move it backward (Fig. G)
For stretchable threads, move right and left thread guides to aligning mark and also do not pass the
thread between thread guide.
Fig. G Fig. 1
www.garudan.cz

© ANITA
MP03400EN_181010 16
7. Adjusting spreader thread take –up:
The thread amount of top cover thread is adjusted by spreader thread take-up. For standard
position, loosening set screw, push thread guide upward to its highest position as x direction show.
Then tighten the set screw.
Stretchable thread, push the thread guide downward as y direction and thread must pass through
the eyelet of thread guide.
7. ADJUSTING OF MACHINE
This machine was sent to the standard position before delivery and it's unnecessary to re-adjust
unless under some situation as changing the needle, looper, different kind of fabric or different
sewing threads. Please adjust according to following items:

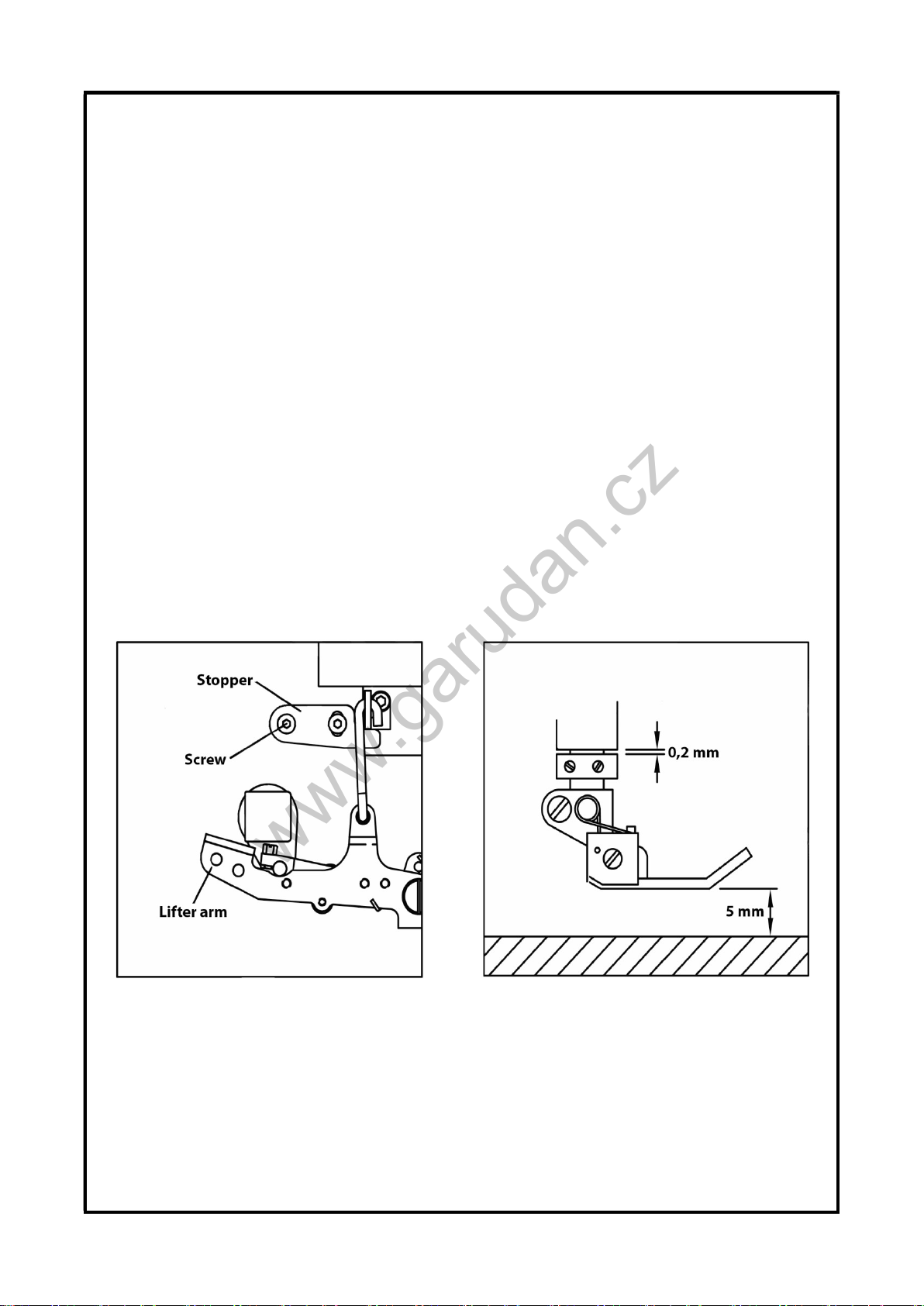

1. Adjusting presser foot and petting the height of presser foot:
It will be easier to conduct some adjustments by taking off the presser foot as follows:
Loose the lifter arm and loosen the screw from presser foot and stopper, lifting up the presser bar,
you can take presser foot very easily. After changing, remember put it back in reverse sequence (Fig.
A, B).
Fig. A Fig. B
www.garudan.cz

© ANITA
MP03400CZ_181010 17

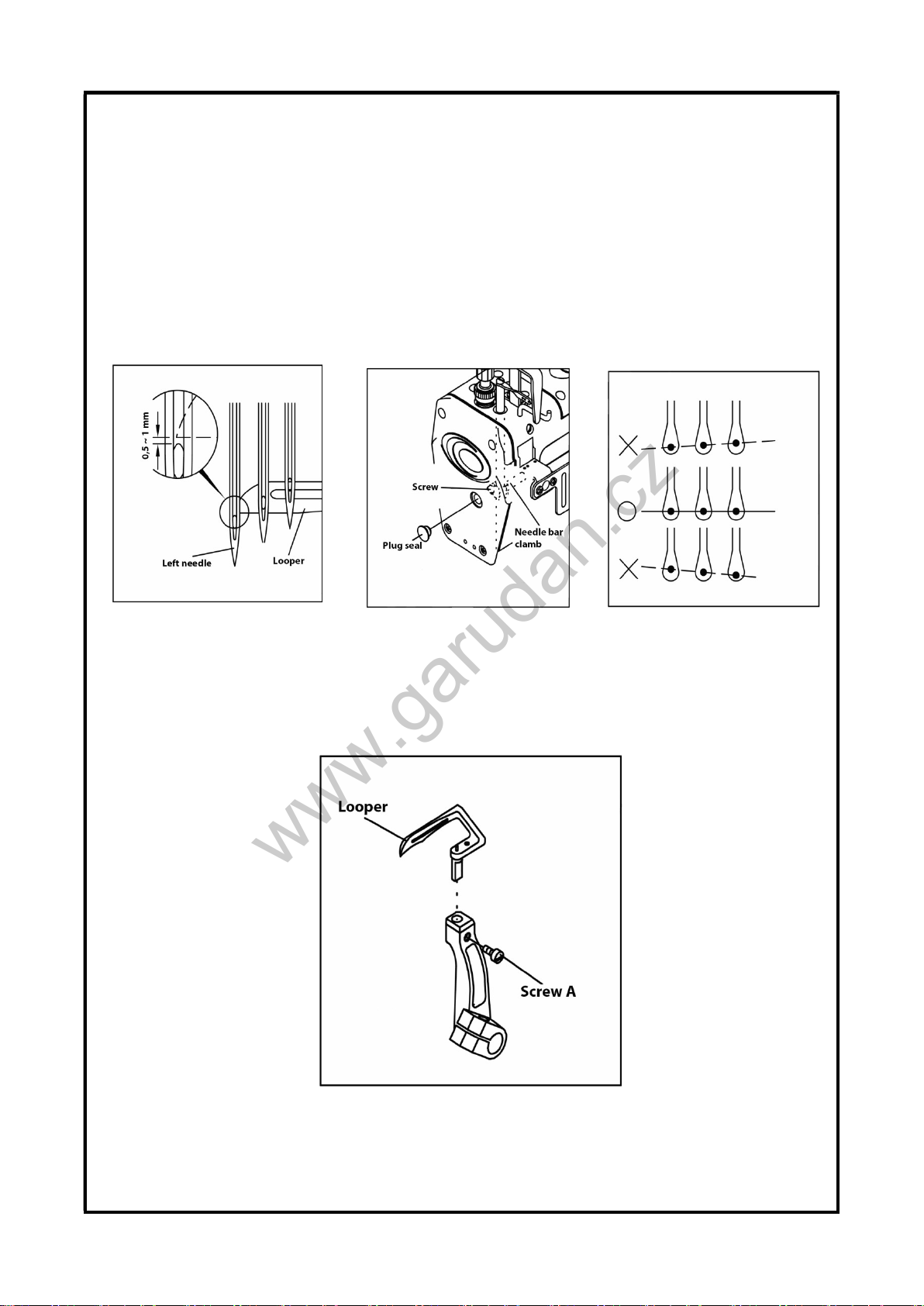

2. Adjusting the height of needle bar and needle drop point:
When the tip of looper comes to the center of left needle, the looper should
Position above the upper end of needle eye by 0.5-1.0 mm as this is the standard
Position for needle bar (Fig. C).
Loosen the screw of needle bar clamp and adjust the needle bar to get proper height (Fig. D).
After adjustments, tighten the screw of needle bar clamp and make sure the needles are in the
center of needle drop hole of needle plate (Fig. E).
Fig. C Fig. D Fig. E
3. Instalation looper:
Inserting looper all the way into looper holder and please make sure looper is fully fitted into proper
position, then tighten screw (A), (Fig. F).
Fig. F
www.garudan.cz

© ANITA
MP03400EN_181010 18
4. Setting looper:
The looper is located at the extreme right when needle bar decent to its lowest Point. And the
distance between the tip of looper and the center of right needle is various according to the needle
distance. Please refer to the table below for Adjustment and the adjustment is made by loosening
the screw (B) of looper holder (Fig. G)
Obr. G
NEEDLE DISTANCE LOOPER MOVEMENT TO THE RIGHT
3,2 mm
4,4 mm
4,0 mm
4,0 mm
4,8 mm
3,6 mm
5,6 mm
3,2 mm
6,4 mm
2,8 mm
www.garudan.cz

© ANITA
MP03400CZ_181010 19
5. The clearance between looper and needle:
GIF-2500-356
GIF-2500-364
When the tip of looper meets the center of left needle. The clearance between them should be 0.2-
0.3mm. When the tip of looper meets the center of middle needle. The clearance between them
should be minimal. When the tip of looper meets the center of right needle. Giving the clearance of
0-0.05 mm between the tip of looper and needle by pushing rear needle guard 0.2-0.3 mm against
the needle. The adjustment is made by loosening screw of looper holder.
GIF-2500-240
GIF-2500-248
When the tip of looper meets the center of left needle, the clearance between them should be 0.2-
0.3 mm. When the tip of looper meets the center of right needle, the rear needle guard should push
needle 0.2-0.3 mm in order to get the clearance of 0-0.05 mm between the tip of looper and needle.
www.garudan.cz

© ANITA
MP03400EN_181010 20
6. The relation between needle and real needle guard:
6.1 Setting the height of rear needle bar:
When needles descend to the lowest position. The ridge line (A) of rear needle guard (B) align with
the center of the eye of each needle. The adjustment of the height of rear needle guard is made by
loosening the screw (Fig. I).
6.2 Setting the angle and timing of rear needle guard:
When the tip of looper passes the center of right needle. The rear needle guard will slightly push the
right needle forward about 0.2-0.3 mm. And at this time, the clearance between looper and right
needle is 0-0.05 mm and looper will touch middle needle slightly and the clearance between looper
and left needle is 0-0.05 mm. These adjustments are made by loosening the set screws (C) and (D),
(Fig. J, K).
Fig. I Fig. J Fig. K
7. The relation between needle and front needle guard:
7.1 Setting the angle and timing of front needle guard:
When the tip of looper comes to the center of left needle and right needle, adjust the clearances
between those needles and front needle guard should be 0 - 0.3 mm. The adjustments are made by
loosening set screw (E) and move front needle guard to its proper position. Then, tighten the set
screw (E), (Fig A).
Fig. A
www.garudan.cz
