anko SL593C User manual

Rechargeable Hand - Stick Vac
For Household Use Only
Model No.: SL593C
Rev 2
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us

Page 2 of 24
1Warnings.................................................................................. 3
2Safety Directions..................................................................... 3
3Transporting your Vacuum .................................................... 6
4Components ............................................................................ 6
5Assembly Method ................................................................... 7
5.1 Assembling the Extension Tubes...............................................7
5.2 Removing the Extension Tube....................................................8
5.3 Attaching the Motorised Floor Head ..........................................8
5.4 Removing the Motorised Floor Head.......................................... 8
5.5 Using Without the Extension Tube.............................................9
5.6 Tools and Tool Storage...............................................................9
5.7 Charging..................................................................................... 11
6Using the Vacuum Cleaner................................................... 12
6.1 On / Off .......................................................................................12
6.2 Speed Control............................................................................13
7Indicator Lights ..................................................................... 13
7.1 Charge Status ............................................................................13
7.2 Jammed Floor Head Brush .......................................................13
7.3 Carry Handle ..............................................................................14
8Emptying the Dust Canister ................................................. 15
9User Maintenance ................................................................. 16
9.1 Cleaning the Filters ................................................................... 16
9.2 Cleaning Dust Canister .............................................................19
9.3 Cleaning the Vacuum Cleaner Body and Tools....................... 19
9.4 Cleaning the Motorised Floor Head.......................................... 20
10 Storage................................................................................... 22
11 Troubleshooting.................................................................... 23
13 Warranty Against Defect ...................................................... 24

Page 3 of 24
1 Warnings
Before using this appliance, read and follow all warnings and instructions in this
manual, even if you are familiar with this product.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
2 Safety Directions
Please read this instruction manual carefully before first use. It is advisable to keep
this instruction manual for future reference.
DO NOT vacuum water, wet objects, liquids, ashes, hot coals, cigarette butts,
matches or any hot, smoking or burning objects, etc.
DO NOT pick up flammable or combustible materials (i.e. lighter fluid, petrol,
kerosene, etc.) or use in the presence of explosive liquids or vapour.
DO NOT pick up toxic material (i.e. chlorine bleach, ammonia, drain cleaner, etc.)
DO NOT vacuum Toner (for laser printer, copy machines etc.) as there is a risk of
fire and explosion.
DO NOT vacuum plaster dust, cement dust etc. as the filter will block very quick.
DO NOT use the vacuum without the filter fitted.
DO NOT store or use the appliance near high temperature areas.
DO NOT run over the charger cable with the vacuum cleaner.
DO NOT use the vacuum cleaner if it is blocked. Turn off and clear all blockages
before continuing.
DO NOT use the vacuum cleaner with a blocked filter. Clean filter before
continuing. (refer to User Maintenance section).
DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise,
smell, smoke, is dropped or damaged in any manner or any breakage is found
during operation.
For electrical safety, any repairs to the product must be performed by a qualified
electrical person only, or the product must be disposed of.

Page 4 of 24
DO NOT misuse the Charger Cable. Never pull the appliance by the cable or pull
to disconnect it from the outlet. Instead, grasp the charger body and pull to
disconnect.
DO NOT use the vacuum cleaner to pick up large objects, hard or sharp objects
such as glass, nails, screws, coins, etc. that are likely to cause damage.
DO NOT use with damaged Charger Cable or Charger Body.
DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors, or
dropped into liquid (water etc.)
DO NOT handle Charger or vacuum cleaner with wet hands.
DO NOT put any objects into openings.
DO NOT use with any openings blocked and do not restrict airflow.
DO NOT use without the filter in place.
DO NOT attempt to modify this product in any way.
DO empty the Dust Canister regularly for optimal operation of the vacuum.
DO keep hair, loose clothing, fingers, feet and body parts away from openings or
moving parts.
DO disconnect the Charger from the power supply when not in use,
DO use only on dry, indoor surfaces.
DO use only as described in this manual. Use only manufacturer's recommended
attachments.
DO Keep Charger Cable away from heated surfaces.
DO Keep all openings free of dust, lint, hair, and anything that may reduce airflow.
DO use extra care when vacuuming on stairs.
DO keep your work area well lit.
DO store your appliance indoors in a cool dry area.
DO ensure children and babies cannot play with plastic bags or any packaging
materials.

Page 5 of 24
DO operate the Charger from a power source of the same voltage, frequency and
rating as indicated on the product identification plate.
WARNING
Only use the Battery Charger which was supplied with this appliance.
Model No. ZD12D260050AU 100–240V~ 50/60Hz 0.5A Output: 26.0V500mA
Battery Pack Specification: SL593C
Type: Li-ion, 22.2Vd.c., 2200mAh
Consumers are cautioned against using and/or purchasing counterfeit and/or
inferior quality batteries. These batteries have the potential to cause fire, personal
injury, and/or damage to property. These batteries are typically found on online-
auction websites or from other retailers and are known to pose a potential safety
risk.
Never try to recharge Non-Rechargeable batteries as they may explode, catch on
fire or cause personal injury and/or damage to property.
- May explode if disposed of in fire.
- To prevent injury or burns, do not allow metal objects to contact battery
terminals.
- Do not use or store in temperatures above 40°C
The Battery Pack must be removed from the vacuum cleaner before disposal.
Contact your local waste management authority for more information on Battery
Recycling and disposal regulations in your area.
This symbol on the product or its packaging indicates:
Do not dispose of electrical appliances or batteries as unsorted municipal waste,
use separate collection facilities. Contact your local council for information
regarding the collection systems available. If electrical appliances are disposed of
in landfills or dumps, hazardous substances can leak into the groundwater and get
into the food chain, damaging your health and well-being. Please contact your local
council or regional authority for more information on collection, reuse, and
recycling programmes.
If this appliance is used by a third party, DO supply the instruction manual with it.
No liability can be accepted for any damage caused by non-compliance with these
instructions or any other improper use or mishandling of appliance.
This product has not been designed for any uses other than those specified in this
manual.
ONLY for domestic use. Industrial or commercial use invalidates the warranty.

Page 6 of 24
Read and Save These Instructions
3 Transporting your Vacuum
To move your vacuum cleaner from room to room, unplug the unit and carry
using the carry handle.
Never pull or carry the vacuum cleaner by its Charger cable.
Never carry the vacuum cleaner by the accessories / Tools.
4 Components
Note: The specifications and/or components of this appliance are subject to change without prior notice

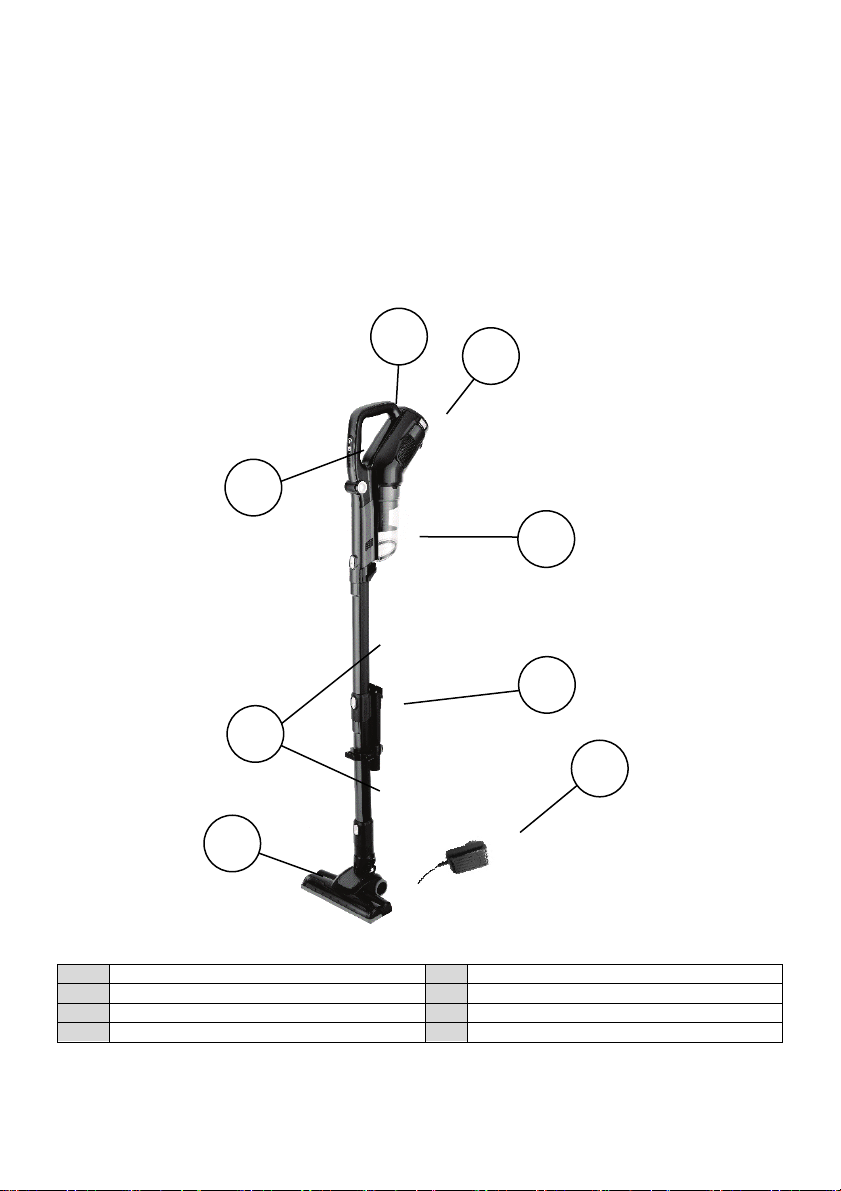

1
Stick Vac Body / Handle
5
Battery Charger
2
Rechargeable / Removable Battery Pack
6
Motorised Floor Head
3
Dust Canister
7
Extension Tubes
4
Crevice / Brush Tool
8
Control Buttons
3
4
5
2
6
1
7
8

Page 7 of 24
5 Assembly Method
Please Note: Always remove the Battery Charger from the power socket
before assembly.
5.1 Assembling the Extension Tubes
There are two sections of Extension tube. These need to be assembled in a
specific order so that the tube with the tool holder is the lower section.
With the Tube ends aligned, push the two tubes together until they lock
together.
Insert the top end of the Extension Tube into the mating hole in the vacuum
cleaner body ensuring the locking tab is aligned, then push inward until it
locks into place.
Tool Holder on
Lower Tube

Page 8 of 24
5.2 Removing the Extension Tube
To remove the Extension Tube, grasp the Tube, press the locking button
down to release then pull the tube straight out.
5.3 Attaching the Motorised Floor Head
To attach the motorised floor head to the other end of the extension tube,
insert the end of the Extension Tube into the end of the Floor Head, ensuring
the locking tab is aligned, then push inward until it locks into place.
5.4 Removing the Motorised Floor Head
To remove the Motorised Floor Head, grasp the Motorised Floor Head, press
the locking button inward to release, then pull the Tube straight up and out.

Page 9 of 24
5.5 Using Without the Extension Tube.
The vacuum cleaner can be used without the extension tube by attaching the
Accessories and Motorised Floor Head directly to the vacuum cleaner.
To attach and remove, follow the same steps as if using the Extension tube.
5.6 Tools and Tool Storage

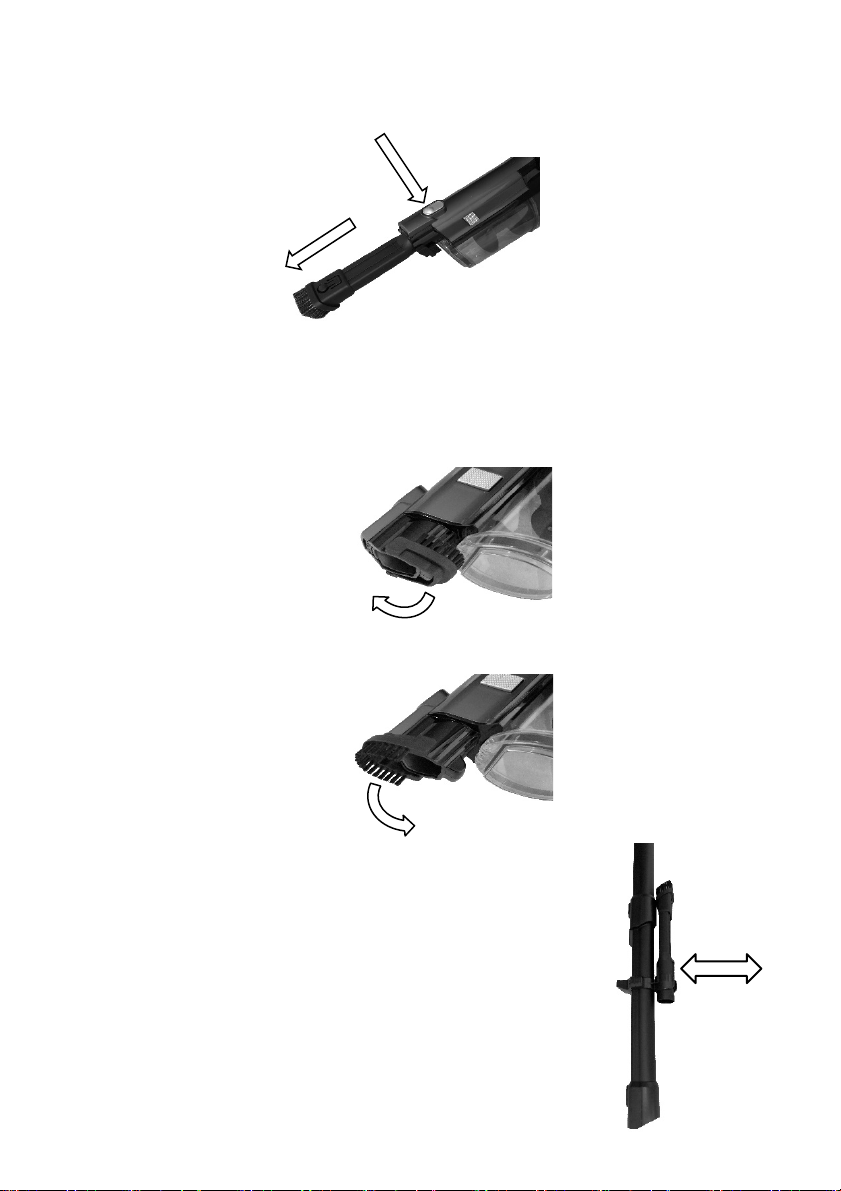

Crevice / Brush Tool
Crevice / Brush tool is for cleaning furniture and into corners etc.
To use the Brush tool, press the release button to
unlatch and slide the brush down until it locks in
place.
To use the Crevice tool, press the release button to
unlatch and slide the brush up until it locks in place
To fit the tool, line up with the end of the hand vac and push in.
Note: The tool can also be used on the end of the Extension Tube.

Page 10 of 24
To remove, press the locking button down to release and then pull the tool
straight out.

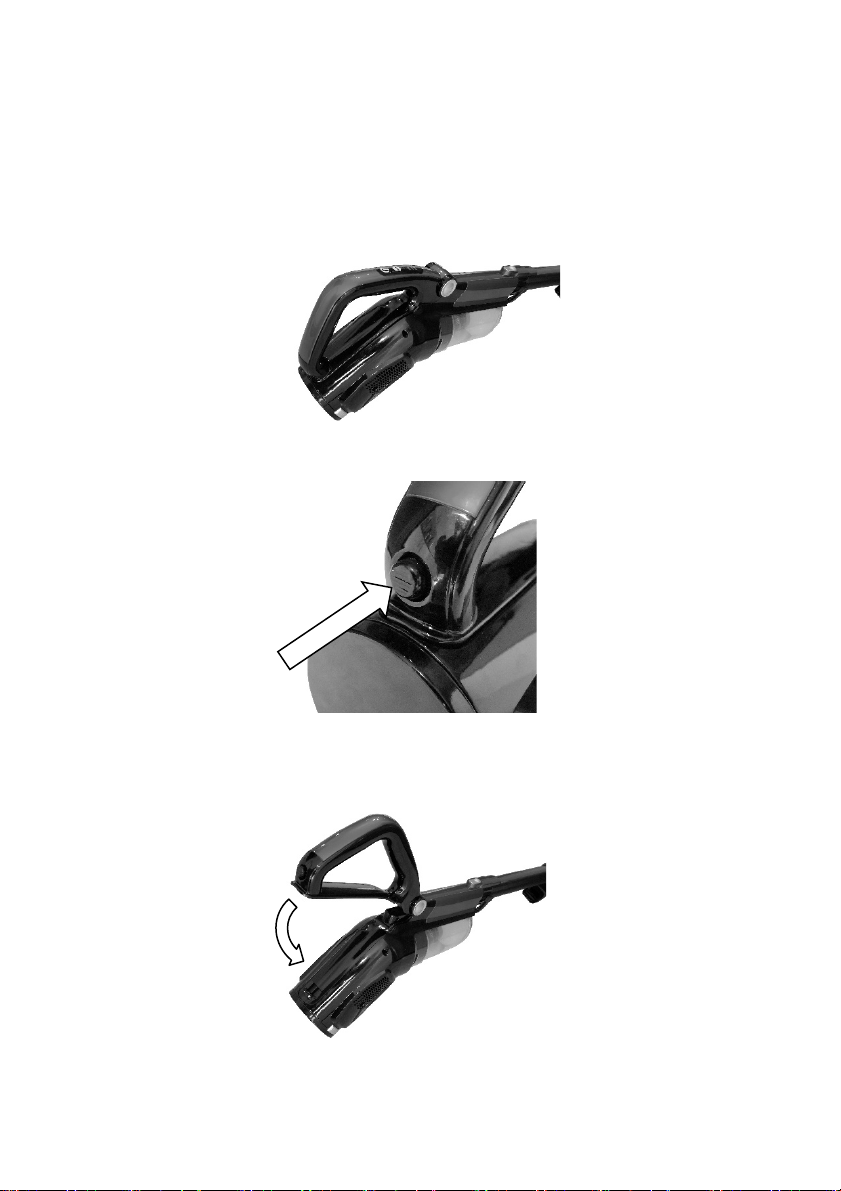

There is also a flip up brush on the inlet section of the vacuum cleaner body.
To use this brush, grasp and rotate it upward until it latches in place as
shown.
To fold away, grasp and rotate downward until it latches in place.
Tool Holder. Located on the lower Extension Tube.
Attach the Tool by pushing it into the clamp as shown.
To remove, grasp the tool and pull straight out.

Page 11 of 24
5.7 Charging
Note: Charge the Vacuum Cleaner for at least 5 hours prior to use.
Only use the Battery Charger which was supplied with this appliance.

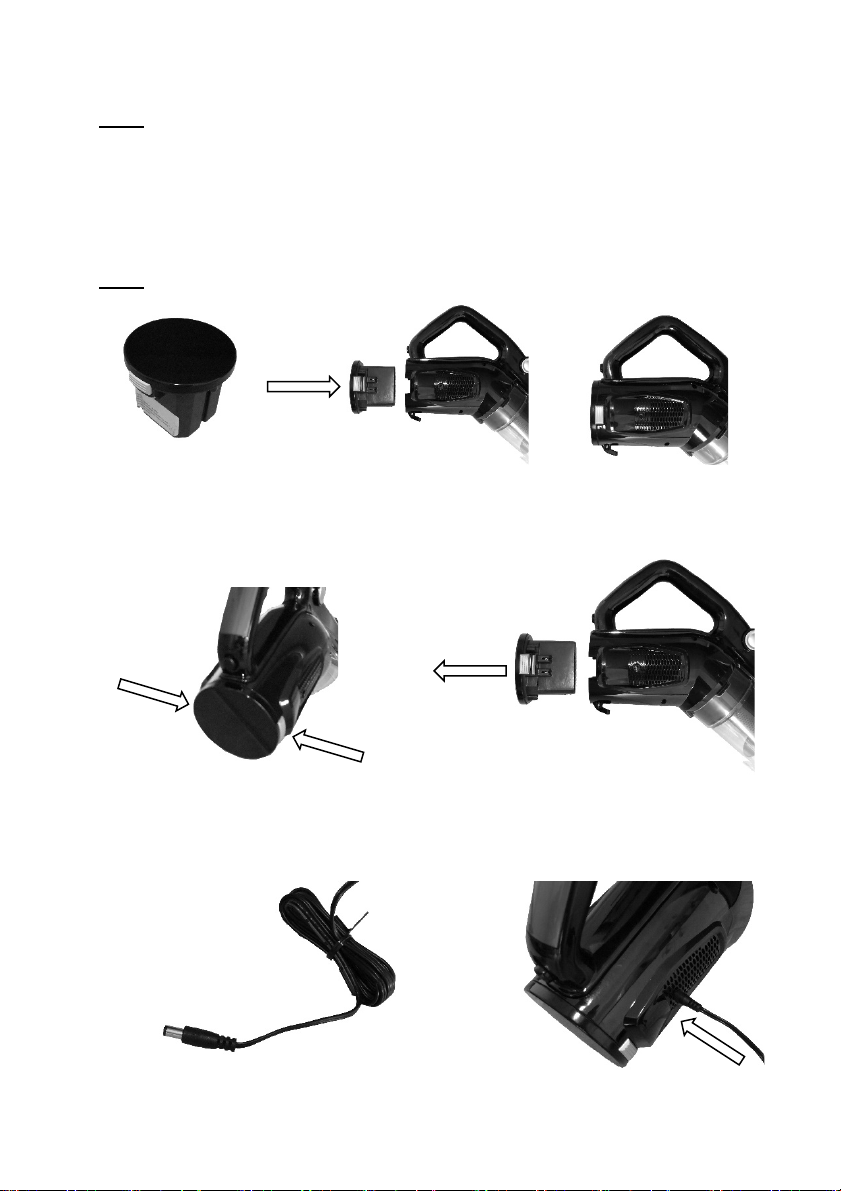

Insert the battery into the back of the vacuum Cleaner body and push all the
way in until it locks in place.
Note: The Battery can only be inserted in one direction as shown
To Remove the battery, press the two release buttons located on the side of
the battery, and at the same time, pull the battery straight out.
Take the battery charger unit and unravel the cord.
Take the small plug on the end of the battery charger cable and plug it into the
charging port on the side of the vacuum cleaner body.
Plug the Battery Charger into the power point and switch on.

Page 12 of 24

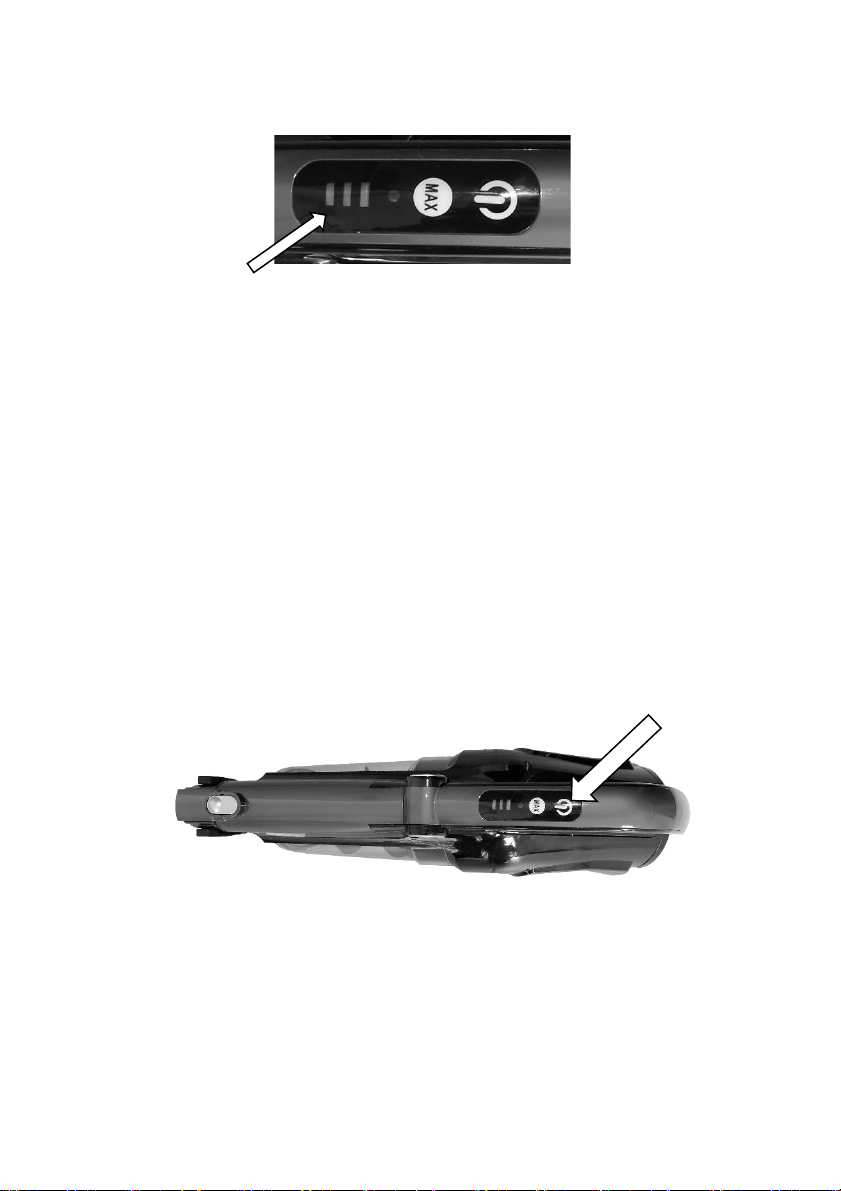

During Charging, the indicator light bars on the handle will illuminate in order
of charge state and will blink indicating the battery is charging.
All the bars will be OFF when fully charged.
When the battery is fully charged, switch off and unplug the battery charger
from the power supply.
When fully charged, the Vacuum Cleaner is ready for use.
NOTE: NEVER BLOCK ANY VENTS OR OPENINGS.
6 Using the Vacuum Cleaner
6.1 On / Off
To use the Vacuum Cleaner, assemble the unit as previously instructed and
ensure the battery is fully charged.
To switch on, press the top button on the handle once. The vacuum cleaner
will start in the default power mode.
The fully charged battery will provide approximately 30 - 35 minutes of power
for continuous use of the vacuum cleaner.
Press the same button again to turn Off.
Note: The vacuum cleaner cannot be started when charging.

Page 13 of 24

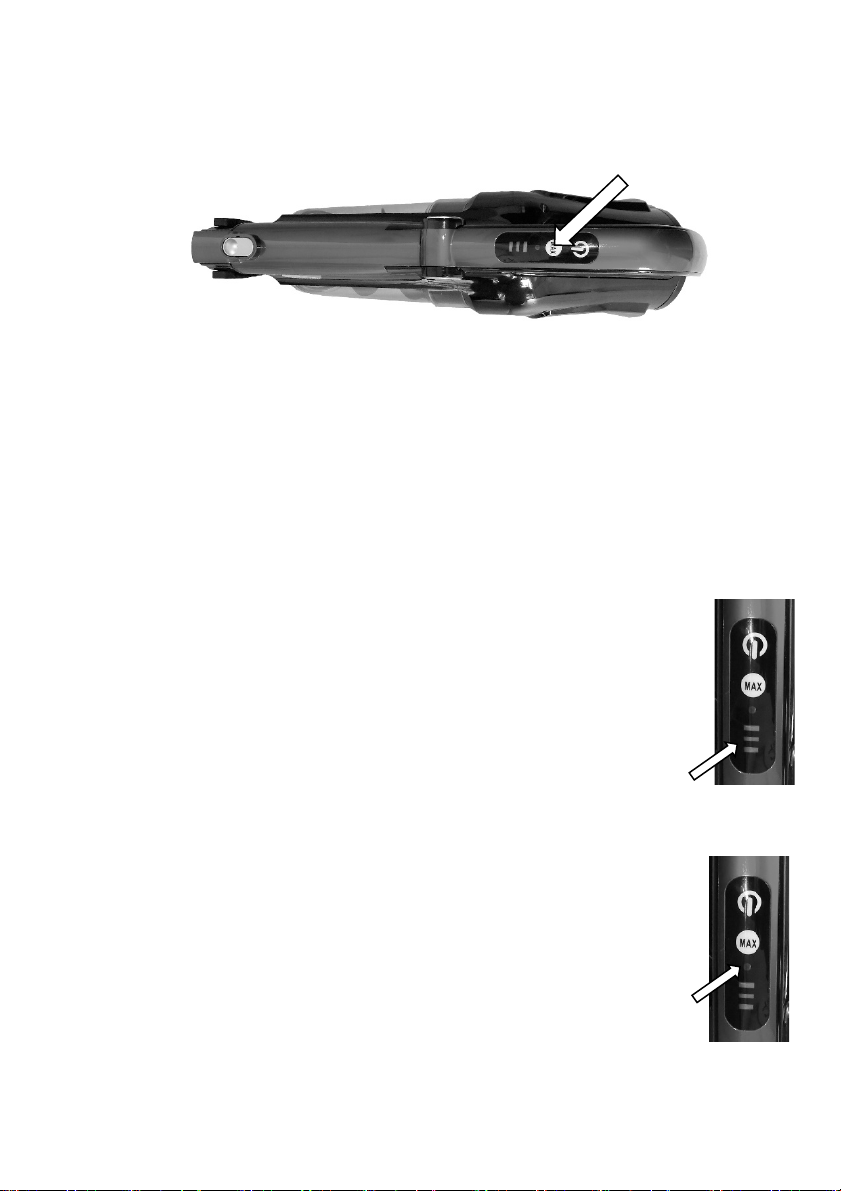

6.2 Speed Control
Whilst the vacuum cleaner is running, press the “Max” button on the handle
once. The vacuum cleaner will change to high power mode.
Press the same button again and it will change back to low power mode.
Press the On / Off button to turn Off.
The fully charged battery will provide approximately 20 - 25 minutes of power
for continuous use of the vacuum cleaner.
7 Indicator Lights
7.1 Charge Status
Refer to the section “Charging” for the indicator light function
during charging.
As the battery charge is used, the illuminated indicator lights will
change from 3 bars to two, to one.
When the battery runs flat, the vacuum cleaner will turn off and
all three bars will flash 5 times and will then stop, indicating the
battery needs recharging.
7.2 Jammed Floor Head Brush
The vacuum cleaner is fitted with a sensor which detects if the
floor head rotary brush gets jammed.
If the brush gets jammed, the vacuum cleaner will turn off and a
Red indicator light below the “Max” button will blink on and off.
Refer to the “Cleaning the Motorised Floor Head” section in this
manual on how to clear a floor head jam.

Page 14 of 24
7.3 Carry Handle
The vacuum cleaner has an adjustable carry handle which can be adjusted to
make it easier to reach under low items such as tables and chairs.
This helps prevent the amount of bending over you need to do.
In the “Normal” position, the handle is as shown.
To adjust the handle, press the small round button located on the back of the
vacuum cleaner handle.
This will unlatch the back of the handle allowing the vacuum cleaner body to
swing down making it easier to use under the low items.
When finished, hold the vacuum cleaner body in one hand and then push the
handle back down until it latches back in the “normal” position.

Page 15 of 24

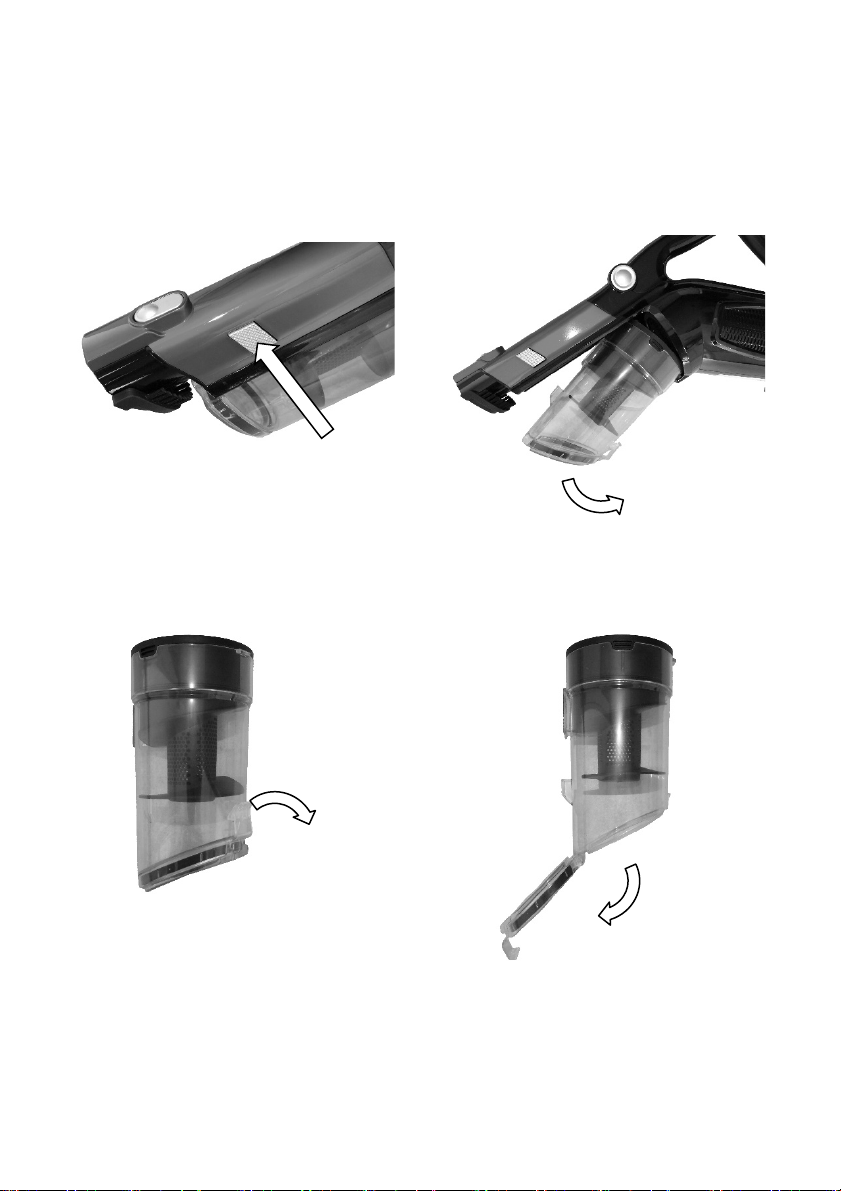

8 Emptying the Dust Canister
To empty the dust canister, first remove the Dust Canister from the vacuum
cleaner.
Whilst holding the dust canister with one hand, press the button on the side of
the vacuum cleaner and the dust canister will swing down then lift out.
Take the dust canister to a dustbin.
Unclip the latch on the Trap Door and the trap door will swing open emptying
the contents into the bin.
To close the trap door, close it manually until it clips shut.
Empty the Dust Canister as frequently as possible or when the suction power is
reduced or after use for optimum performance.

Page 16 of 24
Note: At the same time, you can brush the inside of the dust canister with a
small brush or use water to wash Refer to section “Cleaning the Filter”.
To refit the Dust Canister into the vacuum cleaner, ensure the trap door is
latched shut.
Position the location tab, which is located on the upper edge of the dust canister,
into the recess on the vacuum cleaner body and then swing the dust canister up
until it locks in place as shown.
9 User Maintenance
WARNING: The battery must be removed from the vacuum cleaner before any
maintenance, cleaning or replacement of parts.
NOTE: To maximise the performance of your vacuum cleaner, you should
clean the filters regularly.
If the filter is broken or worn, replace it before continuing to use the vacuum.
A Filter can be purchased from our Customer Service. You can call our
customer service number: 1300 105 888 (Australia) and 09 8870 447 (New
Zealand), or via email [e-mail]
9.1 Cleaning the Filters
Important Note – The Filters must be cleaned regularly for the best suction
performance and to prevent over-heating and damage to your vacuum
cleaner.
Cleaning is best done at the same time when emptying the dust Canister
after you have finish vacuuming for the day.

Page 17 of 24
NOTE: Never use the vacuum cleaner with a wet or damp filter or without the
filter fitted.
Using a wet or damp filter will damage the filter, may cause serious damage
to the vacuum cleaner and will void your warranty.
Only wash the white filter if it is very dirty, otherwise just tap the edge of the
filter on a hard surface to dislodge any dust and debris.
To access the filters, first remove the dust canister from the vacuum cleaner
body as described in the section “Emptying the Dust Canister”.
Grasp the filter and pull up and out to remove.
Turn the filter over and remove the black foam filter for cleaning.

Page 18 of 24
Wash the filter in warm mild soapy water, rinse in clean fresh cold water and
let completely dry.
DO NOT scrub the filter or place in a dishwasher.
DO NOT use a hair dryer to dry the filter.
Refit the Filter (or replace with a new one) in the reverse method used for
disassembly.
The Centre component in which the filter is located, can also be removed for
cleaning.
To remove this part, grasp the edges where the tabs are located and pull
straight up and out.
IMPORTANT: When refitting the centre component back into the dust
canister, it must be fitted in the correct orientation.
To ensure this happens, there are two tabs on the edge of the centre
component which align with the two slots in the dust canister.
Ensure the Large Tab is aligned with the Large slot,
and the Small Tab is aligned with the Small Slot
Rotate the centre component until the tabs align
with the correct slots and then drop in.
NOTE: Incorrect fitment of this part will prevent
the vacuum cleaner from picking up the dust
and debris.

Page 19 of 24
9.2 Cleaning Dust Canister
Remove the dust canister as described previously and remove the Filter
assembly as described previously.
Wash the dust canister in warm mild soapy water, rinse in clean fresh cold
water and let completely dry.
DO NOT scrub the dust canister or place in a dishwasher.
DO NOT use a hair dryer to dry the dust canister.
Reassemble and Refit the in the reverse method used for disassembly.
9.3 Cleaning the Vacuum Cleaner Body and Tools
Do not clean the vacuum cleaner, components or accessories using petrol
or any other flammable liquid or solvents, etc.
Clean only the outside of the vacuum cleaner.
Use only a moist cloth and mild detergent for cleaning the vacuum cleaner,
components and accessories.
After cleaning, wipe off the moisture on vacuum cleaner, components and
accessories with a dry cloth.
Do Not place accessories / components in a dishwasher.

Page 20 of 24
9.4 Cleaning the Motorised Floor Head
The Rotary Brush in the floor head can be removed for easy cleaning and
removable of hair etc.
Ensure the Floor Head is removed from the extension tube
or vacuum cleaner.
Turn over so that the bottom face is facing up.
There is a small locking screw on the right side which needs to be rotated 1/8
of a turn clockwise to unlock. You can use a flat blade screw driver or a small
coin.
When unlocked, swing up the cover as shown.
