anko EV-693-S296 User manual

Rechargeable Hand - Stick Vac
For Household Use Only
Model No.: EV-693-S296
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us

Page 2 of 24

Page 3 of 24
1Warnings.................................................................................. 4
2Safety Directions..................................................................... 4
3Transporting your Vacuum .................................................... 7
4Components ............................................................................ 7
5Assembly Method ................................................................... 8
5.1 Charging / Storage Stand........................................................ 8
5.2 Assembling the Extension Tube...........................................10
5.3 Removing the Extension Tube..............................................10
5.4 Attaching the Motorised Floor Head .................................... 10
5.5 Removing the Motorised Floor Head.................................... 11
5.6 Using Without the Extension Tube.......................................11
5.7 Tools and Tool Storage.........................................................11
5.8 Charging................................................................................. 13
6Using the Vacuum Cleaner................................................... 14
6.1On / Off ...................................................................................14
6.2 Speed Control........................................................................15
7Indicator Lights ..................................................................... 15
7.1 Charge Status ........................................................................15
8Emptying the Dust Canister ................................................. 15
9User Maintenance ................................................................. 17
9.1 Cleaning the Filters ............................................................... 17
9.2 Cleaning Dust Canister ......................................................... 19
9.3Cleaning the Vacuum Cleaner Body and Tools................... 19
9.4 Cleaning the Motorised Floor Head...................................... 20
10 Storage................................................................................... 21
11 Troubleshooting.................................................................... 22
13 Warranty Against Defect ...................................................... 23

Page 4 of 24
1 Warnings
Before using this appliance, read and follow all warnings and instructions in this
manual, even if you are familiar with this product.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
2 Safety Directions
Please read this instruction manual carefully before first use. It is advisable to keep
this instruction manual for future reference.
DO NOT vacuum water, wet objects, liquids, ashes, hot coals, cigarette butts,
matches or any hot, smoking or burning objects, etc.
DO NOT pick up flammable or combustible materials (i.e. lighter fluid, petrol,
kerosene, etc.) or use in the presence of explosive liquids or vapour.
DO NOT pick up toxic material (i.e. chlorine bleach, ammonia, drain cleaner, etc.)
DO NOT vacuum Toner (for laser printer, copy machines etc.) as there is a risk of
fire and explosion.
DO NOT vacuum plaster dust, cement dust etc. as the filter will block very quick.
DO NOT use the vacuum without the filter fitted.
DO NOT store or use the appliance near high temperature areas.
DO NOT run over the charger cable with the vacuum cleaner.
DO NOT use the vacuum cleaner if it is blocked. Turn off and clear all blockages
before continuing.
DO NOT use the vacuum cleaner with a blocked filter. Clean filter before
continuing. (refer to User Maintenance section).
DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise,
smell, smoke, is dropped or damaged in any manner or any breakage is found
during operation.
For electrical safety, any repairs to the product must be performed by a qualified
electrical person only, or the product must be disposed of.

Page 5 of 24
DO NOT misuse the Charger Cable. Never pull the appliance by the cable or pull
to disconnect it from the outlet. Instead, grasp the charger body and pull to
disconnect.
DO NOT use the vacuum cleaner to pick up large objects, hard or sharp objects
such as glass, nails, screws, coins, etc. that are likely to cause damage.
DO NOT use with damaged Charger Cable or Charger Body.
DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors, or
dropped into liquid (water etc.)
DO NOT handle Charger or vacuum cleaner with wet hands.
DO NOT put any objects into openings.
DO NOT use with any openings blocked and do not restrict airflow.
DO NOT use without the filter in place.
DO NOT attempt to modify this product in any way.
DO empty the Dust Canister regularly for optimal operation of the vacuum.
DO keep hair, loose clothing, fingers, feet and body parts away from openings or
moving parts.
DO disconnect the Charger from the power supply when not in use,
DO use only on dry, indoor surfaces.
DO use only as described in this manual. Use only manufacturer's recommended
attachments.
DO Keep Charger Cable away from heated surfaces.
DO Keep all openings free of dust, lint, hair, and anything that may reduce airflow.
DO use extra care when vacuuming on stairs.
DO keep your work area well lit.
DO store your appliance indoors in a cool dry area.
DO ensure children and babies cannot play with plastic bags or any packaging
materials.

Page 6 of 24
DO operate the Charger from a power source of the same voltage, frequency and
rating as indicated on the product identification plate.
WARNING
Only use the Battery Charger which was supplied with this appliance.
Model No. ZD024D350050AU 100–240V~ 50-60Hz 0.5A Output: 35.0V500mA
Battery Pack Specification: EV-693-S296-22
Type: Li-ion, 29.6Vd.c., 2200mAh
Consumers are cautioned against using and/or purchasing counterfeit and/or
inferior quality batteries. These batteries have the potential to cause fire, personal
injury, and/or damage to property. These batteries are typically found on online-
auction websites or from other retailers and are known to pose a potential safety
risk.
Never try to recharge Non-Rechargeable batteries as they may explode, catch on
fire or cause personal injury and/or damage to property.
- May explode if disposed of in fire.
- To prevent injury or burns, do not allow metal objects to contact battery
terminals.
- Do not use or store in temperatures above 40°C
The Battery Pack must be removed from the vacuum cleaner before disposal.
Contact your local waste management authority for more information on Battery
Recycling and disposal regulations in your area.
This symbol on the product or its packaging indicates:
Do not dispose of electrical appliances or batteries as unsorted municipal waste,
use separate collection facilities. Contact your local council for information
regarding the collection systems available. If electrical appliances are disposed of
in landfills or dumps, hazardous substances can leak into the groundwater and get
into the food chain, damaging your health and well-being. Please contact your local
council or regional authority for more information on collection, reuse, and
recycling programmes.
If this appliance is used by a third party, DO supply the instruction manual with it.
No liability can be accepted for any damage caused by non-compliance with these
instructions or any other improper use or mishandling of appliance.
This product has not been designed for any uses other than those specified in this
manual.
ONLY for domestic use. Industrial or commercial use invalidates the warranty.

Page 7 of 24
Read and Save These Instructions
3 Transporting your Vacuum
To move your vacuum cleaner from room to room, unplug the unit and carry
using the carry handle.
Never pull or carry the vacuum cleaner by its Charger cable.
Never carry the vacuum cleaner by the accessories / Tools.
4 Components
Note: The specifications and/or components of this appliance are subject to change without prior notice
1
Stick Vac Body / Handle
6
Battery Charger
2
Rechargeable / Removable Battery Pack
7
Motorised Floor Head
3
Dust Canister
8
Extension Tube
4
Stand
9
Crevice / Brush Tool
5
Base
10
Tool Holder
6
10
9
3
4
5
2
7
8
1

Page 8 of 24
5 Assembly Method
Please Note: Always remove the Battery Charger from the power socket
before assembly.

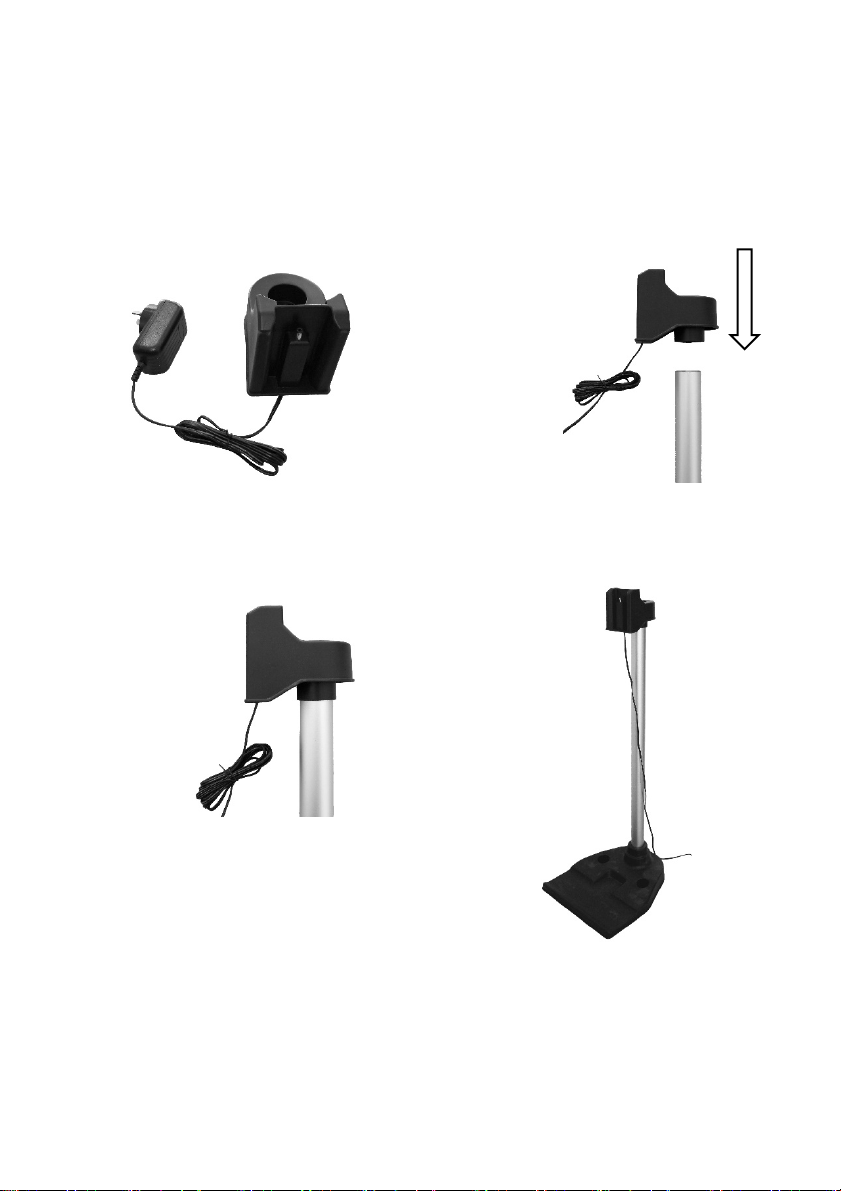

5.1 Charging / Storage Stand
The vacuum cleaner is supplied with a Charging / Storage stand and will
need to be assembled before use.
Place the base on a flat surface and take the stand post and insert one end
into the hole in the base as shown.
NOTE: The end of the tube has a slot cut out in it which needs to align with
the tab inside the base hole.
Once the slot is aligned, firmly push the tube inside the base hole until it is
fully inserted.

Page 9 of 24
Next, take the stand head unit (with the battery charger attached) and place
over the top of the tube.
NOTE: The end of the tube has a slot cut out in it which needs to align with
the tab inside the head unit hole. (with the charger cable towards the front as
shown below)
Once the slot is aligned, firmly push the head unit down onto the tube until it
is fully inserted.
The Charging / Storage Stand is now ready.

Page 10 of 24

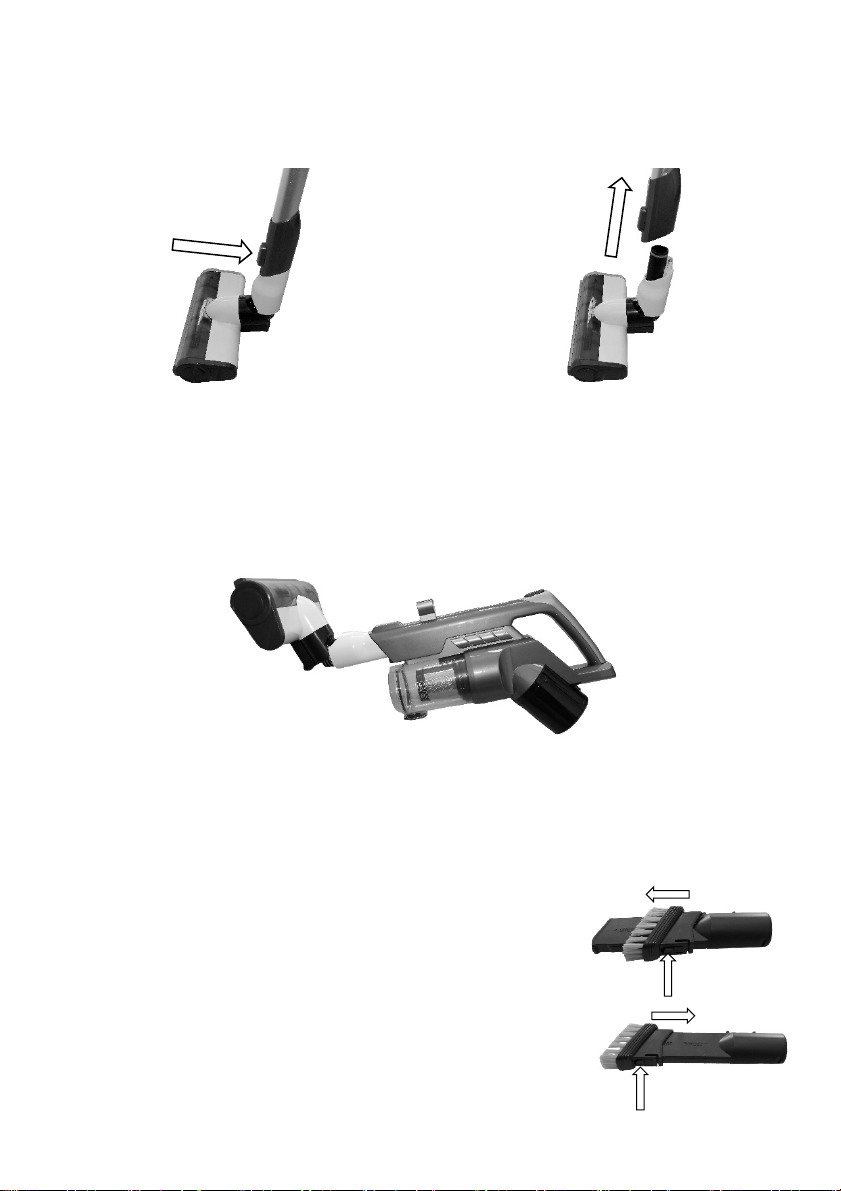

5.2 Assembling the Extension Tube
Insert the end of the Extension Tube into the mating hole ensuring the locking
tab is aligned, then push inward until it locks into place.
5.3 Removing the Extension Tube
To remove the Extension Tube, grasp the Tube, press the locking tab down
to release then pull the hose straight out.
5.4 Attaching the Motorised Floor Head
To attach the motorised floor head to the other end of the extension tube,
insert the end of the Extension Tube into the end of the Floor Head, ensuring
the locking tab is aligned, then push inward until it locks into place.

Page 11 of 24
5.5 Removing the Motorised Floor Head
To remove the Motorised Floor Head, grasp the Motorised Floor Head, press
the locking tab inward to release, then pull the Tube straight up and out.
5.6 Using Without the Extension Tube.
The vacuum cleaner can be used without the extension tube by attaching the
Accessories and Motorised Floor Head directly to the vacuum cleaner.
To attached and remove, follow the same steps as if using the Extension
tube.

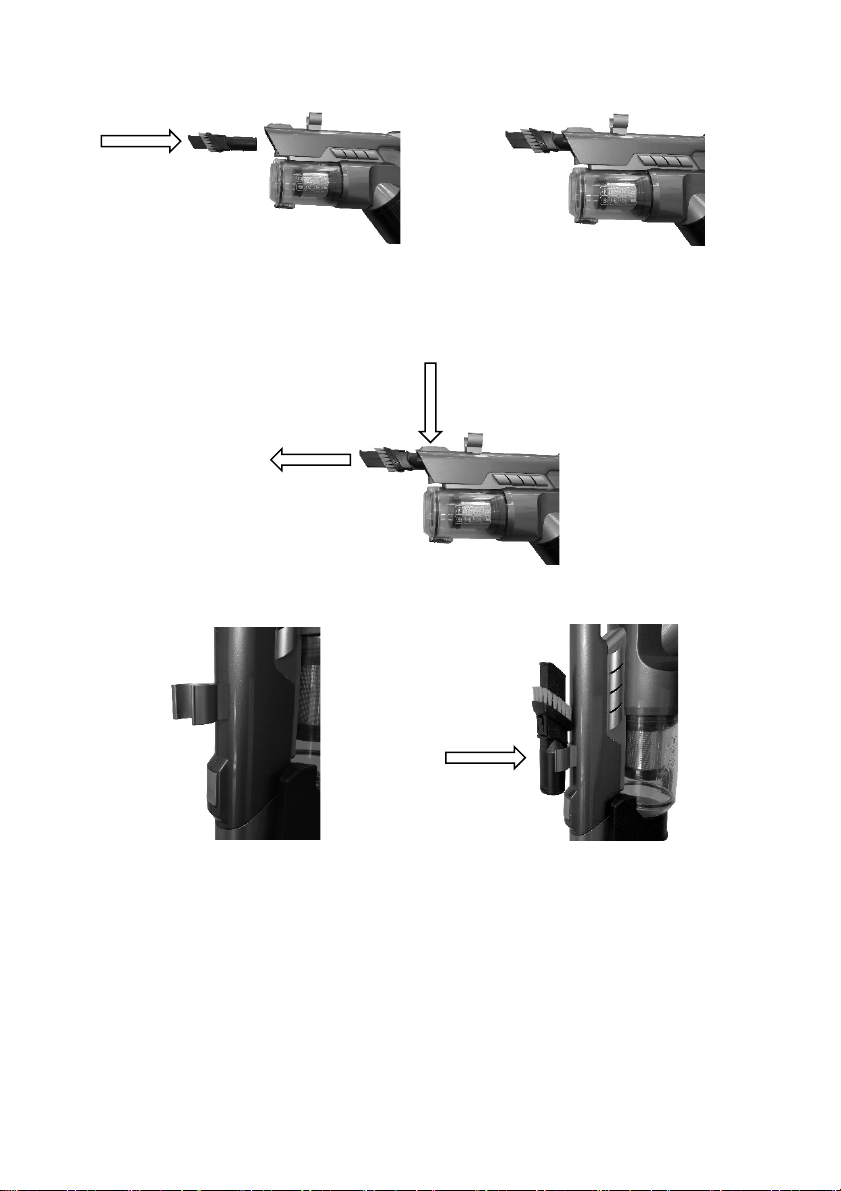

5.7 Tools and Tool Storage
Crevice / Brush Tool
Crevice / Brush tool is for cleaning furniture and into corners etc.
To use the Brush tool, press the release button to
unlatch and slide the brush down until it locks in
place.
To use the Crevice tool, press the release button to
unlatch and slide the brush up until it locks in place

Page 12 of 24
To fit the tool, line up with the end of the hand vac and push in.
Note: The tool can also be used on the end of the Extension Tube.
To remove, press the locking tab down to release and then pull the tool
straight out.
Tool Holder. Located on front of Vacuum Cleaner Body.
Attach the Tool by pushing it into the clamp as shown.
To remove, grasp the tool and pull straight out.

Page 13 of 24

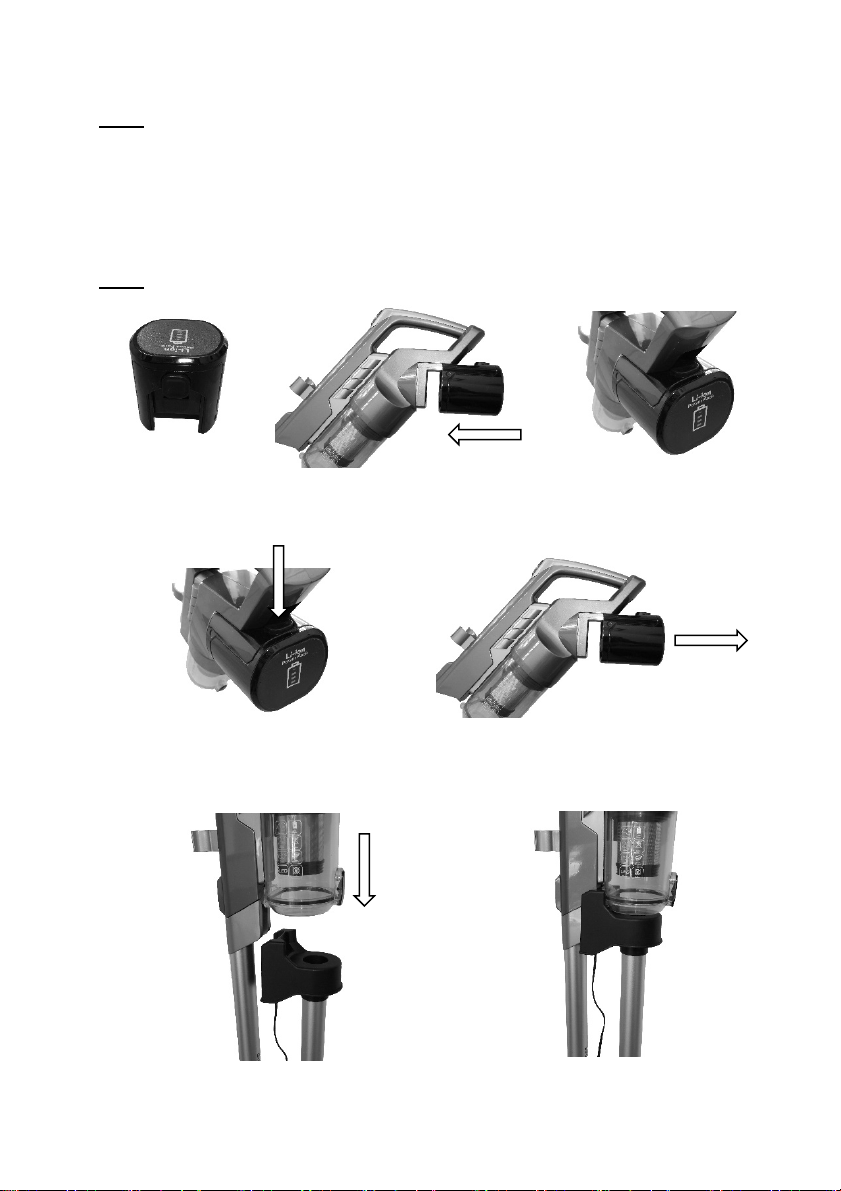

5.8 Charging
Note: Charge the Vacuum Cleaner for at least 5 hours prior to use.
Only use the Battery Charger which was supplied with this appliance.
Insert the battery into the back of the vacuum Cleaner body and push all the
way in until it locks in place.
Note: The Battery can only be inserted in one direction as shown
To Remove the battery, press the release button located on top of the battery,
and the battery will be released.
Place the vacuum cleaner onto its Charger Stand and push down ensuring it
is seated properly.

Page 14 of 24
Plug the Battery Charger into the power point and switch on.
During Charging, the indicator light bars on the back of the battery will
illuminate in a rolling fashion indicating the battery is charging.
All the bars will be illuminated and be steady when fully charged.
When the battery is fully charged, switch off and unplug the battery charger
from the power supply.
When fully charged, the Vacuum Cleaner is ready for use.
NOTE: NEVER BLOCK ANY VENTS OR OPENINGS.
6 Using the Vacuum Cleaner
6.1 On / Off
To use the Vacuum Cleaner, assemble the unit as previously instructed and
ensure the battery is fully charged.
When the High-Speed setting is selected, the fully charged battery will provide
approximately 15 minutes of power for continuous use of the vacuum cleaner.
When the Low-Speed setting is selected, the fully charged battery will provide
approximately 55 minutes of power for continuous use of the vacuum cleaner.
To switch on, press the top button on the handle once. The vacuum cleaner
will start in low power mode.
Press the same button again to turn Off.
Note: The vacuum cleaner cannot be started when on the charging stand.

Page 15 of 24
6.2 Speed Control
Whilst the vacuum cleaner is running, press the lower button on the handle
once. The vacuum cleaner will change to high power mode.
Press the same button again and it will change back to low power mode.
Press the On / Off button to turn Off.
7 Indicator Lights
7.1 Charge Status
Refer to the section “Charging” for the indicator light function
during charging.
As the battery charge is used, the illuminated indicator lights will
change from four bars to three to two, two to one.
When it reaches the “one” light, it will flash indication the battery needs
recharging.
The vacuum cleaner will automatically turn off when the battery is flat and
needs recharging.
8 Emptying the Dust Canister
To empty the dust canister, first remove the Dust Canister from the vacuum
cleaner.
Grasp the dust canister body, and whilst holding the
vacuum cleaner body, twist the dust canister clockwise
(from looking down from the top) and pull down to
remove it.

Page 16 of 24
Take the dust canister to a dustbin.
Press the Trap Door release button inward to release the
latch and the trap door will swing open emptying the
contents into the bin.
To close the trap door, close it manually until it clips shut.
Empty the Dust Canister as frequently as possible or
when the suction power is reduced or after use for
optimum performance.
Note: At the same time, you can brush the inside of the dust canister with a
small brush or use water to wash Refer to section “Cleaning the Filter”.
To refit the Dust Canister into the vacuum cleaner, ensure the trap door
release button is facing the outside and then push up into the vacuum cleaner.
Align the “Open Padlock” icon arrow on the side of the dust canister with the
arrow on the vacuum cleaner body and then rotate the dust canister
anticlockwise (from looking down from the top) until it locks in place and the
“Closed Padlock” icon arrow on the side of the dust canister aligns with the
arrow on the vacuum cleaner body as shown.

Page 17 of 24
9 User Maintenance
WARNING: The battery must be removed from the vacuum cleaner before any
maintenance, cleaning or replacement of parts.
NOTE: To maximise the performance of your vacuum cleaner, you should
clean the filters regularly.
If the filter is broken or worn, replace it before continuing to use the vacuum.
A Filter can be purchased from our Customer Service. You can call our
customer service number: 1300 105 888 (Australia) and 09 8870 447 (New
Zealand), or via email [e-mail]
9.1 Cleaning the Filters
Important Note – The Filters must be cleaned regularly for the best suction
performance and to prevent over-heating and damage to your vacuum
cleaner.
Cleaning is best done at the same time when emptying the dust Canister
after you have finish vacuuming for the day.
NOTE: Never use the vacuum cleaner with a wet or damp filter or without the
filter fitted.
Using a wet or damp filter will damage the filter, may cause serious damage
to the vacuum cleaner and will void your warranty.
Note: Only wash the white filter if it is very dirty, otherwise just tap the edge
of the filter on a hard surface to dislodge any dust and debris.
To access the filters, first remove the dust canister from the vacuum cleaner
body as described in the section “Emptying the Dust Canister”.
Grasp the handles of the filter and pull up and out to remove.

Page 18 of 24
Next, disassemble the filters into their separate components for cleaning.
Grasp the two handles of the filter and rotate anticlockwise to unlock.
Pull up and out to separate.
Wash the filters in warm mild soapy water, rinse in clean fresh cold water
and let completely dry.
DO NOT scrub the filters or place in a dishwasher.
DO NOT use a hair drier to dry the filters.
Refit the Filters (or replace the white one with a new one) in the reverse
method used for disassembly.
IMPORTANT: When refitting the filter assembly back into the dust canister,
it must be fitted in the correct orientation.
To ensure this happens, there are three tabs on the edge of the filter which
align with three slots in the dust canister.
Rotate the filter assembly until the tabs align with the correct slots and then
drop in.

Page 19 of 24
9.2 Cleaning Dust Canister
Remove the dust canister as described previously and remove the Filter
assembly as described previously.
Wash the dust canister in warm mild soapy water, rinse in clean fresh cold
water and let completely dry.
DO NOT scrub the dust canister or place in a dishwasher.
DO NOT use a hair drier to dry the dust canister.
Reassemble and Refit the in the reverse method used for disassembly.
9.3 Cleaning the Vacuum Cleaner Body and Tools
Do not clean the vacuum cleaner, components or accessories using petrol
or any other flammable liquid or solvents, etc.
Clean only the outside of the vacuum cleaner.
Use only a moist cloth and mild detergent for cleaning the vacuum cleaner,
components and accessories.
After cleaning, wipe off the moisture on vacuum cleaner, components and
accessories with a dry cloth.
Do Not place accessories / components in a dishwasher.

Page 20 of 24
9.4 Cleaning the Motorised Floor Head
The Rotary Brush in the floor head can be removed for easy cleaning and
removable of hair etc.
Ensure the Floor Head is removed from the extension tube
or vacuum cleaner.
Turn over so that the bottom face is facing up.
There is a small locking clip on the right side which needs to be rotated ¼
turn anticlockwise to unlock. You can use a flat blade screw driver or a small
coin.
Grasp the floor head and rotate the end cap anticlockwise to unlatch and
then pull straight out and off.
