Anova TP3002 User manual

Instructions - User manual
BATTERY PRUNING SHEARS
TP3002
Millasur, SL.
Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro
15688 - Oroso - A Coruña 981 696465 www.millasur.com
EN

ANOVA thanks you for choosing one of our products and
guarantees the assistance and cooperation that has always
distinguished our brand over time.
This machine is designed to last many years and to be very useful if it is
used according to the instructions contained in the user manual. We
therefore recommend that you read this instruction manual carefully and
follow all our recommendations.
For more information or questions you can contact us through our web
supports such as www.anovamaquinaria. com.
INFORMATION ABOUT THIS MANUAL
Pay attention to the information provided in this manual and on the
appliance for your safety and the safety of others.
•This manual contains instructions for use and maintenance.
•Take this manual with you when you go to work on the machine.
•The contents are correct at the time of printing.
•They reserve the rights to make alterations at any time without
affecting our legal responsibilities.
•This manual is considered an integral part of the product and must
remain with it in case of loan or resale.
•Ask your dealer for a new manual in case of loss or damage.
READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE
To ensure that your machine provides the best results, please
read the use and safety regulations carefully before using it.
OTHER WARNINGS:
Incorrect use could cause damage to the machine or other objects.
The adaptation of the machine to new technical requirements could
cause differences between the content of this manual and the
purchased product.
Read and follow all instructions in this manual. Failure to follow these
instructions could result in personal injury.

Content
1. Items in the box
2. Product description
2.1 General instructions
2.2 Intended use
2.3 Technical data
2.4 Identification of parts
3. Use and maintenance
3.1 Commissioning
3.2 Tips for use
3.3 Battery charging
3.4 Special attention
3.5 Blade sharpening
3.6 Blade replacement
4. Maintenance
4.1 Scissor maintenance
4.2 Battery maintenance
5. Safety instructions
6. Recycling and the environment
7. Warranty
8. CE certificate

1. Items in the box
The tool includes the following components in the carrying case with which it is supplied.
1. electric pruning shears
2. Lithium batteries x2
3. Charger
4. Tool kit and lubrication
2. Product description
2.1 General instructions
1. Read the instructions in their entirety.
2. Battery charging must only be carried out in protected indoor places.
3. As it is double insulated, it is not necessary to ground when handling this tool.
4. It is distributed with a safety load transformer.
5. If there is overheating in the battery charge, it will automatically stop the charging process.
6. Do not dispose of chargers in household waste.
7. Do not dispose of exhausted or damaged batteries in household waste.
2.2 Intended use
The pruning shears with the bead is an electric tool and consists of a fixed blade, a mobile cutting
blade, a lithium battery, an adapted charger, a connection cable, a tool bag and a transport case.
The charging voltage ranges from 110V-240V AC.
The main application of this scissors is for the pruning of branches in fruit trees, treatment and
maintenance of orchard or fruit plants such as vineyards or similar. This tool achieves great work
efficiency and saves a lot of time and effort compared to traditional manual pruning with mechanical
shears. Its efficiency is established between 8 and 10 times higher than manual pruning. The quality
of the cut and its speed is also notably superior to thetraditional manual pruning.

2.3 Technical data
BASIC INFORMATION ABOUT PRUNING SHEARS
Working voltage DC 21V
Weight 1.2 Kg (connection cable not included)
Battery Lithium Ion 21V 2Ah
Charging voltage AC 110V - 240V
Battery charging time 2-3 hours
Working time 3 - 4 h (discontinuous work)
CUTTING RANGES
Cutting diameter 30mm
Working temperatures -10ºC -65ºC
Read all safety instructions carefully. You may suffer electric shock, fire or burns if you do
not follow the safety instructions.
Do not use or directly expose the pruning shears to rain.
While working with the pruning shears, do not close or manipulate the cutting blades with
your hands. Take special care to bring any part of your body close to sharp moving parts.

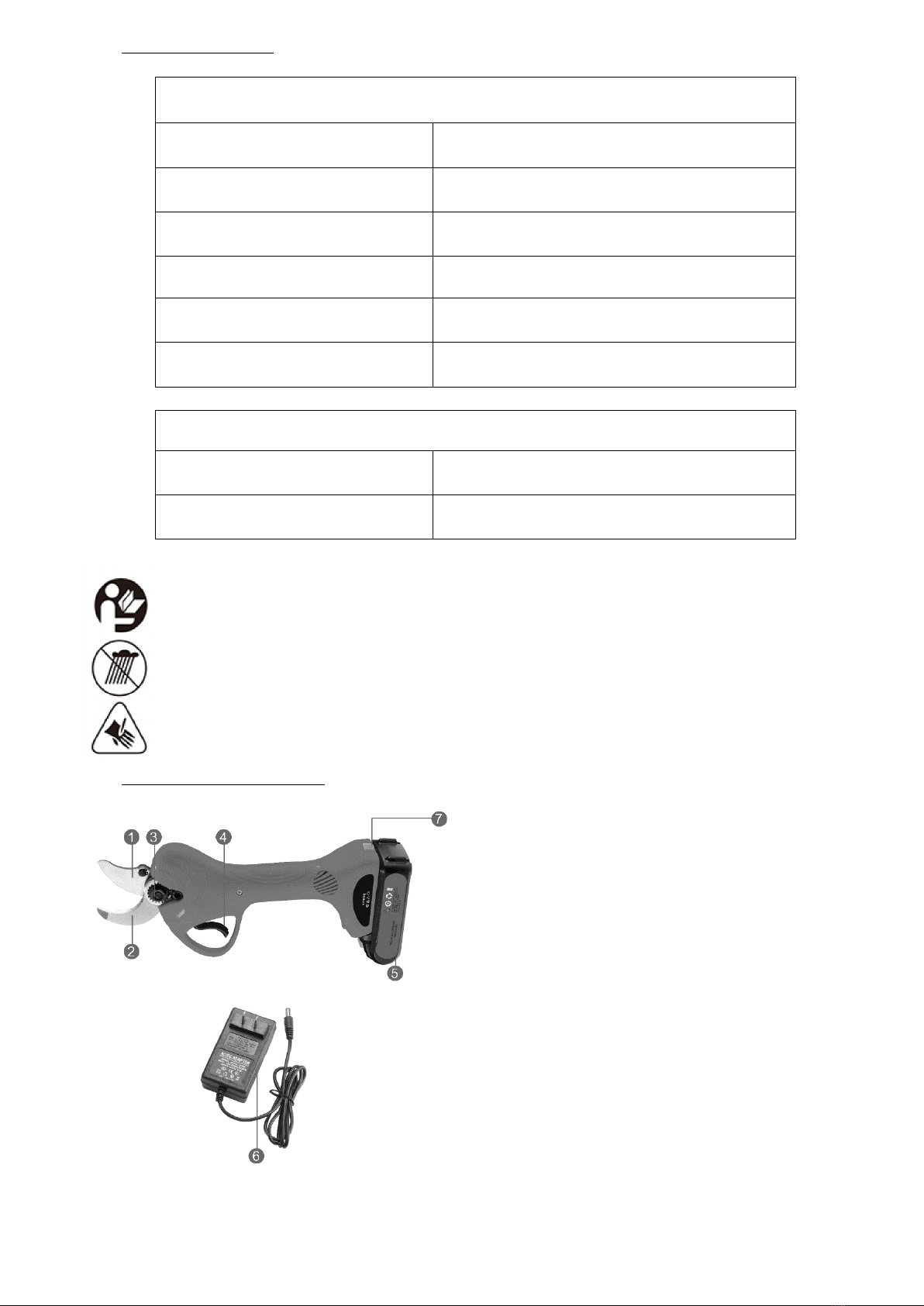

2.4 Identification of parts
1. Cutting blade
2. Cutting blade support
3. Gear
4. Actuation trigger
5. Lithium battery
6. Battery charger
7. On/off switch

3. Use and maintenance
3.1 Commissioning
1. Remove the machine from the packaging. Install the lithium battery, press and hold the power switch
for three seconds, and then release it. You should hear the sound of two beeps; this means that the
battery is normally charged.
2. Press the trigger continuously and quickly twice to open the blade automatically.
3. Before starting work, press the trigger to operate the blade several times and listen for unusual noises
or working speed that is too fast or too slow. If everything is normal, you can start working.
4. Shutdown: Press the trigger and release after you hear a beep three times. The blade will close
automatically.
3.2 Tips for use
Note:(1) The machine may overheat after a long time of use, this is a normal phenomenon. Let the
machine cool down for a while, and you can use it again when the temperature drops.
(2) After completing the pruning work, at the end of the season, or when replacing the blade, and need to
remove the blade, please add lubricating oil for the maintenance of the blade and cutting system.
While pruning, start pruning about 8mm from the shoot; the maximum cutting diameter is
30mm.
Prune at the furthest part of the shoot to prevent sap loss from the plant.
Do not prune branches too far down the tree, as this will reduce the health of the plant.
Leave a small section of the branch to avoid stress to the plant.
While you are working with the scissors, keep your hands away from the cutting blades
and wear suitable gloves and protective equipment.
Remove diseased shoots and remove dead branches on the plant.
When pruning a tree, prune each branch separately and do not cut multiple branches at
once.
3.3 Battery charging
The battery of a new machine is not fully charged. Before charging,
insert the battery into the charger and insert the charger plug into the power
outlet. As shown in the image on the right, the red indicator light shows that
the battery is charging; the green indicator light indicates that the battery is
charged. Use the scissor after full battery charges.
3.4 Special attention
1. Before charging, please turn off the switch; During charging, it is normal to have a slightly warm
charger and batteries.
2. If the batteries are not used for a long time, they need to be recharged every 3 months to increase the
service life;
3. New batteries or batteries not used for a long time will reach full capacity after 5 times of charge-
discharge cycles;
4. Do not charge the batteries repeatedly after several minutes of operation, this may reduce the working
time and the effectiveness of the batteries.

5. Do not use damaged batteries or disassemble the charger or batteries.
6. Batteries may explode in fire. Never burn batteries.
7. Do not charge batteries outdoors or in humid environments.
8. With the gradual decrease of the electric quantity of the battery, it is normal to reduce the capacity of
the cutting diameter.
9. During the charging process, do not use electric pruning shears.
3.5 Blade sharpening
1. Turn off the shear with open blade and remove the battery.2. Both sides of the movable blade are
sharpened using a sharpening stone at the angle of section with the blade;3. After sharpening the blade,
clean it, connect and turn on the scissor, test that it moves correctly and close the blade for future work.
3.6 Blade replacement
1. To ensure your safety, please remove the battery before handling the blade.2. Step by step as below
replace the blade.3. After the replacement, clean the blade, turn on the shear and test to see that
everything is correct.

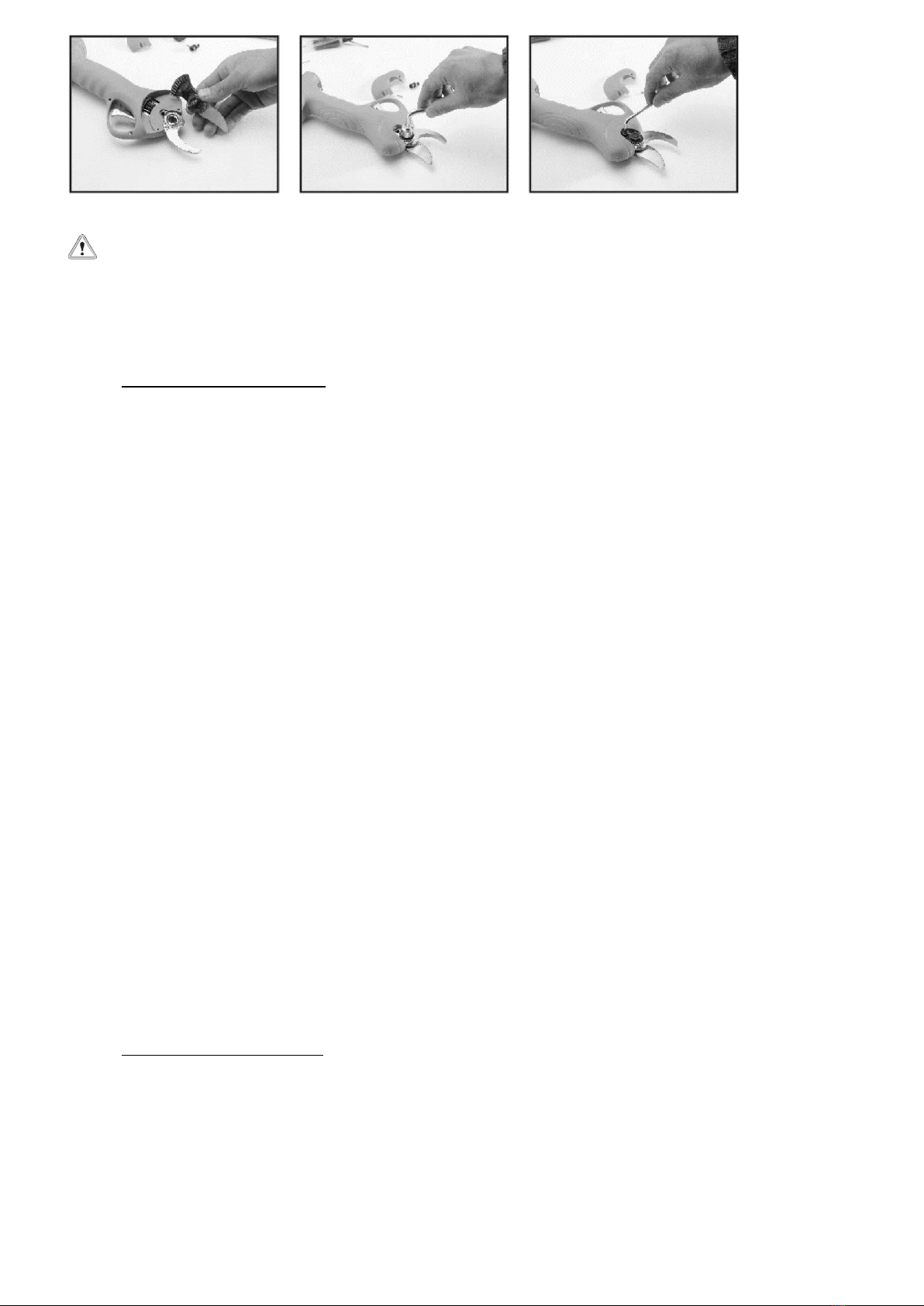

1. Remove the screws with a screwdriver and open the cover.2. Remove the screws from the blade nut
retainer (this step is important) 3.Remove the blade nut
4. Disassemble the pin and remove the movable blade5. Remove the stationary knife.
6. When replacing the blades, lubricating oil should be added between the blades

7. Replace blade8. Insert nut9. Install lock nut
Support knife and movable knife can be replaced independently; As a replacement, don't worry
about too small a blade opening; After recovering the electricity of the scissor, the normal opening size
will recover automatically.
4. Maintenance
4.1 Scissor maintenance
1. Do not cut branches outside the cutting range; do not cut non-vegetable materials, such as metals and
stones, etc. do not use clamps or the like to hold the scissors; always replace the cutting blade, if it is
worn or damaged.
2. Keep the cutting equipment clean, clean the scissors, batteries and charger with a clean cloth (do not
use corrosive detergents!) and a soft brush or dry cloth to clean the dust on the upper scissors.
3. Do not immerse scissors, batteries, and charger in water or other liquids;
4. Use the equipment correctly; stop using it when there is damage to the scissor, batteries and/or
chargers.
5. If the switch can't turn the scissor on or off, please don't use the scissor. It will be dangerous to control
the scissor without the switch properly. Replace and repair the switch in this case always before using
the scissor again.
6. Make sure the switch keeps the shear off when replacing accessories or storing the pruning shears.
Such a preventative measure will reduce the risk of accidentally activating the scissor and causing injury
to the user.
7. Turn off the pruning shears if you are not going to use them and store them out of the reach of
children. It is dangerous to allow inexperienced persons and untrained users to operate the pruning
shears.
8. When using pruning shears, respect the tool and its specific use for which it was designed. Consider
the work environment and the tasks to be performed; You can cause hazards and damage by using
improperly functioning pruning shears.
9. After use, please remove the dirt on the movable knife and the supporting knife, add lubricating oil or
motor oil on the contact part, make the knife keep in good sharp state to extend its service life and to
next uses.
4.2 Battery maintenance
1. Use the battery as the only valid power source for your electric pruning shears. Do not use the
battery as a power source for any other power tools not listed.
2. Do not charge the battery in temperatures below 0ºC or above 45ºC; this can damage the battery
and charger.
3. Make sure the battery switch is turned off before connecting the power cord; if it were open it could
create a problem when connecting to the scissor.
4. Use only the charger assigned by the manufacturer to charge the battery; It may cause battery fire

or explosion if you use chargers with improper power.
5. When the battery is not in use, be sure to keep it away from metal objects such as clips, coins, keys,
screws, etc., which may shorten the battery charge or cause unintentional discharge or fire hazard.
6. Do not disassemble or rebuild the battery.
7. Do not use damaged or short-circuited batteries.
8. Do not place the battery on hot surfaces or heat sources; Do not expose it directly to the sun.
9. Do not put the battery near fire or in contact with water.
10. Do not charge the battery near fire or under direct sunlight.
11. Do not drive nails or other objects into the battery; do not hit it with hammers or trample on it, and do
not throw the battery on the ground hastily.
12. Do not use damaged or deformed batteries.
13. Do not solder batteries directly.
14. Do not reverse charge batteries; Please do not use them in an anti-polar way or discharge them
excessively.
15. Do not connect the battery to charging sockets or car cigarette lighter sockets.
16. Do not use the battery in unsuitable or approved equipment.
17. Do not connect several batteries in a network.
18. Do not connect the battery with other lithium batteries directly.
19. Do not put the battery in containers with high temperatures or high pressure, such as microwaves,
etc.
20. Do not use batteries that are leaking.
21. Do not allow children access to the battery.
22. Do not use or place the battery directly under the influence of the sun (or in cars under direct
sunlight); it can cause overheating and cause a fire in the battery; or shorten its life cycle without
further ado.
23. Do not use the battery in places with influence of static energy (+ 64 V)
24. When using the battery for the first time, stop using it and return it to your sales center if: there is
any kind of corrosion, unpleasant odors or other strange phenomena.
25. If there has been any leakage on the skin or clothing of the internal battery fluid, wash it immediately
with plenty of water.
26. If the scissors are to be stored for a long time, fully charge the battery before storing.
5. Safety instructions
ATTENTION: Please read these instructions carefully to avoid damage such as electric shock, fire or
other serious damage.
Location:
1. Work in clean, uncluttered areas. Work in bright areas. Dark or messy workplaces can cause
accidents.
2. Do not use the scissors in places with risk of fire, explosives or humidity.
3. Avoid distractions at work and invite any children or passersby leaving the work area to prevent
them from entertaining you.
Electricity:
1. The electric plug of the battery and the one of the scissor should be easily attached; do not connect
any other socket instead.
2. Do not expose the scissors or the battery to rain or very humid environments. Water or other liquids
may increase the risk of electric shock or damage to other electrical appliances.
3. Do not force the connection cables; do not use power cords as ropes or points from which to drag or
hold the tool directly. Do not pull on the cable to unplug the connections. Keep the scissor and its
cables away from sources of heat, oil, sharp edges or moving parts. Do not use the charger if the
power cord or plug is damaged.

Staff:
1. Stay alert: while using the scissors be aware of the elements that may exist in your work area; Do
not use the scissors if you are tired, or under the influence of medication or drugs that affect your
abilities. Any distraction can cause serious damage.
2. Use protective elements and always wear protective glasses, anti-dust mask, anti-slip footwear and
a safety helmet. Use each item under its proper conditions of use to reduce the risk of accidents.
3. Before connecting the pruning shears, remove any tools used for adjustment or maintenance. Avoid
contact of the scissors with parts that could cause accidents.
4. While you are working, do not overstretch your arms and work in a stable and comfortable position;
Do not handle the burning scissor directly with your hands. Make sure that the work area does not
have other materials that could be damaged while pruning, such as power cables, wires, etc.; and
maintain a balanced position to ensure a good reaction in the event of an accident or fall.
5. Dress appropriately for the work to be performed: do not wear very loose clothing or with the risk of
being caught in the scissors or in other trees for your discomfort or insecurity; keep hair, clothing
and sleeves away from the cutting area of the scissors.
General:
1. When you do not have any branches to be cut by the shear, release the trigger and hold the shear in
its open position.
2. When the branches are very tough, release the trigger and the blade will return to the open position
to withdraw and try cutting in another area.
3. If the battery does not charge normally, please check whether the charger is suitable for the battery
first, and then check whether the charging voltage is suitable with that of the battery.
4. If there is any electrical or mechanical damage, turn off the battery immediately.
5. If the battery is leaking; do not touch the liquid under any circumstances; if you come into contact
with the liquid, wash immediately with plenty of water; If the liquid gets into your eyes, see a doctor
immediately and rinse with plenty of water.
6. Recycling and the environment
If your machine needs to be replaced after prolonged use, do not put it in the
household waste, dispose of it in an environmentally safe way and in accordance with
the legal provisions in this regard in your locality.
7. Warranty
This product is guaranteed in accordance with legal regulations for a period of 24 months from the
date of purchase by the first user.
This guarantee covers all material or production faults, it does not include defects in normal wear
parts, such as bearings, brushes, cables, plugs or other accessories such as drills, bits, saw blades,
etc., damages or defects resulting from abuse, accidents or alterations in the product; nor the costs
of transport to technical service in your case.
We reserve the right to reject any claim where the purchase cannot be verified or where it is clear
that the product was not properly maintained. (Clean ventilation slots, regularly maintained carbon
brushes, sharpening of cutting blades, state of cleanliness and lubrication, etc.)
Your purchase invoice must be kept as proof of the date of purchase and application of the
corresponding guarantee.
Your tool must be returned without disassembling to your distributor in an acceptable and clean
state, in its original molded box, if applicable to the unit, accompanied by your proof of purchase for
any type of claim or incident.

8. CE certificate
DISTRIBUTION COMPANY
MILLASUR, SL
RUA EDUARDO PONDAL, Nº 23 PISIGÜEIRO
15688 OROSO - A CORUÑA
SPAIN
EC DECLARATION OF CONFORMITY
In compliance with the different CE directives, this document confirms that, due to
its design and construction, and according to the CE mark printed on it by the
manufacturer, the machine identified in this document complies with the pertinent and
fundamental health and safety requirements. of the aforementioned EC directives. This
declaration validates the product to display the CE symbol.
In the event that the machine is modified and this modification is not approved by
the manufacturer and communicated to the distributor, this declaration will lose its value
and validity.
Name of the machine: BATTERY PRUNING SCISSORS
Model: TPB3002
Recognized and approved standard to which it conforms:
Directive 2006/42/CE / Directive 2014/30/EU / Directive 2014/35/EU
Company seal
11/11/2019
