Network Master Pro MT1040A: Main Frame
The Network Master Pro MT1040A is a multiplatform designed for field testing that is configured using a combination of transport and optical. The
Main Frame controls the test modules which can be changed freely to any custom configuration matching the users testing requirements.
Network Master Pro MT1040A Main Frame
9-inch active TFT display and touch screen Power switch
AUX (D-SUB 15 pin)
USB
Mini-B
USB A
DC Input (19 Vdc)
Ethernet Service Interface
Clock Input
MT1040A Main Unit
Model/Order No. Name
MT1040A Network Master Pro
Standard Accessories
MT1040A-006 High Power Supply*1: 1 pc
Line Cord*2: 1 pc
B0745A Softcase: 1 pc
B0771A*3MT1040A Rear Panel kit: 1 pc
G0418A AC Adaptor: 1 pc
G0413A Li-ion Battery: 2 pcs
W4039AE Quick Reference Guide: 1 pc
Z1746A Stylus: 1 pc
Z2077A Utilities ROM: 1 pc
Z2082A Handle: 1 pc
Software Option*4
Model/Order No. Name
MT1040A-003*5Connectivity for WLAN/Bluetooth
MT1040A-011 Site Over Remote Access Connect
Option for Two Transport Modules*6
Model/Order No. Name
MT1040A-020 Activate for 400G Dual/100G Quad Option
Standard Accessories
G0419A AC Adapter (400 W)
*1: The presence of the MT1040A-006 option can be recognized at the top right
of the front panel. To retrofit it, please contact sales representative.
Without MT1040A-006 With in MT1040A-006
*2: One line cord is attached to the area to shipment.
*3: Composed of B0720A, B0730A, B0731A, B0740A and B0741A.
*4: These options can be retrofitted.
The Model/Order No. of retrofit options is “-3**”.
Example
MT1040A-003 Connectivity for WLAN/Bluetooth becomes MT1040A-303
Connectivity for WLAN/Bluetooth Retrofit.
When retrofitting an option, please either specify one of the following media
along with the relevant option, or Web download.
Z1849A: DVD-ROM for Retrofit Options
Z1850A: USB Stick for Retrofit Options
*5: WLAN is available for certified countries and regions including USA, Japan and
EU countries. Please visit the Anritsu web site for updated information.
*6: Can be added to main unit in which MT1040A-006 already installed. However,
battery operation is not possible when installing two transponder modules
together.
Module Configuration
2U
3U
4U
5U
400G (QSFP-DD) Multirate Module MU104014B
400G (OSFP) Multirate Module MU104015A
100G Multirate Module MU104011A
10G Multirate Module MU100010A1
100G Multirate Module MU100011A
1310/1550 nm SMF MU100020A
1310/1550/850/1300 nm SMF/MMF MU100021A
1310/1550/1625 nm SMF MU100022A
1310/1550/1650 nm SMF MU100023A

4
Select testing requirements
Use this flowchart to select options when purchasing a new MT1040A.
New Purchase Flowchart
Select Protocol
Select the model for
choosing the measurement
protocol port number,
options, etc., from 1-4-1
Selecting Protocol Options.
Page 9
Select Protocol
Select the model for
choosing the measurement
protocol port number,
options, etc., from 1-3-1
Selecting Protocol Options.
Page 8
Select Protocol
Select the model for
choosing the measurement
protocol port number,
options, etc., from 1-5-1
Selecting Protocol Options.
Page 10
Select Protocol
Select the model for choosing the
measurement protocol port
number, options, etc., from 1-1-1
(MU104014B) or 1-2-1 (MU104015A)
Selecting Protocol Options.
Page 6, 7
Select the type of interface to measure
(10G) Up to 10G dual port.
(100G Single) 100G, 40G and 25G with single port. Up to 10G are with two ports which are restricted to be same protocol(Ethernet, OTN, FC, SDH/SONET)
(100G Dual) Up to 100G with independent dual port.
(200G/400G) 200G/400G single port.
Select Optical I/F
Select the model for choosing the optical module frequency and bit rate from 1-6 Selecting Optical Transceiver for Transport Module.
Page 11
Select Transport Test Options
Select the model for choosing the required options from 1-7 Selecting Transport Test Option.
Page 12
Selecting Main Frame Accessories Check the main frame power supply from 3-1 MT1040A power supply option.
Select the main frame application parts from 3-2 MT1040A Selecting Common Application Parts.
Select the model from 3-4 Remote Software Service.
Select the model for the extended hardware warranty from 3-3 MT1040A Selecting Extended Warranty
Page 18 to 21
Record the purchased model and name in the MT1040A configuration confirmation order sheet.
Page 30
MT1040A
Choose the mainframe and mainframe options.
Page 3
Choose MU100010A1
Page 9
Choose MU104011A
Page 8
Choose MU100011A
Page 10
Choose MU104014B for QSFP-DD
400G/200G 100G Dual
Page 6
Choose MU104015A for OSFP,
400G, 100G Single
Page 7
10G 100G Dual100G Single 200G/400G
Confirming comms quality such as OTN, Ethernet, etc.
Unit size:
1U
Unit size:
2U

5
Select the type of optical fiber to measure
Single Model only
Both Single and Multimode fiber
Select Dynamic Range
Select the model with the
required test wavelength and
dynamic range from 2-1-1
Selecting Dynamic Range.
Page 13
With/Without Visible Light Source
Select the model with built-in
visible light source if required
from 2-1-3 Selecting Visible
Light Source Option.
Page 13
Selecting OTDR Test Options
Select the models with the option choices from 2-5-1 OTDR Module Conversion Connector Adapters,
2-5-2 Optical Fiber Conversion Adapters, and 2-5-3 Others.
Page 17
Select Connector
Select the model with the
required connector type from
2-1-2 Selecting Polish Type/
Connector Adapter.
Page 13
Select Dynamic Range
Select the model with the
required test wavelength and
dynamic range from 2-3-1
Selecting Dynamic Range.
Page 15
With/Without Visible Light Source
Select the model with built-in
visible light source if required
from 2-3-3 Selecting Visible
Light Source Option.
Page 15
Select Connector
Select the model with the
required connector type from
2-3-2 Selecting Polish Type/
Connector Adapter.
Page 15
Choose MU100020A
Page 13
Wavelength select
Choose MU100022A
Page 15
Single Model only
2 Wavelength
(1310/1550 nm) (1310/1550/
1625 nm)
(1310/1550/
1650 nm)
3 Wavelength
Both Single and Multimode fiber
Checking optical fiber breaks and quality
Select Dynamic Range
Select the model with the
required test wavelength and
dynamic range from 2-4-1
Selecting Dynamic Range.
Page 16
With/Without Visible Light Source
Select the model with built-in
visible light source if required
from 2-4-3 Selecting Visible
Light Source Option.
Page 16
Select Connector
Select the model with the
required connector type from
2-4-2 Selecting Polish Type/
Connector Adapter.
Page 16
Choose MU100023A
Page 16
3 Wavelength
Select Dynamic Range
Select the model with the
required test wavelength and
dynamic range from 2-2-1
Selecting Dynamic Range.
Page 14
With/Without Visible Light Source
Select the model with built-in
visible light source if required
from 2-2-3 Selecting Visible
Light Source Option.
Page 14
Select Connector
Select the model with the
required connector type from
2-2-2 Selecting Polish Type/
Connector Adapter.
Page 14
Choose MU100021A
Page 14
Unit size:
1U

6

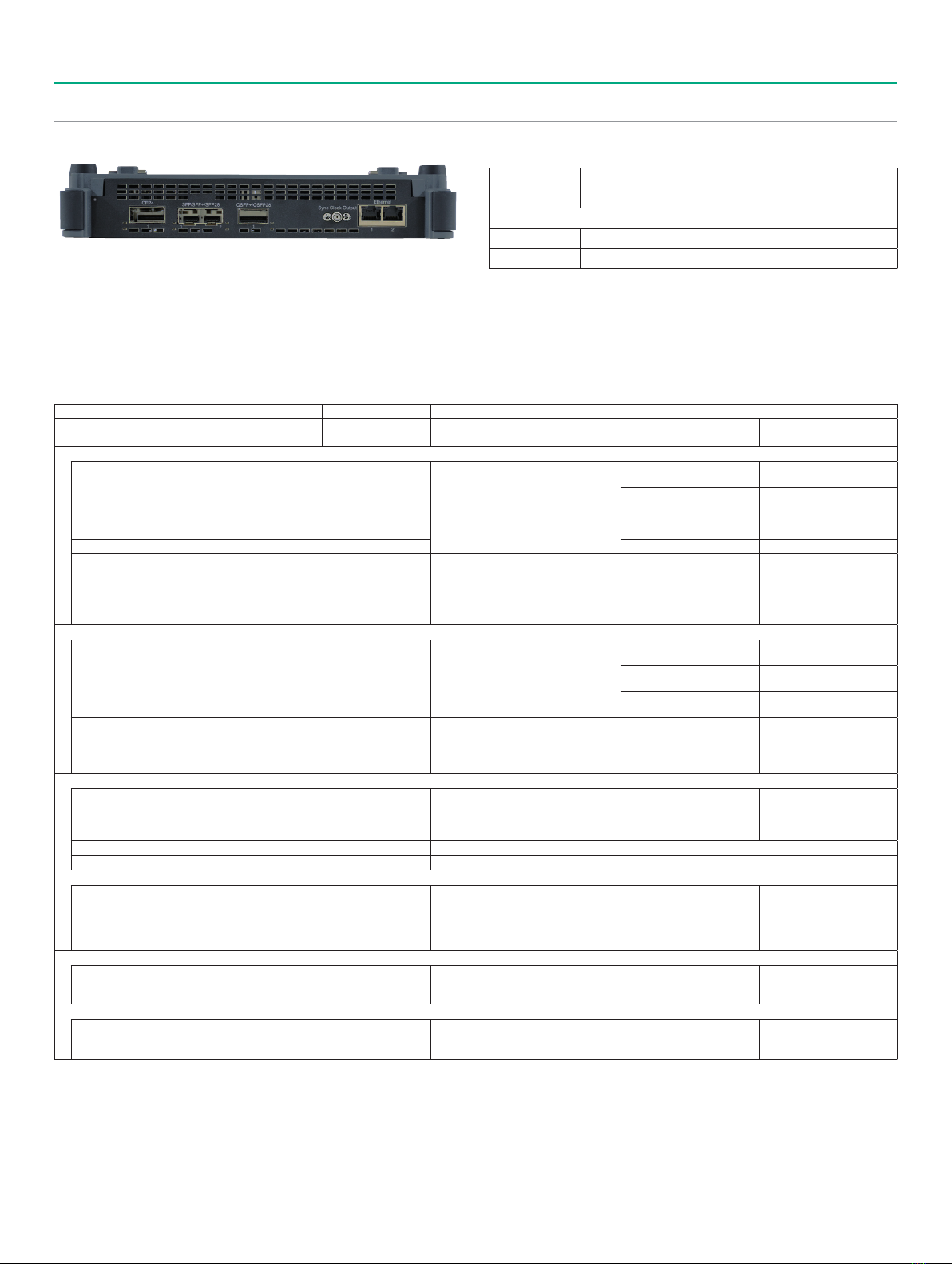

1-1 400G (QSFP-DD) Multirate Module MU104014B
The 400G (QSFP-DD) Multirate Module MU104014B supports
communications network technologies from 10 Mbps to 100 Gbps with
dual ports and from 200 Gbps to 400 Gbps with single port. It has the
functions and performance required for network I&M tests. In addition,
optional test protocols can be selected and added. This excellent
expandability helps cut initial capital costs and supports introduction of
new functions matching the work schedule.
New Purchase
Transport Module
1-1-1 Selecting Protocol Options
The protocol options are software options for transport technologies supporting each bit rate.
At least one Channel option must be selected from the following list.
MU104014B Bit Rate 10G or less 16G or 25G 40G or 100G 200G or 400G
Transport Technology No. of Measurement
Ports*12 (Dual Channel) 2 (Dual Channel) 1 (Single Channel) 2 (Dual Channel) 1 (Single Channel)
Ethernet
IPv4/IPv6, Y.1564, IEEE 1588 v2, RFC 2544, BER, Multistream,
OAM, SyncE, MPLS, MPLS-TP, Multistage VLAN, PBB,
Ping/Traceroute, In-band Control, Auto discovery, Reflector
MU104014B-012
Ethernet up to 25G Dual Channel
MU104014B-013
Ethernet 40G
Single Channel
MU104014B-014
Ethernet 40G
Dual Channel
MU104014B-031
Ethernet 200G
Single Channel
MU104014B-015
Ethernet 100G
Single Channel
MU104014B-016
Ethernet 100G
Dual Channel
MU104014B-033
Ethernet 400G
Single Channel
Pass-through (10G), Channel Stat (10G)
MU104014B-012
Ethernet up to 25G
Dual Channel
————
TCP Throughput Test (RFC 6349, iPerf,10G) MU104014B-020
TCP Throughput*2————
400GBASE-XDR4 N-Port BERT ————MU104014B-034
4×100G N Port BERT
Open ZR+ ————
MU104014B-036
Open ZR+ Multi
Client BERT
eCPRI/RoE (IEEE1914.3)
IPv4/IPv6, BER, VLAN, SyncE, IEEE 1588 v2, E-OAM MU104014B-012
Ethernet up to 25G Dual Channel
MU104014B-013
Ethernet 40G
Single Channel
MU104014B-014
Ethernet 40G
Dual Channel
—
MU104014B-015
Ethernet 100G
Single Channel
MU104014B-016
Ethernet 100G
Dual Channel
—
OTN
Errors/Alarms, Error Performance/Delay/APS Test, FEC Test,
O.182 Test, Overhead Editing/Capture, TCM Monitoring/
Generation, Tributary Scan
MU104014B-052
OTN up to 10G
Dual Channel
—
MU104014B-053
OTN 40G
Single Channel
MU104014B-054
OTN 40G
Dual Channel
—
—
MU104014B-055
OTN 100G
Single Channel
MU104014B-056
OTN 100G
Dual Channel
—
ODU Multiplexing Addition
MU104014B-063
ODU Multiplexing/
Multi Stage*3
—MU104014B-063
ODU Multiplexing/Multi Stage*3—
CPRI/OBSAI
CPRI/OBSAI L1: Level/Bit Rate/Frequency deviation
Measurement, Alarms/Errors Detection,
Unframed BER
CPRI/OBSAI L2: Link Status Monitoring, Alarms/Errors Detection,
Framed BER Measurement, RTD Measurement,
Monitoring using Passthrough
MU104014B-074
CPRI/OBSAI up to 25G Dual Channel ———
Fibre Channel
Performance Test, Signal Generation/Monitoring, Latency, BER,
Line Alarm/Error Monitoring
MU104014B-092
FC up to 16G Dual Channel ———
SDH/SONET
Two-Way Monitoring/Mapping, Errors/Alarms,
Error Performance/Delay/APS Test, Header Monitoring/
Generation, Pointer Event Generation, Tributary Scan
MU104014B-082
SDH/SONET up to
10G Dual Channel
—MU104014B-084*4
STM-256/OC-768 Client Signal —
*1: The channel is not related to the physical port position. The user can freely choose either of the two physical ports assigned to the option via software.
For a dual channel setup, the two different ports of one protocol can operate simultaneously, or two different single channel options can operate simultaneously.
*2: Requires MU104014B-012.
*3: Requires that at least one of the following option is installed: MU104014B-052, MU104014B-053, MU104014B-054, MU104014B-055, MU104014B-056.
*4: MU104014B does not have a physical interface of the option. The option is required for client signal mapped in the OTN.
Model/Order No. Name
MU104014B 400G (QSFP-DD) Multirate Module
Standard Accessories
B0768A* ESD Box: 1 pc
W4039AE Transport Module Quick Reference Guide: 1 pc
*: The following combination of module patterns can be installed.
QSFP-DD/QSFP56/QSFP28/QSFP+ SFP28/SFP+/SFP OSFP
Pattern 1 4 0 1
Pattern 2 3 2 1
Pattern 3 2 4 1
Pattern 4 1 6 1

7
1-2 400G (OSFP) Multirate Module MU104015A
The 400G (OSFP) Multirate Module MU104015A supports communications
network technologies from 10 Mbps to 25 Gbps with dual ports and
from 40 Gbps to 400 Gbps with single port. It has the functions and
performance required for network I&M tests. In addition, optional test
protocols can be selected and added. This excellent expandability helps
cut initial capital costs and supports introduction of new functions
matching the work schedule.
New Purchase
Transport Module
1-2-1 Selecting Protocol Options
The protocol options are software options for transport technologies supporting each bit rate.
At least one Channel option must be selected from the following list.
MU104015A Bit Rate 10G or less 16G or 25G 40G or 100G 400G
Transport Technology No. of Measurement
Ports*12 (Dual Channel) 2 (Dual Channel) 1 (Single Channel) 2 (Dual Channel) 1 (Single Channel)
Ethernet
IPv4/IPv6, Y.1564, IEEE 1588 v2, RFC 2544, BER, Multistream,
OAM, SyncE, MPLS, MPLS-TP, Multistage VLAN, PBB,
Ping/Traceroute, In-band Control, Auto discovery, Reflector
MU104015A-012
Ethernet up to 25G Dual Channel
MU104015A-013
Ethernet 40G
Single Channel
— —
MU104015A-015
Ethernet 100G
Single Channel
—
MU104015A-033
Ethernet 400G
Single Channel
Pass-through (10G), Channel Stat (10G)
MU104015A-012
Ethernet up to 25G
Dual Channel
————
TCP Throughput Test (RFC 6349, iPerf,10G) MU104015A-020
TCP Throughput*2————
400GBASE-2FR4 N-Port BERT ————MU104015A-035
2×200G N Port BERT
eCPRI/RoE (IEEE1914.3)
IPv4/IPv6, BER, VLAN, SyncE, IEEE 1588 v2, E-OAM MU104015A-012
Ethernet up to 25G Dual Channel
MU104015A-013
Ethernet 40G
Single Channel
— —
MU104015A-015
Ethernet 100G
Single Channel
— —
OTN
Errors/Alarms, Error Performance/Delay/APS Test, FEC Test,
O.182 Test, Overhead Editing/Capture, TCM Monitoring/
Generation, Tributary Scan
MU104015A-052
OTN up to 10G
Dual Channel
—
MU104015A-053
OTN 40G
Single Channel
— —
—
MU104015A-055
OTN 100G
Single Channel
— —
ODU Multiplexing Addition
MU104015A-063
ODU Multiplexing/
Multi Stage*3
—
MU104015A-063
ODU Multiplexing/
Multi Stage*3
— —
CPRI/OBSAI
CPRI/OBSAI L1: Level/Bit Rate/Frequency deviation
Measurement, Alarms/Errors Detection,
Unframed BER
CPRI/OBSAI L2: Link Status Monitoring, Alarms/Errors Detection,
Framed BER Measurement, RTD Measurement,
Monitoring using Passthrough
MU104015A-074
CPRI/OBSAI up to 25G Dual Channel ———
Fibre Channel
Performance Test, Signal Generation/Monitoring, Latency, BER,
Line Alarm/Error Monitoring
MU104015A-092
FC up to 16G Dual Channel ———
SDH/SONET
Two-Way Monitoring/Mapping, Errors/Alarms,
Error Performance/Delay/APS Test, Header Monitoring/
Generation, Pointer Event Generation, Tributary Scan
MU104015A-082
SDH/SONET up to
10G Dual Channel
—MU104015A-084*4
STM-256/OC-768 Client Signal —
*1: The channel is not related to the physical port position. The user can freely choose either of the two physical ports assigned to the option via software.
For a dual channel setup, the two different ports of one protocol can operate simultaneously, or two different single channel options can operate simultaneously.
*2: Requires to MU104015A-012.
*3: Requires that at least one of the following option is installed: MU104015A-052, MU104015A-053, MU104015A-055.
*4: MU104015A does not have a physical interface of the option. The option is required for client signal mapped in the OTN.
Model/Order No. Name
MU104015A 400G (OSFP) Multirate Module
Standard Accessories
B0768A* ESD Box: 1 pc
W4039AE Transport Module Quick Reference Guide: 1 pc
*: The following combination of module patterns can be installed.
QSFP-DD/QSFP56/QSFP28/QSFP+ SFP28/SFP+/SFP OSFP
Pattern 1 4 0 1
Pattern 2 3 2 1
Pattern 3 2 4 1
Pattern 4 1 6 1

8
1-3 100G Multirate Module MU104011A
The 100G Multirate Module MU104011A supports communications
network technologies from 10 Mbps to 100 Gbps with dual ports. It has
the functions and performance required for network I&M tests.
In addition, optional test protocols can be selected and added.
This excellent expandability helps cut initial capital costs and supports
introduction of new functions matching the work schedule.
New Purchase
Transport Module
1-3-1 Selecting Protocol Options
The protocol options are software options for transport technologies supporting each bit rate.
At least one Channel option must be selected from the following list.
MU104011A Bit Rate 10G or less 16G or 25G 40G or 100G
Transport Technology No. of Measurement
Ports*12 (Dual Channel) 2 (Dual Channel) 1 (Single Channel) 2 (Dual Channel)
Ethernet
IPv4/IPv6, Y.1564, IEEE 1588 v2, RFC 2544, BER, Multistream,
OAM, SyncE, MPLS, MPLS-TP, Multistage VLAN, PBB,
Ping/Traceroute, In-band Control, Auto discovery, Reflector
MU104011A-012
Ethernet up to 25G Dual Channel
MU104011A-013
Ethernet 40G
Single Channel
MU104011A-014
Ethernet 40G
Dual Channel
MU104011A-015
Ethernet 100G
Single Channel
MU104011A-016
Ethernet 100G
Dual Channel
Pass-through (10G), Channel Stat (10G)
MU104011A-012
Ethernet up to 25G
Dual Channel
———
TCP Throughput Test (RFC 6349, iPerf,10G) MU104011A-020
TCP Throughput*2———
eCPRI/RoE (IEEE1914.3)
IPv4/IPv6, BER, VLAN, SyncE, IEEE 1588 v2, E-OAM MU104011A-012
Ethernet up to 25G Dual Channel
MU104011A-013
Ethernet 40G
Single Channel
MU104011A-014
Ethernet 40G
Dual Channel
MU104011A-015
Ethernet 100G
Single Channel
MU104011A-016
Ethernet 100G
Dual Channel
OTN
Errors/Alarms, Error Performance/Delay/APS Test, FEC Test,
O.182 Test, Overhead Editing/Capture, TCM Monitoring/
Generation, Tributary Scan
MU104011A-052
OTN up to 10G
Dual Channel
—MU104011A-053
OTN 40G Single Channel
MU104011A-054
OTN 40G Dual Channel
—MU104011A-055
OTN 100G Single Channel
MU104011A-056
OTN 100G Dual Channel
ODU Multiplexing Addition
MU104011A-063
ODU Multiplexing/
Multi Stage*3
—MU104011A-063
ODU Multiplexing/Multi Stage*3
CPRI/OBSAI
CPRI/OBSAI L1: Level/Bit Rate/Frequency deviation Measurement,
Alarms/Errors Detection, Unframed BER
CPRI/OBSAI L2: Link Status Monitoring, Alarms/Errors Detection,
Framed BER Measurement, RTD Measurement,
Monitoring using Passthrough
MU104011A-074
CPRI/OBSAI up to 25G Dual Channel — —
Fibre Channel
Performance Test, Signal Generation/Monitoring, Latency, BER,
Line Alarm/Error Monitoring
MU104011A-092
FC up to 16G Dual Channel — —
SDH/SONET
Two-Way Monitoring/Mapping, Errors/Alarms,
Error Performance/Delay/APS Test, Header Monitoring/
Generation, Pointer Event Generation, Tributary Scan
MU104011A-082
SDH/SONET up to 10G
Dual Channel
—MU104011A-084*4
STM-256/OC-768 Client Signal
*1: The channel is not related to the physical port position. The user can freely choose either of the two physical ports assigned to the option via software.
For a dual channel setup, the two different ports of one protocol can operate simultaneously, or two different single channel options can operate simultaneously.
*2: Requires to MU104011A-012.
*3: Requires that at least one of the following option is installed: MU104011A-052, MU104011A-053, MU104011A-054, MU104011A-055, MU104011A-056.
*4: MU104011A does not have a physical interface of the option. The option is required for client signal mapped in the OTN.
Model/Order No. Name
MU104011A 100G Multirate Module
Standard Accessories
B0768A* ESD Box: 1 pc
W4039AE Transport Module Quick Reference Guide: 1 pc
*: The following combination of module patterns can be installed.
QSFP-DD/QSFP56/QSFP28/QSFP+ SFP28/SFP+/SFP OSFP
Pattern 1 4 0 1
Pattern 2 3 2 1
Pattern 3 2 4 1
Pattern 4 1 6 1

9
1-4 10G Multirate Module MU100010A1
The 10G Multirate Module MU100010A1 supports communications
network technologies with speeds ranging from 10 Mbps to 10 Gbps.
It has the functions and performance required for network I&M tests.
In addition, optional test protocols can be selected and added.
This excellent expandability helps cut initial capital costs and supports
introduction of new functions matching the work schedule.
New Purchase
Transport Module
Model Name
MU100010A1 10G Multirate Module
Standard Accessories
W3935AE MT1000A Transport Quick Reference Guide: 1 pc
B0692A* ESD Box (for optical modules): 1 pc
*: Up to four SFP+/SFPs can be stored.
1-4-1 Selecting Protocol Options
The protocol options are software options for transport technologies supporting each bit rate.
At least one Channel option must be selected from the following list.
MU100010A1 Bit Rate Less than 5G From 6G to 10G
Transport Technology No. of Measurement
Ports*12 (Dual Channel) 1 (Single Channel) 2 (Dual Channel)
Ethernet
IPv4/IPv6, Y.1564, IEEE 1588 v2, RFC 2544, BER, Multistream, OAM, SyncE, MPLS,
MPLS-TP, Multistage VLAN, PBB, Ping/Traceroute, Cable Tests, In-band Control,
Auto discovery, Path-through, Channel Stat
MU100010A-001
Up to 2.7G Dual Channel
MU100010A-011
Ethernet 10G Single Channel
MU100010A-012
Ethernet 10G Dual Channel
TCP Throughput Test (RFC 6349, iPerf) MU100010A-020 TCP Throughput
eCPRI/RoE (IEEE1914.3)
IPv4/IPv6, BER, VLAN, SyncE, IEEE 1588 v2, E-OAM MU100010A-001
Up to 2.7G Dual Channel
MU100010A-011
Ethernet 10G Single Channel
MU100010A-012
Ethernet 10G Dual Channel
OTN*2, *3
Errors/Alarms, Error Performance/Delay/APS Test, FEC Test, O.182 Test,
Overhead Editing/Capture, TCM Monitoring/Generation, Tributary Scan
MU100010A-001
Up to 2.7G Dual Channel
MU100010A-051
OTN 10G Single Channel
MU100010A-052
OTN 10G Dual Channel
ODU Multiplexing Addition*4MU100010A-061 ODU Multiplexing
ODU Flex Addition*5—MU100010A-062 ODU Flex
CPRI/OBSAI
CPRI/OBSAI L1: Level/Bit Rate/Frequency deviation Measurement,
Alarms/Errors Detection, Unframed BER
CPRI/OBSAI L2: Link Status Monitoring, Alarms/Errors Detection,
Framed BER Measurement, RTD Measurement,
Monitoring using Passthrough
MU100010A-071
CPRI/OBSAI Up to 5G
Dual Channel
MU100010A-072
CPRI/OBSAI 6G to 10G
Single Channel
MU100010A-073
CPRI/OBSAI 6G to 10G
Dual Channel
Fibre Channel
Performance Test, Signal Generation/Monitoring, Latency, BER,
Line Alarm/Error Monitoring
MU100010A-002
FC 1G 2G 4G Dual Channel
MU100010A-091
FC 8G 10G Single Channel
MU100010A-092
FC 8G 10G Dual Channel
SDH/SONET
Tw-Way Monitoring/Mapping, Errors/Alarms,
Error Performance/Delay/APS Test, Header Monitoring/Generation,
Pointer Event Generation, Tributary Scan
MU100010A-001
Up to 2.7G Dual Channel
MU100010A-081
STM-64 OC-192
Single Channel
MU100010A-082
STM-64 OC-192
Dual Channel
*1: The channel is not related to the physical port position. The user can freely choose either of the two physical ports assigned to the option via software.
For a dual channel setup, the two different ports of one protocol can operate simultaneously, or two different single channel options can operate simultaneously.
*2: Please see the datasheet for supported OTN mapping.
*3: When using the OTN function, the channel can be used as client signal mapped to OTN. For example, when mapping STM-64/OC-192 to OTU2, both the
MU100010A-051/052 (for physical port) and the MU100010A-081/082 (for client signal) are required.
*4: When the ODU Multimapping option is installed, OTN multistage mapping measurements are supported.
This one option supports both single channel and dual channel.
*5: When the ODU Flex option is installed, since transport is over OTN networks, mappings based on used ODU Flex standard can be measured.
This one option supports both single channel and dual channel.

10
1-5 100G Multirate Module MU100011A
The 100G Multirate Module MU100011A supports communications
network technologies with speeds ranging from 10 Mbps to 100 Gbps.
It has the functions and performance required for network I&M tests.
In addition, optional test protocols can be selected and added.
This excellent expandability helps cut initial capital costs and supports
introduction of new functions matching the work schedule.
New Purchase
Transport Module
Model Name
MU100011A 100G Multirate Module
Standard Accessories
W3935AE MT1000A Transport Quick Reference Guide: 1 pc
B0763A* ESD Box (for optical modules): 1 pc
*: One CFP4 plus either up to two QSFP28s or up to four SFP/SFP+s can be
stored.
1-5-1 Selecting Protocol Options
The protocol options are software options for transport technologies supporting each bit rate.
At least one Channel option must be selected from the following list.
MU100011A Bit Rate Up to 10G Higher than 10G
Transport Technology No. of Measurement
Ports*1
1
(Single Channel)
2
(Dual Channel)
1
(Single Channel)
2
(Dual Channel)
Ethernet
IPv4/IPv6, Y.1564, IEEE 1588 v2, RFC 2544, BER, Multistream, OAM,
SyncE, MPLS, MPLS-TP, Multistage VLAN, PBB, Ping/Traceroute,
Cable Tests, In-band Control, Auto discovery
MU100011A-001
Up to 10G
Single Channel
MU100011A-003
Up to 10G
Dual Channel
MU100011A-017*8
Ethernet 25G Single Channel —
MU100011A-013*9
Ethernet 40G Single Channel —
MU100011A-015*9
Ethernet 100G Single Channel —
Pass-through, Channel Stat — —
TCP Throughput Test (RFC 6349, iPerf) MU100011A-020 TCP Throughput — —
Measurement using 100GBASE-SR — —
MU100011A-023*8
RS-FEC for 100GBASE-SR4
MU100011A-015*9
Ethernet 100G Single Channel
—
eCPRI/RoE (IEEE1914.3)
IPv4/IPv6, BER, VLAN, SyncE, IEEE 1588 v2, E-OAM
MU100011A-001
Up to 10G
Single Channel
MU100011A-003
Up to 10G
Dual Channel
MU100011A-017*8
Ethernet 25G Single Channel
MU100011A-075*7, *8
eCPRI/RoE 25G Dual Channel
MU100011A-013*9
Ethernet 40G Single Channel —
MU100011A-015*9
Ethernet 100G Single Channel —
Measurement using 100GBASE-SR — —
MU100011A-023*8
RS-FEC for 100GBASE-SR4
MU100011A-015*9
Ethernet 100G Single Channel
—
OTN*2, *3
Errors/Alarms, Error Performance/Delay/APS Test, FEC Test,
O.182 Test, Overhead Editing/Capture, TCM Monitoring/
Generation, Tributary Scan
MU100011A-001
Up to 10G
Single Channel
MU100011A-003
Up to 10G
Dual Channel
MU100011A-053
OTN 40G Single Channel —
MU100011A-055
OTN 100G Single Channel —
ODU Multiplexing Addition*2, *4MU100011A-063 ODU Multiplexing/Multi Stage
ODU Flex Addition*2, *5MU100011A-062 ODU Flex —
CPRI/OBSAI
CPRI/OBSAI L1: Level/Bit Rate/Frequency deviation Measurement,
Alarms/Errors Detection, Unframed BER
CPRI/OBSAI L2: Link Status Monitoring, Alarms/Errors Detection,
Framed BER Measurement, RTD Measurement,
Monitoring using Passthrough
MU100011A-071
CPRI/OBSAI
Up to 10G
Single Channel
MU100011A-072
CPRI/OBSAI
Up to 10G
Dual Channel
MU100011A-073
CPRI 12/25G Single Channel
MU100011A-074
CPRI 12/25G Dual Channel
Fibre Channel
Performance Test, Signal Generation/Monitoring, Latency, BER,
Line Alarm/Error Monitoring
MU100011A-004
Up to 10G FC
Single Channel
MU100011A-005
Up to 10G FC
Dual Channel
MU100011A-091
FC 16G Single Channel —
SDH/SONET
PDH/DSn Test, Tw-Way Monitoring/Mapping, Errors/Alarms,
Error Performance/Delay/APS Test, Header Monitoring/Generation,
Pointer Event Generation, Tributary Scan
MU100011A-001
Up to 10G
Single Channel
MU100011A-003
Up to 10G
Dual Channel
MU100011A-083*6
STM-256/OC-768
Client Signal
—
*1: The channel is not related to the physical port position. The user can freely
choose either of the two physical ports assigned to the option via software.
For a dual channel setup, the two different wire rates of one protocol can
operate simultaneously.
*2: Please see the datasheet for supported OTN mapping.
*3: When using the OTN function, the channel can be used as client signal
mapped to OTN.
For example, when mapping STM-256/OC-768 to OTU4, both the MU100011A-055
(for physical port) and the MU100011A-083 (for client signal) are required.
*4: When the ODU Multiplexing/Multistage option is installed, OTN multistage
mapping measurements are supported.
This one option supports both single channel and dual channel.
*5: This mapping function is based on the ODU Flex standard for transmissions
over OTN networks and supports client signals of any speed.
This one option supports both single channel and dual channel.
*6: The MU100011A has no STM-256/OC-768 PHY interface; it can be used for
OTN client signals.
*7: Option supports eCPRI/RoE protocol tests only.
*8: FEC selectable On/Off.
*9: FEC is always Off.

11
New Purchase
Transport Module
1-6 Selecting Optical Transceiver for Transport Module
When using any transport modules for testing optical interfaces, perform the test by installing the optical modules matching the test standards in
the QSFP-DD/OSFP/QSFP28/SFP/SFP+/SFP28 slots. The following table lists the modules and supported standards.
MU104014B MU104015A MU104011A MU100010A1 MU100011A
Model/
Order
No.
Name Form
Factor
100M Ethernet 156M STM-1 614M CPRI 622M STM-4 768M OBSAI 1GFC 1.23G CPRI 1.25G Ethernet 1.54G OBSAI 2GFC 2.46G CPRI 2.488G STM-16 2.67G OTU1 3.07G CPRI OBSAI 4GFC 4.92G CPRI 6.14G CPRI OBSAI 8GFC 9.83G CPRI 9.95G STM-64 10.1G CPRI 10.3G Ethernet 10GFC 10.7G OTU2 11.05G OTU1e 11.09G OTU2e 11.27G OTU1f 11.3G OTU2f 16GFC 25G Ethernet 40G Ethernet 40G OTN 100G Ethernet 100G OTN 200G Ethernet 400G Ethernet

G0332A
100M FX 1310 nm
MM SFP SFP

G0319A
Up to 2.7G 1310 nm
15 km SFP SFP

G0320A
Up to 2.7G 1310 nm
40 km SFP SFP

G0321A
Up to 2.7G 1550 nm
80 km SFP SFP

G0328A
1G/2G/4G FC 850 nm
SFP SFP

G0322A
1G/2G/4G FC 1310 nm
SFP SFP

G0323A
1G/2G/4G FC 1550 nm
SFP SFP

G0315A
10G LR/LW 1310 nm
SFP+ SFP+

G0316A
10G ER/EW 1550 nm
40 km SFP+ SFP+

G0318A
10G ZR/ZW 1550 nm
80 km SFP+ SFP+

G0329A
10G LR 1310 nm
SFP+ SFP+

G0356A
8G FC/10G SR 850 nm
SFP+ SFP+
   
G0386A
16GFC SR 850 nm
SFP+ SFP+
   
G0387A
16GFC LR 1310 nm
SFP+ SFP+
   
G0388A
25G SR 850 nm
SFP28 SFP28
   
G0389A
25G LR 1310 nm
SFP28 SFP28
   
G0359A
40G SR4 850 nm
QSFP+ QSFP+
   
G0334A
40G LR4 1310 nm
QSFP+ QSFP+
   
G0366A
100G SR4 850 nm
QSFP28 QSFP28
   
G0364A
100G LR4 1310 nm
QSFP28 QSFP28
   
G0434A
100G LR4 Dual Rate
1310 nm QSFP28 QSFP28

G0426A
QSFP28
100GBASE-DR QSFP28

G0427A
QSFP28
100GBASE-FR1 QSFP28

G0421A
QSFP56
200GBASE-LR4 QSFP56

G0420A
QSFP56
200GBASE-FR4 QSFP56

G0402A
QSFP-DD
400GBASE-DR4
QSFP-DD

G0403A
QSFP-DD
400GBASE-FR4
QSFP-DD

G0404A
QSFP-DD
400GBASE-LR4
QSFP-DD

G0405A
OSFP
400GBASE-DR4 OSFP

G0406A
OSFP
400GBASE-FR4 OSFP

G0425A
QSFP
400GBASE-2FR4 OSFP

G0428A
QSFP-DD
400GBASE-DR4+
QSFP-DD
1310 nm,
MM, 2 km
1310 nm, SM, 10 km
850 nm,
MM,
0.1 km
850 nm,
MM,
0.5 km
850 nm,
MM,
0.5 km
1310 nm,
SM,
0.5 km
1310 nm,
SM,
10 km
1310 nm,
SM,
10 km
1310 nm,
SM,
2 km
1310 nm,
SM,
0.5 km
1310 nm,
SM,
2 km
1310 nm,
SM,
2 km
1310 nm,
SM,
2 km
1310 nm,
SM,
0.5 km
1310 nm, SM, 10 km
1550 nm, SM, 40 km
1550 nm, SM, 80 km
1310 nm, SM, 15 km
1310 nm, SM, 40 km
1550 nm, SM, 80 km
850 nm, MM, 0.5 km
1310 nm, SM, 10 km
1550 nm, SM, 40 km
850 nm,
MM, 0.3 km
1310 nm,
SM, 10 km
1310 nm, SM,
10 km
850 nm, MM,
0.1 km
1310 nm,
SM,
10 km
1310 nm,
SM,
0.5 km
1310 nm,
SM,
2 km
1310 nm,
SM,
10 km
1310 nm,
SM,
10 km

12
1-7 Selecting Transport Test Option
These options are used in combination with the transport module. Choose options matching the customer’s test requirements. Additionally today,
these options cannot be used in combination with the OTDR module.
Model Name Notes
G0325A GPS Receiver It is required when measuring one-way latency at Ethernet tests.
W4038AE MT1040A Transport Module Operation Manual Printed manual
W4041AE MT1000A/MT1100A/MT1040A Remote Scripting Operation Manual Printed manual
Z1821A Utilities in USB Stick USB memory with operation manual, remote scripts instruction manual, etc.
J1583A Optical Attenuator 10 dB LC/PC to LC/PC
J1584A RJ45 Cable 3 m
New Purchase
Transport Module

13
2-1-1 Selecting Dynamic Range
The MU100020A is available in three models with different dynamic ranges matching the test environment.
Select the One matching the test requirements.
Wavelength: Dynamic Range Model Name
1310/1550 nm: 39/37.5 dB MU100020A-020 Standard Dynamic Range
1310/1550 nm: 42/41 dB MU100020A-021 Enhanced Dynamic Range
1310/1550 nm: 46/46 dB MU100020A-022 High-Performance Dynamic Range
2-1-2 Selecting Polish Type/Connector Adapter
The MU100020A is available in a total of five models (3 UPC and 2 APC) as listed below. Specify the required connector type at ordering.
The specified connector is provided as a standard accessory. The polish type cannot be changed after purchase.
Polish Type
Connector Adapter
UPC
UPC Ultra Physical Contact
APC
APC Angled Physical
Contact
Model Model
FC Connector MU100020A-010
MU100020A-037
MU100020A-011
MU100020A-025
SC Connector MU100020A-010
MU100020A-040
MU100020A-011
MU100020A-026
2-1-3 Selecting Visible Light Source Option
Breaks in the optical fiber can be detected visually using this light source. This option cannot be added after purchase.
Model Name Notes
MU100020A-002 Visual Fault Locator For direct insertion of 2.5 mm (FC, SC) optical fiber with fixed diameter of 2.5 mm
J1335A MU/LC Connector Adapter Required conversion adapter for inserting LC (1.25 mm) optical fiber
New Purchase
OTDR Module
2-1 OTDR Module 1310/1550 nm SMF MU100020A
Model Name
MU100020A OTDR Module 1310/1550 nm SMF
Standard Accessories
J1693A Universal Connector 2.5 mm for OPM: 1 pc
J1694A Universal Connector 1.25 mm for OPM: 1 pc
W3811AE Quick Reference Guide: 1 pc
OPM Port SM Port
The OTDR Module 1310/1550 nm SMF MU100020A is an OTDR module
for single mode fiber use only. It supports all-in-one OTDR, FTTA, and
OLTS measurements required for checking optical fiber. Select a model
with the dynamic range matching the test requirements. Additionally,
combined used with the visible light source options support visual
confirmation of fiber breaks, etc.

14
New Purchase
OTDR Module
2-2-1 Selecting Dynamic Range
The MU100021A has a fixed dynamic range; select the following model.
Wavelength: Dynamic Range Model Name
1310/1550/850/1300 nm: 42/41/29/28 dB MU100021A-021 Enhanced Dynamic Range
2-2-2 Selecting Polish Type/Connector Adapter
The MU100021A is available in a total of five models (3 UPC and 2 APC) as listed below. Specify the required connector type at ordering.
Two specified connectors (for SMF and MMF ports) are provided as standard accessories. The polish type cannot be changed after purchase.
Polish Type
Connector Adapter
UPC*1
UPC Ultra
Physical
Contact
UPC Ultra
Physical
Contact
APC*1, *2
( SM port only,
MM port is UPC) UPC Ultra
Physical
Contact
APC Angled
Physical
Contact
Model MM Port SM Port Model MM Port SM Port
FC Connector MU100021A-010
MU100021A-037
MU100021A-011
MU100021A-025
SC Connector MU100021A-010
MU100021A-040
MU100021A-011
MU100021A-026
*1: Different connector adapter types cannot be specified for the SMF and MMF ports.
*2: There is no APC polish type for the MMF port. As a result, this connector adapter polish type is UPC.
2-2-3 Selecting Visible Light Source Option
Breaks in the optical fiber can be detected by eye using this light source. This option cannot be added by retrofit after purchase.
Model Name Notes
MU100021A-002 Visual Fault Locator For direct insertion of 2.5 mm (FC, SC) optical fiber with fixed diameter of 2.5 mm.
J1335A MU/LC Connector Adapter Required conversion adapter for inserting LC (1.25 mm) optical fiber
Model Name
MU100021A OTDR Module 1310/1550/850/1300 nm SMF/MMF
Standard Accessories
J1693A Universal Connector 2.5 mm for OPM: 1 pc
J1694A Universal Connector 1.25 mm for OPM: 1 pc
W3811AE Quick Reference Guide: 1 pc
2-2 OTDR Module 1310/1550/850/1300 nm SMF/MMF MU100021A
The OTDR Module 1310/1550/850/1300 nm SMF/MMF MU100021A is
an OTDR module for single and multimode fiber use. It supports all-in-
one OTDR, FTTA, and OLTS measurements required for checking optical
fiber. Select a model with the dynamic range matching the test
requirements. Additionally, combined used with the visible light source
options support visual confirmation of fiber breaks, etc.
MM PortOPM Port SM Port

15
2-3-1 Selecting Dynamic Range
The MU100022A has a fixed dynamic range; select the following model.
Wavelength: Dynamic Range Model Name
1310/1550/1625 nm: 46/46/44 dB MU100022A-022 High-Performance Dynamic Range
2-3-2 Selecting Polish Type/Connector Adapter
The MU100022A is available in a total of five models (3 UPC and 2 APC) as listed below. Specify the required connector type at ordering.
The specified connector is provided as a standard accessory. The polish type cannot be changed after purchase.
Polish Type
Connector Adapter
UPC
UPC Ultra Physical Contact
APC
APC Angled Physical
Contact
Model Model
FC Connector MU100022A-010
MU100022A-037
MU100022A-011
MU100022A-025
SC Connector MU100022A-010
MU100022A-040
MU100022A-011
MU100022A-026
2-3-3 Selecting Visible Light Source Option
Breaks in the optical fiber can be detected visually using this light source. This option cannot be added after purchase.
Model Name Notes
MU100022A-002 Visual Fault Locator For direct insertion of 2.5 mm (FC, SC) optical fiber with fixed diameter of 2.5 mm
J1335A MU/LC Connector Adapter Required conversion adapter for inserting LC (1.25 mm) optical fiber
New Purchase
OTDR Module
2-3 OTDR Module 1310/1550/1625 nm SMF MU100022A
Model Name
MU100022A OTDR Module 1310/1550/1625 nm SMF
Standard Accessories
J1693A Universal Connector 2.5 mm for OPM: 1 pc
J1694A Universal Connector 1.25 mm for OPM: 1 pc
W3811AE Quick Reference Guide: 1 pc
OPM Port SM Port
The OTDR Module 1310/1550/1625 nm SMF MU100022A is an OTDR
module for single mode fiber use only. It supports all-in-one OTDR,
FTTA, and OLTS measurements required for checking optical fiber.
Additionally, combined used with the visible light source options
support visual confirmation of fiber breaks, etc.

16
2-4-1 Selecting Dynamic Range
The MU100023A has a fixed dynamic range; select the following model.
Wavelength: Dynamic Range Model Name
1310/1550 nm: 42/41 dB, 1650 nm: 35 dB MU100023A-021 Enhanced Dynamic Range
2-4-2 Selecting Polish Type/Connector Adapter
The MU100023A is available in a total of five models (3 UPC and 2 APC) as listed below. Specify the required connector type at ordering.
The specified connector is provided as a standard accessory. The polish type cannot be changed after purchase.
Polish Type
Connector Adapter
UPC*
UPC Ultra Physical Contact
APC*
APC Angled Physical
Contact
Model Model
FC Connector MU100023A-010
MU100023A-037
MU100023A-011
MU100023A-025
SC Connector MU100023A-010
MU100023A-040
MU100023A-011
MU100023A-026
*: Different types of connector adapters cannot be selected for the SM port (1310/1550 nm) and the SM port (1650 nm).
2-4-3 Selecting Visible Light Source Option
Breaks in the optical fiber can be detected visually using this light source. This option cannot be added after purchase.
Model Name Notes
MU100023A-002 Visual Fault Locator For direct insertion of 2.5 mm (FC, SC) optical fiber with fixed diameter of 2.5 mm.
J1335A MU/LC Connector Adapter Required conversion adapter for inserting LC (1.25 mm) optical fiber
New Purchase
OTDR Module
2-4 OTDR Module 1310/1550 nm, 1650 nm SMF MU100023A
Model Name
MU100023A OTDR Module 1310/1550/1650 nm SMF
Standard Accessories
J1693A Universal Connector 2.5 mm for OPM: 1 pc
J1694A Universal Connector 1.25 mm for OPM: 1 pc
W3811AE Quick Reference Guide: 1 pc
The OTDR Module 1310/1550 nm, 1650 nm SMF MU100023A is an
OTDR module for single mode fiber use only. It supports all-in-one
OTDR, FTTA, and OLTS measurements required for checking optical
fiber. Additionally, combined used with the visible light source options
support visual confirmation of fiber breaks, etc.
SM Port
(1650 nm)
OPM Port
SM Port
(1310/1550 nm)

17
2-5 Selecting MU100020A/MU100021A/MU100022A/MU100023A Options
The OTDR Module connector is available in a total of five types (3 UPC and 2 APC). These connectors can be changed freely by the user. However,
connectors with mismatched polish types cannot be used.
2-5-1 OTDR Module Conversion Connector Adapters
Model UPC (Option 010), SM/MM Ports APC (Option 011), SM Port
J0617B (FC/UPC) J0619B (SC/UPC) J0739A (FC/APC) J1697A (SC/APC)
Name Changeable Optical Connector
(FC-PC) Changeable Optical Connector (SC) Changeable Optical Connector
(FC-APC)
Changeable Optical Connector
(SC-APC)
Form
New Purchase
OTDR Module
2-5-3 Others
Model Name Notes
NETWORKS PC Emulation Software for Data Analysis and Reporting Supports PC running Microsoft Windows 7 and Windows 10 to edit waveform data and
create reports
W3810AE MT1000A MU100020A Network Master Pro Operation Manual MT1000A and MU100020A/MU100021A/MU100022A/MU100023A operation manuals
2-5-2 Optical Fiber Conversion Adapters
Model Name Notes
J1530A SC Plug-in Converter (UPC (P)-APC (J)) SC/UPC → SC/APC Conversion
J1531A SC Plug-in Converter (APC (P)-UPC (J)) SC/APC → SC/UPC Conversion
J1532A FC Plug-in Converter (UPC (P)-APC (J)) FC/UPC → FC/APC Conversion
J1533A FC Plug-in Converter (APC (P)-UPC (J)) FC/APC → FC/UPC Conversion
J1534A LC-SC Plug-in Converter
(for SM, SC (P)-LC (J))
SC/UPC → LC/UPC Conversion.
SM Fiber Only
J1535A LC-SC Plug-in Converter
(for MM, SC (P)-LC (J))
SC/UPC → LC/UPC Conversion.
MM Fiber Only
(Physical contact)
10° to 25° (Physical contact)
10° to 25°
UPC (J) UPC (P)
(Physical contact)
10° to 25°
UPC (P)
(Angle physical contact)
8°
APC (J)
(Angle physical contact)
8°
(Physical contact)
10° to 25°
APC (P) UPC (J)
(Angle physical contact)
8°
(Physical contact)
10° to 25°
APC (P) UPC (J)
(Physical contact)
10° to 25°
(Physical contact)
10° to 25°
UPC (P) UPC (J)
(Physical contact)
10° to 25°
(Angle physical contact)
8°
UPC (P) APC (J)

18
3-2 MT1040A Selecting Optional Accessories
Various application parts make the MT1040A more convenient to use.
New Purchase
Optional Accessories, Extended Warranty Services and Remote Software Service
3-1 MT1040A Power Supply Option
Depending on module combination, it is necessary to order MT1040A-020 Activate for 400G Dual/100G Quad Option.
Without MT1040A-020
(Battery Operational) With MT1040A-020
2U
3U
4U
5U
400G (QSFP-DD) Multirate Module MU104014B
400G (OSFP) Multirate Module MU104015A
100G Multirate Module MU104011A
10G Multirate Module MU100010A1
100G Multirate Module MU100011A
1310/1550 nm SMF MU100020A
1310/1550/850/1300 nm SMF/MMF MU100021A
1310/1550/1625 nm SMF MU100022A
1310/1550/1650 nm SMF MU100023A
Optical Connector End-face Inspection/Evaluation Screen
Battery Charger G0324A
This is the charger for the MT1040A G0413A Li-ion battery.
Video Inspection Probe G0382A/G0306C
Scratches and dirt on the connector end face are a major cause of degraded communications quality. The MT1040A has a built-in VIP function for
analyzing the condition of the optical connector end face in the utility menu. When the VIP is connected, scratches and dirt on the optical connector
end face are visualized (× 400) and the OK/NG status is evaluated based on the IEC61300-3-35 standard.
Anritsu supports VIP Series G0382A (USB Autofocus Type) and G0306C (USB Standard Type).
Different tip types are used by the G0382A and G0306C.
G0382A G0306C

19
Optical Cables
Model Name Notes
J1571A Optical cable SM LC/PC to SC/PC 3 m Single core (no paired cables)
J1575A Optical Cable SM LC/PC to FC/PC 3 m Single core (no paired cables)
J1579A Optical Cable SM LC/PC to LC/PC 3 m Single core (no paired cables)
J1581A Optical Cable MM LC/PC to LC/PC 3 m Single core (no paired cables)
MT1040A Module Connection Parts
Model Name Notes
B0720A Rear Panel MT1040A Rear Panel
B0730A Screw 2U 2 units screw set (Total 4 pcs)
B0731A Screw 3U 3 units screw set (Total 4 pcs)
B0740A Screw 4U 4 units screw set (Total 4 pcs)
B0741A Screw 5U 5 units screw set (Total 4 pcs)
B0769A MT1040A Screw Kit Composed of B0730A, B0731A, B0740A and B0741A.
New Purchase
Optional Accessories, Extended Warranty Services and Remote Software Service
Accessories for MT1040A Dual-Module Configuration
The size of the MT1040A depends on the module configuration. Choose the appropriate case.
Module Combination Mounting
Screws
Soft Case Hard Case
B0745A B0772A B0733A B0773A
Short (2U) B0730A
345 (W) × 238 (H) ×
480 (D) mm, 3.5 kg
Standard Transport (Type 2) (3U)
B0731A
495 (W) × 338 (H) ×
663 (D) mm, 12.3 kg
+ Transport (Type 1) or
OTDR Module (4U)
B0740A
Two Transport (type 2) Modules (5U)
B0741A
MT1040A B0733A B0773A
Size of Each Hard Case for MT1040A

20
New Purchase
Optional Accessories, Extended Warranty Services and Remote Software Service
Model Name
MT1040A
MT1040A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MT1040A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MT1040A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU104014B
MU104014B-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU104014B-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU104014B-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU104015A
MU104015A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU104015A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU104015A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU104011A
MU104011A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU104011A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU104011A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU100010A1
MU100010A1-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU100010A1-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU100010A1-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
Model Name
MU100011A
MU100011A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU100011A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU100011A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU100020A
MU100020A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU100020A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU100020A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU100021A
MU100021A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU100021A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU100021A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU100022A
MU100022A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU100022A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU100022A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
MU100023A
MU100023A-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year)
MU100023A-ES310 3 Years Extended Warranty Service (standard 1 year + 2 years)
MU100023A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years)
3-3 MT1040A Selecting Extended Warranty Services
The standard warranty period is 1 year. An extended warranty can be purchased for the main frame and the test interface modules as listed below.
