Ansonic LAT-56 User manual

EN
Washing Machine
LAT-56
LAT-86
LAT-106

2
EN
Contents
Specifications of your Washing Machine
Warnings
Installation
Preparation
Program Selection and Operating Your Machine

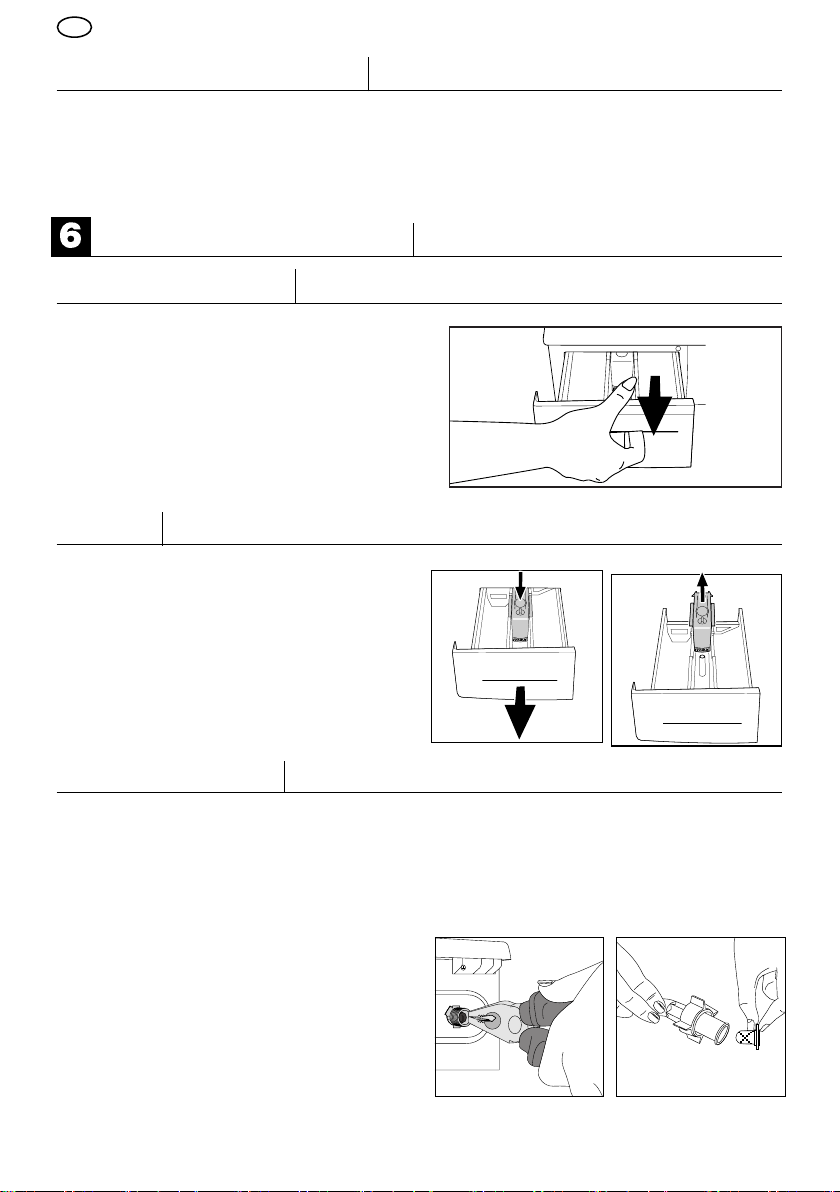

Maintenance and Cleaning
> 4
> 5
> 7
> 9
> 10
> 14

3
EN
Your Washing Machine
Detergent Drawer

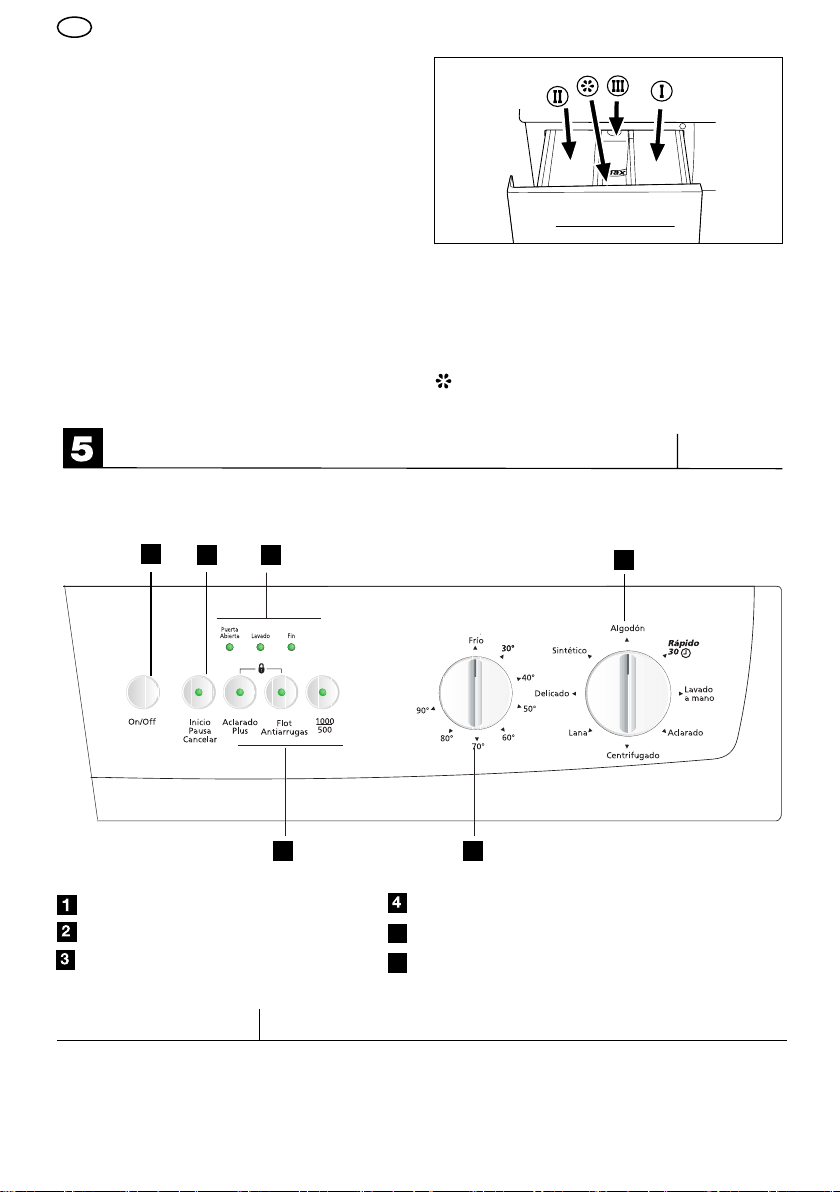

Control panel
Tabletop
Adjustable feet
Front door
Filter cover

4
EN
In order to improve the product quality, modifications can be made in the specifications
without prior notice.
The illustrations in this guide are schematic and may not exactly match with your
product.
The values that are declared in the markings on your product or in the printed
documents accompanying are obtained in a laboratory environment according to the
related standards. These values may vary according to the usage of the product and
environmental conditions.
Specifications of your Washing Machine
Models
Maximum dry laundry capacity (kg)
Height
Width
Depth
Net Weight
Power inlet
Total current
Total Power
Washing-rinsing speed
Spin speed
(cm)
(cm)
(cm)
(kg)
(VHz.)
(A)
(W)
(rpm)
(rpm max.)
LAT56
5
84
60
54
62
230 / 50
10
2300
52
500
LAT86
5
84
60
54
62
230 / 50
10
2300
52
800
LAT106
5
84
60
54
62
230 / 50
10
2300
52
1000

5
EN
Warnings
• This product is designed for household
usage.
• Your washing machine is adjusted to
230 volts. Your machine may not
operate with low voltage.
• If the current value of the fuse at your
home is less then 16 amperes, consult
a qualified electrician and have a fuse of
16 amperes installed.
• When using with or without a
transformer, make sure that the
grounding installation is made by a
qualified
electrician. When used without
grounding, our company shall not be
responsible for the possible damages.
• In order to make your machine ready to
use, call Authorized Service and if your
clean water installation and water drains
are not proper, call a qualified plumber.
• Your machine should not be placed on
a rug covered floor. Otherwise, electrical
parts may overheat since your machine
will not be able to take air from the
bottom. This may lead to the machine
malfunction.
• While installing the machine, make sure
that the hot and cold water taps are
connected correctly. Otherwise, your
laundries may come out hot in the end
of washing process and worn out.
• When the supply cord/plug of the
machine is damaged, you must call the
authorized service.
• Make sure that the water inlet hoses are
new. Do not use worn out/used water
inlet hoses again. It may cause stains to
remain on your laundries.
• Before washing the clothes that are pre-
treated with cleaning agents (gasoline
ether, liquid stain remover and etc.) rinse
thoroughly with clean water.
• Never wash the device with a water
hose! There is a risk of electric shock!
Before cleaning, always disconnect the
electricity connection by unplugging.
• Never touch the plug with wet hands.
Never grab from the cable but from the
plug when unplugging.
• If the power cable or the plug is
damaged, or the appliance shows any
other errors, do not operate the
appliance!
• For the failures that can not be solved by
applying the information given in these
operating instructions:
Turn off the machine, unplug it, close
the water tap and contact with the cus-
tomer service center. Never try to repair
the machine by yourself.
• When you operate your washing ma-
chine for the first time, use Cotton 90o
program with detergent without loading
the machine with laundry in order to
make it ready for washing your laundry.
After washing the very dirty clothes such
as the working clothes of a car techni-
cian, it is recommended to repeat the
machine cleaning process.
• The performance of your washing
machine depends on the compound
effect of the machine, water and the
cleaning agent that is used. If poor
and unqualified cleaning agents are
used, stains on your laundries will be
stabilized. Before washing the stained
laundries, pay attention to clean them as
described in the following pages.
• Your machine is designed to resume
its operation when the power restores
after a power failure. You can not cancel
the program by pressing On/Off button.
When the power restores, the machine
will resume from the point it stopped.
• During the production, some water may
have remained in your machine because
of the quality control processes. It does
not cause any damage to your machine.

6
EN
If the light of the 1st auxiliary function
on the left hand side is flashing
It is in the child-lock mode. (See. Child-lock)
If the program does not start although
you pressed “Start/Pause/Cancel” button
The program selection knob may be in-between
position.
Readjust the program by turning the program
selection knob. If the warning continues, contact
the authorized service.
If the light of Start/Pause/Cancel
button starts to flashing after a short
time you start your machine
If door led is still lighting up, door may not be locked.
In this case try to re-open the door. If the door can be
opened, then close it again and restart the washing
program. If door led does not light up, then either the
water is cut off or the taps are closed. If the problem
persists, check your taps. Turn off your machine and
turn it on again. If the fault still persists, unplug your
machine, close the taps and call the authorized service.
If the program can not be started or
selected
Machine may be in the self-protection mode due to the
substructure problems (grid voltage, water pressure and
etc.)
Therefore, you can not start or select a program. Press
Start/Pause/Cancel button for 3 seconds and return
the machine to the factory settings. (See.Cancelling a
Program)
If the water is cut while your machine
is operating, the current program
does not proceed. To continue the
program
Press “Start/Pause/Cancel” button, program will
proceed.
Your machine may stop due to the
low voltage Wait for a while. When the voltage reaches to a normal level your machine will start to operate.
During the production, some water
may have remained in your machine
because of the quality control
processes.
This does not cause any damage to your machine.
You have selected the program
in your machine and pressed the
“Start/Pause/Cancel” button but the
machine did not start
The plug of your machine may not be plugged in a
grounded outlet, front cover may not be closed or
the fuse may be blown.
Is water coming from under your
machine
Check the water inlet and drainage hoses. Are they
well mounted? Gaskets of the water inlet hoses
may not be well seated. If the problem is none of
them, the pump filter may not be well closed.
Is the water drained directly? Check if the drainage hose is connected as
described in the user guide.
During the water drainage, you may
hear water sound from the pump This sound is normal.
Is foam running over the detergent
drawer?
Check if your detergent is suitable for automatic
machine. Use the recommended amount of
detergent in your next washing.
If sometimes you are not satisfied
with the rinsing and spinning
efficiency (laundries have
detergent remnants or they are not
dry enough)?
Make sure that you have selected the correct
program, you have adjusted the speed adjusting/
decrease button correctly and you have loaded the
right laundries for the program you have chosen, try
again when the voltage is normal.
Things to do Before Calling the Authorized Service

7
EN

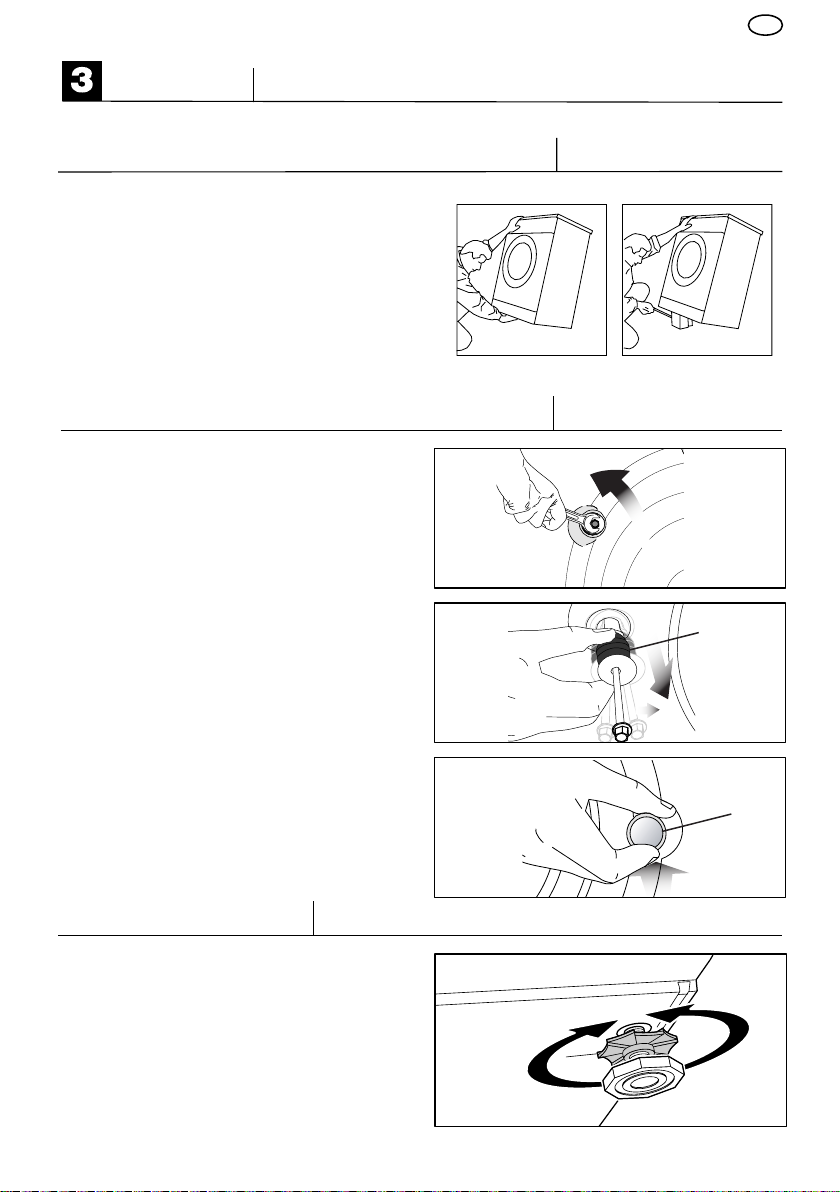

Installation
1. Removing the packaging reinforcements
Your machine must stand level and
balanced on its feet in order to operate
more silent and vibration-free.
First loosed the plastic counter nut on the
adjustable feet of your machine.
After maintaining the balance by
adjusting the feet, tighten the plastic
counter nut upwards.
2. Removing the transportation safety bolts
Before operating the machine, the
transportation safety bolts must definitely
be removed. For this,
1. Loosen the “C” bolts thoroughly by
turning them anticlockwise with the help of
a suitable wrench.
2. Pull off the transportation safety bolts.
3. Insert the “P” plastic caps in the
direction of arrow into the holes from where
the transportation safety bolts are removed.
Please note! Keep the transportation safety
bolts in a safe place in order to reuse them
for any other transportation.
Transport your washing machine with the
transportation safety blots installed.
3. Adjusting the feet
To remove the packaging reinforcement lean
the machine backward, take the
reinforcement by pulling from the braid.
C
P

8
EN
a) Water inlet hose
The specific hoses that come with the
machine are connected to the water inlet
valves on the machine. Red labeled hose is
for hot water inlet and blue labeled hose is
for cold water inlet.
In order to prevent the water leakages that
may occur on the connection points, rubber
seals are placed on the hose or in the
package (4 pieces for the models with
double water inlets and 2 pieces for other
models). These gaskets should be used
for connections in both sides of the hose.
Gaskets on the machine side should fit in
the hose filter channel.
Since the connection points are under water
pressure, turn on the taps to the maximum
after the connection. Check if there is any
water leakage at the connection points. In
order to prevent the water leakages and the
damages they may cause, keep the taps
closed when you are not using the machine.
Minimum 1 bar and maximum 10 bars of
water flow from the tap is enough for your
machine to operate efficiently. (In practice,
1 bar means that more than 8 liters of water
per minute flows from a full open tap.)
Install the elbowed end of the hose to your
machine. Hand-tighten the nuts of the hose,
do not use a spanner
Models with double water inlets can be
used as a model with a single water inlet
by using a plug. Plug should be installed
to the hot water valve. A rubber gasket
should be used in order to prevent water
leakage from the connection point.
Do not connect the product with single
water inlet to the hot water tap. The prod-
uct may switch to the protection mode if
the temperature of the water connected to
a product with double water inlet through
a Y part and single water inlet is above
40°C.
a) Water drainage hose
Water drainage hose can be attached to
the side wall of a sink or bathtub. Hose
should not be bend. When the drainage
hose is hanged on a sink or bathtub, it can
be secured with a hose bracket so that it
will not fall.
The end of drainage hose can be
connected directly to the waste water
drainage hole or to the specific end that is
installed to the outlet elbow of the sink.
The hose should be installed to a height of
40 cm minimum and 100 cm maximum.
Water connections

9
EN
Electrical Connection
Plug in the grounded plug at the end of the
power cable of the washing machine to a
grounded wall outlet which is fed with
suitable voltage and current.
Preparation
• Please note the followings before start
ing to wash your laundry:
- Have you plugged the machine?
- Have you connected the drainage hose
as necessary?
- Have you closed the front door?
- Have you opened the tap?
• If you are installing your machine by your-
self, please read the “Installation” section
first.
• Separation of the laundries to be
washed:
Please separate the laundries according to
their types (cotton, linen, synthetic, woolen,
etc.), dirtiness levels and washing tempera-
ture. Do not wash the white clothes along
with the colored ones.
Remove solid objects such as belts, cuff
links and curtain rods from the laundries or
put them into a washing bag.
Empty the pockets. Zip and button up. It
is recommended to place the very small
laundries such as baby clothes into the big
laundries such as pillowcases or put into a
special
washing filet in order to prevent them from
sticking between the bellows or slipping into
the cauldron, pump filter, hose and etc.
For stained laundries, see the Practical and
useful information section. Your machine can
wash the woolen clothes with a “Machine
Washable” or “Unfeltable” label in the special
woolen program without damaging them.
Sensitive clothes with a “Do not wash in the
machine” or “Hand-wash” (silk, pure wool,
cashmere and etc.) label can be washed in
the hand-wash program which is designed
specifically.

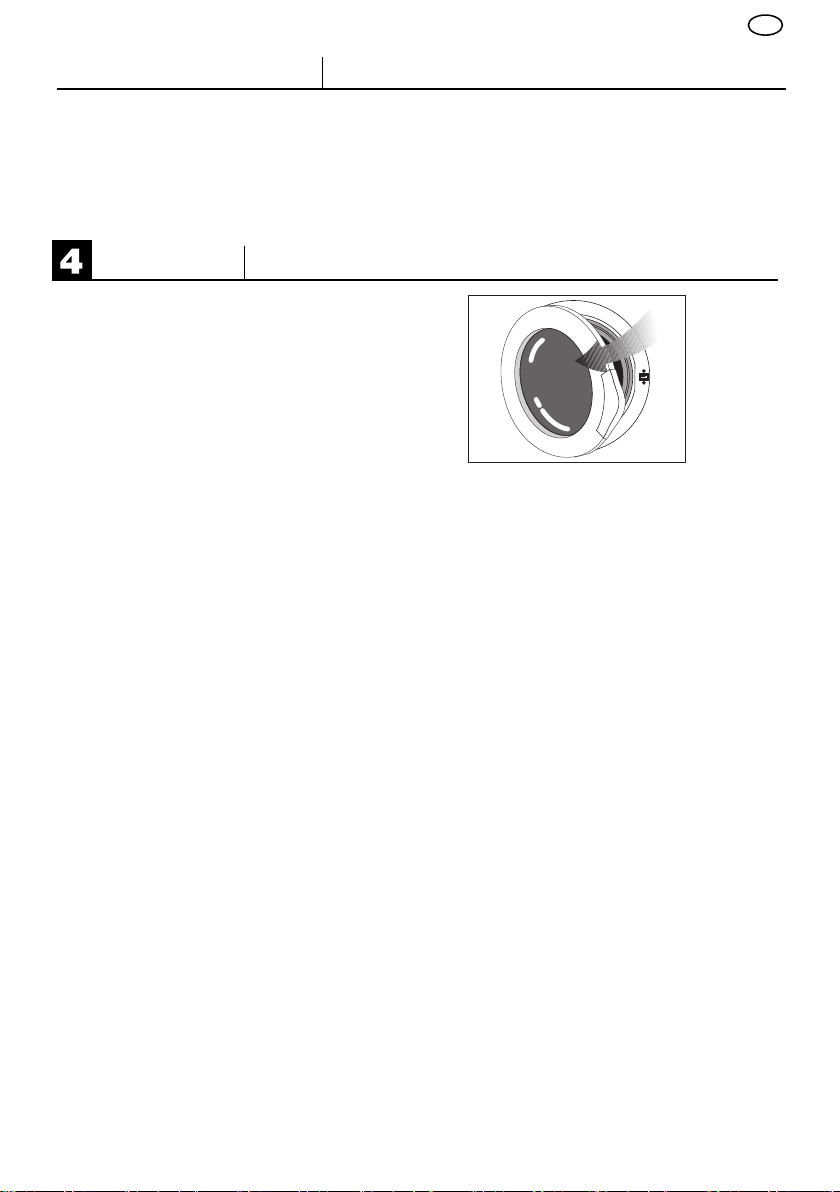

• To open the front door, grab the handle
and pull it. For your safety, the front door of
your machine can only be opened when the
machine is not operating. If the “door” LED
is on, the door can be opened.
• Loading the laundry into the machine:
Place the laundries by spreading and
without compaction. Place your hand woven
clothes into the machine by turning inside
out. When closing the door, make sure that
no laundry is in between the door and the
rubber bellows.
Push the front door to close it. If the front
door is not closed correctly, washing does
not start.
• The selection of detergent and
softener:The detergent amount depends
on the hardness of water, the amount of
laundry and the dirtiness level of the laundry.
Recommended amounts are written on the
detergent package. If your laundries are not
very dirty and/or your water has a low
hardness, use less detergent as
recommended in the detergent packages.
Otherwise you may encounter excessive
foam.
You should use detergents that are
developed especially for automatic
washing machines. Avoid using bleachers
that contain chlorine or sulfur.

10
EN
Put the powder detergent and softener
into the appropriate compartments in the
detergent drawer and close the detergent
drawer.
Pour the softener as recommended in the
package (generally <100ml; i.e. 1 tea cup)
Never exceed the “MAX” marking. If you
put more, it will mix into the washing water
via siphon (III) and it will be wasted. In
this case, it may be necessary to refill the
softener. If the softener is condensed over
time, it may be necessary to dilute with
some water. Otherwise, condensed soft-
ener clog the siphon and block the flow.
Program Selection and Operating Your Machine
Control Panel
I. Compartment I, the powder detergent
compartment for prewash.
II. Compartment II, the powder detergent
compartment for main washing.
III.Siphon
The softener compartment.
Turning On/Off
Program selection knob
On / Off button
Start/Pause/Cancel button
Auxiliary function buttons
You can make the machine ready for
program selection by pressing the “On
/off” button. When “On/Off” button is
pressed, “Door” LED is on meaning that
“door can be opened”. To turn off the
machine, press the “On/Off” button again.
Pressing the “On/Off” button never means
that the program is started.
1
4
3
2
6
Program progress display
5
Spin speed selection knob
5
6

11
EN

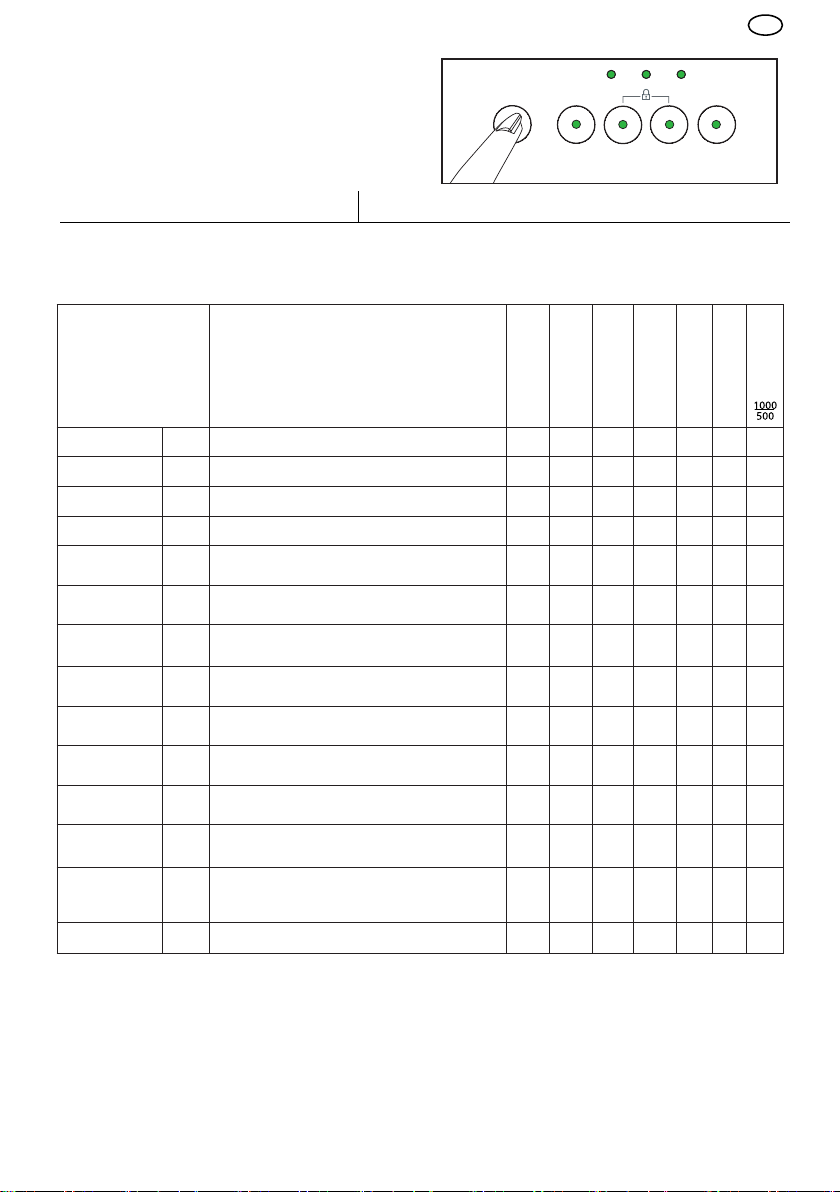

Program selection table
Determine the suitable program according to
the type, amount, dirtiness level and washing
temperature of the laundry by looking at the
program selection table.Turn the program
selection knob to the program-temperature
position that you want to wash with.
*Energy Label Program EN 60456:1999 and IEC 60456
Ed.4 2001
Water and power consumption may show differences
from the table above depending on the water pressure,
hardness and temperature, environmental temperature,
laundry type and amount, auxiliary function selection and
changes in the electricity voltage.
Program Laundry type
Maximum Load (kg) Program Time (min) Water consumption (lt) Power consumption (kWh)
Rinse Plus Rinse Hold
Spin Speed
Cotton 90 Very dirty, heat resistant cotton, linen
5155 45 1.70 •
• •
Cotton 60 Normal dirty, heat resistant cotton, linen
5145 49 0.95 • • •
Cotton 40 Less dirty or heat resistant cotton
5150 45 0.65 • • •
Cotton Cold Less dirty or heat resistant cotton
5110 45 0.35 • • •
Synthetic 60 Normal dirty, heat resistant cotton/synthetic
compound
2.5 120 55 0.90 • • •
Synthetic 40 Less dirty or heat resistant cotton/synthetic
compound
2.5 125 55 0.55 • • •
Synthetic 30 Very little dirty or heat resistant
cotton/synthetic compound
2.5 110 55 0.35 • • •
Synthetic Cold Very little dirty or heat resistant
cotton/synthetic compound
2.5 100 55 0.20 • • •
Delicate 30 Sensitive, Delicate synthetic, cotton
compound
285 60 0.40 • • •
Woolen 40 Woolens and sensitive compounds with
machine washable label
1.5 75 60 0.40 • • •
Woolen Cold Woolens and sensitive compounds with
machine washable label
1.5 70 60 0.04 • • •
Hand Wash 30 Special program for laundries that have silk,
cashmere, un-washable in machine labels.
155 50 0.21 •
Rapido 30
Special program for very little dirty or small
amounts of laundries (sweat suit, towel and
etc. that are used only for once)
2.5 30 40 0.16 •
Spin Spin + Pump Program
514 -0.03 •
You must press “Start/Pause/Cancel” but-
ton in order the machine starts its program.

12
EN
Function Selection
Depending on the selected program, the
selectable auxiliary functions are selected
by pressing the each function’s button.
The light of the selected function comes
on. Since it is not possible to select some
of the auxiliary functions together, one of
them becomes off when the other one is
selected.
Auxiliary Functions
Rinse Hold
If you do not want to unload your clothes
immediately after the cotton, synthetics,
woolen and delicate fabrics program, you
may release your clothes inside the machine
in the last rinsing water by pressing the rinse
hold button in order to prevent your clothes
become wrinkled. Meanwhile, “Start/Pause/
Cancel” light will flash. After this process you
may end the program by pressing “Start/
Pause/Cancel” button. This feature should
not be confused with the “water cut off” or
“door could not be locked” cases that can
be seen at the beginning of the program.
This auxiliary function is activated at the
rinsing step just before the final spinning step
of the program.
Rinse Plus
You can increase the number of the
current rinsing cycles by using this
function. Thus, the risk of the sensitive
skins get effected by the detergent
remaining on the laundry is reduced.
Spin Speed selection button
When you want to reduce the spin speed to
500 rpm, press this button.
Child Lock
“This machine is equipped with a child lock
in order to prevent the program flow to be
affected when the buttons are pressed
during washing cycles. In order to enable
the child lock, press and keep pressed the
1st and 2nd auxiliary function buttons from
the left at the same time for 3 seconds.
The light of the 1st auxiliary function button
will flash continuously.
After the program completes, it is
necessary to disable the child lock in order
to initiate a new program or interfere the
program. Therefore, when the same
buttons are pressed for 3 seconds, light of
the second auxiliary function will go off.
Program Flow
When the “Start/Pause/Cancel” button
is pressed after the washing program is
selected, door led goes out and “Start/
Pause/Cancel” light comes on. “Start/
Pause/Cancel” light remains on during the
program and goes off after the program
ends.
You can put your machine into “Pause”
mode by pressing the “Start/Pause/Can-
cel” button when it is operating. In this
case, “Start/Pause/Cancel” light will flash.
Some alterations in program settings
may be made in the “Pause” mode (See,
Changing a Program) and if “Pause” mode
is entered in an appropriate step of the
program, adding laundry function may be
used (See, Laundry adding feature).
In order to return to the “Washing” mode
from the “Pause” mode, you need to press

13
EN
the “Start/Pause/Cancel” button again.
In this case, “Start/Pause/Cancel” light
will flash and your machine will resume its
program.
Changing the Program
Even if a new program is selected by
changing the position of program selection
knob while your machine is operating, the
first selected program continues to run.
In order to change the washing program,
the ongoing program should be cancelled.
(See. Cancelling a program)
In order to change the auxiliary functions
while your machine is operating, you can
make any desired changes after pressing
the “Start/Pause/Cancel” button.
If you want to change the spin speed
while your machine is operating, press the
“Start/Pause/Cancel” button, select the
spin speed and press the “Start/Pause/
Cancel” button again.
Laundry Addition Function
If you want to add laundry to your machine
after the washing program starts, switch
the machine to pause mode by pressing
“Start/Pause/Cancel” button. If the water
level in the machine is suitable, the “Door”
light on the program follow-up indicator
comes on approximately 2 minutes later
and you can open the door and add
laundry. If the “Door” light is not
continuously on at the end of this period,
the water level in the machine is not
suitable and you can not add laundry.
You can resume the program by pressing
“Start/Pause/Cancel” button again.
Cancelling a program
In order to cancel the selected program,
“Start/Pause/Cancel” button is pressed
for 3 seconds and machine starts to drain
at the end of this time. After the drainage
process completes “Start/Pause/Can-
cel” lights are off. “Door” light starts to
flash. When the “Door” light is on continu-
ously, the door can be opened and a new
program can be selected. You can start a
program by selecting a new program.
The selected program continues to run
even if the position of program selection
knob is changed while your machine is
operating. In order to change the washing
program, a new program can be selected
and started after “Cancelling a program”
by pressing the “Start/Pause/Cancel”
button for 3 seconds as described above.
End of the Program
For your safety, your machine will not allow
you to open its door for a while after the
program completes. If you try to open the
door during this period, it will not open and
“Door” led will start flashing. After the door
lock is deactivated, the “Door” and “Fin-
ished” lamps will light up. You may open
the door in this case.

14
EN
Unloading the Laundries
Your machine stops automatically when
the program ends. Turn off the taps. Grab
and pull the handle to open the door.
Press “On/Off” button to turn off your
machine. After you take the laundries out,
leave the front door open and ventilate the
inside of the machine. Check the inside of
the bellows and wipe it.
Maintenance and cleaning
Detergent Drawer
The powder detergent remnants may
accumulate in the detergent drawer.
To clean the detergent drawer, pull the
drawer towards you by pressing the
marked point of the siphon in the softener
compartment as shown in the illustration.
Wash the drawer in the sink with plenty of
water.
Siphon
Do not forget to clean the siphon
(the colored part in the detergent drawer)
when it gets dirty. To remove the siphon,
first take out the detergent drawer. To
prevent clogging, clean the softener
remnants inside of it. After cleaning, put
back the siphon and check if it is well
seated or not.
Inlet Water Filters
At the end of the water inlet valves which
are mounted to the back of the machine
and the flat end of the water inlet hoses
that are mounted onto the taps, there is
one filter for each. These filters prevent
the foreign substances and dirt in the
water entering the machine. Filters should
be cleaned when they get dirty. To do this,
close the taps. Remove the water inlet
hoses. Clean the tops of the filters on the
water inlet valves with a thin brush. If the
filters are very dirty, you can pull out with
pliers and clean them. The filters on the
flat end of the water inlet hoses should
be taken out with their gaskets by hand
and cleaned thoroughly under the flowing
water. (There are 2 filters in the machines
with single (cold) water inlet and 4 filters in the
machineswith double(hot-cold) waterinlets.

15
EN
Hose
Since there is a risk of freezing especially
in the cold areas, the water remaining in
the appliance can frozen and damage the
appliance. In this case, the water
remaining in the pump and hoses should
be drained by removing the pump filter.
Water inlet hoses should also be emptied
by removing them from the taps.
Cleaning the pump filter
Your product is equipped with a filter
system which ensures a cleaner water
discharge that extends pump life by
preventing solid items such as buttons,
coins and fabric fibers from clogging the
pump propeller during discharge of the
washing water.
• If your machine fails to drain the
water, the pump filter may be
clogged. You may have to clean
it every 2 years or whenever it is
plugged. Water must be drained off
to clean the pump filter.
In addition, water may have to be drained
off completely in the following cases:
• before transporting the machine
(e.g. when moving house)
• when there is the danger of frost
In order to clean the dirty filter and
discharge the water;
1- Unplug the machine to cut off the
supply power.
AThere may be water at 90°C in the
machine. Therefore, the filter must
be cleaned only after the inside
water is cooled down to avoid
hazard of scalding.
2- Open the filter cap. The filter cap
may be composed of one or two pieces
according to the model of your machine.
If it is composed of two pieces, press the
tab on the filter cap downwards and pull
the piece out towards yourself.
If it is composed of one piece, hold it from
both sides and open it by pulling out.
3- An emergency drain hose is supplied
with some of our models. Others are not
supplied with this item.
If your product is supplied with an
emergency drain hose, do the following as
shown in the figure below:
• Pull out the pump outlet hose from
its housing.
• Place a large container at the end
of the hose. Drain the water off
into the container by pulling out the
plug at the end of the hose. If the
amount of water to be drained off
is greater than the volume of the
container, replace the plug, pour the
water out, then resume the draining
process.
• After draining process is completed,
replace the plug into the end of the
hose and fit the hose back into its
place.
If your product is not supplied with an
emergency drain hose, do the following as
shown in the figure below:
• Place a large container in front of
the filter to receive water flowing
from the filter.
• Loosen pump filter (anticlockwise)
until water starts to flow out of it.
Direct the flowing water into the
container you have placed in front
of the filter. You can use a piece of
cloth to absorb any spilled water.
• When there is no water left, turn

16
EN
the pump filter until it is completely
loose and remove it.
• Clean any residues inside the filter
as well as fibers, if any, around the
propeller region.
• If your product has a water jet
feature, be sure to fit the filter into
its housing in the pump. Never
force the filter while replacing it into
its housing. Fit the filter fully into its
housing; otherwise, water may leak
from the filter cap.
4- Close the filter cap.
Close the two-piece filter cap of your
product by pushing the tab on it.
Close the one-piece filter cap of your
product by fitting the tabs on the bottom
into their positions and pushing the upper
part of it.

ES
Lavadora
LAT-56
LAT-86
LAT-106

ES
1
Índice
Especificaciones de su lavadora
Advertencias
Instalación
Preparación
Selección de programas y manejo del aparato
Mantenimiento y limpieza
> 3
> 4
> 6
> 8
> 9
> 13

ES
2
Su lavadora
Depósito del detergente
Panel de control
Parte superior
Pies ajustables
Puerta frontal
Tapa del ltro

ES
3
Modelos
Capacidad máxima de carga en seco (kg)
Alto
Ancho
Profundidad
Peso neto
Toma de corriente
Corriente total
Energía total
Velocidad de lavado-aclarado
Velocidad de centrifugado
Pueden realizarse modificaciones en las especificaciones sin previo aviso a fin de
mejorar la calidad del producto.
Las ilustraciones de esta guía son esquemáticas y pueden no coincidir exactamente
con su aparato.
Los valores declarados en el etiquetado de su aparato o en la documentación impresa
del mismo han sido obtenidos en un entorno de laboratorio en conformidad con los
niveles correspondientes. Dichos valores pueden variar dependiendo de la utilización del
aparato y de las condiciones de su entorno.
(cm)
(cm)
(cm)
(kg)
(VHz.)
(A)
(W)
(rpm)
Especificaciones de su lavadora
(rpm máx.)
LAT56
5
84
60
54
62
230 / 50
10
2300
52
500
LAT86
5
84
60
54
62
230 / 50
10
2300
52
800
LAT106
5
84
60
54
62
230 / 50
10
2300
52
1000
