1
1. Introduction
All Antaira industrial managed switches come with a pre-installed “user-friendly” web console
interface, which allows users to easily configure and manage the units, whether one is using a serial
console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple
Network Management Protocols (SNMP).
1.1Product Overview
Antaira Technologies’ LMP-1204G-SFP-bt-24 series is a 12-port industrial Gigabit PoE++
managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt
for a maximum of 90W/port, 4*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a
maximum of 30W/port, and 4*100/1000Fx fiber connection. The LMP-1204G-SFP-bt-24 series is a
fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web
management console design. It supports the ring network redundancy function using the market’s
open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms
network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN,
QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve
network management for remote SCADA systems or control networks.
The LMP-1204G-SFP-bt-24 series is IP30 rated and DIN-rail mountable. There are also two wide
operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an
extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for
industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory
automation, security surveillance, ITS and any other outdoor or harsh environment.
1.2Product Software Features
◼ Network Redundancy
• STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for
network redundancy
◼ Network Management
• Web UI based management, SNMP v1/v2/v3, Serial Console
• Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,
broadcast storm control, DiffServ
• IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
2
• IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024group
• Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP, HTTPS,
SSH/SSL, TFTP
• MODBUS TCP for SCADA system integration
◼ Port Configuration
• Status, statistics, mirroring, rate limiting, event syslog
◼ Event Handling
• Event notification: Cold/Warm Start, Power Failure, Authentication, SNMP trap and
Fault Alarm Relay Output
◼ Software Upgrade via TFTP and HTTP
◼ Configuration Backup –USB Port
1.3 Product Hardware Features
◼ System Interface and Performance
• All RJ45 ports support Auto MDI/MDI-X Function
• Embedded 4*10/100/1000Tx (PSE: 90W/Port) RJ45 ports, 4*10/100/1000Tx (PSE:
30W/Port) RJ45 ports, and 4*100/1000 SFP slots
• Store-and-forward switching architecture
• 8K MAC address table
• Supports 9.6Kbytes Jumbo Frame
• 4Mbits memory buffer
◼ Power Input
• DC 12~55V redundant, with a 6-pin removal terminal block, with SELV output certified by
UL61010-2-201
• It is recommended to use a UL listed industrial power supply
◼ Operating Temperature
• Standard operating temperature model: -10°C to 65°C
• Extended operating temperature model: -40°C to 75°C
◼ Case/Installation
• IP30 protection
• DIN-Rail and wall mount design
1.4 Package Contents
➢ LMP-1204G-SFP-bt-24(-T)
➢ Quick Installation Guide
➢ Wall mounting bracket set with screws

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
3
➢ DC cable –18 AWG & DC jack 5.5 x 2.1mm
➢ RJ45 to DB9 serial console cable
1.5 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un
dispositif de protection sur l'entrée d'alimentation. Les spécifications
matérielles, les ports, les informations de câblage et l'installation du
câblage du commutateur Ethernet industriel seront décrits dans ce
manuel d'utilisation.
Warning Labels
The caution label means that you should check the certain information on user manual when working with
the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel d'utilisation
lorsque vous travaillez avec l'appareil. (Montré dans la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
4
2. Hardware Description
2.1Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1204G-SFP-bt-24 series:
(W x D x H) is 54mm x 99mm x 142mm
Figure 2.1
LMP-1204G-SFP-bt-24 Series Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
5
2.2Front Panel
The front panel of the LMP-1204G-SFP-bt-24 series industrial gigabit PoE++ managed Ethernet
switch is shown below in Figure 2.2.
Figure 2.2 - The Front Panel of LMP-1204G-SFP-bt-24 Series
2.3 Top View
Figure 2.3, below, shows the top panel of the LMP-1204G-SFP-bt-24 series switch that is
equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~55VDC).
Figure 2.3
Top Panel View of LMP-1204G-SFP-bt-24 Series
Reset Button
LED for Power 1, Power 2, Master, Ring,
Status, and PoE Load
Console Port
USB for Configuration
6-Pin Removal Terminal Block
Grounding Screw
6-Pin Removal Terminal Block
Grounding Screw
SFP Port# 9~12 –100/1000
SFP Port# 9~12 LED for
Link/Activity Status 100/1000
LAN# 1~4 –10/100/1000Tx RJ45
with bt PoE
LAN# 1~8 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~8 LED for PoE Status
DIP Switch
LAN# 5~8 –10/100/1000Tx RJ45
with af/at PoE

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
6
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
Status
Green
On
No event happened
Red
On
System booting
Event happened by software setting
Master
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
Ring
Green
On
ERPS Ring Network is active
Flashing
ERPS Ring Network works abnormally or misconfigure
Off
ERPS Ring Network is not active
PoE Load
(Max: 240W)
-
Off
PoE Load ≤50%
Blue
On
PoE Load 51-70%
Red
On
PoE Load 71-90%
Red
Flashing
PoE Load 91-100%
LAN Port 1~8
(Upper LED)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~4
bt PoE Mode
(Lower LED)
Green
On
IEEE 802.3bt connection
(Single Signature PD Class 5~8/Dual Signature PD Channel
Class 1~5)
Off
No powered-device attached or power supplying fails
Flashing
Port link is recovered from failure event
Amber
On
IEEE 802.3af/at connection
(Single Signature PD Class 0~4)
Off
No powered-device attached or power supplying fails
Flashing
Port link is recovered from failure event

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
7
Green/Amber
Alternating
Flashing
The port is trying to recover from event failure
(Frequency: 20secs/time)
LAN Port 5~8
at PoE Mode
(Lower LED)
Amber
On
Supplying PoE at (30W)/af power to the powered-device
Off
Not connected to a powered device
Green/Amber
Alternating
Flashing
The port is trying to recover from event failure
(Frequency: 20secs/time)
SFP Port 9~12
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
Table 2.1 - LED Indicators for LMP-1204G-SFP-bt-24 Series
Note: "P1" is the abbreviation for "Power 1", “P2”is for “Power 2”, “LNK”is for “Link”, and "ACT" is for
"Activity".
2.5 PoE Port LED Indicators
The LED light indicators on the PoE copper port can help the user know if an event once occurs or is happening.
When the event is happening, user can verify the event from the Dual-color LED status. If the port has recovered
from an event, user can verify the event from the blinking frequency of the PoE LED (5 seconds as a cycle).

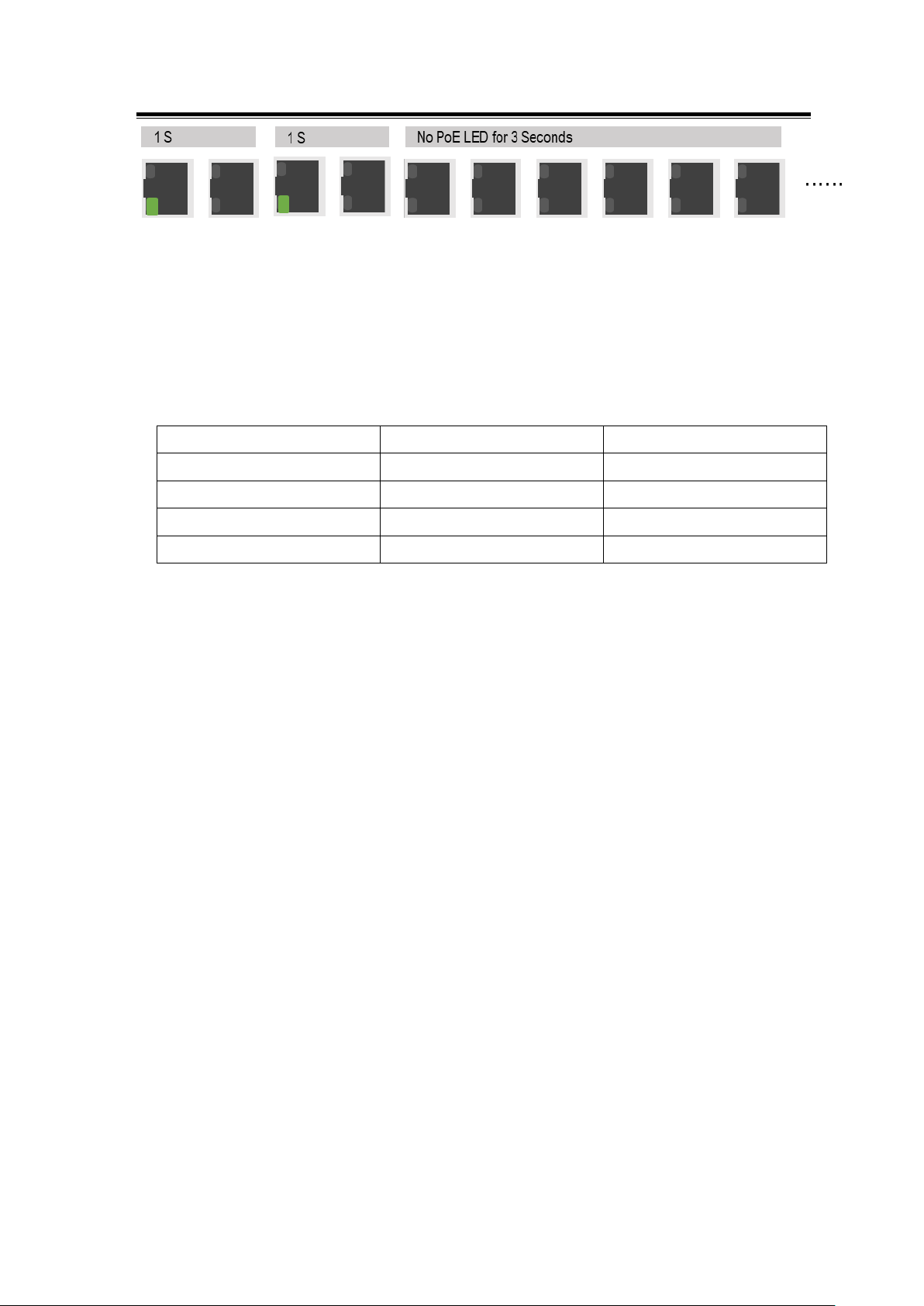

•Power Budget Exceeded Event
When the total PoE budget is overload (>100%), the PoE port of the lowest priority PoE port will be shutdown. The
PoE LED of the port will act cyclically as below until the port is recovered from the event:
After the PoE port is recovered from the PoE budget overload event, the PoE LED of the will act cyclically as
below until the event indicator is clear manually:
**AF/AT: Amber; BT: Green

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
8
•PoE Port Over Current Event (PoE Port Overload Event)
When the current limit of the specific PoE port is exceeded, the PoE power will be shutdown.
The PoE LED of the port will act cyclically as below until the port is recovered from the event:
**AF/AT: Amber; BT: Green
After the PoE port is recovered from the PoE Port Over
Current event, the PoE LED of the port will act cyclically
as below until the event indicator is clear manually:
**AF/AT: Amber; BT: Green
•Cable Short Event
When the working PD encounters a cable short event, the PoE Port LED will act cyclically as below until the port is
recovered from the event:
After the PoE port is recovered from the Cable Short event, the PoE LED of the port will act cyclically as below
until the event indicator is clear manually:
**AF/AT: Amber; BT: Green
•Dual PD Fail Event
When one channel of the connected dual PD is failed, the failed channel will be shut down and the active channel
will still supply PoE to the connected PD. The PoE Port LED will act cyclically as below until the port is recovered
from the event:
After the PoE port is recovered from the Dual PD Fail event, the PoE LED of the port will act cyclically as below
until the event indicator is clear manually:

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
9
**AF/AT: Amber; BT: Green
[Notice]
1.The system will automatically retry to recover from the event failure every 20 seconds.
2.To clear the warning PoE Indicator of the recovered port, please re-plug the port cable or re-open the PoE
function of the port via DIP Switch (>=2sec).
2.6 Dip Switch
The 4-pin Dip Switch on the front panel of the Ethernet Switch works as the PoE controller for PoE Port 1~4.
ON
OFF
Dip Switch 1
Enable Port 1 PoE Function
Disable Port 1 PoE Function
Dip Switch 2
Enable Port 2 PoE Function
Disable Port 2 PoE Function
Dip Switch 3
Enable Port 3 PoE Function
Disable Port 3 PoE Function
Dip Switch 4
Enable Port 4 PoE Function
Disable Port 4 PoE Function
2.7 Relay Contact Alarm Warning
2-pin 1*24VDC@1A resistive normal open on 6-pin terminal block.
The relay contact alarm will be triggered when anyone of the listed events occurs.
Key trigger event 1: Power-1 or Power-2 is inactive
Key trigger event 2: PoE total loading >100% PoE output budget
Key trigger event 3: PoE over current per port
Key trigger event 4: Cable short per port
Key trigger event 5: One of the channels in Dual PD fail
[Notice]
When the relay is triggered because of Event 2~5, the relay contact alarm, will update the status every 30
seconds. If there’s no event happening for 30 seconds, the relay contact alarm will be turn off. If the user disables
the failed PoE port by removing the cable or Dip Switch manually, the relay will be recovered immediately.
2.8 Reset Button
There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users
to reboot, restore default, or save start-up configurations by pressing the button for different
seconds. Please refer to Table 2.2 for the timing and function.

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
10
Seconds
Function
Fault LED
0s < t (press time) < 4s
Reboot the switch
LED is flashing with green color
4s < t (press time) < 8s
Restore factory default
LED is flashing with green and red color
8s < t (press time)
Backup configuration to USB
(startup-config)
LED is flashing with red color
Table 2.2 –Reset Button Functions
2.9 Ethernet Ports
• RJ45 Ports
RJ45 Ports (Auto MDI/MDIX) : The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T
connections. Auto MDI means that the switch can connect to another switch or workstation without changing
the straight-through or crossover cabling. See the figures below for straight-through and crossover cabling
schematics.
• RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.3 –10/100Base-T(X) RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.4 –1000Base-T RJ45 Pin Assignments
Note: “+” and “-“ signs represent the polarity of the wires that make up each wire pair.

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
11
2.10 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 me ters (328
ft.) in length.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC-60825-1 and
classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à la norme IEC-
60825-1 et classé comme produit laser de classe 1.
2.11 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the
terminal block connector as shown below in Figure 2.6.
Figure 2.6
Power Terminal Block

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
12
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7.
Caution:
•Only use copper conductors, 125°C, tighten to 5 lbs.
•The wire gauge for the terminal block should range between 18~20 AWG.
Attention:
•Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
•Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
Figure 2.7
Power Terminal Block

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
13
2.12 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By
inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch
only) and form a normal open circuit. An example is shown below in Figure 2.8.
Caution:
•The wire gauge for the terminal block should range between 12 ~ 24 AWG.
•If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power
fault alarm.
Attention:
•Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
•Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à 5 et les
broches 2 à 6 pour éliminer l'alarme de panne de courant.
2.13 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the
ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding
screw symbol is shown below in Figure 2.15.
Figure 2.15 - Grounding screw symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique
Figure 2.8
Wiring the Fault Alarm Contact

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
14
3.Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial
Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see
Figure 3.1 to learn how to install the DIN-Rail on
the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
Figure 3.2
Insert the Switch on the DIN-Rail
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.1
TheRearSideof theSwitchand DIN-
Rail Bracket

Antaira Technologies - Industrial EthernetSwitches
LMP-1204G-SFP-bt-24 Series Hardware Manual V1.0
15
3.2 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as
shown below in Figure 3.4.
Caution: “Wall” means industrial control panel wall
Attention: “Wall” signifie mur de panneau de commande industriel
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by looseningthe screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernetswitch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.4
Remove DIN-Rail Bracket from the Switch
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
