ANTAIRA LMP-0601G-SFP-24-T User manual

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
i
LMP-0601G-SFP Series
6-Port Industrial PoE+ Gigabit Managed Ethernet Switch, with
4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 1*100/1000
SFP Slot; 48~55VDC Power Input
User Manual
Version 1.1

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
ii
© Copyright 2018 Antaira Technologies, LLC
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2018 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC may make improvements and/or changes to the product and/or specifications of the product described in this
manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
iii
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade PoE Gigabit Managed Ethernet Switches
User Manual
Version 1.1 (March 2018)
This manual supports the following models:
 LMP-0601G-SFP
 LMP-0601G-SFP-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
iv
Table of Contents
1. Introduction ................................................................. 1
1.1 Product Overview ............................................... 1
1.2 Product Software Features ................................ 1
1.3 Product Hardware Features ............................... 2
1.4 Package Contents .............................................. 2
1.5 Safety Precaution ............................................... 3
2. Hardware Description ................................................. 4
2.1 Physical Dimensions .......................................... 4
2.2 Front Panel ......................................................... 5
2.3 Top View ............................................................ 5
2.4 LED Indicators .................................................... 6
2.5 Ethernet Ports..................................................... 7
2.6 Cabling ............................................................... 9
2.7 Wiring the Power Inputs ................................... 11
2.8 Wiring the Fault Alarm Contact ........................ 11
3. Mounting Installation ................................................ 12
3.1 DIN-Rail Mounting ............................................ 12
3.2 Wall Mounting ................................................... 13
4. Hardware Installation ................................................ 14
4.1 Installation Steps .............................................. 14
5. Web Management ...................................................... 15
5.1 Web Console Configuration ............................. 15
5.1.1 About Web-Based Management ................. 15

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
v
5.2 Basic Setting .................................................... 16
5.2.1 System Information ..................................... 16
5.2.2 Admin &Password ....................................... 17
5.2.3 IP Setting..................................................... 18
5.2.4 System Time ............................................... 19
5.3Port Management ............................................. 20
5.3.1 Port Status .................................................. 20
5.3.2 Port Configuration ....................................... 20
5.4PoE (Power-over-Ethernet) ............................... 21
5.4.1 PoE Configuration ....................................... 21
5.4.2 Ping Alarm................................................... 22
5.4.3 PoE Schedule ............................................. 23
5.5 ERPS ............................................................... 24
5.5.1 ERPS Status ............................................... 25
5.5.2 ERPS Configuration .................................... 25
5.5.3 Before Configuring ERPS ........................... 27
5.6 Spanning Tree ................................................. 34
5.6.1 RSTP Status ............................................... 35
5.6.2 RSTP Configuration .................................... 35

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
vi
5.6.3 MSTI Status ................................................ 37
5.6.4 MSTI Configuration ..................................... 38
5.7. 802.1Q VLAN .................................................. 40
5.7.1 802.1Q VLAN Settings ................................ 40
5.7.2 802.1Q VLAN Settings ................................ 41
5.8. IGMP Snooping ............................................... 41
5.8.1 IGMP Settings ............................................. 42
5.8.2 IGMP Snooping Status Table ...................... 43
5.9 QoS (Traffic Prioritization) ................................ 43
5.9.1 QoS Classification ....................................... 44
5.9.2 CoS Mapping .............................................. 45
5.9.3 ToS Mapping ............................................... 46
5.10 Port Mirroring .................................................. 47
5.11 SNMP .......................................................... 48
5.11.1 SNMP Agent .............................................. 48
5.11.2 SNMP Trap Setting ................................... 49
5.12 System Warning ............................................. 50
5.12.1 Syslog Setting ........................................... 50
5.12.2System Event Log ...................................... 51

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
vii
5.12.3 SMTP Setting ............................................ 52
5.12.4 Event Selection ......................................... 53
5.12.5 Fault Alarm ................................................ 53
5.13 MAC Table ...................................................... 54
5.13.1 MAC Address Table .................................. 54
5.13.2 MAC Table Configuration ......................... 54
5.14 Maintenance .................................................. 55
5.14.1 Upgrade .................................................... 55
5.14.2 Reboot ....................................................... 56
5.14.3 Default ....................................................... 56
5.15 Configuration .................................................. 56
5.15.1 Save ..................................................... 57
5.15.2 Backup & Store ......................................... 57
5.15.3 Auto Load & Backup ................................. 58
5.16 Logout ......................................................... 59
6. Command Line Interface Management ................... 59
6.1 About CLI Management ................................. 59
7. Technical Specifications .......................................... 77

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
1
1. Introduction
Antaira Technologies’ industrial managed switches come with a pre-installed “user friendly” web
console interface, which allows users to easily configure and manage the units, whether one is using
a serial console and command line interface(CLI) commands like Telnet, SSH, HTTP (Web GUI) or
simple network management protocols (SNMP).
1.1 Product Overview
Antaira’s LMP-0601G-SFP series is a 6-port industrial PoE+ Gigabit managed Ethernet switch
that is embedded with five gigabit Ethernet ports, which port #1~4 support either IEEE802.3af or
IEEE802.3at for a maximum of 30 watts per port, and one 100/1000 dual rate SFP slot. It is a fully
manageable industrial Ethernet switch with a pre-loaded Layer 2 network management web
console that supports a low voltage redundant power input range from 48~55VDC with a voltage
booster. This product series is IP30 rated, DIN-rail mountable, and has two wide operating
temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an
extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection
for any industrial networking application within factory automation, ITS, power/utility, water
wastewater, and any other outdoor or harsh environment.
1.2 Product Software Features
 Network Redundancy
 STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for
network redundancy
 Network Management
 Web UI based management, SNMP v1/v2, Serial Console
 Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,
broadcast storm control, Diffserv
 IEEE802.1q VLAN, port-based VLAN support
 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group
 Supports RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, SSH/SSL,
TFTP.
 Advanced PoE Ports Management (auto ping check)
 Auto powered device (PD) detection
 Auto reset (cycle power to unresponsive PD)

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
2
 PoE ports weekly power scheduling
 Port Configuration
 Status, statistics, mirroring, rate limiting, event syslog
 Event Handling
 Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP
trap and Fault Alarm Relay Output
 Software Upgrade via TFTP and HTTP
 Configuration Backup – USB Port
1.3 Product Hardware Features
 System Interface and Performance
 All RJ-45 ports support Auto MDI/MDI-X Function
 Embedded 4*10/100/1000Tx (PSE 30W/Port) RJ45 ports, 1*10/100/1000Tx Fast
Ethernet RJ45 port, and 1*100/1000 SFP Slot for fiber.
 Store-and-forward switching architecture
 8K MAC address table
 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
 Power Input
 DC 48~55V redundant with a 6-pin removal terminal block
 One user programmable alarm relay contact
 Operating Temperature
 Standard operating temperature models: -10°C to 70°C
 Extended operating temperature models: -40°C to 75°C
 Case/Installation
 IP-30 protection metal housing
 Installation in pollution degree to environment
 DIN-Rail and wall mount design
1.4 Package Contents
 1– LMP-0601G-SFP series: 6-Port industrial PoE+ gigabit managed Ethernet switch, with
4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 1*100/1000 SFP slot.
 1-Product CD
 2-Wall mounting brackets and screws
 1-RJ45 to DB9 Serial Console cable
 1-DC cable –18 AWG & DC jack 5.5x2.1mm

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
3
1.5 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
4
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0601G-SFP series: 6-port
industrial PoE+ gigabit managed Ethernet switch with 4*10/100/1000Tx (30W/Port), and
1*10/100/1000Tx, and 1*100/1000 SFP slot.
(W x D x H) is 46mm x 99mm x 142mm
Figure2.1
LMP-0601G-SFP Series Physical Dimensions

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
5

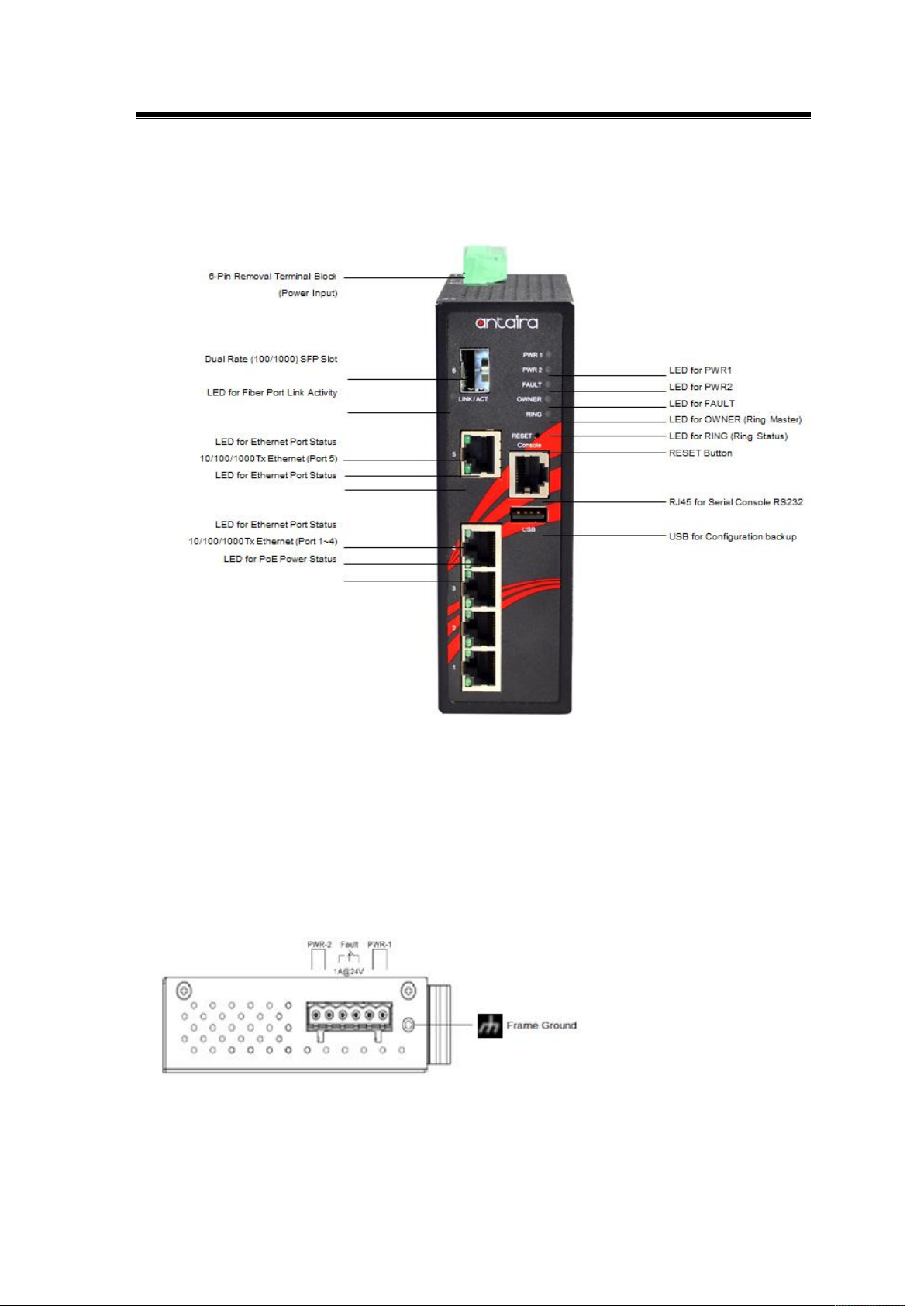

2.2 Front Panel
The front panel of the LMP-0601G-SFP series industrial PoE+ gigabit managed Ethernet switches
is shown below in Figure 2.2.
2.3 Top View
Figure 2.3 below, shows the top panel of the LMP-0601G-SFP series switch is equipped
with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).
Figure2.2
The Front Panel of LMP-0601G-SFP Series
Figure2.3
Top Panel View of LMP-0601G-SFP Series

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
6
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED Color Description
P1 Green On Powerinput1is active
Off Powerinput1isinactive
P2 Green On Powerinput2is active
Off Powerinput2isinactive
Fault
Green On System is ready
Off System is booting
Red On Fault Alarm
Off System is in normal state
Owner Green On ERPS Owner Mode (Ring Master) is ready
Off ERPS Owner Mode is not active
Ring Green On Ring Network is active
Off Ring Network is not active
LAN Port 1~ 4
(Left LED)
Green
On Connected to network
Flashing Networking is active
Off Not connected to network
LAN Port 1~ 4
(Right LED)
PoE Indicators
Green
On The port is supplying power to the powered-device
Off No powered-device attached or power supplying fails
LAN Port 5
(Left LED)
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
LAN Port 5
(Right LED)
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Fiber Port 6
LNK/ACT
Green
On Connected to network
Flashing Networking is active
Off Not connected to network
Table 2.1
LED Indicators for LMP-0601G-SFP Series

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
7
2.5 Ethernet Ports
 RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-TX connections. Auto MDI/MDIX means that the switch can connect to another switch
or workstation without changing the straight-through or crossover cabling. See the figures as
below for straight-through and crossover cabling schematics.
 RJ-45 Pin Assignments (Table 2.2)
Pin Number Assignment
1 Rx+
2 Rx-
3 Tx+
6 Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can
use straight-through cables (see figure below) for all network connections to PCs, servers, other
switches or hubs. With straight-through cable pins 1, 2, 3, and 6, at one end of the cable are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T, 100BASE-TX, and 1000BASE-T MDI and MDI-X port pin outs.
Note
“+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
8
The following figures show the cabling schematics for straight-through and crossover.
Figure 2.4 Figure 2.5
Straight-Through Cable Schematic Crossover Cable Schematic
The following figures show the 10,100, and 1000 Ethernet RJ-45 pin outs.
Figure 2.7 Figure 2.8
Straight-Through Cable Schematic Crossover Cable Schematic
Figure 2.6
RJ45 Ethernet Port Pin Outs

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
9
2.6 Cabling
 Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded
twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX
standard (e.g. Category 5, 5e, or 6). The cable between the equipment and the link partner
(switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
 Fiber segment – port 6: dual rate (100/1000) SFP slot. The small form-factor pluggable
(SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
 To connect the transceiver and LC cable, please follow below steps:
 First, insert the SFP transceiver module into the SFP slot as shown below in Figure
2.9. Notice that the triangle mark is at the bottom of the SFP slot. Figure 2.10 shows
SFP transceiver module was inserted.
Figure 2.9 - Transceiver to the SFP Module
Figure 2.10 - Transceiver Inserted

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
10
 Second, insert the fiber cable of the LC connector into the transceiver as shown
below in Figure2.11.
 To remove the LC connector from the transceiver, please follow the steps
shown below:
 Press the upper side of the LC connector from the transceiver and pull it out to
release as shown below in Figure 2.12.
 Push down the metal clasp and pull the transceiver out by the plastic part as
shown below in Figure 2.13.
Figure 2.11 - LC Connector to the Transceiver
Figure 2.12 - Remove LC Connector
Figure 2.13 - Pull Out from the SFP Module

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
11

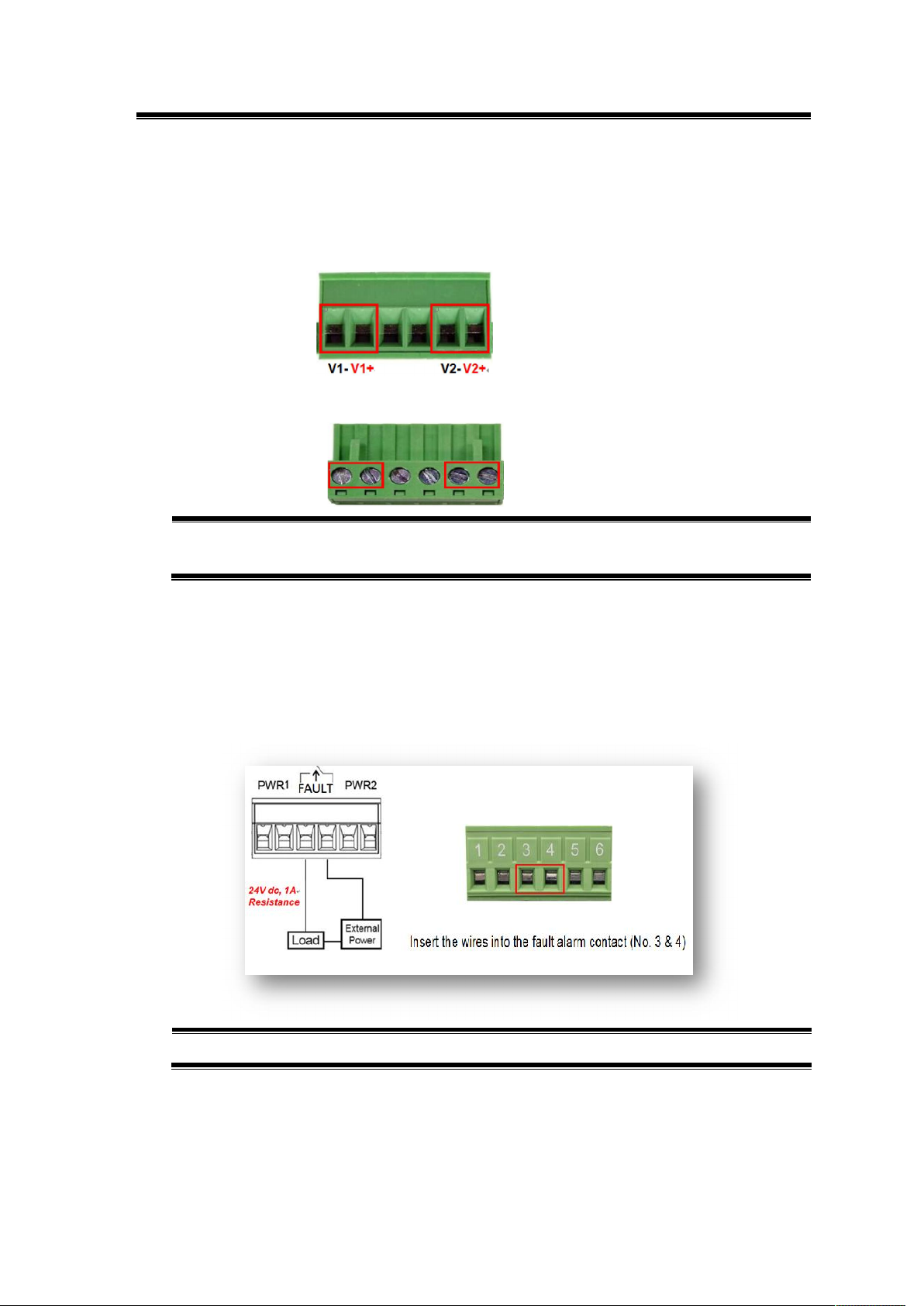

2.7 Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.14.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.15.
Note  Only use copper conductors, 60/75°C, tighten to 5lbs.
 The wire gauge for the terminal block should range between 18~20 AWG.
2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below
in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port
link failure (managed industrial switch only) and forma normally open circuit. An application
example for the fault alarm contact is shown below in Figure 2.16.
Note  The wire gauge for the terminal block should range between 12 ~ 24AWG
Figure 2.15 - Power Terminal Block
Figure 2.14 - Power Terminal Block
Figure 2.16 - Wiring the Fault Alarm Contact

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
12
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial
Ethernet switch from the factory. If the DIN-Rail
is not on the industrial Ethernet switch, please
see Figure 3.1 to learn how to install the DIN-
Rail on the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure 3.1
The Rear Side of the Switch and DIN-Rail Bracket
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.1
13
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
Figure 3.4
Remove DIN-Rail Bracket from the Switch
