Introduction
The 16 10 /100TX + 2 1 0/100/1000T/Mini-GBIC Co mbo I ndustrial S witch is a cost-
effective s olution and meets the high r eliability r equirements demanded by i ndustrial
applications. Using fiber por t c an ex tend t he c onnection distance t hat i ncreases the
network elasticity and performance.
Features
System Interface/Performance
RJ-45 ports support Auto MDI/MDI-X Function
SFP (mini-GBIC) supports 100/1000 Dual Mode
Store-and-Forward Switching Architecture
Back-plane (Switching Fabric): 7.2Gbps
1Mbits Packet Buffer
8K MAC Address Table
Supports Wide Operating Temperature (-40oC ~ 75oC)
Case/Installation
IP-30 Protection
DIN-Rail and Wall Mount Design
Power Supply
Wide Range Redundant Power Design
Power Polarity Reverse Protect
Overload Current Protection
Provides EFT protection 3,000 VDC for power line
Supports 6,000 VDC Ethernet ESD protection

2
Package Contents
Please refer to the package content list below to verify them against the checklist.
16 10/100TX + 2 10/100/1000T/Mini-GBIC Combo Industrial Switch
Pluggable Terminal Block
User manual
2 wall mount plates with screws
One DIN-Rail (attached on the switch)
Compare the contents of the industrial switch with the standard checklist above. If any
item is damaged or missing, please contact the local dealer for service.

3
Hardware Description
In this paragraph, it will describe the Industrials witch’s hardware spec, port, cabling
information, and wiring installation.
Physical Dimension
16 10/100TX + 2 10/100/1000T/Mini-GBIC Combo Industrial Switch dimension (W x D x
H) is 72mm x 105mm x 152mm
Front Panel
The front panel of the 16 10/100TX + 2 10/100/1000T/Mini-GBIC C ombo I ndustrial
Switch is shown as below:

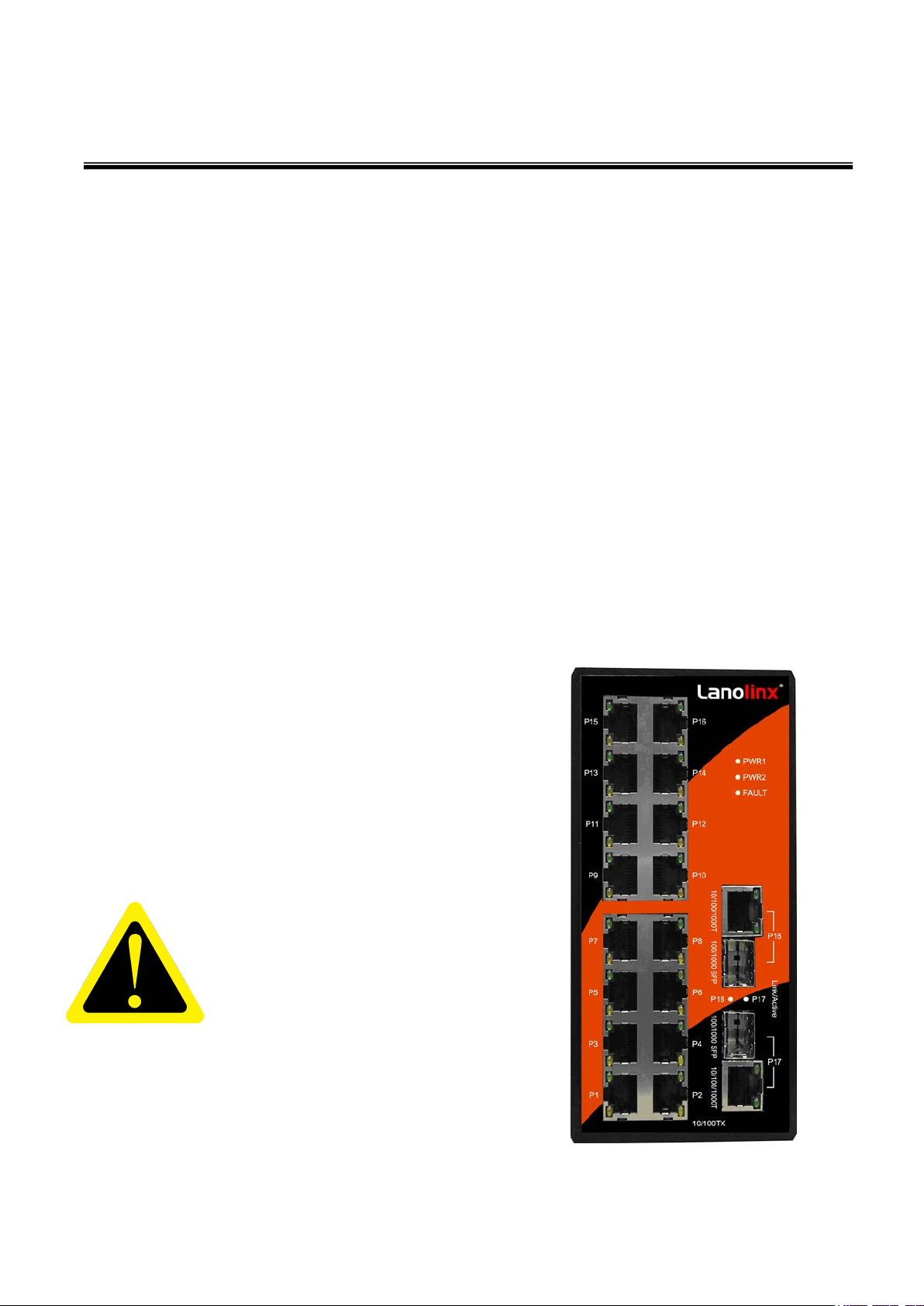

Front Panel of the industrial switch
Airflow around the switch must be
unrestricted. To prevent the switch from
overheating, there must be the following
minimum clearances:
•Top and bottom: 2.0 in. (50.8 mm)
•Sides: 2.0 in. (50.8 mm)
•Front: 2.0 in. (50.8 mm)
Warning!

4
Top View
The top panel of the 16 10/100TX + 2 10/100/1000T/Mini-GBIC Combo Industrial Switch
has one terminal block connector of two DC power inputs.

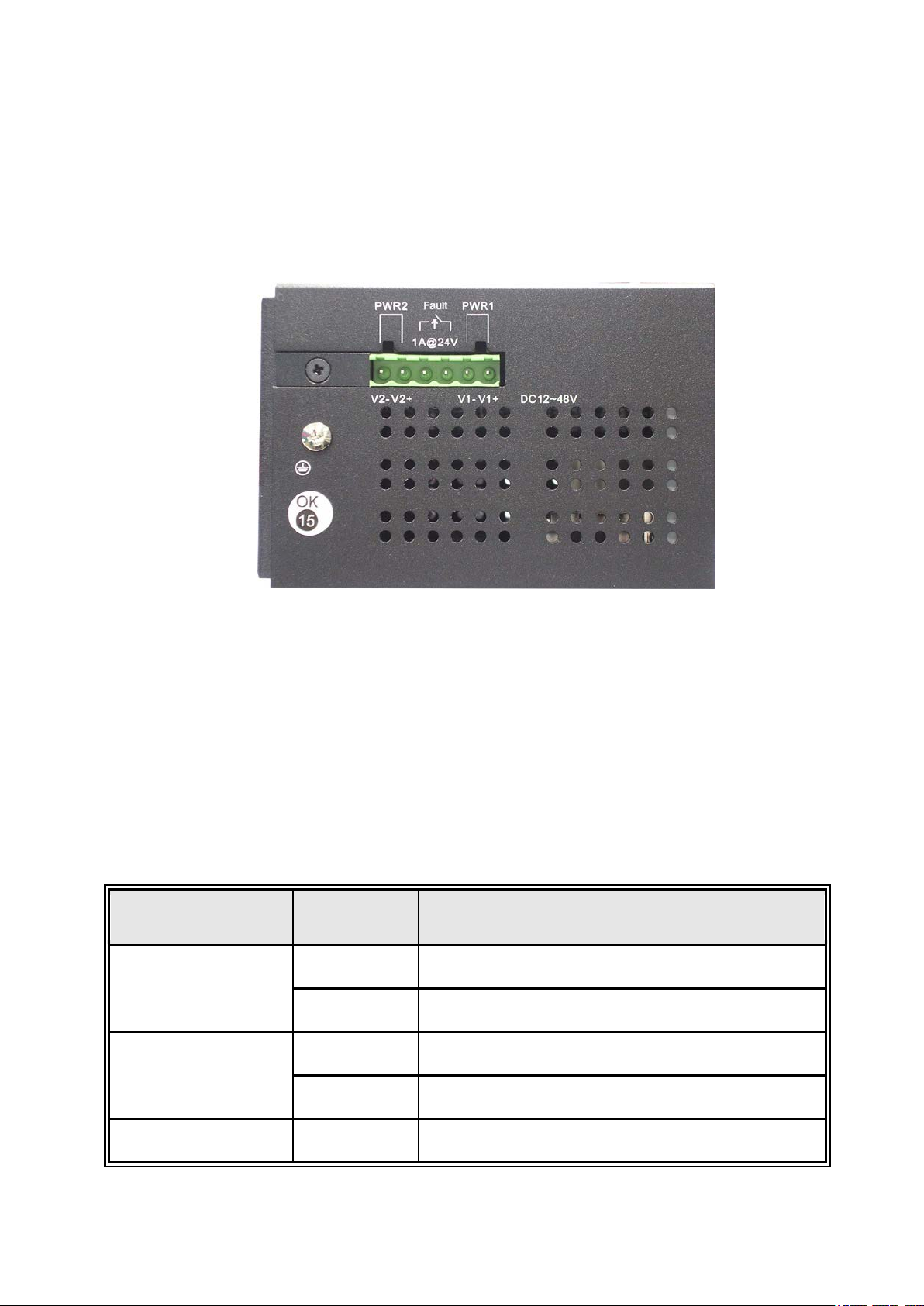

Top Panel of the industrial switch
LED Indicators
The diagnostic LEDs located on the front panel of the industrial switch provide real-time
information of system and optional status. The following table provides description of the
LED status and their meanings for the switch.
LED Status Meaning
PWR1
Green
Power 1 is active
Off
Power 1 is inactive
PWR2
Green
Power 2 is active
Off
Power 2 is inactive
Fault
Red
PWR1/PWR2 is inactive

5
Off
PWR1 & PWR2 are both active or no power
inputs
P1 ~ P16
Green
(Upper LED) Connected to network
Blinking
(Upper LED) Networking is active
Off
(Upper LED) Not connected to network
Yellow
(Lower LED) Ethernet port full duplex
Blinking
(Lower LED) Collision of packets occurs
Off
(Lower LED)
Ethernet port half duplex or not connected to
network
P17 ~ P18
(10/100/1000T)
Green
(Upper LED) Connected to network
Blinking
(Upper LED) Networking is active
Off
(Upper LED) Not connected to network
Green
(Lower LED) The port is operating at speed of 1000M
Off
(Lower LED)
The port is disconnected or operates at speed
of 10/100M
P17 ~ P18
Link/Active
(100/1000 SFP)
Green
SFP port is connected to network
Blinking
Networking is active
Off
Not connected to network

6
Ports
 RJ-45 ports
The UTP/STP ports will a uto-sense f or 10Base-T/100Base-TX connections (Fast
Ethernet) or 10Base-T, 100Base-TX, o r 10 00Base-T connections (Gigabit E thernet).
Auto M DI/MDIX m eans th at the sw itch can c onnect t o another switch or w orkstation
without changing straight through or crossover cabling. See the figures below for straight
through and crossover cable schematic.
 RJ-45 Pin Assignments
Pin Number
Assignment
1
Tx+
2
Tx-
3
Rx+
6 Rx-
Note
“+” and “-” signs represent the polarity of the wires that make up each wire
pair.
All ports on this industrial switch support automatic MDI/MDI-X operation, user can u se
straight-through cables (See figure below) for all network connections to PCs or servers,
or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of
the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of t he
cable. The table below shows the MDI and MDI-X port pin outs.
Pin MDI-X Signal Name MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)

7

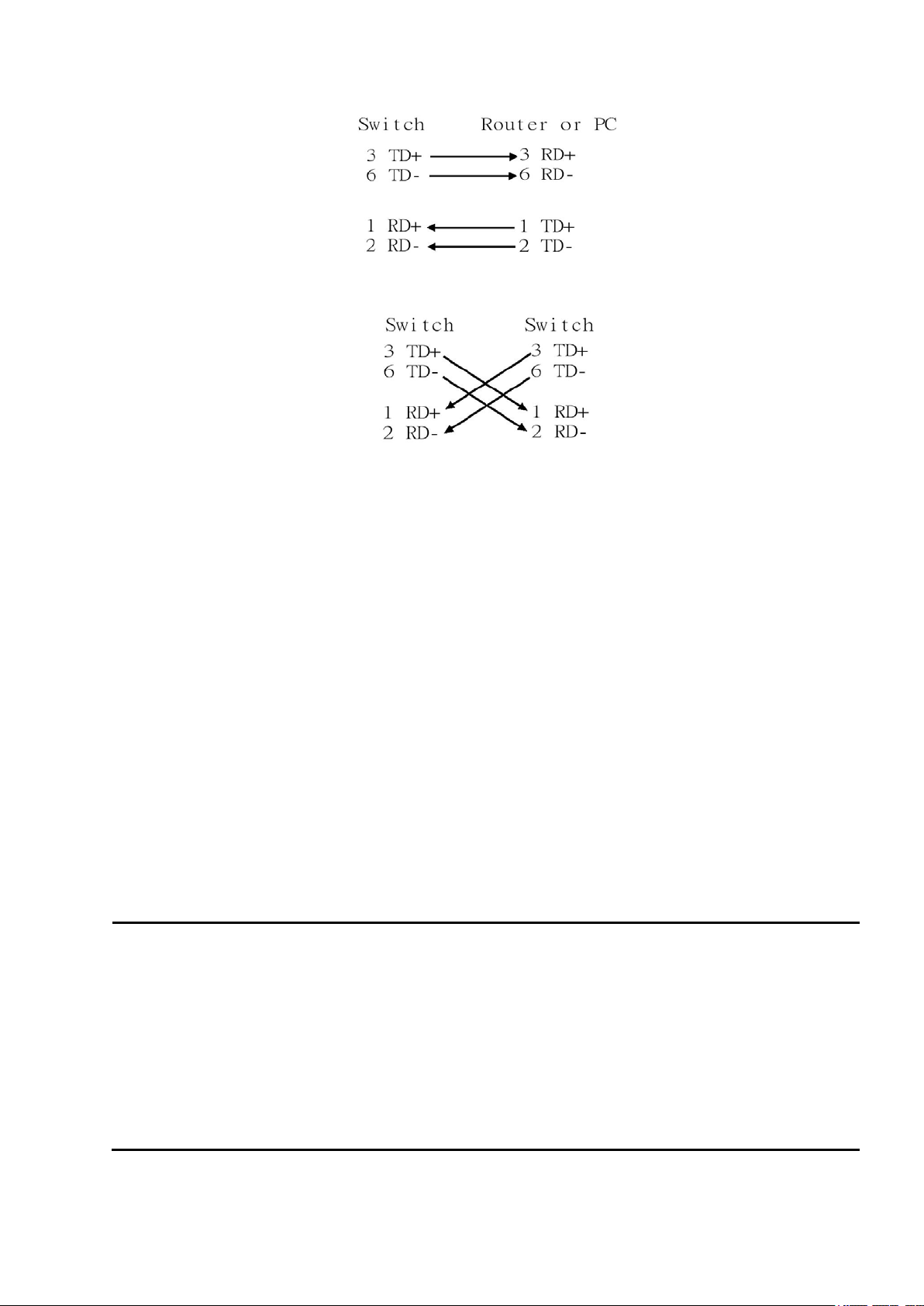

Straight Through Cable Schematic
Cross Over Cable Schematic
 2 Gigabit Copper/SFP (Mini-GBIC) combo port:
The I ndustrial s witch has t wo a uto-detected Giga po rt—UTP/STP/Fiber combo por ts.
The G igabit C opper (10/100/1000T) p orts s hould us e C ategory 5e or ab ove U TP/STP
cable f or the connection up t o 10 00Mbps. The S FP s lots s upporting dual m ode c an
switch t he c onnection s peed b etween 10 0 and 1 000Mbps. They are f or c onnecting t o
the net work segment with s ingle or m ulti-mode fiber. Y ou c an c hoose the appropriate
mini-GBIC module to plug into the slots. You can use proper multi-mode or single-mode
fiber according to the used SFP module. With fiber optic, it transmits speed up to 1000
Mbps and you can prevent noise interference from the system and transmission distance
up to 110 km, depending on the mini-GBIC module.
The small form-factor pluggable ( SFP) i s a compact optical transceiver used in optical
communications for both telecommunication and data communications applications.
Note
The SFP/Copper Combo module can’t both be used at the same time. The
SFP module has the higher priority than copper module; if you insert the
1000M SFP transceiver into the SFP module which is connected to the remote
device, the connection of the accompanying copper port will link down.
If you insert the 100M SFP transceiver into the SFP module even without a
fiber connection to the remote, the connection of the accompanying copper
port will link down immediately.

8
Cabling
Twisted-pair s egment c an be es tablished by us ing unshielded t wisted pai r ( UTP) or
shielded t wisted pair (STP) c abling. T he c able be tween t he l ink partner ( switch, hub ,
workstation, e tc.) and t he c onverter must b e l ess t han 100 meters ( 328 ft.) l ong and
comply with the IEEE 802.3ab 1000Base-T standard for Category 5e or above.
Fiber segment us ing single-mode connector type must use 9/125μm single-mode fiber
cable. You can connect two devices in the distance of 10 km. Fiber segment using multi-
mode connector type must use 50/125 or 62.5/125μm multi-mode fiber cable. You can
connect two devices up to 550m distances.
The small form-factor pluggable ( SFP) i s a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
To connect the transceiver and LC cable, please follow the steps shown below:
First, i nsert t he transceiver i nto t he S FP m odule. N otice t hat the t riangle m ark i s t he
bottom of the module.
Figure 2.8: Transceiver to the SFP module

9
Make sure the module is aligned correctly and then slide the module into the SFP slot
until a click is heard.
Figure 2.9: Transceiver Inserted

10

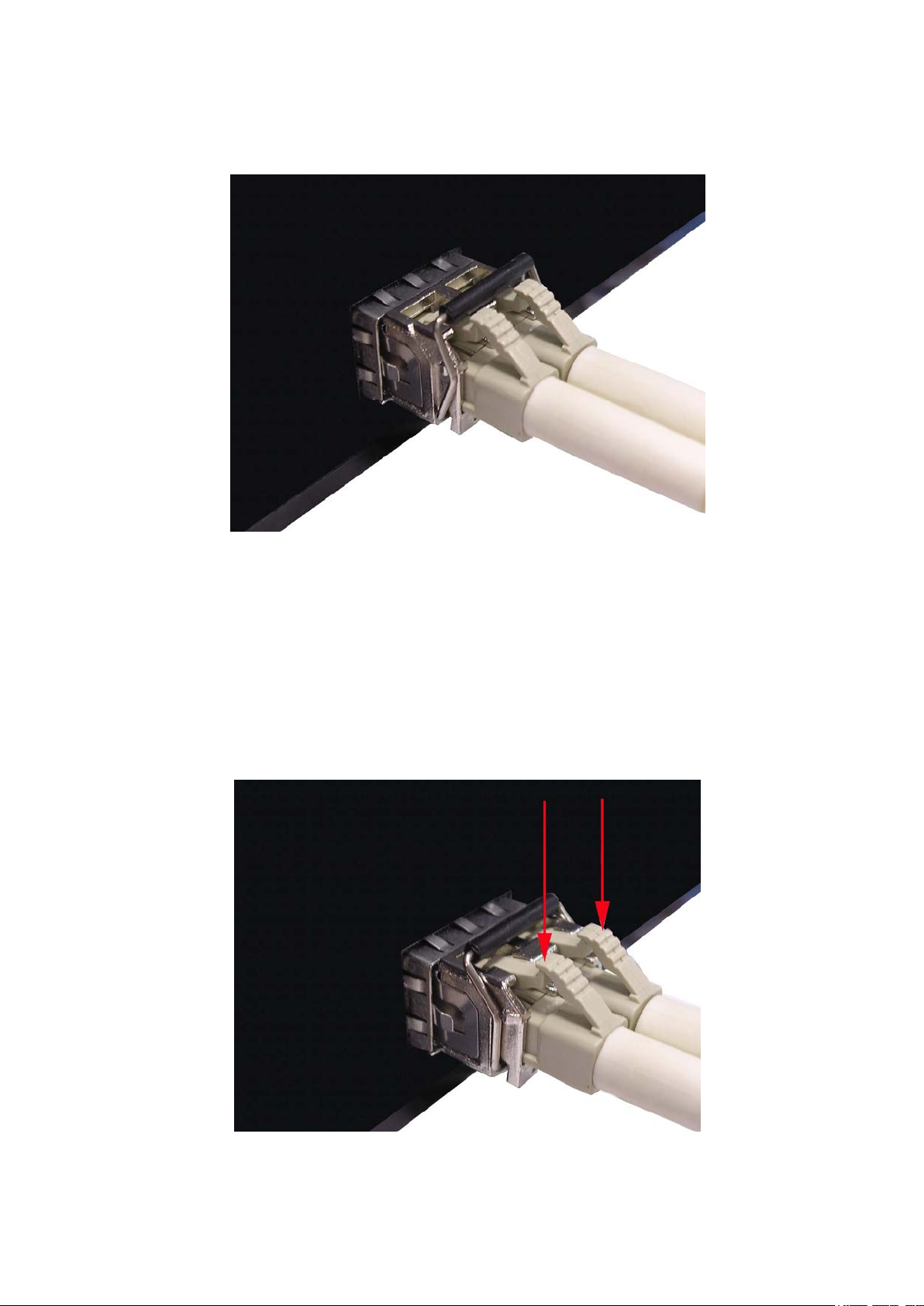

Second, insert the fiber cable of LC connector into the transceiver.
Figure 2.10: LC connector to the transceiver
To remove the LC connector from the transceiver, please follow the steps shown below:
First, pr ess t he u pper s ide o f t he LC c onnector from t he t ransceiver and p ull i t ou t t o
release.
Figure 2.11: Remove LC connector

11

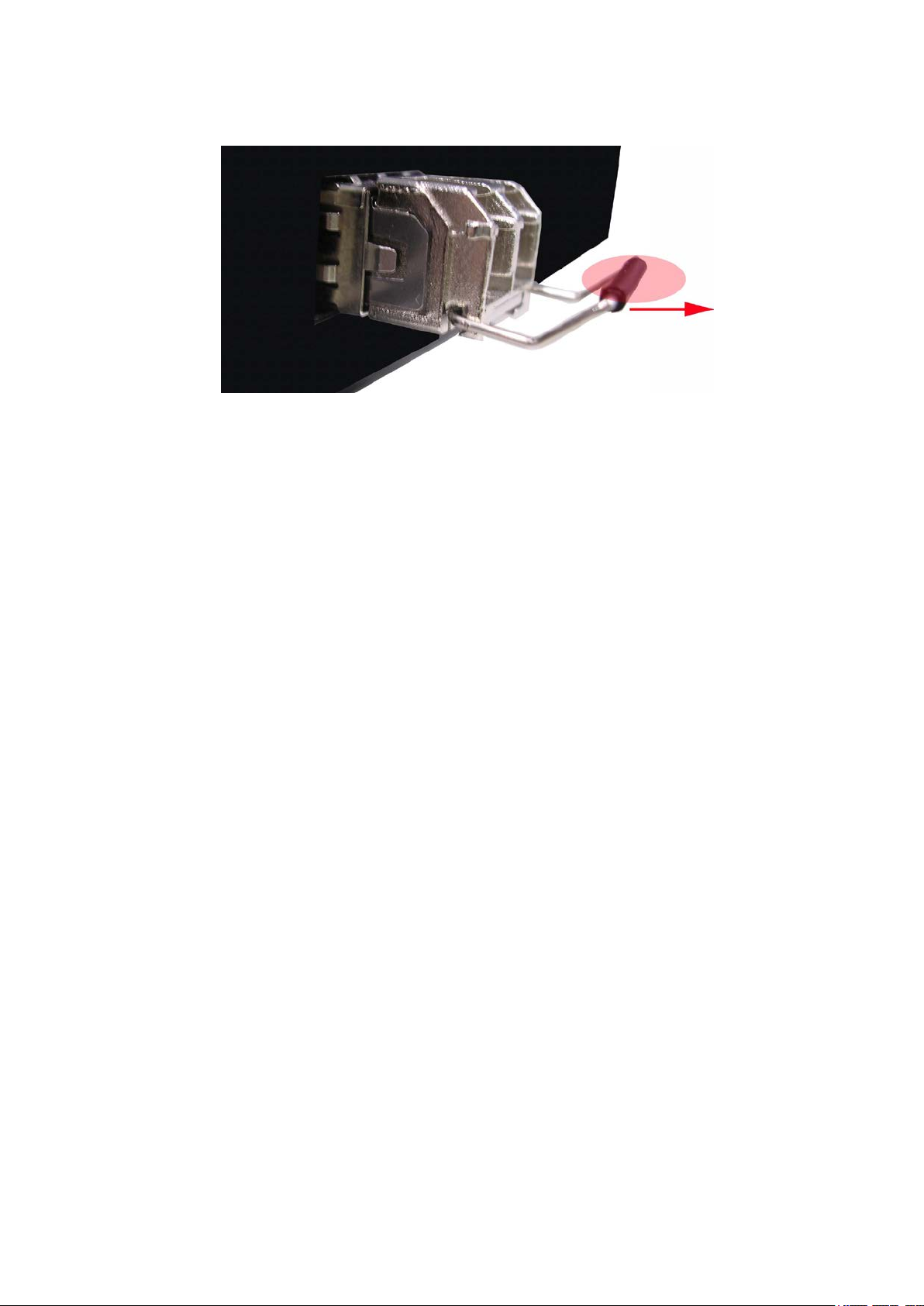

Second, push down the metal loop and pull the transceiver out by the plastic part.
Figure 2.12: Pull out from the SFP module

12
Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the V+ and V- contacts on the terminal block
connector.
2. To tighten the wire-clamp screws for preventing the DC wires to loose.

13
Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of terminal block connector as the picture shows
below. Inserting the wires, it will detect the fault status which the power is failure or port
link failure (for managed model) and form an open circuit.
Note
The wire gauge for the terminal block should be in the range between 12~ 24
AWG.
Insert the wires into the fault alarm contact (No. 3 & 4)

14
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is
not screwed on the industrial switch, please see the following pictures to screw the DIN-
Rail on the switch. Follow the steps below to hang the industrial switch.

15
1. First, insert the top of DIN-Rail into the track.
2. Then, lightly push the DIN-Rail into the track.
3. Check if the DIN-Rail is tightened on the track or not.
4. To remove the industrial switch from the track, reverse steps above.

16
Wall Mount Plate Mounting

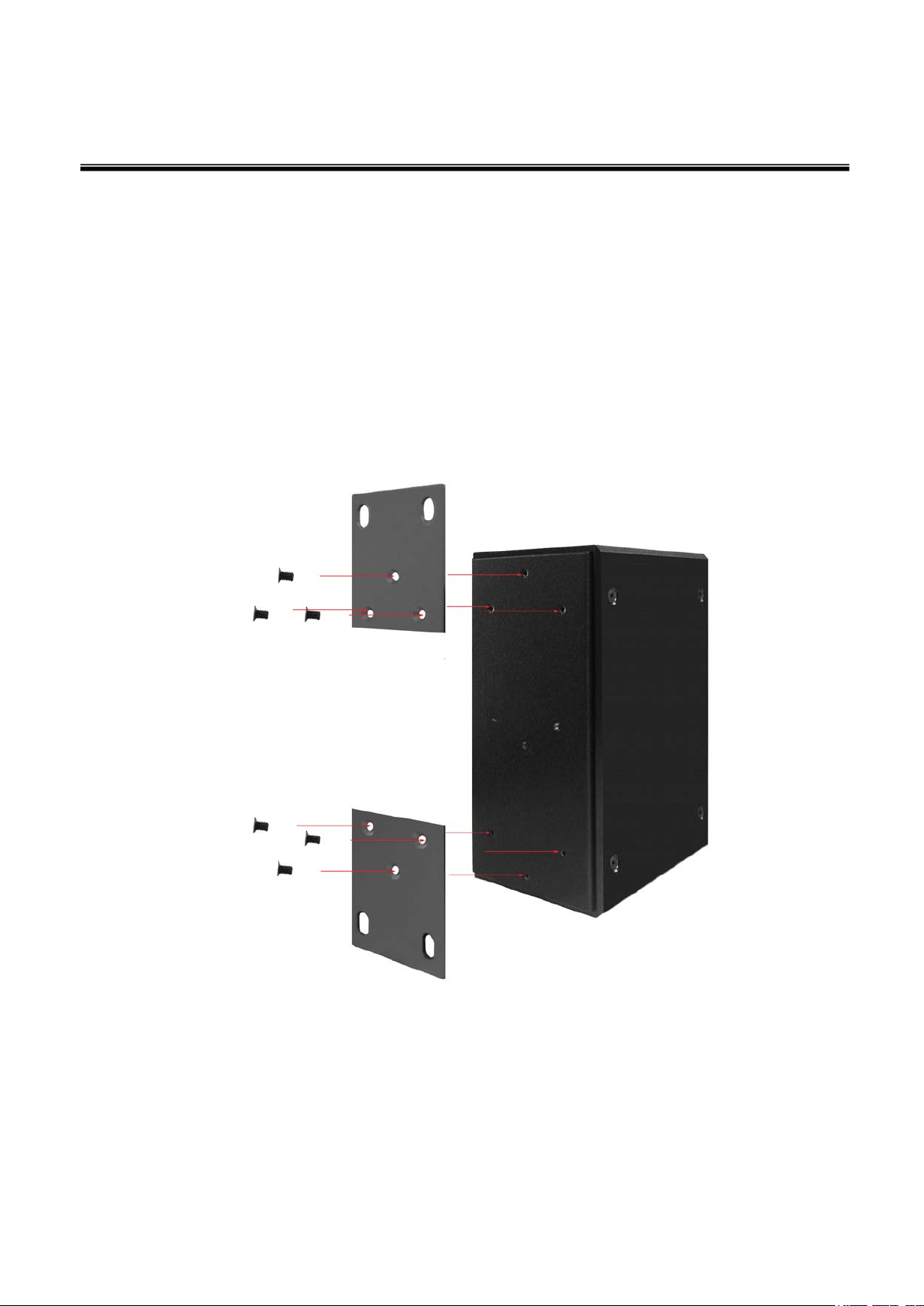

Follow the steps below to mount the industrial switch with wall mount plate.
1. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-
Rail.
2. Place the wall mount plate on the rear panel of the industrial switch.
3. Use the screws to screw the wall mount plate on the industrial switch.
4. Use t he hook h oles at t he c orners of the wall m ount pl ate t o h ang t he i ndustrial
switch on the wall.
5. To remove the wall mount plate, reverse the steps above.

17
Hardware Installation
In th is paragraph, we will des cribe how t o i nstall t he 16 10 /100TX + 2
10/100/1000T/Mini-GBIC C ombo I ndustrial S witch and t he i nstallation p oints to be
attended to it.
Installation Steps
1. Unpack the Industrial switch packing.
2. Check if the DIN-Rail is screwed on the Industrial switch or not. If the DIN-Rail is not
screwed on the Industrial switch, please refer to DIN-Rail Mounting section for DIN-
Rail i nstallation. If t he us er w ants t o w all m ount t he I ndustrial s witch, t hen pl ease
refer to Wall Mount Plate Mounting section for wall mount plate installation.
3. To hang t he I ndustrial s witch on t he D IN-Rail t rack or wall, pl ease r efer t o t he
Mounting Installation section.
4. Power on the Industrial switch. Please refer to the Wiring the Power Inputs section
for k nowing t he i nformation a bout h ow t o w ire t he power. T he power LE D on t he
Industrial switch will light up. Please refer to the LED Indicators section for indication
of LED lights.
5. Prepare t he twisted-pair, straight t hrough Category 5 /above cable f or Ethernet
connection.
6. Insert one end of UTP/STP cable into the Industrial switch RJ-45 port and the other
end t o the net work device’s RJ -45 por t, e. g. Switch PC or S erver. The R J-45 port
LED on t he I ndustrial s witch will light up w hen t he c able i s c onnected w ith t he
network device. Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and LED lights all show in normal, the installation is
complete.
