ANTAIRA LMX-2012G-SFP Series User manual

LMX-2012G-SFP Series
20-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, with
8*10/100/1000Tx Ports and 12*100/1000 SFP Ports
Hardware Manual
Version 1.0
(June 2021)

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
© Copyright 2021 Antaira Technologies, LLC
All rights reserved
This document contains information, which is protected by copyright. Reproduction, adaptation, or translation without
prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered
trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered trademarks of their
respective owners.
Notice: Copyrights © 2021 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or translation
without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but not
limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies, LLC may
make improvements and/or changes to the product and/or specifications of the product described in this manual, without
prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this
guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of
the manual. The information contained is subject to change without prior notice.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause harmful interference to
radio communications if the equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority
to operate the equipment.
Avertissement FCC
Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la
partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences
nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l'énergie radiofréquence.
Cela peut provoquer des interférences nuisibles aux communications radio si l'équipement n'est pas installé et utilisé
conformément aux instructions. Cependant, il n'y a aucune garantie qu'aucune interférence ne se produira dans une
installation particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou télévision, ce qui
peut être déterminé en éteignant puis en rallumant l'équipement, l'utilisateur est encouragé à essayer de corriger les
interférences par une ou plusieurs des mesures suivantes:
●Réorientez ou déplacez l'antenne de réception.
●Augmentez la distance entre l'équipement et le récepteur.
●Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est connecté.
●Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.
CE Mark Warning
This is a Class-A product. In a domestic environment, this product may cause radio interference in which case the user
may be required to take adequate measures.
Avertissement de marque CE
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des interférences radio,
auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.
Industrial Ethernet Switches
Industrial Grade Managed Ethernet Switches
Hardware Manual
Version 1.0 (June 2021)
The manual supports the following models:
●LMX-2012G-SFP
●LMX-2012G-SFP-T

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
This document is the current official release hardware manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Table of Contents
1 Overview 1
1.1 Product Hardware Features 1
1.2 Product Software Features 1
1.3 Package Contents 2
1.4 Safety Precaution 2
2 Hardware Description 4
2.1 Physical Dimensions 4
2.2 Front View Panel 5
2.3 Top View Panel 5
2.4 LED Indicators 6
2.5 Reset Button 7
2.6 Ethernet Ports 7
2.7 Cabling 8
2.8 Wiring the Power Inputs 8

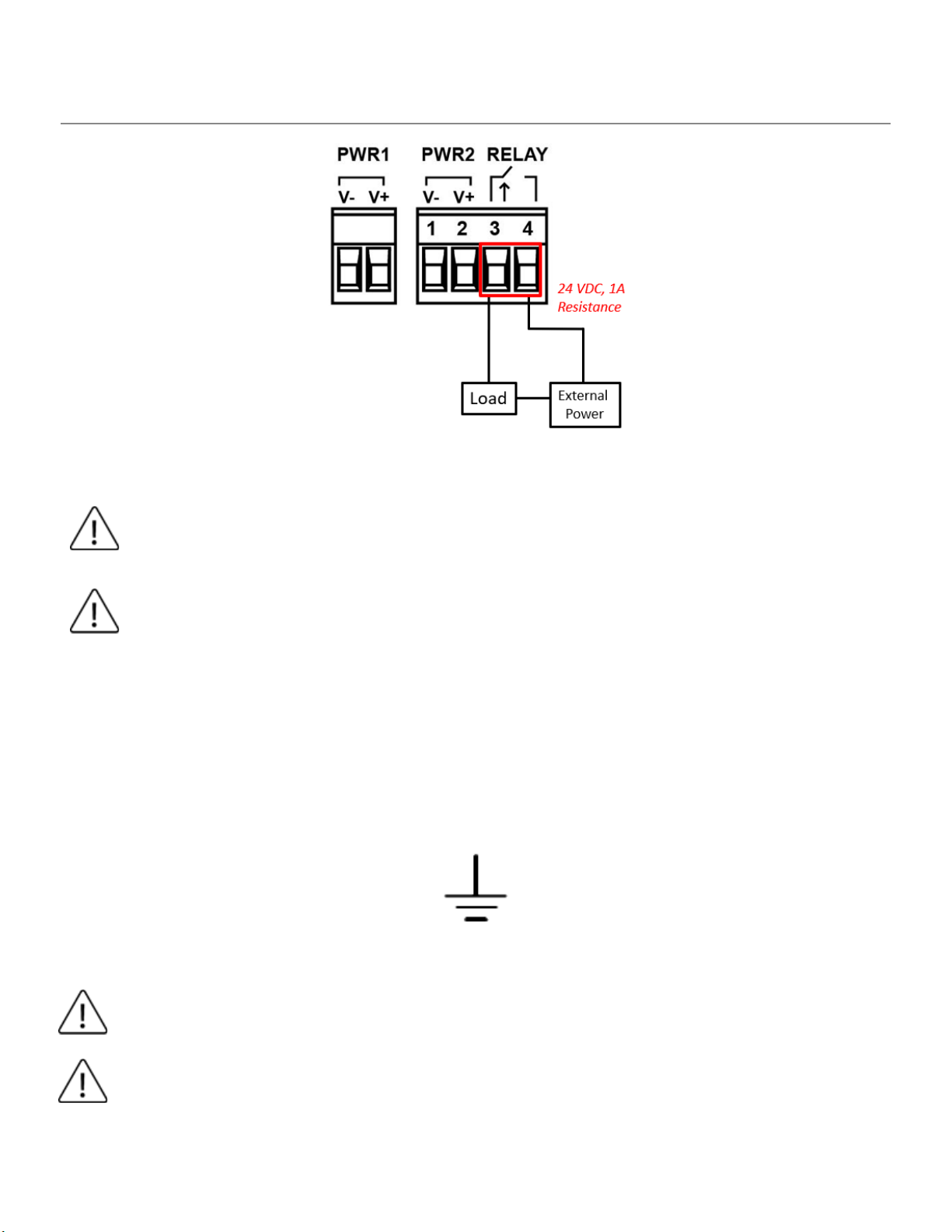

2.9 Wiring the Relay Contact 9
2.10 Grounding Note 10
3 Mounting Installation 11

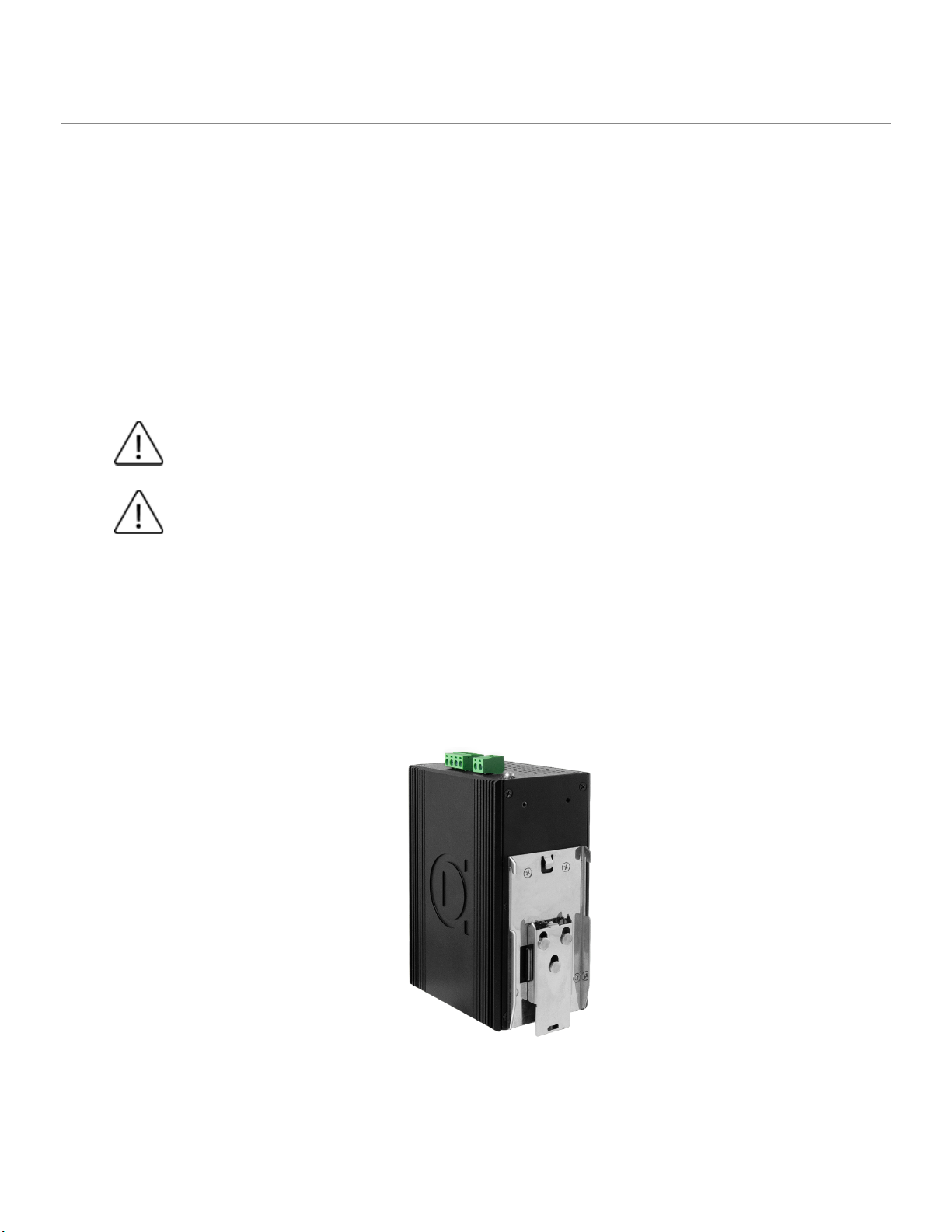

3.1 DIN-Rail Mounting 11
3.2 Wall Mounting 12
4 Hardware Installation 14
4.1 Installation Steps 14
4.2 Maintenance and Service 15
4.3 Troubleshooting 15
5 Technical Specifications 16

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
1 Overview
Antaira Technologies’ LMX-2012G-SFP series is a 20-port industrial gigabit managed Ethernet switch embedded with
8*10/100/1000Tx Ethernet ports and 12*100/1000 dual rate SFP slots for fiber connections. The LMX-2012G-SFP is a
fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design.
There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an
extended temperature range (EOT: -40°C to 75°C).
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support Auto MDI/MDI-X Function
- Embedded 8*10/100/1000Tx RJ45 ports and 12*100/1000 SFP slots
- Store-and-forward switching architecture
- 8K MAC address table
Product Input
- DC 12~48V redundant, with a 4-pin and 2-pin removal terminal block
- The power input specification complies with the requirements of SELV (Safety Extra Low Voltage) and the power
supply should comply with UL 61010-1 & UL 61010-2-201
Operating Temperature
- LMX-2012G-SFP: -10°C to 65°C
- LMX-2012G-SFP-T: -40°C to 75°C
Case / Installation
- IP30 protection metal housing
- DIN-Rail and wall-mount design
- Installation in a Pollution Degree 2 industrial environment
1.2 Product Software Features
Network Redundancy
- STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy
Network Management
- Web UI based management, SNMP v1/v2/v3, Serial Console
- QoS, traffic classification QoS, Cos, bandwidth control for Ingress and Egress, broadcast storm control, Diffserv
- IEEE 802.1q VLAN tagging, port-based VLAN support
- IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024 group
1

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
- Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP
- MODBUS TCP for SCADA system integration
Port Configuration
- Status, statistics, mirroring, rate limiting, event syslog
Event Handling
- Event notification: Cold/Warm Start, Power Failure, Authentication, SNMP trap and Fault Alarm Relay Output
Storage Upgrade via TFTP and HTTP
Configuration Backup - USB Port
1.3 Package Contents
- LMX-2012G-SFP(-T)
- Quick Installation Guide
- Wall mounting bracket set with screws
- DC cable - 18AWG & DC jack 5.5 x 2.1mm **Wire: White (+) / Black (-)
- Dust cover set
- RJ45 to DB9 serial console cable
1.4 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within
this hardware manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et l'installation du câblage du
commutateur Ethernet industriel seront décrits dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check certain information on the user manual when working with the device.
(Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation lorsque vous
travaillez avec l'appareil. (Illustré à la figure 1.1)
2

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
3

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
2 Hardware Description
2.1 Physical Dimensions

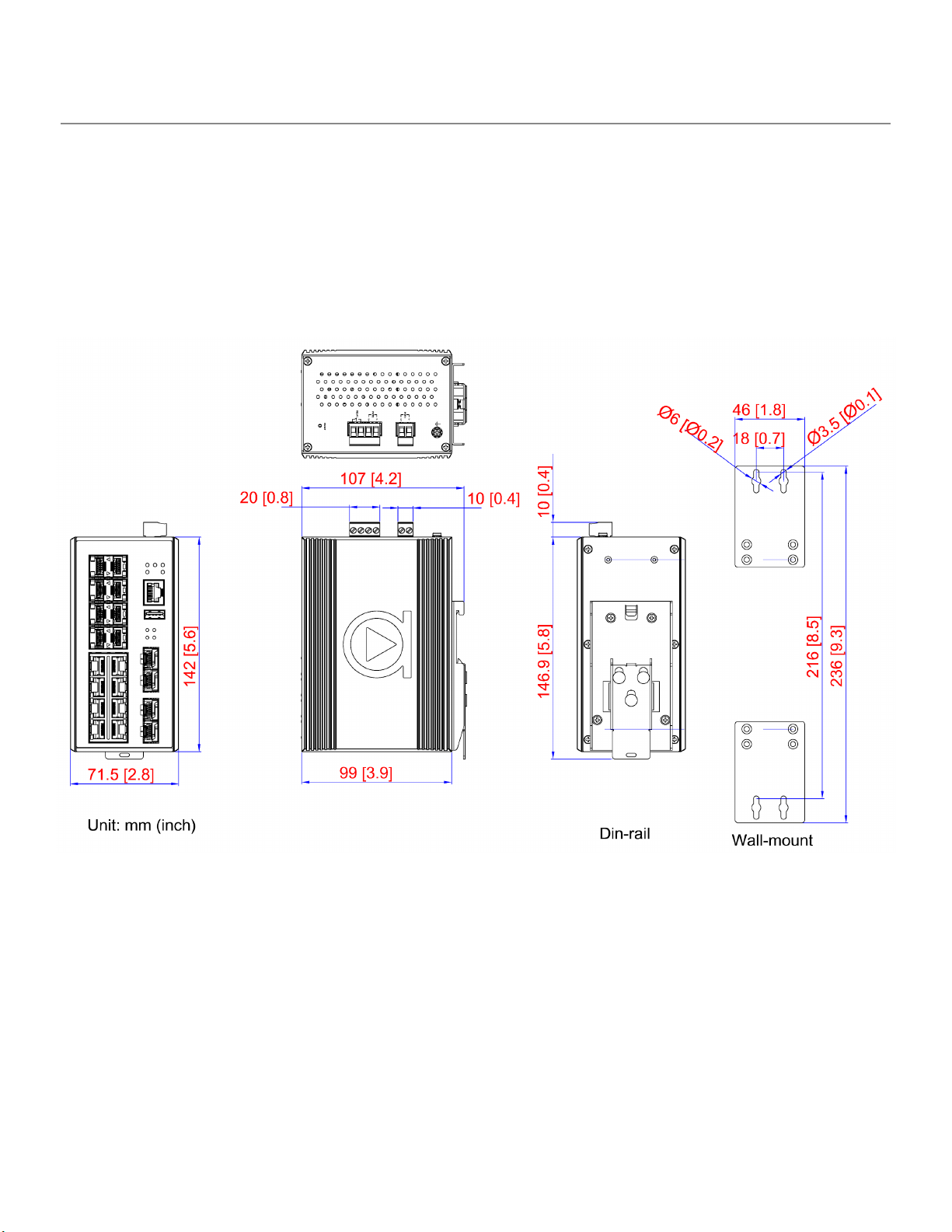

Figure 2.1, below, shows the physical dimensions of this product series:
(W x D x H) is 71.5mm x 99mm x 142mm
Figure 2.1 - Physical Dimensions
4

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
2.2 Front View Panel

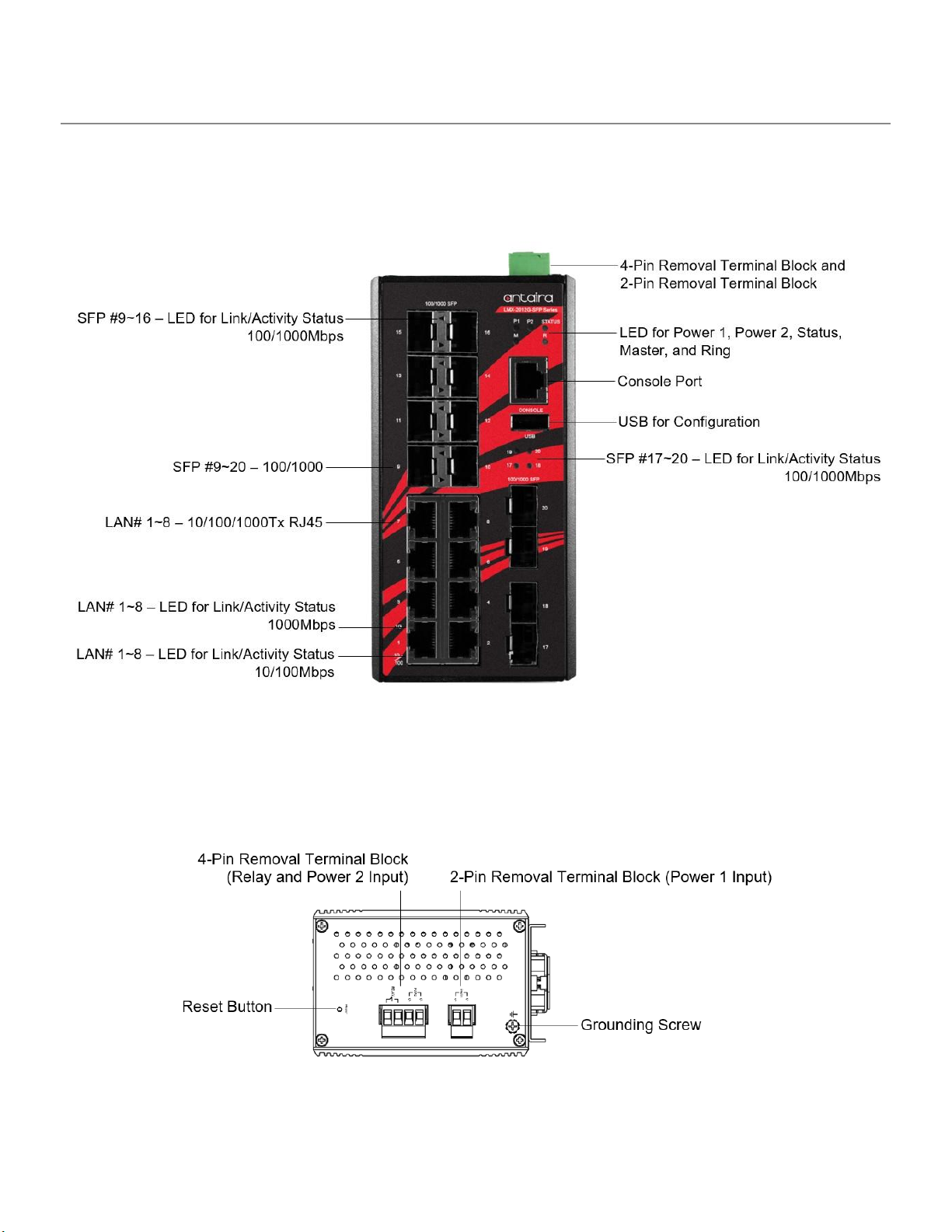

Figure 2.2, below, shows the front panel of the product series:
Figure 2.2 - Front View Panel
2.3 Top View Panel
Figure 2.3, below, shows the top panel of the product series:
Figure 2.3 - Top View Panel
5

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and
network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power Input 1 is active
Off
Power Input 1 is inactive
P2
Green
On
Power Input 2 is active
Off
Power Input 2 is inactive
Status
Green
On
The system is ready and works fine.
There are no events occurring.
Red
Flashing
Firmware upgrading
Off
System booting or configured event happens
Master
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
Ring
Green
On
Ring Network is active
Flashing
ERPS Ring works abnormally or misconfigured
Off
Ring Network is not active
LAN Port 1~8
(Upper LED)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~8
(Lower LED)
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
SFP Port 9~20
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 100Mbps
6

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Flashing
Networking is active
Off
Not connected to network
Table 2.1 - LED Indicators
Note: “P1” is the abbreviation for “Power 1”, “P2” is for “Power 2”, “LNK” is for “Link”, and “ACT” is for “Activity”.
2.5 Reset Button
There is a “reset” button located on the top panel of the industrial Ethernet switch that helps users to reboot, restore
default, or save running configurations by pressing the button for different seconds. Please refer to Table 2.2 for the
timing and function.
Seconds
Function
Fault LED
0s < t (press time) < 4s
Reboot the switch
LED is flashing with green color
4s < t (press time) < 8s
Restore factory default
LED is flashing with green and red color
8s < t (press time)
Backup configuration to USB
(startup-config)
LED is flashing with red color
Table 2.2 - Reset Button Functions
2.6 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections.
Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or
crossover cabling. See the figures below for straight-through and crossover cabling schematics.
●RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
7

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3 - 1000Base-T RJ45 Pin Assignments
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
2.7 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch
and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC-60825-1 and
classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à la norme
IEC-60825-1 et classé comme produit laser de classe 1.
2.8 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.
8

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0

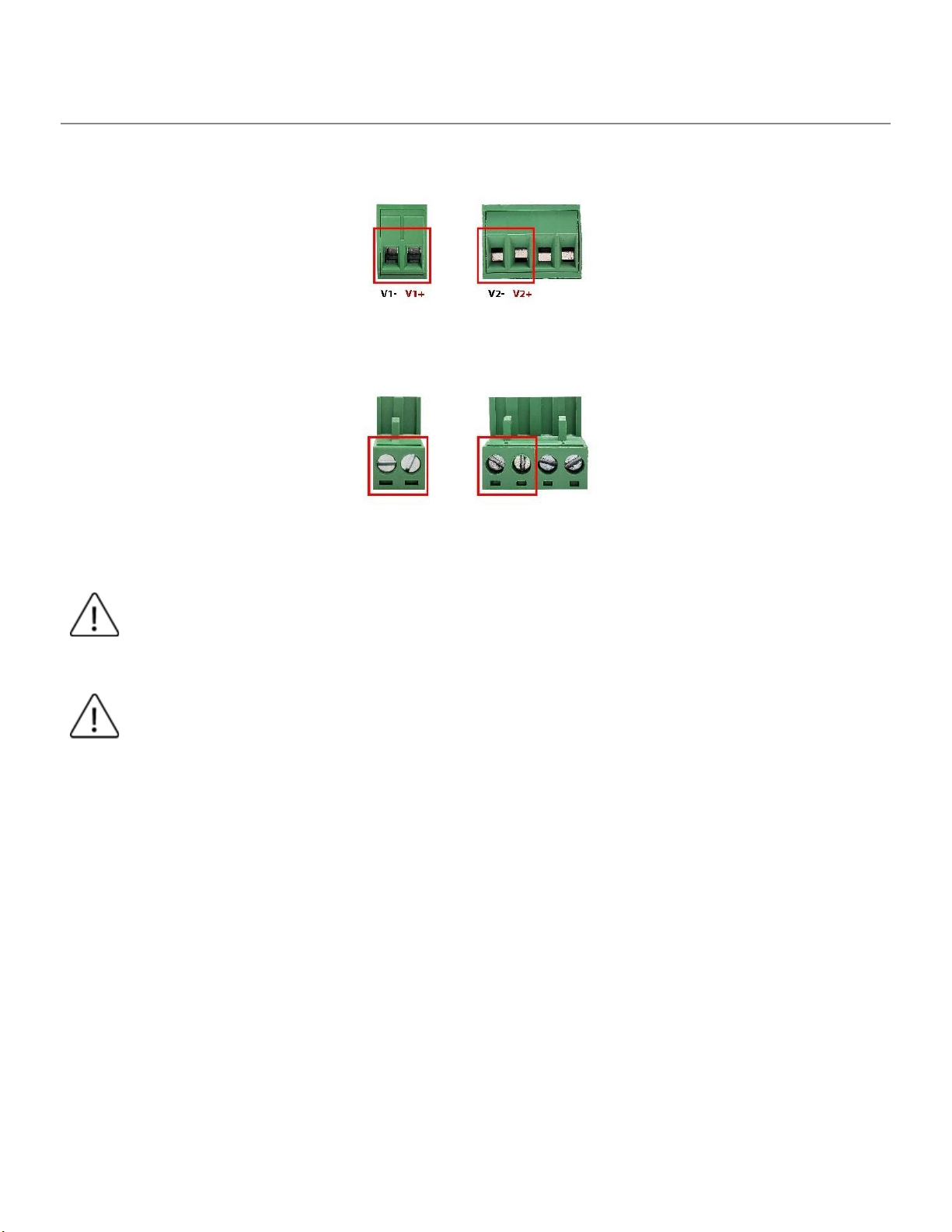

1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block
connector as shown below in Figure 2.6.
Figure 2.6 - Power Terminal Block
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7.
Figure 2.7 - Power Terminal Block
Caution:
Only use copper conductors, 125°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Attention:
Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
2.9 Wiring the Relay Contact
The relay contact is in one of the terminal block connectors as the picture shows below in Figure 2.8. By inserting the
wires, it will detect the fault status including power failure or DI Event, and port link failure (managed industrial switch
only) and form a normally open circuit.
9

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Figure 2.8 - Wiring the Relay Contact
Caution:
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm.
Attention:
Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à 5 et les broches 2 à 6 pour
éliminer l'alarme de panne de courant.
2.10 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground
connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is
shown below in Figure 2.9.
Figure 2.9 - Grounding Screw Symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique
10

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
3 Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial
Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch:
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN- Rail on to the
track as shown below in Figure 3.2.
4. Lightly pull down the bracket onto the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
Figure 3.1 - Rear View of the Switch and DIN-Rail
11

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail
3.2 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure
3.4.
Caution: “Wall” means industrial control panel wall
Attention: “Wall” signifie mur de panneau de commande industriel
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
12

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
Figure 3.4 - Remove DIN-Rail bracket from the Switch
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5 - Wall Mounting Bracket Dimensions
13

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
4 Hardware Installation
4.1 Installation Steps
This section will explain how to install the industrial Ethernet switch:
Caution: This device is intended for indoor use.
Attention: Cet appareil est destiné à une utilisation en intérieur.
Caution: The device is intended to be installed in an industrial control enclosure and panel.
Attention: L'appareil est destiné à être installé dans une armoire de commande et un panneau industriels.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
●If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the DIN-Rail Mounting section
for DIN-Rail installation.
●If it is required to wall mount the industrial Ethernet switch, please refer to the Wall Mounting section for wall
mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
●For the help on how to wire power, please refer to the Wiring the Power Inputs section.
●Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ45 cable into the switch’s Ethernet port and on the other side into the networking device’s
Ethernet port, e.g. switch PC or server.
●The Ethernet port’s (RJ45) LED on the industrial Ethernet switch will turn on when the cable is connected to
the networking device.
●Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.
14

Antaira Technologies - Industrial Ethernet Switches
LMX-2012G-SFP Series - Hardware Manual - v1.0
4.2 Maintenance and Service
●If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting.
The initial installation should be done in a way that makes this as convenient as possible.
●Voltage / Power lines should be properly insulated as well as other cables. Be careful when handling them so as
to not trip over.
●Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes located in the
different faces of the device. This may not only harm the internal layout, but might cause harm to users as well.
●Do not under any circumstance open the device for any reason. Please contact your dealer for any repair needed
or follow the instructions within the manual.
●Clean the device with dry soft cloth.
4.3 Troubleshooting
●Always verify the right power cord or adapter is being used. Never use a power supply or adapter with a
non-compliant DC output voltage or it will burn the equipment.
●Select the proper UTP or STP cable in order to construct the network. Use an unshielded twisted-pair (UTP) or
shield twisted-pair (STP) cable for RJ45 connections: 100Ω Category 5e for 10/100Mbps. Also be sure that the
length of any twisted-pair connection does not exceed 100 meters (328 feet).
●Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily monitored with the LED
indicators which help to identify if any problems exist.
○Please refer to the LED Indicators section for LED light indication.
●If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with
the power cord. Check for loose power connections, power losses or surges at the power outlet.
○Please contact Antaira for technical support service if the problem still cannot be resolved.
●If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot
transmit, please check the system’s Ethernet devices’ configuration or status.
15
