LNX-C500 Series User Manual V1.1
i
LNX-C500 Series
5-Port Industrial Compact Unmanaged Ethernet Switches with
5*10/100Tx, 12~48VDC Power Input
Version 1.1
User Manual

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
ii
© Copyright 2018 Antaira Technologies, LLC.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2018 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC. may make improvements and/or changes to the product and/or specifications of the product described in
this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade Unmanaged Ethernet Switches
User Manual
Version 1.1 (March 2018)
This manual supports the following models:
 LNX-C500
 LNX-C500-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
iv
Table of Contents
1. Overview ....................................................................... 1
1.1 Key Features ...................................................... 1
1.2 Package Contents .............................................. 2
1.3 Safety Precaution ............................................... 2
2. Hardware Description ................................................. 3
2.1 Physical Dimensions .......................................... 3
2.2 Front Panel ........................................................ 4
2.3 Top View ............................................................ 4
2.4 LED Indicators ................................................... 5
2.5 Ethernet Ports .................................................... 5
2.6 Cabling ............................................................... 6
2.7 Wiring the Power Inputs ..................................... 7
3. Mounting Installation .................................................. 8
3.1 DIN-Rail Mounting .............................................. 8
3.2 Wall Mounting .................................................... 9
4. Hardware Installation ................................................ 10
4.1 Installation Steps .............................................. 10
5. Trouble Shooting ....................................................... 11
7. Technical Specifications .......................................... 12

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
1
1. Overview
Antaira Technologies’ LNX-C500 series is a compact 5-port industrial Ethernet switch. The
small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more
versatile implementation. The LNX-C500 is equipped with 5*10/100 RJ45 Ethernet ports with a
backplane speed of 1gbps and is designed for industrial network expansion applications with
tight spaces.
The LNX-C500 supports high EFT & ESD protection to prevent damage from unregulated power
coming into the unit. This compact media converter also supports redundant power inputs with
reverse polarity and overload current protection. The LNX-C500 product series supports DIN-rail
as well as wall mountable orientations and provides operating temperature range models in
STD: -10°C to 70°C and EOT: -40°C to 75°C. This is an industrial grade unit applicable for
networking applications in factory automation, ITS, power/utility, water wastewater treatment
plants, and any other application that needs a compact solution.
1.1 Key Features
 System Interface/Performance
 All RJ-45 ports support the auto MDI/MDI-X function
 Embedded 5*10/100Tx
 Store-and-forward switching architecture
 8K MAC address table
 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
 Power Input
 DC 12~48V redundant power with a 4-pin removal terminal block
 Operating Temperature
 Standard operating temperature model: -10°C ~ 70°C
 Extended operating temperature model (–T): -40°C ~ 75°C
 Case/Installation
 IP-30 protection
 DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
2
1.2 Package Contents
 1 - LNX-C500 (-T): 5-port industrial compact unmanaged Ethernet switch with
5*10/100Tx
 2 - Wall mounting brackets and screws
 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
3
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-C500 series: 5-
port compact industrial unmanaged Ethernet switch with 5*10/100Tx RJ45 ports.
(W x D x H) is 26mm x 75mm x 95mm
Figure 2.1
LNX-C500 Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
4

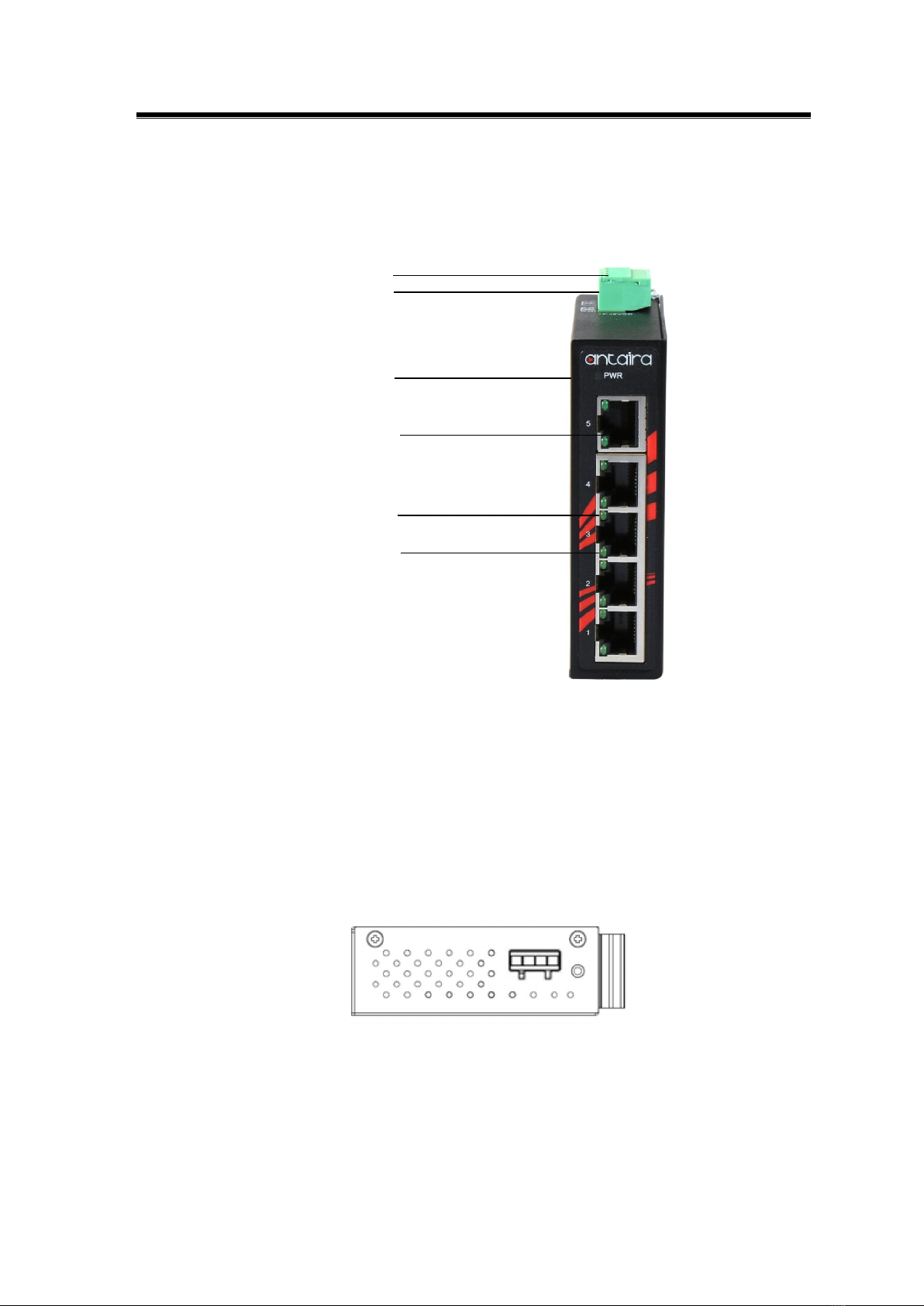

2.2 Front Panel
The front panel of the LNX-C500 series: 5-port industrial compact unmanaged Ethernet switch
with 5*10/100Tx. See Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNX-C500 series switch that is equipped with
one 4-pin removal terminal block connector for dual DC power inputs (12-48 VDC).
Figure 2.3
Top Panel View of LNX-C500 Series
Figure 2.2
Front Panel of the LNX-C500 Series
4-pin removal terminal block (power input)
Grounding screw
LED for PWR
LAN Port # 1~5 – 10/100Tx
LED for 100Tx data transmission
LED for 10Tx network speed

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED Color Description
Power Green On Power input is active
Off Power input is inactive
LAN Port 1 ~ 5
(Left LED)
Green
On Connected to network, 100Mbps
Flashing
Networking is active
Off Not connected to network
LAN Port 1 ~ 5
(Right LED)
Green
On Connected to network at 10Mbps
Flashing Networking is active
Off Not connected to network
2.5 Ethernet Ports
 RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~5) are auto-sensing for 10/100Base-T,
or 100Base-Tx devices connections. Auto MDI/MDIX means that the switch can connect to
another switch or workstation without changing the straight-through or crossover cabling. See the
figures shown below for straight-through and crossover cabling schematics.
 RJ-45 Pin Assignments (Table 2.2)
Pin Number Assignment
1 Rx+
2 Rx-
3 Tx+
6 Tx-
Note
: The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Table 2.1
LED Indicators for LNX-C500 Series
Table 2.2
RJ45 Pin Assignments

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
6
All ports on this industrial Ethernet switch support automatic MDI operations. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, and other
switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T/100BASE-TX MDI port pin outs.
The following figures show the cabling schematics for straight-through and crossover cables.
2.6 Cabling
 Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded
twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard
(e.g. Category 5, 5e, or 6). The cable between the equipment and the link partner (switch,
hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
Note: Cable size should be between 18~20 AWG and the torque should be tightened to 5lbs.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
Table 2.3
Ethernet Signal Pin Outs
Figure 2.4 Figure 2.5
Straight-Through Cables Schematic Crossover Cables Schematic

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
7
2.7 Wiring the Power Inputs
Please follow the below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.6.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in
Figure 2.7.
Figure 2.7
Power Terminal Block
Figure 2.6
Power Terminal Block

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
8
3. Mounting Installation

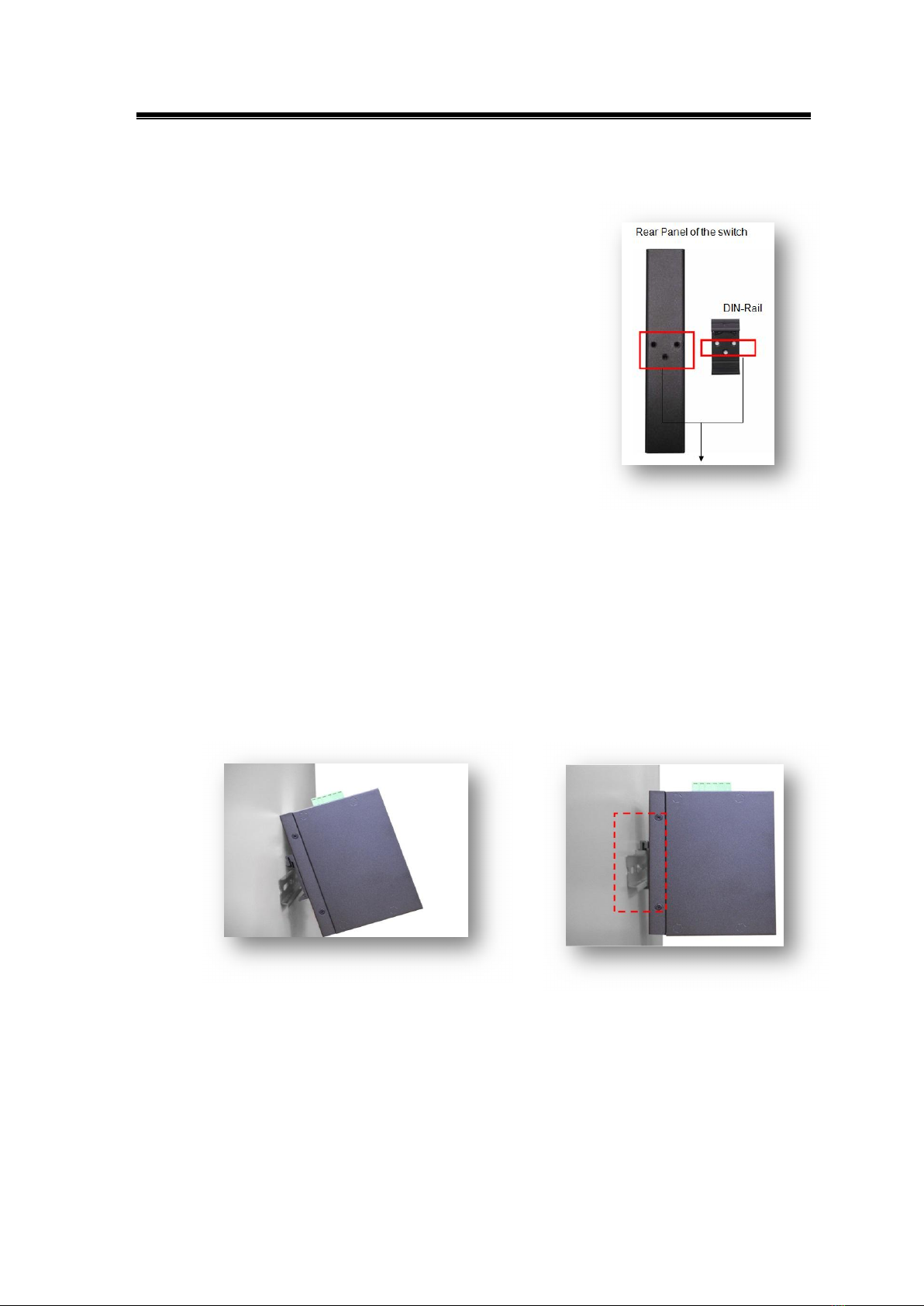

3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch
from the factory. If the DIN-Rail is not on the industrial Ethernet
switch, please refer to Figure 3.1 to learn how to install the DIN-
Rail on the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
7. Check if the bracket is mounted tightly on the rail.
8. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure 3.1
The Rear Side of the Switch and DIN-Rail Bracket
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
9
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.

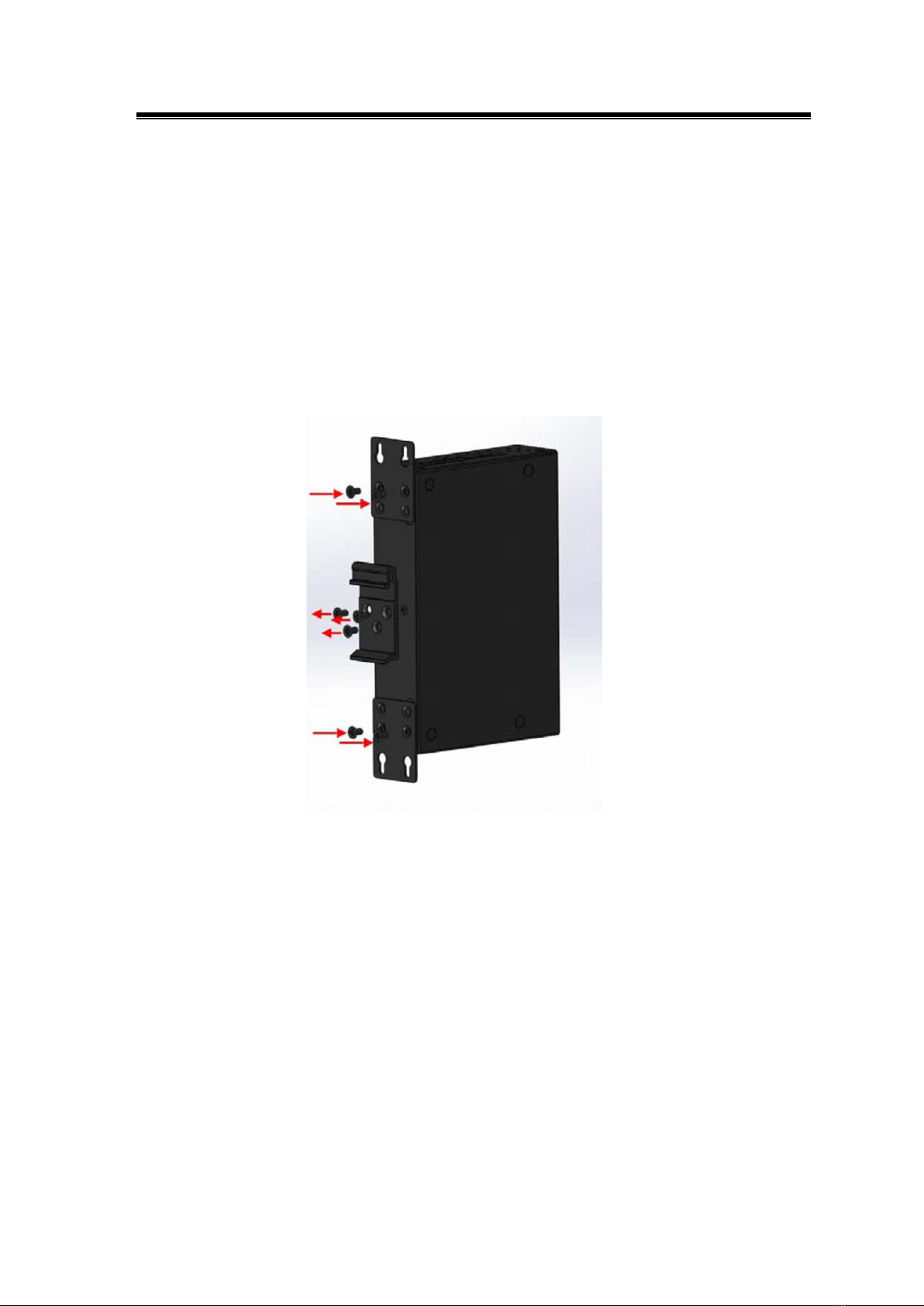

Figure 3.4
Remove DIN-Rail Bracket from the Switch

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
10
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira Technologies’ LNX-C500 (T): 5-port compact
industrial compact unmanaged Ethernet switch with 5*10/100Tx ports.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
 If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
 If it is required to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
 For the help on how to wire power, please refer to the Wiring the Power Inputs
section.
 Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into the switch’s Ethernet port and on the other side into
the networking device’s Ethernet port, e.g. switch PC or server.
 The Ethernet port’s (RJ-45) LED on the industrial Ethernet switch will turn on when
the cable is connected to the networking device.
 Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
11
5. Trouble Shooting
 Always verify the right power cord or adapter is being used. Never use a power supply or
adapter with a non-compliant DC output voltage or it will burn the equipment.
 Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω
Category 5e for 10/100Mbps. Also be sure that the length of any twisted-pair connection
does not exceed 100 meters (328 feet).
 Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily
monitored with the LED indicators which help to identity if any problems exist.
o Please refer to the LED Indicators section for LED light indication.
 If the power indicator LED does not turn on when the power cord is plugged in, the user
may have a problem with the power cord. Check for loose power connections, power
losses or surges at the power outlet.
o Please contact Antaira for technical support service, if the problem still
cannot be resolved.
 If the industrial switch LED indicators are normal and the connected cables are correct but
the packets still cannot transmit, please check the system’s Ethernet devices’ configuration
or status.

Antaira Technologies - Industrial Ethernet Switches
LNX-C500 Series User Manual V1.1
12
7. Technical Specifications
Table 7.1 has the technical specifications for Antaira Technologies’ LNX-C500 series: 5-port
industrial unmanaged Ethernet switch with 5*10/100Tx ports.
Standards IEEE 802.3 10Base-T 10Mbit/s Ethernet
IEEE 802.3u 100Base-Tx, 100Base-Fx, Fast Ethernet
Switch
Property
Protocol CSMA/CD
Data Process Store and Forward
Transfer Rate 14,880 pps for 10Base-T Ethernet port
148,800 pps for 100Base-TX Fast Ethernet port
Transmission Distance Up to 100M (Fast Ethernet)
Transmission Speed Up to 100Mbps (Fast Ethernet)
MAC Address Table 8K table size
Port Interface
Ethernet (RJ45) Port 5*10/100Tx auto negotiation speed, full/half duplex mode, and auto
MDI/MDI-X connection
LED Indicator Per unit: Power1(Green), Power2(Green), Fault(Red)
Per port: Link/Activity (Green)
Network Cable 10BaseT: 2-pair UTP/STP Cat.3,4,5 cable EIA/TIA-568 100-ohm (100m)
100BaseTX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-ohm (100m)
Mechanical
Characteristics
Housing Metal IP30 protection
Dimension 26 x 75 x 95 mm (w x d x h)
Weight Unit Weight: 1.0 lbs. Shipping Weight: 1.5 lbs.
Mounting DIN-Rail Mounting, wall-mounting (optional)
Power
Requirement
Input Voltage 12~48VDC Redundant Input
Current Protection Present – Slow Blow Fuse
Power Connection 1 removable 4-contact terminal block
Power Consumption 1.2 Watts
Environmental
Limits
Operating Temperature Standard: -10 to 70C (14 to 158
F)
EOT: -40 to 75C (-40 to 167 F)
Operating Humidity 5% to 95% (Non-Condensing)
Storage Temperature -40 to 85C (-40 ~ 185F)
Regulatory
Approvals
EMI
FCC Class A
IEC61000-4-2/3/4/5/6/8
IEC61000-6-2
IEC61000-6-4
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Safety UL 61010-1, UL 61010-2-201
Table 7.1
LNX-C500 Series Technical Specifications
