ANTAIRA LNP-1002G-SFP Series User manual

Antaira Industrial Ethernet Switches
LNP-0702G-SFP Series User Manual V1.0
i
LNP-1002G-SFP Series
10-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switches
8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot
User Manual
Version 1.0

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
ii
© Copyright 2014 Antaira Technologies, LLC
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2014 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC may make improvements and/or changes to the product and/or specifications of the product described in this
manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade Gigabit Unmanaged Ethernet Switches
User Manual
Version 1.0 (August 2014)
This manual supports the following models:
LNP-1002G-SFP
LNP-1002G-SFP-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
iv
Table of Contents
1.Overview....................................................................... 1
1.1Key Features .................................................... 1
1.2Package Contents ............................................ 2
1.3 Safety Precaution............................................. 2
2.Hardware Description ................................................. 3
2.1Physical Dimension .......................................... 3
2.2Front Panel....................................................... 4
2.3 Top View .......................................................... 4
2.4LED Indicators.................................................. 5
2.5Ethernet Ports................................................... 5
2.6 Cabling............................................................. 7
2.7 Wiring the Power Inputs................................. 10
2.8Wiring the Fault Alarm Contact....................... 11
3.Mounting Installation ................................................ 12
3.1DIN-Rail Mounting .......................................... 12
3.2Wall Mounting................................................. 14
4.Hardware Installation................................................ 15
4.1Installation Steps ............................................ 15
5. Network Application ................................................. 16
6.Trouble Shooting....................................................... 17
7. Technical Specification............................................ 18

Antaira Industrial Ethernet Switches
LNP-0702G-SFP Series User Manual V1.0
1
1. Overview
Antaira’s LNP-1002G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated
and DIN-Rail mountable. Each unit is designed with 8 gigabit Ethernet ports that are IEEE 8023.at
compliant (power-over-Ethernet plus) and has two dual rate (100/1000) SFP slots, making it ideal
for applications that demand high bandwidth and long distance communication.
This product series provides high EFT and ESD protection to prevent any unregulated voltage
and is suitable for harsh environments. It supports the power redundancy feature using a dual
power input design with reverse polarity protection. In addition, the built-in relay warning function
alerts maintainers when power failures occur.
The LNP-1002G-SFP series includes two models: one with an operating temperature range of -10
to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a
perfectly designed product to fulfill any special needs for industrial automation, outdoor
applications and harsh weather environments.
1.1 Key Features
System Interface/Performance
All RJ-45 ports support auto MDI/MDI-X function
Embedded 8*10/100/1000Tx (PSE 30W/Port), and 2*100/1000 SFP slots
Store-and-forward switching architecture
8K MAC address table
Jumbo frame supports: 9.6K
Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
Power Input
DC 48 ~ 55V redundant power
Operating Temperature
Standard operating temperature model: -10°C ~ 70°C
Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
IP-30 protection
Installation in pollution degree to environment
DIN-Rail and wall mount design

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
2
1.2 Package Contents
1 - LNP-1002G-SFP (T): 10-port industrial PoE+ gigabit unmanaged Ethernet switch,
with 8*10/100/1000Tx (30W/Port), and 2*100/1000 SFP slots
1 - User manual
1 - Product CD
2 - Wall mounting brackets and screws
1 - DC cable –18 AWG & DC jack 5.5x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
3
2. Hardware Description
2.1 Physical Dimensions

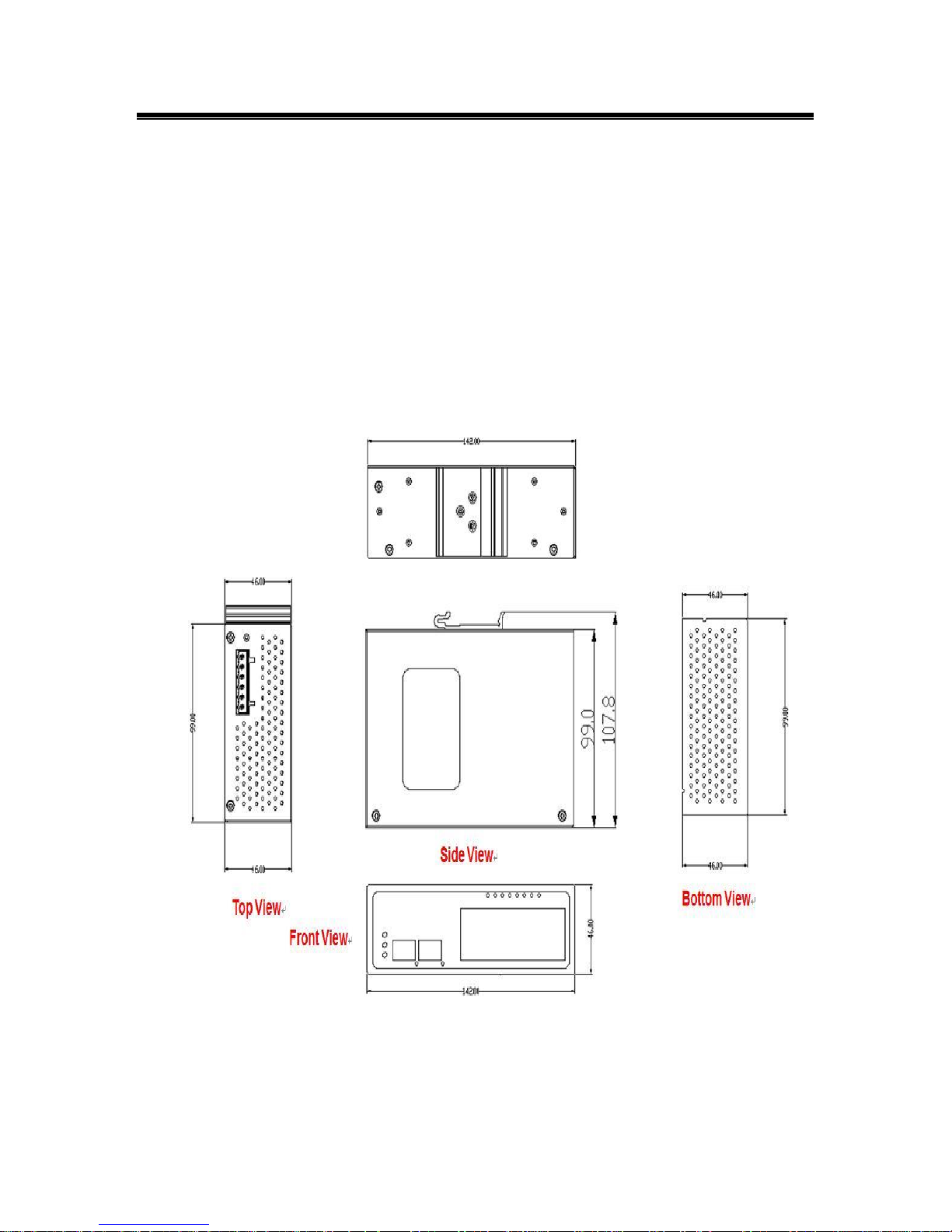

Figure 2.1, below, shows the physical dimensions of Antaira’s LNP-1002G-SFP series: 10-port
industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (30W/Port), and
2*100/1000SFP slots.
(W x D x H) is 46mm x 99mm x 142mm
Figure 2.1
LNP-1002G-SFP Series Physical Dimensions

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
4
2.2 Front Panel
The front panel of the LNP-1002G-SFP series industrial
PoE+ gigabit unmanaged Ethernet
switch is
shown below in Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNP-1002G-SFP series switch that is
equipped with one 6-pin removal terminal block connector for dual DC power inputs
(48~55VDC).
Figure 2.2
The Front Panel of LNP-1002G-SFP Series
Figure 2.3
Top Panel View of LNP-1002G-SFP Series

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
Fault
Red
On
Power input 1 or 2 is inactive
Off
Power input 1 and 2 are both functional, or no power,
inputs/ports link is active/port alarm is disabled
PoE Indicators
(Port 1~8)
Green
On
The port is supplying power to the
powered-device
Off
No powered-device attached or power supplying fails
LNK/ACT
(SFP Port)
Green
On
Connected to network
Flashing
Networking is active
Off
Not connected to network
LAN Port 1 ~ 8
(Left LED)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1 ~ 8
(Right LED)
Green
On
Connected to network, 100Mbps/10Mbps
Flashing
Networking is active
Off
Not connected to network
2.5 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another
switch or workstation without changing the straight-through or crossover cabling. See the figures
as below for straight-through and crossover cabling schematics.
Table 2.1
LED Indicators for LNP-1002G-SFP Series

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
6
RJ-45 Pin Assignments (Table 2.2)
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can
use straight-through cables (see figure below) for all network connections to PCs, servers, other
switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T, 100BASE-TX, 1000BASE-TX MDI and MDI-X port pin outs.
The following figures show the cabling schematics for straight-through and crossover.
Figure 2.4 Figure 2.5
Straight-Through Cable Schematic Crossover Cable Schematic
Note
“+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
7

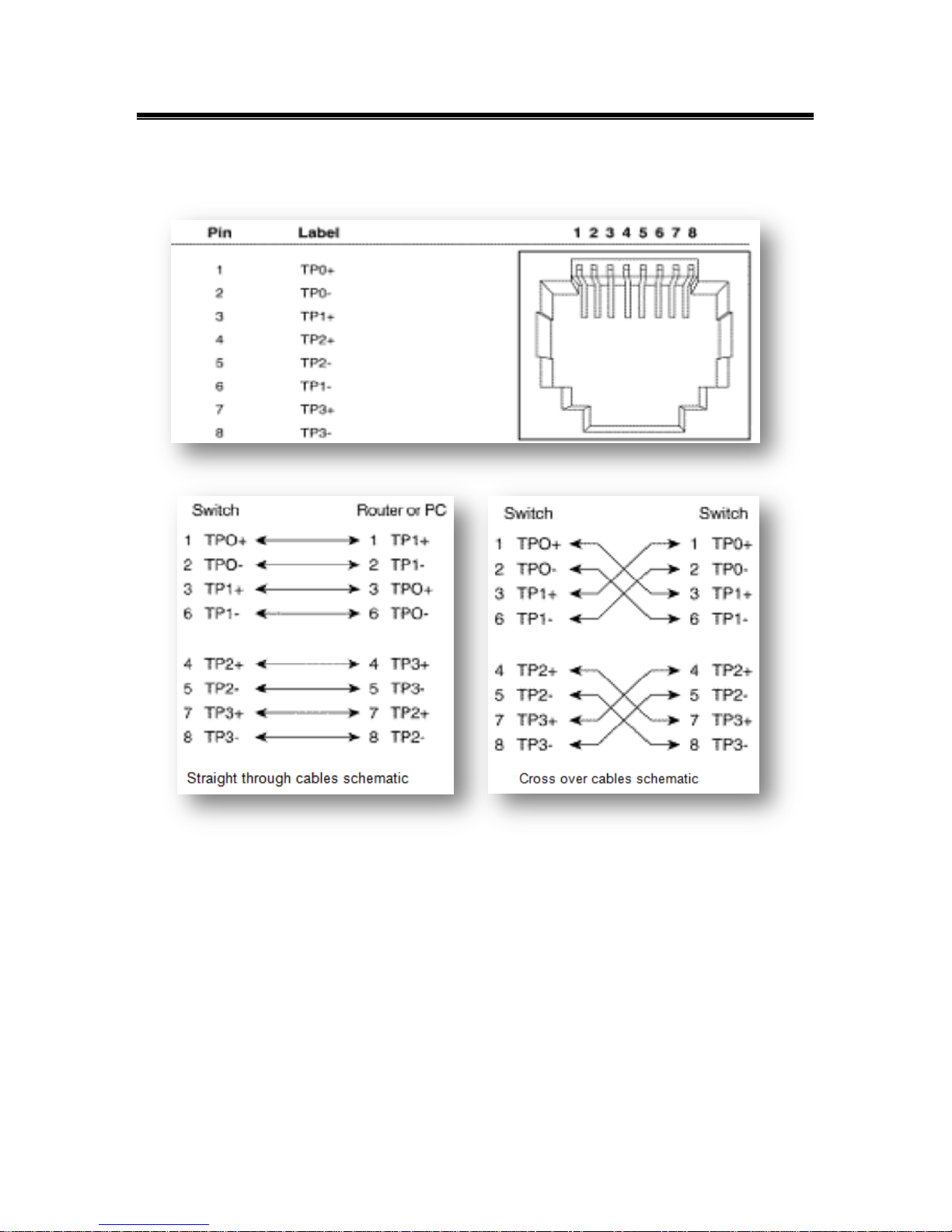

The following figures show the 10,100, and 1000 Ethernet RJ-45 pin outs.
2.6 Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100
meters (328 ft.) long.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
Figure 2.7 Figure 2.8
Straight-Through Cable Schematic Crossover Cable Schematic
Figure 2.6
RJ45 Ethernet Port Pin Outs

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
8
To connect the transceiver and LC cable, please follow the steps below:
First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.9. Notice
that the triangle mark is at the bottom of the SFP slot. Figure 2.10 shows SFP transceiver
module was inserted.
Second, insert the fiber cable of the LC connector into the transceiver as shown below in Figure
2.11.
Figure 2.9
Transceiver to the SFP Module
Figure 2.10
Transceiver Inserted
Figure 2.11
LC Connector to the Transceiver

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
9
To remove the LC connector from the transceiver, please follow the steps shown below:
1. Press the upper side of the LC connector from the transceiver and pull it out to release as
shown below in Figure 2.12.
2. Push down the metal clasp and pull the transceiver out by the plastic part as shown below in
Figure 2.13.
Figure 2.12
Remove LC Connector
Figure 2.13
Pull Out from the SFP Module

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
10

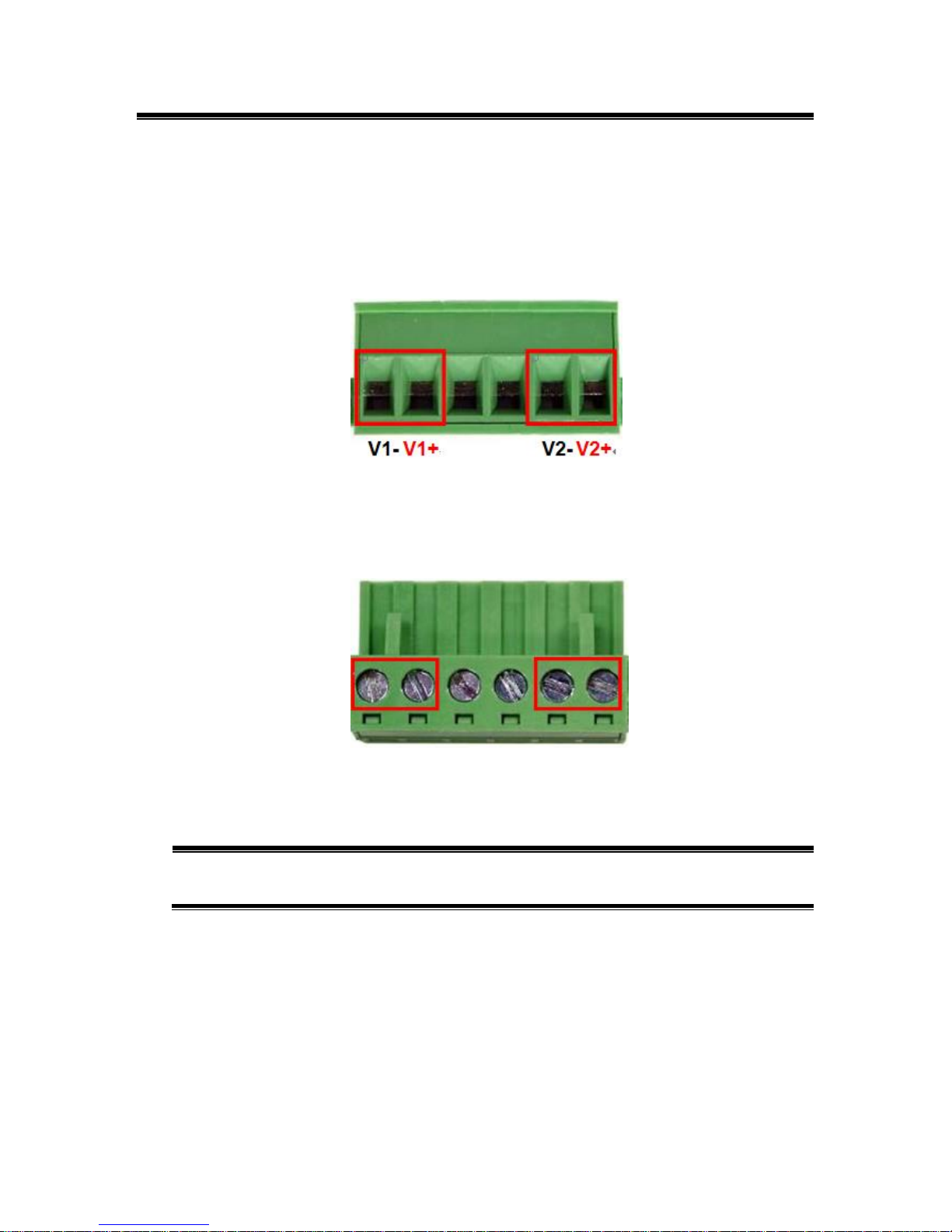

2.7 Wiring the Power Inputs
Please follow below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.14.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.15.
Note
Only use copper conductors, 60/75°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Figure 2.15
Power Terminal Block
Figure 2.14
Power Terminal Block

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
11
2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below
in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port
link failure (managed industrial switch only) and form a normally open circuit. An application
example for the fault alarm contact is shown below in Figure 2.16.
Note
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate power fault alarm.
Figure 2.16
Wiring the Fault Alarm Contact

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
12
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on
the switch.

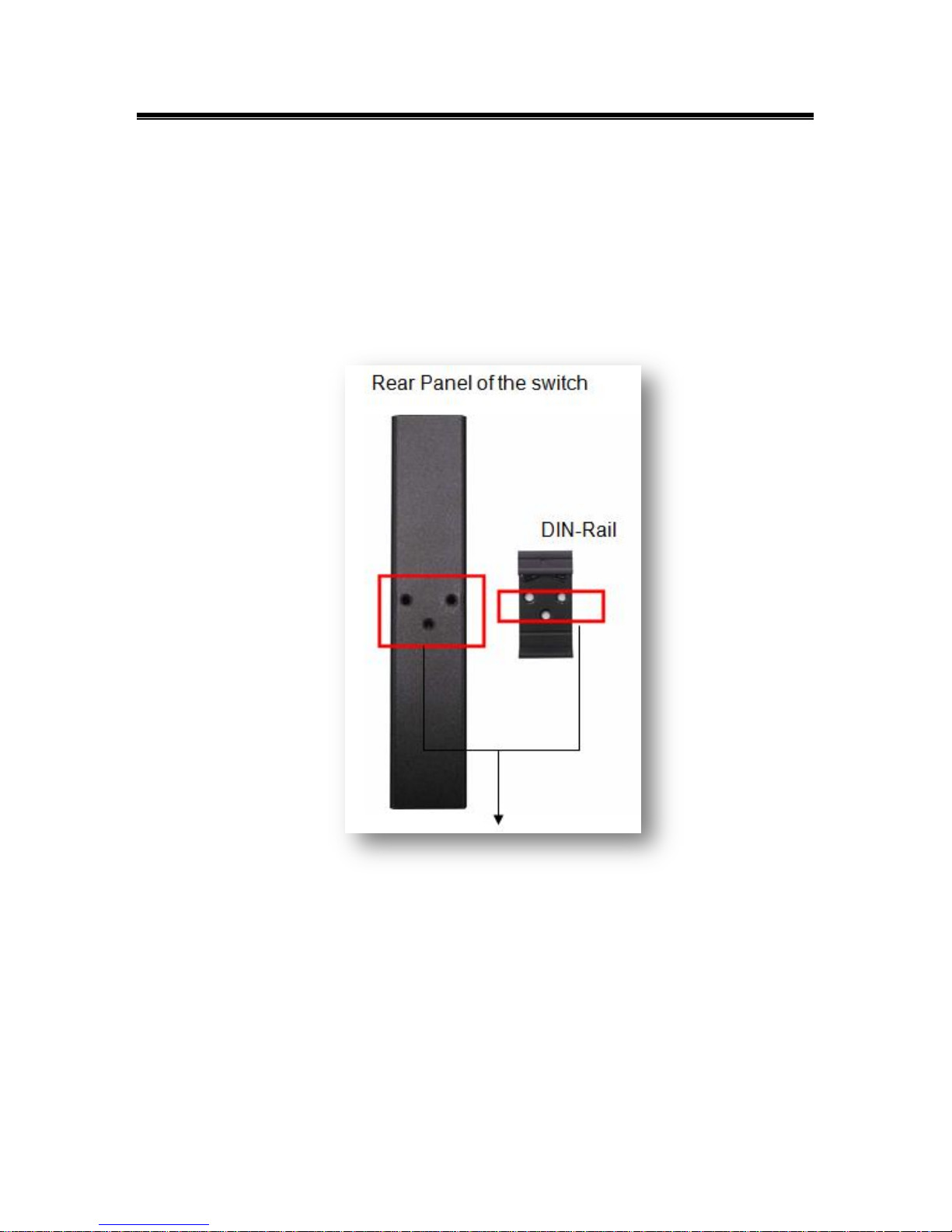

Figure 3.1
The Rear Side of the Switch and DIN-Rail Bracket

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
13
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
14

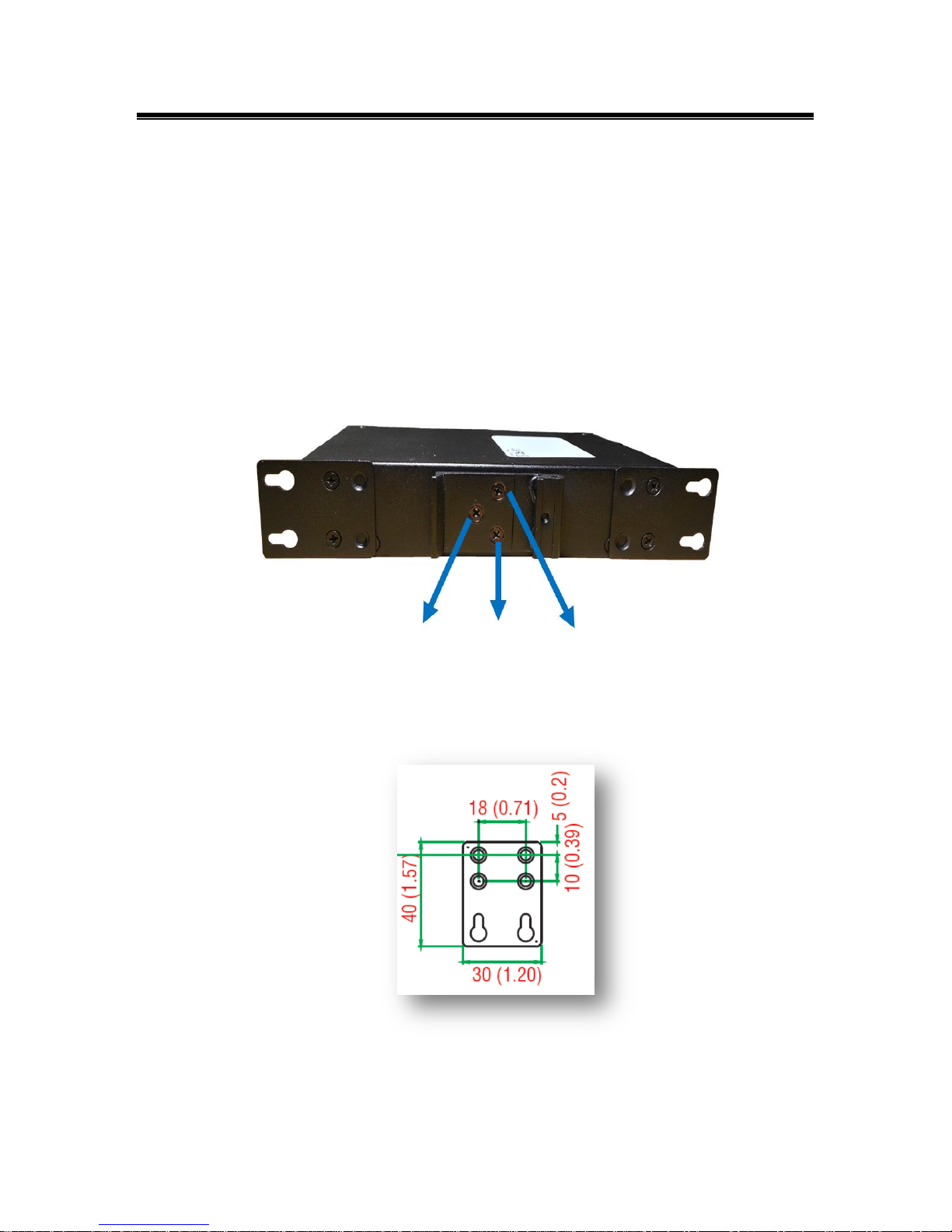

3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
Figure 3.4
Remove DIN-Rail Bracket from the Switch

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
15
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira’s LNP-1002G-SFP series: 10-port industrial PoE+
gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (30W/Port), and 2*100/1000 SFP slots.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
If you want to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED
on the industrial Ethernet switch will turn on when the cable is connected to the networking
device.
Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Industrial Ethernet Switches
LNP-1002G-SFP Series User Manual V1.0
16
5. Network Application
This segment provides an example of an industrial Ethernet switch application (Figure 5.1).
Figure 5.1
Industrial Ethernet Switch Application Reference
