ANTAIRA LNP-2602G-SFP Series User manual

LNP-2602G-SFP Series
26-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 24*10/100/1000Tx
(30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP
Slots), 48~55VDC Power Input
Hardware Manual
Version 1.0
(November 2022)

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
© Copyright 2022 Antaira Technologies, LLC
All rights reserved
This document contains information, which is protected by copyright. Reproduction, adaptation, or translation without
prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered
trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered trademarks of their
respective owners.
Notice: Copyrights © 2022 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or translation
without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but not
limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies, LLC may
make improvements and/or changes to the product and/or specifications of the product described in this manual, without
prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this
guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of
the manual. The information contained is subject to change without prior notice.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause harmful interference to
radio communications if the equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority
to operate the equipment.
Avertissement FCC
Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la
partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences
nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l'énergie radiofréquence.
Cela peut provoquer des interférences nuisibles aux communications radio si l'équipement n'est pas installé et utilisé
conformément aux instructions. Cependant, il n'y a aucune garantie qu'aucune interférence ne se produira dans une
installation particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou télévision, ce qui
peut être déterminé en éteignant puis en rallumant l'équipement, l'utilisateur est encouragé à essayer de corriger les
interférences par une ou plusieurs des mesures suivantes:
●Réorientez ou déplacez l'antenne de réception.
●Augmentez la distance entre l'équipement et le récepteur.
●Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est connecté.
●Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.
CE Mark Warning
This is a Class-A product. In a domestic environment, this product may cause radio interference in which case the user
may be required to take adequate measures.
Avertissement de marque CE
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des interférences radio,
auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.
Industrial Ethernet Switches
Industrial Grade Unmanaged Ethernet Switches
Hardware Manual
Version 1.0 (November 2022)
The manual supports the following models:
●LNP-2602G-SFP
●LNP-2602G-SFP-T

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
This document is the current official release hardware manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
Table of Contents
1 Overview 1
1.1 Product Hardware Features 1
1.2 Package Contents 2
1.3 Safety Precaution 2
2 Hardware Description 4
2.1 Physical Dimensions 4
2.2 Front View Panel 5
2.3 Rear View Panel 5
2.4 LED Indicators 5
2.5 Ethernet Ports 7
2.6 Cabling 8
2.7 Wiring the Power Inputs 8
2.9 Wiring the Fault Alarm Contact 9
2.10 Grounding Note 10
3 Mounting Installation 11
3.1 Rack Mounting 11
4 Hardware Installation 12
4.1 Installation Steps 12
4.2 Maintenance and Service 13
4.3 Troubleshooting 13
5 Technical Specifications 14

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
1 Overview
Antaira Technologies’ LNP-2602G-SFP series is a 26-port industrial gigabit PoE+ unmanaged Ethernet switch embedded
with 24*10/100/1000Tx Ethernet ports with IEEE 802.3af/at compliant (30W/Port). The LNP-2602G-SFP series also
provides two gigabit combo ports with two 10/100/1000 twisted pair and two dual rate 100/1000Fx SFP slots for fiber or
twisted pair connections to support any applications that demand high PoE power support, high bandwidth and long
distance communication within any harsh and extreme ambient weather environment. There are also two wide operating
temperature models for either a standard temperature range (STD: -10°C to 65°C) or an extended temperature range (EOT:
-40°C to 75°C).
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support Auto MDI/MDI-X Function
- Embedded 24*10/100/1000Tx RJ45 ports (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and
2*100/1000 SFP slots)
- Store-and-forward switching architecture
- 8K MAC address table
- Supports 9.6Kbytes Jumbo Frame
- 4Mbits memory buffer
Power Input
- DC 48~55V redundant, with a 8-pin removal terminal block
- The power input specification complies with the requirements of SELV (Safety Extra Low Voltage) and the power
supply should comply with UL 61010-1 & UL 61010-2-201
Operating Temperature
- LNP-2602G-SFP: -10°C to 65°C
- LNP-2602G-SFP-T: -40°C to 75°C
Case / Installation
- IP40 protection metal housing
- Rackmount design
- Installation in a Pollution Degree 2 industrial environment
- Standalone Installation
1

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
1.2 Package Contents
- LNP-2602G-SFP(-T)
- Quick Installation Guide
- Rack-mounting bracket set with screws
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within
this hardware manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et l'installation du câblage du
commutateur Ethernet industriel seront décrits dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check certain information on the user manual when working with the device.
(Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation lorsque vous
travaillez avec l'appareil. (Illustré à la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
2

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
2 Hardware Description

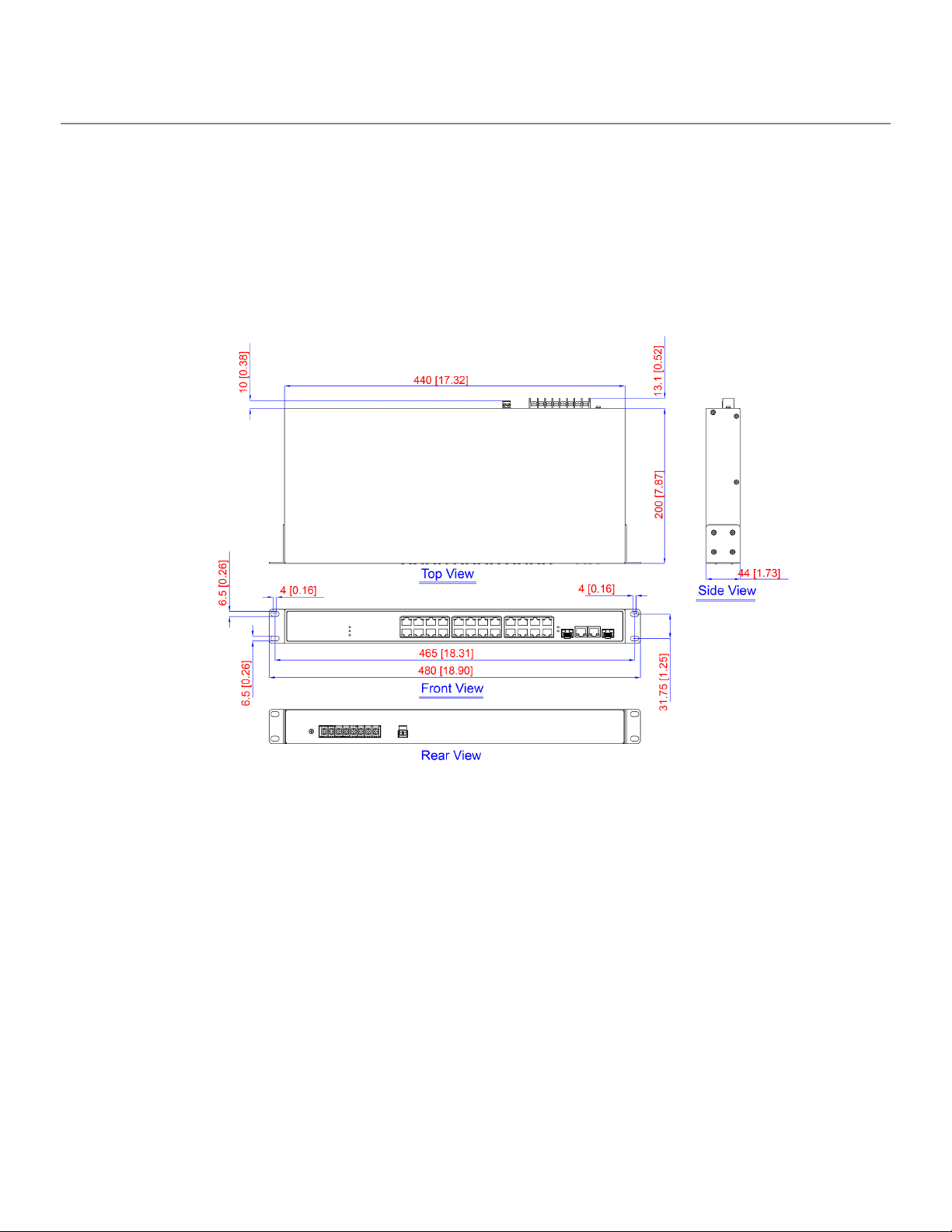

2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of this product series:
(W x D x H) is 440mm x 200mm x 44mm
Figure 2.1 - Physical Dimensions
3

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0

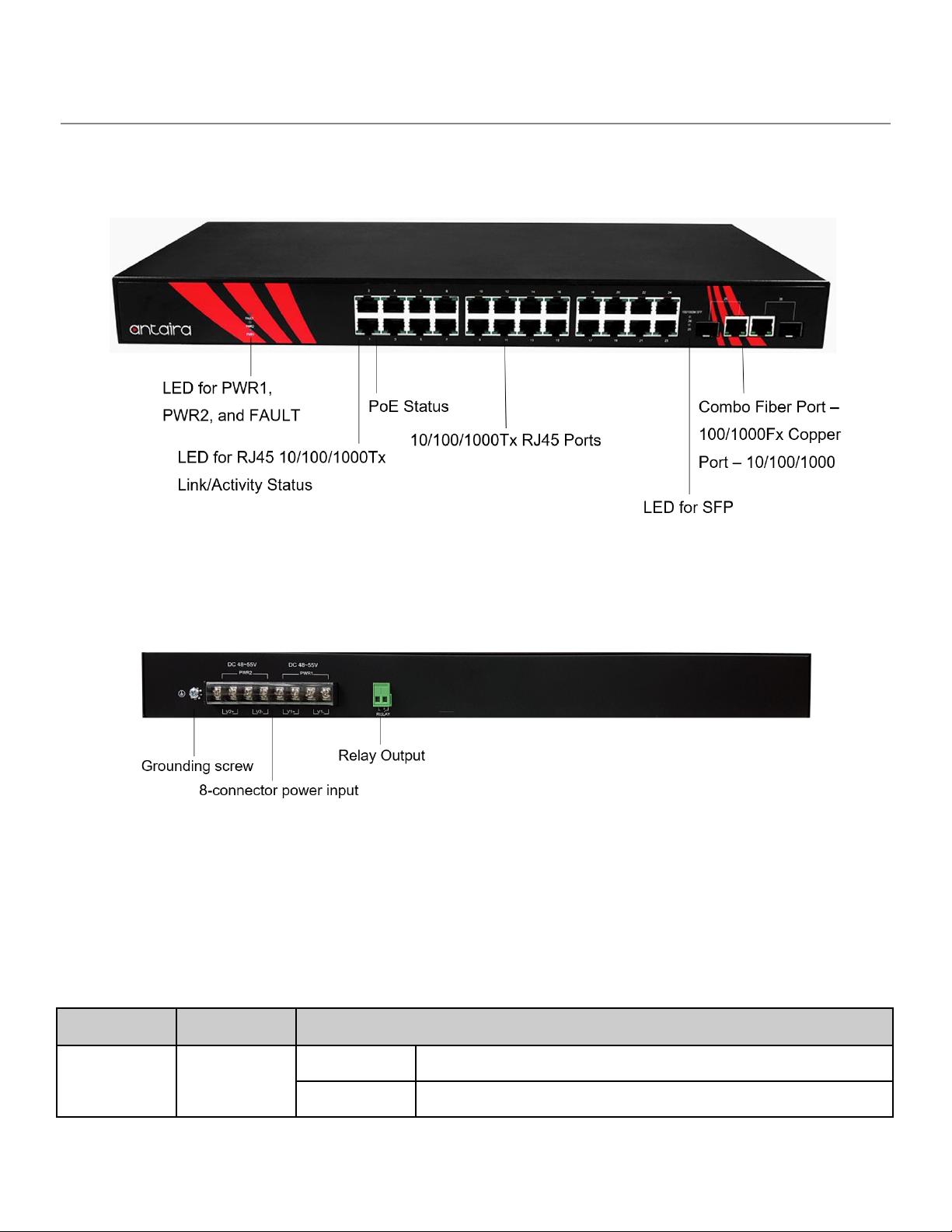

2.2 Front View Panel
Figure 2.2, below, shows the front panel of the product series:
Figure 2.2 - Front View Panel
2.3 Rear View Panel
Figure 2.3, below, shows the top panel of the product series:
Figure 2.3 - Rear View Panel
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and
network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power Input 1 is active
Off
Power Input 1 is inactive
4

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
P2
Green
On
Power Input 2 is active
Off
Power Input 2 is inactive
Fault
Green
On
No event happened
Red
On
1. System booting
2. Configured event happens
Flashing
Firmware upgrading
LAN Port 1~24
(Upper LED)
Green
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~24
(Lower LED)
Green
On
Supplying power to the powered-device
Off
Not connected to a powered device
Combo Port
25~26
LAN Port
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
Combo Port
25~26
SFP Slot
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
Table 2.1 - LED Indicators
Note: “P1” is the abbreviation for “Power 1”, “P2” is for “Power 2”, “LNK” is for “Link”, and “ACT” is for “Activity”.
5

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
2.5 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections.
Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or
crossover cabling. See the figures below for straight-through and crossover cabling schematics.
●RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3 - 1000Base-T RJ45 Pin Assignments
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
6

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
2.6 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch
and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
Caution: Please employ an optional optical transceiver (SFP/Fixed Fiber) that complies with IEC 60825-1, 21 CFR
1040 Section 1040.10 and 1040.11, classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à la norme IEC
60825-1, 21 CFR 1040 Section 1040.10 et 1040.11, classé comme produit laser de classe 1.
2.7 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block
connector as shown below in Figure 2.6.
Figure 2.6 - Power Terminal Block
Caution:
Only use copper conductors, 125°C, tighten to 7 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Attention:
Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 7 lb.
7

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
2.9 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By
inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch
only), and form a normal open circuit. An example is shown below in Figure 2.8.
Figure 2.8 - Wiring the Fault Alarm Contact
Caution:
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm.
Attention:
Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à 5 et les broches 2 à 6 pour
éliminer l'alarme de panne de courant.
8

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
2.10 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground
connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is
shown below in Figure 2.9.
Figure 2.9 - Grounding Screw Symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique
9

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
3 Mounting Installation
3.1 Rack Mounting
This switch comes with a rack-mounted kit can be mounted in a EIA standard size, 19-inch rack. It can be placed in a
wiring closet with other equipment.
Perform the following steps to rack-mount the switch.
1. Position one plate to align with the holes on one side of the hub and secure it with the smaller plate screws. Then,
attach the remaining plate to the other side of the switch.
Figure 3.1 - Attach Mounting Plates with Screws
2. After attaching both mounting plates, position the switch in the rack by lining up the holes in the plates with the
appropriate holes on the rack. Secure the switch to the rack with a screwdriver and the rack-mounting screws.
Figure 3.2 - Mount the Switch in an EIA Standard 19-Inch Rack
10

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
4 Hardware Installation
4.1 Installation Steps
This section will explain how to install the industrial Ethernet switch:
Caution: This device is intended for indoor use.
Attention: Cet appareil est destiné à une utilisation en intérieur.
Caution: The device is intended to be installed in an industrial control enclosure and panel.
Attention: L'appareil est destiné à être installé dans une armoire de commande et un panneau industriels.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the Rack-mount bracket is screwed on the industrial Ethernet switch.
●If the Rack-mount is not screwed on the industrial Ethernet switch, please refer to the Rack Mounting section
for Rack-mount installation.
3. To hang the industrial Ethernet switch on a Rack-mount or wall, please refer to the Mounting Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
●For the help on how to wire power, please refer to the Wiring the Power Inputs section.
●Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ45 cable into the switch’s Ethernet port and on the other side into the networking device’s
Ethernet port, e.g. switch PC or server.
●The Ethernet port’s (RJ45) LED on the industrial Ethernet switch will turn on when the cable is connected to
the networking device.
●Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.
11

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
4.2 Maintenance and Service
●If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting.
The initial installation should be done in a way that makes this as convenient as possible.
●Voltage / Power lines should be properly insulated as well as other cables. Be careful when handling them so as
to not trip over.
●Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes located in
the different faces of the device. This may not only harm the internal layout, but might cause harm to users
as well.
●Do not under any circumstance open the device for any reason. Please contact your dealer for any repair
needed or follow the instructions within the manual.
●Clean the device with dry soft cloth.
4.3 Troubleshooting
●Always verify the right power cord or adapter is being used. Never use a power supply or adapter with a
non-compliant DC output voltage or it will burn the equipment.
●Select the proper UTP or STP cable in order to construct the network. Use an unshielded twisted-pair (UTP) or
shield twisted-pair (STP) cable for RJ45 connections: 100Ω Category 5e for 10/100Mbps. Also be sure that the
length of any twisted-pair connection does not exceed 100 meters (328 feet).
●Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily monitored with the LED
indicators which help to identify if any problems exist.
○Please refer to the LED Indicators section for LED light indication.
●If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with
the power cord. Check for loose power connections, power losses or surges at the power outlet.
○Please contact Antaira for technical support service if the problem still cannot be resolved.
●If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot
transmit, please check the system’s Ethernet devices’ configuration or status.
12

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
5 Technical Specifications
Table 5.1 has the technical specifications for this product series.
Technology
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Fiber
IEEE 802.3af/at/bt Power over Ethernet
Switch Properties
Switch Architecture
Back-Plane (Switching Fabric): 52.0Gbps
Processing Type
Store and Forward
Flow Control
IEEE 802.3x for full duplex mode, back pressure for half duplex mode
Protocol
CSMA/CD
Transfer Rate
14,880pps for 10Base-T Ethernet
148,800pps for 100Base-T Fast Ethernet
1,488,000pps for Gigabit Ethernet
Packet Buffer
4Mbits
Jumbo Frame
9.6K
MAC Table Size
8K
Port Interface
Ethernet Port
24*10/100/1000BaseTx (30W/Port)
Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X
connection
Gigabit Combo Port
2*10/100/1000Tx RJ45 Ports and 2*100/1000 SFP Slots
Wavelength
Refer to SFP module
LED Indicators
System: Power 1, Power 2, Fault
Ethernet ports: Speed/Link/Active
PoE: On-connected to PD devices
SFP: Speed/Link/Active
Protection
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m)
1000BaseTX: 4-pair UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
13

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
Mechanical Characteristics
Housing
Metal, IP40 rated
Dimensions
440 x 44 x 200 mm (W x H x D)
Weight
Unit: 6.19 lbs.
Shipping: 7.67 lbs.
Mounting
1U 19” Rackmount
Power Requirement
Input Voltage
48~55VDC Redundant Input
Power Connection
1 removable 8-contact terminal block
Relay Contact
24VDC, 1A resistive
Overload Current Protection
Present
Reverse Polarity Protection
Present (the unit will not be on if power reverse)
System Power Consumption
21 Watts
PoE Pin Out
V+, V+, V-, V- for pin 1, 2, 3, 6
*Endspan, MDI/MDI-X Alternative A
PoE Power Budget
720 Watts
Environmental Limits
Operating Temperature
STD: -10°C to 65°C
EOT: -40°C to 75°C
Storage Temperature
-40°C ~ 85°C
Ambient Relative Humidity
5 to 95%, (non-condensing)
Regulatory Approvals
EMI
FCC Part 15 Subpart B Class A
CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2 Class A
IEC61000-4-2,3,4,5,6,8
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201
Warranty
5 Years
Table 5.1 - Technical Specifications
Antaira Customer Service and Support
14

Antaira Technologies - Industrial Ethernet Switches
LNP-2602G-SFP Series - Hardware Manual - v1.0
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) [phone]
(Antaira Asia Office) [phone]
Please report any problems to Antaira:
www.antaira.com /[email protected]
www.antaira.eu /[e-mail]
www.antaira.com.tw /[e-mail]
Any changes to this material will be announced on the Antaira website.
15
