ANTAIRA LNP-2004G-SFP Series User manual

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
i
LNP-2004G-SFP Series
20-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch,
with 16*10/100/1000Tx (PSE: 30W/Port) + 4*100/1000 SFP Slots
Version 1.1
User Manual

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
ii
© Copyright 2018 Antaira Technologies, LLC.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2018 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC. may make improvements and/or changes to the product and/or specifications of the product described in
this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade Unmanaged Ethernet Switches
User Manual
Version 1.1 (December 2018)
This manual supports the following models:
•LNP-2004G-SFP
•LNP-2004G-SFP-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
iv
Table of Contents
1.Overview....................................................................... 1
1.1 Key Features...................................................... 1
1.2 Package Contents.............................................. 2
1.3 Safety Precaution............................................... 2
2.Hardware Description ................................................. 3
2.1 Physical Dimensions.......................................... 3
2.2 Front Panel ........................................................ 4
2.3 Top View............................................................ 4
2.4LED Indicators.................................................... 5
2.5 Ethernet Ports.................................................... 6
2.6 Cabling............................................................... 7
2.7 Wiring the Power Inputs..................................... 9
2.8 Wiring the Fault Alarm Contact.......................... 9
3.Mounting Installation ................................................ 10
3.1 DIN-Rail Mounting............................................ 10
3.2 Wall Mounting .................................................. 11
4.Hardware Installation................................................ 12
4.1 Installation Steps.............................................. 12

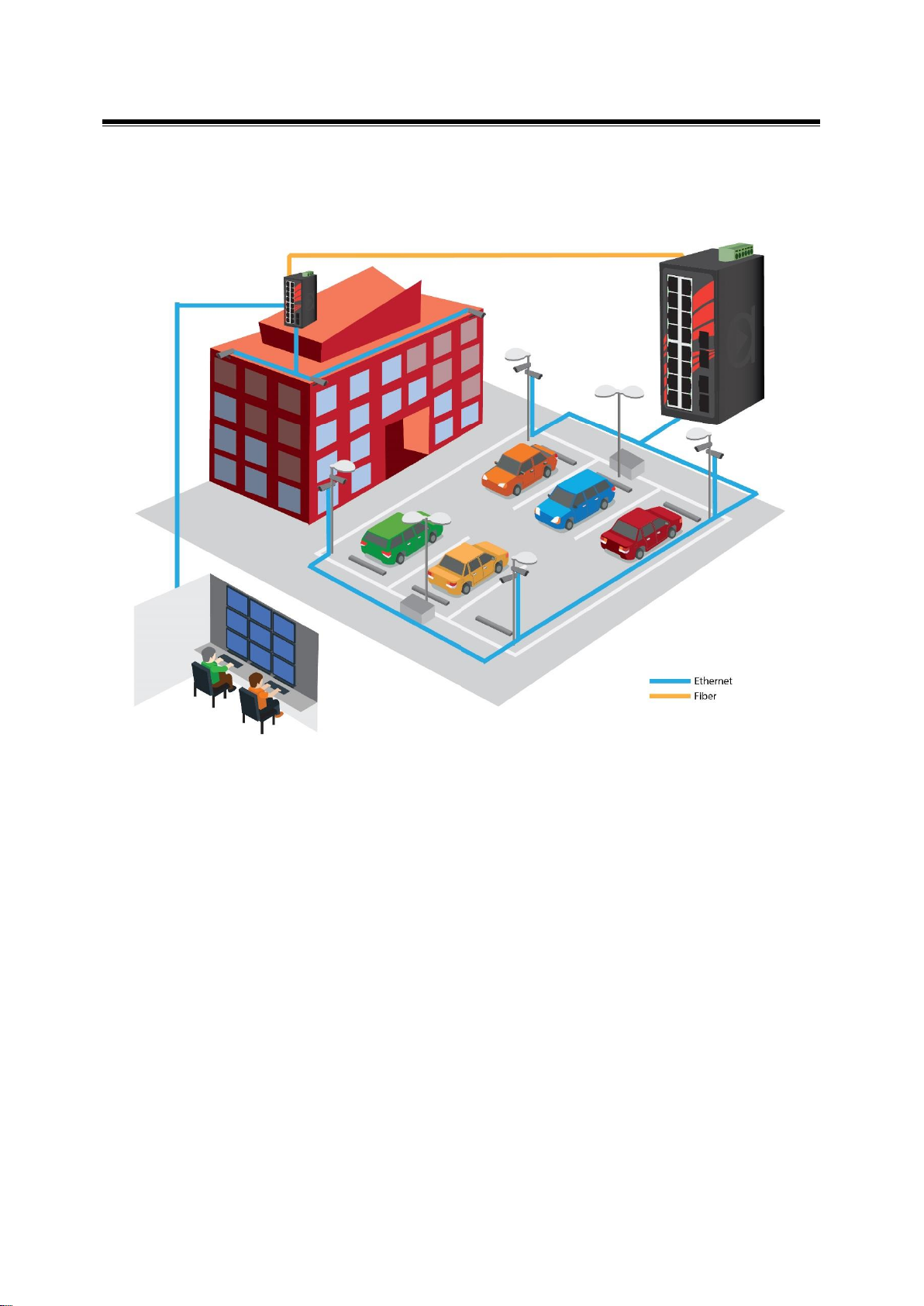

5.Network Applications................................................ 13
6. Troubleshooting........................................................ 14
7. Technical Specifications.......................................... 15

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
1
1. Overview
Antaira Technologies’ LNP-2004G-SFP series is a 20-port industrial grade gigabit Ethernet
unmanaged switch. This rugged switch is enclosed in a metal IP30 rated design with
16*10/100/1000 RJ45 Ethernet ports that are IEEE 802.3af/at complaint (Power over Ethernet)
and 4*100/1000 dual rate SFP slots. This series is the perfect solution for any application
requiring high bandwidth, long-distance communication, and high density PoE connectivity.
The LNP-2004G-SFP series is a power sourcing device that supports PoE+ when an input
voltage power of 48~55VDC range is applied. This product series supports high EFT & ESD
protection to prevent damage from unregulated power coming into the unit. It has built-in
redundant power inputs that support reverse polarity and overload current protection. It supports
DIN-Rail as well as wall mountable orientations and provides wide operating temperature range
models in STD: -10°C to 65°C and EOT: -40°C to 75°C. This is an industrial grade unit made for
any harsh or outdoor networking environment in factory automation, ITS, power/utility, and water
wastewater treatment plants. This unit is also ideal for any other application requiring a high port
count solution.
1.1 Key Features
◼System Interface/Performance
•All RJ-45 ports support the auto MDI/MDI-X function
•Ethernet connectivity 16*10/100/1000Tx RJ45 ports (PSE: 30W/Port)
•Fiber connectivity with 4*100/1000 Dual rate SFP slots
•Store-and-forward switching architecture
•8K MAC address table
•Jumbo frame supports up to 9,216bytes
•512Kbytes memory buffer
◼Power Input
•DC 48~55V redundant power, with a 6-pin removal terminal block
◼Operating Temperature
•Standard operating temperature model: -10°C ~ 65°C
•Extended operating temperature model (–T): -40°C ~ 75°C
◼Case/Installation
•IP-30 protection
•DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
2
1.2 Package Contents
➢1 –LNP-2004G-SFP(-T)
➢1 –Quick Installation Guide
➢2 –Wall mounting brackets and screws
➢1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.
Warning Labels

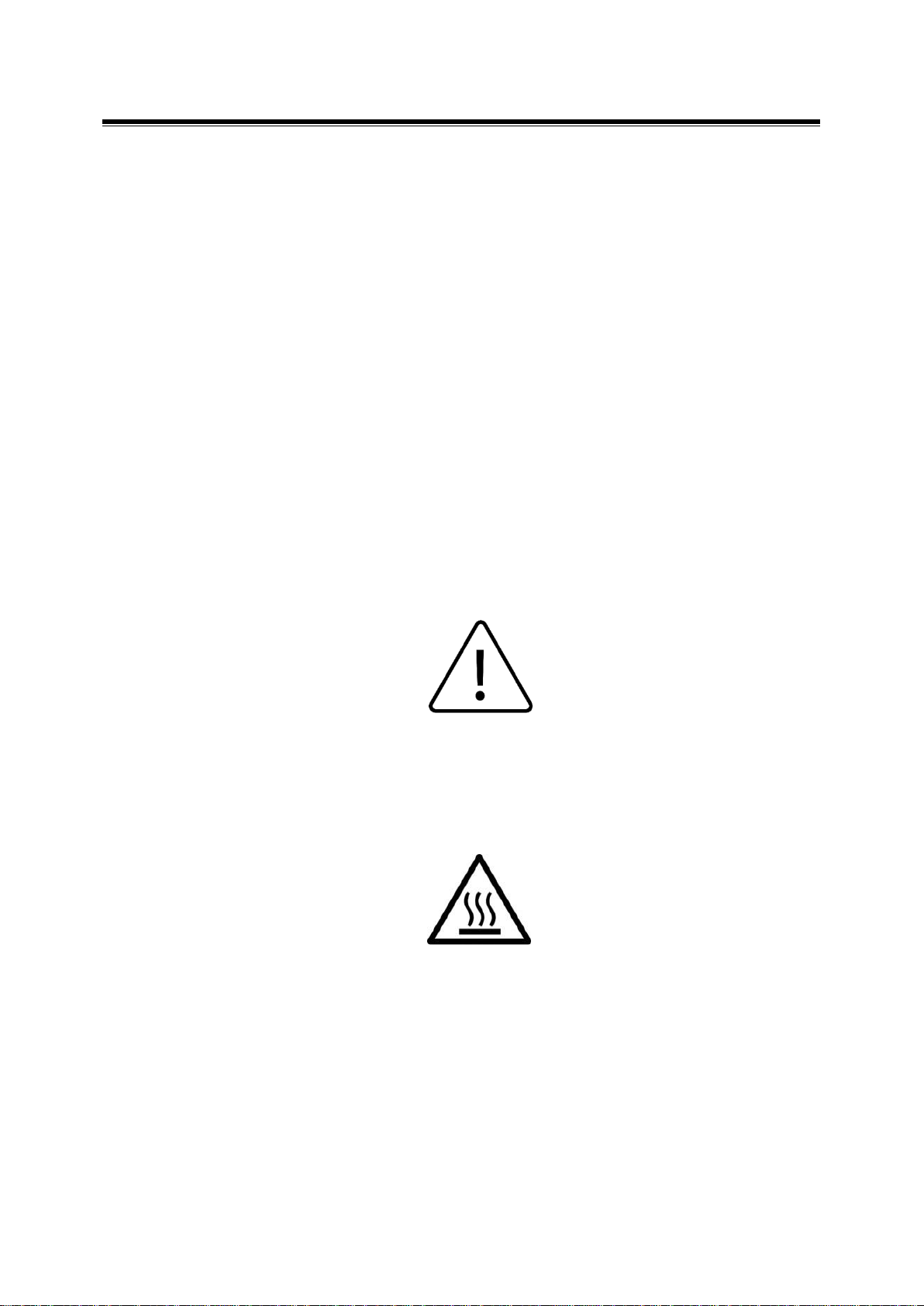

The caution label means that you should check the certain information on user manual when
working with the device. (Shown in Figure 1.1)
Figure 1.1 –Caution Label
This warning label is on the device, and means that the surface of the device is hot. (Shown in
Figure 1.2)
Figure 1.2 –Hot Surface Warning Label

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
3
2. Hardware Description
2.1 Physical Dimensions

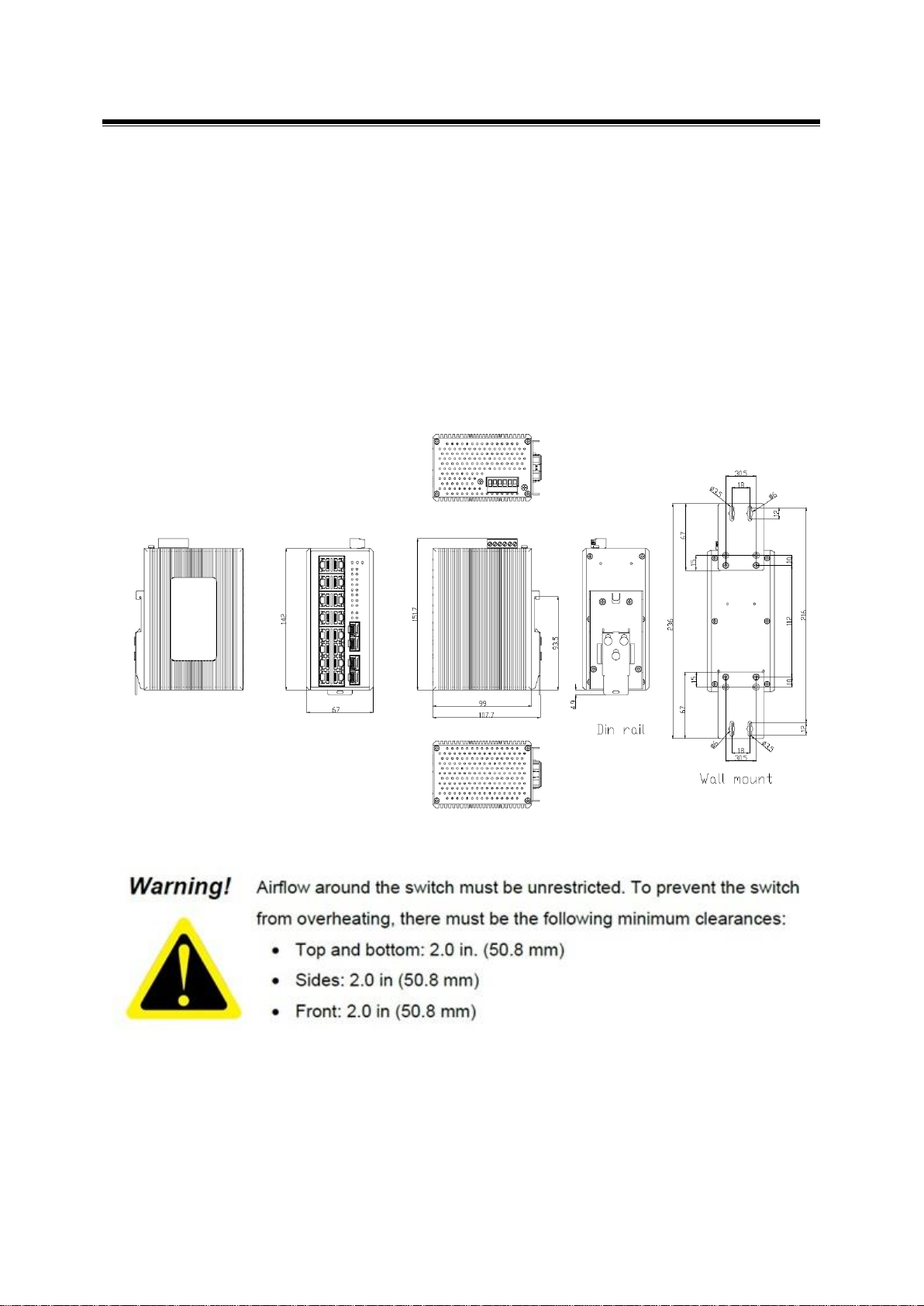

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-2004G-SFP
series.
(W x D x H) is 67mm x 99mm x 142mm
Figure 2.1

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
4
2.2 Front Panel

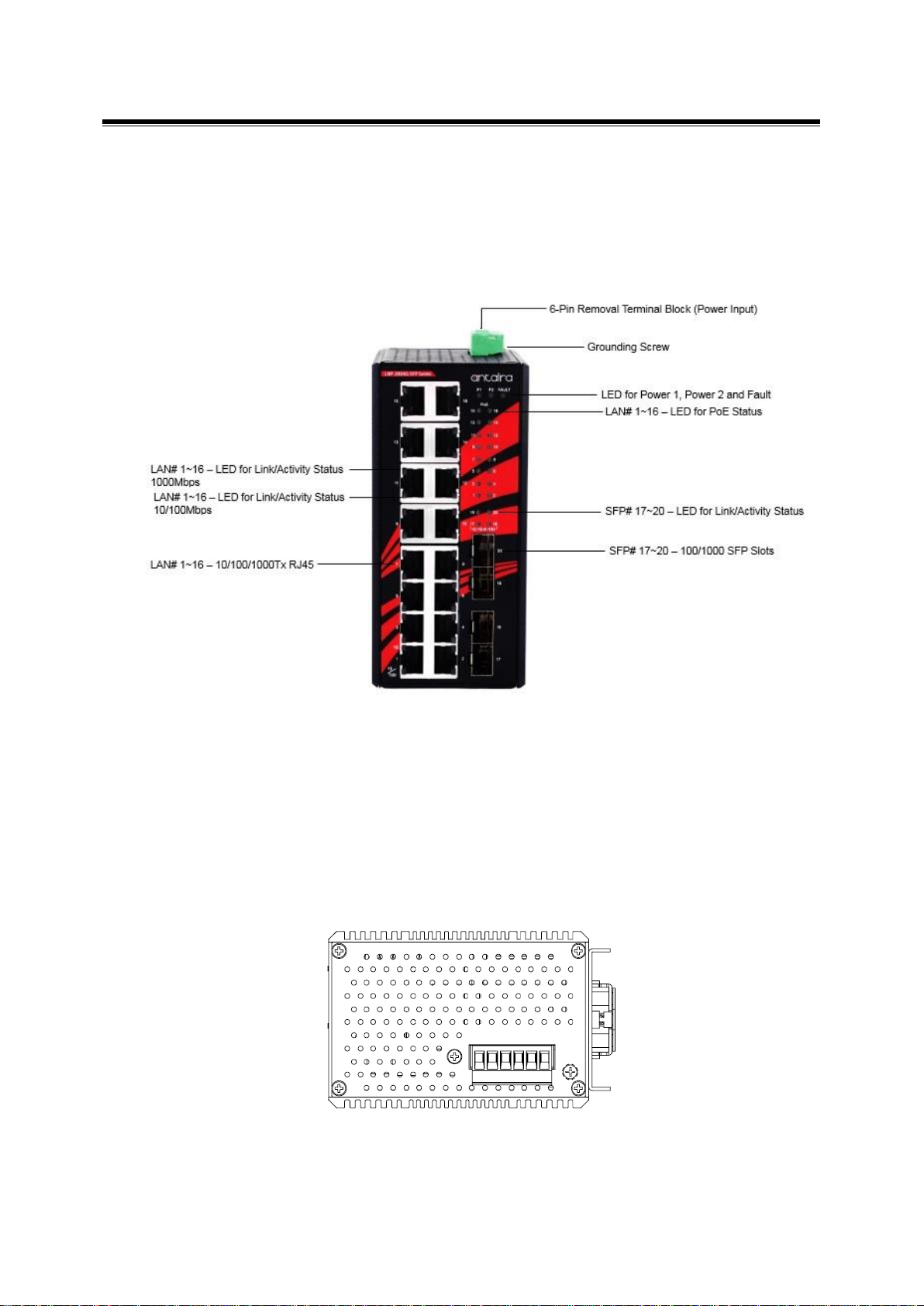

See Figure 2.2 for the front panel of the LNP-2004G-SFP series.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNP-2004G-SFP series switch that is
equipped with one 6-pin removal terminal block connector for dual DC power inputs (48-55
VDC).
Figure 2.2
Figure 2.3

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED
Color
Description
Power 1
Green
On
Power input 1 is active
Off
Power input is inactive
Power 2
Green
On
Power input 2 is active
Off
Power input is inactive
Fault
Red
On
Power input 1 or 2 is inactive
Off
Both power input 1 and 2 are active
SFP Port
LINK/ACT
(Port 17~20)
Green
On
Connected to the network
Flashing
Networking is active with 1000Mbps
Off
Not connected to the network
Amber
On
Connected to the network
Flashing
Networking is active with 100Mbps
Off
Not connected to the network
LAN Port
(Port 1~16)
Green
On
Connected to network - 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network - 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
PoE Indicator
(Port 1~16)
Green
On
The port is supplying power to the
powered-device
Off
No powered-device attached or power
supplying fails
Note:“P1/P2” is the abbreviation for “Power 1/Power 2”, “LNK” is for “Link”, and “ACT” is
for “Activity”.
Table 2.1

Antaira Technologies - Industrial Ethernet Switches
LNP-2004G-SFP Series User Manual V1.1
6
2.5 Ethernet Ports
◼RJ-45 Ports (Auto MDI/MDIX):
The RJ-45 ports are auto-sensing for 10/100/1000Base-Tx devices connections. Auto MDI/MDIX
means that the switch can connect to another switch or workstation without changing the straight-
through or crossover cabling. See the figures shown below for straight-through and crossover
cabling schematics.
◼RJ-45 Pin Assignments (Table 2.2)
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operations. Users can
use straight-through cables (see figure below) for all network connections to PCs, servers, and
other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6 at one end of the cable are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T and MDI/MDI-X port pin outs.
Note:
The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs
