Antaira’s LNX-0601G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated
and DIN-Rail mountable. Each unit is designed with five gigabit Ethernet ports and one dual rate
(100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long-
distance communication.
The LNX-0601G-SFP series provides high EFT and ESD protection to prevent any unregulated
voltage and is suitable for harsh environments. It supports the power redundancy feature using a
dual power input design with reverse polarity protection.
In addition, the built-in relay warning function alerts maintainers when power failures or port
breaks occur. Also, the built-in advanced broadcast storm protection feature will block any data
packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower
threshold.
The LNX-0601G-SFP series includes two models: one with an operating temperature range of -10
to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a
perfectly designed product to fulfill any special needs for industrial automation, outdoor
applications and harsh weather environments.
1.1 Key Features
 System Interface/Performance
 All RJ-45 ports support auto MDI/MDI-X function
 Embedded 5-port 10/100/1000Tx and 1-port 100/1000 SFP slot
 Store-and-forward switching architecture
 Broadcast storm protection
 8K MAC address table
 Jumbo frame supports: 10K
 Port break alarm mask
 Power line EFT protection: 3,000VDC; Ethernet ESD protection: 4,000VDC
 Power Input
 DC 12 ~ 48V redundant power
 Operating Temperature
 Standard operating temperature model: -10°C ~ 70°C
 Extended operating temperature model (–T): -40°C ~ 75°C
 Case/Installation
 IP-30 protection

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
2
 Installation in pollution degree to environment
 DIN-Rail and wall mount design
1.2 Package Contents
 1 - LNX-0601G-SFP (T): 5-port industrial gigabit unmanaged Ethernet switch, with
5*10/100/1000Tx + 1*100/1000 SFP slot
 1 - User manual
 1 - Product CD
 2 - Wall mounting brackets and screws
 1 - DC cable –18 AWG and DC jack 5.2x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
3
2. Hardware Description
2.1 Physical Dimension

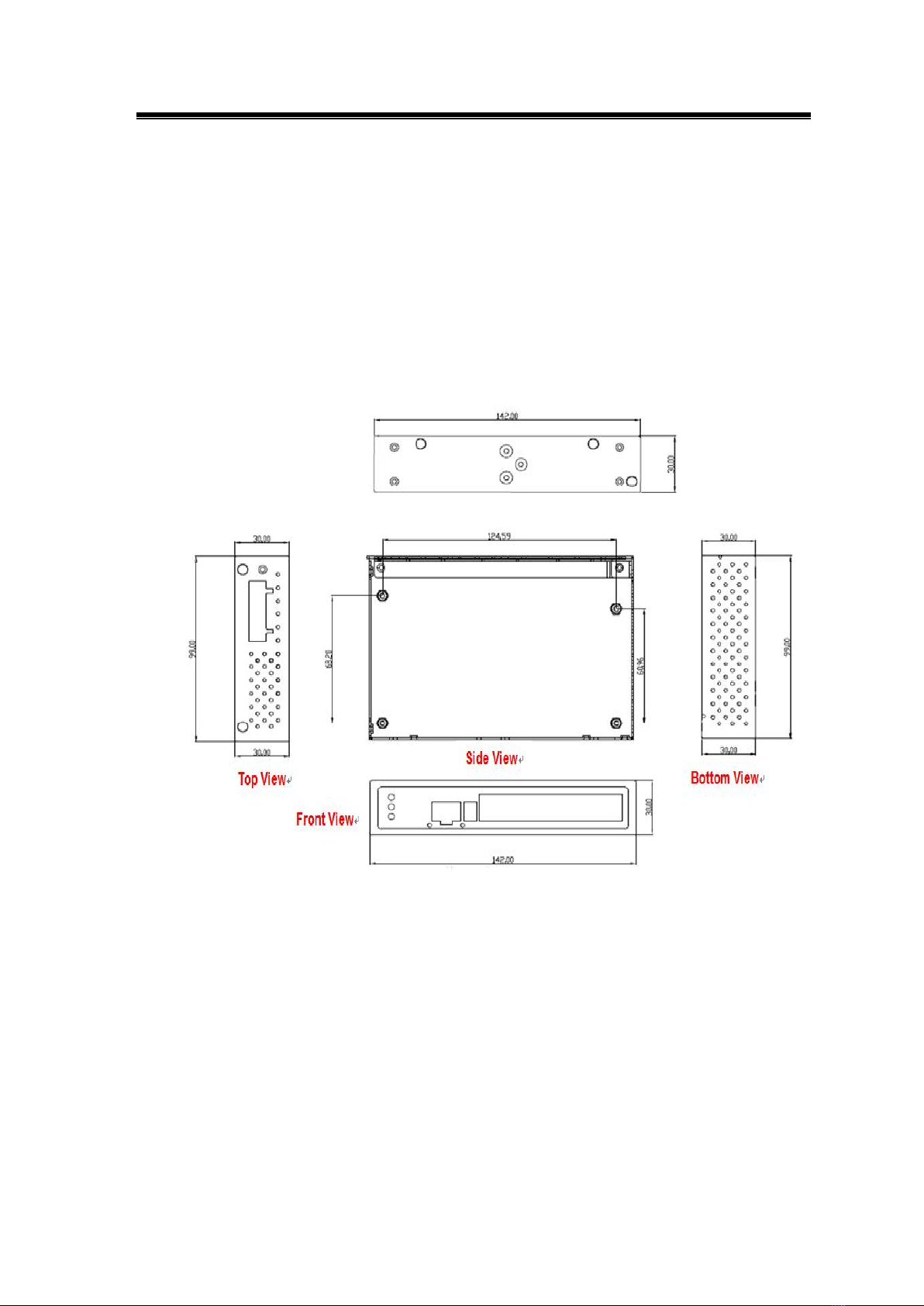

Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-0601G-SFP series:
6 -Port
industrial gigabit unmanaged Ethernet switch with 5* 10/100/1000Tx and 1*100/1000SFP slot.
(W x D x H) is 30mm x 99mm x 142mm
Figure 2.1
LNX-0601G-SFP Series Physical Dimension

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
4
2.2 Front Panel
The front panel of the LNX-0601G-SFP series industrial
Ethernet
switch is shown below in Figure
2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNX-0601G-SFP series switch that is
equipped one 6-pin removal terminal block connector for dual DC power inputs
(12~48VDC).
Figure 2.2
The Front Panel of LNX-0601G-SFP Series
Figure 2.3
Top Panel View of LNX-0601G-SFP Series

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED Color Description
P1 Green On Power input 1 is active
Off Power input 1 is inactive
P2 Green On Power input 2 is active
Off Power input 2 is inactive
Fault Red
On Power input 1 or 2 is inactive
Off Power input 1 and 2 are both functional, or no power,
inputs/ports link is active/port alarm is disabled
LNK/ACT
(SFP Port)
Green
On Connected to network
Flashing Networking is active
Off Not connected to network
LAN Port 1 ~ 5
(Left LED)
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
LAN Port 1 ~ 5
(Right LED)
Green
On Connected to network, 100Mbps/10Mbps
Flashing Networking is active
Off Not connected to network
2.5 Ethernet Ports

RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Auto MDI/MDIX means that the switch can connect to another
switch or workstation without changing the straight-through or crossover cabling. See the figures
on the next page for the straight-through and crossover cabling schematics.
Table 2.1
LED Indicators for LNX-0601G-SFP Series

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
6

RJ-45 Pin Assignments (Table 2.2)
Pin Number Assignment
1 Rx+
2 Rx-
3 Tx+
6 Tx-
All ports on this industrial
Ethernet
switch support automatic MDI/MDI-X operation. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, other
switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T, 100BASE-TX, 1000BASE-TX MDI and MDI-X port pin outs.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data Plus (RD+) Transmit Data Plus (TD+)
2 Receive Data Minus (RD-) Transmit Data Minus (TD-)
3 Transmit Data Plus (TD+) Receive Data Plus (RD+)
6 Transmit Data Minus (TD-) Receive Data Minus (RD-)

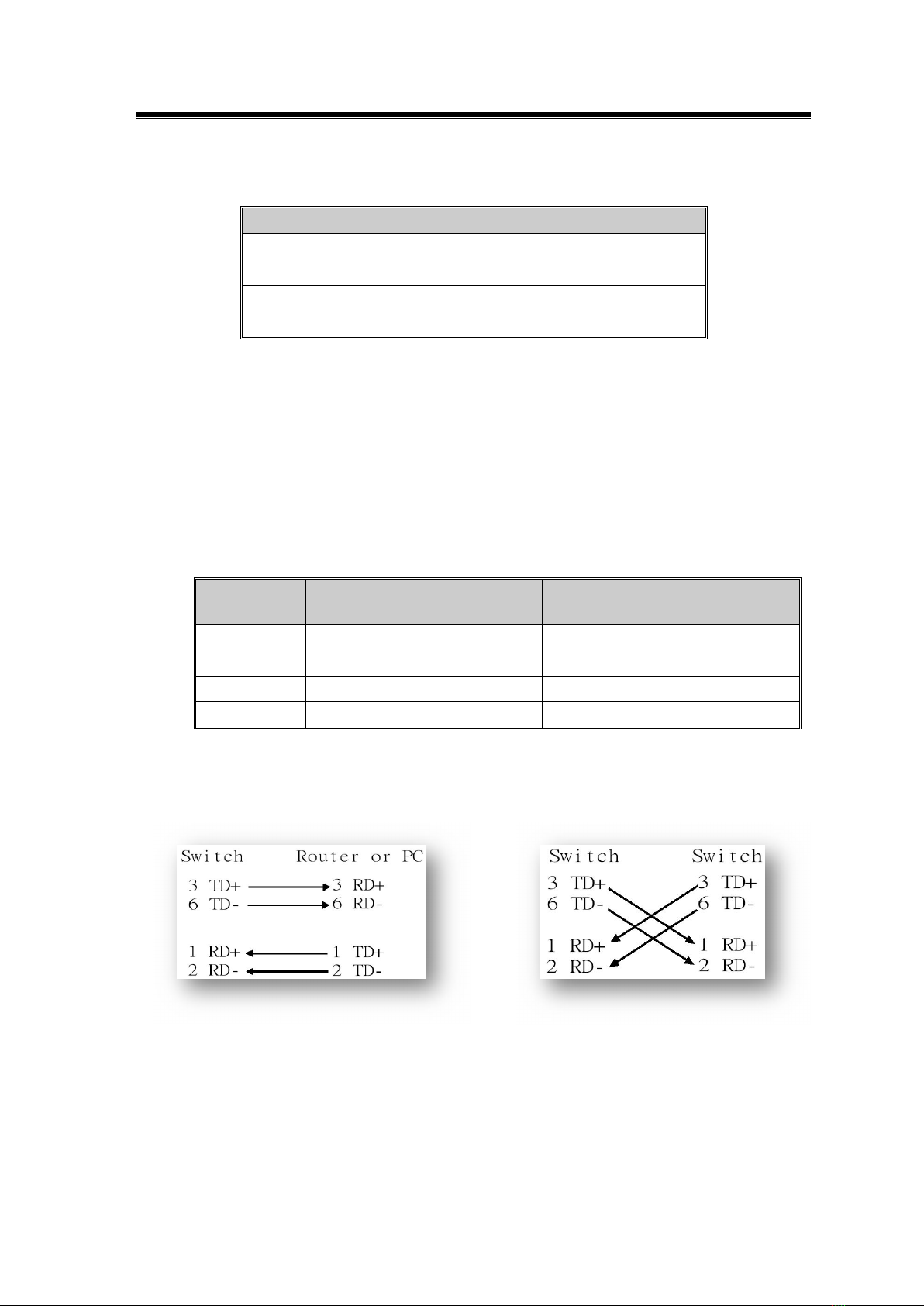

The following figures show the cabling schematics for straight-through and crossover.
Figure 2.4 Figure 2.5
Straight-Through Cable Schematic Crossover Cable Schematic
Note
“+” and “-” signs represent the polarity of the wires that make up each wire pair.
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
7
The following figures show the 10,100, and 1000 Ethernet RJ-45 pin outs.
2.6 Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The
cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than
100 meters (328 ft.) long.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
Figure 2.7 Figure 2.8
Straight-Through Cable Schematic Crossover Cable Schematic
Figure 2.6
RJ45 Ethernet Port Pin Outs

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
8
To connect the transceiver and LC cable, please follow below steps:
First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.9. Notice
that the triangle mark is at the bottom of the SFP slot. Figure 2.10 shows the SFP transceiver
module was inserted.
Second, insert the fiber cable of the LC connector into the transceiver as shown below in Figure
2.11.
Figure 2.9
Transceiver to the SFP Module
Figure 2.10
Transceiver Inserted
Figure 2.11
LC Connector to the Transceiver

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
9
To remove the LC connector from the transceiver, please follow the steps shown below:
1. Press the upper side of the LC connector from the transceiver and pull it out to release as
shown below in Figure 2.12.
2. Push down the metal clasp and pull the transceiver out by the plastic part as shown below in
Figure 2.13.
Figure 2.12
Remove LC Connector
Figure 2.13
Pull Out From the SFP Module

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
10
2.7 Wiring the Power Inputs
Please follow below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.14.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.15.
Note  Only use copper conductors, 60/75°C, tighten to 5 lbs.
 The wire gauge for the terminal block should range between 18~20 AWG.
Figure 2.15
Power Terminal Block
Figure 2.14
Power Terminal Block

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
11
2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below
in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port
link failure (managed industrial switch only) and form a normally open circuit. An application
example for the fault alarm contact is shown below in Figure 2.16.
Note  The wire gauge for the terminal block should range between 12 ~ 24 AWG.
 If only using one power source, jump from Pin 1 to Pin 5 and Pin 2 to Pin
6 to eliminate the power fault alarm.
2.9 DIP Switch Settings
The following describes the DIP switch settings (Figure 2.17).
DIP 1:
ON: Disable Energy Efficient Ethernet (EEE)
Off: Enable Energy Efficient Ethernet (EEE)
DIP 2:
ON: Configured to 100-BASE-FX
Off: Configured to 1000-BASE-FX
Note

The device is required to recycle the power, if any current setting has been
changed.
Figure 2.16
Wiring the Fault Alarm Contact
Figure 2.17
DIP Switch

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
12
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on
the switch.

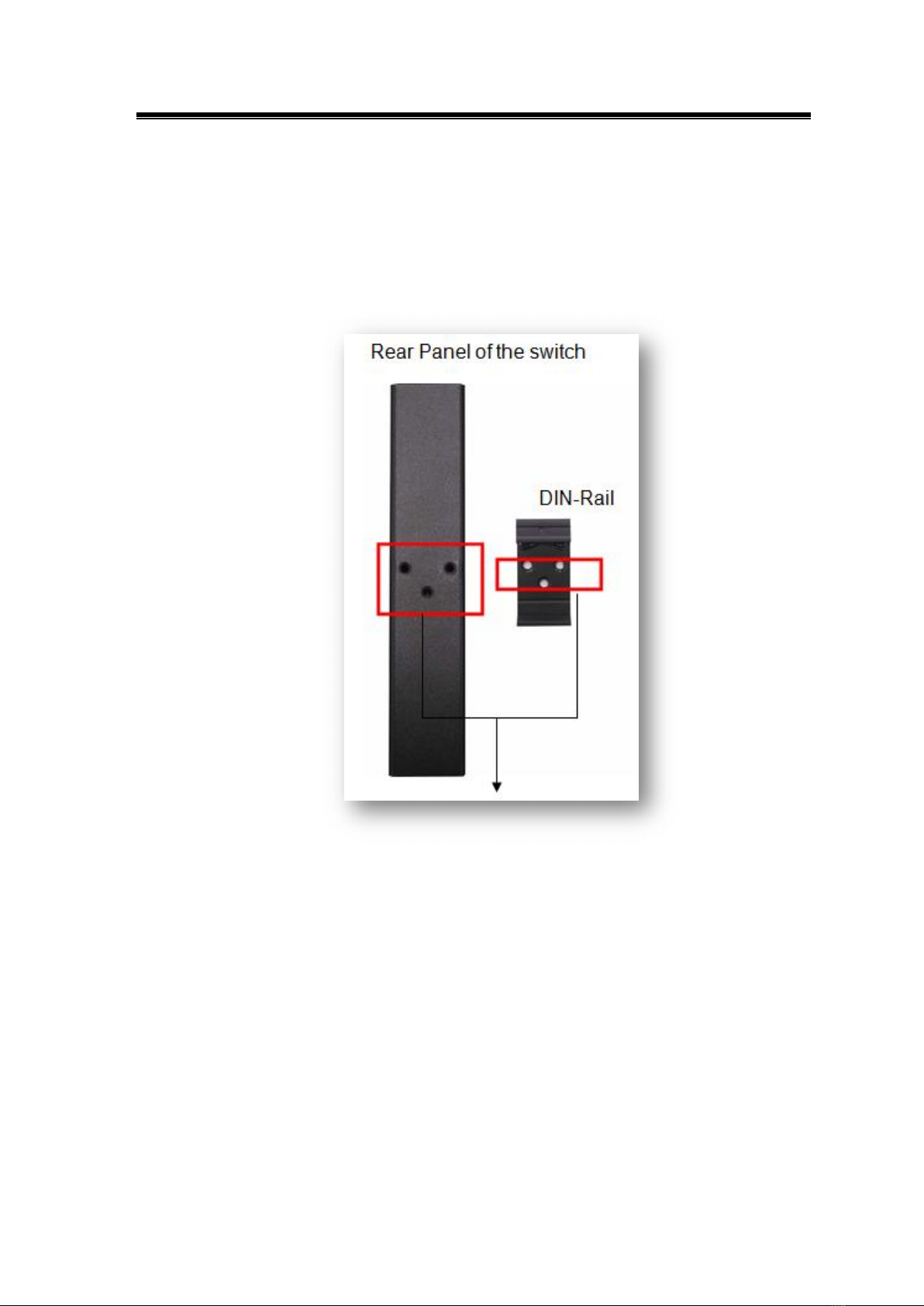

Figure 3.1
The Rear Side of the Switch & DIN-Rail Bracket

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
13
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.

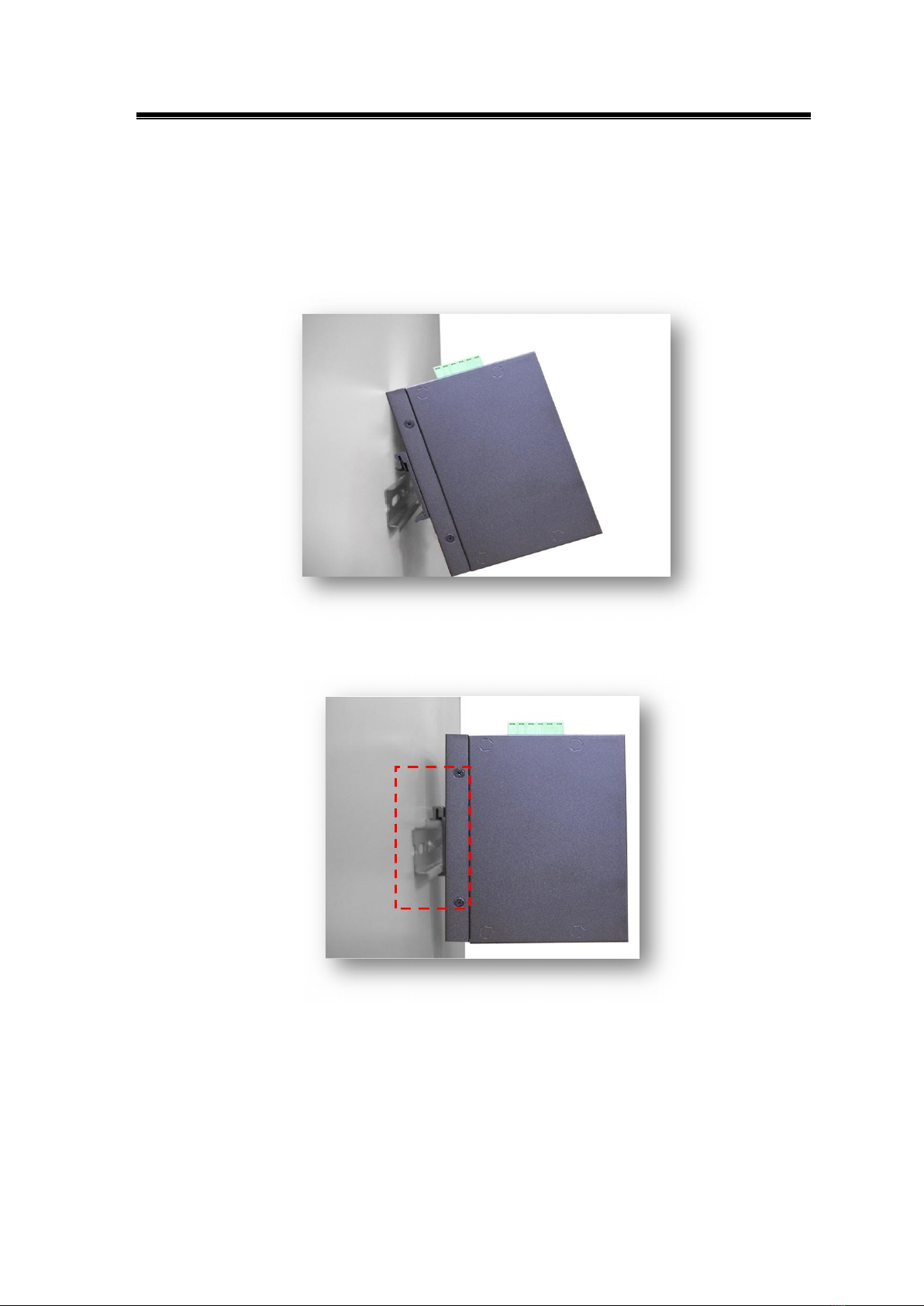

Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
14
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
Figure 3.4
Remove DIN-Rail Bracket from the Switch

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
15
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira’s LNX-0601G-SFP series:
6-port industrial gigabit
unmanaged Ethernet switch with 5*10/100/1000Tx and 1*100/1000 SFP slot.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
 If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
 If you want to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
 If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
 Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED
on the industrial Ethernet switch will turn on when the cable is connected to the networking
device.
 Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Industrial Ethernet Switches
LNX-0601G-SFP Series User Manual V1.2
16
5 Network Application
This segment provides an example of an industrial
Ethernet
switch application (Figure 5.1).
Figure 5.1
Industrial Ethernet Switch Application Reference
