1 Overview
Antaira Technologies’ LNX-800AG-E series is a smart 8-port industrial gigabit unmanaged Ethernet switch embedded with
8*10/100/1000Tx Ethernet ports. The RJ45 interface can also be auto-detected, so MDI or MDI-X is automatically
selected and a crossover cable is not required. All Ethernet ports have memory buffers that support the store-and-forward
mechanism. This assures that data is properly transmitted.
The LNX-800AG-E series supports 12~48VDC dual power inputs, and also offers two wide operating temperature models
for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It
supports IEEE 802.3/802.3u/802.3ab/802.3x with 10/100/1000Tx for full or half duplex data transmission.
In addition, the built-in Network Broadcast Storm Protection and built-in relay warning function will alert network engineers
whenever there is a power failure or port break. With an increasing demand for E-Mark certified products not only for the
EU but also the Middle East and African markets, this product is a perfect solution for easy network deployment in various
vehicular environments.
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support Auto MDI/MDI-X Function
- Embedded 8*10/100/1000Tx RJ45 ports
- Store-and-forward switching architecture
- 8K MAC address table
Power Input
- DC 12~48V redundant, with a 6-pin removal terminal block
- The power input specification complies with the requirements of SELV (Safety Extra Low Voltage) and the power
supply should comply with UL 61010-1 & UL 61010-2-201
Operating Temperature
- LNX-800AG-E: -10°C to 70°C
- LNX-800AG-E-T: -40°C to 75°C
Case / Installation
- IP30 protection metal housing
- DIN-Rail and wall-mount design
- Installation in a Pollution Degree 2 industrial environment
1

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
1.2 Package Contents
- LNX-800AG-E(-T)
- Quick Installation Guide
- Wall mounting bracket set with screws
- DC cable - 18AWG & DC jack 5.5 x 2.1mm **Wire: White (+) / Black (-)
- Dust cover set
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within
this hardware manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et l'installation du câblage du
commutateur Ethernet industriel seront décrits dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check certain information on the user manual when working with the device.
(Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation lorsque vous
travaillez avec l'appareil. (Illustré à la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
2

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
2 Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of this product series:
(W x H x D) is 30mm x 140mm x 95mm
Figure 2.1 - Physical Dimensions
3

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
2.2 Front View Panel
Figure 2.2, below, shows the front panel of the product series:

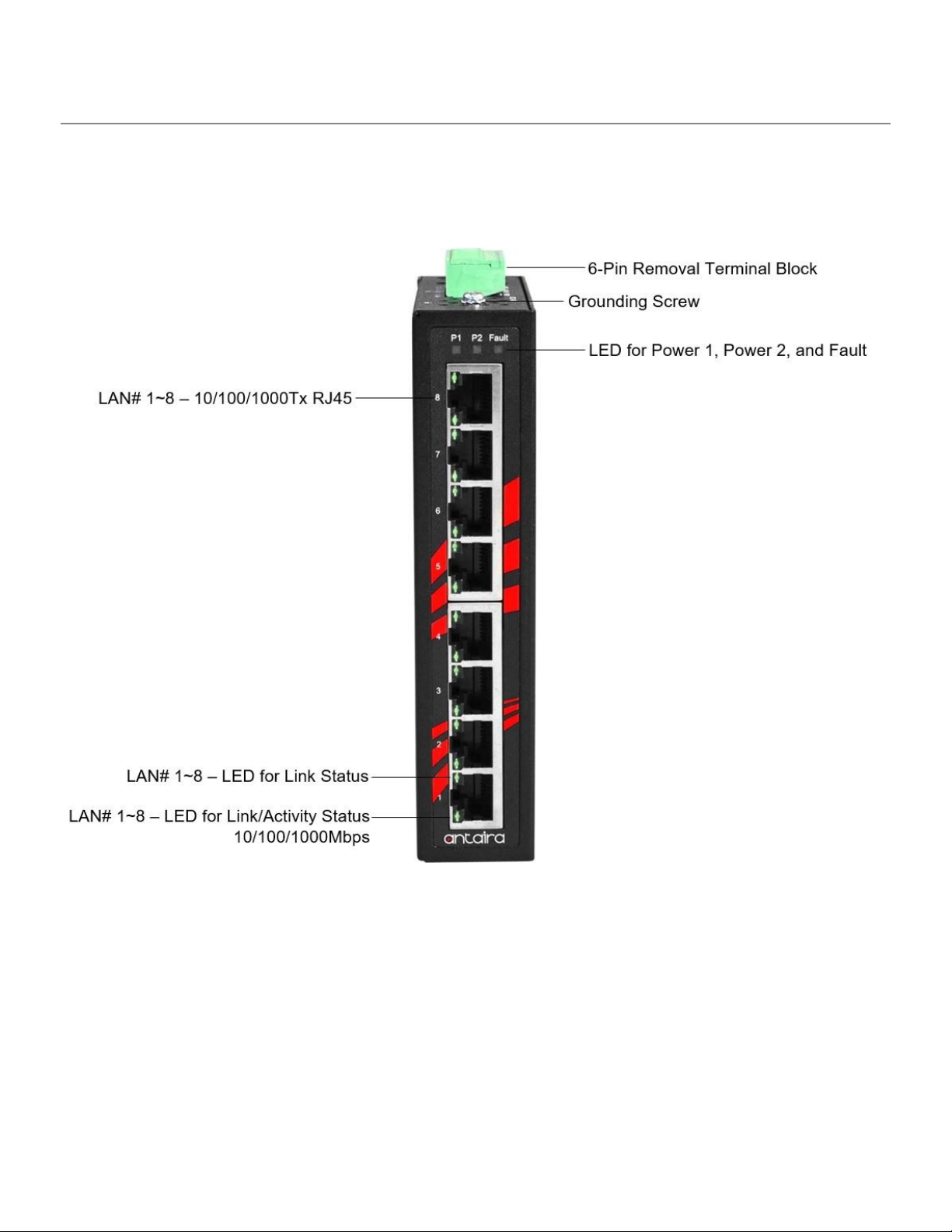

Figure 2.2 - Front View Panel
4

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
2.3 Top View Panel
Figure 2.3, below, shows the top panel of the product series:
Figure 2.3 - Top View Panel
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and
network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power Input 1 is active
Off
Power Input 1 is inactive
P2
Green
On
Power Input 2 is active
Off
Power Input 2 is inactive
Fault
Red
On
Power Input 1 or 2 is inactive
Off
Both power input 1 and 2 are active
LAN Port 1~8
Green
On
Connected to network
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 1000Mbps
Off
Not connected to network, or connected to network at speed of
10/100Mbps.
Table 2.1 - LED Indicators
Note: “P1” is the abbreviation for “Power 1”, “P2” is for “Power 2”, “LNK” is for “Link”, and “ACT” is for “Activity”.
5

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
2.5 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections.
Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or
crossover cabling. See the figures below for straight-through and crossover cabling schematics.
●RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3 - 1000Base-T RJ45 Pin Assignments
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
6

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
2.6 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch
and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC-60825-1 and
classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à la norme
IEC-60825-1 et classé comme produit laser de classe 1.
2.8 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block
connector as shown below in Figure 2.6.

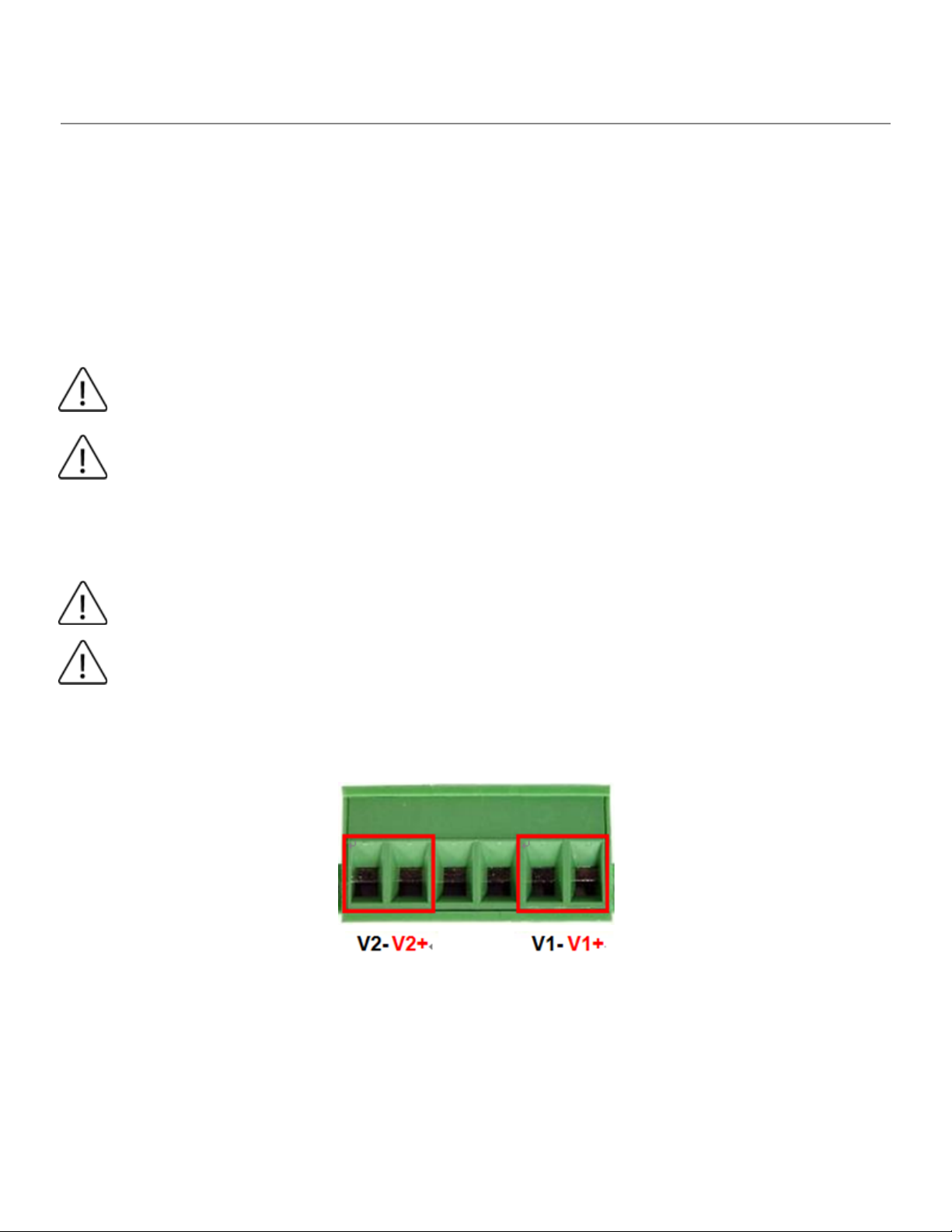

Figure 2.6 - Power Terminal Block
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7.
7

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
Figure 2.7 - Power Terminal Block
Caution:
Only use copper conductors, 125°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Attention:
Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
2.9 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By
inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch
only), and form a normal open circuit. An example is shown below in Figure 2.8.
Figure 2.8 - Wiring the Fault Alarm Contact
8

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
Caution:
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm.
Attention:
Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à 5 et les broches 2 à 6 pour
éliminer l'alarme de panne de courant.
2.10 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground
connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is
shown below in Figure 2.9.
Figure 2.9 - Grounding Screw Symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique
9

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
3 Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial
Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch:
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN- Rail on to the
track as shown below in Figure 3.2.
4. Lightly pull down the bracket onto the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
Figure 3.1 - Rear View of the Switch and DIN-Rail
10

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail
3.2 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure
3.4.
Caution: “Wall” means industrial control panel wall
Attention: “Wall” signifie mur de panneau de commande industriel
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
11

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
Figure 3.4 - Remove DIN-Rail bracket from the Switch
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5 - Wall Mounting Bracket Dimensions
12

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
4 Hardware Installation
4.1 Installation Steps
This section will explain how to install the industrial Ethernet switch:
Caution: This device is intended for indoor use.
Attention: Cet appareil est destiné à une utilisation en intérieur.
Caution: The device is intended to be installed in an industrial control enclosure and panel.
Attention: L'appareil est destiné à être installé dans une armoire de commande et un panneau industriels.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
●If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the DIN-Rail Mounting section
for DIN-Rail installation.
●If it is required to wall mount the industrial Ethernet switch, please refer to the Wall Mounting section for wall
mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
●For the help on how to wire power, please refer to the Wiring the Power Inputs section.
●Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ45 cable into the switch’s Ethernet port and on the other side into the networking device’s
Ethernet port, e.g. switch PC or server.
●The Ethernet port’s (RJ45) LED on the industrial Ethernet switch will turn on when the cable is connected to
the networking device.
●Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.
13

Antaira Technologies - Industrial Ethernet Switches
LNX-800AG-E Series - Hardware Manual - v1.0
4.2 Maintenance and Service
●If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting.
The initial installation should be done in a way that makes this as convenient as possible.
●Voltage / Power lines should be properly insulated as well as other cables. Be careful when handling them so as
to not trip over.
●Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes located in
the different faces of the device. This may not only harm the internal layout, but might cause harm to users
as well.
●Do not under any circumstance open the device for any reason. Please contact your dealer for any repair
needed or follow the instructions within the manual.
●Clean the device with dry soft cloth.
4.3 Troubleshooting
●Always verify the right power cord or adapter is being used. Never use a power supply or adapter with a
non-compliant DC output voltage or it will burn the equipment.
●Select the proper UTP or STP cable in order to construct the network. Use an unshielded twisted-pair (UTP) or
shield twisted-pair (STP) cable for RJ45 connections: 100Ω Category 5e for 10/100Mbps. Also be sure that the
length of any twisted-pair connection does not exceed 100 meters (328 feet).
●Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily monitored with the LED
indicators which help to identify if any problems exist.
○Please refer to the LED Indicators section for LED light indication.
●If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with
the power cord. Check for loose power connections, power losses or surges at the power outlet.
○Please contact Antaira for technical support service if the problem still cannot be resolved.
●If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot
transmit, please check the system’s Ethernet devices’ configuration or status.
14
