Antec ISK 300-150 User manual

ISK 300-150
USER’S MANUAL

1
TABLE OF CONTENTS
INTRODUCTION
1.1 Case Specifications.…..…………………………………………………………………………………..3
1.2 Diagram…………………………………………………………………….…………………………………. 3
1.3 Power Supply Specifications…………………………………………………………………………. 4
HARDWARE INSTALLATION GUIDE
2.1 Removing the Top Panel.……………………………………………………………………………….5
2.2 Removing the Drive Tray Assembly……….……………………………………………………… 5
2.3 Motherboard Installation..…………………………………………………………………………….5
2.4 Internal 2.5” Device Installation…………………………………………………………………….6
2.5 External Slim 5.25” Device Installation…………………………………………………………. 6
CONNECTING THE FRONT I/O PORTS
3.1 USB 2.0 Ports………………………………………………….……………………………………………. 7
3.2 eSATA Port…………………………………….………………………………………………………………7
3.3 AC’97 / HD Audio Ports……………………….…………………………………………………………7

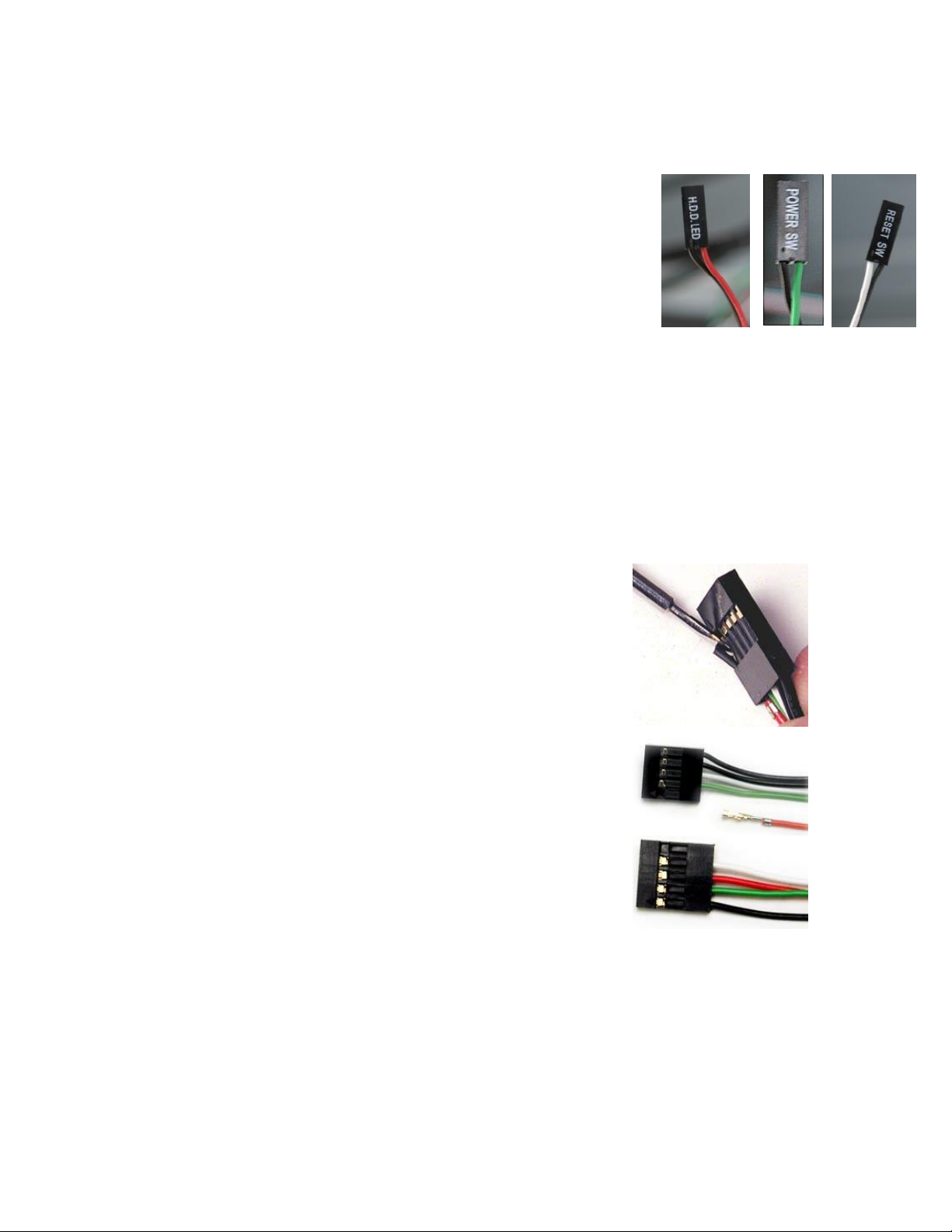

3.4 Switch and LED Connectors……………………………………………………………………………8
3.5 Rewiring Motherboard Header Connections………………………………………………… 8
COOLING SYSTEM
4.1 TriCool™ Exhaust Fan…………………………………………………………………………………….9

2
ISK 300-150 U SER ’ S M ANUAL
At Antec, we continually refine and improve our products to ensure the highest quality. It’s possible
that your new case will differ slightly from the descriptions in this manual. This isn’t a problem; it’s
simply an improvement. As of the date of publication, all features, descriptions, and illustrations in
this manual are correct.
Disclaimer
This manual is intended only as a guide for Antec’s computer enclosures. For more comprehensive
instructions on installing the motherboard and peripherals, please refer to the user’s manuals that
come with those components.
Although care has been taken to prevent sharp edges in your Antec case, we strongly recommend
taking the appropriate time and care when working with it. Avoid hurried or careless motions. Please
use reasonable precaution.
This manual is not designed to cover CPU, RAM, or expansion card installation. Please consult the
motherboard manual for specific mounting instructions and troubleshooting. Before proceeding,
check the manual for your CPU cooler to find out if there are steps you must take before installing the
motherboard. While installing hardware, keep your case on a flat, stable surface.

3
1.1 CASE SPECIFICATIONS
Case Type
Mini-ITX Desktop
Color
Black
Dimensions
96mm (H) X 222mm (W) X 328mm (D)
3.8” (H) x 8.7” (W) x 12.9” (D)
Net Weight
5.5 lb / 2.5 kg
Cooling
1 x side 80mm TriCool™ fan
Drive Bays
3 drive bays:
-1 x External 5.25” slim drive bay
-2 x Internal 2.5” drive bays
Expansion Slots
1 x half-height slot
Motherboard Size
Mini-ITX
Front I/O Panel
2 x USB 2.0
1 x eSATA
AC’97 / HD Audio In and Out
Power Supply
FP-150-8 power supply
1.2 DIAGRAM
1. Side 80mm TriCool™ fan
2. External slim optical 5.25” drive bay
3. Internal 2 x 2.5” HDD bays
4. Half-height expansion slot
5. Motherboard mount –Mini-ITX
6. Front I/O panel
7. FP-150-8 power supply
Note: The ISK 300-150 includes a tool bag with Product Overview located inside of the case.
7

4
1.3 POWER SUPPLY SPECIFICATIONS
The ISK 300-150 is powered by an FP-150-8 power supply.
Input characteristics:
Input Voltage Range
Frequency Range
100VAC ~ 240VAC
47 Hz ~ 63 Hz
Output characteristics:
DC Output
+5V
+3.3V
+12V
-12V
+5Vsb
Max. Output
10A
8A
10A
0.2A
1.5A
+3.3V and +5V maximum combined output: 65W
Total Continuous Power: 150W
A variety of industrial-grade safety circuitry will help protect your computer: OVP (Over Voltage
Protection), SCP (Short Circuit Protection) and OCP (Over Current Protection). Sometimes the
PSU will “latch” into a protected shutdown state. This means that you will need to power off the
power supply and clear the fault before it will function again.
There are no user-replaceable fuses in the FP-150-8.
