Anthogyr Implanteo User manual

IMPLANTEO®
Manuel d’utilisation
Instruction manual
Manual de utilización
Manuale d’uso
Benutzungshandbuch
Manual de utilização
FrançaisEnglishEspañolItalianoDeutschPortuguês

30
1. Instructions 31
2. Safety 31
2.1 Warning symbol 31
2.2 Compliant use 31
2.3 Safety instructions 32
3. IMPLANTEO® unit 34
4. Connection / Installation 35
4.1 Connection to a local supply area 35
4.2 Micromotor connection / Disconnection 35
4.3 Pedal connection / Disconnection 36
4.4 Contra-angle connection 36
4.5 Irrigation tube installation 37
4.6 Pedal bar installation 38
5. Initial use 38
5.1 Switching on 38
5.2 Welcome 38
5.3 Adding a user / Protocol 39
5.4 Adding an Anthogyr protocol 39
5.5 Changing a user 39

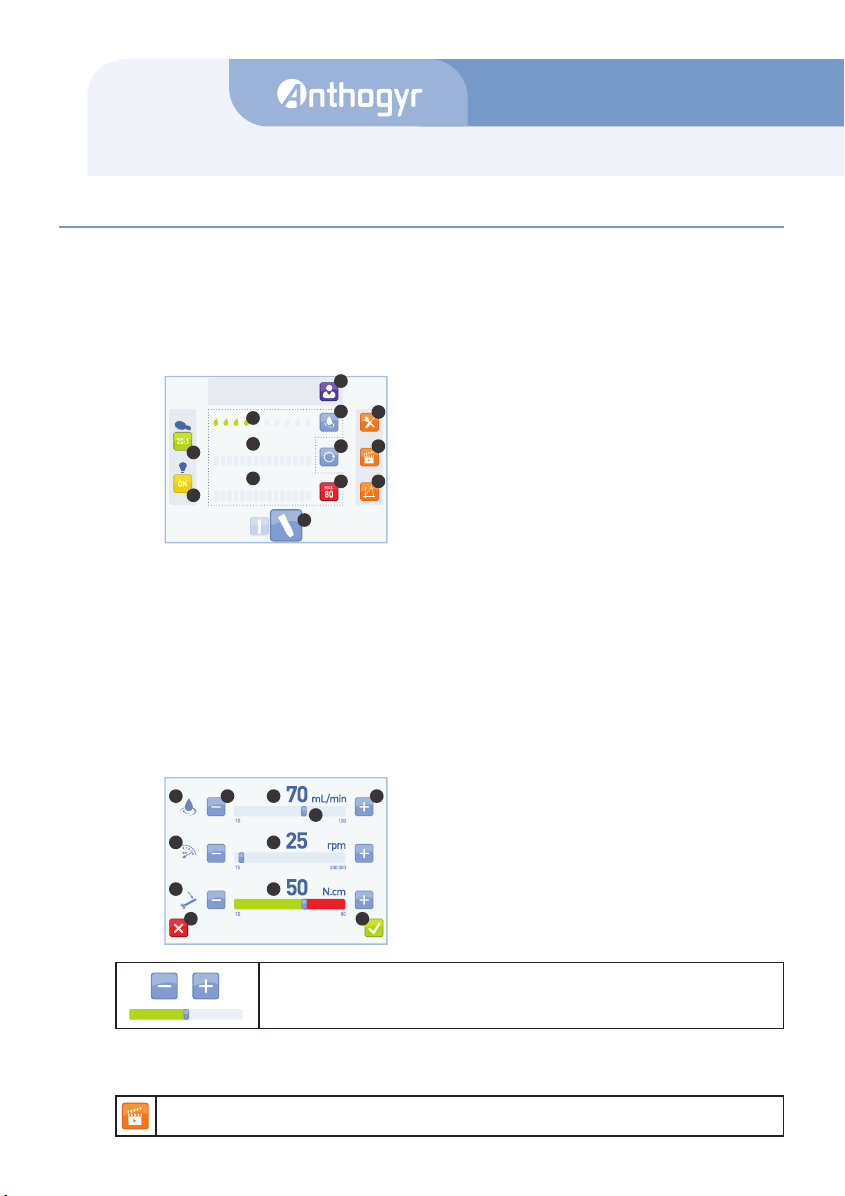

6. Work screen 40
6.1 Adjustment of water ow / Speed / Torque 40
6.2 Adding / Deleting / Replacing sequences 40
6.3 Changing sequences 41

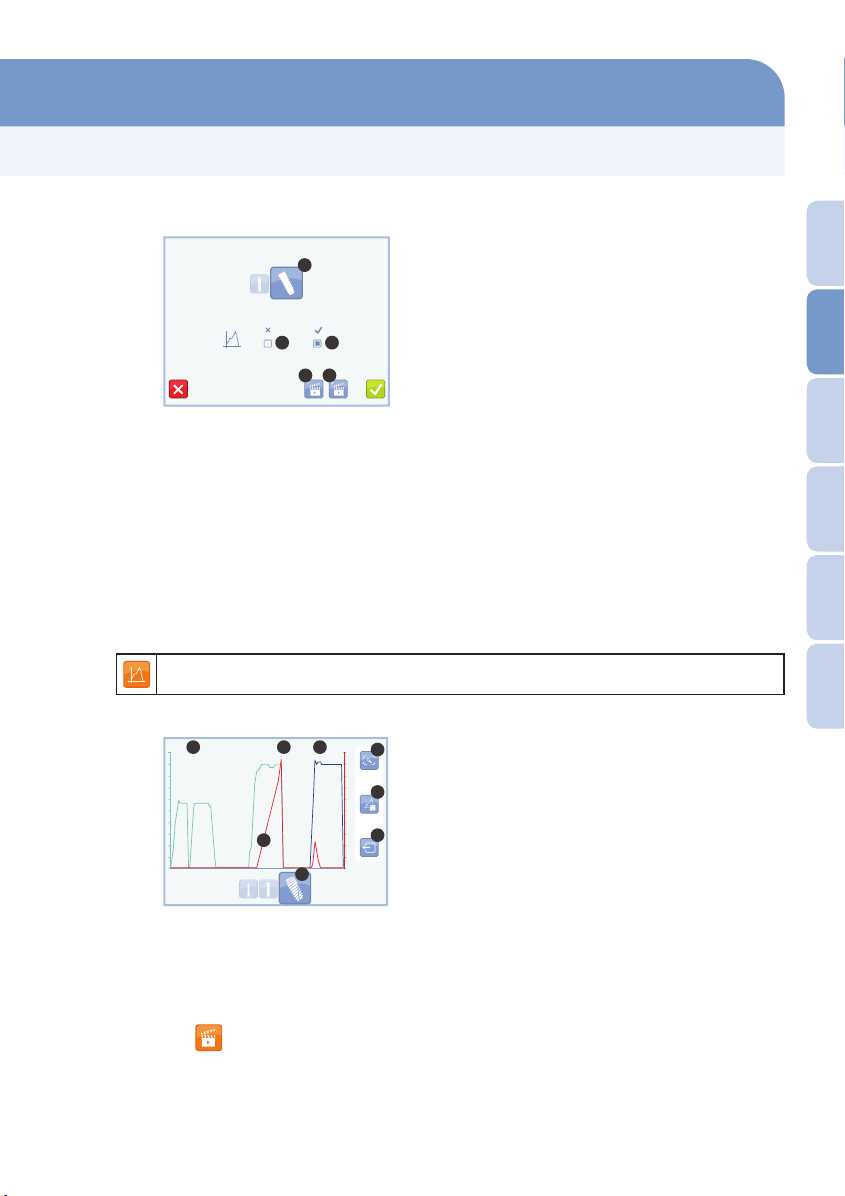

6.4 Graphic display 41
6.5 Saving torque and speed data 42
6.6 Changing the contra-angle 42
Summary

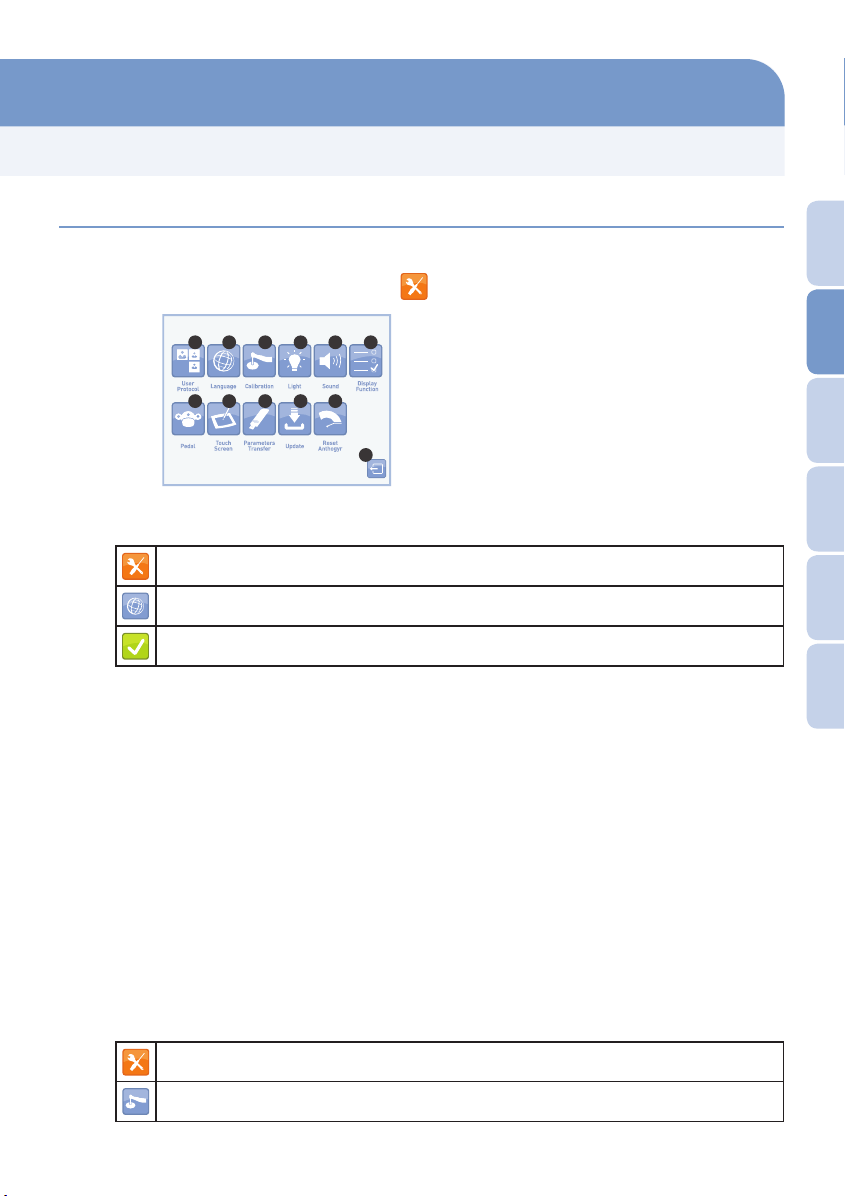

7. Adjusting parameters 43
7.1 Language selection 43
7.2 Calibration of contra-angle in use 43
7.3 Adjustments 44
7.4 Pedal calibration 44
7.5 Touch pad calibration 44
7.6 Restoring previous conguration
/ Saving current conguration 45
7.7 Software update 45
7.8 Re-initialisation of initial Anthogyr conguration 45

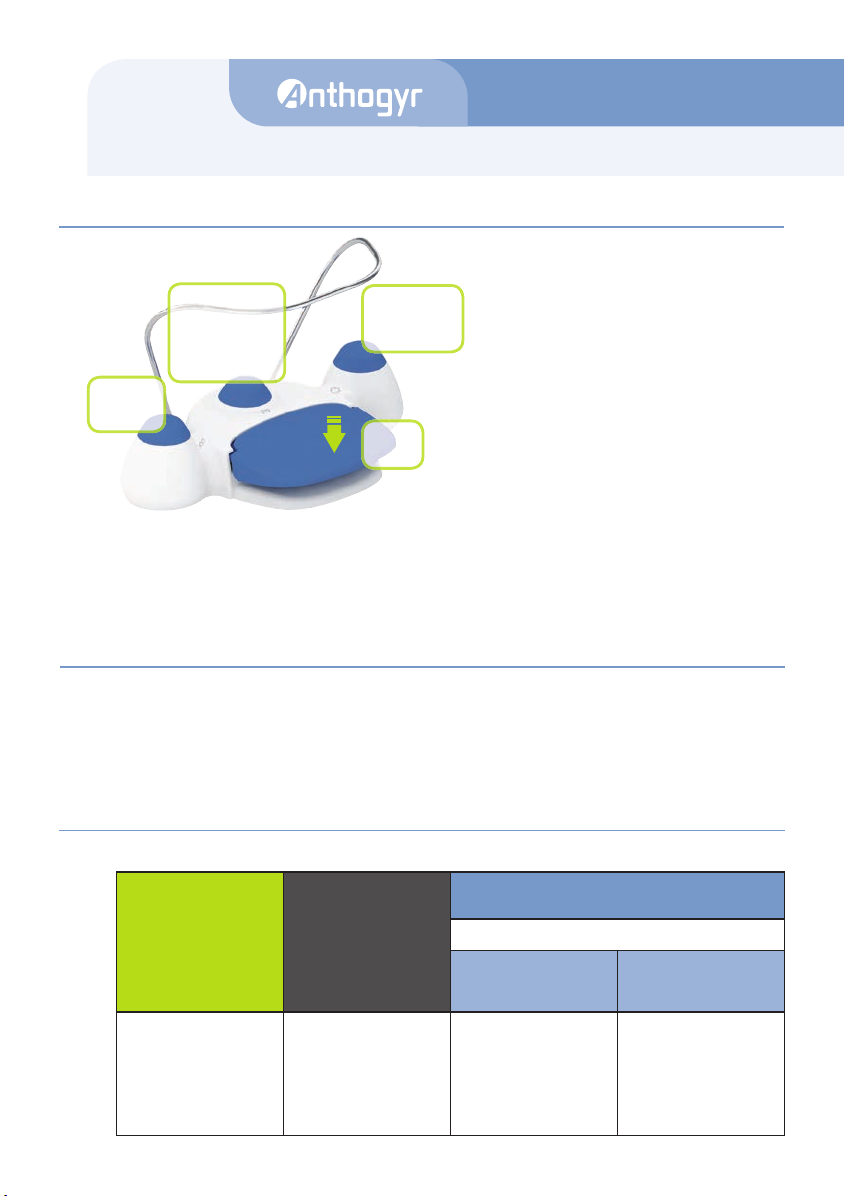

8. Using the pedal 46
9. Stopping the device 46
10. Cleaning, disinfection and sterilisation 46
10.1 Device maintenance 46
10.2 Sterilisation cycle 47

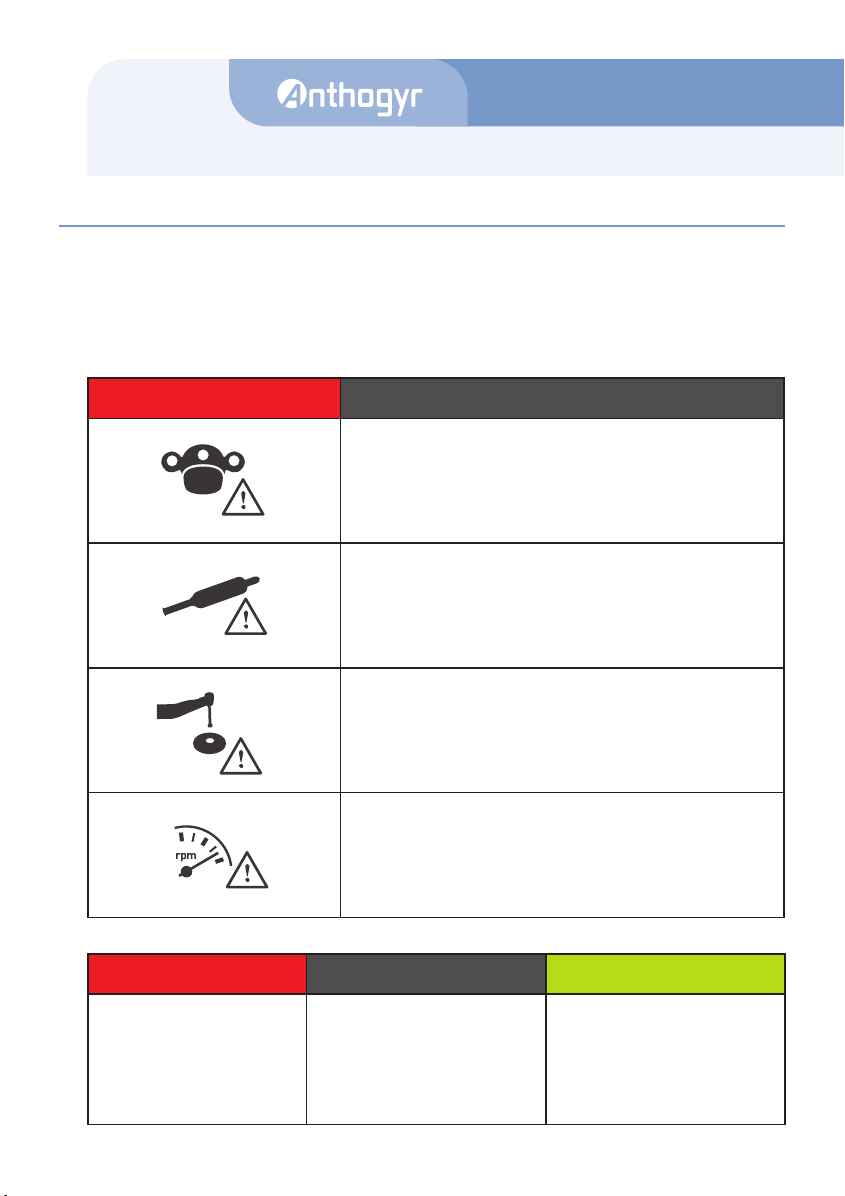

11. Abnormalities and errors 48
12. Electromagnetic compatibility 49
13. Guarantee 52
14. Manufacturer’s responsibility 52
15. Regulations 53
16. Description of symbols 53
17. Relevant references 55
ANTHOGYR’s IMPLANTEO implantology and dental surgery motor unit are indicated to perform dental implant surgery, such
as perforating the bone and tapping and threading procedures required before placement of implant prosthetics.
Indications for use :

31
IMPLANTEO®
You have just purchased your new IMPLANTEO®dental implantology motor.
Anthogyr congratulates you on your purchase and thanks you for the trust you place in it.
For complete and lasting bene t of this product, it is recommended that you read this instruction manual carefully before use.
This Anthogyr product can only be used with Anthogyr accessories (micromotor, pedal, calibration module, mandrel, supply
cable and irrigation tubes).
The use of any other accessories is forbidden. This device is compatible with most surgical handpieces and contra-angles on the market.
However, this product’s technical characteristics are only valid if it is connected to an Anthogyr instrument. It is an Anthogyr
speci c connection compatible with Intramatic Lux and « E » type (standardised as per ISO 3964). All devices connected to this product
must comply with CEI60601-1 : 2005 standard (if applicable).
All the precautions with E symbols must be complied with to ensure that the device is used in the best conditions possible and
in complete safety.
These instructions can only be reproduced and distributed with prior agreement from Anthogyr. The manufacturer reserves the right
to make changes or improvements to the aforesaid equipment resulting from new technical advances. This reserve does not apply to
equipment that is already installed.
The user is obliged :
w to only use non-defective products.
w to protect patients, third parties and themselves from all danger.
w to avoid all contamination by the product.
The use of this device is reserved for quali ed dental health professionals, quali ed or under their control. This Anthogyr product is only for
use in dental medicine. Any inappropriate use is forbidden.
1. Instructions
2. Safety
2.1 Warning symbol
2.2 Compliant use
To avoid all physical and material damage, this document splits safety instructions into 3 danger levels.
E Warning symbol.
E
ATTENTION
Indicates a dangerous situation which can cause material damage or mild to moderate serious injury.
EWARNING
Indicates a dangerous situation which can cause serious / fatal injury.
E
DANGER
Indicates a great danger posed by a situation that could immediately cause serious/ fatal injury.
FrançaisEnglishEspañolItalianoDeutschPortuguês

32
When in use, national legal requirements and the following requirements in particular, must be complied with :
w work place safety regulations.
w accident prevention regulations.
To ensure that the Anthogyr product is operational at all times and to keep it in good working order, follow the maintenance,
disinfection and sterilisation instructions (see section
« 10 – Cleaning, disinfection and sterilisation » ).
Only Anthogyr technicians or technicians trained by Anthogyr are authorised to repair Anthogyr products..
Check settings after maintenance.
2.3 Safety instructions
2.3.1 External interference
The device is certied compliant with current electromagnetic compatibility standards.
E
ATTENTION
Users should however ensure that no electromagnetic disturbance poses an additional risk.
So as not to disturb the proper operation of electromagnetic devices, it is recommended complying with the separation
distances for the device (section
« 12 – Electromagnetic compatibility » ).
EWARNING
The device is not designed to withstand shocks from an electrical debrillator.
2.3.2 Electrical connection
E
DANGER (ELECTRIC SHOCK / ELECTROCUTION)
Non-compliant electrical connection
Check that the supply voltage is the same as that shown on the control unit.
Check the supply cable before each use.
Never stick or remove a plug from a wall socket with damp hands.
Do not connect USB peripheral having an external power supply.
Any other use or connection of devices to USB port may create new risks and may require additional risk analysis.
2.3.3 Environment
E
ATTENTION
Do not tilt the device.
Ensure that cables do not prevent free movement of individuals.
Do not use the device near ionising radiation.
The device must be connected to a nearby wall socket which must be easily accessible. The required local supply
cables include a socket supporting at least 125% of the nominal voltage for the equipment.
Use it on a maximum impedance network of 4 Ω.
The user must check the safety of operation and the condition of the device before each use.

33
IMPLANTEO®
2.3.4 Using the device
2.3.5 Storage conditions
2.3.6 Malfunction
E
DANGER
Do not use this product in facilities that are at risk of explosion.
Do not expose the device to water projections or water spray.
Do not insert metal items in the device in order to avoid the risk of electrical shock, short-circuit or the emission
of dangerous substances.
E
DANGER (ELECTROCUTION)
Accidental leak of  uid into the box.
Check and ensure the water tightness of containers and pipes before each use. Should  uid leak into the device,
do not touch it and immediately disconnect the electricity supply cable. Ensure that the surface of the device
is completely dry before re-connecting the electricity cable.
E
ATTENTION
Do not move the device when in use.
We strongly recommend that torque is restricted so as not to exceed the manufacturer’s recommendations for the
instruments. This is to reduce the risk of injury and instruments being damaged.
When the micromotor rotation direction is changed, this is recorded.
E
ATTENTION
Recommended conditions : keep away from humidity and in ambient temperature.
Keep away from the sun, sparks and all sources of ignition.
Temperature : from -20°C to 70°C.
Air humidity levels : from 5 % to 95 %.
Incompatible materials : acids and other solvents.
E
WARNING
Switch the device off as soon as the treatment is  nished.
Disconnect it from the electricity supply when not in use for a long time.
E
ATTENTION
There are mobile parts in the peristaltic pump.
Do not insert  ngers inside the pump cabinet.
In the event of malfunction (screen that glistens, noisy pump motor, vibration in the micromotor) :
w Immediately stop using the device.
w Try to locate or eliminate the problem using the description (section
« 11 – Abnormalities and errors » ).
FrançaisEnglishEspañolItalianoDeutschPortuguês

34
EDANGER
Never try to repair it alone.
Anthogyr After-Sales Dept - Phone [phone] - Fax. [phone] - [e-mail]
w If it is not possible to locate or eliminate the problem using the description, switch the device off and call the
Anthogyr After-Sales Department.
3. IMPLANTEO® unit
1. Touch screen.
2. Micromotor connection socket.
3. Peristaltic pump cabinet.
4. Integrated calibration module.
5. Micromotor.
6. Micromotor connection cable.
7. Motor support.
8. Pedal.
9. Supply switch (On/ Off).
10. Supply socket.
11. USB socket for storage peripherals (USB key).
12. USB socket for After-Sales Dept. use.
13. Pedal socket.
14. Calibration mandrel.
1
3
2
5
7
8
6
Fig. A
910 11 12 13
14

35
IMPLANTEO®
Technical characteristics
There are 2 versions of IMPLANTEO® available :
w One version without light.
w One version with an integrated LED in the contra-angle (see section
« 17- Relevant references » ).
This product’s software is a « multi-user » and/or « multi-protocol of implant », i.e. it is designed so that several users can use
the same resources. We can create up to 10 users or protocols that can hold a maximum of 10 sequences.
One must be familiar with all the safety instructions before installing and using the device (see section
« 2 – Safety » ).
Only use the supply cable supplied by the manufacturer.
Grounding reliability can only be achieved when power supply is connected to an equivalent receptacle
marked « Hospital Only » or « Hospital Grade ».
Check that the supply voltage is the same as that shown on the control unit and that the supply switch is in the 0 position.
E
E
w Input supply : from 100 to 240 V 50-60Hz.
w Absorbed power : 200 W.
w Operational mode : intermittent S3 10 % (1 min ON/ 9 min OFF).
w Fusibles Ø 5x20 T3,15AH 250 V.
w Motor regime : 300 to 40 000 rpm.
w Motor torque : 7 N.cm (80 N.cm max with a Mont-Blanc® 20 :1 contra-angle).
w Pump : 5-wheel peristaltic.
w Flow : 120 mL/min maxi (with Anthogyr irrigation lines).
w Motor : BF applied part.
w Coupling type (ISO3964:2016):
- without light: type 1
- with light: type 4 (Anthogyr speci c Intramatic Lux compatible and « E » Type)
Coupling size (NF EN ISO 3964: 2016): medium.
w IP2x box .
w IPx8 pedal.
w Conditions of use : temperature: +10°C to +40°C/ Relative humidity: 15 to 80 %.
Units displayed and meanings.
N.cm = torque (Newton per centimeter). Rpm = speed (Turns per minute).
4. Connection / Installation
4.1 Connection to a local
4.2 Micromotor connection/ Disconnection
Line up the red dot on the micromotor with the red dot on the connection on the front side of the panel and clip :
FrançaisEnglishEspañolItalianoDeutschPortuguês

36

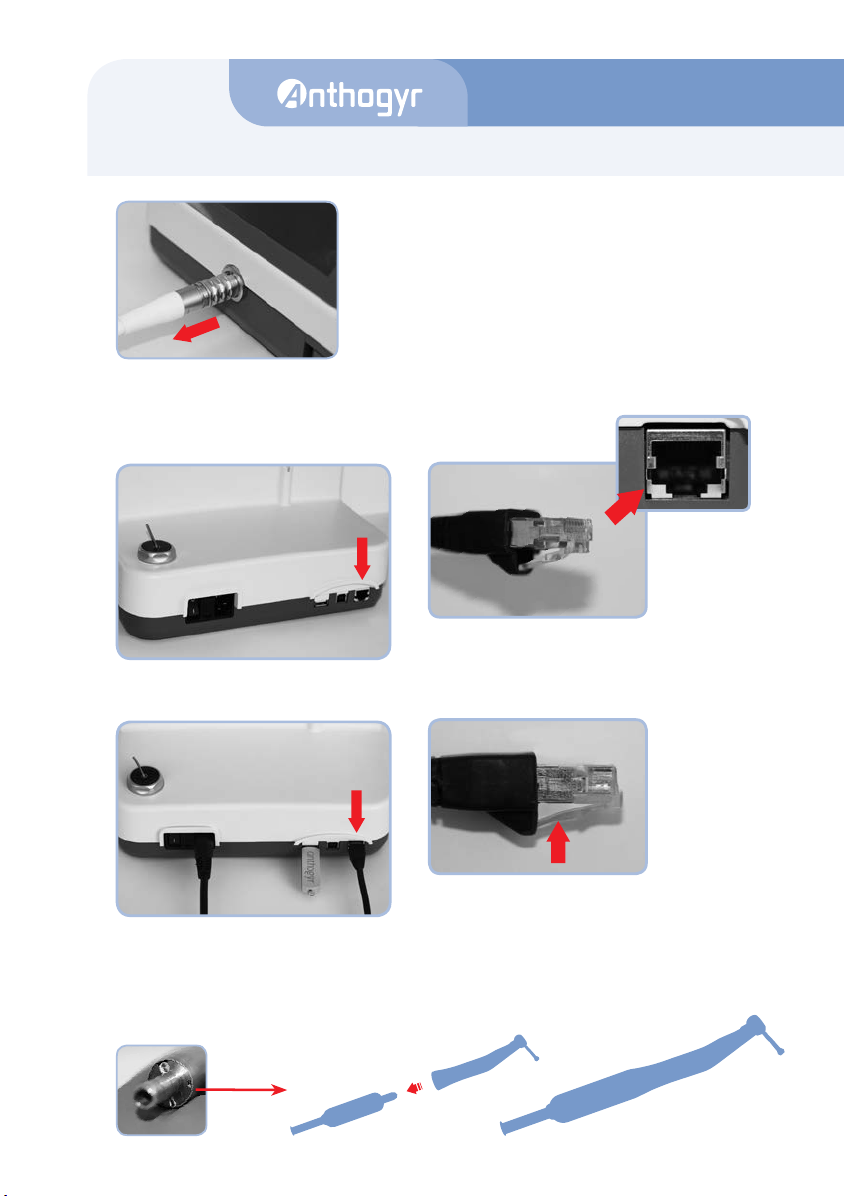

To disconnect it, remove the safety catch as follows :
Pull the mobile part of the connection in the direction of the arrow.
4.3 Pedal connection / Disconnection
To disconnect the pedal :
To connect the pedal :
Have the pedal socket as shown
(locking strip towards the bottom) and clip.
Push the strip in the direction of the arrow
to disconnect the socket.
Clip the contra-angle to the motor as follows :
4.4 Connection of contra-angle

37
IMPLANTEO®
Do the inverse procedure to disconnect the contra-angle :
For proper connection, line up 2 by 2 the following items as follows.
(a) LED connector, (b) light claw.
E
Contra-angle Motor
aa
b
1. Press the « PUSH » logo to open the box cabinet.
2. Install the irrigation line by following the IN/OUT directional arrows shown and place the 2 plastic parts
(with larger diameter) outside of the cabinet.
3. Close the cabinet.
4. Connect the screw nozzle (LUER) to the  uid bag or perforate the cap of the bottle.
Suspend it from the bracket for this purpose.
4.5 Installation of the irrigation line
3
4
2
1
Towards
the bag
Towards the
contra-angle
FrançaisEnglishEspañolItalianoDeutschPortuguês

38
Guide the irrigation line along the micromotor
cable using the attachment clips as follows
C
1
2
3
4.6 Pedal bar installation
5.1 Switching on
5.2 Welcome
1. Remove the two screws having discs.
2. Insert the bar in accordance with the illustration.
3. Replace the screws + discs and screw moderately.
Put the supply switch in the I position (Fig.A, rep.9).
If the LCD screen does not come on, see section
« 11 – Abnormalities and errors » .
The welcome screen allows the selection of the user or the wished protocol.
This is the description of the welcome screen according to the representation Fig.1 :
1. Users or Protocols.
2. Button and name of selected user/ protocol.
3. User button / Inactive protocol.
4. Access settings.
5. Validation button for user selection.
6. Software version.
5. Initial use
One must be familiar with all the safety instructions before installing
and using the device (see section E
« 2 – Safety » ).
E
Fig. 1
Anthogyr
version 1.0
IMPLANTEO®
1
2
3
4
65

39
IMPLANTEO®
5.3 Adding a user / protocol
Example : we are going to add the « DOCTEUR » user associated with the icon :
It is possible to con gure up to 10 users / protocols that can include up to 10 sequences.
Press the « settings » button (Fig.1, rep.4 or Fig.3, rep.11).
Press the button (Fig.9, rep.1), to access the users/ protocols version screen.
Press the
« add a user » button (Fig.2 rep.5).
Select an icon for the new user/ protocol and validate
Name the new user/ protocol and validate (12 letters maxi.).
C
Fig. 2
Here is the description of the screen « modi cation of users/ protocols »
according to representation Fig.2.
1. Edition of sequences of user / active protocol.
2. Access to Anthogyr protocols.
3. Modi cation of the icon (double-click).
4. Delete user / protocol.
5. Adding a user / protocol.
6. Modi cation of user’s name / active protocol.
Example : want to add the Anthogyr protocol
Press the « settings » button (Fig.1, rep.4 or Fig.3, rep.11).
Press the button (Fig.9, rep.1), to access the users/ protocols version screen.
Press the button (Fig.2, rep.2) to access the Anthogyr protocols.
Select the icon if it is inactive and validate
Validate.
5.4 Adding an Anthogyr protocol
Press the icon for the active user (Fig.3, rep.1) to access the welcome screen (Fig.1)
where the list of users already programmed is shown.
Select the user of your choice and validate
5.5 Changing a user
If the user of your choice is not in the list, select the settings icon (Fig.1, rep.4 or Fig.3, rep.11)
and refer to sections
« 5.3 – Adding a user/ protocol » or « 5.4 – Adding an Anthogyr protocol » .
C
FrançaisEnglishEspañolItalianoDeutschPortuguês
Anthogyr
3987 10 4 5 6
6
1
3
4 52

40
Press the icon (Fig.2, rep.1 or Fig.3, rep.9) to access the sequence management screen (Fig.5).
6.2 Adding / Deleting / Replacing sequences
6. Work screen
1. Flow of peristaltic pump.
2. Decrease the value.
3. Adjusted  ow.
4. Increase the value.
5. Setting cursor.
6. Speed of micromotor.
7. Set maxi. speed.
8. Torque limitation of the micromotor.
9. Maximum reachable torque.
10. Cancel.
11. Validate.
6.1 Settings Flow / Speed / Torque
1
6
8
10 11
7
9
2 3 4
5
Fig. 4
This is the description of the screen « settings Flow/ Speed / Torque » according to the representation Fig.4 :
1. Active User / Protocol and access to welcome screen.
2. Reduction ratio for active contra-angle and choice of it.
3. Activate or deactivate the brightness of the contra-angle.
4. Instantaneous speed of the tool if the motor is active or speed limit
when stopped.
5. Instantaneous torque if the motor is active or maxi. reached when
the motor is stopped.
6. Active sequence of all the sequences included in the active protocol.
7. Programmed torque limit.
8. Access to graphical display.
9. Edition of sequences of the current protocol.
10. Rotation direction of the motor and reversed direction.
11. Access settings.
12. Adjust the  ow of the peristaltic pump.
13. Irrigation level.
Tactile zone 13, 4, 5, 12, 7 : Access settings Flow/ Speed/ Torque.
Select a user protocol and validate (Fig.1, rep.5) to access the work screen (Fig.3).
When functioning, only the main data are displayed on the screen : Flow / Torque / Speed.
When switching on the device, the welcome screen only stays active for 10 seconds before toggling to the work screen
(Fig.3) associated with the active user / protocol.
This is the description of the « work screen » according to the representation Fig.3.
C
Anthogyr
25Rpm
N.cm
35
1
2
3
7
5
4
8
9
6
12
13
10
11
Fig. 3
Press on buttons « + » and « - » or move the cursor on the bargraph.
Press the centre of the screen (Fig.3) to have access to the settings of the 3 main data: irrigation  ow, maximum speed
and maximum torque.
With the work screen, it is also possible to adjust the  ow of peristaltic pump with a short press on button A of the pedal
(see section
« 8 – Using the pedal » ).
C

41
IMPLANTEO®
6.3 Changing sequences
Changing sequence can be done :
w either with the screen by pressing on the button of a sequence in the active protocol.
w or with the pedal by pressing on the Button C (see section
« 8 – Using the pedal » ).
It is important to mention that when a sequence is changed following to a reverse gear, the motor rotation direction
is memorized.
E
This is the description of « sequence management » screen according to the representation Fig.5 :
Fig. 5
1. Selected sequence / Access to the library (double-click).
2. Delete the selected sequence.
3. Add a sequence after the selected sequence
and select its icon.
4. Activation of recording of torques and speeds
for the selected sequence (graphical function).
5. To deactivate this function, press in the box.
6.4 Display of the graph
The user should have previously ensured that the graphical option is activated for each active protocol sequence by pressing on the
button (Fig.3, rep.9) and then ticking the box (Fig.5, rep.4) if it is empty.
Press the icon (Fig.3, rep.8) to access the graphical screen (Fig.6).
This screen graphically shows the speed in green or blue (reverse gear) graphs and torques in red graphs.
E
At the end of each sequence for which the user has previously activated the graphical option, the graph for this sequence
will automatically appear in full screen and stays displayed for as long as the screen settings are set for (see section
« 7.3 - Settings » ). Pressing on the screen is enough to go back to the work screen before the time expires.
C
1. Speed (Rpm).
2. Maxi. torque reached.
3. Torque (N.cm).
4. Curves.
5. Displayed sequence.
6. Return to work screen.
7. Data back-up « torques and speeds» on USB key.
8. Display of all sequences.
Fig. 6
FrançaisEnglishEspañolItalianoDeutschPortuguês
1
5
2 3
4
Graph Screen: Graph Elements
1 32
4
5
8
7
6
45 Rpm Max 80 N.cm 35 N.cm

42
Data « torques and speeds » are located in the index “ImplMotCurve“.
A  le called « name » is created during backup. « name » is corresponding to what you captured.
A  le called « name.csv » is created there during backup, if the  le already exists, an incremental  le is added : “Name001.csv“.
It is a text  le format that can be imported into a spreadsheet (Microsoft Excel for example).
Those  les can be directly imported into a spreadsheet.
The following data are measured every 0.25 s :
TIME : display time (in ms) that passed since the device is switched on.
TORQUE : display torque in 1/100 of N.cm (or in 1/100 of % if the reduction ratio is different from 20:1).
SPEED : display motor speed, in rpm.
.png images format (Fig.8) are also created in the index « name », one  le for each sequence where recording
of torque and speed (Fig.5, Rep.5) is activated.
6.5 Saving torque and speed data
The procedure to follow for saving « torque and speed data » is as follows :
Press the button (Fig.3, rep.8).
Press the button (Fig.6, rep.7).
Name the  le and then validate.
Fig. 8
Fig. 7
6.6 Changing a contra-angle
This is the list of available contra-angles :
30:120:116:15:11:11:3 256:1
Press the icon for the reduction ratio for the active contra-angle (Fig.3, rep.2).
Note that the speed ranges at the exit of the tool are displayed to the side of the selected contra-angle.
C
20:1

43
IMPLANTEO®
7.1 Language selection
Press the « settings » button (Fig.1, rep.4 or Fig.3, rep.11).
The button (Fig.9, rep.2) accesses the language selection screen.
Then select the required  ag and validate.
7. Adjusting parameters
Fig. 9
This is the description of the screen « con guration » according
to the description Fig.9 displayed after pressing the button .
1. Users or Protocols.
2. Language selection.
3. Calibration of used contra-angle.
4. Adjustment of LED lighting.
5. Adjustment of sound level.
6. Advanced settings.
7. Pedal calibration.
8. Touch pad calibration.
9. Save/ transfer of the parameters.
10. Software update.
11. Re-initialisation of initial con guration.
12. Return to previous screen.
1
7
2
8
3
9
4
10 11
12
5 6
7.2 Calibration of contra-angle in use
To make the control and display of the torque value more accurate, the contra-angle needs to be calibrated.
This provides the motor with information about output and ef ciency of the contra-angle in use.
The test is carried out in 2 main phases :
w First, the contra-angle is made to rotate with no load.
w The contra-angle must then be connected to the speci c calibration module. This module simulates an average
intervention in the mouth. The measurement is therefore made in conditions as close as possible to real operation.
w Before using the calibration module, it MUST be lubricated using the Anthogyr lubricating spray
Ref. 1930X equipped with
an adaptor
Ref. 1933X.
w Place the adaptor over the connection ori ce.
w Maintain the spray adaptor in contact on the calibration module.
w Spray for 1 second.
The calibration module is not sterilizable.
As the capacities of the contra-angles can vary signi cantly, calibration of the contra-angle is recommended after
maintenance and sterilization, with assistance of a second person to bring the gauge to a standstill (non sterile)
and retrieve the mandrel after calibration.
Press the « settings » button (Fig.1, rep.4 or Fig.3, rep.11).
Press the button Fig.9, rep.3.
E
C
C
FrançaisEnglishEspañolItalianoDeutschPortuguês

44
7.4 Pedal calibration
Press on the button « settings parameters » (Fig.1, rep.4) or (Fig.3, rep.11).
Press on the button (Fig.9, rep.7).
Keep on pressing on the pedal’s lever and press on the button « validate »
When it is terminated, a screen displays « calibration successful »
7.5 Touch pad calibration
Press the « settings » button (Fig.1, rep.4) or (Fig.3, rep.11).
Press the button (Fig.9, rep.8) to access the touch pad calibration screen.
Press on the indicated areas.
When it is terminated, a screen displays « calibration successful »
If the touch pad is not working, it may need to be adjusted.
To do this :
7.3 Adjustments
Press the button « adjusting parameters » (Fig.1, rep.4 or Fig.3, rep.11).
Press on the button of your choice (Fig.9, rep.4 or Fig.9,rep.5 or Fig.9,rep.6).
Press on the buttons and/ or move the cursor on the bargraph.
Press on the button .
It is possible to adjust the light intensity of the contra-angle, the sound, to manage the alarms and the temporizations
with the following procedure :
Connect the 1/20 contra-angle (equipped with the specic connection tool) to the motor.
Important : do not connect the calibration module at this stage. The motor must rst perform a no-load test.
When the contra-angle is connected, press the pedal lever. The no-load test is run. The motor increases in speed for
approximately 10 seconds. At the end of this rst test, a screen is displayed asking you to connect the contra-angle load
module. When connected, validate again using the pedal lever. The load test is run correctly. Maintain the tool calibration
module connection correctly. The motor increases in speed for approximately 10 seconds.
When it is terminated, the motor stops automatically and the screen displays « contra-angle calibrated ».
You are then automatically returned to the main parameterization screen. Your contra-angle is now calibrated.
After being used 100 times or after 2 years of running, the calibration device has to be returned to the Anthogyr After-Sales
Service. It will then be checked and restandardized by Anthogyr.
E

45
IMPLANTEO®
It is possible to adjust the light intensity of the contra-angle, the sound, to manage the alarms and the temporizations
with the following procedure :
7.8 Anthogyr initial con guration
Press the « settings » button (Fig.1, rep.4) ou (Fig.3, rep.11).
Press the button (Fig.9, rep.11).
Validate to return to the
« settings » screen.
Press the « settings » button (Fig.1, rep.4) or (Fig.3, rep.11).
Press the button (Fig.9, rep.10).
Validate to return to the
« settings » screen.
7.7 Software update
The update  les must be registered on the USB key in an index named « ImplMotUpdate ».
Connect the USB key to the rear side of the box.
7.6 Restoring previous con guration / Saving current con guration
This function saves all the customisation done in order to be able to subsequently restore it.
The following can then be saved :
w Various users, protocols and sequences created with the associated parameters.
w Various adjustments made.
Connect the USB key to the rear side of the box.
Press the « settings » button (Fig.1, rep.4 or Fig.3, rep.11).
Press the button (Fig.9, rep.9).
Select the desired button : « restore » or « save ».
Validate to return to the
« settings » screen.
FrançaisEnglishEspañolItalianoDeutschPortuguês
Updating the motor does not result in the deletion of any previously con gured parameters.
C

46
10.1 Device maintenance
10. Cleaning, disinfection and sterilisation
Single use Non sterilisable
Sterilisable in an autoclave
at 134°C for 18 minutes
Micromotor sterilisation cap
Sterilisable
non immersible
(= disinfection)
Sterilisable
and immersible
(+ ultrasound)
w The bags of physiological
 uid
w The irrigation lines
w Screen protection
w Micromotor protective
sheath
w Control unit
w Pedal
w Calibration module
w Micromotor + cable
w Bracket
w Motor support
w Mandrel
w Fixing clips for
the irrigation line
At the end of the dental surgery :
w Put the supply switch in the O position.
w Remove the tool from the contra-angle.
w Remove the bottle or bag from the bracket.
w Remove the perforator of the irrigation line from the bottle or bag of physiological serum or sterile water.
w Remove the clips for irrigation lines.
w Disconnect the contra-angle from the micromotor.
9. Stopping the device
If the last protocol sequence is active, a short press on button « C » makes the  rst sequence of this protocol active.
The  rst protocol sequence is active, a long press on button « C » makes the last sequence of this protocol active.
C
C
8. Using the pedal
The lever gradually adjusts the speed according
to the motor during the operational phase.
A short press on the button « A » is a 20% increase in
the speed of the  ow of the peristaltic pump.
A long press on the button « A » starts the pump at
the programmed  ow , without using the micromotor,
or the tool.
A short press on the button « B » inverts the rotation
direction of the tool.
A long press on the button « B » increases
the limitation of the torque in increments of 5 N.cm.
A short press on the button « C » goes on to the next
sequence for the active protocol.
A long press on the button « C » goes to the previous
sequence for the active protocol.
Button A
Pump
Lever
Speed
Button B
Rotation direction
of micromotor
/ Increase in
torque
Button C
Changing
sequence
*All of this information is summarised in a maintenance poster supplied with the motor.

47
IMPLANTEO®
10.2 Sterilisation cycle
1.
Surgery
12.
Autoclave/ Sterilisation
Autoclave/ Sterilisation
Autoclave/ Sterilisation
11.
Packaging
Packaging
Packaging
10.
Assembling
Assembling
9.
Drying
8.
Rinsing
2.
Purge
3’.
Non-immersible instruments
Non-immersible instruments
Disinfectant device
ee
gg
7.
Ultrasonic bath
Ultrasonic bath
6.
Rinsing + brushing
Rinsing + brushing
5.
Pre-disinfection
Pre-disinfection
4.
Immersible instruments
Disinfectant device
3.
Sorting out of
the instruments
Dispose
of single
use accessories
3’’.
Cleaning with disinfectant wipes
The sterilisable products are supplied non sterile and need to be decontaminated and sterilised prior to  rst use and immediately after
each use. Use disinfectant products that comply with the instructions given by the manufacturer.
Remove the irrigation line and place it in a container for soiled medical devices (single use irrigation line).
Anthogyr sterilisable medical products can withstand a maximum temperature of 138°C.
g
FrançaisEnglishEspañolItalianoDeutschPortuguês
Do not use the spray directly on the device to clean it; use disinfectant wipes instead.
E

48
This section is intended to help users should a problem occur.
In the event of abnormal operation (screen that glistens, noisy pump motor, vibration in the micromotor), immediately
stop using the device and call Anthogyr After-Sales Dept. If it is not possible to locate or eliminate the problem using this
description, or if the disfunction symbols remain active, switch off the device and call Anthogyr After-Sales Dept. Under no
circumstances try to dismantle the control unit, motor or control pedal for the IMPLANTEO®.
Never try to repair it alone.
E
11. Abnormalities and errors
Abnormality screen Analysis of disfunction
The pedal is not detected.
w Check that the pedal is properly connected to the box and check
the status of the connector.
w Press on the screen to make the safety signal go away and to go back
to the previous or initial screen.
The motor is not connected.
w Check that the motor is properly connected to the box and check
the status of the connector.
w Press on the screen to make the safety signal go away and to go back
to the previous or initial screen.
During the calibration process, the loading module is not connected to the contra-angle.
w Connect the loading module and validate to restart the operation.
w Press on the screen to make the safety signal go away and go back
to the previous screen.
Excess speed of the motor detected.
w Press on the screen to make the safety signal go away and go back
to the working screen.
Dysfunction Causes Solutions
The screen does not come on.
w The device is switched off.
w The fuses are burnt.
w The wall supply socket is defective.
w The supply cable is defective.
w Check that the device is properly connected
to the supply and that the On/ Off button
is in position 1.
w Replace the fuses.
w Move the device.
w Replace the cable.
