Anthony Liftgates ALB-1500 Guide

L-501 Models 3 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com
Contents
1. General Information Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Product Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5 Installation Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Safety Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Safety is Your Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Safety Signal Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

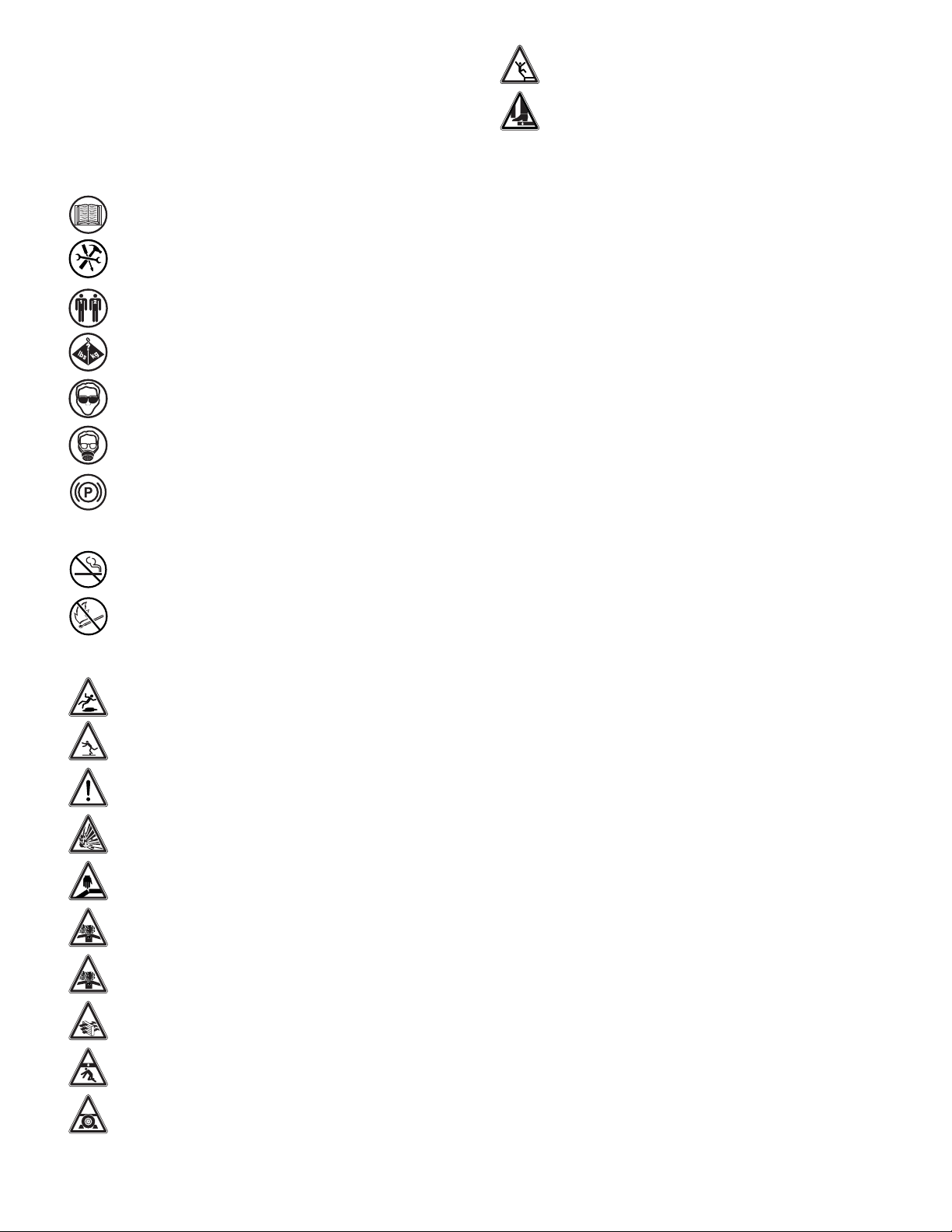

2.4 Safety Icons Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4.1 Personal Protection/Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4.2 Prohibited Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4.3 Hazard Avoidance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3 Ordering Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. Installation Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

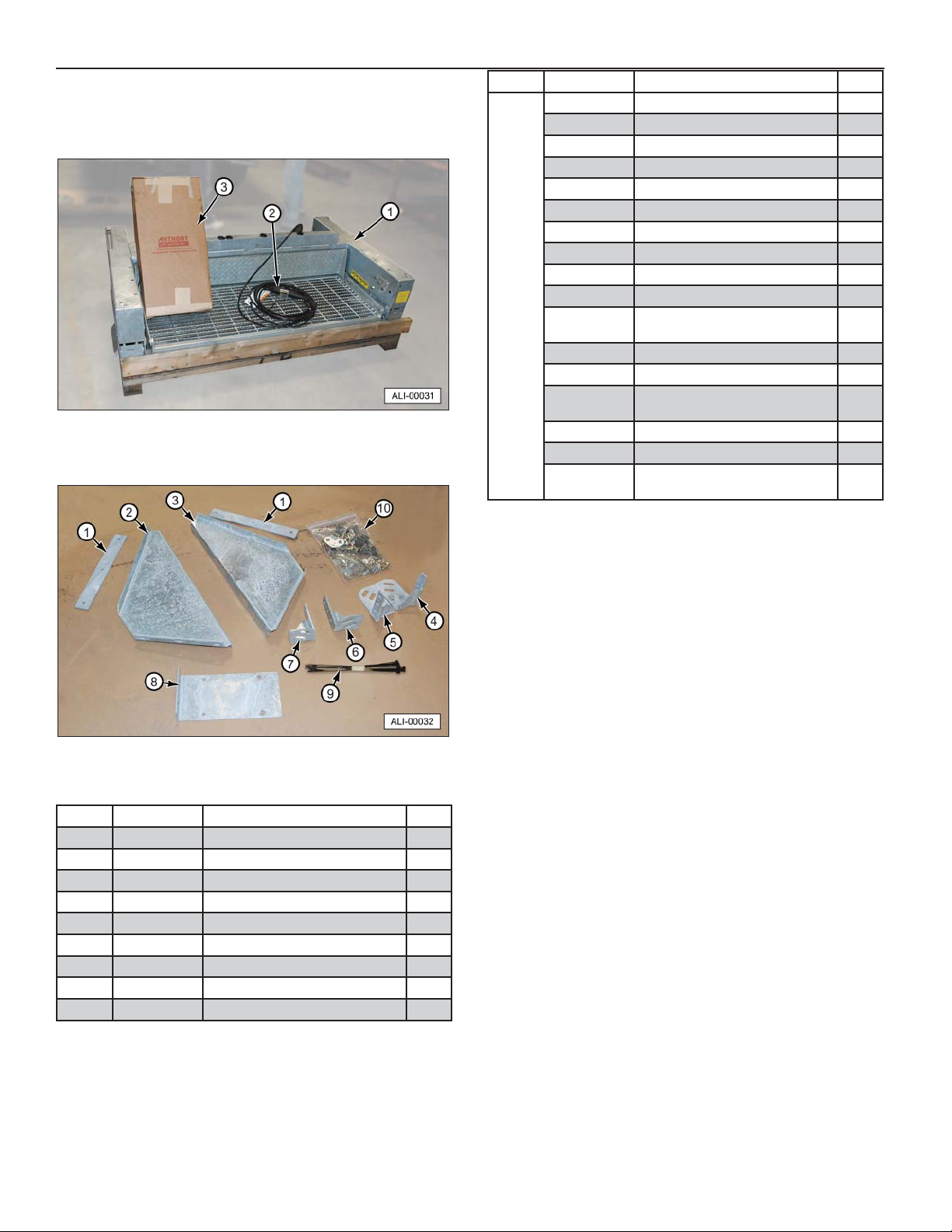

5.1 Unpackaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2 Tools Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.3 Prior to Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.4 Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

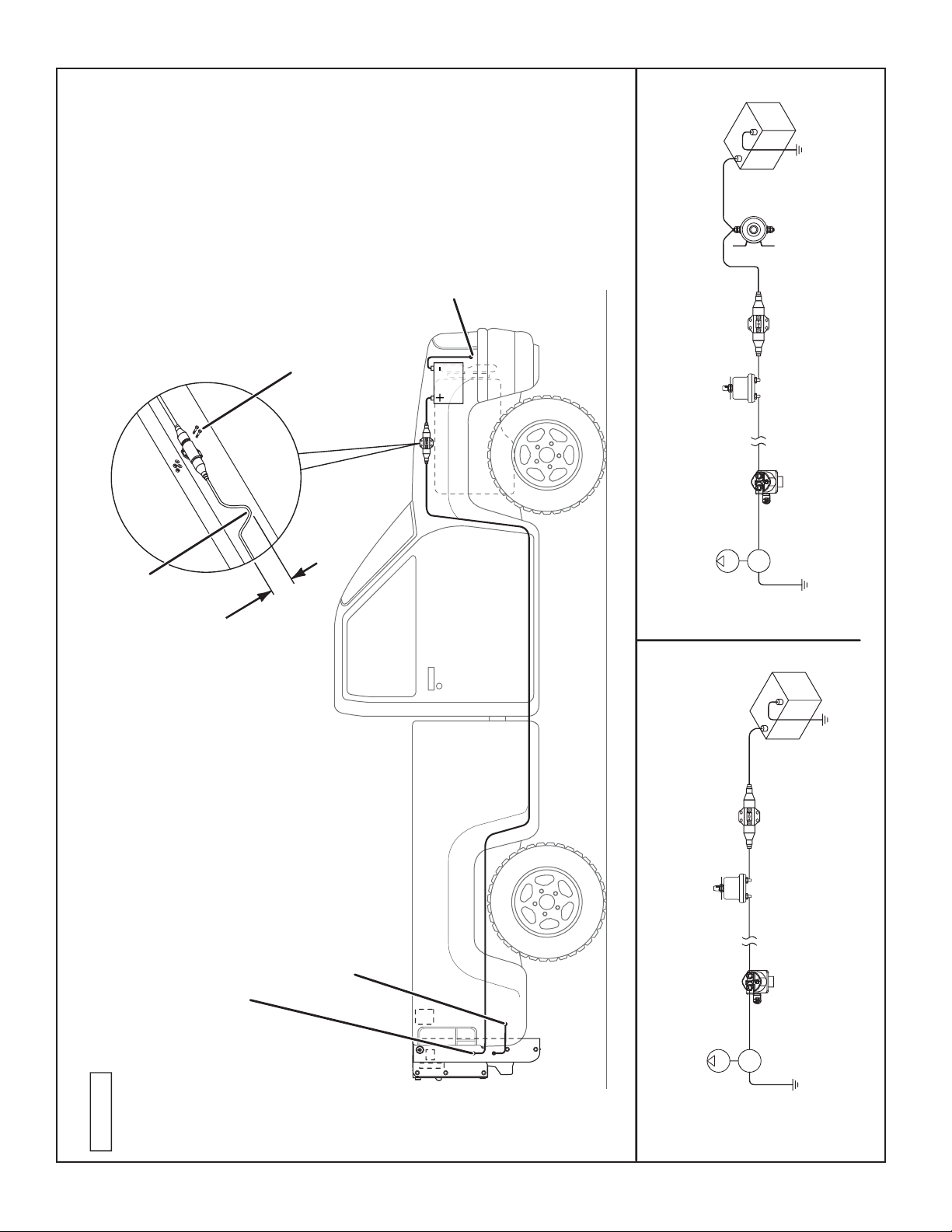

5.5 Liftgate Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.6 Mounting to a Utility Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6. Optional Component Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1 Folding Step. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2 Taillights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.3 Cable Lug Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.4 Attaching the Power Cable to Truck Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.4.1 Clip or Tie Wrap Installation Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.4.2 Bolt-On Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.5 Direct Battery Connection Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.6 Cut-Off Solenoid Connection Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.7 Cut-Off Switch Connection Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7. Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8. Final Inspection Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9. Operation Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.1 General Safety Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.2 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
10. Maintenance Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10.1 Monthly Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10.2 Maintenance and Troubleshooting Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10.2.1Replacing the Fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10.2.2Checking Motor Start Solenoid and Power Cut-off Solenoid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10.2.3Checking the Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10.2.4Checking Cylinder Piston Seals (drifting - caused by seal leakage). . . . . . . . . . . . . . . . . . . . . . . 34
10.2.5Checking Flow Control Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10.2.6Checking Control Switch Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
10.3 Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.4 Inspection Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Anthony Lifgtates, Inc. 4 L-501 Models
www.anthonyliftgates.com 800-482-0003
11. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
11.1 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
11.2 Warranty Policy and Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
12. Parts Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
12.1 Locking Mechanism Assembly Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
12.2 Lifting Mechanism Assembly Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
12.3 Linkage Assembly Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
12.4 Platform Assembly Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
12.5 Hydraulic Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
12.6 Liftgate Mounting Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
12.7 Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

L-501 Models 5 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com
Attention!
The success or failure of this equipment could very well
depend on the proper installation of the liftgate. Read
and understand the contents of these instructions before
proceeding!
Important!
When installed, this liftgate must not alter or prevent
vehicle compliance to any existing state or federal
standards and especially FMVSS 108. Each chassis
manufacturer’s recommendations should be consulted for
compliance.
Note to Installers
Read the operating instructions and maintenance guide
before installing the unit to familiarize yourself with its
operation.
Important Operation Notes
A platform restraining system may be needed to retain
certain types of cargo on the liftgate platform, such as a
cart stop, straps, etc. This should be considered by the
purchaser for their particular application to prevent the
possibility of severe personal injury or death due to cargo
shifting and/or falling from the liftgate platform.
All users of this liftgate must be at least 18 years old and
have read and understood all operation instructions and
safety decals before use.
Model Information
Please record the serial number, model number, and
date of installation for easy reference when contacting
Anthony Liftgates with questions.
Serial Number Information
Serial No.
Model No.
Date of Installation

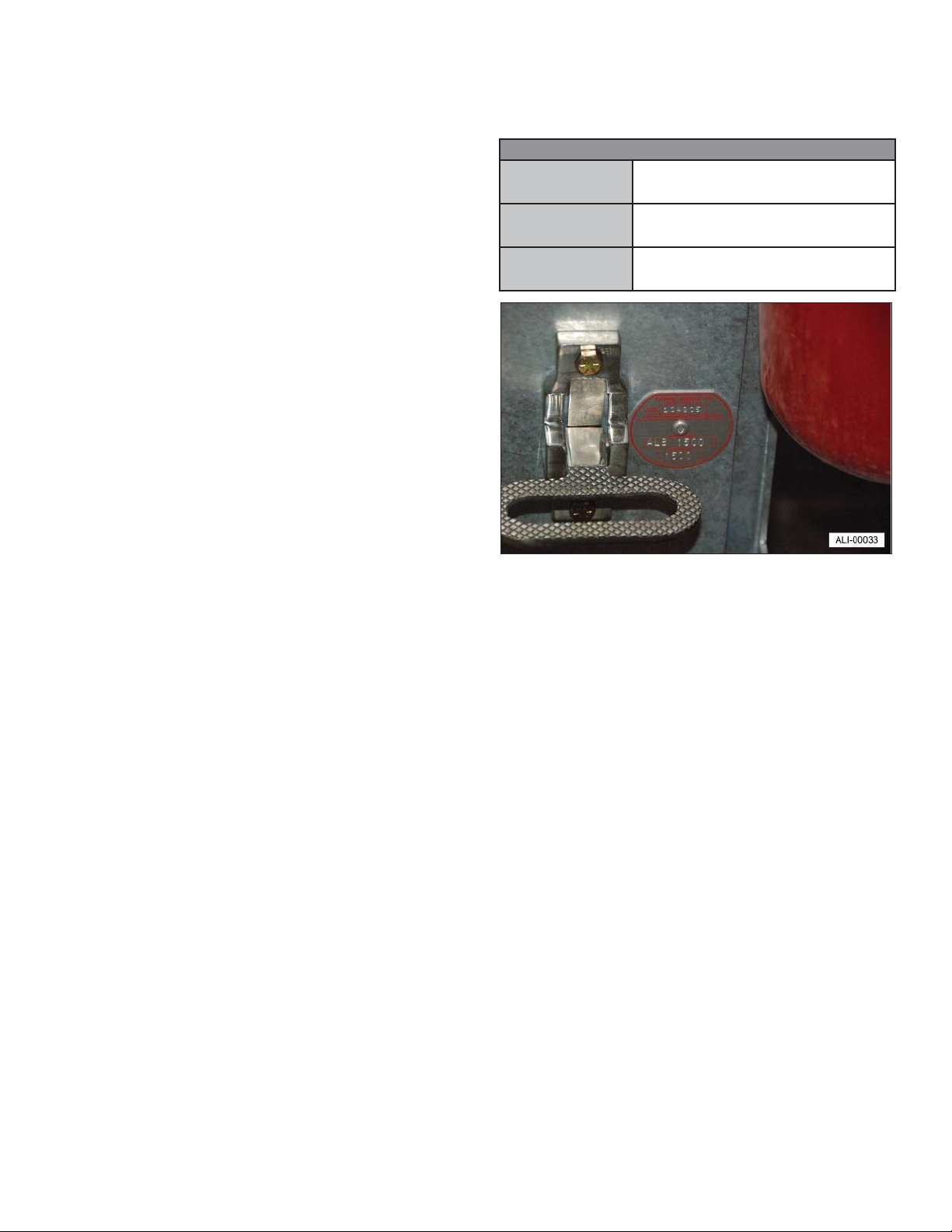

Serial Number Identification Plate.

Anthony Lifgtates, Inc. 6 L-501 Models
www.anthonyliftgates.com 800-482-0003
1. General Information Section
1.1 Introduction
Congratulations on selecting an Anthony Liftgates ALB
liftgate. Our liftgates are the finest available on the
market today. To ensure your liftgate will perform to
your expectations, we have provided this Installation,
Operation, and Parts manual. This manual is designed
to provide you with the necessary instructions, safety
precautions, and parts information to install, operate, and
maintain the L-501 liftgates.
Anthony Liftgates ALB Liftgate.
1.2 Technical Data
This manual provides easy to follow instructions, along
with photos and illustrations of the liftgate. We have
also included a series of tips, which will help facilitate
the installation process. Safety precautions have been
clearly identified throughout each section of this manual
and must be followed.
1.3 Safety
In addition, a complete explanation of the safety
terminology and recommendations are included in “2.
Safety Section” on page 7 of this manual. Please
turn to this section and read it thoroughly before
proceeding to the next page.
1.4 Product Support
At the bottom of each page is the Product Support phone
number. If you are unclear about any of the instructions,
please phone the Anthony Liftgates’ Product Support
department.
All Anthony ALB liftgates are factory assembled,
energized, and tested to ensure the highest quality
performance standards. ALB liftgates are shipped
completely assembled for fast, clean, and easy
installation.
1.5 Installation Recommendations
Our liftgates should only be installed by skilled people
with the knowledge to understand the installation
and operation process. Due to the wide variety of
applications and truck frames, these instructions provide
a typical installation process. The installation is for a new
or structurally sound pick-up truck body. If the condition
of the truck body is questionable, consult Anthony
Liftgates before installation.
Do not install this liftgate on a composite bed.
No instruction can replace a qualified person with the
technical knowledge that must be used when installing
the liftgate. Refer to “5. Installation Section” on page
12 for detailed installation instructions.
We urge the installer (or anyone else) to call us if you
have any questions. Our qualified personnel can
help answer your questions concerning operation,
troubleshooting, or to correct/repair any normal problem
that may be encountered.
If you have any concerns or questions, call us at:
Anthony Liftgates, Inc.
1037 West Howard Street
Pontiac, Illinois 61764
[phone] or 800-482-0003
www.anthonyliftgates.com
WARNING
The safe and efficient operation of the liftgate
will depend on proper installation. Failure to
read, understand, and follow the instructions
and safety recommendations in this manual can
result in serious injury or death.
Make sure the weight of the liftgate and its payload
will not overbalance the truck, possibly raising the
front wheels off the ground.

L-501 Models 7 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com
2. Safety Section
2.1 Safety is Your Responsibility
It is the responsibility of the installer/operator to
understand and perform proper operating
procedures. Be aware of the inherent dangers in
the use of this product and the tools used to install it.
Read and understand all Danger, Warnings, Cautions,
and Important Notices in this manual and on the liftgate
or truck.
2.2 Safety Signal Words
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
This manual contains DANGERS, SAFETY
INSTRUCTIONS, CAUTIONS, IMPORTANT NOTICES,
and NOTES which must be followed to prevent the
possibility of improper service, damage to the equipment,
personal injury, or death. The following key words call the
readers’ attention to potential hazards.
Hazards are identified by the “Safety Alert Symbol”
and followed by a signal word such as “DANGER”,
“WARNING”, or “CAUTION”.
DANGER
Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury. This
signal word is limited to the most extreme situations.
WARNING
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
NOTICE
Indicates that equipment or property damage can result if
instructions are not followed.
SAFETY
INSTRUCTIONS
Safety instructions (or equivalent) signs indicate
specific safety-related instructions or procedures.
Note: Contains additional information important to a
procedure.
2.3 Safety Rules
Accidents can often be avoided by being alert and
recognizing potentially hazardous situations. Any
individuals installing, operating, repairing, or maintaining
products manufactured by Anthony Liftgates should
have the necessary training, skills, and tools required to
perform these functions properly and safely. The safety
information in this manual serves as a basic guide in an
attempt to prevent injury or death.
Anthony Liftgates cannot anticipate every possible
circumstance that might involve a potential hazard. The
warnings in this manual and on the product itself are,
therefore, not all-inclusive. If tools, procedures, work
methods, or operating techniques that are not specifically
mentioned by Anthony Liftgates are used, you must
satisfy yourself that they are safe for you and for others.
Make sure the liftgate or truck it is mounted onto will
not be damaged or made unsafe by any operation,
lubrication, maintenance, or repair procedures that you
choose.
DO NOT proceed, if any doubt arises about the correct or
safe method of performing anything found in this or other
Anthony Liftgates’ manuals. Seek out expert assistance
from a qualified person before continuing.
WARNING
To avoid personal injury or death, carefully
read and understand all instructions pertaining
to the Anthony Liftgates product. Do not
attempt to install, operate, or maintain our product
without fully understanding all of our instructions and
safety recommendations. Do not operate or work on
a truck or liftgate unless you read and understand the
instructions and warnings in the Installation and
Operation manual. If any doubt or question arises
about the correct or safe method of performing
anything found in this or other Anthony Liftgates’
manuals, contact your Anthony Liftgates’ dealer or
call the Inside Sales and Service representatives at
our main headquarters. Proper care is your
responsibility.

Anthony Lifgtates, Inc. 8 L-501 Models
www.anthonyliftgates.com 800-482-0003
DANGER
To prevent serious bodily injury,
keep sparks, lighted matches,
and open flames away from the
top of the battery, because battery gas can explode.
Always follow all the manufacturers’ safety
recommendations when working around the truck’s
battery.
Take precautions to avoid sparks coming into
contact with the truck’s fuel tank, brake lines,
or other flammable components. Sparks can
causeanexplosion ofcombustible materials,resulting
in serious injury or death.
Never secure the power cable to anything
which allows it to contact sharp edges, other
wiring, the fuel tank, fuel lines, brake lines, air
lines, exhaust system, or any other object that could
cause the power cable to wear or be damaged. A cut
battery cable can cause sparks resulting in loss of
vehicle control, serious injury, or even death.
WARNING
If required for installation, always
use a cutting torch in a well
ventilated area and, if in an
enclosedarea,ventthefumestotheoutside. Breathing
the smoke and fumes can cause serious injury.
Always follow all State and Federal health and
safety laws and/or local regulations when using
a cutting torch. Also, follow all manufacturer’s
safety guidelines. If other people are present during
the installation of the liftgate, make sure they remain
clear of the cutting area.
To avoid eye injury, always wear eye protection
with the proper lens to protect your eyes.
Failure to prevent the truck from moving during
the installation of the liftgate could result in a
serious crushing injury.
Do not work under the liftgate while it is
suspended from the lifting equipment. Failure
of the lifting equipment could cause serious
crushing injuries. Do not remove the lifting equipment
until the liftgate is completely bolted onto the truck
frame.
To prevent personal injury, clean up any
spilled fluids immediately. To avoid
tripping, do not leave tools or
components laying around in the work area.
CAUTION
Anthony Liftgates recommends not riding the
liftgate, however, if the delivery operation
requires it, make sure your footing is stable
before raising or lowering platform. Always stand
away from the edge. When on the ground, always
stand clear of liftgate when it is operating.
Always use/set the truck’s parking brake before
operating the liftgate. Failure to follow this
recommendation can result in injury.
Do not place hands or feet in pinch points.
Do not place your feet under the liftgate.
SAFETY
INSTRUCTIONS
To prevent injury, the liftgate and its related
components should only be installed by a
qualifiedinstaller. They shouldhave knowledge
and skill in using lifting equipment and a cutting
torch.
N
I
NG
AR To prevent possible injuries due to improper
operation, make sure all decals are attached to
the liftgate and/or truck and are legible at all
times.

L-501 Models 9 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com
2.4 Safety Icons Nomenclature
This manual and the equipment has numerous
safety icons. These safety icons provide important
operating instructions which alert you to potential
personal injury hazards.
2.4.1 Personal Protection/Important Information
Read the manual
Use proper tools
Use two people when lifting heavy objects
Weight rating
Eye protection
Breathing protection
Set parking brake
2.4.2 Prohibited Actions
No smoking
No open flame
2.4.3 Hazard Avoidance
Slipping injury
Tripping injury
Safety alert symbol
Explosion hazard
Pinch point hazard
Explosion hazard
Dangerous fumes
Adequate ventilation
Crush hazard
Crush hazard (chock wheels)
Fall hazard
Crush hazard (foot)

Anthony Lifgtates, Inc. 10 L-501 Models
www.anthonyliftgates.com 800-482-0003
3. Nomenclature
ALI-00084
1
23
4
5
6
7
9
10
11
12
8
Platform nomenclature.
Item Description
1 H-Frame
2 Hydraulic Pump & Reservoir
3 Hydraulic Housing Cover
4 Lock Arm
5 Hydraulic Cylinder
6 Cylinder Link
7 Moving Post
8 Platform Links
9 Platform Foldover Section
10 Main Platform Section
11 Rear Platform Section
12 Cross Arm
ALI-00111
13
12
2
1
11
9
7
8
5
4
3
6
10
Power Unit Nomenclature.
Item Description
1 Breather Tube
2 Hydraulic Cylinder (attached to H-Frame and moving
post)
3 Control Switch (located on curbside H-Frame)
4 Control Switch Wiring
5 Electric Motor
6 Motor Start Solenoid
7 Adjustable Relief Valve (factory preset)
8 Hydraulic Pump
9 Reservoir
10 Lowering Valve Cartridge & Solenoid
11 Fill Port & Breather Cap
12 High Pressure Hose
13 Flow Control Valve

L-501 Models 11 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com
4. General Information
4.1 Warranty
NOTICE
The liftgate must be installed according to the instructions
in this manual or the warranty will be void. Unauthorized
modifications of the liftgate may cause it to improperly
operate or cause other unforeseen problems or dangers.
If any deviation is deemed necessary, written permission
must first be obtained from Anthony Liftgates.
To validate the warranty, register your liftgate online at
www.anthonyliftgates.com.
Before calling for warranty or other product information,
have the serial number, model number, and lift capacity
of your liftgate available. This information is stamped
into the identification plate on the lower right side of the
liftgate and will help us verify your warranty information
and your specific liftgate.
Serial Number Identification Plate.
Refer to “11. Limited Warranty” on page 39 for the
complete warranty statement.
4.2 Decals
WARNING
N
I
NG
AR To prevent personal injury from not
being aware of safety recommendations,
make sure all decals are attached to the
liftgate and/or truck and are legible at all times!
Safety decals provide a vital role in helping reduce injury
and/or death. To ensure the greatest level of safety, all
decals must be attached to the liftgate and be legible
at all times. Remember, it is the users’ responsibility
to maintain these decals. For decal placement, or a
complete part number list and illustration of the decals
used on the liftgate, refer to “7. Decals” on page 27 in
this manual.
For replacement decals contact:
Anthony Liftgates, Inc.
1037 West Howard Street
Pontiac, Illinois 61764
[phone] or 800-482-0003
www.anthonyliftgates.com
4.3 Ordering Parts
Our high-quality liftgate requires very little maintenance or
repair. However, should a part break, become damaged,
or wear due to normal operation, our knowledgeable staff
can help put your liftgate quickly back into operation.
Refer to “12. Parts Section” on page 40 in this manual.
When ordering parts the following information is needed:
1. Model of liftgate.
2. Serial number of liftgate.
3. Part number and description.
4. Quantity of item.
For questions or to order parts, contact:
Anthony Liftgates, Inc.
1037 West Howard Street
Pontiac, Illinois 61764
[phone] or 800-482-0003
www.anthonyliftgates.com

Anthony Lifgtates, Inc. 12 L-501 Models
www.anthonyliftgates.com 800-482-0003
5. Installation Section
5.1 Unpacking
Make sure the complete package is received. The liftgate
is packaged on one pallet.
1. Pre-assembled Liftgate. 2. Power cable with fuse.
3. Loose parts
Check that the following parts are included
Item Part Number Description Qty.
1 A-150218 Reinforcement Plate 2
2 A-150127-R Lower Support Bracket - RH 1
3 A-150127-L Lower Support Bracket - LH 1
4 A-135296 Mounting Strap - RH 1
5 A-135297 Mounting Strap - LH 1
6 A-135089-R Mounting Strap - Short - RH 1
7 A-135089-L Mounting Strap - Short - LH 1
8 A-135116 License Plate Holder 1
9 A-150095 Cable Ties 20
Item Part Number Description Qty.
10
A-135087 Strap Washer 2
A-132085 1/2-13 x 1” Hex Head Cap Screw 10
A-150065 1/2” Flat Washer 10
A-150074 1/2” Lock Washer 10
ATU159 3/8-16 x 1” Carriage Bolt 5
2054 3/8” Lock Washer 17
P162 3/8” Hex Nut 17
A-133073 Ground Cable 1
A-133008 3/8” Cable Lug 1
A-133007 1/4” Cable Lug 2
ATU247 3/8-16 x 1-1/4” Hex Head Cap
Screw 6
2058 3/8” Flat Washer 17
A-150091 Light Kit 1
A-132072 #8 x 1-1/2” Stainless Stl Self
Drilling Screw 4
A-135165 Lens Mounting Bracket 2
5434 5/16-18 x 3/4” Bolt 2
2019 3/8-16 x 1-3/4” Hex Head Cap
Screw 6
5.2 Tools Required
The following is a list of suggested tools that should be
used to install the liftgate.
• Overhead crane or forklift
• Lifting chain with S hooks, minimum 1000 lb. capacity
• Pipe clamps or ratchet straps
• Tape measure
• Screwdriver
• Level (small, magnetic)
• Drill
• Cable crimping tool
• Wrenches

L-501 Models 13 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com

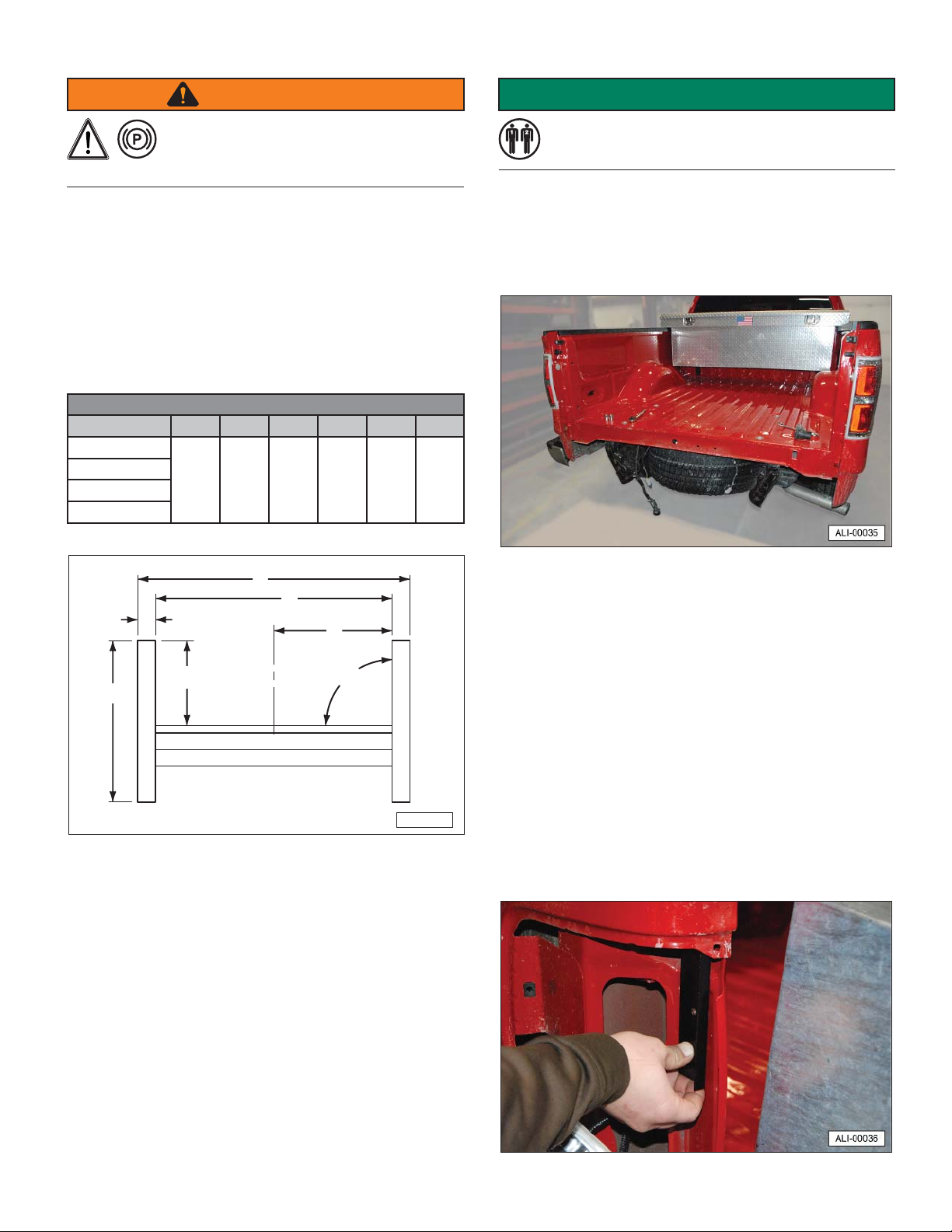

5.3 Prior to Installation
WARNING
Failure to prevent the truck from moving
during the installation of the liftgate
could result in serious personal injury or
death.
5. Inspect the liftgate. Report any questionable
condition to the carrier that delivered the unit.
6. Place the truck on a flat, level surface. Block the
wheels and set the parking brake to prevent possible
truck movement during liftgate installation.
7. Refer to the illustration and chart below to make
sure there is enough clearance to properly install the
liftgate.
Liftgate Dimensions
Model ABCDEF
ALB-1500
61-3/4 52-1/2 26-1/4 19-1/2 36-3/4 4-5/8
ALB-1500-G
ALB-1500A-G
ALB-1500-TR
ALI-00091
A
B
C
C
L
D
F
E
90°
5.4 Installation Procedure
SAFETY
INSTRUCTIONS
Even though the Anthony liftgate is easy to
install, the installation should be done with at
least two people.
1. Remove the banding securing the liftgate to the pallet.
2. Remove the rear bumper and bumper brackets from
the truck. Remove the tailgate, cables, latches, and
pivots.

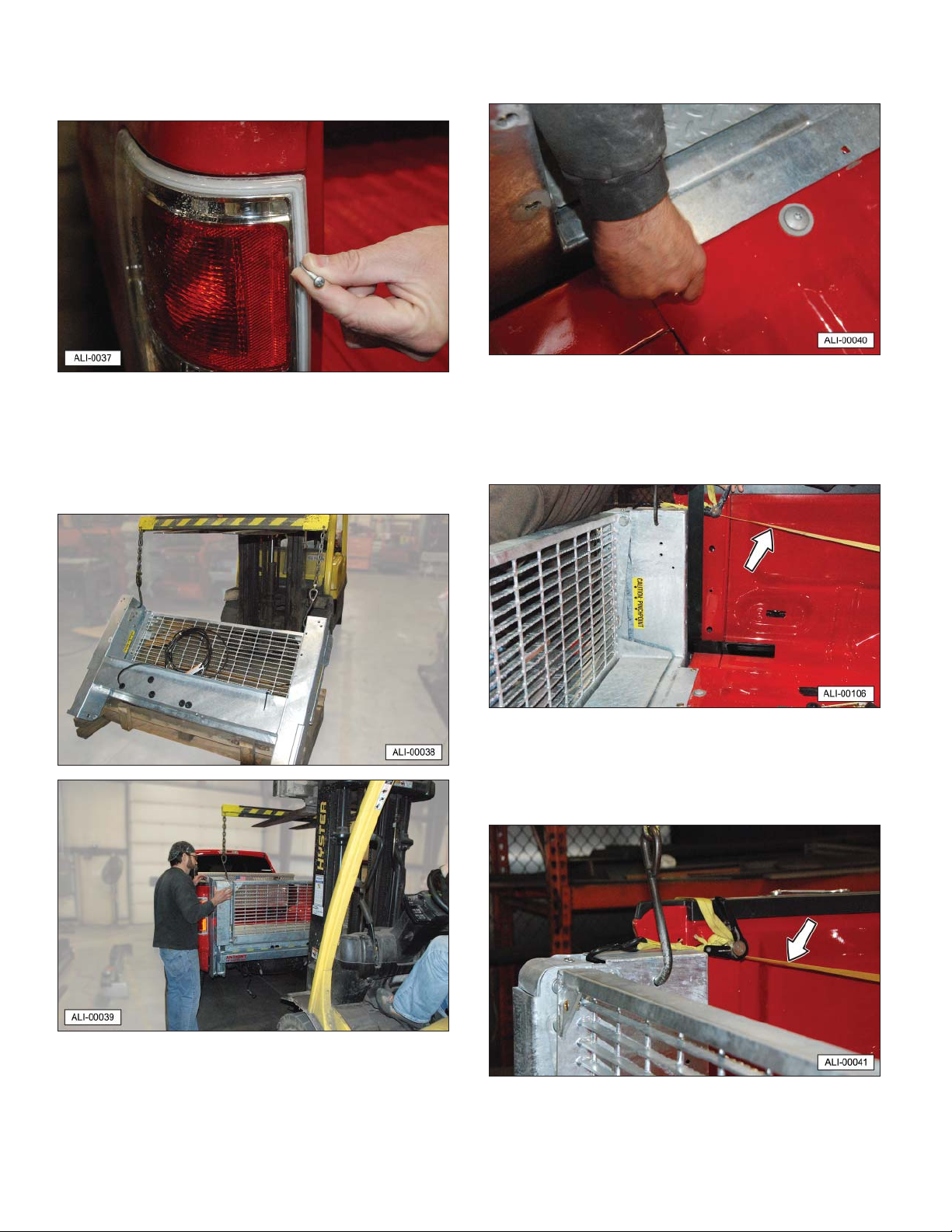

Tip: The tail light lens screws must be relocated so they
are accessible from the rear of the truck. Use the
following steps to relocate the screws. If these
steps are omitted, the tail light lens screws will not
be accessible once the liftgate is installed.
3. Remove the tail light lens screws from the lenses and
pull the tail light assembly away from the truck.
4. In most applications, there will be a lip at the inner
edge of the tail light opening. Note the location of this
lip and re-install the tail light lens. The holes that are
drilled in Step 6 must go through this lip.
5. If there is no lip to secure the lens, use the provided
lens mounting bracket A-135165 to form an alternate
lip. Bolt the bracket to the existing threaded hole in
the tail light compartment using the provided 5/16-18
x 3/4 bolt.

Anthony Lifgtates, Inc. 14 L-501 Models
www.anthonyliftgates.com 800-482-0003
6. Drill two holes through the lens and the lip using
a #32 (0.116”) drill, to accept the #8 self tapping
screws. Make sure these screws will be accessible
once the liftgate has been installed.
7. To prevent possible cracking, enlarge the holes in the
lens only using a #18 (0.170”) drill.
8. Using suitable “S” hooks and lifting chain, insert
“S” hooks into the 5/8” holes in the liftgate H-frame.
Raise the liftgate with a hoist or forklift.
9. Position the liftgate so the mounting lip of the liftgate
is resting on the truck bed and is as far forward as
possible.
10. Clamp the liftgate securely to the truck bed, using
pipe clamps or ratchet straps on each side of the
bed. Make sure the liftgate is square to the truck
bed. Tighten the clamps or straps so that the liftgate
posts are perpendicular to the truck bed.
Tip: If the truck bed is not parallel to the ground, the
liftgate must be mounted so the liftgate posts are
perpendicular to the ground in order for the platform
to lay flat on the ground when lowered.
Ratchet strap holding liftgate to truck bed.

L-501 Models 15 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com
11. Check that the liftgate is as far forward as possible
and centered. Drill 3/8” clearance holes in the truck
bed using the square holes in the liftgate mounting
lip as a guide.
Mark the hole, center punch, and drill.
12. Insert five 3/8” x 1” carriage bolts through the square
holes and bolt the mounting lip of the liftgate to the
truck bed using flat washers, lock washers, and bolts
underneath the truck bed.
13. Install the lower support bracket to each liftgate post
using three 1/2-13 x 1” bolts, lock washers, and flat
washers.

Anthony Lifgtates, Inc. 16 L-501 Models
www.anthonyliftgates.com 800-482-0003

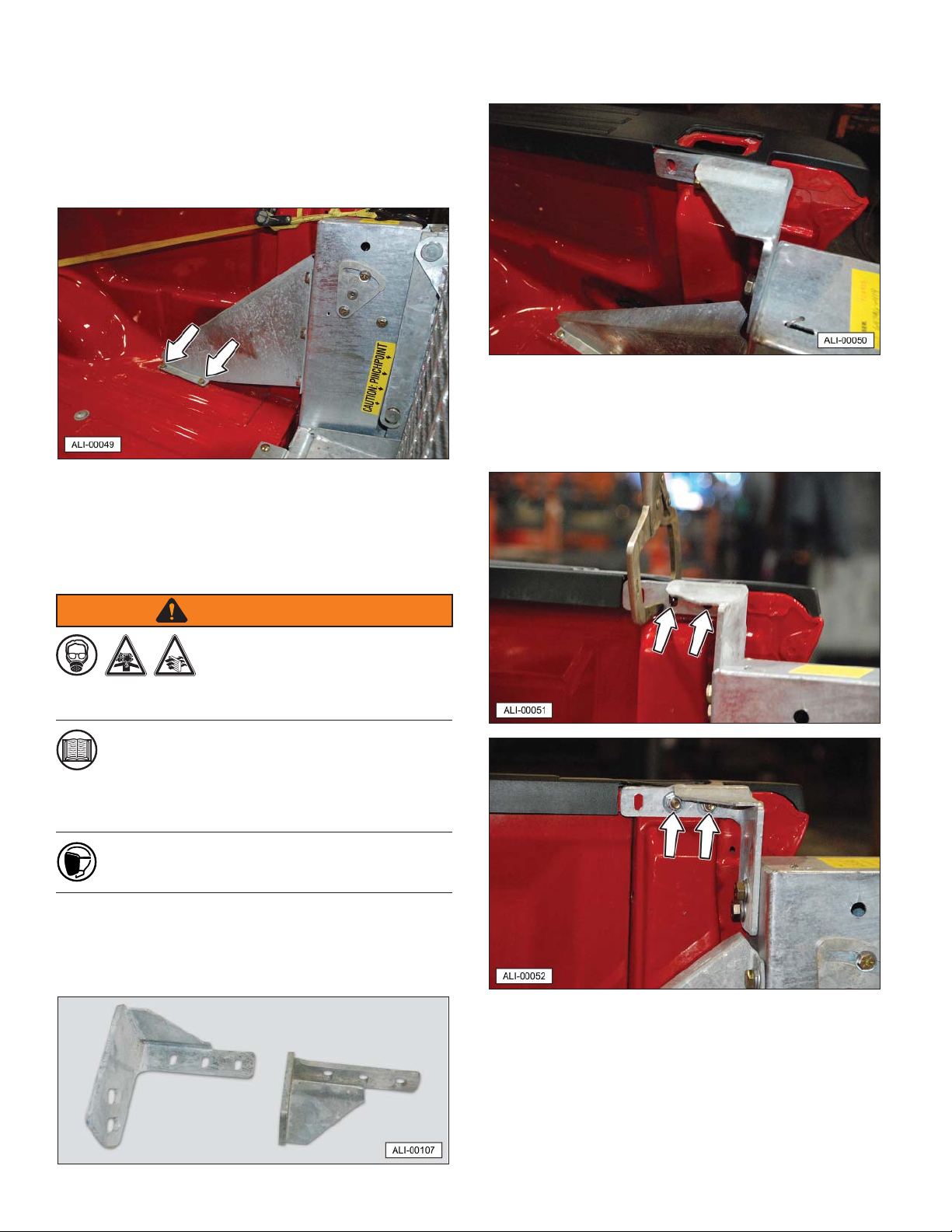

14. Position the liftgate so the lower support bracket is
flush to the bed.
15. Using the holes in the lower support bracket as a
guide, drill 3/8” clearance holes through the bed.
16. Bolt the lower support bracket through the bed using
3/8”-16 x 1-3/4” bolts. Use the reinforcement plate
shown on page 11 under the washers and nuts on
the underside of the bed.
Tip: The reinforcement plate and/or the lower support
bracket may need to be cut to fit some installations.
This is acceptable as long as at least two bolts
remain on each flange. If it is necessary to cut the
parts, use a rust preventive paint or cold galvanizing
compound to protect the exposed metal from rust.
WARNING
Always use a cutting torch in a
well ventilated area and, if in an
enclosed area, vent the fumes to
the outside. Breathing the smoke and fumes can
cause serious injury.
Always follow all State and Federal health and
safety laws and/or local regulations when using
a cutting torch. Also, follow all manufacturer’s
safety guidelines. If other people are present during
the installation of the liftgate, make sure they remain
clear of the cutting area.
To avoid eye injury, always wear eye protection
with the proper lens to protect your eyes.
Tip: There are two sets of mounting straps furnished,
of different sizes. Use the size that best fits your
installation.
17. Install the mounting straps and strap washers to the
liftgate post using 1/2-13 x 1” bolts. Do not tighten
the bolts yet.
18. Slide the mounting strap to the edge of the bed. Drill
through the holes in the mounting strap, through the
lip of the bed, and secure the mounting strap with
3/8-16 x 1-3/4” bolts. Tighten the bolts in the liftgate
post.

L-501 Models 17 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com
19. Bolt the four rubber bumpers to the corners of the
deck using 5/16-18 x 1” bolts.
20. Open the hood and disconnect the truck’s battery.
Uncoil the power cable and place it away from all
moving parts. Refer to the wiring diagram on page
20.
21. Install the 200 Amp fuse assembly within 30” of
the truck battery, and in a location that is easily
accessible for fuse replacement. Leave enough
slack in the cable to connect it to the positive (+)
post of the battery.
22. Secure the fuse assembly to a solid surface with
wire ties or other suitable fasteners, leaving a
minimum of 6” of slack in the cable for changing the
fuse.
23. Route the supplied power cable (with attached fuse
assembly) along the underside of the truck frame,
to the liftgate power supply using only one of these
three methods. Secure it at 18” intervals using the
supplied cable ties.
DANGER
Never secure the power cable to anything
which allows it to come into contact with sharp
edges, other wiring, fuel tank, fuel lines, brake
lines, air lines, exhaust system, or any other object
that could cause the power cable to wear or become
damaged. A direct short in the battery cable can
result in loss of vehicle control, serious injury, or
even death.

Anthony Lifgtates, Inc. 18 L-501 Models
www.anthonyliftgates.com 800-482-0003
Direct Battery Connection
This method is not recommended because it allows
the unauthorized use of the liftgate when the truck is
unattended. Refer to “6.5 Direct Battery Connection
Option” on page 25.
Cut-Off Solenoid Connection
To prevent unauthorized use, use “6.6 Cut-Off Solenoid
Connection Option” on page 26.
Cut-Off Switch Connection
To prevent unauthorized use, use “6.7 Cut-Off Switch
Connection Option” on page 26.
WARNING
Anthony Liftgates strongly recommends the
installation of a power cut-off solenoid (“6.6
Cut-Off Solenoid Connection Option” on page
26) or cab cut-off switch (“6.7 Cut-Off Switch
Connection Option” on page 26). Allowing power
to the liftgate when the truck is unattended can result
in serious injury or death.
24. Cut the power cable to length, strip the end, and
crimp on a connecting lug per “6.3 Cable Lug
Installation” on page 24. Connect the power cable
to the pump solenoid post marked “BAT”. Use the
remaining cable and supplied lugs to ground the
pump to the truck’s chassis.
25. Using the supplied ground cable, ground the truck
battery to the frame.
NOTICE
The liftgate must be properly grounded. A ground
wire, the same gauge or larger as the liftgate
power cable, must be connected from the negative
post of the battery or batteries to the truck’s frame. If the
truck is properly grounded, no further action is required. If
the truck is not properly grounded, add a ground wire.
If this recommendation is not followed, damage to the
truck may occur. Improper grounding can cause the
electrical current to travel through brake lines, steel
braided power steering hoses, or other chassis wiring
causing failure to these components! Failure of these
components could result in loss of vehicle control.
26. Install the provided license plate bracket on the
streetside H-frame using two 5/16-18 x 3/4” bolts.
Install the truck license plate on the bracket.
27. Replace the license plate lights with the provided
lights by splicing into the existing harness. Install the
license plate lights into the holes in the bottom of the
pump reservoir compartment. Be certain to get all
the prongs on the light socket through the hole.
NOTICE
To prevent a blown fuse, make sure the truck battery is
disconnected before cutting the wires to the license plate
lights.

L-501 Models 19 Anthony Lifgtates, Inc.
800-482-0003 www.anthonyliftgates.com

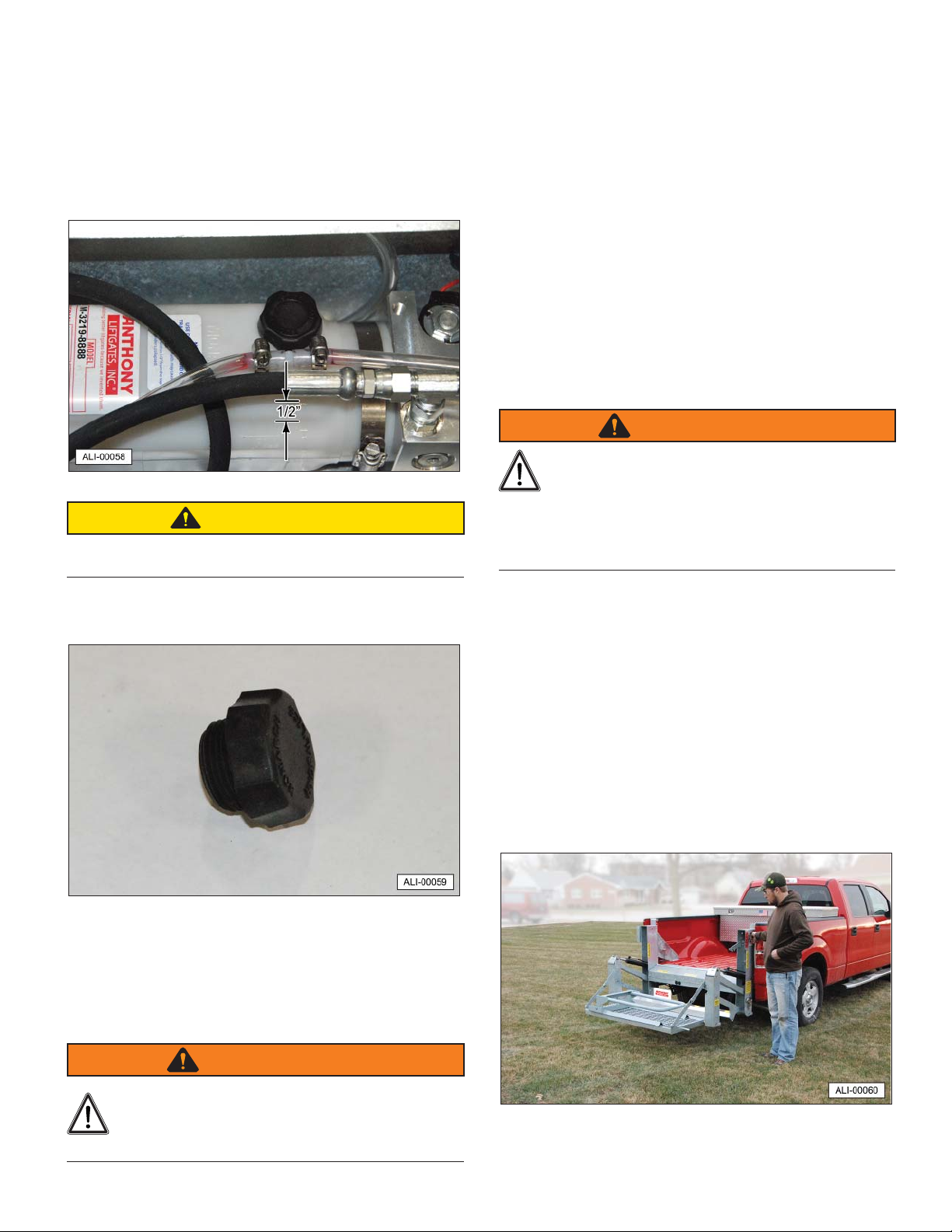

28. Lower the liftgate to the ground and check
hydraulic fluid level by removing the pump
reservoir compartment cover. The level should be
approximately 1/2” below the top of the hydraulic
reservoir. If the fluid level is low, fill to the proper
level with Mobil DTE-13, Pennzoil AWX, or Dexron II
automatic transmission fluid.
Note: Checking the hydraulic fluid level while the liftgate
is raised will result in overfilling.
CAUTION
Do not mix hydraulic fluid with brake fluid, and do not
use brake fluid in place of hydraulic fluid.
29. Discard the shipping plug in the hydraulic fluid
reservoir and replace with the supplied breather cap.
Tip: Certain models may already have a leak-proof
breather cap in place. If so equipped, it is not
necessary to replace the shipping plug.
30. Install the provided safety decals in the locations
shown. Refer to”7. Decals” on page 27.
WARNING
To prevent personal injury from not being
aware of safety recommendations, make sure
all decals are attached to the liftgate and/or
truck and are legible at all times!
Safety decals provide a vital role in helping reduce injury
and/or death. To ensure the greatest level of safety, all
decals must be attached to the liftgate and be legible
at all times. Remember, it is the users’ responsibility
to maintain these decals. For decal placement, or a
complete part number list and illustration of the decals
used on the liftgate, refer to “7. Decals” on page 27 in
this manual.
For replacement decals contact:
Anthony Liftgates, Inc.
1037 West Howard Street
Pontiac, Illinois 61764
[phone] or 800-482-0003
www.anthonyliftgates.com
31. Complete the items in the Final Inspection Checklist.
Refer to “8. Final Inspection Checklist” on page
30.
WARNING
Anthony Liftgates strongly recommends the
installation of a power cut-off solenoid (“6.6
Cut-Off Solenoid Connection Option” on page
26) or cab cut-off switch (“6.7 Cut-Off Switch
Connection Option” on page 26). Allowing power
to the liftgate when the truck is unattended can result
in serious injury or death.
32. Check the operation of the liftgate:
a. Make sure the platform will travel through a
complete cycle, up and down, smoothly and freely,
with the platform completely open.
b. Make sure the platform will fold and latch securely
in the stored position. The liftgate must fold
smoothly and freely.
c. Make sure hydraulic hose fittings are tight and
the hydraulic hose does not rub against the
liftgate or other parts while cycling up or down, or
being opened or closed. Adjust as necessary by
loosening fittings and adjusting the position of the
hose(s). Retighten fittings.

Anthony Lifgtates, Inc. 20 L-501 Models
www.anthonyliftgates.com 800-482-0003
5.5 Liftgate Wiring Diagram
ALI-00089
+–
Ground
Long
Power
Cable
M
200 Amp Fuse
Vehicle
Battery
Liftgate
Solenoid
Ground
to
Chassis
Liftgate
Pump/Motor
NO LESS THAN
6” OF SLACK
LEAVE SLACK IN CABLE.
NEEDED WHEN REPLACING FUSE
FUSE HOLDER SECURED WITH FASTENERS. (2 PLACES)
MAKE SURE BATTERY IS GROUNDED TO CHASSIS FRAME WITH 4 GAGE WIRE OR LARGER
MAKE SURE POWER UNIT IS GROUNDED TO CHASSIS FRAME WITH 4 GAGE WIRE OR LARGER
TO LIFTGATE SOLENOID
Vehicle
Starter
Solenoid
NOTE: 1 - Fuse should be placed in an
easily accessible location within 30” of the battery.
2 - Leave a minimum of 6” of slack
in the cable for replacing fuse.
+–
Ground
Long
Power
Cable
M
200 Amp Fuse
Cutoff
Switch Cutoff
Switch
Vehicle
Battery
Liftgate
Solenoid
CONNECTION TO VEHICLE BATTERY CONNECTION TO VEHICLE SOLENOID
(ALTERNATE CONNECTION METHOD)
Ground
to
Chassis
Liftgate
Pump/Motor
