TL37J SERVICE AND PARTS MANUAL
FOREWORD
SECTION 1: INTRODUCTION
SECTION 2: OPERATION AND SPECIFICATION
Information on how to operate the work platform
and how to prepare it for operation.
SECTION 3: SERVICE AND REPAIR
Preventative maintenance and service information.
SECTION 4: TROUBLESHOOTING
SECTION 5: ILLUSTRATED PARTS BREAKDOWN / SCHEMATICS
Complete parts list with illustrations, Schematics and
valve block diagrams.
SPECIAL INFORMATION
NOTE: Provides helpful information.
















WORKSHOP PROCEDURES
All information contained in this manual is based on the latest product information available at the
-










 




Page 1 - 1TL37J
INTRODUCTION
PURPOSE
The purpose of this service and parts manual is to provide instructions and illustrations for
SCOPE
this product as well as recommended maintenance schedules, troubleshooting, schematics
and illustrated parts breakdown.
GENERAL DESCRIPTION
outriggers and a chassis.





Features of the TL37J is shown in Figure 1-1.
1. Platform
2. Upper controls
3.
4. Lower controls
5. Outriggers
6. Chassis
INTRODUCTION
Figure 1-1: Work platform
1
23
4
56

Page 1 - 2 TL49J
PLATFORM
The platform consists of guardrails which prevents personnel from falling of the platform. The
of the platform.
UPPER & LOWER CONTROLS
These are controls located on the chassis and platform and used to operate the machine. A
complete explanation of control functions can be found in section 2.
ELEVATING ASSEMBLY
CHASSIS
The chassis is a structural frame that supports all the components of the TL37J work plat-
form.
PURPOSE OF EQUIPMENT
platform to elevate personnel and materials to overhead work areas.
SPECIAL LIMITATIONS





INTRODUCTION

REPAIRPARTS

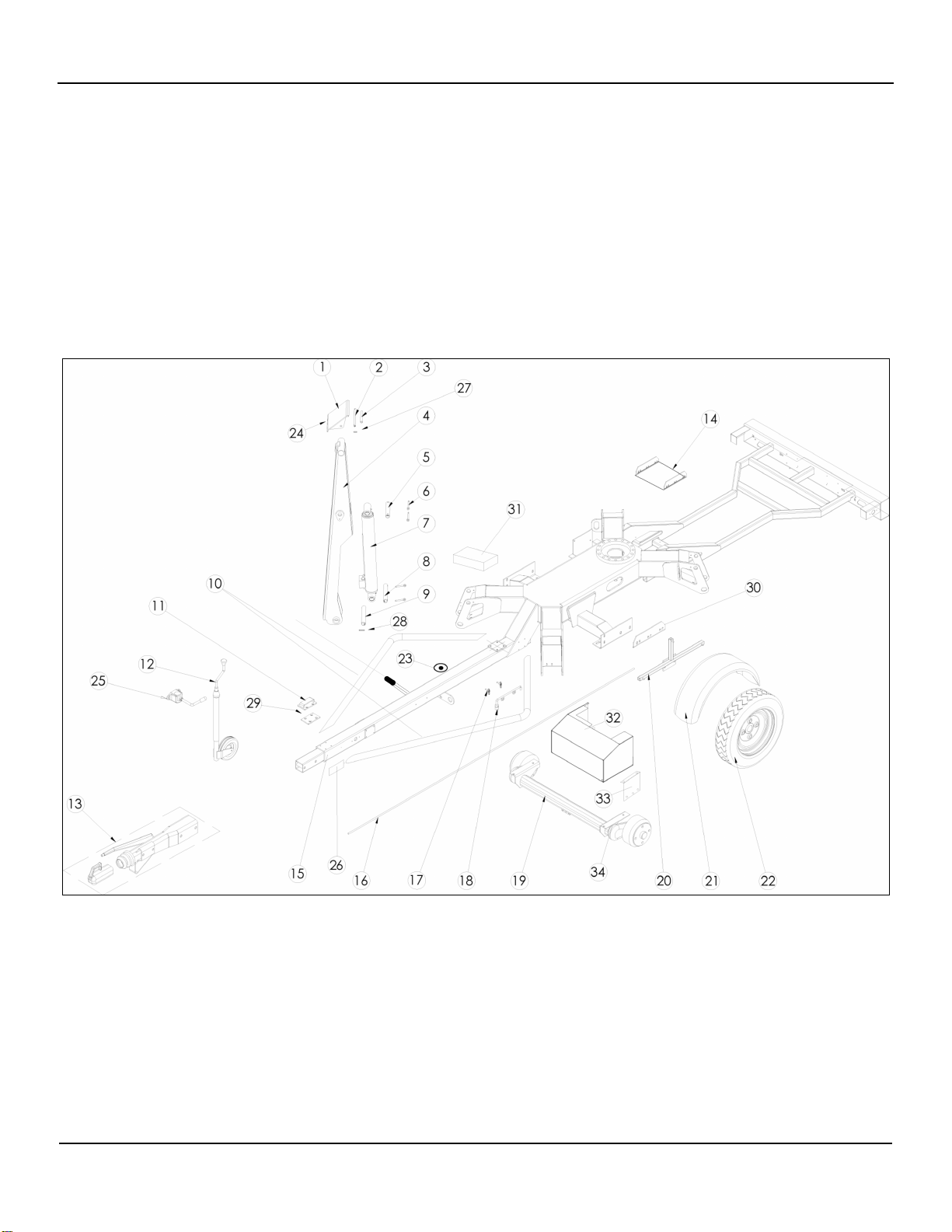

TL37J PARTS MANUAL CHASSIS & OUTRIGGER ASSY
CHASSIS & OUTRIGGER ASSY Tue Mar 23 07:46:29 UTC 2021 2-1

アイテム 部品番号 名前 数量 UOM
1 22-5828 OUTRIGGERFOOTOUTRIGGER 4 EA
2 SP-012E218 FOOTPIN 4 EA
3 12-3116 HOSE 4 EA
4 10-5260 OUTRIGGERLEG 4 EA
5 SP-030D167 OUTRIGGERRAM/OUTRIGGER
PIVOTPIN 4 EA
6 10-2672 RETAININGPEG 16 EA
7 508180-000 OUTRIGGERRAM 4 EA
8 SP-030B198 TOPTIEBAR/QUADRANTPIVOT
PIN 4 EA
9 SP-030K211 Pin 4 EA
10 10-5395 BOLT-ONCYCLEGUARDSRIGHT
(OPTIONAL) 2 EA
11 10-4974 BOOMHOLDINGBRACKET 1 EA
12 25-0325 JOCKEYWHEEL(CE) 1 EA
12 508684-000 JOCKEYWHEEL(ANSI) 1 EA
13 510301-000 COUPLINGASSEMBLY(CE) 1 EA
13 508679-000 TowCoupling 1 EA
13 508680-000 CHAINPEERLESS5/16X36
SAFETY(ANSI),NOT
ILLUSTRATED
1 EA
13 508680-000 CHAINPEERLESS5/16X36
SAFETY(ANSI),NOT
ILLUSTRATED
1 EA
14 513667-004 ENCLOSUREBRACKET 1 EA
15 513697-000 CHASSISASSEMBLY 1 EA
16 22-4922 BRAKEROD 1 EA
17 11-3313 ANTI-LUCEFASTENER 2 EA
18 510553-000 EMERGENCYSLEWHANDLE 1 EA
19 513466-000 AXLE,1900kgRUBBERTORSION 1 EA
20 0130358 MUDGUARDMOUNTING
BRACKET(ANSI),NOT
ILLUSTRATED
2 EA
TL37J PARTS MANUAL CHASSIS & OUTRIGGER ASSY
CHASSIS & OUTRIGGER ASSY Tue Mar 23 07:46:29 UTC 2021 2-1

アイテム 部品番号 名前 数量 UOM
20 10-4675 MUDGUARDMOUNTING
BRACKET 2 EA
21 513491-000 MUDGUARD(CE),Ansiversion
508707-000 2 EA
22 510300-000 WHEELASSEMBLY(CE) 2 EA
22 508678-000 WHEELASSEMBLY(ANSI) 2 EA
23 25-0239 SPIRITLEVELSMALL 1 EA
24 SM-M0026 BLACKEDGETRIM 2.6 EA
25 PARTOFITEM12 JOCKEYHANDLE 1 EA
26 508945-006 Nameplate,TrailerVINplate" 1 EA
27 510062-100 ROLLPIN6DIA.30LONG 8 EA
28 510061-000 ROLLPIN10DIA.50LONG 8 EA
29 15-087510 VERTICALBOOMPAD10mm 1 EA
29 15-087520 VERTICALBOOMPAD20mm 1 EA
29 15-08755 VERTICALBOOMPAD10mm 1 EA
30 8210244 PLATE,AXLEADAPTOR(ANSI
ONLY) 2 EA
31 514451-000 DRAWBARBALLAST
WEIGHT(NONENGINEMACHINE
ONLY)
1 EA
32 515229-000 ENGINECOVER 1 EA
33 515229-004 SUPPORTANGLE 2 EA
34 821083 AXLESPACERTUBE(ANSIONLY) 2 EA
35 8210291 PARKINGBRAKEASSY(ANSI) 1 EA
-- 8210290 DECAL,PARKINGBRAKE(ANSI) 1 EA
-- 8210295 DECAL,PARKBREAKWARNING
(ANSI) 1 EA
TL37J PARTS MANUAL CHASSIS & OUTRIGGER ASSY
CHASSIS & OUTRIGGER ASSY Tue Mar 23 07:46:29 UTC 2021 2-1

REPAIRPARTS

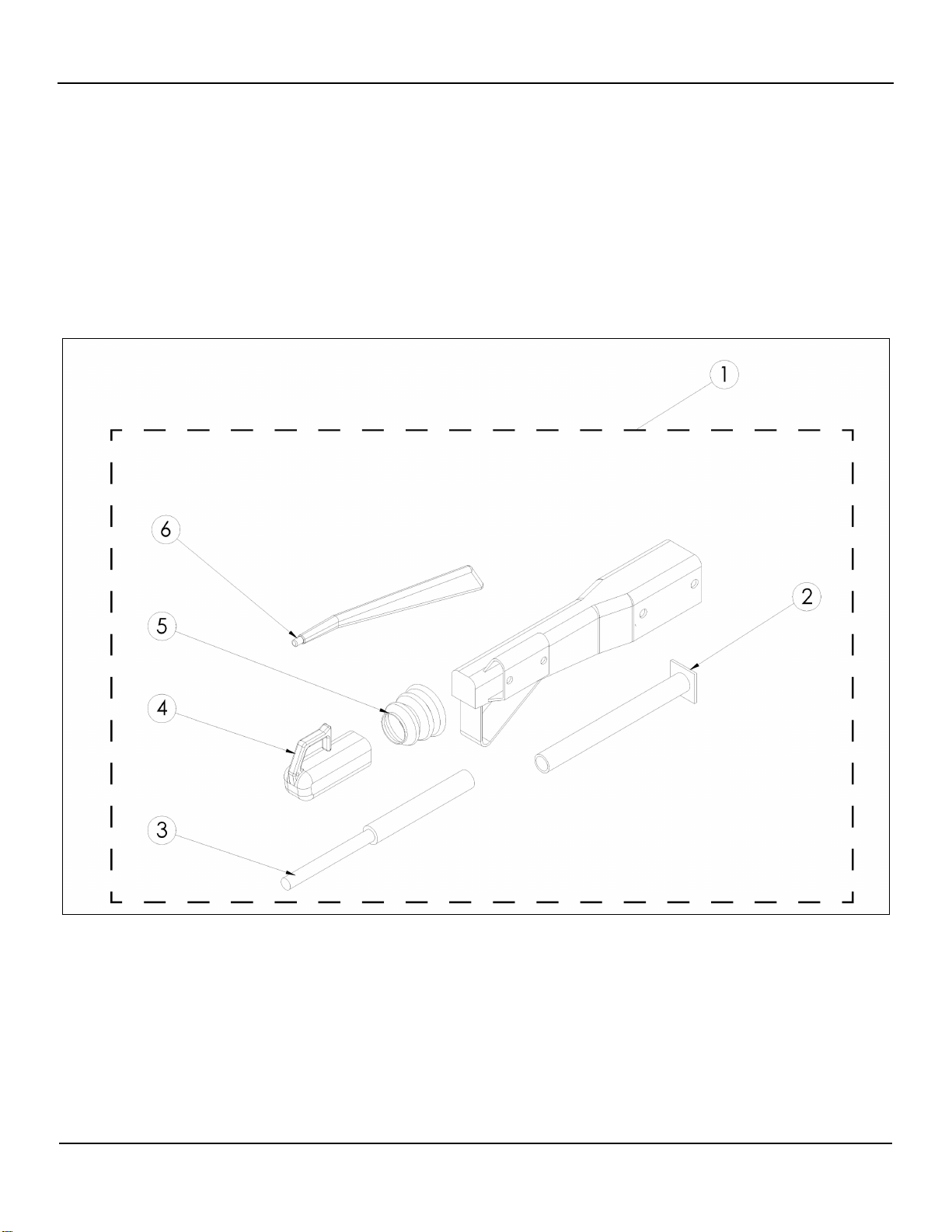

TL37J PARTS MANUAL TOW HITCH ASSEMBLY
TOW HITCH ASSEMBLY Tue Mar 23 07:46:29 UTC 2021 2-2

アイテム 部品番号 名前 数量 UOM
No. PartNo. Description Qty. EA
1 510301-000 COUPLINGASSEMBLY(CE) 1 EA
2 510301-0002 DRAWTUBE 1 EA
3 510301-0003 DAMPER 1 EA
4 510301-0004 COUPLINGHEAD 1 EA
5 510301-0005 GAITER 1 EA
6 510301-0006 HANDBRAKEASSEMBLY 1 EA
-- 508679-000 TowCoupling 1 EA
-- 1450217 CHAINPEERLESS5/16X36
SAFETY 1 EA
-- 508680-000 CHAINPEERLESS5/16X36
SAFETY(ANSI),NOT
ILLUSTRATED
1 EA
-- 508681-000 KICKSTAND 1 EA
-- 508682-000 PLATECOUPLER 1 EA
-- 508683-000 LEVERARM 1 EA
-- 7500016 SPACER.500SCH-40X1.00 3 EA
-- 7500017 SPACER.50SCH-40X.50 2 EA
TL37J PARTS MANUAL TOW HITCH ASSEMBLY
TOW HITCH ASSEMBLY Tue Mar 23 07:46:29 UTC 2021 2-2

REPAIRPARTS

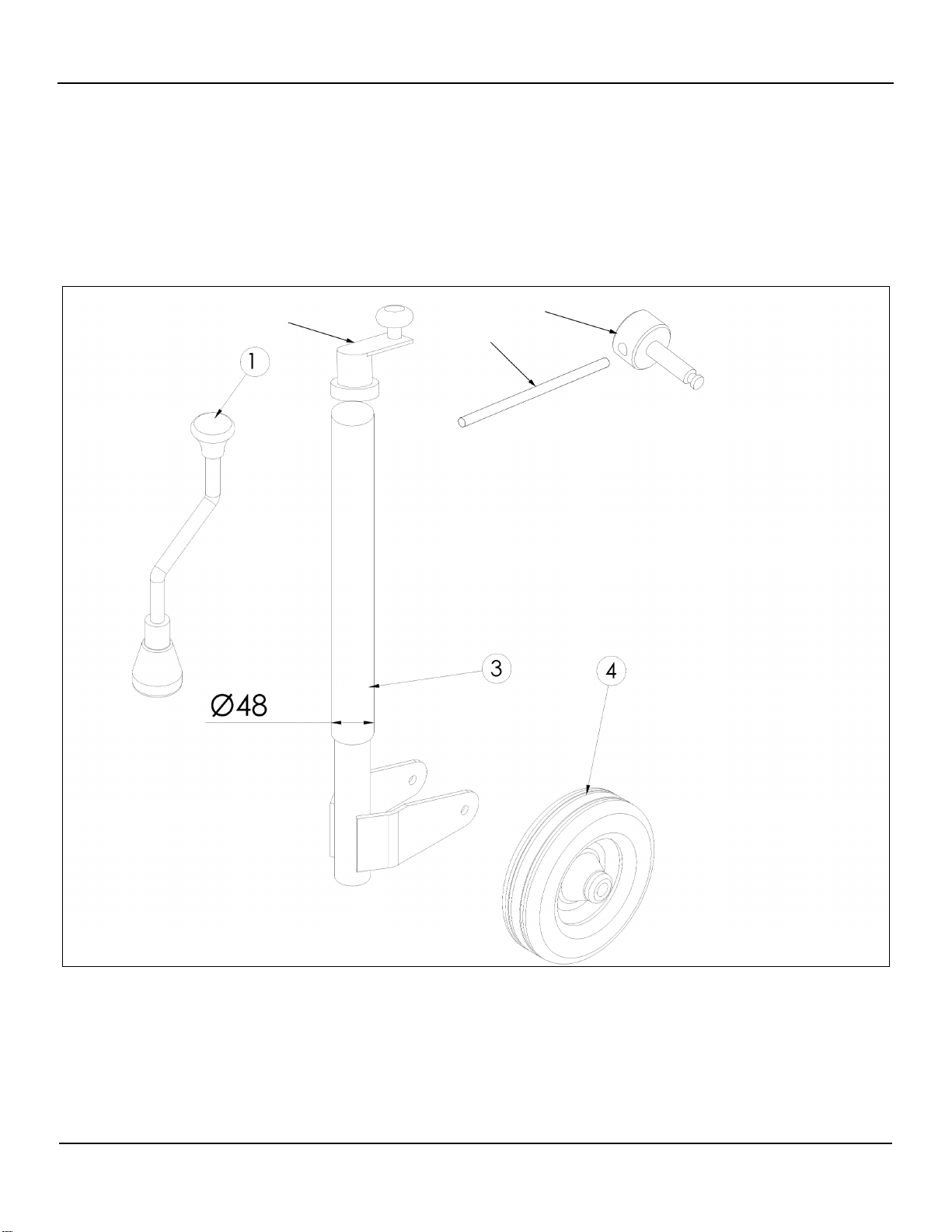

TL37J PARTS MANUAL JOCKEY WHEEL
JOCKEY WHEEL Tue Mar 23 07:46:30 UTC 2021 2-3

アイテム 部品番号 名前 数量 UOM
1 25-0325/1 HANDLE 1 EA
-- N/AASSPARE SPINDLE 1 EA
3 N/AASSPARE SPINDLE 1 EA
4 25-0325/3 WHEEL205X60 1 EA
5 24-4268 JOCKEYWHEELCLAMP 1 EA
6 24-4269 HANDLEFORCLAMP 1 EA
7 513931-001 HANDLE 1 EA
not
illustrate
d
25-0337 JOCKEYWHEELHDDOUBLE
ASSY 1 EA
TL37J PARTS MANUAL JOCKEY WHEEL
JOCKEY WHEEL Tue Mar 23 07:46:30 UTC 2021 2-3

REPAIRPARTS

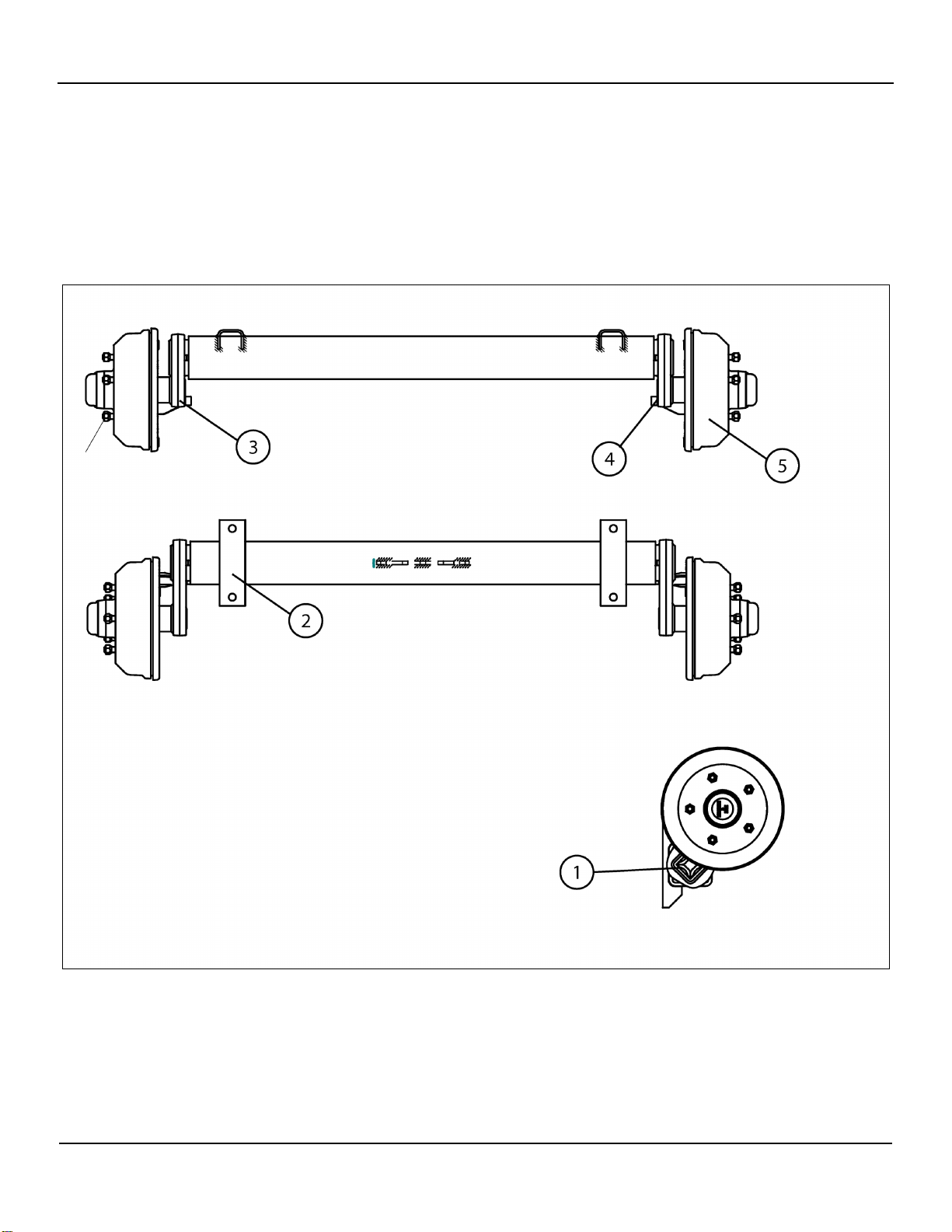

TL37J PARTS MANUAL AXLE ASSEMBLY
AXLE ASSEMBLY Tue Mar 23 07:46:30 UTC 2021 2-4

アイテム 部品番号 名前 数量 UOM
1 1289444 RUBBERASSEMBLYSAMPLE 1 EA
2 104528 AXLEPAD 2 EA
2 8210184 SPACER(ANSIONLY) 2 EA
3 1029219 L.H.TRAILINGARMWELDASSY 1 EA
4 1029220 R.H.TRAILINGARMWELDASSY 1 EA
5 513466-000 AXLE,1900kgRUBBERTORSION 1 EA
5 508677-000 AXLEAssembly(ANSI),SN:To
01-007825,NOTILLUSTRATED 1 EA
5 514904-000 AXLEAssembly(ANSI),SN:From
01-007826,NOTILLUSTRATED 1 EA
6 5563987 CONEWHEELNUT1/2-20(ANSI
ONLY) 8 EA
TL37J PARTS MANUAL AXLE ASSEMBLY
AXLE ASSEMBLY Tue Mar 23 07:46:30 UTC 2021 2-4

REPAIRPARTS
TL37J PARTS MANUAL BRAKE ASSEMBLY
BRAKE ASSEMBLY Tue Mar 23 07:46:31 UTC 2021 2-5
