Anthony Liftgates SM Series User manual

Made in the USA
SM
SM-1800
SM-2500
SM-3000
Quality, Reliability, Customer Service
PArts Book

1. General Information Section
1.1 Introduction
Congratulations on selecting an Anthony Liftgates Side
Mount TuckUnder™ liftgate.
All Anthony tuckunder model liftgates are factory
assembled, energized, and tested to ensure the highest
quality performance standards. Side Mount liftgates
ship completely assembled for fast, clean, and easy
installation.
To ensure your liftgate will perform to your expectations,
we have provided this Parts Manual, which is designed
to provide you with the necessary part numbers for the
maintenance of the Side Mount TuckUnder™ liftgates.
721
Typical Anthony Liftgates Side Mount Tuckunder Model.
Contents
1. General Information Section ..................2
1.1 Introduction ...........................2
1.2 Serial Number .........................3
1.3 If Installation Help is Required .............3
1.4 Replacement Safety Signs (Decals) ........3
2. Safety....................................3
2.1 Safety is Your Responsibility ..............3
2.2 General Safety Rules....................3
3. Nomenclature..............................4
3.1 Platform Nomenclature ..................4
3.2 Gravity‑Down Power Unit Nomenclature .....5
3.3 Power‑Down Power Unit Nomenclature .....5
4. Standard Floor Extension & Mounting
Accessories ..............................6
5. Pump Box Assembly ........................7
6. Hydraulic Power Pack .......................8
6.1 Pumps and Wiring ......................8
6.2 Pump Parts ‑ Gravity Down ...............9
6.3 Pump Parts ‑ Power Down...............10
7. Adapter Frame Assembly And Mounting Plates...11
8. Gate Assembly............................12
9. Step Kit .................................14
10. Hydraulic System ..........................15
10.1 Power Down Assembly
(SM‑3000‑SF‑RT only)..................15
10.2 Gravity Down Assembly
(1800, 2500, & 3000) ...................16
11. Platform Assemblies .......................17
11.1 48 Inch Platform Assembly
(1800, 2500, & 3000) ...................18
11.2 72 Inch Platform Assembly
(2500 Level Ride)......................19
12. Miscellaneous Accessories ..................20
13. Safety and Instructional Decals ...............20
13.1 General Information ....................20
13.2 Decal Part Numbers....................20
13.3 Decal Placement ......................21
13.4 Decals ..............................21

Side Mount Liftgate Parts Book 3 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
1.2 Serial Number
Before calling for warranty or other product information,
have the serial number, model number, and lift capacity
of your liftgate available. This information is stamped into
the identication plate on the side of the pump box and
will help us verify your warranty information and your
specic liftgate.
Record the serial number, model number, date of
installation, and load capacity in the Operation Manual for
easy reference when contacting your authorized dealer
with questions.

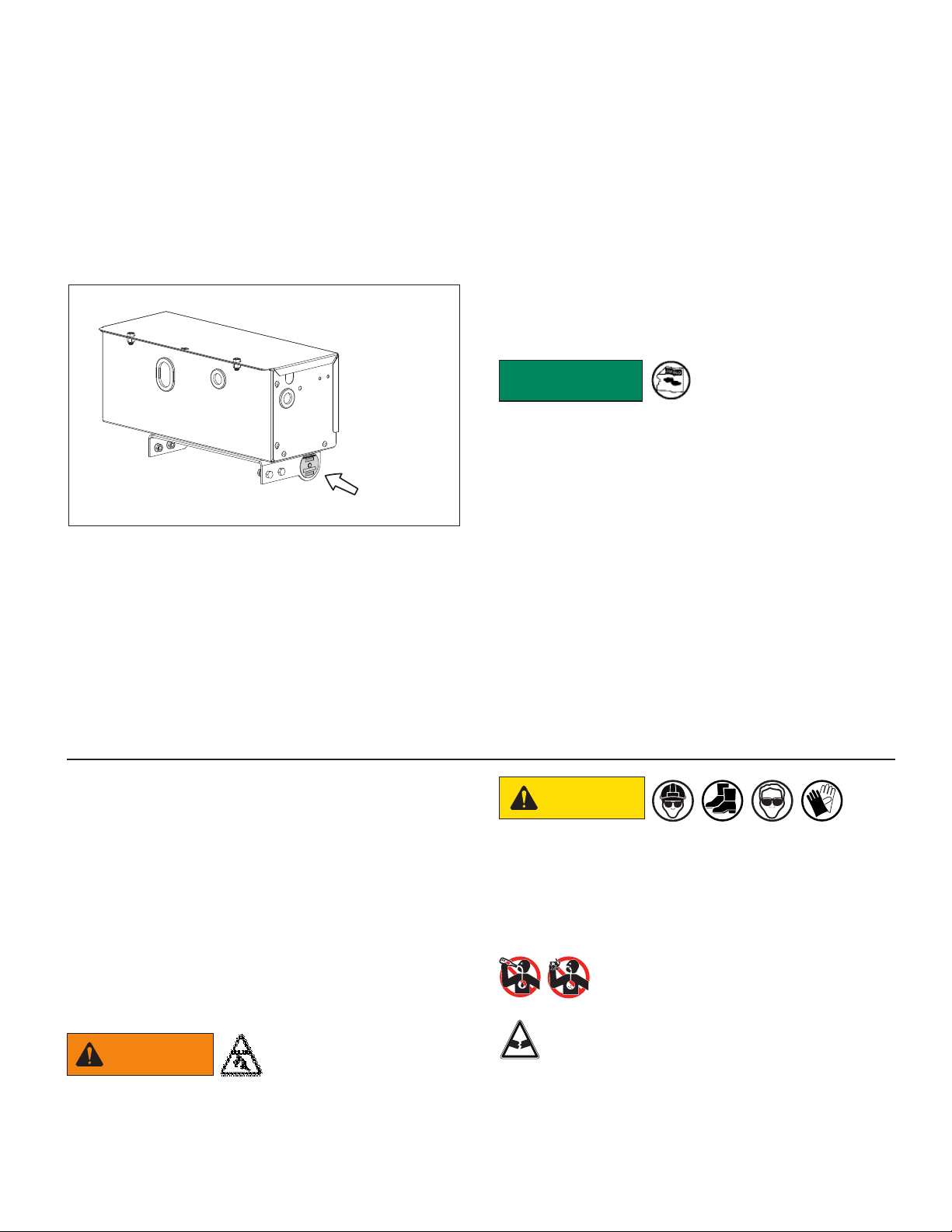

722
Location of Serial Number Identication Plate.
1.3 If Installation Help is Required
Anthony Liftgates manufacturs high‑quality liftgates that
require very little maintenance or repair. However, should
a part break, become damaged, or need replacement
due to normal part wear, our knowledgeable dealers can
make sure you receive the part(s) to put your liftgate back
into operation.
To nd the most current version of all reference
material or for additional information, refer to the Liftgate
Parts, Service & Installation Manuals tab on the www.
anthonyliftgates.com website.
If you have any doubts or questions about installation,
call us. Before doing so, have the serial number, model
number, and lift capacity of your liftgate available.
Anthony Liftgates, Inc.
1037 West Howard Street
Pontiac, Illinois 61764
[phone] or 800-482-0003
1.4 Replacement Safety Signs (Decals)
SAFETY
INSTRUCTIONS
To prevent personal injury
of the end user from not
being aware of safety
recommendations, the owner/operator must make
sure all decals are attached to the liftgate and truck
and are legible.
To ensure the greatest level of safety, all decals must be
attached to specied replacement parts and be legible
at all times. Remember, it is the users' or maintenance
personnel's responsibility to make sure these decals are
attached to the replacement parts.
For service or ordering replacement parts, contact an
authorized dealer by going to www.anthonyliftgates.
com and selecting the FIND A DEALER tab. Enter your
zip code to nd the nearest authorized service location.
2. Safety
2.1 Safety is Your Responsibility
It is the responsibility of the maintenance personnell
to understand proper installation of repair parts and
operating procedures. Be aware of the inherent dangers
in the use of this product and the tools used to install
any repair parts. Read and understand all Warnings,
Cautions, Notices, Safety Instructions, and Notes in this
manual, on the liftgate, or on the truck.
Also, refer to the Installation or Operation Manuals for a
more complete list of safety topics.
2.2 General Safety Rules
WARNING Do not work under the
liftgate while it's in a
raised position. Failure of
the liftgate's structural components, while replacing
parts, could cause serious crushing injuries.
CAUTION
When installing replacement parts, wear appropriate
personal protective equipment. This list may include,
but is not limited to:
• A hard hat.
• Protective shoes with slip resistant soles.
• Protective goggles, glasses, or face shield.
• Protective clothing.
Do not attempt to install replacement
parts under the influence of drugs or
alcohol.
Do not install a replacement part if it's
damaged. If you believe the part has a defect,
which could cause it to work improperly, you
should immediately stop the installation and
remedy the problem before continuing.

Anthony Liftgates, Inc. 4 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
CAUTION Make sure the liftgate or
truck will not be damaged
or made unsafe by the
installation of the replacement part.
OEM
OEM
Always use genuine, factory OEM replacement
parts to restore the liftgate to its original
specifications. Anthony Liftgates will not
accept responsibility for damages as a result of using
unapproved parts. If non-OEM replacement parts are
used, the warranty will be voided.
SAFETY
INSTRUCTIONS
Anthony Liftgates
recommends not
riding the platform;
however, if the operation requires it, make sure your
footing is stable before raising or lowering the
platform. Always stand away from the edge. When on
the ground, always stand clear of the platform when it
is operating.
To prevent injury, replacement parts should
only be installed by a qualified installer having
installation knowledge and skill.
Do not modify safety devices.
Unauthorized modifications may impair
the liftgates function and/or safety
features.
Make sure all replacement parts are in good
working condition and properly installed.
3. Nomenclature
3.1 Platform Nomenclature
Mounting
Plates
Frame Rail
Mounting Brackets
Frame Rail
Reinforcement
Channels
Informational
Packet
Radius Arm
Wheel Arm
Adapter Frame Tube
Main Platform Section
Power Unit
Frame Reinforcement
Channel End Brackets
Angle Iron Braces
Floor Extension
Assembly
Platform Installation
Brackets
Transport
Latch Pin
Lift Frame
Flipover Section
723

Side Mount Liftgate Parts Book 5 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
3.2 Gravity-Down Power Unit Nomenclature
724
Power Cable w/
200 Amp Fuse
Breather
Tube
Hydraulic
Cylinder
Power UP
High-Pressure
Hose
Flow Control
Valve
Control
Switch
Electric
Motor
Pump
Adjustable Relief
Valve
Motor Start
Solenoid
Power UP
Valve
Fill Port and
Breather
Cap
Reservoir
10 Amp In-Line Fuse
(BLACK wire)
(WHITE wire)
(GREEN wire)
3.3 Power-Down Power Unit Nomenclature
7
2
5
Power Cable w/
200 Amp Fuse
Hydraulic
Cylinder
Control
Switch
Electric
Motor
Power UP
ValvePower DOWN
Valve
Fill Port and
Breather Cap
Reservoir
Power UP
High-Pressure
Hose
Flow Control
Valve
Power DOWN
High-Pressure
Hose
Motor Start
Solenoid
Pump
Adjustable
Relief
Valves
10 Amp In-Line Fuse
(BLACK wire)
(WHITE wire)
(RED wire)
(GREEN wire)

Anthony Liftgates, Inc. 6 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
4. Standard Floor Extension & Mounting Accessories
2
3
1
5
711
4
Item Part
Number
Description Qty.
1ATU‑492
ATU‑493
FLOOR EXTENSION ‑ 48"
FLOOR EXTENSION ‑ 72" 1
2 A‑132085 1/2‑13 X 1.0 GR8 HEX BOLT 2
3 A‑140959 INSTALL BRACKET W/M 2
4 3139 1/2‑13 HEX NUT GR8 ZP 2
5
ATU‑717
ATU‑718
ATU‑787
DECAL/INSTALL KIT (1800)
DECAL/INSTALL KIT (2500)
DECAL/INSTALL KIT (3000)
1
1
731
Item Part
Number
Description Qty.
— ATU‑878
FRAME REINFORCEMENT KIT
(REFER TO SEPARATE DRAWING
FOR PARTS LIST)
1

Side Mount Liftgate Parts Book 7 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
5. Pump Box Assembly
71
5
6
14
13
15
11
12
11
13
11
10
9
8
7
1
2
3
5
4
Item Part Number Description Qty.
1 ATU‑531 PUMP BOX RIVETED ASSEMBLY 1
2 764 3/8‑16 X 3/4" GR8 HEX BOLT YZP 2
3 A‑132364 3/8‑16 NYLOCK NUT 2
4 ATU‑533 PUMP BOX COVER 1
5 A‑132200 WEATHERSTRIP, BULK ‑ 21" —
6 ATU‑1670 GROMMET‑OVAL 1
7 ATU‑229 GROMMET 3
8 ATU‑353‑PB PUMP BOX MOUNTING BRACKET 1
9 A‑131022 SERIAL TAG 1
10 A‑132030 3/16" ALUMINUM RIVET 1
11 874 3/8‑16 X 1" GR8 HEX BOLT ZP 7
12 A‑132038 3/8‑16 SERRATED FLANGE LOCKNUT 5
13 2058 3/8 FLAT WASHER 4
14 A‑132011 3/8 STAR WASHER 2
15 2054 3/8 SPLIT LOCKWASHER 5

Anthony Liftgates, Inc. 8 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
6. Hydraulic Power Pack
6.1 Pumps and Wiring
712
3
12
1
2
13
14
45
6
810
11
9
7
9
Item Part Number Description Qty.
1
A‑133619
A‑133620
A‑150438
GRAVITY DOWN SWITCH ASSY W/CABLE (AFTER MAY 2019, NO SERVIABLE PARTS)
POWER DOWN SWITCH ASSY W/CABLE (AFTER MAY 2019, NO SERVIABLE PARTS)
REPLACEMENT FUSE, 10A
—
2
A‑133585
A‑133556
A‑150438
FLUSH GRAVITY DOWN CONTROL‑STEEL CUP (M. SPADE)
FLUSH POWER DOWN CONTROL‑STEEL CUP (M. SPADE)
REPLACEMENT FUSE, 10A
—
3 A‑133604 POWER CABLE 2GA‑200A MEGA FUSE, 30 FT (INCLUDES ITEMS 4 ‑ 13) 1
4 A‑133610 200 AMP MEGA FUSE 1
5 5434 5/16‑18 X .75 HEX BOLT GR8 2
6 4614 5/16‑18 FINISHED HEX NUT 2
7 6611 5/16 SPLIT LOCKWASHER 2
8 A‑133606 HEAT SHRINK TUBE (8") 1
9 A‑133605 5/16" ANTI‑ROTATIONAL LUG ‑ #4 CABLE 3
10 A‑150608 2/0 CABLE 1
11 A‑150990 HEAT SHRINK (2.5") 2
12 A‑133003 3/8" ANTI‑ROTATIONAL LUG 1
13 A‑130117 POWER PACK UNIT, COMPLETE, POWER DOWN 1
14 A‑130116 POWER PACK UNIT, COMPLETE, GRAVITY DOWN 1

Side Mount Liftgate Parts Book 9 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
6.2 Pump Parts - Gravity Down
2
5
7
8
6
12
13
11
34
1
9
10
Item Part Number Description Qty.
1 ATU‑120 SOLENOID RELAY, MOTOR RUN, 12VDC 1
2 A‑150018 MOTOR, NO THERMAL SWITCH, 12VDC 1
3 A‑176315 COIL ONLY, 12VDC 1
4 A‑130215 VALVE/12VDC COIL/CARTRIDGE COMBINATION (RAISE, TRIPLE O‑RING, RED WIRE) 1
5 A‑150635 RESERVOIR (INCLUDES FILLER/VENT CAP) 1
6 A‑150546 FILLER/VENT CAP 1
7 A‑150015 FILTER NIPPLE 1
8 A‑150016 FILTER SCREEN 1
9 AR‑18‑87 BRASS STREET ELBOW 1/8" NPT 90 DEG 1
10 ATU‑124 3/16 BRASS HOSE BARB X 1/8 MALE NPT 1
11 ATU‑565 RESERVOIR ATTACHMENT CLAMP 1
12 A‑150019 RESERVOIR ATTACHMENT O‑RING 1
13 A‑130140 FITTING, 06MJ‑06MORB 90DEG ELBOW 1

Anthony Liftgates, Inc. 10 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
6.3 Pump Parts - Power Down
2
10
11
6
12
13
7
98
54
34
1
72
7
7
27
Item Part Number Description Qty.
1 ATU‑120 SOLENOID RELAY, MOTOR RUN, 12VDC 1
2 A‑150018 MOTOR, NO THERMAL SWITCH, 12VDC 1
3 A‑130216 VALVE, 12VDC COIL/CARTRIDGE COMBINATION (LOWER, SINGLE O‑RING, GREEN WIRE) 1
4 A‑176315 COIL ONLY, 12VDC 2
5 A‑130215 VALVE, 12VDC COIL/CARTRIDGE COMBINATION (RAISE, TRIPLE O‑RING, RED WIRE) 1
6 A‑150546 FILLER/VENT CAP 1
7 A‑150635 RESERVOIR (INCLUDES FILLER/VENT CAP) 1
8 ATU‑565 RESERVOIR ATTACHMENT CLAMP 1
9 A‑150019 RESERVOIR ATTACHMENT O‑RING 1
10 A‑130140 FITTING, 06MJ‑06MORB 90DEG ELBOW 2
11 A‑130142 FITTING, 06MJ‑06FJS 90DEG ELBOW 2
12 A‑150015 FILTER NIPPLE 1
13 A‑150016 FILTER SCREEN 1

Side Mount Liftgate Parts Book 11 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
7. Adapter Frame Assembly And Mounting Plates
716
24
3
14
12
11
10
13
4
7
6
1
2
17
15
16
18
5
9
7
8
19
Item Part Number Description Qty.
1ATU‑1675
ATU‑1678
ADAPTER FRAME W/LOOSE PARTS BOX (SM‑1800‑SF, SM‑2500‑SF, SM‑3000‑SF)
ADAPTER FRAME W/LOOSE PARTS BOX, AUX STEP (SM‑LR‑2500‑SF) 1
2 ATU‑1166 MOUNTING PLATE 2
3 ATU‑881 WHEEL ARM ASSY (ARM WELDMENT, CHANNEL, WHEEL) 1
4 ATU‑883 WHEEL ARM BASE 1
5 ATU‑886 WHEEL ARM CHANNEL 1
6 ATU‑260 1/2‑13 X 1.25 HEX BOLT GR8 1
7 1691 1/2" LOCKWASHER 2
8 ATU‑259 1/2‑13 X 2.00 HEX BOLT GR8 2
9 3139 1/2‑13 HEX NUT GR8 ZP 2
10 A‑132039 3/8‑24 X 3" HEX BOLT GR8 1
11 ATU‑795 WHEEL 1
12 2184 3/8‑24 LOCKNUT 1
13 A‑132112 1/2‑13 X 2.50 HEX BOLT GR8 2
14 A‑132024 1/2‑13 LOCKNUT 2
15 SG‑606‑04 ANGLE BRACKET 6
16 ATU‑1162 MOUNTING PLATE BRACKET 90DEG 2
17 SG‑606‑03 CHANNEL 2
18 SG‑606‑02 SUPPORT BRACE 2
19
2040
S‑016011
S‑010011
5/8‑18 X 2.0 HEX BOLT GR8
5/8 LOCKWASHER
5/8‑18 HEX NUT GR8 ZP
8
8
8

Anthony Liftgates, Inc. 12 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
8. Gate Assembly
11 12 10 12 13
4
3
2
8
9
51819
6
7
1
3a
17
16
15
21
20

Side Mount Liftgate Parts Book 13 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
Item Part Number Description Qty.
1
ATU‑183
ATU‑187
ATU‑1503
LIFTFRAME 1800
LIFTFRAME 3000/3500
LIFTFRAME 3000 RH LATCH
1
2 ATU‑1654 LIFTFRAME PIN
3 ATU‑430 BUSHING, 1.25" ID X 1.5" OD X .75" LONG (ADAPTER FRAME) 4
3a ATU‑429
ATU‑426
BUSHING, 1" ID X 1.25" OD X 3/4" LONG (FOR ATU‑183 LIFTFRAME)
BUSHING, 1" ID X 1.25" OD X 1"LONG (FOR ATU‑187 AND ATU‑1503 LIFTFRAME) 2
4 A‑146840 SNAP RING, 1.25" EXTERNAL HD 2
5 ATU‑134 WASHER, 1.875" OD X 1‑17/64 ID 5 / 7
6
ATU‑1590
ATU‑1584
ATU‑1596
ATU‑5025
RADIUS ARM ‑ STREETSIDE W/BUSHINGS (1800)
RADIUS ARM ‑ STREETSIDE W/BUSHINGS (2500)
RADIUS ARM ‑ STREETSIDE W/BUSHINGS, AUX STEP (2500 LEVEL RIDE)
RADIUS ARM ‑ STREETSIDE W/BUSHINGS (3000)
1
7
ATU‑1589
ATU‑1583
ATU‑1595
ATU‑5022
RADIUS ARM ‑ CURBSIDE W/BUSHINGS (1800)
RADIUS ARM ‑ CURBSIDE W/BUSHINGS (2500)
RADIUS ARM ‑ CURBSIDE W/BUSHINGS, AUX STEP (2500 LEVEL RIDE)
RADIUS ARM ‑ CURBSIDE W/BUSHINGS (3000)
1
8 A‑140046 RADIUS ARM PIN 2
9 A‑132027 1/4" X 2.25" COTTER PIN, SS 4
10 A‑140090 WEAR PAD/BUMPER 2
11 718 1/4‑20 X 1" HEX CAP SCREW GR8 ZP 4
12 2051 1/4" FLATWASHER ZP 8
13 ATU‑359 1/4‑20 TOP LOCKNUT GR C ZP 4
15 ATU‑5206 LATCH, ADJUSTMENT BOLT 1
16 A‑132337 1‑8 JAM NUT 1
17 A‑132342 1‑8 NYLOCK NUT GR8 1
18 S‑094005 1/2‑13 X 1.5 SQHD KNURLED CUP SET SCREW 2
19 880 1/2‑13 FINISHED HEX JAM NUT GR8 2
20 ATU‑556 PIN LOCK, LATCH 1
21 ATU‑557 HANDLE, LATCH 1

Anthony Liftgates, Inc. 14 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
9. Step Kit
713
1
1
8554 3
2
56 745
85
9
45
71
3
Item Part Number Description Qty.
—ATU‑1710
ATU‑1711, ‑G
30" AUX STEP KIT FOR 48" PLATFORM
45" AUX STEP KIT FOR 72" PLATFORM —
1ATU‑1680
ATU‑1494, ‑G
AUX STEP, 30" WIDE FOR 48" PLATFORM
AUX STEP, 45" WIDE FOR 72" PLATFORM 1
2 ATU‑1493 BRACE, AUX STEP 2
3 ATU‑259 1/2‑13 X 2" HEX BOLT GR8 ZP 3
4 1691 1/2" LOCKWASHER 6
5 A‑150065 1/2" FLATWASHER 17/32" ID X 1‑1/16" OD ZP 12
6 A‑132024 1/2‑13 LOCKNUT 2
7 A‑132112 1/2‑13 X 2.5" HEX BOLT 2
8 3139 1/2‑13 HEX NUT GR8 ZP 4
9 A‑132019 1/2‑13 X 4" HEX BOLT GR8 YZ 2
— ATU‑1712 INSTALL INSTRUCTIONS FOR AUX STEP —

Side Mount Liftgate Parts Book 15 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
10. Hydraulic System
10.1 Power Down Assembly (SM-3000-SF only)
5
6
8
7
9
5
10
5
6
8
7
9
3
2
4
5
10
718
1
Item Part Number Description Qty.
1 A‑130222 HOSE, 3/8" X 120", 6FJX‑6FJX 2
2 A‑130140 FITTING, 06MJ‑06MORB 90DEG 1
3 A‑130102 RESTRICTOR VALVE, 3 GPM (3000) 1
4 A‑130198 FITTING, STRAIGHT, 06MJ‑06MORB 1
5 A‑132026 COTTER PIN, 1/4" X 1‑1/2" LG 18‑8 SS 3
6 869 5/16‑18 X 2" HEX BOLT GR8 1
7 862 5/16‑18 CENTER LOCKNUT 1
8 A‑140174 UPPER CYLINDER PIN 1
9 A‑130114 CYLINDER, 4" 1
10 ATU‑103 LOWER CYLINDER PIN, LIFTFRAME CYLINDER MOUNT 1

Anthony Liftgates, Inc. 16 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
10.2 Gravity Down Assembly (1800, 2500, & 3000)
9
7
719
5
4
3
11
14
1 2
5
10
9
8
5
6
8
7
9
5
5
5
6
10
13
12
Item Part Number Description Qty.
1 A‑130150 HOSE, 3/8" X 90", 6FJX‑6MB 1
2 A‑130140 FITTING, 06MJ‑06MORB 90DEG ELBOW 1
3 A‑130143 FITTING, HOSE BARB (06MORB TO 3/16" BARB) 1
4 A‑130282 CLEAR PLASTIC HOSE, 90" 1
5 A‑130392 CLAMP, HYDRAULIC HOSE 2
6AR‑18‑87
ATU‑124
BRASS STREET ELBOW 1/8" NPT 90 DEG
3/16 BRASS HOSE BARB X 1/8 MALE NPT 1
7A‑130113
A‑130114
CYLINDER ‑ 3" (1800)
CYLINDER ‑ 4" (2500, 3000) 1
8 ATU‑103 LOWER CYLINDER PIN, LIFTFRAME CYLINDER MOUNT 1
9 A‑132026 COTTER PIN, 1/4" X 1‑1/2" LG 18‑8 SS 3
10 869 5/16‑18 X 2" HEX BOLT GR8 1
11
A‑130100
A‑130101
A‑130102
RESTRICTOR VALVE 1.5 GPM (1800)
RESTRICTOR VALVE 2.25 GPM (2500)
RESTRICTOR VALVE 3 GPM (3000)
1
12 862 5/16‑18 CENTER LOCKNUT 1
13 A‑140174 UPPER CYLINDER PIN 1
14 A‑130198 FITTING, 6400‑06MJ‑06MORB STRAIGHT 1

Side Mount Liftgate Parts Book 17 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
11. Platform Assemblies
Platform measurements are listed by width and then
length (48" x 34") which represent the combined size of
the liftgate platform (main platform plus ipover platform)
and not the size of the individual parts. Whenever
ordering replacement parts, compare the measurements
of your liftgate with the measurements listed in the
chart to determine the correct replacement part(s). If in
doubt, contact the factory with model and serial number
information to get the correct replacement part numbers.
1
52
53
714
Item Part Number Description Qty.
1 ATU‑513 PLATFORM ‑ 48 X 34+7 (1800, 3000) 1
2ATU‑1000 PLATFORM MAIN SECT 1
3ATU‑1009 PLATFORM FLIP SECTION 1
1 ATU‑636 PLATFORM ‑ 72 X 38+5 (2500 LEVEL RIDE) 1
2ATU‑256‑35 PLATFORM MAIN SECT 1
3ATU‑576 PLATFORM FLIP SECTION 1

Anthony Liftgates, Inc. 18 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
11.1 48 Inch Platform Assembly (1800, 2500, & 3000)
720
87
10
14
13
7
9
6
3
11
12
15
2
4
5
7
8
24
1
Item Part Number Description Qty.
1 ATU‑513 PLATFORM, 48 X 34+7 (1800, 3000) 1
2 ATU‑1000 PLATFORM MAIN SECTION 1
3 ATU‑1009 PLATFORM FLIP SECTION 1
4 ATU‑647 PIN, FLIP TO MAIN PLATFORM 2
5 A‑132026 COTTER PIN, 1/4" DIA X 1.5" LONG, STAINLESS STEEL 2
6 ATU‑104 PIN, PLATFORM AND CAMS 1
7 862 5/16‑18 LOCKNUT 4
8 869 5/16‑18 X 2" HEX BOLT 2
9 ATU‑107‑R CAM ASSY, CURBSIDE 1
10 ATU‑107‑L CAM ASSY, STREETSIDE 1
11 ATU‑100‑L PLATFORM SPRING, STREETSIDE 1
12 ATU‑518‑R PLATFORM SPRING, CURBSIDE 1
13 ATU‑1485 CAM PLATE PIN 2
14 A‑132148 5/16‑18 X 2" SOCKET CAP SCREW GR8 2
15 ATU‑071 SHIM, 14 GA —

Side Mount Liftgate Parts Book 19 Anthony Liftgates, Inc.
800‑482‑0003 www.anthonyliftgates.com
11.2 72 Inch Platform Assembly (2500 Level Ride)
720
8
7
10
14
13
7
9
6
11
12
15
2
4
5
7
8
3
24
1
Item Part Number Description Qty.
1 ATU‑636 PLATFORM, 72 X 38+5 (2500 LEVEL RIDE) 1
2 ATU‑256‑35 PLATFORM MAIN SECTION 1
3 ATU‑576 PLATFORM FLIP SECTION 1
4 ATU‑647 PIN, FLIP TO MAIN PLATFORM 2
5 A‑132026 COTTER PIN, 1/4" DIA X 1.5" LONG, STAINLESS STEEL 2
6 ATU‑104 PIN, PLATFORM AND CAMS 1
7 862 5/16‑18 LOCKNUT 4
8 869 5/16‑18 X 2" HEX BOLT 2
9 ATU‑376 CAM PLATE ASSY, "LEVEL RIDE", CURBSIDE 1
10 ATU‑377 CAM PLATE ASSY, "LEVEL RIDE", STREETSIDE 1
11 ATU‑100‑L PLATFORM SPRING, STREETSIDE 1
12 ATU‑518‑R PLATFORM SPRING, CURBSIDE 1
13 ATU‑1485 CAM PLATE PIN 2
14 A‑132148 5/16‑18 X 2" SOCKET CAP SCREW GR8 2
15 ATU‑071 SHIM, 14 GA —

Anthony Liftgates, Inc. 20 Side Mount Liftgate Parts Book
www.anthonyliftgates.com 800‑482‑0003
12. Miscellaneous Accessories
Item Part Number Description Qty.
1 A‑133354 CYCLE COUNTER KIT 1
2 A‑133038 CUT‑OFF SWITCH KIT ‑ MANUALLY OPERATED 1
3A‑150031 SWITCH, CUT‑OFF ‑ MANUALLY OPERATED 1
4 A‑133036 CUT‑OFF SOLENOID KIT 1
5A‑150263 CUT‑OFF SOLENOID 1
13. Safety and Instructional Decals
13.1 General Information
SAFETY
INSTRUCTIONS
To prevent personal injury
from not being aware of
safety recommendations,
make sure appropriate decals are attached to any
liftgate replacement part that contained that decal
initially.
To ensure the greatest level of safety, all decals must
be attached to specied replacement parts and must
be legible at all times. Remember, it is the users' or
maintenance personnel's responsibility to make sure
these decals are attached to the replacement parts.
13.2 Decal Part Numbers
Item Part Number Description Qty.
— ATU‑717 DECAL/INSTALL KIT SM1800 —
— ATU‑718 DECAL/INSTALL KIT SM2500 —
— ATU‑787 DECAL/INSTALL KIT SM3000 —
1 A‑131115 WARNING, PERSONAL INJURY 1
2 ATU‑423 OPERATING INSTRUCTIONS 1
3 A‑150238 NOTICE, PROTECTED WITH ELECTRICAL OVERLOAD CIRCUIT BREAKER 1
4 ATU‑141 AFTER USING LIFTGATE 1
5
ATU‑175
ATU‑174
ATU‑147
1800 LB. MAXIMUM CAPACITY
2500 LB. MAXIMUM CAPACITY
3000 LB. MAXIMUM CAPACITY
1
6 A‑131034 ANTHONY LABEL 1
7 ATU‑143 SECURE LATCH WHILE IN TRANSIT 1
8 A‑131017 NOTE, DISENGAGE LATCH 1
9 A‑150601 MADE IN THE USA 1
10 ATU‑146 STAND CLEAR 1
11 A‑131028 WELD WARNING 1
12 A‑131133 HYDRAULIC FLUID 1
13 A‑131001 10 AMP FUSE CHANGING PROCEDURE (attached to control wiring in pump box) 1
14 A‑131125 WARNING, GALVANIZED FUMES HAZARD 1
