EN-8000
User Manual
Brighten Your Digital View!
8-way H.264 HD/SD Encoder
and Modulator Series

1
EN-8000 Series User Maunal
Contents
1. Features and Order Information ............................ 2
2. ModelList............................................................... 2
3 Specifications.......................................................... 3
4.Web Server ............................................................. 6
4.1 Login................................................................... 6
4.2 Status..................................................................6
4.3 TS/IP...................................................................7
4.4 Remux ............................................................... 17

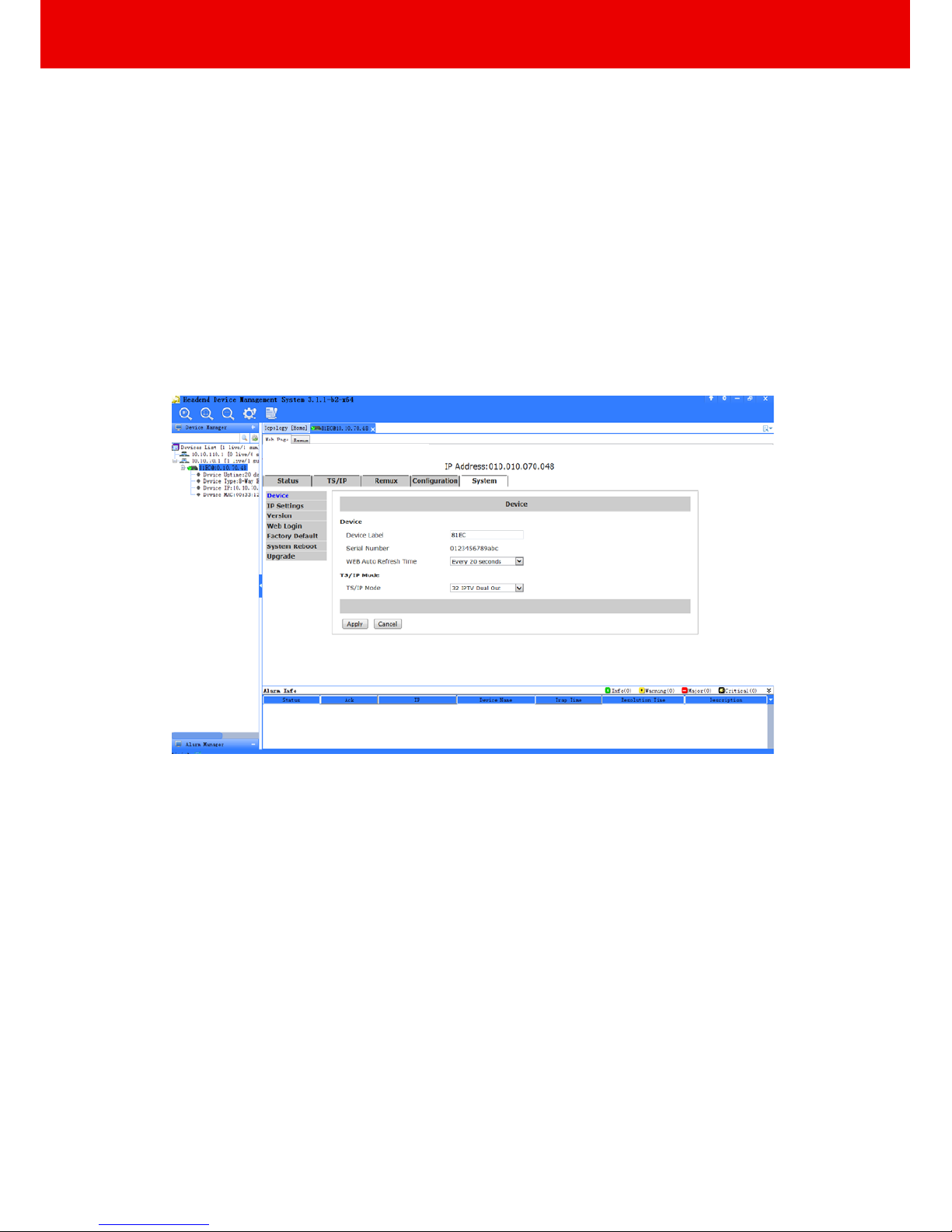

4.5 System ............................................................... 19
4.6 Configuration ..................................................... 24
5 Installation ............................................................ 27
6 Accessories .......................................................... 27

2
EN-8000 Series User Maunal
1. Features and Order Information
Complies with H.264/AVC [email protected] & MPEG-2 MP@ML
Built-in reMUX handles MPTS and SPTS
Three TS/IP modes
Single 128-way IPTV output @ 400Mb/s
Dual 32-way IPTV output, one main and one redundant, 200Mb/s each
Full duplex DVB MPTS TS/IP with ProMPEG FEC, 80Mb/s each way
Audio encoding standards: MPEG1-L2, MPEG-2/4 AAC-LC/HE-AAC；
RF total output level 120dBμV；
SNMP and HTTP remote control
Dual redundant power supplies
2 Model List
Description RF Output Encoder Input Encoder
Way
TS/IP
（Full
Duplex
/IPTV
Output）
AAC
(Audio
Encode）
1 EN-8000-80HC DVB-C
HDMI 8 N Y2 EN-8000-80HT DVB-T
3 EN-8000-80HT2 DVB-T2
4 EN-8000-82HC DVB-C
HDMI 8 Y Y5 EN-8000-82HT DVB-T
6 EN-8000-82HT2 DVB-T2
7 EN-8000-40HC DVB-C
HDMI 4 N Y
8 EN-8000-40HT DVB-T
9 EN-8000-40HT2 DVB-T2
10 EN-8000-42HC DVB-C HDMI 4 Y Y

3
EN-8000 Series User Maunal
11 EN-8000-42HT DVB-T
12 EN-8000-42HT2 DVB-T2
13 EN-8000-80SC DVB-C
SDI 8 N Y14 EN-8000-80ST DVB-T
15 EN-8000-80ST2 DVB-T2
16 EN-8000-82SC DVB-C
SDI 8 Y Y17 EN-8000-82ST DVB-T
18 EN-8000-82ST2 DVB-T2
19 EN-8000-40SC DVB-C
SDI 4 N Y20 EN-8000-40ST DVB-T
21 EN-8000-40ST2 DVB-T2
22 EN-8000-42SC DVB-C
SDI 4 Y Y23 EN-8000-42ST DVB-T
24 EN-8000-42ST2 DVB-T2
25 EN-8000-80CC DVB-C
CVBS&Audio 8 N N26 EN-8000-80CT DVB-T
27 EN-8000-80CT2 DVB-T2
28 EN-8000-82CC DVB-C
CVBS&Audio 8 Y N29 EN-8000-82CT DVB-T
30 EN-8000-82CT2 DVB-T2
31 EN-8000-40CC DVB-C
CVBS&Audio 4 N N32 EN-8000-40CT DVB-T
33 EN-8000-40CT2 DVB-T2
34 EN-8000-42CC DVB-C
CVBS&Audio 4 Y N
35 EN-8000-42CT DVB-T
36 EN-8000-42CT2 DVB-T2
3 Specifications
Video Inputs & Compression
Video Input Interfaces HDMI x 8 / HD-SDI x 8, or CVBS RCA-female 75Ω x 8
(see the model numbers)
Video Compression H.264/AVC [email protected] & MPEG-2 MP@ML
Chrominance Sampling Format 4:2:0

4
EN-8000 Series User Maunal
Video Resolutions & their
Recommended Compression Bit
Rates
H.264
1080i（1920×1080）@25Hz,29.97Hz:SMPTE274M: 1~13Mb/s
720p（1280×720）@50Hz,59.94Hz::SMPTE296M: 1~13Mb/s
480i（720×480）@29.97Hz:SMPTE656M: 600K~8Mb/s
576i（720×576）@25Hz: SMPTE656M:600K~8Mb/s
Video Resolutions & their
Recommended Compression Bit
Rates
MPEG-2
480i（720×480）@29.97Hz:SMPTE656M: 3.5~8Mb/s
576i（720×576）@25Hz: SMPTE656M: 3.5~8Mb/s
Video Scaler Manually adjustable,
Aspect Ratio 4:3 or 16:9
Audio Inputs & Compression
Audio Inputs HDMI/SDI Embedded or Analog RCA (see model numbers)
Audio Compression MPEG1 Layer II
MPEG-2/4 AAC-LC/HE-AAC(V1,V2)
Sampling Rate 48KHz
Compression Bit Rate
MPEG1 Layer II :32~192Kbps(mono), 64~384Kbps( Stereo),
MPEG2/4 AAC-LC :24~256Kbps(mono), 48~512Kbps( stereo)
MPEG2/HE-AAC(V1,V2):16~128Kbps(mono),
32~256Kbps(stereo)
TS/IP, Mode 1: Single Port, Full Duplex
Standard IEEE 802.3, 10/100/1000 Base-T
Maximum Bit Rate 80Mb/s in + 80Mb/s out
Data Encapsulation UDP, RTP, SPTS or MPTS
Protocol ICMP, ARP, IGMPv2/v3
TS/IP, Mode 2: 128-way IPTV output (Single Port)
Standard IEEE 802.3, 10/100/1000 Base-T
Maximum Output Bit Rate 400Mb/s
Data Encapsulation UDP, RTP, SPTS or MPTS
Protocol ICMP, ARP, IGMPv2/v3
TS/IP, Mode 3: 32-way IPTV output （Dual Port as redundant output）
Standard IEEE 802.3, 10/100/1000 Base-T
Maximum Output Bit Rate 200Mb/s+2000Mb/s (200Mb/s each Port）
Data Encapsulation UDP, RTP, SPTS or MPTS
Protocol ICMP, ARP, IGMPv2/v3
RF Output
Output Interface F-female，75Ω
Output Frequency Range 100 ~ 862MHz，step by 10 KHz
Output Level 90~120dBμV +2dB, step by 1dB
Spurious Rejection >55dBc @ 120dBuV

5
EN-8000 Series User Maunal
Return Loss
Interfaces on Rear Panel
HDMI Inputs HDMI (see model list) x 8
HD-SDI Inputs BNC Female, 75Ω x 8
CVBS & Audio Inputs RCA Female, 75Ω (see model list) x 8
RF Output F-female, 75Ω x 1
Interfaces on Front Panel
Control/IP RJ-45, 10/100 Base-T x 1, USB x 1
TS/IP RJ-45, 10/100/1000 Base-T x 2；1 Backup Output Only
Display 2x16 LCD module
RF Monitor -20dB F-female, 75Ω x 1
General
Power Supply Input Voltage AC100~260V 50/60Hz
Operating Temperature 0 ~ 40℃
Storage Temperature -10 ~ 60℃
Humidity 10 ~ 90%, (Non-condensed)
≥12dB（typ.）

6
EN-8000 Series User Maunal
4.Web Server
4.1 Login
Enter the IP address of the EN-8000 on to URL row on any web browser, there will be a pop-
up showed and asking for login user and password. The default user name and password are
“root” and “12345”, respectively. The username and password can be changed by user via
front panel or via submenu under the system web page. If the username and password are
forgotten, user have to set a new one via front panel.
Login
4.2 Status
Via the status page, user can have an overview of the current status of the
connected EN-8000, Include Input Bit Status,Input Format,Input Bit Status，TS/IP
Status,Power Status,Modulator Status.

7
EN-8000 Series User Maunal
Status
4.3 TS/IP
All models provide three TS/IP operation modes. First, “Full Duplex mode”, which allows one
MPTS or SPTS inputted, then make up a new MPTS with local encoders/IP input, then sends
the new one over IP & ASI_out. The second mode is “IPTV mode” up to 128 TS are sent over
IP, all null packets are removed to save bandwidth. The cost of IPTV, obviously, is poor PCR
accuracy that may be ignored in most of IPTV applications. User is reminded that PCR
accuracy is essential for DVB applications, and should not deliver TS with this mode for those
cases.
The management web pages of these three modes are different and will be presented
automatically following the change of the operation mode.
4.3.1 Full Duplex mode：
Under Full Duplex mode, the device supports single uni/multicast output and single
uni/multicast input at maximum bit rate of 80Mb/s both. The default source for TS/IP output is
the built-in remux.

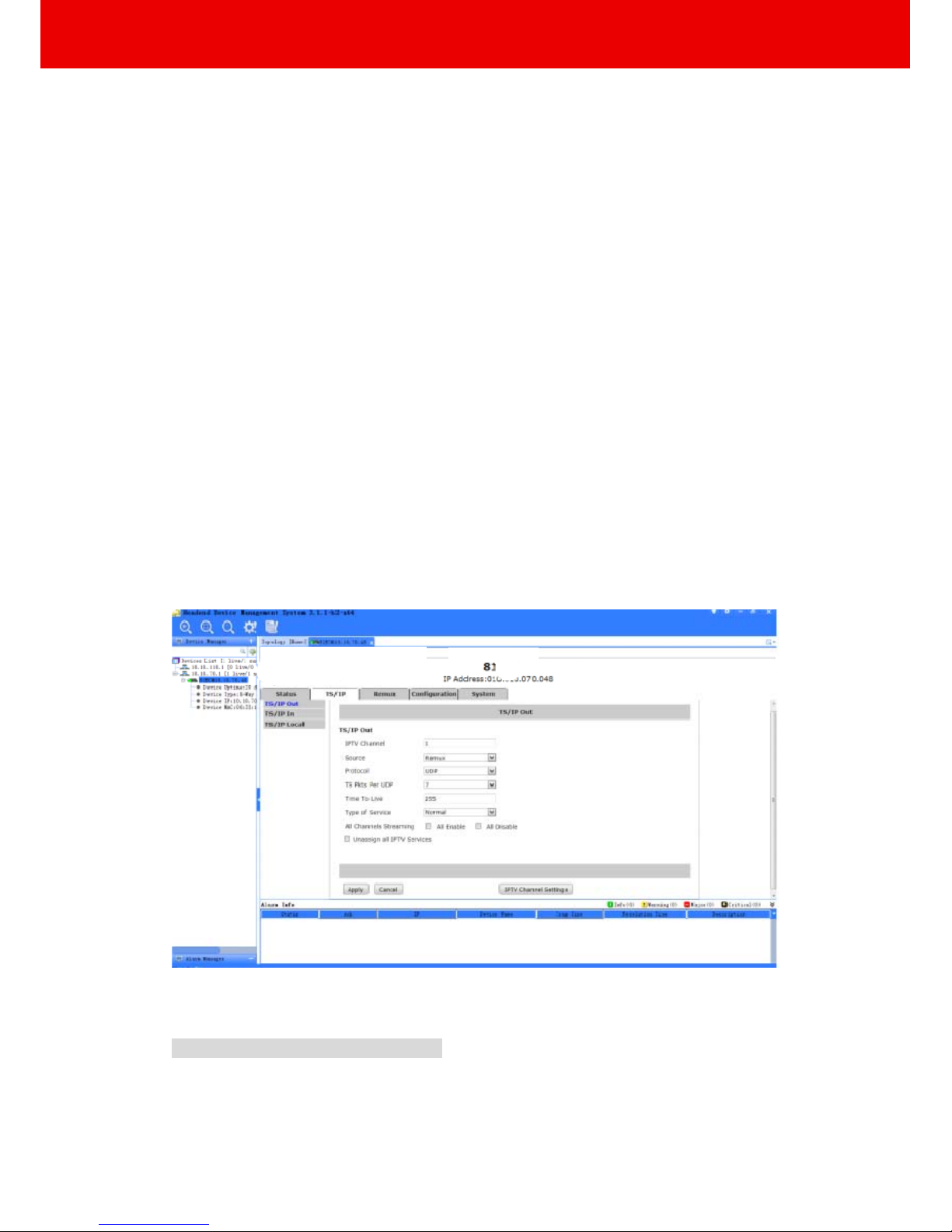

TS/IP Out
The parameters of TS/IP Out under Full Duplex mode could be set on the following page.

8
EN-8000 Series User Maunal
TS/IP Out
TS/IP Out Switch: Enable or Disable the IP output
Source: select the source for the IP output in the dropdown list
TS Pkts Per UDP: select the number of TS packets that can be carried by each UDP packet
Time To Live: set TTL to the output IP packets
Type of Service: select the service type for the outputted IP streaming
Uni/Multi IP Address: set the unicast or multicast IP address for the output IP streaming
Uni/Multi UDP Port: set the port number, valid range from 1~65535
Protocol: select UDP or RTP protocol for the IP output
ProMPEG FEC Switch: Enable or Disable the ProMPEG FEC (NOTE: ProMPEG only active
with RTP protocol)
(NOTE:the submenus below are available only when the ProMPEG FEC is switched on and
RTP is applied)
ProMPEG FEC Mode: select the mode of ProMPEG FEC from the dropdown list
Column FEC UDP Port: set the port number for column FEC
Row FEC UDP Port: set the port number for row FEC
FEC Alignment: set the alignment for FEC
Test Drop Packets: set the test drop packets

9
EN-8000 Series User Maunal

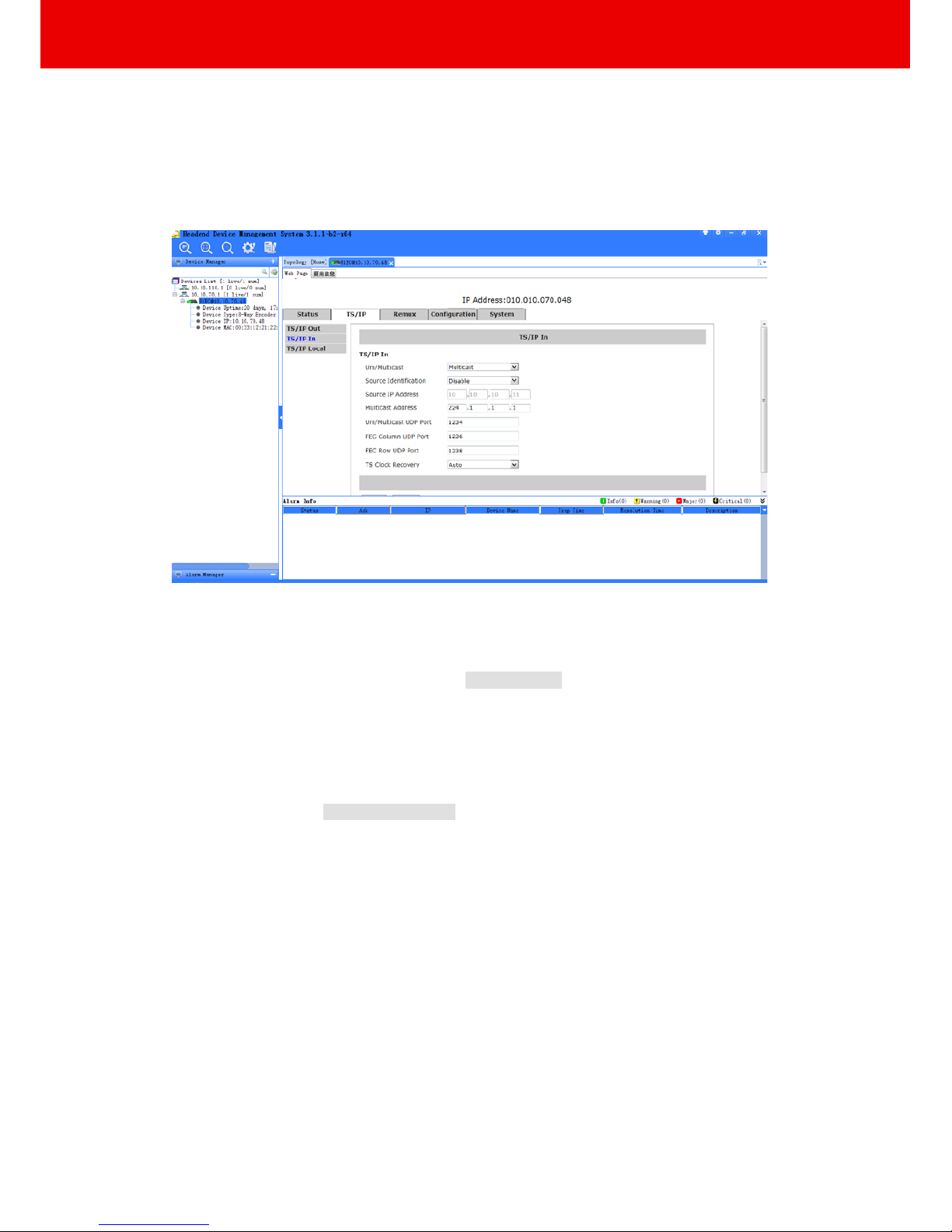

TS/IP In
Under Full Duplex Mode, the device supports single uni/multicast reception. Set the
uni/multicast target IP address and port number on the page below.
TS/IP In
Uni/Multicast: select the type of IP streamcast over IP, Unicast or multicast
Source Identification: enable/disable the source identification of IP streamcast. When it is
enable, please specify the source IP address (see next item). Only the stream from a specified
IP can be received. Stream(s) from other device(s) will be ignored even with the same stream
IP address.
Source IP Address: set the physical IP address of an unique device in an IP network.
DXP-8000EM/8100EM will receive IP stream only this device. It can be Ignored if Source
Identification is disable ( see previous item) .
Uni/Multicast UDP Port: set the port number for the incoming IP streaming.
TS Clock Recover:
Auto: it is suggested to set Auto when there is accurate PCR carried by the inputted
TS/IP
Fixed Rate: for system verification only, not recommend to use. When fixed rate is
selected, a highly precise bit rate has to be set to receive the TS.

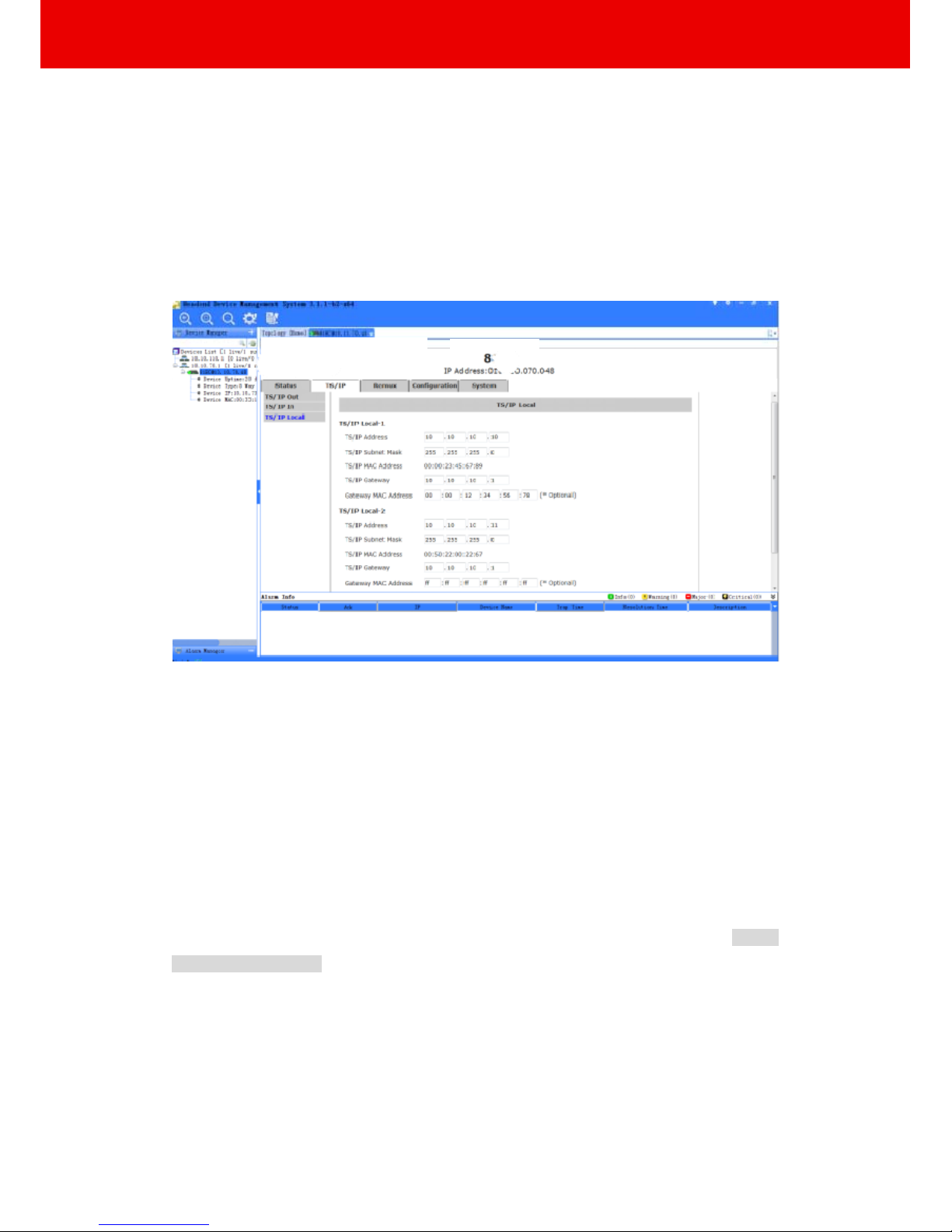

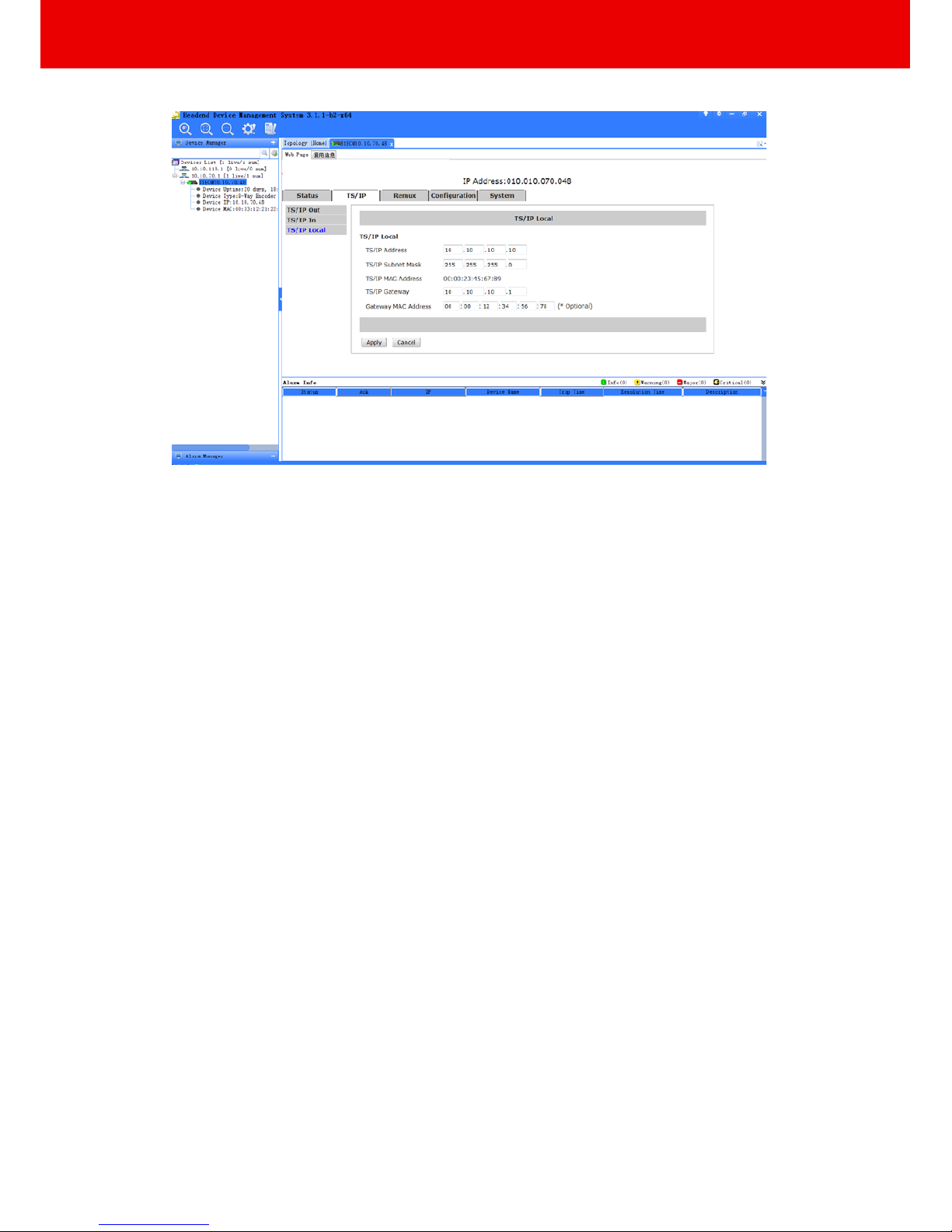

TS/IP Local

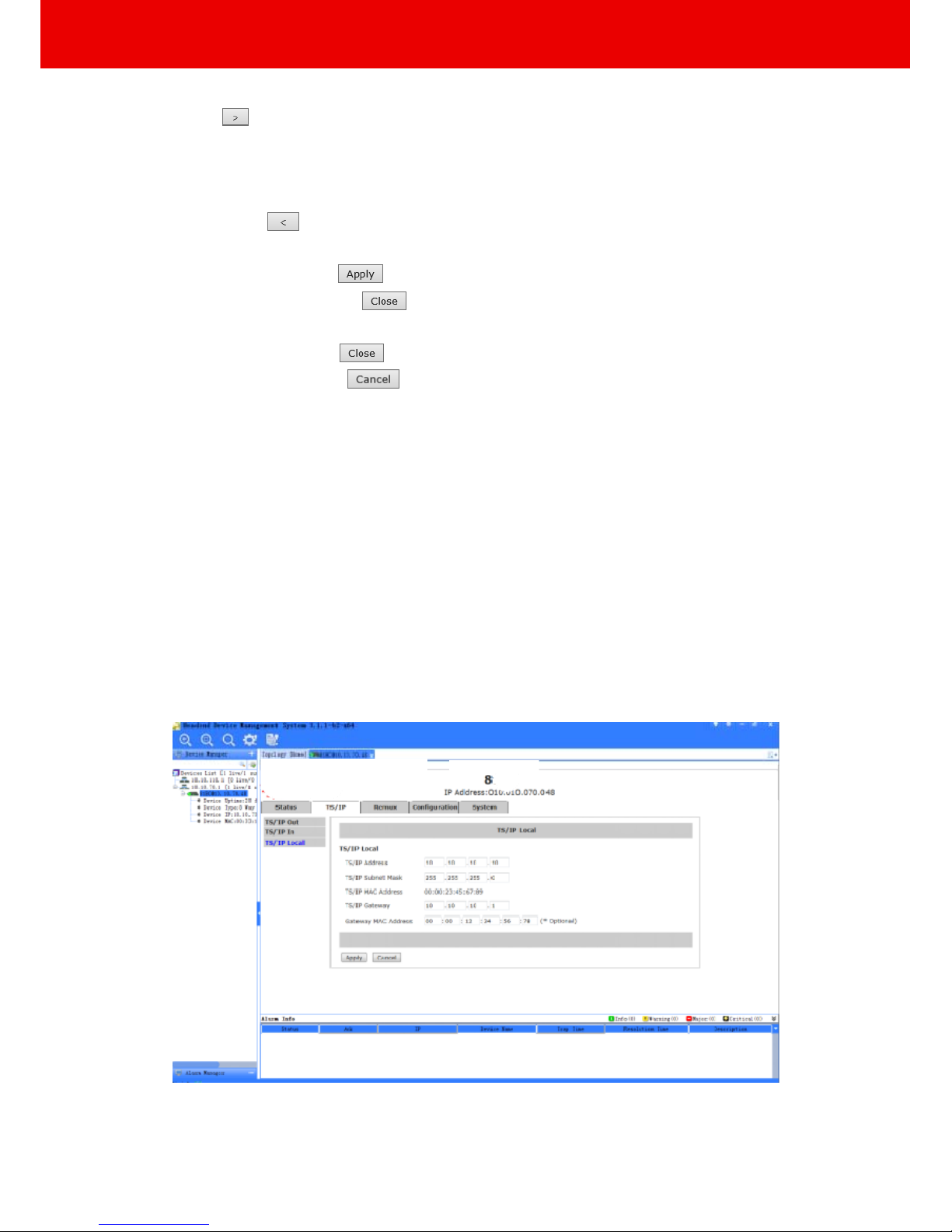

Set the parameters for the TS/IP Local Settings on the page below.
