Antik Juice Encoder EN 5008 User manual

DIRECTORY
Chapter 1 Product Introduction.............................................................................................................1
1.1 Outline................................................................................................................................................1
1.2 Main Features...................................................................................................................................1
1.3 Specifications....................................................................................................................................1
1.4 Principle Chart...................................................................................................................................3
1.5 Appearance and Illustration ............................................................................................................3
Chapter 2 Installation Guide..................................................................................................................5
2.1 Acquisition Check.............................................................................................................................5
2.2 Installation Preparation....................................................................................................................5
2.3 Wire’s Connection ............................................................................................................................7
2.4 Signal Cable Connection.................................................................................................................7
Chapter 3 Operation............................................................................................................................. 11
3.1 Initializing......................................................................................................................................... 11
3.2 General Setting............................................................................................................................... 11
Chapter 4 SNMP Operation.................................................................................................................21
4.1 Installation........................................................................................................................................ 21
4.2 Software Operation ........................................................................................................................21
4.3 EN 5008 8 in 1 MPEG-4 AVC/ H.264 HD Encoder Operation.................................................26
4.4 Other Settings................................................................................................................................. 36
Chapter 5 Troubleshooting ..................................................................................................................40
Chapter 6 Packing list........................................................................................................................... 41

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
1 / 43
Antik Technology / www.antiktech.com
Chapter 1 Product Introduction
1.1 Outline
The ANTIK Juice Encoder EN 5008 8-in-1 MPEG-4 AVC/H.264 HD encoder is our
newest professional HD audio & video encoding and multiplexing device with powerful
functionality. It is equipped with 8 HDMI channels input supporting MPEG-4 AVC/H.264
High Profile code format & main Profile code format and 1 ASI input. It can multiplex the
ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI
information. In conclusion, its high integration and cost-effective design make this device
widely used in variety of digital distribution systems such as CATV digital head-end,
satellite and terrestrial digital TV, etc.
1.2 Main Features
Support 8 HDMI channels input & 1 ASI Input
Support H.264/AVC high profile level 4.0 video encoding
Support MPEG1 Layer 2 (HE-AAC (V2) or LC-AAC optional) audio encoding
Support PSI/SI editing and inserting
Support VBR or CBR video bitrate mode
Support 720P, 1080I, 1080P HD video format
Support ASI output MPTS or 8 SPTS
Support IP Output MPTS and 8 SPTS
Support IP null packet filter
Support PID filter and transparent transport
Real-time output bit-rate monitoring
Update device through NMS port
Support LCD / keyboard operating, and network management (SNMP)
1.3 Specifications

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
2 / 43
Antik Technology / www.antiktech.com
Input
8 HDMI inputs
1 ASI input, BNC interface
Video
Resolution
1920×1080_60P, 1920×1080_50P
1920×1080_60i, 1920×1080_50i
1280×720_60P, 1280×720 _50P
720x576_50i, 720x480_59.95i
Encoding
MPEG-4 AVC/H.264 high profile level 4.0
Bit-rate
0.8Mbps~19Mbps (each channel)
Rate Control
CBR/VBR
GOP Structure
IBBP
Advanced
Pretreatment
De-interlacing, Noise Reduction, Sharpening
Audio
Encoding
MPEG-1 Layer II, HE-AAC (V2), LC-AAC
Sampling rate
48KHz
Resolution
24 bit
Bit-rate
64Kbps~384Kbps each channel
Multiplexing
1 ASI input multiplexed with local 8 channels of TS
Stream output
2*ASI output, BNC interface
MPTS and 8 SPTS over UDP, 1000 Base-T Ethernet
interface (UDP unicast / multicast)
System function
LCD/keyboard operating, NMS supporting
Chinese-English control interface
Ethernet software & hardware upgrade
Miscellaneous
Dimension (W× L× H)
440mm×410mm×44.5mm
Approx weight
4kg
Temperature
0~45℃(work), -20~80℃（Storage）
Power
AC 100V-220V±10%, 50/60Hz
Consumption
25W

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
3 / 43
Antik Technology / www.antiktech.com

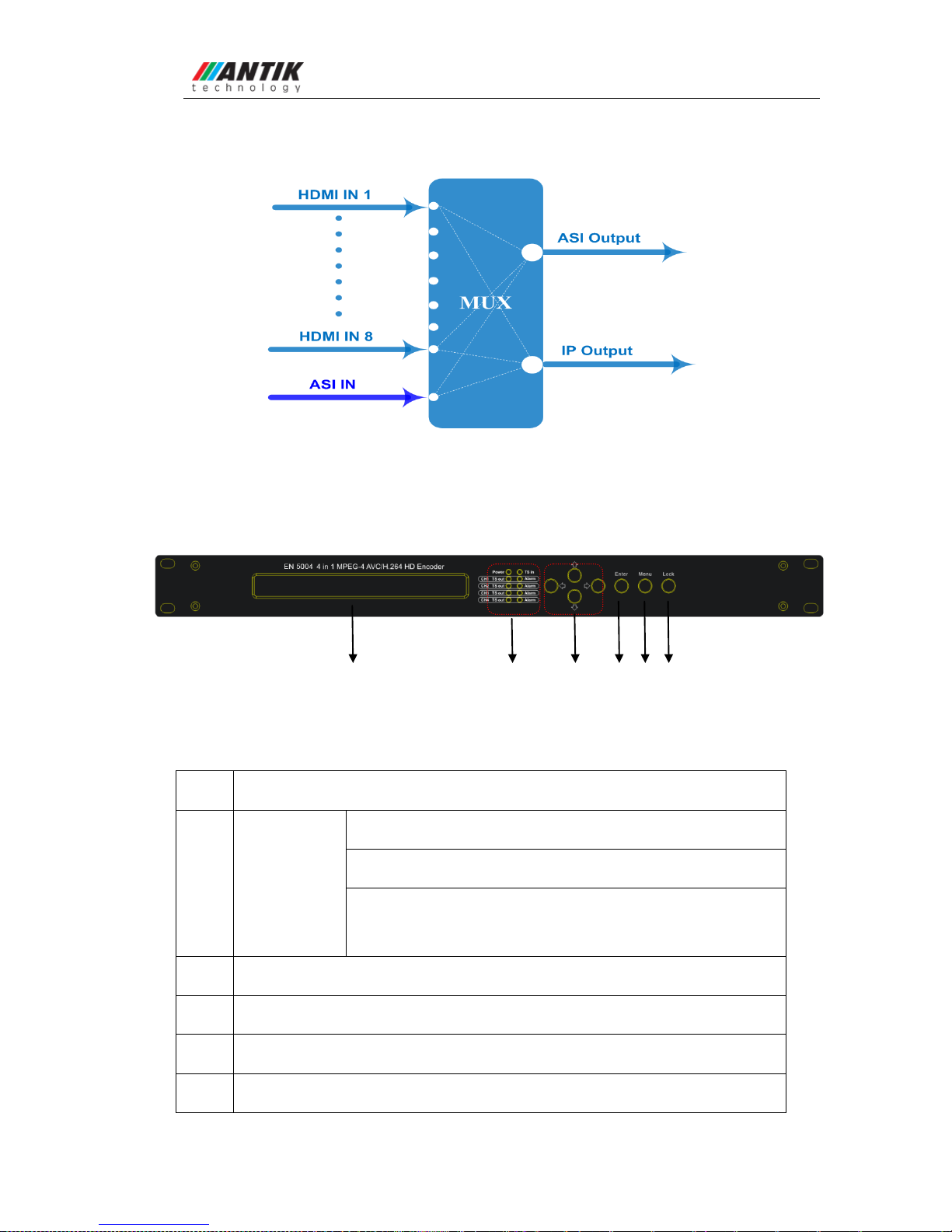

1.4 Principle Chart
1.5 Appearance and Illustration
Front Panel Illustration:
1 2 3 4 5 6
Indicate area: All indicators will light on when the device is on the current working state.
1
LCD Screen
2
Indicators
Power Indicator
TS In: Input Lock Indicator
CH1-CH8: When the program has been multiplexed, the
indicator will be on.
3
UP/ DOWN, LEFT/RIGHT Keys
4
Enter Key
5
Menu Key
6
Lock Key

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
4 / 43
Antik Technology / www.antiktech.com
Rear Panel Illustration:
1 2 3 4 5 6 7
1
8 * HDMI Input Ports
2
ASI Input Port
3
2 * ASI Output Ports
4
Data Port (for IP Signal Output)
5
NMS (Network Management Port)
6
Power Switch and socket
7
Grounding Pole

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
5 / 43
Antik Technology / www.antiktech.com
Chapter 2 Installation Guide
2.1 Acquisition Check
When users open the package of the device, it is necessary to check items according to packing
list. Normally it should include the following items:
EN 5008 8 in 1 MPEG-4 AVC/H.264 HD Encoder
User’s Manual
HDMI Cable
ASI Cable
Power Cord
If any item is missing or mismatching with the list above, please contact local dealer.
2.2 Installation Preparation
When users install device, please follow the below steps. The details of installation will be
described at the rest part of this chapter. Users can also refer rear panel chart during the
installation.
The main content of this chapter including:
Checking the possible device missing or damage during the transportation
Preparing relevant environment for installation
Installing Encoder
Connecting signal cables
Connecting communication port (if it is necessary)
2.2.1 Device’s Installation Flow Chart is Illustrated as following：
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Fixing Device Setting Parameter Running Device
Connecting
Signal Wire
2.2.2 Environment Requirement

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
6 / 43
Antik Technology / www.antiktech.com
Item
Requirement
Machine Hall Space
When user installs machine frame array in one machine hall, the
distance between 2 rows of machine frames should be 1.2~1.5m
and the distance against wall should be no less than 0.8m.
Machine Hall Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Temperature
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps and dual level
glasses for window
Wall
It can be covered with wallpaper, or brightness less paint.
Fire Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires AC
power 220V 50Hz. Please carefully check before running.
2.2.3 Grounding Requirement
All function modules’ good grounding designs are the basis of reliability and stability of
devices. Also, they are the most important guarantee of lightning arresting and interference
rejection. Therefore, the system must follow this rule.
Coaxial cable’s outer conductor and isolation layer should keep proper electric conducting
with the metal housing of device.
Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
Users should make sure the 2 ends of grounding wire well electric conducted and be
antirust.
It is prohibited to use any other device as part of grounding electric circuit
The area of the conduction between grounding wire and device’s frame should be no less
than 25mm2.

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
7 / 43
Antik Technology / www.antiktech.com
2.2.4 Frame Grounding
All the machine frames should be connected with protective copper strip. The grounding wire
should be as short as possible and avoid circling. The area of the conduction between
grounding wire and grounding strip should be no less than 25mm2.
2.2.5 Device Grounding
Connecting the device’s grounding rod to frame’s grounding pole with copper wire.
2.3 Wire’s Connection
The grounding wire conductive screw is located at the right end of rear panel, and the power
switch, fuse, power supply socket is just beside ,whose order goes like this, power switch is on
the left ,power supply socket is on the right and the fuse is just between them.
Connecting Power Cord
User can insert one end into power supply socket, while insert the other end to AC power.
Connecting Grounding Wire
When the device solely connects to protective ground, it should adopt independent way,
say, share the same ground with other devices. When the device adopts united way, the
grounding resistance should be smaller than 1Ω.
Caution:
Before connecting power cord to EN 5008 8 in 1 MPEG-4 AVC/H.264 HD Encoder,
user should set the power switch to “OFF”.
2.4 Signal Cable Connection
The signal connections include the connection of input signal cable and the connection of
output signal cable. The details are as follows:

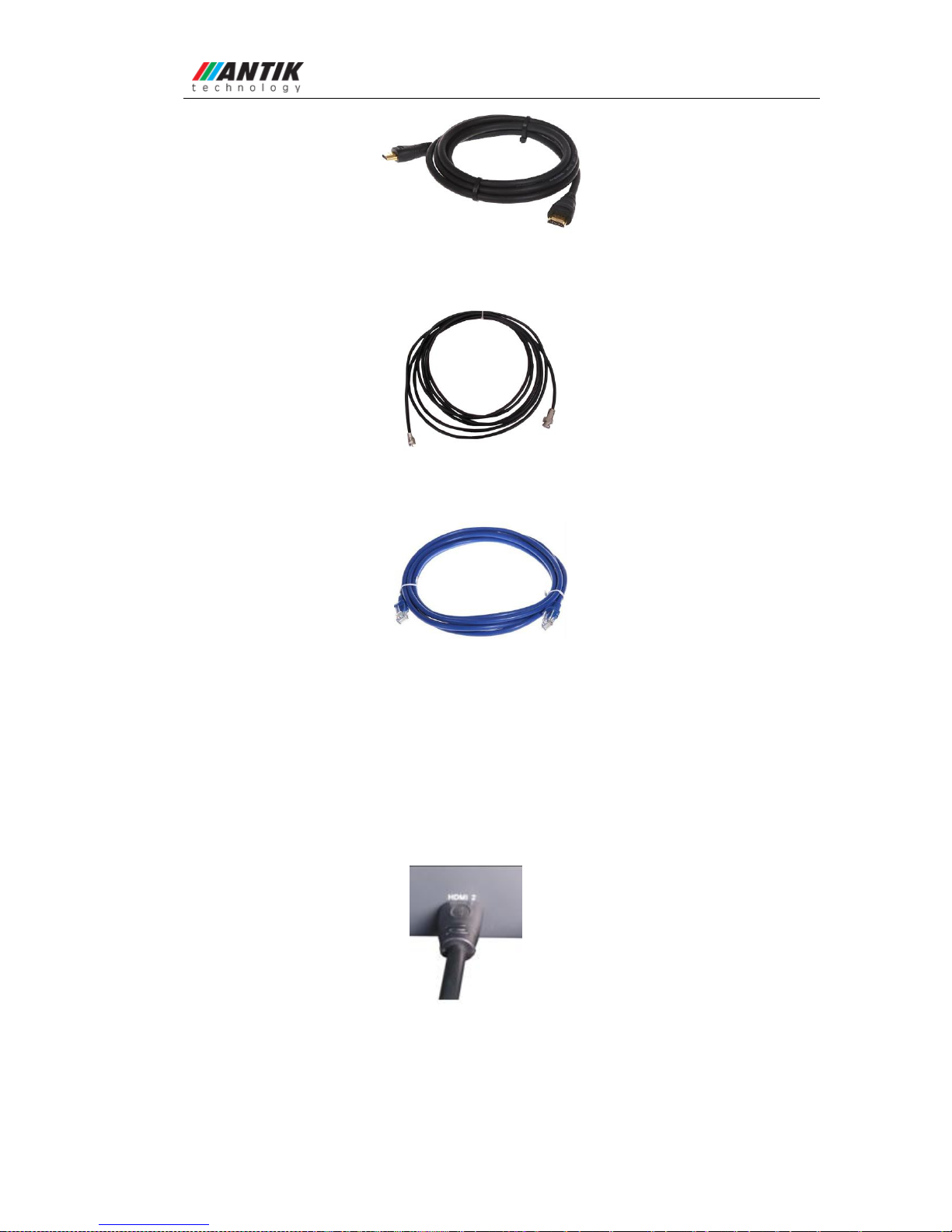

2.4.1 HDMI input cable illustration:

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
8 / 43
Antik Technology / www.antiktech.com
2.4.2 ASI output cable illustration:

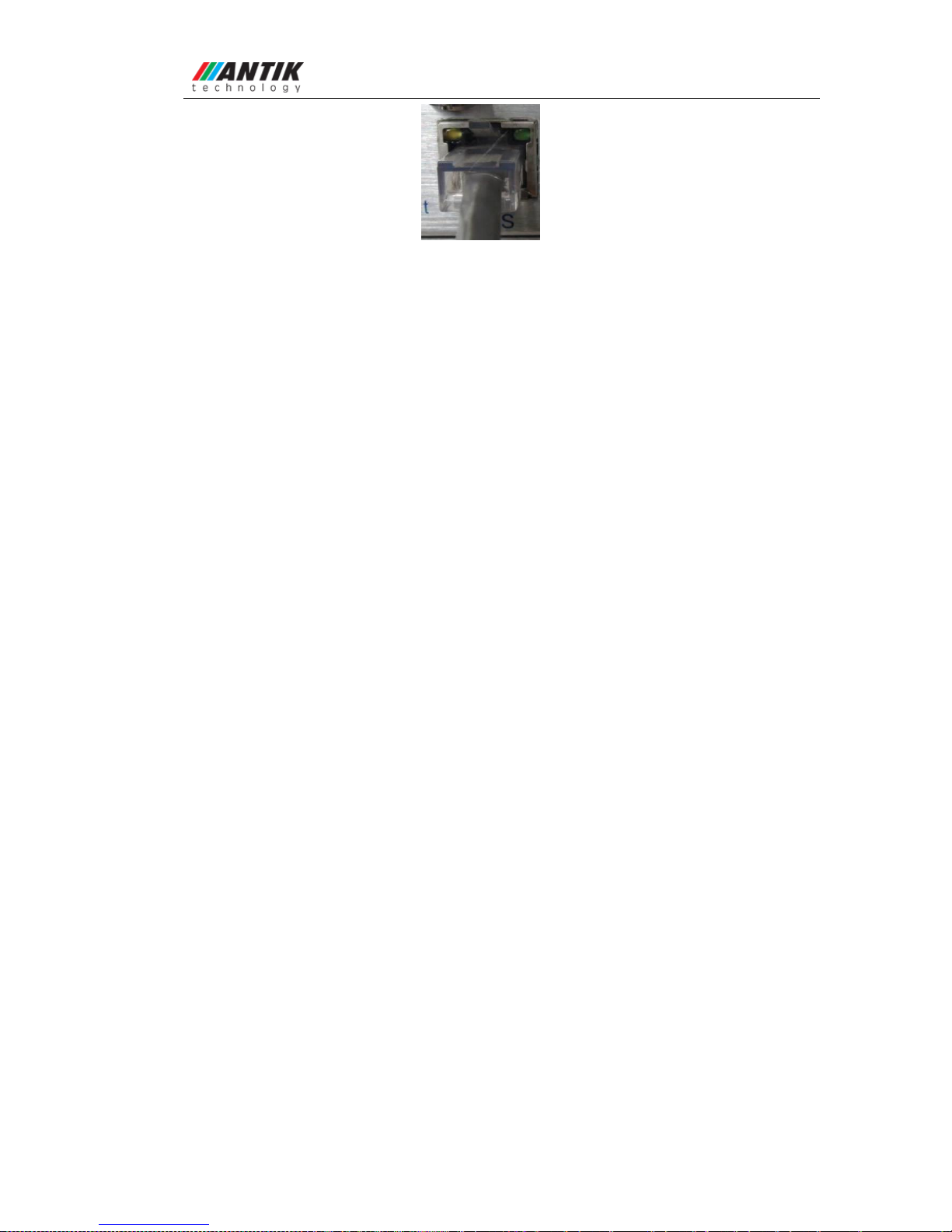

2.4.3 Network Cable illustration (CAT5):
2.4.4 HDMI input interface connection
User can firstly find the HDMI interface on the device according to the connector mark
described on the rear panel illustration, and then connect the HDMI cable (in the accessories).
One end is connected to the head-end equipment while the other end to the encoder’s HDMI
input port. The encoder’s HDMI input port (HDMI1…HDMI8) and its connection are
illustrated as follows:
2.4.5 ASI output interface connection
User can firstly find the ASI output interface on the device according to the connector mark
described on the rear panel illustration, and then connect the ASI cable (in the accessories). One

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
9 / 43
Antik Technology / www.antiktech.com
end is connected to the encoder’s ASI out connector (ASI1, ASI2) while the other end to the TS
stream multiplexer or modulator’s ASI input port. The encoder’s ASI output interface and its
connection are illustrated as follow:
2.4.6 IP Output Interface connection
Users can firstly find the DATA interface on the device according to the connector mark
described on the rear panel illustration, and then connect the network (CAT5). One end of the
network cable is connected to the encoder’s DATA output connector, while the other end to the
TS stream multiplexer IP input port or other device which can input IP signal. The encoder’s
DATA connection is illustrated as follows:
2.4.7 NMS Connection
Users can firstly find the NMS interface on the device according to the connector mark
described on the rear panel illustration, and then connect the network (CAT5). One end of the
network cable is connected to the encoder’s NMS connecter, while the other end to the
computer or the PC. The encoder’s NMS connection is illustrated as follows:

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
10 / 43
Antik Technology / www.antiktech.com

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
11 / 43
Antik Technology / www.antiktech.com
Chapter 3 Operation
EN 5008 8 in 1 MPEG-4 AVC/H.264 HD Encoder’s front panel is user operating interface.
Before operating, user can decide whether directly use the default setting or customize the input
and output parameters setting. The detail operations go as follows:
Keyboard Function Description:
ENTER: Activating the parameters which need modifications, or confirming the change after
modification.
MENU: To cancel presently entered value, resume previous setting and return to previous
menu.
LEFT/RIGHT: To move the “►”to choose or set the parameters.
UP/DOWN: To modify activated parameter or page up/down when parameter is inactivated.
LOCK: To Lock the screen / cancel the lock state. After pressing lock key, the system will
question the users to save present setting or not. If not, the LCD will display the current
configuration state.
At the “Factory Configuration” page, user can press “ENTER” key to restore the factory
default configuration.
3.1 Initializing
After powering on the device，it will take a few seconds to initialize the system, and then the
LCD will show the device name and output real-time bit-rate in the first row, while the 8
channels’ respective input video resolution, frame rate and real-time encoding bit-rate in the
second row in turn. It shows as below:
8 in 1 Encoder 65.958 Mbps
1 480I 60 08.235M 2 480I 60 08.241M
3.2 General Setting
By pressing LOCK key, users can enter in the main menu and set the input and output

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
12 / 43
Antik Technology / www.antiktech.com
parameters in the following editing interfaces, the LCD will display the following pages:
►1 Input Setting 2 ASI Setting
3 Output Setting 4 Network Setting
►5 Saving Config 6 Loading Config
7 Version （SNMP）8 Language
The option with “►” is the current selection, users can press the ENTER key to enter the
specified submenu to modify the device parameter.
3.2.1 Input Setting
Under this menu, users can enter the corresponding encoding channel to set the relevant audio
and video input parameters, and select programs to multiplex. The LCD will display 8
submenus which from Encoding Channel 1 to Encoding Channel 8. The setting principle is the
same for Encoding Channel 1-8, so here this manual just takes one channel as the example to
explain. After pressing the enter key, the LCD will display the following pages:
►1.1 Encoder 1 1.2 Encoder 2
1.3 Encoder 3 1.4 Encoder 4
►1.5 Encoder 5 1.6 Encoder 6
1.7 Encoder 7 1.8 Encoder 8
After users enter the submenu, the interface will turn into the following pages, and then users
can enter the corresponding interface to modify the parameters.
►1.1.1 Video 1.1.2 Audio
1.1.3 System 1.1.4 PG Muxer
3.2.1.1 Video Setting
►1.1.1.1 Bitrate 1.1.1.2 BitrateMod
1.1.1.3 Profile 1.1.1.4 Level
Bitrate

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
13 / 43
Antik Technology / www.antiktech.com
By press “Enter”key, user can modify relevant parameter of encoding rate (adjustable range:
0.8M~19M), the specific steps are displayed as follows:
Bitrate Mode
User can choose CBR & VBR at this menu. CBR (Constant Bit-rate) means that the bit-rate
will be a constant value. VBR (Variable Bit-rate) means that the bit-rate will always change
along with the video scene changing.
Profile
User can select the configuration of H.264 profile at this menu. There are H.264 High Profile
code format and main Profile code format.
Level
User can select the H.264 level at this menu. The option with bracket is the current choice.
3.2.1.2 Audio Setting
1.1.1.1 Bitrate
8.000Mbps
1.1.1.2 BitrateMod 01/01
[CBR] VBR
1.1.1.3 Profile 01/01
[HIGH] MAIN
1.1.1.4 Level 01/03
[1.2] 1.3 2.0 2.1
1.1.1.4 Level 02/03
[2.2] 3.0 3.1 3.2
1.1.1.4 Level 03/03
[4.0] 4.1 4.2

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
14 / 43
Antik Technology / www.antiktech.com
Audio Bit Rate Setting
User can set the input audio bit-rate by pressing the enter key to enter the main editing interface.
And there are: 64Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256 Kbps,
320Kbps, and 384Kbps. After the modification, users can press enter key again to take the
modification into effect. The LCD will display the following pages:
1.1.2.1 Bit-rate 01/03
64 Kbps 96Kbps 112Kbps [128Kbps]
1.1.2.1 Bit-rate 02/03
160 Kbps 192Kbps 224Kbps [256Kbps]
1.1.2.1Bit-rate 03/03
320Kbps384Kbps
Audio Format Setting
AAC: Advanced Audio Coding
Users can set the input audio format in this interface, and the 3 options are MPEG1 Layer Ⅱ,
LC-AAC, and HE-AAC. When users enter the main editing menu, the LCD will display the
following page:
1.1.2.2 Format 01/02
[MPEG1-Layer Ⅱ] LC-AAC
1.1.2.2 Format 02/02
[HE-AAC]
3.2.1.3 System Settings
1.1.2.1 Bit Rate 1.1.2.2 Format
►1.1.3.1 Prog Number 1.1.3.2 Video PID
1.1.3.3 Audio PID 1.1.3.4 PMT PID

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
15 / 43
Antik Technology / www.antiktech.com
Under this interface, users can set the corresponding system parameters, after the modification,
users can press enter key to take the modification into effect.
Program Number Setting
Users can set the program number by pressing ENTER to enter this submenu. The LCD will
display as below:
Video/Audio/PMT/PCR PID Settings
Users can set these parameters by pressing ENTER to enter these submenus. The LCD will
display the following pages, and the maximum PID number cannot exceed 0x1fff.
1.1.3.2 Video PID
0x0101
1.1.3.3 Audio PID
0x0102
1.1.3.4 PMT PID
0x0100
1.1.3.5 PCR PID
0x0101
IP Enable
►1.1.3.5 PCR PID 1.1.3.6 IP Enable
1.1.3.7 Out Address 1.1.3.8 Out Port
►1.1.3.9 Null PKT
1.1.3.1 Program Number
0x0101
1.1.3.6 IP Enable 01/01
YES [NO]

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
16 / 43
Antik Technology / www.antiktech.com
Out Address/Out Port Setting
User can modify the out address and out port in below interfaces.
Null Packet
Users can choose YES (filter the null packet) or NO (don’t filter null packet) to decide whether
to filter the null packet or not.
3.2.1.4 Program Mux Setting
Users can decide whether to open the multiplexing function of the device.
Channel Mux
Under this interface, users can decide whether to multiplex the channel encoding stream. YES
means that the device multiplexes the encoding stream into the MPTS, while NO means that the
output program is SPTS. The LCD will display the following pages after pressing enter key.
1.1.4.1 Channel Mux 01/01
[ YES] NO
3.2.2 ASI Setting
Users can check the ASI input program amount in this interface, and the LCD will display the
following page. Prog: 006 represents the input program is 6 and Out:003 represents 3 of the 6
programs have been multiplexed.
1.1.3.7 Out Address
224.002.002.002
1.1.3.8 Out Port
1002
1.1.3.9 Null Packet 01/01
YES [NO]

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
17 / 43
Antik Technology / www.antiktech.com
►2.1 Parse ASI Prog
3.2.3 Output Setting
By press the enter key in the main editing interface, use can set the device output parameter.
The device will display the following page after users pressing the enter key.
3.2.3.1 IP Out Enable
This is the new function of this encoder, user can decide whether to open the IP output function
by press the ENTER key in this menu, and the operating interface will show the following
page:
►3.1 IP out Enable
[ YES] NO
3.2.3.2 IP Out Address
If users enable the IP output function, then users can set the device IP output address in this
interface. After users press the ENTER key, the operating interface will display the following
page:
►3.2 IP Out Address
224.002.002.002
2.1 Parse ASI Prog Prog: 006 Out: 003
►001 HK1 √002 HK2 X
►3.1 IP Out Enable 3.2 IP Out Address
3.3 IP Out Port 3.4 Trans Stream ID
►3.5 Output Stream 3.6 ASI Output
3.7 UTC Time Config 3.8 Null PKT
►3.9 TS Package Num

EN 5008 8-in-1 MPEG-4 AVC/H.264 HD User’s Manual
18 / 43
Antik Technology / www.antiktech.com
3.2.3.3 IP Out Port
In this menu, users can set the encoder IP output port number by press the ENTER key to enter
the main editing interface.
►3.3 IP Out Port
01001
3.2.3.4 Trans Stream ID
Users can set the device TS ID in this interface after pressing the ENTER key to enter the main
editing page.
►3.4 Trans Stream ID
00000
3.2.3.5 Output Stream
Users can modify the bit rate of output stream in this interface after pressing the ENTER key to
enter the main editing page.
3.2.3.6 ASI Output
Users can set the ASI output in this interface under this menu, and there are 9 options: MPTS,
Channel 1-8.
3.2.3.7 UTC Time
UTC refers to Universal Time Coordinated. User can enter this menu to set the time as needed
and it will then generate the TDT table and show in the user’s STB.
3.5 Output Stream
040.000 Mbps
3.6 ASI Output 01/03
[MPTS] Channel 1 Channel 2 Channel 3
3.7 UTC Time Configuration
2012-01-29 15:45:03
