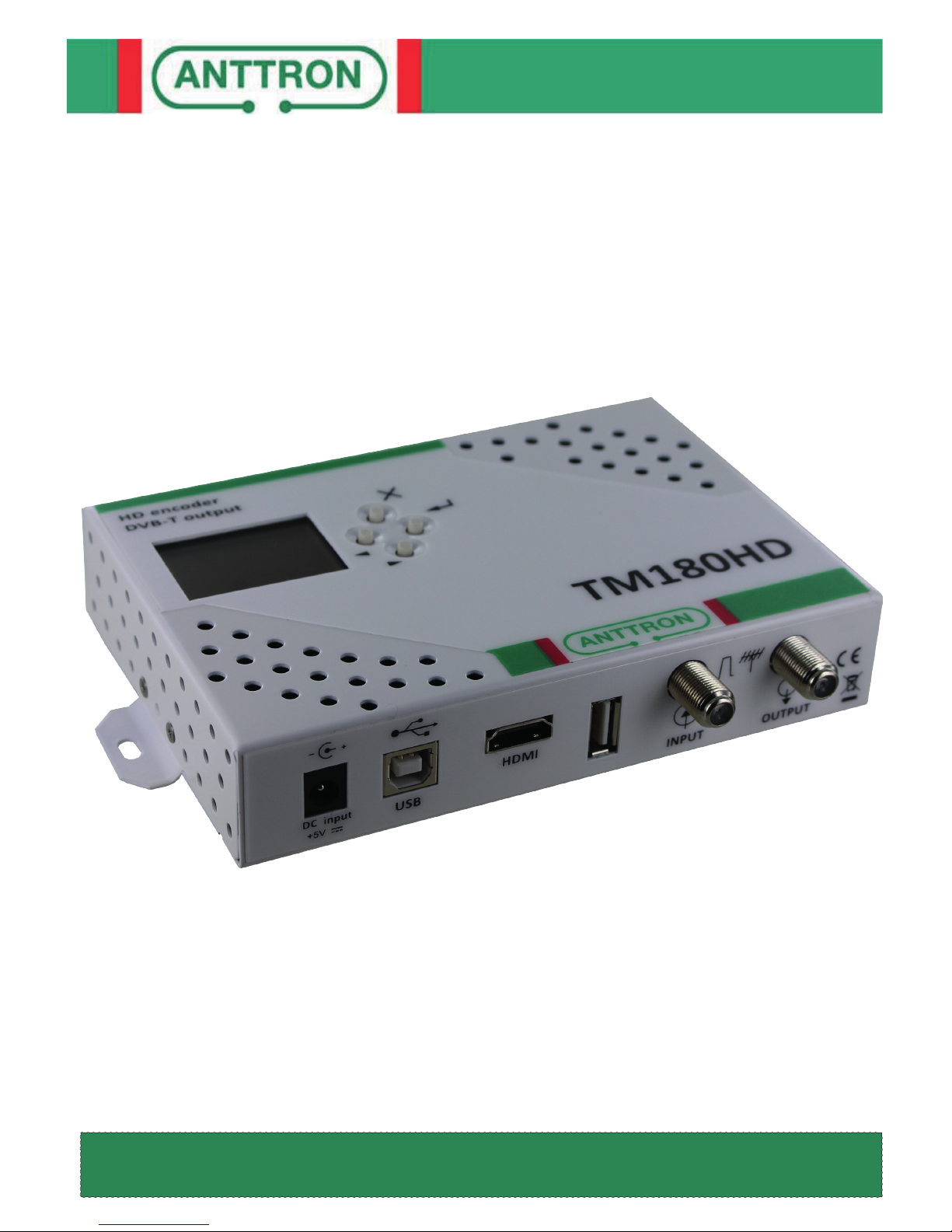

Anttron TM180HD User manual
TM180HD
USER MANUAL V1.0
HD encoder
DVB-T out
USER MANUAL
TM180HD
PAGE 2
ANTTRON ©2014
Contents
1 - Safety considerations.............................................................................3
2 - Description of the different elements........................................................4
3 - Installation and menu structure...............................................................5
3.1 - Installation ........................................................................................5
3.2 - Powering up.......................................................................................5
3.3 - Menu structure...................................................................................6
4 - Setting up the TM180HD ........................................................................7
4.1 - The DVB settings menu .......................................................................7
4.2 - The AV settings menu ........................................................................8
4.3 - The TS settings menu ........................................................................8
4.4- The language menu .............................................................................9
4.5 - Default configuration...........................................................................9
5 - Programming using a PC ...................................................................... 10
6 - Technical specifications ........................................................................ 11
Congratulations on your purchase of the TM180HD !
This ‘state of the art’ product, is a HD encoder. The video and audio input or taken
from HDMI.
After compressing the video into H264 and audio in AAC or MPEG1-L2, the output is
available as DVB-T signal.
Stand-alone conguration is made easy through 4 tact switches and ergonomic
menu’s. To make the conguration of the TM180HD ultra simple, a special software
TMHDIface is available that you can download on our website anttron.com
USER MANUAL
PAGE 3
ANTTRON ©2014
TM180HD
1 - Safety considerations
1.1 CONNECTING TO THE MAINS SUPPLY
This product has to be connected to the mains supply. If there is the slightest doubt concerning the
type of connection available on the installation, please contact your supplier of electricity. Before car-
rying out maintenance operation or modication of the installation, the modulator has to be discon-
nected. Remark : only use the supplied power adaptor.
1.2 OVERVOLTAGE
An overvoltage on the mains supply,can cause shortcircuits or re. Never overload the power lines.
1.3 LIQUIDS
This module should be protected from splashes. Please assure yourself that no containers containing
liquids are placed on this module. Also be aware of other persons splashing liquids on the module.
1.4 CLEANING
Disconnect the module before cleaning. Use only a humid cloth without solvant.
1.5 VENTILATION
In order to assure an adequate air circulation and to prevent overheating, the ventilation holes should
not be obstructed. The module may not be installed in a hermetically sealed environment. Other elec-
tronic products or heat producing items may not be placed upon or near the module.
1.6 ACCESSORIES
The use of accessories not manufactured by the manufacturer can cause damage to the module.
1.7 INSTALLATION OF THE MODULE
The module must be installed in a place well protected from direct sunlight. All measures have to be
taken to avoid installation in humid or sunny place.Do not install near heating elements or other devic-
es producing heat. Assure yourself that the module is placed at least 10 cm from other equipment with
is susceptible to electromagnetic radiation. Do not install the module on instable items. A fall can cause
physical or material damage.
USER MANUAL
PAGE 4
ANTTRON ©2014
2 - Description of the different elements
A1 Display
T1 CANCEL/RETURN button
T2 ENTER button
T3 u(move forward/down) button
T4 t (move backward/up) button
TM180HD
T1
T2
T3
A1
C1 C2 C3 C4C6
C1 Power supply input (5V/2A)
C2 USB input (for programming
the TM180HD by PC)
C3 RF input
C4 RF output
C5 for future use
C6 HDMI input
C5
T4
USER MANUAL
PAGE 5
ANTTRON ©2014
3 - Installation and menu structure
3.1 - Installation
Connect the audio and video source using a HDMI cable. Connect the RF input cable (if present)
and the RF output cable. If the RF input is not used, please connect a 75 ohm terminating resistor
to it. Once the modulator installed and the cables connected, please proceed connecting the power
supply to the modulator.
3.2 - Powering up
Plug in the connector of the power supply. The display will show the ANTTRON logo while booting.
Once the modulator has booted correctly the main menu will appear.
In the rst line the model number is displayed (TM180HD) followed by the installed rmware ver-
sion.
TM180HD
TM180HD 1.5
DVB SETTINGS
A/V SETTINGS
TS SETTINGS
LANGUAGE
USER MANUAL
PAGE 6
ANTTRON ©2014
TM180HD
FREQUENCY
BANDWIDTH
ATTENUATION
MODE
CONSTELLATION
F.E.C.
GUARD INTERVAL
DVB SETTINGS
VIDEO RATE
AUDIO RATE
AUD. COMPRESSION
A/V SETTINGS
NET ID.
ORIG. NET. ID.
NETWORK NAME
TS ID.
PROGRAM ID.
LCN ID.
L.C.N.
SERVICE NAME
PMT PID
VIDEO PID
AUDIO PID
TS SETTINGS
FRANCAIS
ENGLISH
ITALIANO
DEUTSCH
ESPANOL
POLSKI
LANGUAGE
DVB SETTINGS
A/V SETTINGS
TS SETTINGS
LANGUAGE
DEFAULT CONFIG.
MAIN MENU
In order to go from one menu to the other use the MOVE UP/DOWN keys to select the menu
option. Press the ENTER button to select this option. Press the CANCEL button to go back to the
previous menu.
To set parameters, whether you have the option to select a specic value. In the other case some
number or text string should be entered. In that case, use the buttons uand tto move to the
desired character and press the ENTER button to conrm. Please note the following SPECIAL
CHARACTERS :
8conrm the modied value / Xerase all / f backspace
bc move cursor back or forward

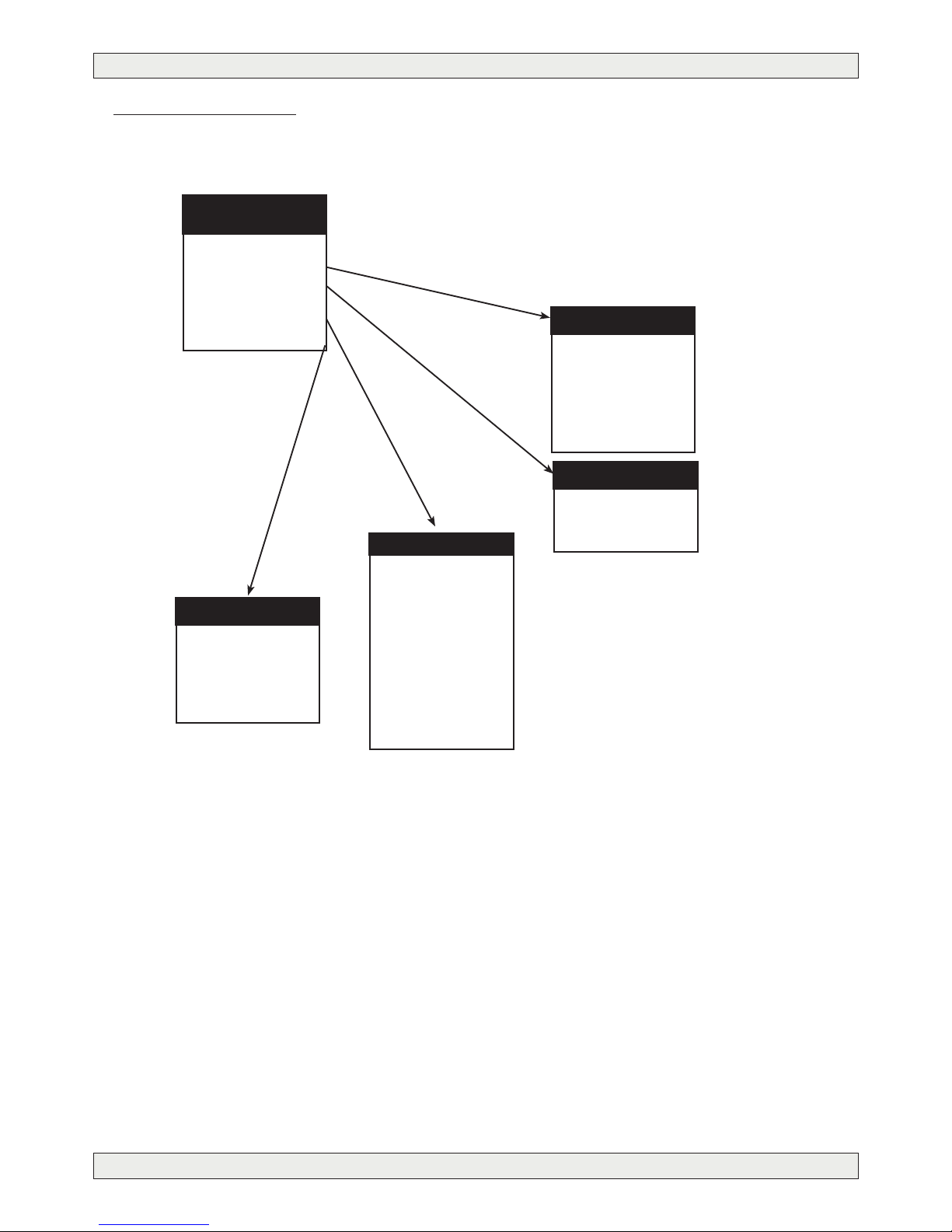

3.3 - Menu structure
The TM180HD has dierent menus allowing easy access to the dierents parameters and to
change them when necessary. Below you will nd the structure of the dierent menus.
4 - Setting up the TM180HD
USER MANUAL
PAGE 7
ANTTRON ©2014
TM180HD

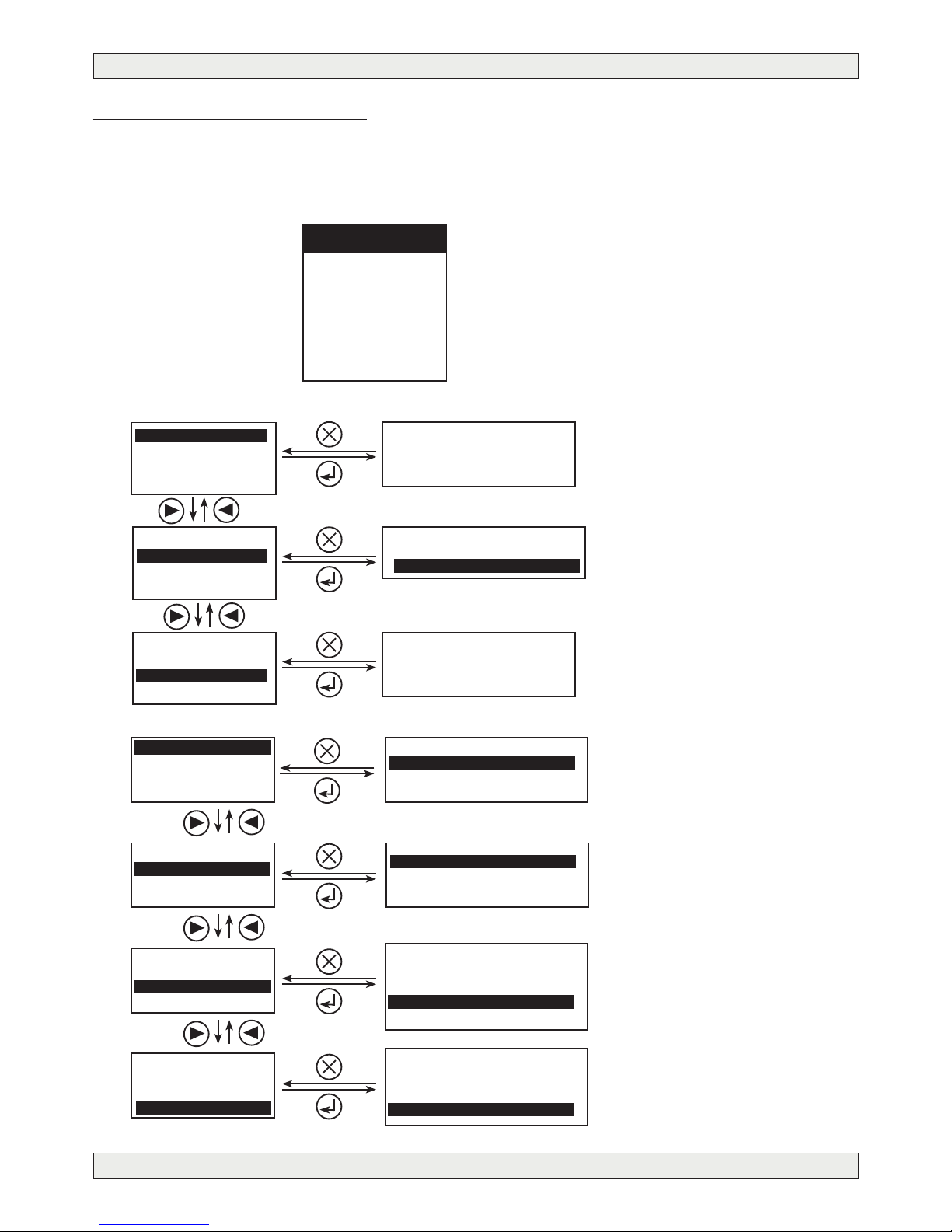

4.1 - The DVB settings menu
FREQUENCY
BANDWIDTH
ATTENUATION
MODE
CONSTELLATION
F.E.C.
GUARD INTERVAL
DVB SETTINGS
In this menu you can set the output frequency, bandwidth, output level and specic param-
eters for DVB-T.
FREQUENCY
474000_kHz
8Xfbc0123456789
6 MHz
7 MHz
8 MHz
ATTENUATION
0_ dB
8Xfbc0123456789
FREQUENCY
BANDWIDTH
ATTENUATION
MODE
FREQUENCY
BANDWIDTH
ATTENUATION
MODE
FREQUENCY
BANDWIDTH
ATTENUATION
MODE
Set the output frequency
Select the bandwidth
Set the output level
MODE
CONSTELLATION
F.E.C.
GUARD INTERVAL
2K
8K
MODE
CONSTELLATION
F.E.C.
GUARD INTERVAL
MODE
CONSTELLATION
F.E.C.
GUARD INTERVAL
MODE
CONSTELLATION
F.E.C.
GUARD INTERVAL
QPSK
QAM16
QAM64
1/2
2/3
3/4
5/6
7/8
1/4
1/8
1/16
1/32
Select the mode
Select the constellation
Select the F.E.C.
Select the Guard Interval
USER MANUAL
PAGE 8
ANTTRON ©2014
TM180HD
4.2 - The AV settings menu
In the A/V settings menu, you can set specic parameters for video and
audio.
VIDEO RATE
AUDIO RATE
AUD. COMPRESSION
VIDEO RATE
AUDIO RATE
AUD. COMPRESSION
192 Kb/s
256 Kb/s
320 Kb/s
384Kb/s
Select the audio bitrate
VIDEO RATE
12000_
8Xfbc0123456789
Set the video bit rate
4.3 - The TS settings menu
This menu allows you to adjust specic parameters of the transport
stream.
NET ID.
ORIG. NET. ID.
NETWORK NAME
TS ID.
PROGRAM ID.
LCN ID.
L.C.N.
SERVICE NAME
PMT PID
VIDEO PID
AUDIO PID
TS SETTINGS
VIDEO RATE
AUDIO RATE
AUD. COMPRESSSION
VIDEO RATE
AUDIO RATEH264
AUD. COMPRESSION
AAC-LC
MPEG1-L2 Select the compression type
NET ID.
ORIG. NET. ID.
NETWORK NAME
TS ID.
NET ID.
27_
8Xfbc0123456789
Set the Network ID.
NET ID.
ORIG. NET. ID.
NETWORK NAME
TS ID.
ORIG. NET ID.
27_
8Xfbc0123456789
Set the Original Network ID.
NET ID.
ORIG. NET. ID.
NETWORK NAME
TS ID.D.
NETWORK NAME
NoName_
8Xfbc0123456789
Set the NETWORK NAME
USER MANUAL
PAGE 9
ANTTRON ©2014
TM180HD
NET ID.
ORIG. NET. ID.
NETWORK NAME
TS ID.
TS ID.
100_
8Xfbc0123456789
Set the Transport Stream ID.
ORIG. NET. ID.
NETWORK NAME
TS ID.
PROGRAM ID.
PROGRAM ID
1_
8Xfbc0123456789
Set the PROGRAM ID.
NETWORK NAME
TS ID.
PROGRAM ID.
LCN ID.
EACEM
ITC Select the LCN ID.
TS ID.
PROGRAM ID.
LCN ID.
L.C.N.
Set the LCN number.
L.C.N.
1_
8Xfbc0123456789
PROGRAM ID.
LCN ID.
L.C.N.
SERVICE NAME
Set the Program Name.
SERVICE NAME
Chan A_
8Xfbc0123456789
LCN ID.
L.C.N.
SERVICE NAME
PMT PID
Set the VIDEO PMT
VIDEO PMT
32_
8Xfbc0123456789
L.C.N.
SERVICE NAME
PMT PID
VIDEO PID
Set the VIDEO PID
VIDEO PID
48_
8Xfbc0123456789
SERVICE NAME
PMT PID
VIDEO PID
AUDIO PID
Set the AUDIO PID
AUDIO PID
49_
8Xfbc0123456789
4.4- The language menu
4.5 - Default configuration
When selecting this option, all your modications will be lost, and the default fac-
tory settings will be restored.
Select in this menu your preferential language.
USER MANUAL
PAGE 10
ANTTRON ©2014
TM180HD
5 - Programming using a PC
The settings of the TM180HD can also be changed using a PC.
First, please install the software TMHDIFace on your PC. You can download this software from our
internet site anttron.com
After installation of this software, connect the TM180HD using a USB cable (not included) to your per-
sonal computer. Then launch the program TMHDIface.
On the display of the TM180HD the message <USB> appears, indicating that the programming is now

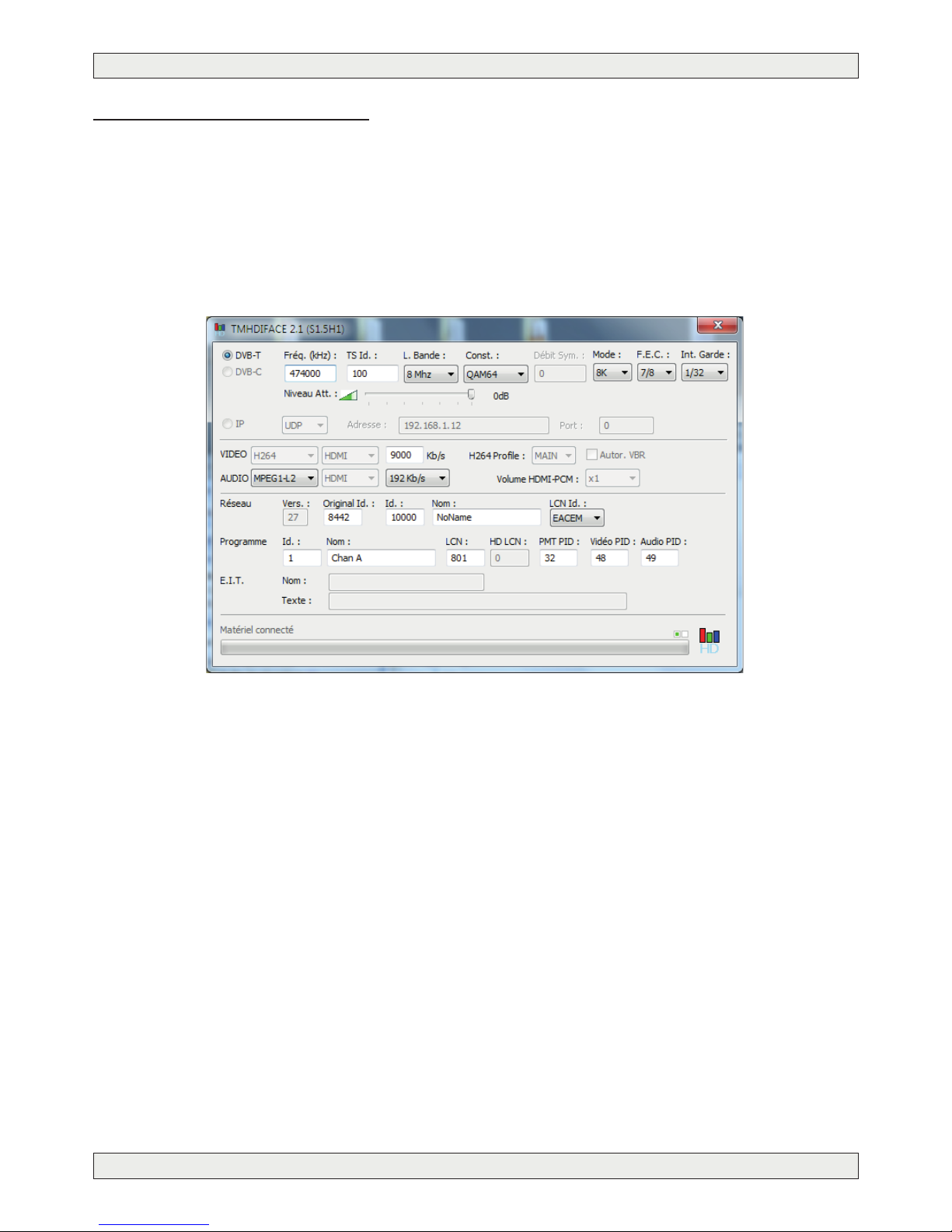

performed through your PC. The following window appears on your screen.
Now, all parameters discussed in Chapter 4 of this user manual can be modied by TMHDIface.
USER MANUAL
PAGE 11
ANTTRON ©2014
TM180HD
6 - Technical specifications
Video input Input HDMI
Resoluon modes 480p -576p -720p - 1080i - 1080P
Compression H.264 – bitrate 5-15 Mb/s
Audio input Input HDMI
Sample Rate HDMI (32kHz / 44.1 kHz / 48 kHz)
Compression AAC-LC / MPEG1-L2– bitrate 128-384 Kb/s
DVB Processing Table inseron PAT, PMT, SDT, NIT
Conguraon Channel/network name, SID, LCN, TSID, ONID, NID, versions, audio, video PIDs…
DVB-T output Output frequency / level 170-230 MHz + 470-862 MHz / > 85 dBµV
Constellaon - FEC QPSK/16QAM/64QAM - 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/4, 1/8, 1/16, 1/32
Mode - MER 2K/8K - 31 dB
Power DC 2.1 mm connector +5V
Consumpon 10 Was
Dimensions LxWxH 150x130x35mm
Weight 0.6 kg
EAN code TM180HD 5420037691807
