Anttron TMX170HD User manual

TMX170HD
HD Encoder
DVB-T/C out
HDMI loop
USER MANUAL V1.0

USER MANUAL
TMX 170 HD
PAGE 2
ANTTRON©2021
Important notice
The information contained in this manual is provided subject to errors and changes! The
warranty does not cover damage resulting from the incorrect use of the information contained
in this manual.
The CE symbol on the device guarantees the compliance of the product with the
European Directives on safety, and electromagnetic compatibility. The relative
certificate of conformity can be requested from:
Anttron nv, Industrielaan 37, B-8820 Torhout
The crossed-out bin symbol shown on the equipment indicates that the product at
the end of its useful life must be collected separately from other waste.
Safety warnings and installation instructions
1) CONNECTING TO THE MAINS SUPPLY
100-240V AC, 50/60 Hz
Connect this product only to a power supply having the characteristics indicated on its label.
Disconnect the product from the power supply before carrying out any maintenance or
connection procedures.
2) ELECTRIC OVERLOAD
In the event of an overload of the power supply network, there is a risk of short circuits and
fire. The power cables must therefore never be overloaded.
3) LIQUIDS
The product must be protected from liquid infiltration. Make sure that no container of liquids
is placed on the product and that it is not subject to any kind of splashing.
4) CLEANING
Before cleaning the product, it must be disconnected from the power supply. Use only a
damp cloth, without adding solvents or detergents.
5) ACCESSORIES
Use only original accessories from the manufacturer. Otherwise, the product may be
damaged.
6) INSTALLATION
The product must be installed in an environment well protected from liquid infiltrations and
must never be subjected to direct solar radiation and other heat sources. Make sure it is
placed at a minimum distance of 10 cm from other devices sensitive to electromagnetic
radiation. To avoid possible damage to the product, mount it only on flat and stable surfaces.
Use the product only indoors, it is not suitable for outdoor use.

USER MANUAL
PAGE 3
ANTTRON©2021
TMX 170 HD
7) VENTILATION AND INSTALLATION
To ensure optimal ventilation and thus avoid overheating of the product, the ventilation holes
must never be covered.
Mount the product so that there is a minimum distance of 15 cm from the four sides, the front
panel with the ventilation holes and other objects. In any case, the product must be installed
in such a way as to guarantee the maximum possible natural ventilation (see illustration on
page 5). Make sure that the product is not installed either in hermetically sealed places or
near heat sources or other electronic equipment.
Use the special supports for wall mounting.
Warranty
The manufacturer warrants that this product is free from defects in construction or material
under conditions of permitted use. The warranty covers a period of twenty-four months, subject
to compliance with the instructions for use and maintenance. The warranty starts from the date
of purchase of the device from the retailer.
Conditions of warranty
1. The warranty is limited to defects in material and construction. This excludes:
- periodic checks, calibrations, software updates, maintenance, replacement of parts subject to
normal wear;
- damage caused by accidents, negligence, modifications, improper use or improper installation
- damage caused by lightning, surges, liquids, fire, acts of war, vandalism,
incorrect / insufficient or absent soil, insufficient ventilation or other causes not attributable
to the manufacturer;
- damage caused by repairs carried out by unauthorized service centers /
unauthorized persons and / or the use of non-original spare parts;
- products on which the label bearing the serial number has been removed or made illegible;
- travel expenses and costs arising from the uninstallation / installation of the appliance.
2. Expenses arising from warranty repairs carried out by non-service centers
or by unauthorized persons are not reimbursed.
3. All expenses related to interventions and requests for which there is no product defect
are the responsibility of the user. This also applies to charges related to the installation and
explanation of the rules of use of the appliance.
4. The manufacturer declines any liability related to indirect or consequential loss of
accessories or damage caused to them.
5. These warranty conditions do not affect the rights provided in favor of the
consumer according to the provisions of the Consumer Code (Legislative Decree 206/2005)
or other national legislative provisions.
LIABILITY DISCLAIMER
This document is based on information available at the time of its publication. Although every
effort has been made to ensure the accuracy of the content, the information contained therein
is not intended to describe all the details or variations of the hardware and / or software, nor
to cover any possible eventuality regarding installation and maintenance. The manual may
describe functions that are not present in every hardware and / or software. The
manufacturer assumes no obligation to notify the owners of this document regarding
subsequent ch
FEATURES AND INFORMATION CONTAINED IN THIS MANUAL ARE SUBJECT TO CHANGE
WITHOUT NOTICE.

USER MANUAL
TMX 170 HD
PAGE 4
ANTTRON©2021
2 - Description of the different elements
C1
C2
C3
Power supply input (5V/2A)
USB input (PC programming)
HDMI input
C1 C2
A1
T1 T2 T3
C3 C4
C6
C5
A1 Display
T1 ENTER
T2 LEFT/BACK
T3 RIGHT/FORWARD
15 cm
15 cm
15 cm
15 cm
15 cm
C4
C5
C6
HDMI output
RF output
RF input (loop)
loop

USER MANUAL
PAGE 5
ANTTRON©2021
TMX 170 HD
3 - Software settings :
The TMX170HD has a quick menu to allow for quick basic settings. For advanced settings an advanced menu is
available.
3.1 - Quick menu :
To enter the quick menu please push following sequence of buttons
When entered succesfully, the quick menu comes accessible, use the buttons
to move between the different menu options.
Click and hold the button
to change the value for that option. Changes are automatically saved.
TMX170HD 42.0
MODULATION
TMX170HD 42.0
CHANNEL
TMX170HD 42.0
ATTENUATION
TMX170HD 42.0
COUNTRY
TMX170HD 42.0
L.C.N.
TMX170HD 42.0
TS ID.
TMX170HD 42.0
LANGUAGE
TMX170HD 42.0
DEFAULT CONFIG.
TMX170HD 42.0
EXIT
Choose the type of modulation
Choose the output channel
Set the output level
Change the country
Change the LCN number
Change the TS ID
Change the language
Return to factory default
Leave this menu
TMX170HD 42.0
DVB-T
TMX170HD 42.0
21 (474 MHz)
TMX170HD 42.0
5 dB
TMX170HD 42.0
[ITALY]
TMX170HD 42.0
790
TMX170HD 42.0
100
TMX170HD 42.0
ENGLISH
TMX170HD 42.0
[YES]
TMX170HD 42.0
[YES]
to select a menu option and use the buttons

USER MANUAL
TMX 170 HD
PAGE 6
ANTTRON©2021

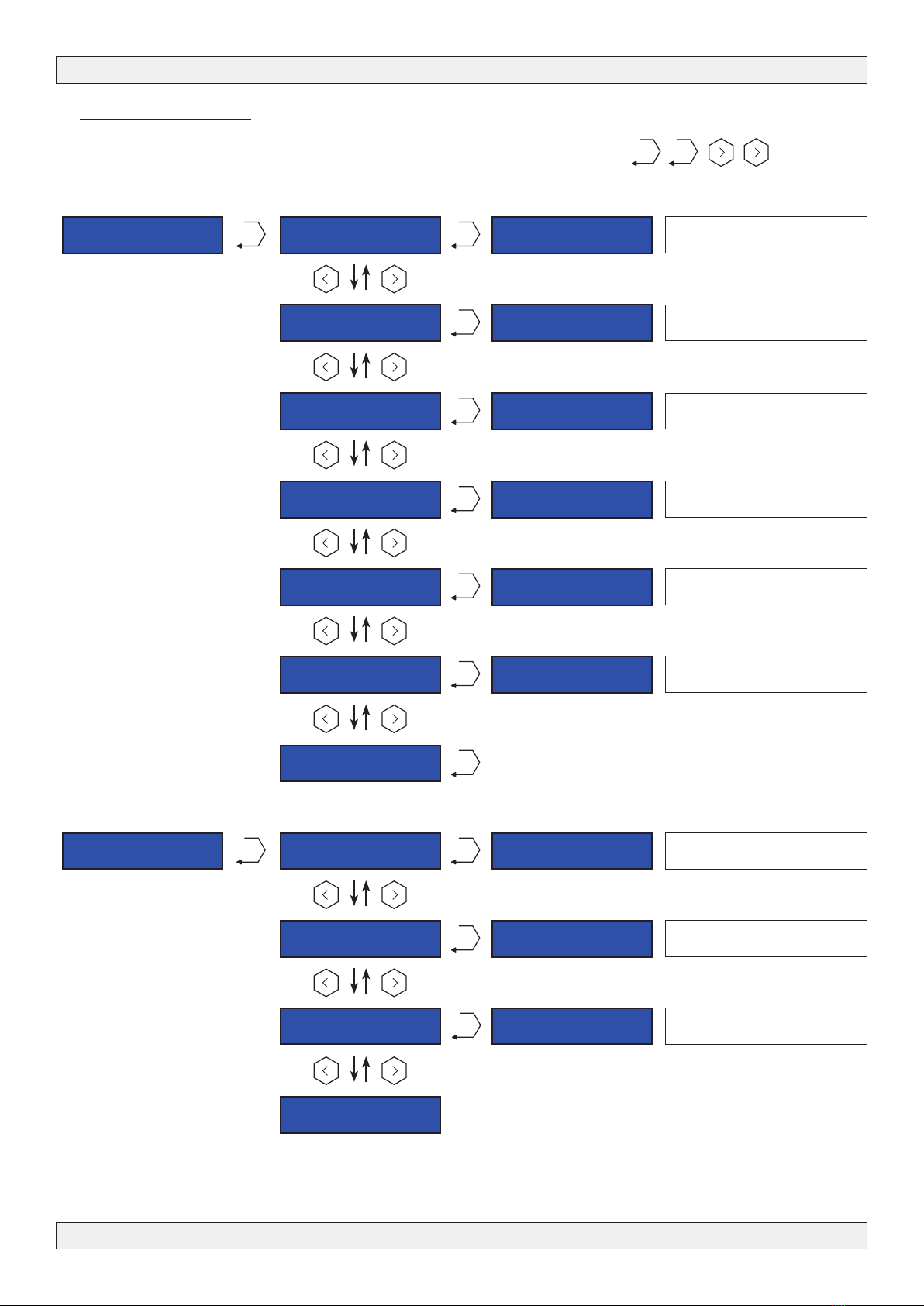

3.2 - Advanced menu
To enter the advance menu please press the following sequence of buttons
TMX170HD 42.0
DVB SETTINGS
TMX170HD 42.0
A/V SETTINGS
TMX170HD 42.0
FREQUENCY
TMX170HD 42.0
BANDWIDTH
TMX170HD 42.0
CONSTELLATION
TMX170HD 42.0
F.E.C.
TMX170HD 42.0
GUARD INTERVAL
TMX170HD 42.0
MODE
TMX170HD 42.0
EXIT
TMX170HD 42.0
VIDEO RATE
TMX170HD 42.0
AUDIO RATE
TMX170HD 42.0
AUD. COMPRESSION
TMX170HD 42.0
EXIT
TMX170HD 42.0
474000 KHz Set the output frequency
Set the bandwidth
6,7 or 8 MHz
Set the constellation
QPSK, QAM16 or QAM64.
Select the F.E.C. 1/2,
3/4, 5/6 or 7/8
Set the guard interval 1/2, 1/4,
1/8,1/16 or 1/32
Set the mode 2K or 8K
Set the video rate
Set the audio rate
Set the audio compression
TMX170HD 42.0
[8 MHz]
TMX170HD 42.0
[QAM64]
TMX170HD 42.0
[7/8]
TMX170HD 42.0
[1/32]
TMX170HD 42.0
[2K]
TMX170HD 42.0
9000
TMX170HD 42.0
[192 Kb/s]
TMX170HD 42.0
[MPEG1-L2]

USER MANUAL
PAGE 7
ANTTRON©2021
TMX 170 HD
TMX170HD 42.0
TS SETTINGS
TMX170HD 42.0
NIT RELEASE
TMX170HD 42.0
NET ID.
TMX170HD 42.0
ORIG. NET ID.
TMX170HD 42.0
LCN ID.
TMX170HD 42.0
NETWORK NAME
TMX170HD 42.0
SERVICE NAME
TMX170HD 42.0
PROGRAMM ID
TMX170HD 42.0
PMT PID
TMX170HD 42.0
VIDEO PID
TMX170HD 42.0
AUDIO PID
TMX170HD 42.0
EXIT
TMX170HD 42.0
30 Set the NIT version
Set the network ID
Set the Original Network ID
Set the LCN type
(Europa: EACEM)
Set the network name
Set the channel name
Set the program ID
Set the PMT PID
Set the video PID
Set the audio PID
TMX170HD 42.0
10000
TMX170HD 42.0
8442
TMX170HD 42.0
[EACM]
6789.[A]BCDEF
ANTTRON
6789.[A]BCDEF
Channel A
TMX170HD 42.0
1
TMX170HD 42.0
32
TMX170HD 42.0
48
TMX170HD 42.0
49

USER MANUAL
81<,(
PAGE 8
ANTTRON©2021
4VSKVEQQMRKYWMRKE4'

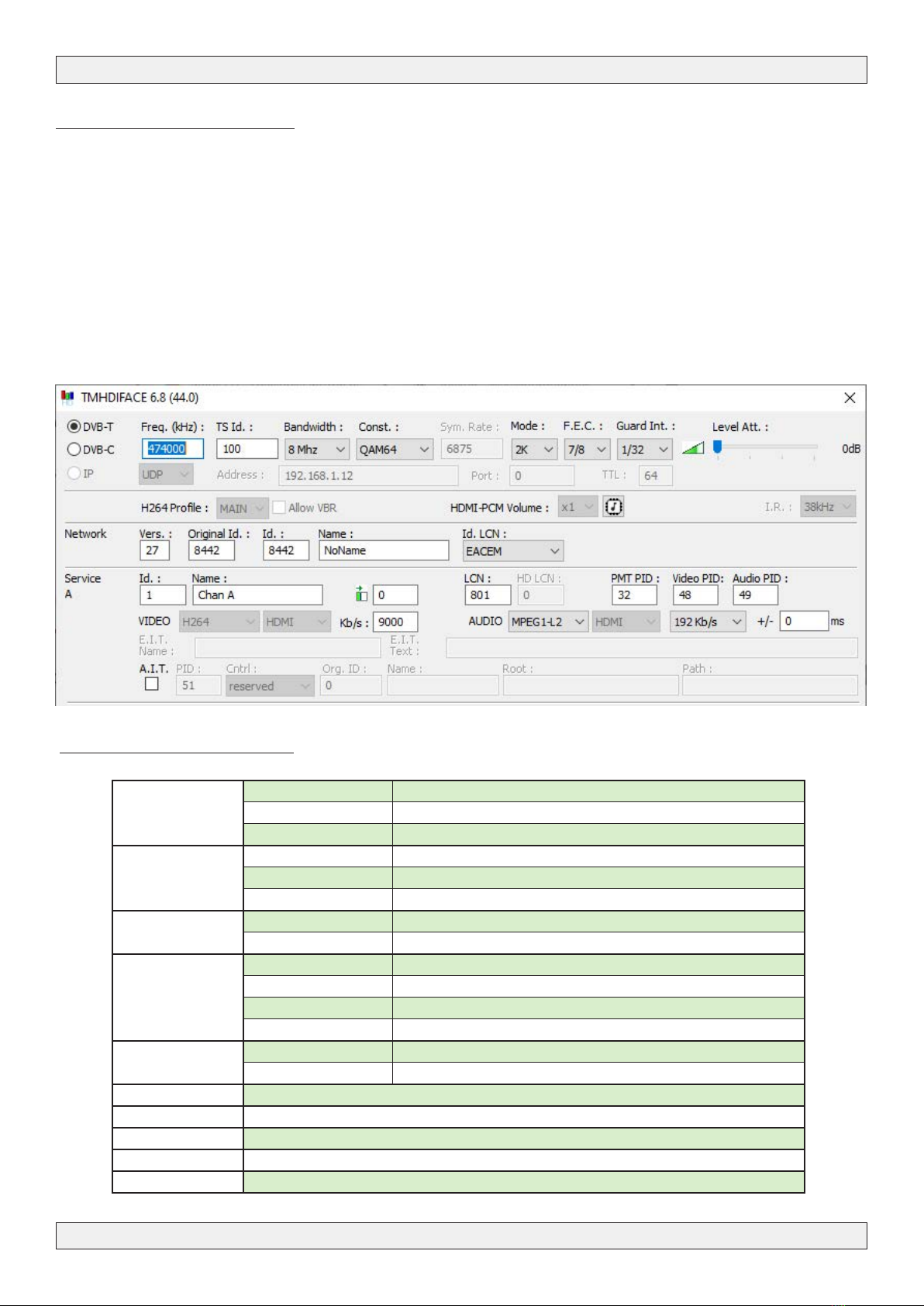

The settings of the TMX170HD can also be changed using a PC.
First, please install the software TMHDIFace on your PC. You can download this software from our internet site
anttron.com
After installation of this software, connect the TMX170HD using a USB cable (not included) to your personal
computer. Then launch the program TMHDIface.
On the display of the TMX170HD the message <USB> appears, indicating that the programming is now
performed through your PC. The following window appears on your screen.
Now, all parameters discussed in Chapter 3 of this user manual can be modified by TMHDIface.
8IGLRMGEPWTIGMJMGEXMSRW
Video input Input HDMI
Supported resolutions 480p -576p -720p - 1080i - 1080p
Compression H.264 – bitrate 5-15 Mb/s
Audio input Input HDMI
Audio Rate HDMI (32kHz / 44.1 kHz / 48 kHz)
Compression AAC-LC / MPEG1-L2– bitrate 128-384 Kb/s
DVB Processing Supported tables PAT, PMT, SDT, NIT
Configuration Channel/network name, SID, LCN, TSID, ONID, NID, versions, audio, video PIDs…
DVB-T output Frequency / level 170-230 MHz + 470-862 MHz / > 82dBµV
Constellation, FEC QPSK/16QAM/64QAM - 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Mode- MER 2K/8K >34dB
DVB-C output Frequency / level 47-862 MHz / > 82 dBµV
Constellation MER QAM 16, 32, 64, 128, 256 / MER > 40 dB
Power supply + 5 V / connector DC 2,1 mm
Consumption 5 W
Dimensions LxWxH 150 x 130 x 35 mm
Weight 0,5 kg
EAN code 5420037691715
