DCH-320 SQ
Owner’s Manual
Display Cabinet Heated
Manufacturing Numbers:
9500558 (Domestic)
9500733 (International)
Original Instructions
www.antunes.com

2
®
P/N 1011317 Rev. F 08/18
Contents
Overview 2
Before Use 2
In Case of Damage 2
Website 2
Service/Technical Assistance 2
In Case of Damage 2
Equipment Information to Save 2
Safety Information 3
Installation 3
Operation 3
Maintenance 3
Service 3
Heated Display Cabinet
Glass Warnings 4
Specications 5
Dimensions 5
Electrical Ratings 5
Electrical Cord
& Plug Congurations 5
Installation 6
Unpacking 6
Equipment Setup 6
Operations and Programming 7
Display Codes 8
Maintenance 9
Daily Cleaning 9
Parts Replacement 10
Halogen Bulb Replacement 10

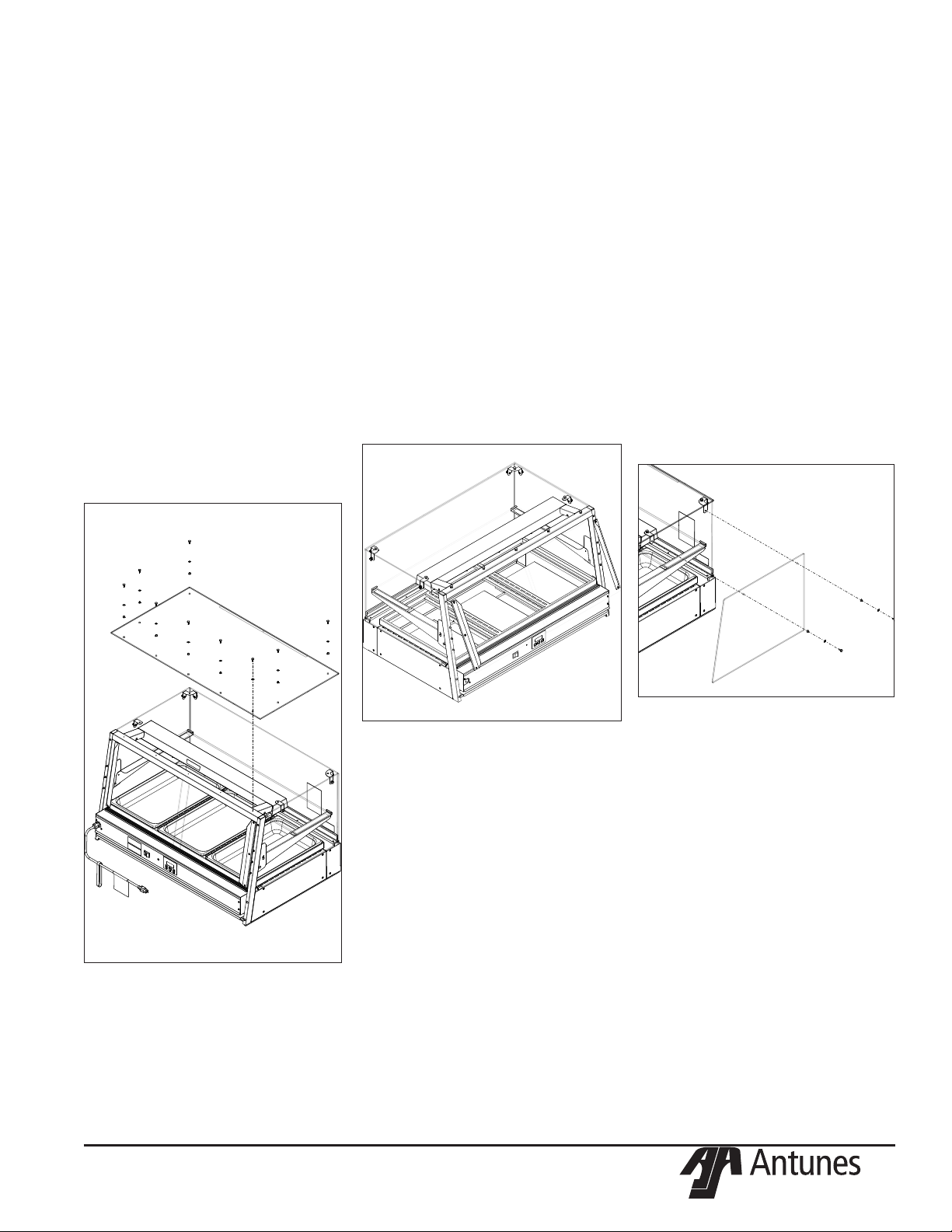

Front Glass Replacement 10
Top Glass Replacement 11
Rear Door Replacement 11
Side Glass Replacement 11
Troubleshooting 12

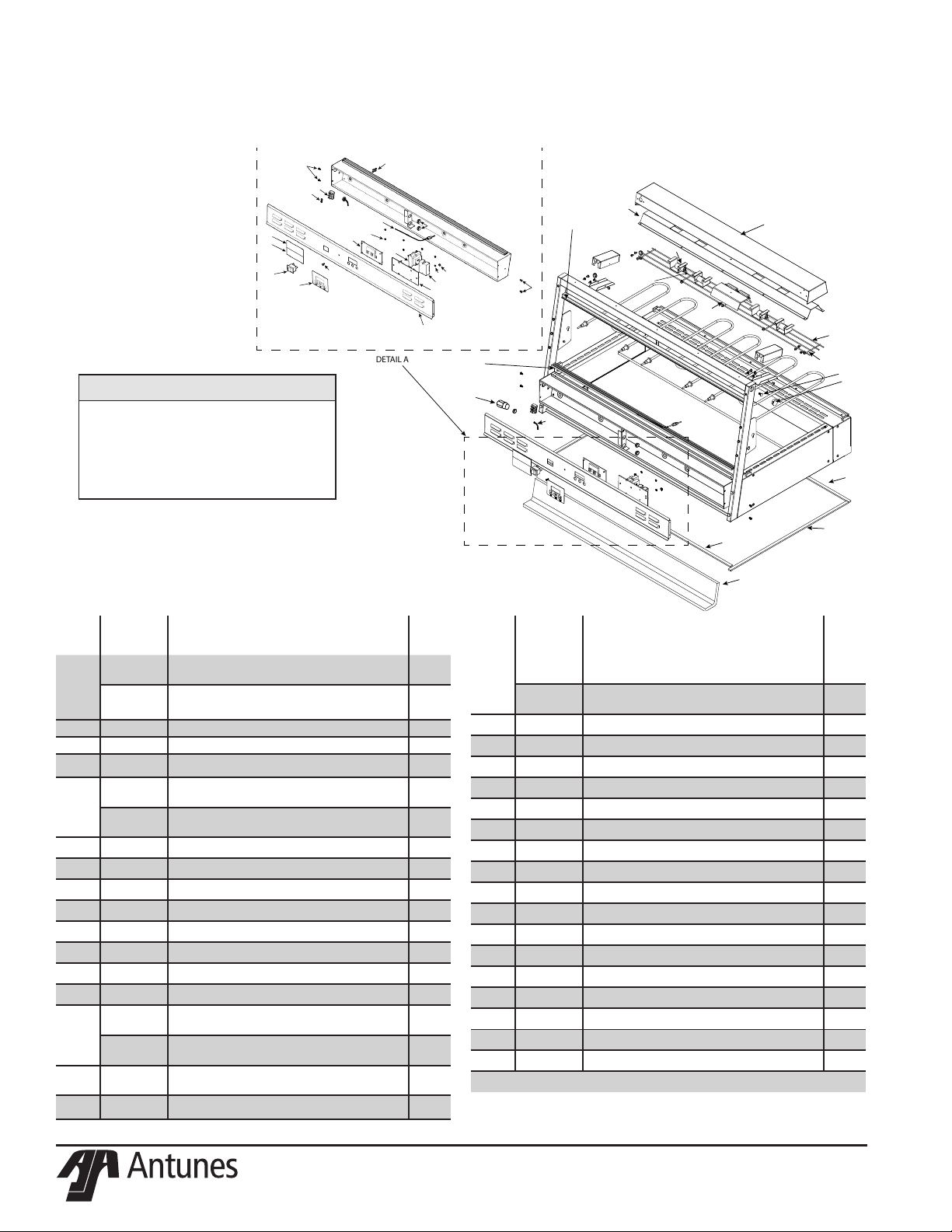

Replacement Parts (Sheet 1) 13
Replacement Parts (Sheet 2) 14
Replacement Parts (Sheet 3) 15

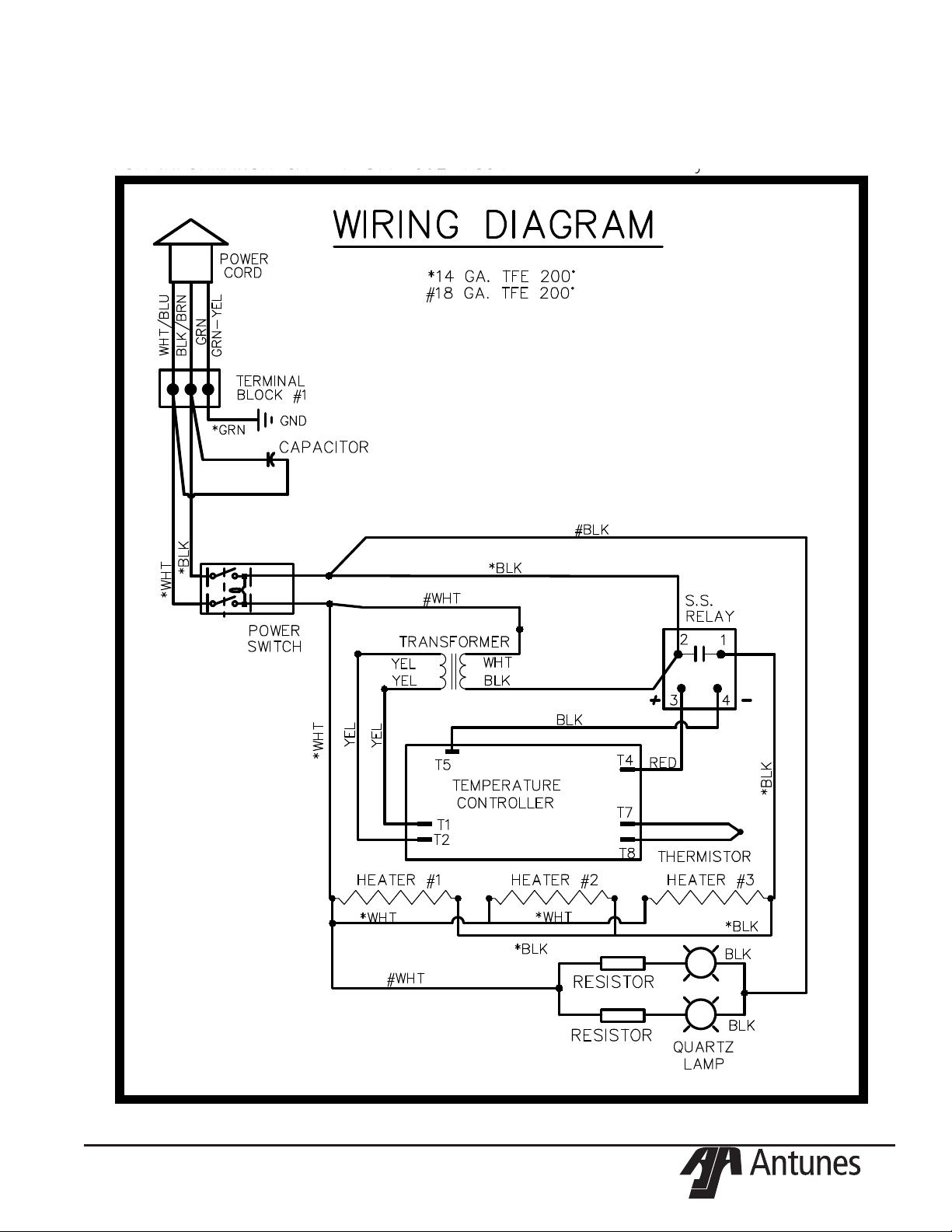

Wiring Diagram (120V) 16
Wiring Diagram (230V) 17
NOTES 18
LIMITED WARRANTY 19
Overview
This product is a heated display cab-
inet. The cabinet maintains tempera-
ture of cooked food while prominently
displaying them in a convenient
place for customers to view. This unit
is designed to be used with cooked
food. The cabinet does NOT cook
food and should not be used as a
heating apparatus.
Note that the heated display cabi-
net maintains food in a temperature
range that may be within the tem-
perature danger zone for certain
types of food. Check all termperature
danger zones of food before placing
into the heated display cabinet.
Before Use
This manual contains safety, instal-
lation, and operating procedures for
the display cabinet. Read and under-
stand it completely before installing
or operating the display cabinet.
Keep this document for reference. If
the heated display cabinet changes
ownership, this manual must accom-
pany it.
In Case of Damage
If the display cabinet arrives dam-
aged, le a claim with the carrier im-
mediately. Save all packing materials
when ling a claim. Freight damage
claims are the responsibility of the
purchaser and are not covered under
warranty.
Website
www.antunes.com
Service/Technical
Assistance
In Case of Damage
If any parts are missing or damaged,
contact Antunes Customer Service
immediately at [phone] (toll
free).
If there are problems with the instal-
lation or operation of this product,
contact Antunes Technical Service
toll free at [phone].
Fill in the information in the next col-
umn and have it handy when calling
for assistance. The serial number is
on the specication plate located on
the system.
Equipment Information to Save
Purchased from:
Date of purchase:
Model number:
Serial number:
Manufacturing number:

3
®
P/N 1011317 Rev. F 08/18
Safety Information
Installation
yRead and understand all instructions
before installing or using the unit.
yInstall and locate the equipment
only for its intended use as
described in this manual.
yThis unit is to be installed to
comply with the basic plumbing
code of the Building O󰀩cials
and Code Administration, Inc.
(BOCA) and the Food Service
Sanitation Manual of the Food
and Drug Administration (FDA).
yAll electrical connections must be
in accordance with local electrical
codes and any other applicable
codes. The equipment must
be grounded according to local
electrical codes to prevent electrical
shocks. It requires a grounded
receptacle with separate electrical
lines, protected by fuses or a
properly-rated circuit breaker.
yElectrical ground is required
on this appliance. Consult a
qualied electrician if there is any
uncertainty about whether the
appliance is properly grounded.
yDo not modify the power supply
cord plug. If it does not t the outlet,
have a proper outlet installed
by a qualied electrician.
yDo not use an extension
cord with this appliance.
Operation
yThe unit is furnished with
a properly grounded cord
connector. Do not attempt to
defeat the grounded connector.
yDo not operate the unit if it has
been damaged or dropped, if
it has a damaged cord or plug,
or if it is not working properly.
yDo not block or cover any
openings on the equipment.
yDo not immerse the cord
or plug in water.
yKeep the cord away from
heated surfaces.
yDo not allow the cord to
hang over the edge of
a table or counter.
Maintenance
yDo not use abrasive materials;
they can damage the unit’s
stainless steel nish.
yDo not use corrosive
chemicals in this equipment.
yChlorides or phosphates in
cleaning agents (e.g., bleach,
sanitizers, degreasers, and
detergents) can permanently
damage stainless steel
equipment. The damage
is usually in the form of
discoloration, dulling of the
metal surface nish, pits,
voids, holes, or cracks. This
damage is permanent and is
not covered by warranty.
yAlways use a soft, damp cloth
for cleaning. Rinse with clear
water and wipe dry. When
required, always rub in the
direction of metal polish lines.
yRub o󰀨 nger marks and
smears using soap and water.
yDo not clean the unit
with a water jet.
yThe procedures in this manual
may include the use of chemical
products. These chemical
products will be highlighted
with bold letters followed by
the abbreviated HCS (Hazard
Communication Standard). See
the Hazard Communication
Standard manual for the
appropriated Material Safety
Data Sheets (MSDS).
Service
yInspection, testing, and
repair of electrical equipment
must be performed only by
qualied service personnel.
yHave the unit serviced only by
qualied personnel only. Contact
Antunes Technical Service
for adjustment or repair.
yTurn the power o󰀨, unplug the
power cord, and allow unit
to cool to room temperature
before performing any
service or maintenance.
yIf the supply cord is damaged,
it must be replaced by the
manufacturer, its service
agent, or a similarly qualied
person in order to avoid an
electrical hazard or shock.

4
®
P/N 1011317 Rev. F 08/18
DO NOT scratch, chip, or nick the glass.
DO NOT place any metal objects in contact with the glass (merchandise holders, signs,
etc.).
DO NOT transfer coins over the unit.
DO NOT use the glass as a serving counter.
When cleaning, handling, or removing the glass, make sure that the
glass is cool (room temperature).
USE approved cleaners marketed for glass cleaning only.
USE a at surface covered with a soft cloth to place the glass on, if the glass is removed.
USE a clean, soft cloth when cleaning the glass. Do not use paper towels.
USE light pressure when wiping/cleaning the glass.
MAKE SURE that the top cover glass does not touch the edge of the side glass.
MAKE SURE to replace scratched, chipped, nicked, cracked, or broken glass.
Please follow the Safety Instructions below in order to reduce the chance of
damaged/broken glass:
Warning: Mishandling this product or failure to follow these instruc-
tions may result in shattering glass.
Heated Display Cabinet Glass Warnings
(DCH Models)

5
®
P/N 1011317 Rev. F 08/18
Specications

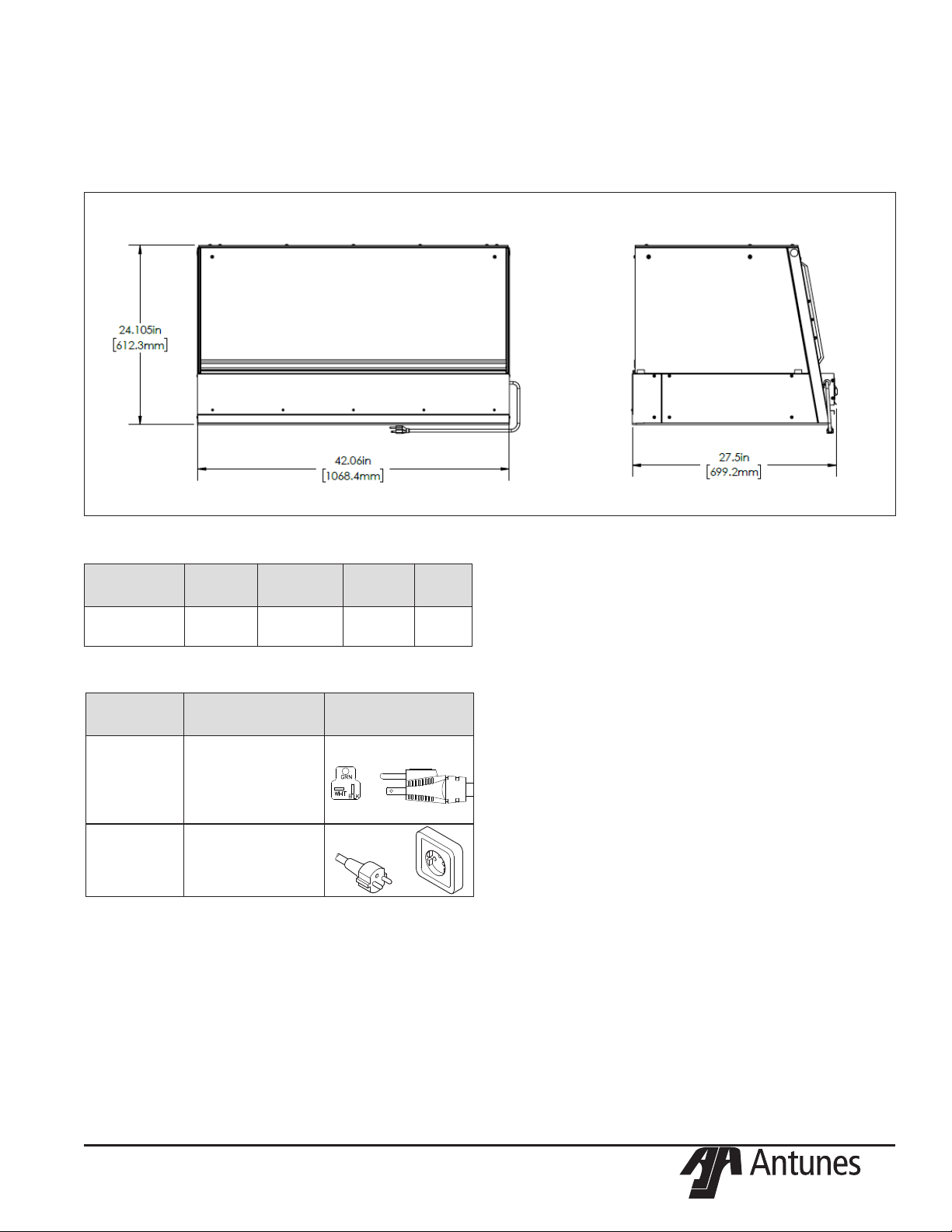

Dimensions
Electrical Ratings
ElectricalCord&PlugCongurations
Model &
Mfg. No. Description Configuration
DCH-320
9500558
Power Cord
NEMA 5-20P
20 Amp., 120 Volt
DCH-320
9500733
Power Cord
16 Amp., 250V
CEE 7//7
Model &
Mfg. No. Volts Watts Amp. Hz.
DCH-320
9500558 120 1800 15.0 50/60

6
®
P/N 1011317 Rev. F 08/18
Installation
Unpacking
1. Remove unit and all packing
materials from shipping carton.
2. Open the large box. Remove all
packing materials and protec-
tive coverings from the unit and
parts.
NOTICE: If any parts are missing,
contact Antunes Technical
Service IMMEDIATELY at
[phone]in the U.S.,
or [phone] outside
the U.S..
3. Wipe all surfaces of the unit with
a hot damp cloth.
NOTICE: Do not use a dripping wet
cloth. Wring out before use.
Equipment Setup
When placing the unit into service,
pay attention to the following guide-
lines:
yMake sure power to the
unit is off and the unit is
at room temperature.
yDo not block or cover any
openings on the unit.
yDo not immerse cord
or plug in water.
yKeep cord away from
heated surfaces.
yDo not allow cord to hang
over edge of table or counter.
yPlace unit on a sturdy, level
table or work surface.
yEnsure that the line voltage
corresponds to the stated
voltage on the unit specication
label located at the end
of the power cord.
yTurn the Rocker Switch (power
On/O󰀨) to OFF. Connect the
unit to the power supply.
Heating Element
Shield
Heating
Element

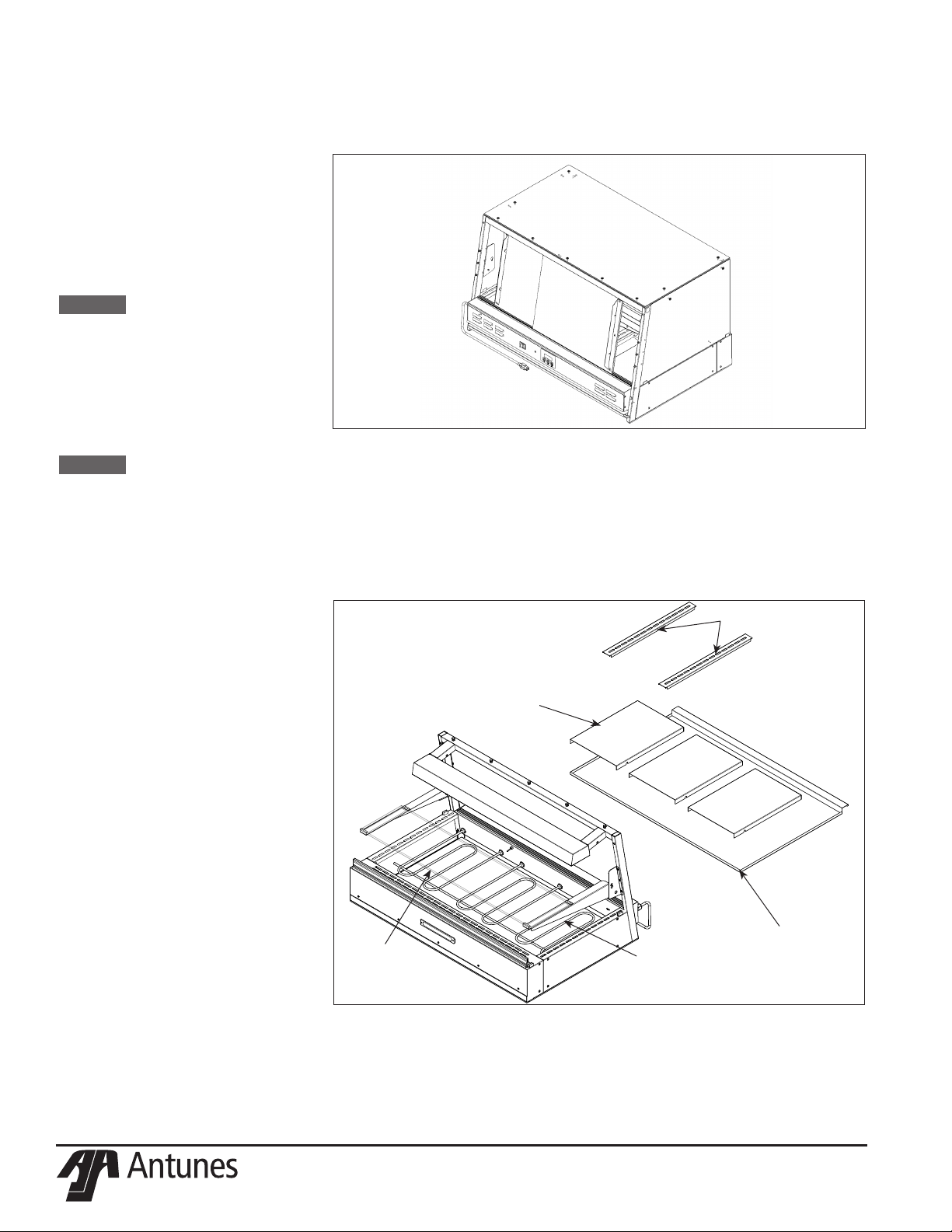

Figure 1. DCH-320
Shelf
Pan Supports
Crumb
Tray
Figure 2. Display Components (DCH-320 Shown)

7
®
P/N 1011317 Rev. F 08/18
TEMP
UP
TEMP
DOWN
TEMP
SCALE
F
C
O
O
Figure 3. Controls
Figure 4. Loading Pans
Operations and
Programming
The Setpoint temperature is the
desired cabinet temperature set-
ting. When the Temp UP button
is pressed and held (and provided
that the unit is up to temperature),
the actual cabinet temperature
is displayed. When the button is
released, the Setpoint temperature is
displayed.
NOTICE: Models DCH-120/220/320
have an adjustable tempera-
ture range of 100-165° F (38-
74° C). Since the tempera-
ture can be set below 150°
F (65° C), which is below the
safe holding temperature for
some foods, only NON-MEAT
products should be held in
these units. Models DCH-
100/200/300 have an adjust-
able temperature range of
150-165° F (66-74° C).
1. Turn the unit ON. The display
will ash “LO” to indicate that the
unit is heating up. After 20-30
minutes (when the unit is up to
temperature), the display will
show the setpoint temperature.
2. To adjust the setpoint tempera-
ture, press and hold the Temp
Up and Temp Down buttons until
the display begins to ash. Re-
lease the buttons. Then, press
the Temp Up or Temp Down
buttons to raise or lower the
setpoint temperature. Release
when the display shows the
desired temperature.
3. To change the display from
Fahrenheit to Celsius and back,
press and hold the Temp Scale
button (Figure 3) for 2-3 seconds
and release.
4. Open the rear door(s) and place
the serving table pan(s) into the
unit (Figure 4). Load the pan(s)
with the food product using
tongs or a similar utensil. Close
the door(s).
Rocker Switch
(Power On/O󰀨)
Control Panel Key Pad
Note: Back of unit shown

8
®
P/N 1011317 Rev. F 08/18
Display Codes (DCH-320)
This section describes the di󰀨erent display codes and their meanings.
“LO” ashes during the initial warm up period. The unit
continues to display this code until the unit reaches the
setpoint temperature. When the unit reaches the set-
point temperature, it displays the setpoint temperature.
TEMP
UP
TEMP
DOWN
TEMP
SCALE
F
C
O
O
This gure shows an example setpoint temperature of
200° F displayed on the console.
“HI” ashes if the actual cabinet temperature exceeds
the setpoint temperature or if the thermistor has shorted.
NOTICE: The thermistor should be 100k ohm +/- 2% at
room temperature.
“OPEN” ashes if the thermistor is OPEN or disconnect-
ed. The unit will not call for heat.
NOTICE: The thermistor should be 100k ohms +/- 2%
at room temperature.
“PO” In 120 VAC units, this code ashes if the sup-
ply voltage is below 100 VAC or above 135 VAC. In
220/240 VAC units, this code ashes if the supply volt-
age is below 190 VAC or above 265 VAC.
NOTICE: If voltage is within normal ranges, then the
Control Board is faulty.
To reset a unit in this state, the supply voltage must be
within acceptable limits and the unit must be turned o󰀨
for a few seconds and then turned back on.

9
®
P/N 1011317 Rev. F 08/18
Maintenance
Be sure to follow all of the warnings
and precautions listed in the Import-
ant Safety Information section of
this manual.
WARNING
Turn the unit o󰀨, disconnect the
power source and allow the unit
to cool down before performing
any service or maintenance on
the unit.
CAUTION
Do not remove crumb tray while
unit is hot or burns or other per-
sonal injury may result.
WARNING
All glass surfaces must be cool
before cleaning. Once cool, wipe
glass with a clean cloth. Do not
attempt to clean glass when hot
or with cold towel as shattering
glass may occur.
Daily Cleaning
The unit requires a minimum amount
of maintenance. To ensure proper
operation, clean the unit at the end of
each serving day.
1. Turn unit o󰀨, unplug the power
cord, and allow the unit to cool to
room temperature.
2. Once cooled, remove all compo-
nents.
3. Wash all components in soap
and water. Wipe all surfaces of
the unit with a damp cloth.
NOTICE: Do not use a dripping wet
cloth. Wring the cloth out
before use.
4. Install components in unit.
Figure 5. Remove Components

10
®
P/N 1011317 Rev. F 08/18

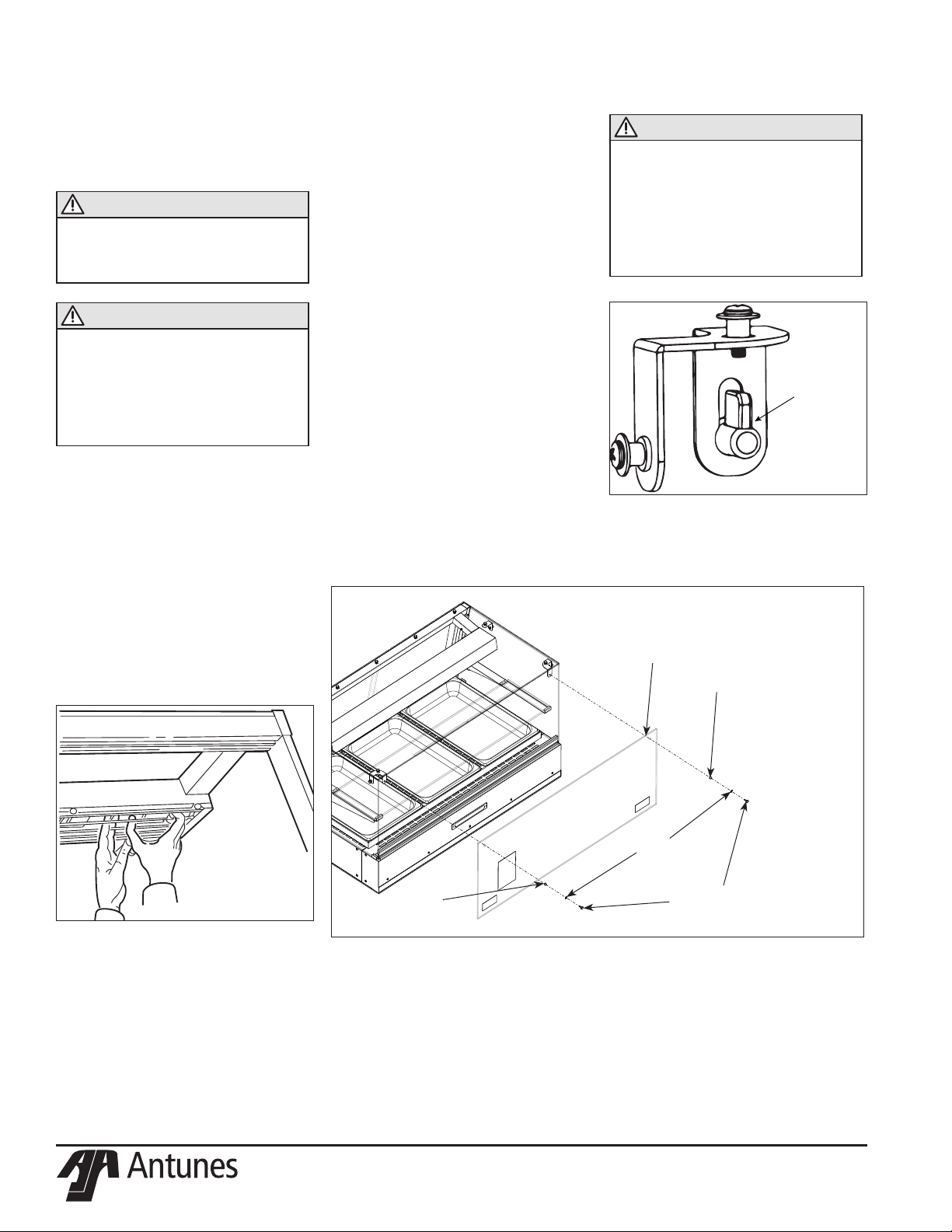

Front Glass Replacement
1. Turn the unit OFF, unplug the
power cord from the electrical
outlet, and allow the unit to cool
to room temperature before
proceeding.
2. Turn the two security paddles to
align with the slot of brackets at
each corner (Figure 8).
3. Tilt the front glass away from
the unit on the hinge plate and
remove the panel from the unit.
4. (See Caution note).
5. To reinstall, be sure the front
glass is fully seated in the hinge
plate. Then, tilt the glass into
place and install the nylon spac-
ers, washers, and thumb screws.
CAUTION
When unlocking or locking the
Front Glass Security Paddles
(Figure 8), make sure another
person is holding the Front Glass
in place to prevent tipping that
may result in personal injury or
damage to glass.
Parts Replacement
Halogen Quartz Bulb
Replacement
CAUTION
Do not handle halogen bulbs with
bare hands. Use a tissue or clean
cloth to handle halogen bulbs
CAUTION
Use 1000 Watt (Max.) Quartz
tungsten halogen lamp (T4
Bulb/‘RSC’ Base) only. To reduce
the risk of electric shock when re-
placing bulbs, turn display switch
to OFF position.
1. Turn the unit o󰀨.
2. Unplug the power cord from the
electrical outlet and allow the
unit to cool to room temperature
before proceeding.
3. Gently, but rmly, press the lamp
socket sideways and remove the
bulb (Figure 6).
1. Install a new 100 watt bulb while
pressing the socket sideways.
Make sure bulb is fully seated
before releasing socket.
Figure 6. Halogen Bulb Replacement
Figure 7. Front Glass Replacement
Phillip HD
Screws
Washers
Nylon
Spacer
Nylon
Spacer
Front Glass
Unlocked Position
Figure 8. Security Paddles
(Front Corners Only)

11
®
P/N 1011317 Rev. F 08/18
Top Glass Replacement
1. Turn the unit OFF, unplug the
power cord from the electrical
outlet, and allow the unit to cool
to room temperature before
proceeding.
2. Remove the top Phillips head
screws, washers, and nylon
spacers securing the top glass
(Figure 9).
3. Remove the top glass from the
unit.
4. To reinstall, position the top glass
panel into place and install the
nylon spacers, washers, and
Phillips head screws.
Figure 9. Top Glass Replacement
Rear Door Replacement
1. Turn unit o󰀨, unplug the power
cord, and allow the unit to cool
to room temperature.
2. Firmly grasp the sides of one
glass door. Lift the door up and
out of the bottom track (Figure
10). Repeat for the other door.
3. Place new door in the inside
upper track. Push up rmly and
slide bottom of door into bottom
inside track. Install other door
into outside tracks the same
way.
Figure 10. Rear Door(s) Removal/
Installation
Side Glass Replacement
1. Turn the unit OFF, unplug the
power cord from the electrical
outlet, and allow the unit to cool
to room temperature before pro-
ceeding.
2. Remove the two Phillips head
screws, washers, and nylon
spacers securing the side glass
(Figure 11).
3. Remove the side glass from the
unit.
4. To reinstall, position the side
glass panel into place and install
the nylon spacers, washers, and
Phillips head screws.
Figure 11. Side Glass
Replacement

12
®
P/N 1011317 Rev. F 08/18
Problem Possible Cause Corrective Action
No heat and lights do not turn on
when power switch is set to on.
Power cord is not plugged in. Plug the power cord into the appropriate outlet.
Circuit breaker is o󰀨 or has been tripped. Reset circuit breaker, contact your maintenance person or
Authorized Service Agency if it trips again.
No power at receptacle. Contact your maintenance person or Authorized Service
Agency for service.
Inoperable power cord.
Inoperable power switch.
Loose, burnt, broken wiring in the circuit.
Inoperable Transformer. Contact your maintenance person or Authorized Service
agency for service.
Inoperable Control Board.
Display ashes “LO” and the
cabinet does not heat up.
Inoperable Solid State Relay. Contact your maintenance person or Authorized Service
Agency for service.
Inoperable Control Board.
Inoperable Heater(s).
Loose, burnt, broken wiring in circuit.
Display ashes “HI” and the cabi-
net does not heat up.
Inoperable Thermistor. Contact your maintenance person or Authorized Service
Agency for service.
Inoperable Control Board.
Display ashes “HI” and the cabi-
net is very hot.
Solid State Relay contacts shorted closed. Contact your maintenance person or Authorized Service
Agency for service.
Inoperable Control Board.
Display ashes “OPEN” and the
cabinet does not heat up.
Thermistor is disconnected or open. Re-secure the Thermistor onto the Control Board. If this
problem persists, contact your maintenance person or
Authorized Service Agency for service.
Inoperable Control Board.
Display ashes “PO” and the
cabinet does not heat up.
Inoperable Control Board. Contact your maintenance person or Authorized Service
Agency for service.
Product dries out quickly. Setpoint temperature is set too high. Lower the Setpoint temperature.
Incorrect wattage halogen bulb(s) being used. Use only 100 watt halogen bulb(s).
Halogen Bulb(s) do not light up. Bulb(s) burnt out. Replace bulb(s)
Bulb(s) not seated properly into spring loaded
sockets.
Remove and reinstall bulb(s) so that the ends snap into the
socket(s).
Inoperable Resistor Assembly. Contact your maintenance person or Authorized Service
Agency for service.
Loose, burnt, or broken wiring in Circuit.
Inoperable Bulb Sockets(s).
Troubleshooting
WARNING
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment
should be performed by qualied service personnel. The unit should be unplugged when servicing.

13
®
P/N 1011317 Rev. F 08/18
Item
No.
Part # Description QTY.
10013062 Door Assembly Rear 2
2
0700451 Power Cord 14/3 5-20P
(Mfg. No. 9500558 Only) 1
0700453 Power Cord CEE 7/7
(Mfg. No. 9500733 Only) 1
30900316 Side Glass 2
40900318 Top Glass 1
50013155 Front Glass Assembly 1
60022701 Weldment, Corner
Bracket RH 1
70022702 Weldment, Corner
Bracket LH 1
80022021 Glass Clip Weldment 2
93080359 #8-32 x 1/2 C6 PHL HD
Screw 15
10 3250207 Washer, Flat 1/4 x 1/32
Thick Delirn 15
Replacement Parts (Sheet 1)
11
10
9
12
13
5
9
4
7
8
3
2
1
16
14
15
NOTICE
Use only genuine Antunes re-
placement parts in this display
cabinet. Use of parts other than
those supplied by the manufactur-
er will void the warranty.
Item
No.
Part # Description QTY.
11 2150410 Spacer, #10 SH 1/4” LG
Nylon 15
12 0013450 Glass Lock 2
13 3080358 Screw, #8-32 Phillips x
3/8 LG 2
14 0013399 Glass Shelf with Edging 1
15 0013400 Glass Shelf Support LH 1
16 0013401 Glass Shelf Support RH 1

14
®
P/N 1011317 Rev. F 08/18
DETAIL A
2
3
6
7
5
4
29
15
10
11
13
14
12
16
15
28
27
26
17
18
20
19
22 23
24
25
21
8
31
30
33
36
37
38
39
32
12
12
35
Replacement Parts (Sheet 2)
NOTICE
Use only genuine Antunes re-
placement parts in this display
cabinet. Use of parts other than
those supplied by the manufactur-
er will void the warranty.
Item
No.
Part # Description QTY.
2
0011622 Housing, Lamp Assy
(Mfg. No. 9500558 Only) 1
0011879 Housing, Lamp Assy
(Mfg. No. 9500733 Only) 1
30020676 Inner Lamp Housing Weldment 1
44060252 Lamp - Quartz Halgn 100w 2
54060189 Lamp Holder, Quartz 4
6
0010706 Resistor Assembly
120V (Mfg. No. 9500558 Only) 1
0010644 Resistor Assembly 120V
(Mfg. No. 9500773 Only) 1
70800229 Lamp Guard 1
8308P203* Screw, 8-32 x 3/8 LG Phillips 5
90400119 Bushing, Shorty 5/8” 4
10 7000882 Rocker Switch Replacement Kit 1
11 1001037 Label, Control Panel 1
12 308P157* Screw, 8-32 x 3/8 LG Phillips 5
13 1000900 Label - Service 1
14 1001213 Label - Shock Hazard 1
16
0022981 Control Panel Weldment
(Mfg. No. 9500558 Only) 1
0024210 Control Panel Weldment
(Mfg. No. 9500733 Only) 1
17 4070225 Assy - PCB, Control Temp
38-74C/100-165F 1
18 0024115 Heat Sink 1
Item
No.
Part # Description QTY.
19
4010199 Transformer 120V (Mfg. No. 9500558
Only) 1
4010259 Transformer 230V (Mfg. No. 9500733
Only) 1
20 4050231 Relay, Zero Cross, Solid State - 50A 1
21 304P105* Nut, Hex “KEPS” #4-40 4
22 306P130* Nut, hex “KEPS #06-32 Steel, Zinc Plated 4
23 308P143* Nut, Hex “KEPS” #8-32 2
24 0400119 Bushing, Shorty - 5/8” 2
25 7000369 Thermistor Replacement Kit 1
26 4060304 Terminal Block 3-Pole 1
27 306P101* Hex Nut #6-32 2
28 306P123* Screw, 6-32 x 7/8 LG 2
29 0400354 Strain Relief 1
30 5040002 Insulation, CERA Blanket 1
31 0200193 Gasket, Strip 1
32 0200191 Gasket, Strip 2
33 0200157 Gasket, Strip 1
35 0700937 Wire Set 1
36 21800-0120 Hole Plug - 7/8 2
37 3250223 Screw Soc HD 1/4-20x3/8 2
* Available in packages of 10 (ten)

15
®
P/N 1011317 Rev. F 08/18
12
Replacement Parts (Sheet 3)
NOTICE
Use only genuine Antunes re-
placement parts in this display
cabinet. Use of parts other than
those supplied by the manufactur-
er will void the warranty.
Item
No.
Part # Description QTY.
10501869 Pan Support 2
20502172 Heat Shield 3
30502865 Bracket, Lamp Housing 2
40502866 Cover Plate 2
50507014 Crumb Tray 1
60013399 Glass, Middle Shelf with Edging 1
8308P157* Screw, 8-32 x 3/8 LG Phillips 8
90013401 Glass Support, LH 1
10 0013400 Glass Support, RH 1
11
4030304 Heating Element
(Mfg. No. 9500558 Only) 3
4030239 Heating Element
(Mfg. No. 9500733 Only) 3
12 0800231 Support Rod 1
* Available in packages of 10 (ten)

16
®
P/N 1011317 Rev. F 08/18
Wiring Diagram (120V)

17
®
P/N 1011317 Rev. F 08/18
Wiring Diagram (230V)

18
®
P/N 1011317 Rev. F 08/18
NOTES

Limited Warranty
Equipment manufactured by Antunes has been constructed of the  nest materials available and manufactured to high
quality standards. These units are warranted to be free from mechanical and electrical defects for a period of one year
from date of purchase or 18 months from shipment from factory, whichever occurs  rst, under normal use and service,
and when installed in accordance with manufacturer’s recommendations.
To insure continued proper operation of the units, follow the maintenance procedure outlined in the Owner’s Manual.
1. This warranty does not cover cost of installation, defects caused by improper storage or handling prior to placing of
the Equipment. This warranty does not include overtime charges or work done by unauthorized service agencies or
personnel. This warranty does not cover normal maintenance, calibration, or regular adjustments as speci ed in op-
erating and maintenance instructions of this manual, and/or labor involved in moving adjacent objects to gain access
to the Equipment. This warranty does not cover consumable items such as gaskets and light bulbs, nor does it cover
water contaminant problems such as foreign material in water lines or inside solenoid valves. It does not cover water
pressure problems or failures resulting from improper/incorrect voltage supply.
For the  rst 90 (ninety) days after installation (in the U.S. ONLY), the unit will be repaired in-store (subject to the terms
of the limited warranty) by our Authorized Service Agency at no charge for parts and non-overtime labor. Travel time
and mileage charges in excess of 2 hours (100 miles round-trip) from the nearest Authorized Service Agency is not
covered under this warranty and is the responsibility of the end user.
2. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always
reserved to modify equipment because of factors beyond our control and government regulations. Changes to update
equipment do not constitute a warranty charge.
3. If shipment is damaged in transit, the purchaser should make a claim directly upon the carrier. Careful inspection
should be made of the shipment as soon as it arrives and visible damage should be noted upon the carrier’s receipt.
Damage should be reported to the carrier. This damage is not covered under this warranty.
4. Warranty charges do not include freight or foreign, excise, municipal or other sales or use taxes. All such freight and
taxes are the responsibility of the purchaser.
5. This warranty is exclusive and is in lieu of all other warranties, expressed or implied, including any implied warranty
or merchantability or  tness for a particular purpose, each of which is hereby expressly disclaimed. The remedies de-
scribed above are exclusive and in no EVENT, shall Antunes be liable for special consequential or incidental damages
for the breach or delay in performance of this warranty.
The warranty does not extend to:
yNormal maintenance outlined in this manual.
yMalfunction resulting from improper service or maintenance.
yDamage from moisture getting into electrical components.
yDamage from tampering with, removal of, or changing any preset control or safety device.
yDamage caused by parts or components not provided by Antunes
[phone]
[phone]
[phone]
[phone]
[phone]
®
