Anvil 4CUwheelbarrow User manual

THANK YOU
4 CU FT POLY TRAY WHEELBARROW
USE AND CARE GUIDE
ITEM #1006456591
Model #4CUwheelbarrow
Questions, problems, missing parts? Before returning to the store,
call Anvil Customer Service
8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
We appreciate the trust and condence you have placed in Anvil through the purchase of this wheelbarrow.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Anvil!

2
Table of Contents
Safety Information
Pre-Installation
Table of Contents
Safety Information
Pre-installation
Planning Installation
Tools required
HARDWARE INCLUDED
Package Contents
Assembly
2
2
2
2
2
3
3
4
DANGER: Do not allow children to use the wheelbarrow
WARNING: Do not use this wheelbarrow to transport
Read and follow all safety rules and operating Instructions before using this product.

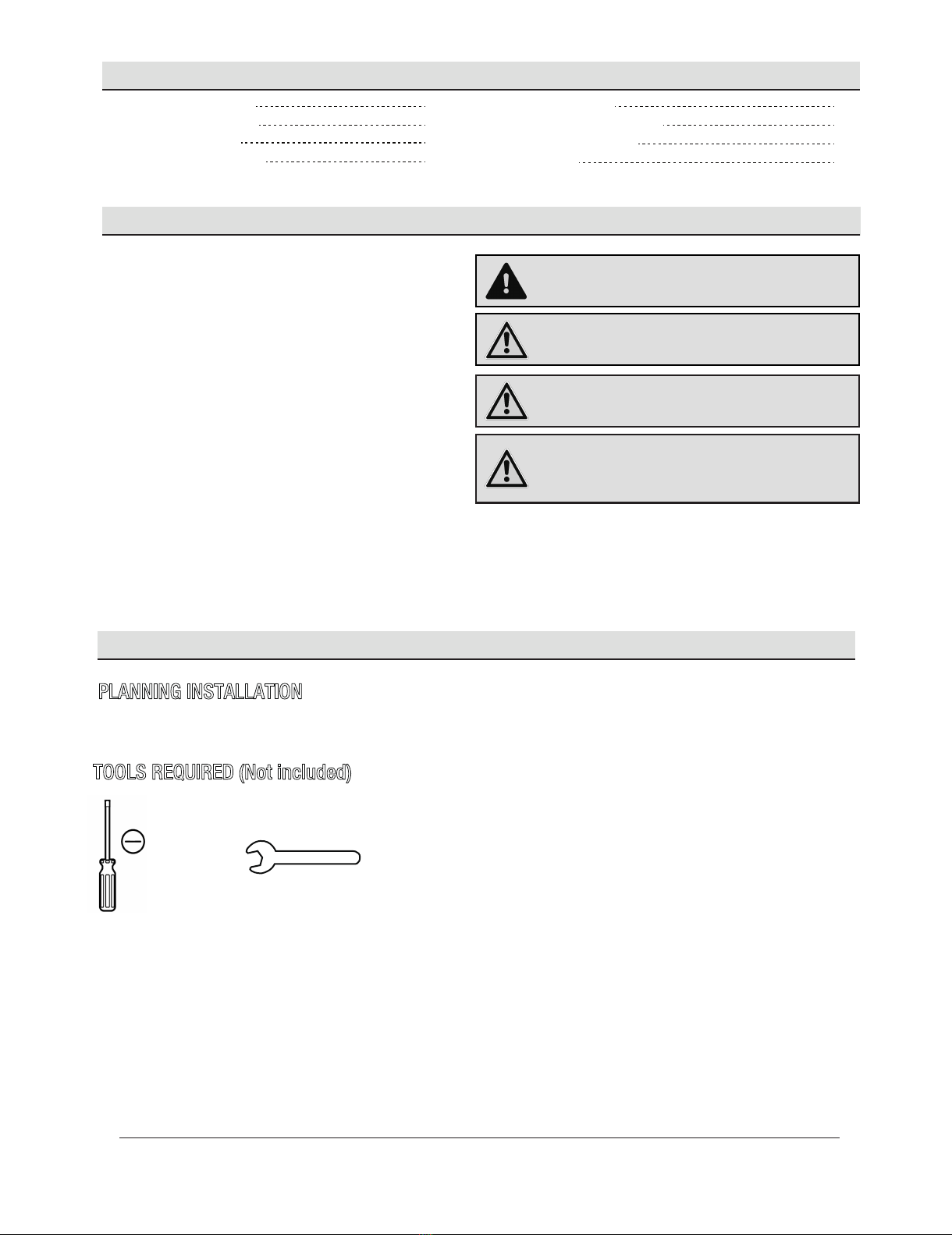

PLANNING INSTALLATION
TOOLS REQUIRED (Not included)
Wrench
slotted
screwdriver
without supervision.
passengers.
□
□
□
□
□
□
□
□
□
□
□
Before using this product, please read, understand and
follow all instructions.
Do not exceed the total maximum load capacity of 250 lb
(120 kg). The rated weight is based on a uniformly
distributed load.
Do not allow children to use the wheelbarrow without
supervision.
Do not use this wheelbarrow to transport passengers.
This wheelbarrow is not suitable for use on highways or
high-speed use.
Distribute the load evenly on the surface of the tray.
Do not place items on the top edge of the tray.
If any parts are damaged, cracked or misplaced, please do
not use the cart before replacing the parts.
Do not use the wheelbarrow on a surface that will damage
the tires.
It is recommended to check each usage of the wheelbar-
row.
Keep this manual for future reference.
Tire is not for highway service.
WARNING:
Tire changing and/or inflation can
be dangerous and should be done by trained
personnel using proper tools.
WARNING:

3HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Pre-installation (continued)
HARDWARE INCLUDED
PACKAGE CONTENTS
NOTE: Hardware not shown to actual size.
Part
AA
BB
CC
DD
EE
Description
M8x130 mm bolt, washer, and nut
M8x70 mm bolt, washer, and nut
M8x58 mm bolt, washer, and nut
M8x48 mm bolt, washer, and nut
M8x23 mm bolt, washer, and nut
Quantity
2
2
4
2
2
AA
DD EE
BB CC
A B C D
FG
H I
E
Part
A
B
C
D
E
F
G
H
I
Description
Tray
Handle
Leg
Leg brace
Wedge
Nose guard
Wheel
Axle bracket
Axle
Quantity
1
2
2
1
2
1
1
2
1

4
Assembly
Attaching Wedges to Tray Placing Handles on Wedges
Attaching the Legs Attaching the Leg Brace
Push bolts (AA & BB) through bottom of tray (A)
and through wedge (E).
Repeat for second wedge.
1 2
Make sure the holes in leg (C) are facing the
back of the tray.
Place leg over bolts (AA & BB) and loosely attach
to handle with washers and nuts.
Repeat for other leg.
3
Place leg brace (D) across the back of leg (C)
and loosely attach using bolts,washers and nuts (EE).
Repeat to attach the other end of the leg brace
to the other leg.
4
□
□
□
□
□
□
□
Turn tray (A) over,so the tray is at an angle of 45 degrees
to the ground.
Place handles (B) over bolts and lower on to wedges (E).
□
□
AA
AA
EE
EE
BB
BB
A
A
B
C
C
D
E
E

5
Assembly (continued)
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
CC
Installing the Nose Guard
Use bolts,washers and nuts (DD) to attach nose
guard (F) to front of handles(B) .
5
□
Attaching the Axle Bracket
Loosely attach axle bracket (H) to bottom of
handle using two bolts,washers and nuts (CC).
6
□
Attaching the Axle and Wheel
Slide axle (I) through wheel (G) and then into attached axle bracket (H).
Slide second axle bracket (H) over other end of axle.
Loosely attach second axle bracket to handle using bolts,washers and nuts (CC).
Fully tighten all nuts.
7
□
□
□
□
CC
DD
DD
F
G
H
HI
B
