Aobosi YC-100B User manual

1
This manual contains important information including safety and installation instructions of the
appli ances. Please read it carefully before use and follow all safety information & instructions. It
is recommended to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
INSTRUCTION MANUAL
COMPRESSOR WINE COOLER
YC-100B YC-150B

2
CONTENTS
IMPORTANT SAFETY INFOR M A TIO N ...................................................... P.3
STRUCTURE AND INSTALLATION DRAWING ........................................ .P.4
ACCESSORY INSTALLATION BEFORE OPERA TING............................. P.5
OPERATING THE WINE COOLE R........................................................... P.9
CARE AND MAINTENANCE ...................................................................... P.11
TROUBLESHOOTING ............................................................................. . P.12
WARRANTY............................................................. ..................................... P.13

3
IMPORTANT SAFETY INFORMATION
Before use the appliance, please properly position and install it as described in this manual.
To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these
basic precautions:
● the appliance is intended to be used exclusively for the storage of wine.
● Make sure the voltage/current marked on the rating label corresponds with your supply voltage.
Plug into a grounded 3-pin outlet, do not remove grounding pin, do not use an adapter, and do not
use an extension cord.
● It is recommended that a separate circuit is provided for serving only your appliance be provided.
● Never clean the appliance parts with flammable fluids which may create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of the
appliance.
● Do not connect or disconnect the electric plug when your hands are wet.
● Unplug the appliance or disconnect power before cleaning, maintenance or servicing. Failure to do
so can result in electrical shock or death.
● Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in
this material. All other servicing should be referred to a qualified technician.
● Ensure enough peoples to move and install the appliance to avoid any damage to the appliance or
injury to the peoples.
● To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed.
Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
● The fuse (or circuit breaker) size should be 10 amps or higher.
● It is important for the appliance to be leveled in order to work properly. You may adjust the appliance’s
feet to level it.
● This appliance is not intended for use by young children. Never allow children to operate, play with
or crawl inside the appliance.
● Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage
or discolor the interior.
● Do not use this appliance for other than its intended purpose.
● The use of attachments which is not recommended by the manufacturer may be hazardous.
● When you dispose the appliance, take off the door and leave the shelves in place so that children
may not easily climb inside. And make sure the coolant circuit, particularly the heat exchanger at the
back/bottom of the unit not be damaged. The symbol on the product or its packaging indicates
that this product is not to be handled as normal household waste and it is to be taken to a recycling
collection point for electrical and electronic goods.

4
The following pictures only show the structure of the appliance as well as the installation drawing.
The dimension and shelf quantity may differ among the models of the same series.
BUILT-UNDER SERIES (Built under a kitchen table top)

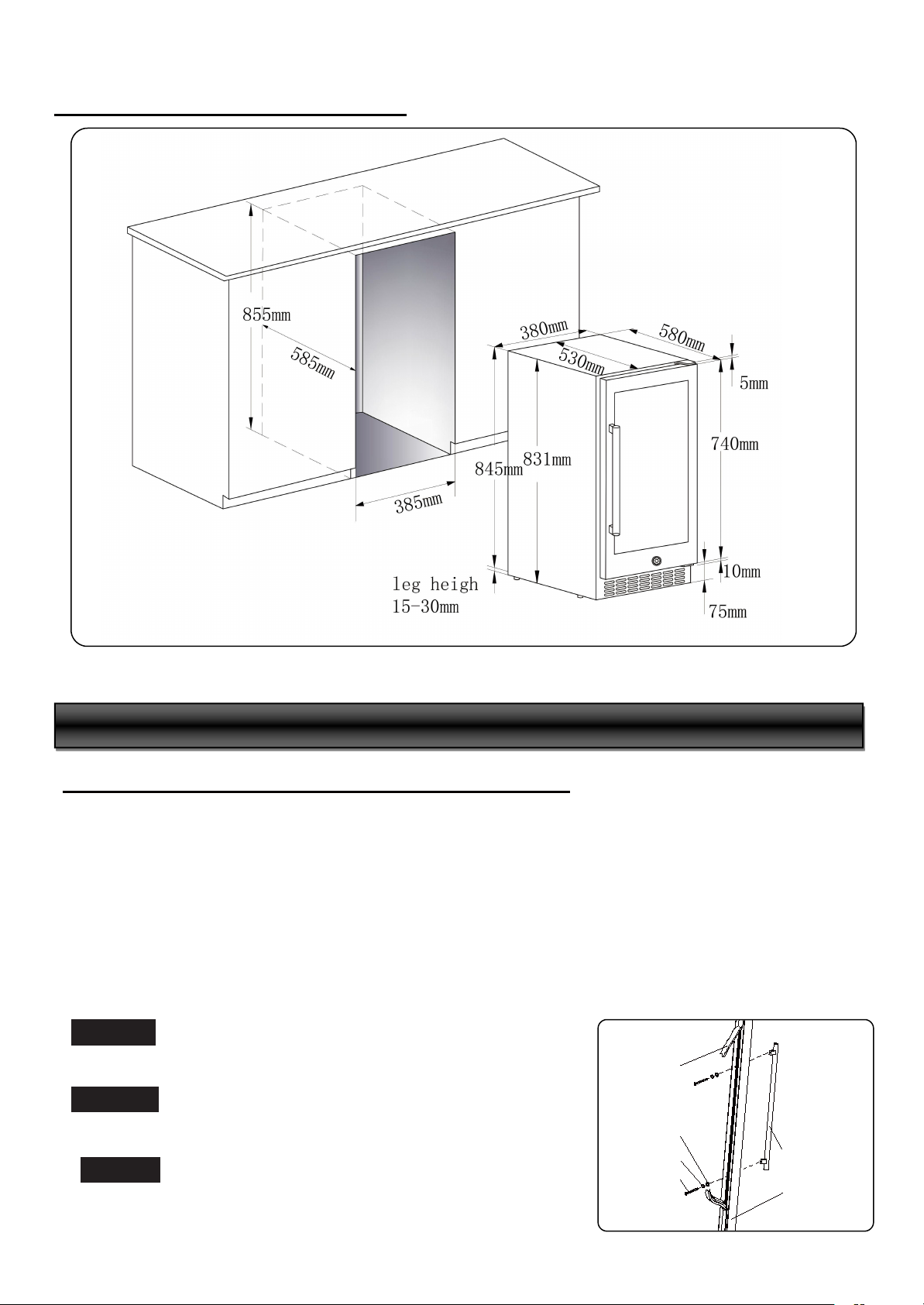

YC-150B Installation Drawing (mm/inch)
（34.4inch）
（22.6inch）
（23.6inch）
（34.2inch）
（33.5inch
）
（23.4inch
）
（0.19inch）
（28.1inch）
（
0.3inch
）
（4.9inch）
（0.5 -1.1inch）
（23.4inch）
（
20.6inch
）
STURCTURE AND INSTALLATION DRAWING

5
YC-100B Installation Drawing (mm/inch)
ACCESSORY INSTALLATION BEFORE OPERATING
UNPACKING AND CLEANING THE WINE COOLER
●Remove the exterior and interior packing materials.
●Let the appliance stand upright for approximately 24 hours before connecting it to the power
source, which helps to reduce the possibility of a cooling-system malfunction from handling
during transportation.
●Use a soft cloth to clean the interior surface with lukewarm water.
●Install the door handle provided with the appliance by following these steps:
1st step －Remove the gasket at the inner side of the door
to expose the two screw holes.
2nd step －Install the handle tightly with the screws
and washers provided.
3rd step －Tidy and restore the gasket.
G a s k e t
F la t Washer
H a n d le
Locker Washer
S c r e w
Door F r a me
(23inch)
(20.8inch)
(22.8inch)
(14.9inch)
(0.3inch)
(2.9inch)
(0.5 -1.1inch)
(0.1inch)
(29.1inch)
(33.6inch)
(15.1inch)
(33.2inch) (32.7inch)

6
LOCK & UNLOCK THE DOOR (FOR OPTION)
● Lock is an optional function. If your Wine Cooler has such function, a key should be attached
inside the packing of this Manual.
●Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock it, please
follow the reversed operation. Please save the key well.
WORKING CLIMATE
● The appliance is designed for operating from SN to T climate (see below climate class chart). It
is recommended to maintain the ambient around 22-25°C/71.6-77ºF which helps the
appliance working with low power consumption.
● If the ambient temperature is above or below the designed climate range, the performance of
the unit may be affected. For example, the appliance operating in extreme cold or hot conditions
may cause interior temperatures to fluctuate, and the temperature set 5-18°C/41-64.4 ºFmay
not be reached sometimes.
Climate Class
Ambient Temp.
SN
10 - 32 °C/50-89.6ºF
N
16 - 32 °C/60.8-89.6ºF
ST
18 - 38 °C/64.4-100.4ºF
T
18 - 43 °C/64.4-109.4
WINE BOTTLE STORAGE DIAGRAM
Model
Description
YC-100B
30 bottles dual zone wine cooler
YC-150B
51 bottles dual zone wine cooler
The standard bottles as below:

7

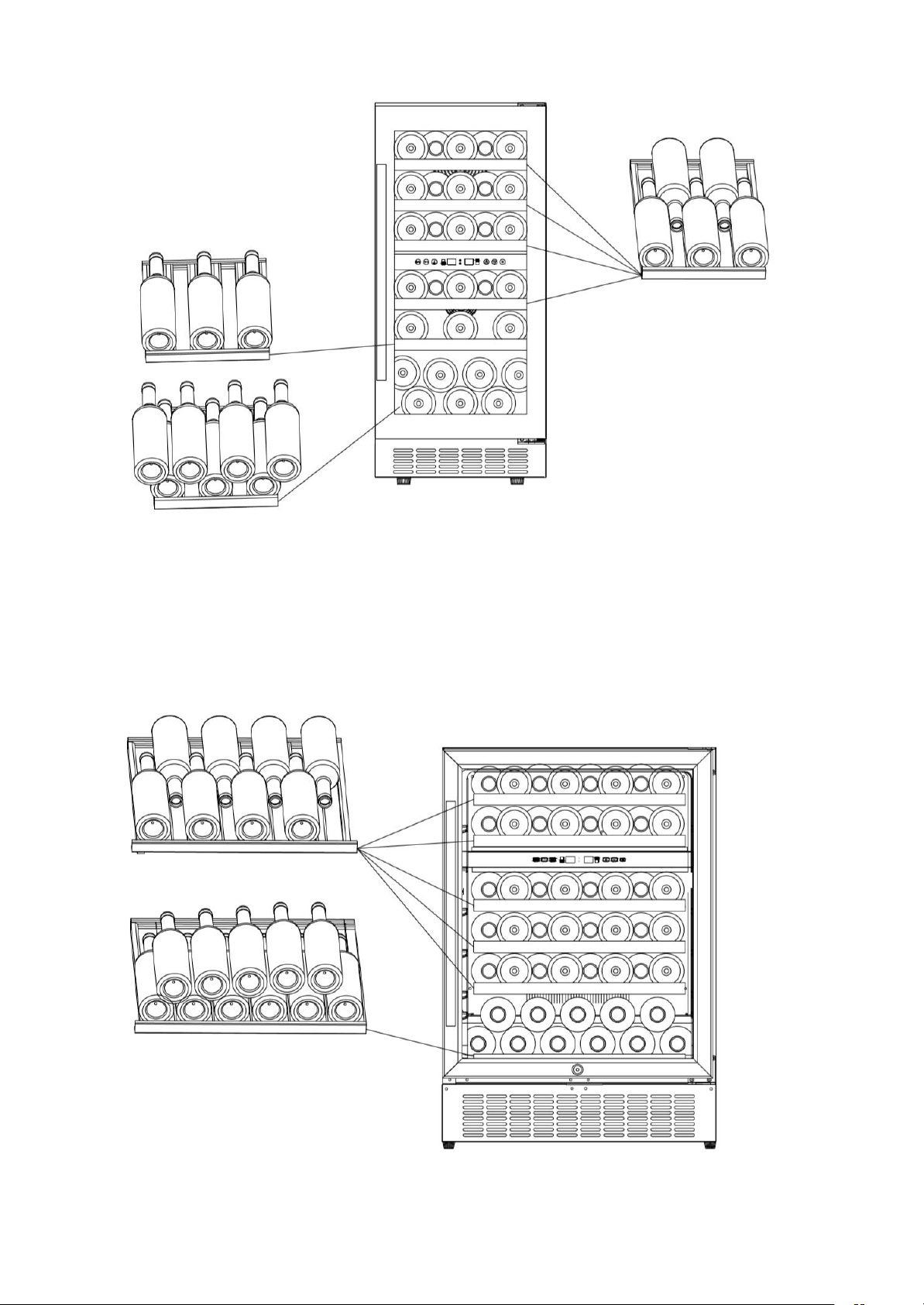

Storage of Model YC-100B
●Shelf One To Four - 5 bottles per shelf
●Shelf Five -3 bottles
●Bottom Section - 7 bottles
Storage of Model YC-150B
●Shelf One To Five - 8 bottles per shelf
●Bottom Section - 11 bottles

8
WINE STORAGE
● The standard shelves are designed perfectly for Bordeaux bottle storage. The maximum loaded
bottles may vary subject to the different size or dimension of the wine bottles you store, as well
as the shelves quantity pre-installed in the Wine Cooler.
● The shelves are with telescopic rails which has stoppers by themselves.

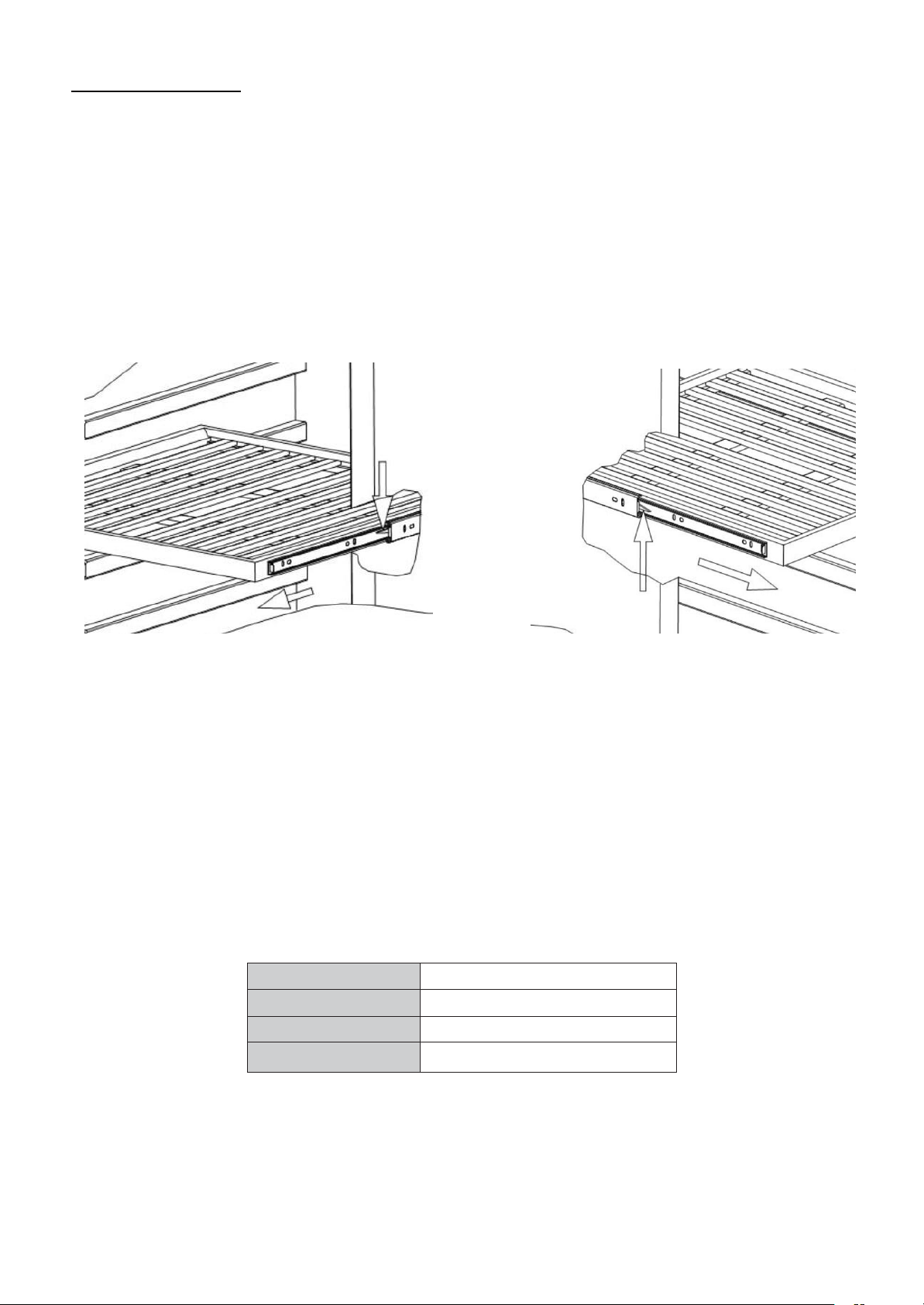

How to remove the shelf.
Use one hand to press down the right plastic notch as shown in Figure A and at the same time
lift the left plastic notch by other hand as shown in Figure B. Hold both notches and then
proceed to pull out the shelf slowly. Contact our service department if assistance is needed.
Figure A Figure B
● To prevent damaging the door gasket, make sure to have the door opened fully all the way
before pulling the shelves out.
● Please store wine in sealed bottles.
● Should the wine cooler be left empty for long periods it is suggested that the appliance is
unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible condensation, mold or odours forming.
● Recommended Temperatures for chilling/storage your wines.
Red Wines
15 - 18º C/41-64.4ºF
Dry/White Wines
9 - 14º C/48.2-57.2ºF
Rose Wines
10 - 11º C/50-51.8ºF
Sparkling Wines
5 - 8º C/41-46.4ºF

9
OPERATION
POWER ON/OFF
● When the appliance is plugged into a power outlet, it powers on automatically.
● Touch the power mark to turn on (or turn off) the appliance if you need.
Warning:
To avoid breaking the compressor, please do not turn on the appliance again within 5 Minutes
after you turn it off.
INTERIOR LIGHTING ON/OFF CONTROL
● Touch the lighting mark to turn on (or turn off) the interior cool LED lighting.
● The light will automatically turns off 10 mins later for energy saving.
Note: To keep the light staying on always, please press the lighting mark until you hear 2
“beeps”.
●Touch the button once to select the lower zone and once more to select the upper zone. The
numbers in the display window of the selected zone will flash.
● Touch the or button to increase or decrease the temperature of the selected zone.
The temperature will increase 1ºF or 1ºC if you touch the button once; On the contrary the
temperature will decrease 1ºF or 1ºC if you touch the button once.
Tips:
●When you store mostly red wines, the temperature needs to be set at 15ºC-18ºC (59ºC-64.4ºF).
SET TEMPERATURE (Upper zone and Lower zone)
temperature
OPERATING THE WINE COOL

10
●When you store mostly white wines, the temperature needs to be set at 9ºC-14ºC (48.2ºF-57.2ºF).
●When you store mostly sparkling wines, the temperature needs to be set at 5ºC-8ºC (41ºF-46.4ºF)
Note: The temperature inside the unit will be appeared in blue color in the display window.
Notice:
For the first time to use the appliance or to restart the appliance after having been shut off for a
long time, you may find a few degrees variance between the set temperature and the displayed
temperature. It is normal and everything of the appliance will be in the order after a few hours
running.
TEMPERATURE DISPLAY WINDOW
● The temperature is displayed in digital which is the best way to be read out. The digital is shown
as the set temperature when you are setting the temperature, and it will change to be the real
temperature of the inside cabinet after 5 seconds without being touched.
Warning:
When the temperature probe is out of order, the display window will show with “HH” or “LL”
instead of a digital figure while continuous buzz sound will be heard.
To avoid destroying your stored wines, it is strongly recommended to have the appliance
repaired immediately.
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC)
Touch the button, you can interchange the Fahrenheit (ºF) and Celsius (ºC) display.
Model
Temperature range
YC-100B
YC-150B
Upper zone:5℃-13℃(41℉-55.4℉)
Lower zone:13℃-18℃(55.4℉-64.4℉)

11
CLEANING THE WINE COOLER
● Turn off the power, unplug the appliance, and remove all items including shelves.
● Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about
2 tablespoons of baking soda to a quart (approx. 1 litre) of warm water.
● Wash the shelves with a mild detergent solution. Allow wooden shelves to dry before placing
back into the wine cooler.
● Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
● Wipe the outside cabinet with warm water and mild liquid detergent. Dry with a clean soft cloth.
● Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless
steel with steel particles and rusting may occur.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times of door opening. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect your contents.
MOVING THE WINE COOLER
● Remove all items.
● Securely tape down all loose items (shelves) inside your appliance.
● Turn the adjustable leg up to the base to avoid damage.
● Tape the door shut.
● Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
ENERGY SAVING TIPS
● The appliance should be located away from heat producing appliances, and away from direct
sunlight.
● Ensure that the unit is adequately ventilated. Never cover air vents.
● Only open the door when necessary. Avoid leaving the door open for long periods or opening/
closing the door frequently.
Technical Specification
Wine & Beverage
YC-100B
YC-150B
Total Volume
3.53Cu.Ft.
5.30Cu.Ft.
Power
115V~60Hz
115V~60Hz
Amps
1A
1A
Start-Up Amps
10A
10A
Power Input
81W
100W
Pressure High Side
105 PSI
105 PSI
Pressure Low Side
55 PSI
55 PSI
Refrigerant
R600a
R600a
Amount
0.74 oz.
0.88 oz.
Dimensions(HxWxD)
33.5”x15”x23”
34.25”x23.43”x22.64”
CARE AND MAINTENANCE

12
If you feel the appliance is out of order, follow these instructions to try to see if you can solve the
problem simply by yourself before calling for service.
PROBLEM
POSSIBLE CAUSE / MEASURE
The Wine Cooler does not operate
1.Not plugged in.
2.The appliance is turned off.
3.The circuit breaker tripped or a blown fuse.
The Wine Cooler is not cold enough
1.Check the temperature control setting.
2.External environment may require a higher setting.
3.The door is opened too frequently.
4.The door is not closed completely.
5.The door gasket does not seal properly.
The compressor automatically
turns on and turns off frequently
1.The room temperature is hotter than normal.
2.A large amount of contents has been added to the
Wine Cooler.
3.The door is opened too frequently.
4.The door is not closed completely.
5.The temperature control is not set correctly.
6.The door gasket does not seal properly.
The lighting does not work
1.Not plugged in.
2.The circuit breaker tripped or a blown fuse.
3.The lighting is turned off.
Too much vibration
1.Check to assure that the appliance is level.
2.Check to assure no parts inside the cabinet or in the
compressor chamber are loose.
The Wine Cooler seems to make too
much noise
1.The rattling noise may come from the flow of the
refrigerant, which is normal.
2.As each cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant.
3.Contraction and expansion of the inside walls may
cause popping and crackling noises.
4.The appliance is not level.
The door will not close properly.
1.The wine COOLER is not level.
2.The door was reversed and not properly installed.
3.The gasket is dirty.
4.The shelves are out of position.
The display window is shown with “HH”
or “LL” instead of a digital figure,
and/or with continuous buzz sound.
The temperature probe is out of order.
TROUBLESHOOTING

13
Thank you for purchasing our product, which has been made to meet high quality
standards. The manufacturer's warranty covers the product for a period of 12 months
from the date of purchase against manufacturing faults.
All Aobosi warranties are automatically kept track of in our system, so there is no
need to register your product.
For 6 month extra free of charge warranty , please register at website www.iaobosi.com
or fill in and take picture of bellow Warranty Card sending to [email protected].
Due to continuous product improvement, we reserve the right to change the product
specification without prior notice.
WWarrant
WARRANTY
