AOpen DE6200 Series User manual

Personal Computer User Guide
for DE6200 series
V1

Disposal Instruction (US)
For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding.
To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more
information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit
our homepage at www.aopen.com under “Green Products”
廃棄上の指示
より良い地球保護のために、電子機器を廃棄処分にする時は、ゴミ箱に捨てないで下さい。汚染を最小限に抑え、
地球環境の最大限の保護のために、製品をリサイクルして下さい。 廃電気電子機器 (WEEE) の回収とリサイクル
についての情報は、弊社ホームページ www.aopen.com の“Green Products”（環境に優しい製品）をご覧下さい。
廢棄及回收處理
為了保護環境，請勿將本產品當作一般廢棄物處理。為減少環境污染，維護地球資源，本產品報廢時，請回收本產品。
Instruktion til bortskaffelse (Danish)
Af hensyn til vores miljø bedes De ikke bortskaffe denne elektroniske enhed i en almindelig affaldsspand. For at mindske
forurening og sikre beskyttelse af miljøet bedes De genbruge produktet. For yderligere information vedrørende indsamling og
genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores
website www.aopen.com og læse nærmere under "Green Products".

Verwijderingsinstructie (Dutch)
Om mogelijke schade aan het milieu of de menselijke gezondheid door ongecontroleerde afvalverwijdering te voorkomen,
moet u dit elektronisch product scheiden van andere soorten afval en op een verantwoorde manier recyclen. Verwijder dit
product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling
van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com
onder "Green Products".
Instruction de Disposition (French)
Pour une meilleure protection de la terre, ne jetez pas ce dispositif électronique dans la poubelle municipale lors de la
disposition. Pour éliminer la pollution et assurer la plus grande protection de l'environnement global, réutilisez s’il vous plaît le
produit. Pour plus d'informations sur la gestion des déchets d’Equipements Electriques et Electroniques (DEEE ou WEEE),
vous êtes invité à visiter notre site à www.aopen.com sous " Green Products".
Entsorgungsanleitung (German)
Zum besseren Schutze unseres Planeten, schmeissen Sie elektrische Geräte bitte nicht in öffentliche Mülleimer. Zur
Verringerung der Verschmutzung und zur Sicherstellung grösstmöglichen Schutzes der Umwelt recyceln Sie bitte das Produkt.
Für mehr Informationen zum Sammeln und Recyceln von elektrischen und elektronischen Müll (WEEE) besuchen Sie bitte
unsere Homepage unter www.aopen.com unter dem Punkt "Green Products".

Istruzioni per lo smaltimento (Italian)
Per una migliore salvaguardia del nostro pianeta, si prega di non gettare questo dispositivo elettronico nei normali rifiuti al
momento dell'eliminazione. Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega
di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed
elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products".
Instruksjoner for Resirkulering og Oppsamling (Norweigian)
For ĺ beskytte vĺr planet, kast ikke dette elektroniske utstyret sammen med vanlig avfall. For ĺ beskytte vĺr natur og miljř,
vennligst resirkuler dette produktet. For mer informasjon om oppsamling og resirkulering i henhold til Waste Electrical and
Electronic Equipment (WEEE), se vĺr hjemmeside pĺ www.aopen.com under "Green Products".
REEE - Programa de Tratamento de Resíduos de Equipamentos Eléctricos e Electrónicos (Portugese)
Para melhor protecção ambiental do nosso planeta terra, não coloque o dispositivo electrónico no receptáculo de lixo municipal.
Para minimizar a poluição e garantir protecção máxima do ambiente global, recicle o produto. Para mais informações sobre
acerca da recolha e reciclagem de Equipamento Eléctrico e Electrónico (WEEE), convidamos-lhe a visitar nossa página na
Internet em www.aopen.com sobre "Green Products".

Instrucciones para depositar los productos electrónicos (Spanish)
Para proteger mejor el medio ambiente, por favor, no deposite los productos electrónicos en los contenedores de basura
tradicionales. Para reducir la contaminación y proteger el medio ambiente se recomienda que los recicle. Para más información
acerca de dónde depositar y cómo reciclar Equipos Electrónicos y Desperdicios Electrónicos (WEEE), por favor, visite la
página web www.aopen.com y entre en la sección Productos Ecológicos (“Green Products”).
Kassering (Swedish)
För att bättre värna om vår jord bör denna elektroniska utrustning ej kasseras tillsammans med vanligt avfall. För att minimera
mängden föroreningar och så långt som möjligt skydda den globala miljön bör produkten återvinnas. För vidare information
om insamling och återvinning av uttjänta elektriska och elektroniska produkter (Waste Electrical and Electronic Equipment,
WEEE), besök avsnittet "Green Products" på vår hemsida, www.aopen.com.

Copyright
Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without
obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed,
transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically,
optically without the prior written permission of this company.
Disclaimer
AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically
disclaims any warranties, merchantability of fitness for any particular purpose.
AOpen and AOpen logos used herein are registered trademarks of AOpen Inc.
All other brand names and trademarks are owned by their respective owners.
Copyright © 2018 by AOpen Inc.
All rights reserved.

Safety Instructions
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning.
Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by service personnel:
a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not worked well or you cannot get it work according to user’s manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.
9. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the
manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according
the manufacturer’s instruction or your local authority.

10. Ambient operation temperature: 0 ~ 40 degrees C.
11. Risk of overheating!
• Do not install DE6200 in a closed space. Be sure the ventilation holes in the DE6200 side for at least 1 to 2 inches or 2 to
5 cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE6200
In right side and rear side keep space at least 5cm.
Don’t put operating device inside closed space.

FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the device and receiver.
■Connect the device into an outlet on a circuit different from that to which the receiver is connected.
■Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this
equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the
Federal Communications Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003

Index
1. Outlook …………..………………………………………….…2
2. Product Specification….…………………………...………....4
3. Internal Connectors………...…………………………………5
4. Function introduction……………………………………….…6
5. Packing List……………………………………………………10
6. Chassis and Holder Dimension……………………………..11

2
1. Outlook

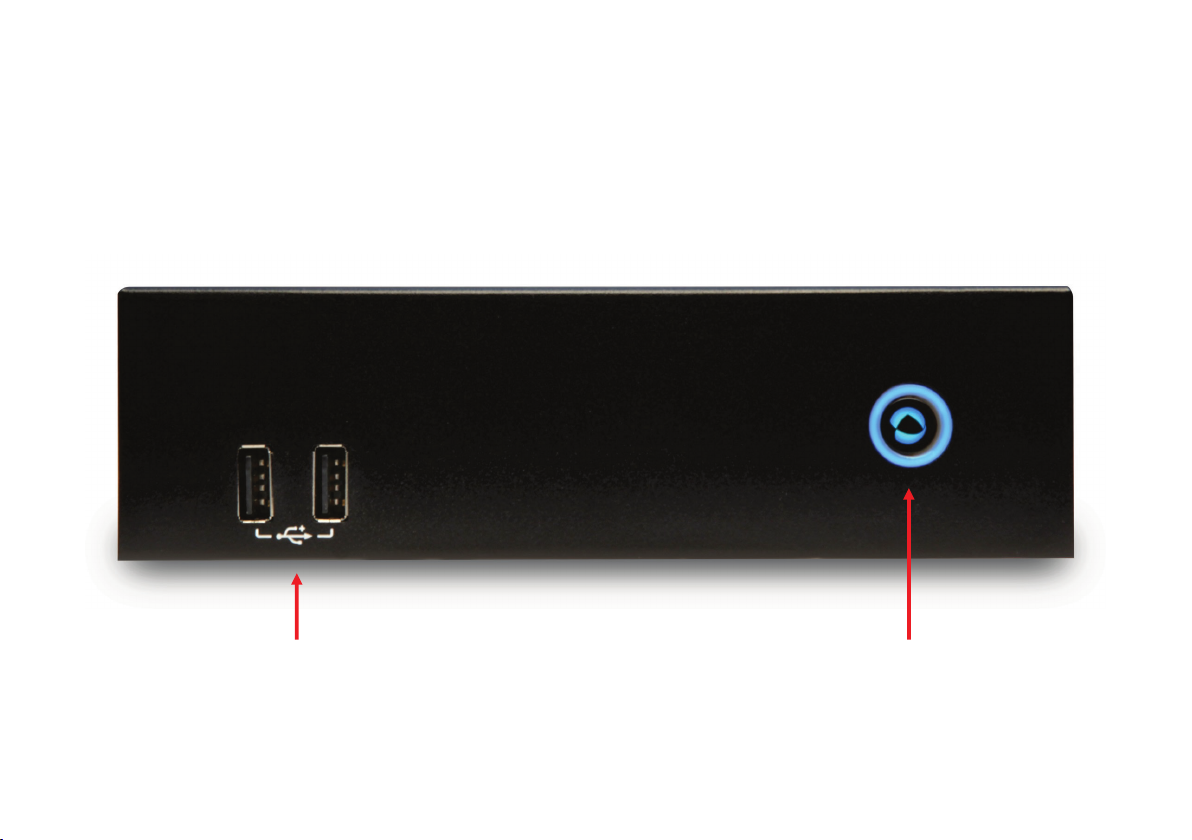

Front IO
USB2.0 x 2Power button &
LED indicator

3
Rear IO
RS232
RJ45
Extend
Power SW
DC 19V
HDMI3 HDMI2 USB3.0 x 4 Line-out
Mic-in
HDMI1

4
2. Product Specification
CPU AMD Embedded R-Series Merlin Falcon CPU RX-216GD/RX421BD, TDP=15~35W
Chipset NA
Memory Dual Channel Mode, SO-DIMM DDR4x 2, 1600MHz, Max memory size : 16GB
Graphics AMD Radeon R5 series HD Graphics
Expansion
Slot
M.2 2230 x 1(key E for wifi), M.2 2242 x 2(key B for SSD)
Audio Realtek ALC269Q HD Audio CODEC on-Board.
LAN
Realtek GbE LAN controller RTL8111H-CG
Front Panel IO Power Button x 1 (with Power indicator (Blue) ), HDD indicator (Blue) x 1, USB 2.0 Port x
2
Rear Panel IO DC 19V Jack x 1, HDMI Port x 3, RJ45 LAN Jack x 1, USB 3.0 Port x 4, RS232 Serial
Port x 1, HD Audio ports (speaker out x 1, Mic in x 1), Extend Power Switch x 1
Adapter 65W (19V, 3.42A) AC Power Adapter
Input Voltage AC 100 ~ 240V

5
3. Internal Connectors
Battery
M.2 2242 key B
M.2 2230 key E
M.2 2242 key B
LPC
COM1
Internal USB2
Internal USB3
CPU FAN
DIO1
AT1 jumper
Reset
Power switch Front Panel
DDR4 DIMM1
DDR4 DIMM2
CPU
BIOS
FFC SATA

6
4. Function Introduction
4.1 Extend power switch
Extend power switch at rear IO of DE6200 can allow customer to extend the power switch by
their demand, and customer can decide their own switch specification and cable length just
follow the wire gauge and strip length.
Button Hole
(The cable above is a illustration diagram only not a accessory)
This is a screwless type spring clamp pluggable terminal block, you can insert a wire by press
the button on the terminal, please refer to the procedure below.
Wire strip length 9~10mm
Wire (AWG) #20~28

7
Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block
Step 2 push the button in the end and hold it
Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted
Step 4 release the pin or rod then the wire will clamp by the terminal block
step1 step2 step3 step4

8
4.2 BIOS flash tool
If you like to flash BIOS under Windows 7 OS, please install windows Hot-Fix
KB3033929-x64 first, then can use windows BIOS flash tool to flash BIOS under
windows 7.
https://www.microsoft.com/en-us/download/details.aspx?id=46148
4.3 Windows 7 x64 installation note
If you like to install Windows 7 x64 at DE6200, please configure the BIOS to be able to
function with Windows 7 first!
Please press F2 or Del to enter BIOS menu, and modify the BIOS items setting as below,
1. Change the setting of “Boot option filter” to “UEFI and Legacy”
Advanced >> CSM Configuration >> CSM Support >> Enabled
Boot option filter >> UEFI and Legacy
2. Change the setting of “Video” to “Legacy”
Advanced >> CSM Configuration >> CSM Support >> Enabled
Video >> Legacy

9

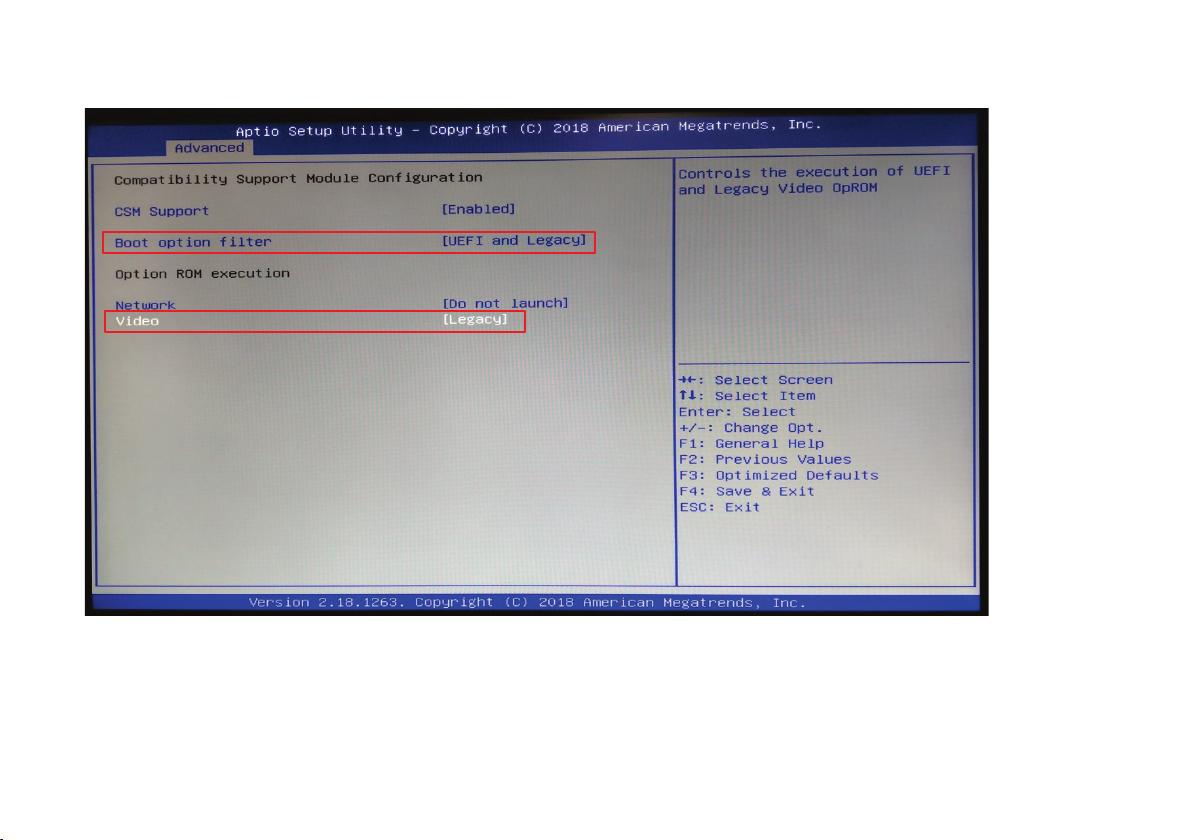

BIOS menu setting result

10
5. Packing List
DE6200
1 x DE6200 system
1 x User Guide
1 x Driver CD
1 x 65W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 –FH screws for HDD
1 x power holder
