AOpen eTILE WT24M-FI User manual

1
WT24M-FI
Commercial All In One PC
Technical Manual

2
Disposal Instruction (US)
For better protection of our earth, please don’t throw this electronic device into municipal trash
bin when discarding. To minimize pollution and ensure utmost protection of the global
environment, please recycle the product. For more information about the collection and
recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our
homepage at www.aopen.com under “Green Products”
廃棄上の指示
より良い地球保護のために、電子機器を廃棄処分にする時は、ゴミ箱に捨てないで下さい。汚
染を最小限に抑え、地球環境の最大限の保護のために、製品をリサイクルして下さい。廃電気
電子機器 (WEEE) の回収とリサイクルについての情報は、弊社ホームページwww.aopen.com の
“Green Products”（環境に優しい製品）をご覧下さい。
廢棄及回收處理
為了保護環境，請勿將本產品作為一般廢棄物處理。為減少環境污染，維護地球資源，本產品報
廢時，請回收本產品。
Instruktion til bortskaffelse (Danish)
Af hensyn til vores miljø bedes De ikke bortskaffe denne elektroniske enhed i en almindelig
affaldsspand. For at mindske forurening og sikre beskyttelse af miljøet bedes De genbruge
produktet. For yderligere information vedrørende indsamling og genbrug af elektronik-affald
(Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores
website www.aopen.com og læse nærmere under “Green Products”.

3
Verwijderingsinstructie (Dutch)
Om mogelijke schade aan het milieu of de menselijke gezondheid door ongecontroleerde
afvalverwijdering te voorkomen, moet u dit elektronisch product scheiden van andere soorten
afval en op een verantwoorde manier recyclen. Verwijder dit product dan ook alstublieft niet
samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling
van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage
te bezoeken www.aopen.com onder “Green Products”.
Instruction de Disposition (French)
Pour une meilleure protection de la terre, ne jetez pas ce dispositif électronique dans la
poubelle municipale lors de la disposition. Pour éliminer la pollution et assurer la plus grande
protection de l’environnement global, réutilisez s’il vous plaît le produit. Pour plus
d’informations sur la gestion des déchets d’Equipements Electriques et Electroniques (DEEE
ou WEEE), vous êtes invité à visiter notre site à www.aopen.com sous “ Green Products”.
Entsorgungsanleitung (German)
Zum besseren Schutze unseres Planeten, schmeissen Sie elektrische Geräte bitte nicht in
öffentliche Mülleimer. Zur Verringerung der Verschmutzung und zur Sicherstellung
grösstmöglichen Schutzes der Umwelt recyceln Sie bitte das Produkt. Für mehr Informationen
zum Sammeln und Recyceln von elektrischen und elektronischen Müll (WEEE) besuchen Sie
bitte unsere Homepage unter www.aopen.com unter dem Punkt “Green Products”.
Istruzioni per lo smaltimento (Italian)
Per una migliore salvaguardia del nostro pianeta, si prega di non gettare questo dispositivo
elettronico nei normali rifiuti al momento dell’eliminazione. Per ridurre al minimo l’inquinamento
ed assicurare la massima protezione dell’ambiente, si prega di riciclare il prodotto. Per
maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed
elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla
voce “Green Products”.

4
Instruksjoner for Resirkulering og Oppsamling
(Norweigian)
For ĺ beskytte vĺr planet, kast ikke dette elektroniske utstyret sammen med vanlig avfall. For ĺ
beskytte vĺr natur og miljř, vennligst resirkuler dette produktet. For mer informasjon om
oppsamling og resirkulering i henhold til Waste Electrical and Electronic Equipment (WEEE),
se vĺr hjemmeside pĺ www.aopen.com under “Green Products”.
Programa de Tratamento de Resíduos de Equipamentos
Eléctricos e Electrónicos (Portugese)
Para melhor protecção ambiental do nosso planeta terra, não coloque o dispositivo electrónico
no receptáculo de lixo municipal. Para minimizar a poluição e garantir protecção máxima do
ambiente global, recicle o produto. Para mais informações sobre acerca da recolha e
reciclagem de Equipamento Eléctrico e Electrónico (WEEE), convidamos-lhe a visitar nossa
página na Internet em www.aopen.com sobre “Green Products”.
Instrucciones para depositar los productos electrónicos
(Spanish)
Para proteger mejor el medio ambiente, por favor, no deposite los productos electrónicos en
los contenedores de basura tradicionales. Para reducir la contaminación y proteger el medio
ambiente se recomienda que los recicle. Para más información acerca de dónde depositar y
cómo reciclar Equipos Electrónicos y Desperdicios Electrónicos (WEEE), por favor, visite la
página web www.aopen.com y entre en la sección Productos Ecológicos (“Green Products”).
Kassering (Swedish)
För att bättre värna om vår jord bör denna elektroniska utrustning ej kasseras tillsammans med
vanligt avfall. För att minimera mängden föroreningar och så långt som möjligt skydda den
globala miljön bör produkten återvinnas.
För vidare information om insamling och återvinning av uttjänta elektriska och elektroniska
produkter (Waste Electrical and Electronic Equipment, WEEE), besök avsnittet “Green
Products” på vår hemsida, www.aopen.com.

5
Copyright
Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change
the content of this publication without obligation to notify any party of such changes or
revisions. No part of this publication may be reproduced, transcribed, transmitted,
translated into any language, stored in a retrieval system in any form or by any means
electronically, mechanically, optically without the prior written permission of this
company.
Disclaimer
AOpen makes no warranties or representations, either expressed or implied, with
respect to the content herein and specifically disclaims any warranties, merchantability
of fitness for any particular purpose.
AOpen and AOpen logos used herein are registered trademarks of AOpen Inc.
All other brand names and trademarks are owned by their respective owners.
Copyright © 2011 by AOpen Inc.
All rights reserved.
AOpen Inc.
http://www.aopen.com.tw

6
Safety Instructions
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from connecter before cleaning. Don’t use
liquid or prayed detergent for cleaning. Use moisture sheet or cloth for
cleanning.
4. Make sure the equipment is connected to the power source with the correct
voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only
be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a
service personnel :
a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according
to user’s manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.
9. Ambient operation temperature: less than 35 degrees C.
10. Caution on use of battery: Use the battery recommended by the manufacturer
or the same type of battery installed by the manufacturer. If incorrect battery
is used, it may cause explosion or fire hazard. Recycle or discard used
batteries according the manufacturer’s instruction or your local authority.
11. Wall Mounting Holder need to use UL 1678 approved product.

7
FCC notice
This device has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
receiver is connected. rienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to
maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with
Class B limits may be attached to this equipment. Operation with non-certified
peripherals is likely to result in interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority, which is granted by the Federal Communications Commission, to
operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003

8
Table of Contents
1. Packing List.......................................................................................11
1-1. Standard Accessories .................................................................11
1-2. Optional Accessories...................................................................12
2. System View..................................................................................... 13
2-1. Front View.....................................................................................13
2-2. Rear View......................................................................................13

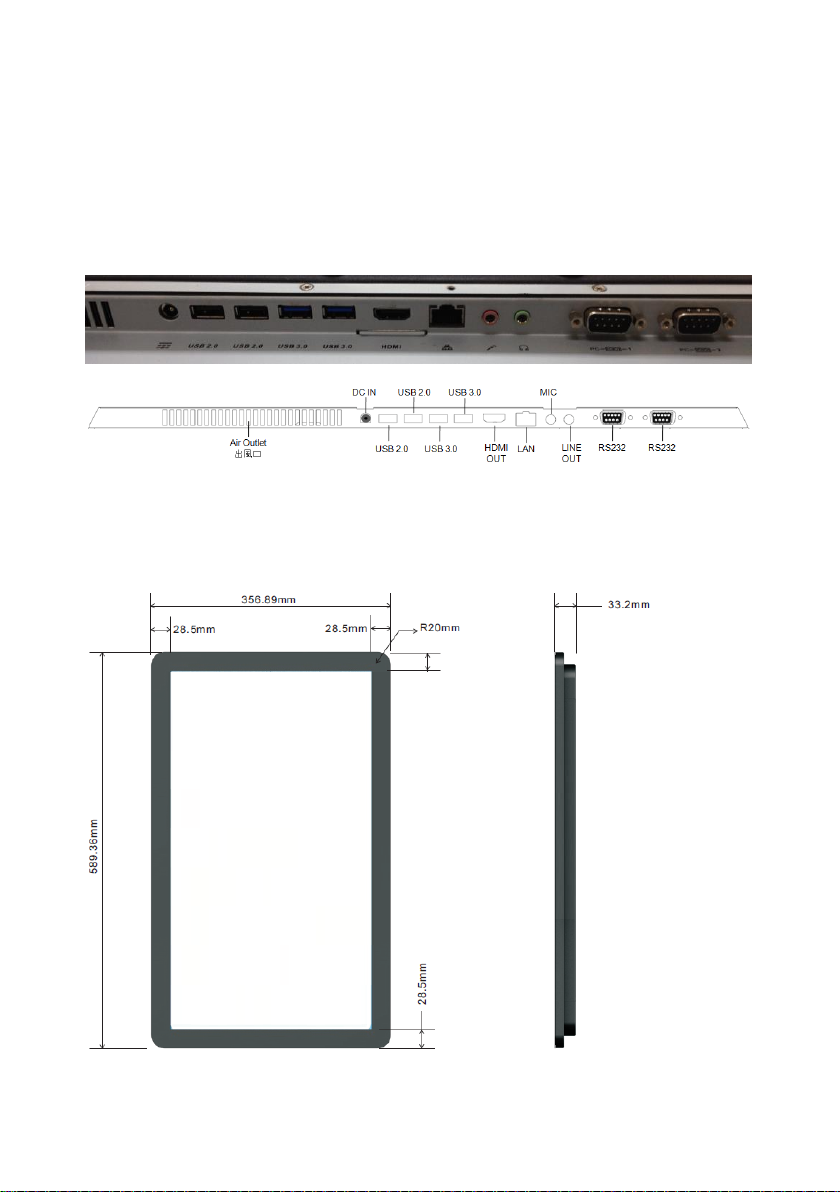

2-3. I/O ports.........................................................................................14
2-4. Dimension.....................................................................................14
3. System Assembly ............................................................................15
3-1. HDD Replacement.......................................................................15
3-2. RAM Replacement.......................................................................17
3-3. CPU Replacement.......................................................................18
3-4. Power Adapter Replacement.....................................................19
4. Peripheral Installation...................................................................... 20
4-1. Wall Mount Kit Assembly............................................................20
4-2. Other VESA-bracket support...................................................21

9
4-3. Wireless LAN Installation............................................................21
5. Specification......................................................................................22
6. RS232 Setting ..................................................................................25
Appendix A: Drivers Installation.............................................................27
Appendix B: Trouble Shotting................................................................28

10
The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems
Incorporated.
The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro
Devices, Inc.
The logos of Intel, Intel Celeron and Pentium II&III are the registered trademarks of Intel
Corporation.
The logos of nVidia are the registered trademarks of nVidia Corporation.
The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation
in America and other countries.
All the titles of the products and the trademarks mentioned in this manual are for the
purpose of illustrative conveniences and are possessed by their respective firms.
We regret not informing about any changes in usage standards and other related
information. AOpen Company reserves the right of altering or modifying the content of
this manual. In case of any mistakes or incorrect descriptions, which include those on
the products, AOpen makes no guarantee or commitments.
This document is based on the copyright laws in order to protect our company and
reserve all rights.
Under no circumstances are any types of duplicating and loading this brochure in any
databases and media permitted except the permission signed on formal document by
AOpen Company.
1996-2008 Copyrights, AOpen Ltd. All rights reserved.
http://www.aopen.com

11
1. Packing List
1-1. Standard Accessories
a.
d.
b.
e.
c.
a. System
b. Utility and Driver
c. Power adapter (120W)
d. Power cord
e. Ultra Slim Wall Mount (Option)
Notice:
The pictures may look slightly different from the product you purchased, due to our
constant product improvement effort.

12
1-2. Optional Accessories
Desktop Stand
P/N:90.00020.0010
Floor Stand
P/N:90.WT134.0010
Note:
Please set up monitor as landscape, for safety reason no allow
turn it to portrait.
DB9 (RS232) to RJ50 Cable
P/N: 50.WT201.0110

13
2. System View
2-1. Front View
2-2. Rear View

14
2-3. I/O ports
Caution: When you install devices or cables, please removed DC jack at
first to prevent inadvertently switched to cause system boot/ damage to
system/electric shock. The HDMI connector is output port, not input.
2-4. Dimension

15
3. System Assembly
Please remove all screws of rear cover
3-1. HDD Replacement
1. Rear view after taking off rear cover HDD Cage Memory Slot Mini Card for Wi-Fi
CPU Socket

16
2. Unscrew the screws, and disconnect the SATA connector when swap HDD
3. Install HDD or SSD

17
3-2. RAM Replacement
Opening the Rear Cover
Please open the rear cover first then remove and replace the RAM module.
You can refer to the motherboard layout to find the memory compartment.
Swapping a RAM Module
2. Use both fingers to pull the ejector clips out of the sides of the module.
3. Slide the memory module out of the memory slot.
Installing a RAM Module
4. Slide the memory module into the memory slot and press down until the ejector clips
click in place.

18
3-3. CPU Replacement
1. Unscrew the screw of Fan module, Please following the process as
54321 to remove the screws
2. Remove the Fan module
3. Unlock the CPU socket (please follow the mark on CPU socket, should be
counter-clock direction)
4. Put on the CPU, and please make sure the triangle mark on CPU and socket
should be aligned.
5. Lock the CPU socket (please follow the mark on CPU socket, should be clock
direction)
6. Assembly Fan module
7. Screw Fan module screws as the process
12345

19
3-4. Power Adapter Replacement
1. Please turn off the system
2. Disconnect the power cable from the I/O panel (DC IN), then can swap the adapter

20
4. Peripheral Installation
4-1. Wall Mount Kit Assembly
1. Drilling the wall, and put into the plastic seat as A
2. Screw wall-mount bracket and plastic seat as C.
3. Screw VESA bracket on system by special VESA screws as D
4. Lift the system to align the VESAbracket into the wall-mount bracket, and make
sure they are well assembled
5. Screw bottom screw to fix system on wall-mount bracket
