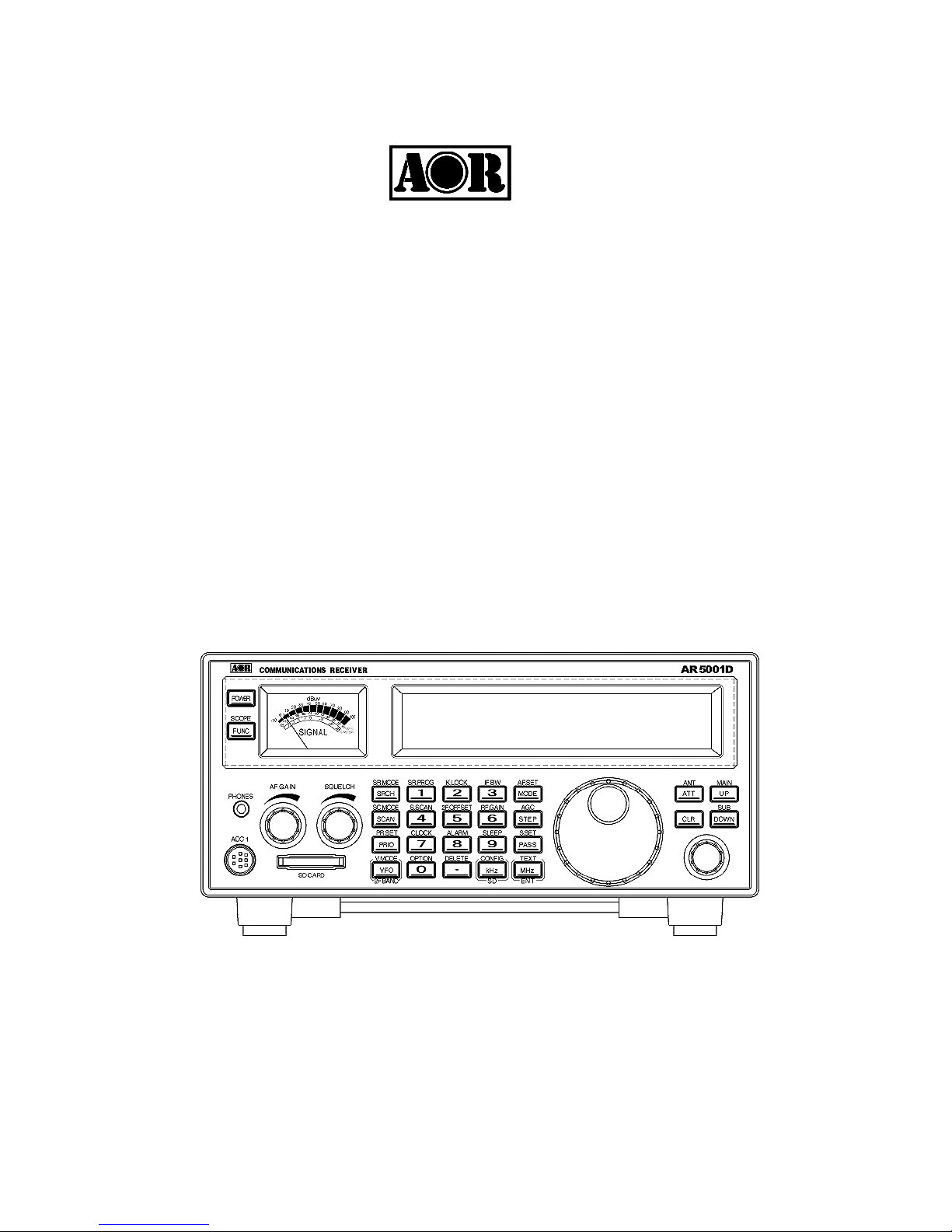

AOR AR5001D User manual

®
AR5001D
Digital Processing
Communications Receiver
Operating manual
AOR, LTD.

1
Table of Contents
0
1 INTRODUCTION ..................................................................................................................................... 5
1-1 INTRODUCTION .............................................................................................................................. 5
1-2 TAKE CARE O YOUR RECEIVER ................................................................................................ 7
1-3 INCLUDED IN THIS PACKAGE ....................................................................................................... 8
2 CONTROL AND FUNCTION ........................................................................................................... 12
2-1 RONT PANEL ............................................................................................................................... 12
2-2 REAR PANEL ................................................................................................................................. 13
2-3 LCD DISPLAY ................................................................................................................................ 14
2-4 KEYPAD ......................................................................................................................................... 15
2-4-1 RONT PANEL KEYS ............................................................................................................. 15
3 GETTING TARTED............................................................................................................................ 21
3-1 MAKING THE AR5001D READY OR OPERATION .................................................................... 21
3-1-1 CONNECT THE ANTENNA ..................................................................................................... 21
3-1-2 CONNECT POWER ................................................................................................................ 21
3-2 SWITCHING ON OR THE IRST TIME ...................................................................................... 21
3-3 VOLUME CONTROL ...................................................................................................................... 23
3-4 SQUELCH CONTROL ................................................................................................................... 23
3-5 V O SELECTION ........................................................................................................................... 23
3-5-1 TUNING REQUENCY ........................................................................................................... 24
3-6 RECEIVE MODE ............................................................................................................................ 25
3-6-1 AUTO MODE SELECTION ...................................................................................................... 27
3-6-2 RECEIVE MODE SELECTION................................................................................................ 27
3-7 CHANGING THE REQUENCY STEP.......................................................................................... 27
3-8 I BANDWIDTH ............................................................................................................................. 28
3-8-1 MANUALLY SELECTING I BANDWIDTH ............................................................................. 29
4 ADDITIONAL ETTING ..................................................................................................................... 30
4-1 AGC (AUTOMATIC GAIN CONTROL) ........................................................................................... 30
4-2 ATTENUATOR / R AMPLI IER .................................................................................................... 31
4-3 R GAIN ......................................................................................................................................... 31
4-4 ANTENNA INPUT ........................................................................................................................... 31
4-5 KEYLOCK ....................................................................................................................................... 32
5 ADVANCED FUNCTION .................................................................................................................... 32
5-1 SPECTRUM DISPLAY ................................................................................................................... 32
5-1-1 ACTIVATING THE SPECTRUM DISPLAY .............................................................................. 33
5-1-2 CHANGING THE REQUENCY SPAN ................................................................................... 33

2
5-1-3 MOVING THE SPECTRUM ..................................................................................................... 33
5-1-4 CHANGING THE MARKER REQUENCY ............................................................................. 33
5-1-5 DEACTIVATING THE SPECTRUM DISPLAY ......................................................................... 33
5-2 MULTI CHANNEL RECEIVE .......................................................................................................... 33
5-2-1 DUAL CHANNEL RECEIVE IN O SET MODE .................................................................... 33
5-2-2 DUAL BAND RECEIVE ........................................................................................................... 35
5-2-3 TRIPLE CHANNEL RECEIVE ................................................................................................. 36
5-3 MANAGING AN SD CARD ............................................................................................................. 36
5-3-1 ORMAT AN SD CARD ........................................................................................................... 36
5-3-2 SD CARD IN ORMATION ...................................................................................................... 37
5-3-3 READ DATA ROM SD CARD ................................................................................................ 38
5-3-4 WRITE DATA TO SD CARD .................................................................................................... 38
5-3-5 RECORDING AUDIO............................................................................................................... 39
5-3-6 PLAYBACK AUDIO .................................................................................................................. 40
5-3-7 DELETE ILES ........................................................................................................................ 41
6 MEMORY CHANNEL AND BANK ……………………………………………………………………….41
6-1 MEMORY CHANNEL OVERVIEW ................................................................................................. 41
6-2 STORING V O REQUENCIES AND DATA INTO MEMORY ...................................................... 42
6-3 MEMORY READ ............................................................................................................................ 44
6-4 DELETE MEMORY CHANNEL ...................................................................................................... 44
6-5 DELETE ALL MEMORY CHANNELS IN THE MEMORY BANK ................................................... 45
7 CAN – CANNING MEMORY CHANNEL ...................................................................................... 45
7-1 SCAN – OUTLINE INTRODUCTION ............................................................................................. 45
7-2 STARTING SCAN ........................................................................................................................... 45
7-3 SELECTING A SCAN BANK .......................................................................................................... 46
7-4 DISPLAYING A MEMORY CHANNEL TEXT ................................................................................. 46
7-5 SELECT SCAN............................................................................................................................... 46
7-5-1 ADDING SELECT SCAN CHANNELS IN MEMORY READ MODE ....................................... 46
7-5-2 DELETE SELECT SCAN CHANNELS IN MEMORY READ MODE ....................................... 47
7-5-3 STARTING / STOPPING SELECT SCAN ............................................................................... 47
7-6 LOCKING OUT UNWANTED ACTIVE MEMORY CHANNELS (PASS) ........................................ 47
7-6-1 DELETE ALL PASS CHANNELS ............................................................................................ 48
7-7 SCAN GROUP ............................................................................................................................... 48
7-7-1 BANK LINK SETTING ............................................................................................................. 49
7-7-2 SCAN PAUSE .......................................................................................................................... 49
7-7-3 SCAN DELAY .......................................................................................................................... 50
7-7-4 VOICE SCAN ........................................................................................................................... 50
7-7-5 MODE SCAN ........................................................................................................................... 51

3
8 EARCH MODE ................................................................................................................................... 52
8-1 SEARCH TYPE .............................................................................................................................. 52
8-1-1 V O SEARCH .......................................................................................................................... 52
8-1-2 PROGRAM SEARCH ............................................................................................................... 53
8-1-3 CYBER SEARCH ..................................................................................................................... 57
8-2 SCAN GROUP ............................................................................................................................... 58
8-2-1 BANK LINK SETTING .............................................................................................................. 58
8-2-2 SEARCH PAUSE ...................................................................................................................... 59
8-2-3 SEARCH DELAY ...................................................................................................................... 59
8-2-4 VOICE SEARCH ....................................................................................................................... 60
8-2-5 AUTO STORE ........................................................................................................................... 60
9 CONFIGURATION MENU .................................................................................................................... 61
9-1 CON IGURE LAMP ....................................................................................................................... 62
9-2 CON IGURE BEEP ....................................................................................................................... 62
9-3 CON IGURE BPS (BAUD RATE) .................................................................................................. 63
9-4 CON IGURE LOCAL (LOCATION SETTING)............................................................................... 63
9-5 CON IGURE SQL SKIP ................................................................................................................ 63
9-6 CON IGURE UNIT ........................................................................................................................ 64
9-7 CON IGURE ANT PROGRAM ...................................................................................................... 64
9-8 CON IGURE SD IN O .................................................................................................................. 65
9-9 CON IGURE WRITE TO SD ......................................................................................................... 66
9-10 CON IGURE READ ROM SD ................................................................................................... 67
9-11 CON IGURE SD ORMAT .......................................................................................................... 68
9-12 CON IGURE VERSION .............................................................................................................. 69
9-13 CON IGURE INITIALIZE (RE ET)……………………………………………………………………69
9-14 CON IGURE MEMORY CHANNEL ASSIGNMENT ................................................................... 70
10 OPTION MENU ................................................................................................................................... 70
10-1 LSQL HYS (LEVEL SQUELCH HYSTERISIS) ............................................................................ 70
10-2 NOTCH (AUTO NOTCH) ............................................................................................................. 71
10-3 NR (NOISE REDUCTION) ........................................................................................................... 71
10-4 NB (NOISE BLANKER) ................................................................................................................ 71
10-5 SCR (ANALOG VOICE DESCRAMBLER) .................................................................................. 72
10-6 I -S T (I SHI T) ........................................................................................................................ 72
10-7 A C (AUTOMATIC REQUENCY CONTROL) ........................................................................... 73
10-8 CTCSS (CONTINUOUS TONE CONTROLLED SQUELCH SYSTEM) ...................................... 73
10-9 DCS (DIGITAL CODED SQUELCH) ............................................................................................ 74
10-10 DTM (DUAL TONE MULTI REQUENCY) .............................................................................. 75
10-11 PRESEL (PRE-SELECTION ILTER) ........................................................................................ 75

4
10-12 VIDEO OUT (VIDEO OUTPUT) ................................................................................................. 76
10-13 VIDEO IMG (VIDEO MODULATION POLARITY) ...................................................................... 76
11 MI CELLANEOU FUNCTION ....................................................................................................... 77
11-1 STEP ADJUST .............................................................................................................................. 77
11-2 SUB DIAL SETTING ..................................................................................................................... 78
11-3 V O SETTING .............................................................................................................................. 78
11-3-1 TRANS ER REQUENCY TO V O..................................................................................... 78
11-3-2 V O SEARCH DELAY .......................................................................................................... 79
11-3-3 V O VOICE SQUELCH ........................................................................................................ 79
11-4 AUDIO ILTERS ........................................................................................................................... 80
11-4-1 LP (LOW PASS ILTER) .................................................................................................... 80
11-4-2 H (HIGH PASS ILTER) ..................................................................................................... 81
11-4-3 DE-EMPHASIS ..................................................................................................................... 81
11-4-4 CW PITCH ............................................................................................................................ 82
11-5 CLOCK.......................................................................................................................................... 82
11-5-1 INITIAL SET .......................................................................................................................... 82
11-5-2 DISPLAYING THE CLOCK ................................................................................................... 84
11-5-3 ALARM PROGRAMMING ..................................................................................................... 84
11-5-4 ALARM ACTIVATION ............................................................................................................ 85
11-5-5 SLEEP TIMER ...................................................................................................................... 86
11-6 PRIORITY UNCTION ................................................................................................................. 86
11-6-1 CON IGURING PRIORITY CHANNEL ................................................................................ 87
11-6-2 ACTIVATING PRIORITY UNCTION ................................................................................... 87
11-7 R GAIN CONTROL .................................................................................................................... 87
12 PC CONTROL ..................................................................................................................................... 88
12-1 USB INTER ACE ......................................................................................................................... 88
12-1-1 USB DRIVER ....................................................................................................................... 88
13 OPTIONAL ACCE ORIE ............................................................................................................... 89
13-1 I/Q UNIT ....................................................................................................................................... 89
13-2 LAN UNIT .................................................................................................................................... 89
13-3 GPS UNIT.................................................................................................................................... 89
13-4 P25 (APCO25) DECODER ........................................................................................................ 89
13-5 AS5001 ANTENNA SELECTOR ……………………………………………………………….…….89
... 13-6 ANTENNAS ……………………………..……………………………………………………….…….90
14 PECIFICATION ............................................................................................................................. 91
15 LIMITED WARRANTY (U A only)..................................................................................................... 92

5
1 INTRODUCTION
1-1 INTRODUCTION
Thank you for purchasing the AR5001D Digital Processing Communications receiver.
As the successor to the AR5000A receiver, the AR5001D is designed using the latest technology to ensure
the highest level of performance and reliability with similar key functions as the AR5000A receiver. If you
are familiar with the AR5000A operations and functions, you will find it easy to use the new AR5001D
receiver.
To obtain the best possible results from your AR5001D, we strongly recommend that you read this manual
and familiarize yourself with the receiver. It is acknowledged that sections of this manual are repetitive, but
this is to enable the manual to be used as a reference book.
Every effort has been made to make this manual correct and up to date. Due to continuous
developments of the receiver, we acknowledge that there may be some errors or omission anomalies.
© This manual is protected by copyright AOR, LTD. 2011. No information contained in
this manual may be copied or transferred by any means without the prior written consent
of AOR, LTD. AOR and the AOR logo are trademarks of AOR, LTD. All other trademarks
and names are acknowledged.

6
Main features:
 Wide frequency coverage: 40 kHz to 3.15 GHz, with no interruptions
(Cellular blocked for the US consumer version)
 45.05 MHz I DSP (Digital Signal Processing)
 H direct sampling
 No AGC in the analog processing circuit
 Computer simulated high grade R frontend
 PC controllable
 DDS (Direct Digital Synthesizer) local oscillator
 Accurate reference frequency (0.01 ppm with an optional GPS unit)
 Analog TV reception in both NTSC and PAL formats
 I analog signal output (45.05 MHz, +/- 7.5 MHz for a total of 15 MHz bandwidth)
 Multi-mode unit capable of receiving AM (Synchronous), ISB, USB, LSB, CW, AIQ (A -IQ),
W M including M stereo (optional headphone or stereo speakers required), N M and
P25 (APCO25) digital (optional)
 Composite video output on the rear panel of the unit
 SD card interface
 Selectable I bandwidths: 200 Hz, 500 Hz, 1 kHz, 3 kHz, 6 kHz, 15 kHz, 30 kHz, 100 kHz, 200 kHz,
along with the ability to shift the I
 CTCSS and DCS selectable squelch functions
 DTM tone decode
 Built-in voice-inversion descrambling (Not available for the US consumer version)
 CW pitch control, AGC, A C
 Auto-notch, noise reduction (NR), noise blanker (NB)
 ast ourier Transform ( T) analyzer for fast spectrum display processing
 12 kHz I/Q output for DRM® PC receiver
 USB 2.0 interface
 Two antenna ports (Type N)
 Up to 4 antenna ports (Optional AS5001 antenna switch required)
 5 V O’s, 2,000 alphanumeric memories
 Simultaneous monitoring of up to three channels
 Digital Voice Recording (with a SD memory card)
 I/Q output with 1 MHz bandwidth (with an optional I/Q unit)
 LAN (Local Area Network) control (with an optional LAN interface)
 P25 (APCO25) decode (conventional mode) (with an optional P25 unit)
 Antenna input level readout (in dBm, dBμ selectable)

7
1-2 TAKE CARE OF YOUR RECEIVER
There are no internal operator adjustments needed. In the unlikely event of service being required, please
contact us for technical assistance.
Do not use or leave the receiver in direct sunlight. It is best to avoid locations where excessive heat,
humidity, dust and vibrations are present. Always keep the AR5001D free from dust and moisture. Use a
soft, dry cloth to gently wipe the external surfaces clean; never use abrasive cleaners or organic solvents
which may damage certain parts.
Treat the AR5001D with care; avoid spilling or leaking liquids into the receiver and the associated
power supply. Special care should be taken to avoid liquids from entering the area around the controls and
through the speaker grill or via the connection jacks.
The AR5001D is designed to operate from a good quality regulated DC power supply of 10.7 to
16.0 V, which should be capable of supplying 2 amps. Never connect the AR5001D directly to an
AC power outlet.
The polarity of the DC input jack is clearly marked; the chassis of the receiver is at negative ground.
AFETY NOTICE – Always disconnect the power supply from the AC outlet or switch off
the main power switch on the rear panel when the receiver is not in use for a long period
of time. If used mobile, it should be noted that the AR5001D has NOT been manufactured
or tested to meet any specific mobile safety requirements. The AR5001D has no user
adjustable internal parts.
If using the AR5001D as a base station, the best short wave reception is usually achieved through
the use of a separate external earth (or ground) rod. However, consider the implications carefully if
your AC building supply uses a Protective Multiple Earth (PME) system. If in doubt, consult a qualified
electrician. Never earth (ground) to a gas pipe! The AR5001D has two antenna connectors. These
are intended for connection to a 50 ohm (unbalanced) coaxial fed antenna such as a discone, dipole,
Yagi, etc.
When installing an antenna, avoid power cables. Ensure that you do not confuse the antenna and the
I output connector as they are located close to each other.

8
Operating anomalies
Should the AR5001D appear to behave strangely, normal operations may be easily achieved by
performing the following steps:
1. ymptom: No control of the receiver.
Action: Turn off the power switch on the front panel. Leave it off for
approximately 10 seconds. Turn the power switch back on again.
Normal operation should be restored.
2. ymptom: The display freezes.
Action: Turn off the main power switch on the rear panel. Leave it off for
approximately 10 seconds. Turn the power switch back on again.
Normal operation should be restored.
Should the AR5001D still behave strangely, try a RESET as explained in chapter 9-13.
1-3 INCLUDED IN THI PACKAGE
The following items are provided in this package:
1 AR5001D receiver
1 AC power adapter
1 Operating manual (this booklet)
1 Control command list
1 2GB SD memory card
Terminology
earch & can
If you have not used a wide band receiver before or is not familiar with the terminology used, it is very
important to understand the difference between EARCH and CAN modes.
EARCH: The AR5001D provides several operations where transmissions
(active frequencies) may be automatically located by sweeping the receiver over
a wide frequency range, either from the currently displayed frequency traveling
upwards (or downwards) in a specified tuning increment (step) or by sweeping
over-and-over between two specified frequency limits. This process is known as
EARCHING. As the name implies, this process can take a long time to find
transmissions due to their ‘often intermittent’ and brief nature. or this reason, it
is best to slice large frequency ranges into smaller, more manageable pieces

9
where they may be intensely monitored.
When examining large frequency segments, it is common to find that 90% of the
frequencies are inactive and only a small number of the remaining constitute what
you really want. Searching still remains the best way to initially locate active and
interesting transmissions (in conjunction with a good frequency listing and band
plan).
CAN: Once active transmissions have been identified (either by searching or by
using a good frequency guide), it is more efficient to store the data into memories
which can be rapidly and automatically monitored in succession, stopping when
activity is encountered. This is a much more efficient means of monitoring the
most wanted frequencies as you have targeted 100% of what you most want to hear.
By contrast, searching is very inefficient for day-to-day monitoring.
Note: For the search & scan functions to operate properly, it is very important
to advance the squelch to cancel background noise. This is because the
AR 001D believes that it has found an active frequency when the squelch opens
and the “BUSY” indicator lights up. Advance the squelch control clockwise until
the background noise is just cancelled; this is known as the “threshold” position.
If the squelch control is advanced too far, weaker signals may be missed.
More details about the remarkable features of the AR5001D
High frequency (45.05 MHz) IF output
The AR5001D has a 45.05 MHz analog I output with 15 MHz bandwidth. The input signal to the 45.05
MHz I stage is directly sent to the A/D converter for digital processing. This I output signal may be
suitable as an R front end for radio signal analysis applications.
High tability Frequency tandard
When an optional GPS unit is connected, the internal reference oscillator (10 MHz) will be locked by the
GPS receiver, and the highest stability reference signal (0.01 ppm) will be obtained. This is ideal for
frequency coherent operation and D (Direction inding) applications.
DD (Direct Digital ynthesizer)
The AR5001D uses a high speed DDS for the 1st local oscillator. Unlike a standard PLL (Phased Locked
Loop) circuit for the local oscillator, the DDS enables very high speed scanning as it generates signals
instantaneously, controlled by the CPU (Micro Processor).
I/Q Digital Output (Optional)

10
The I/Q stands for In-Phase/Quadrature-Phase.
In the 45.05 MHz I stage, I/Q output is available as an optional feature. The I/Q digital signal consists of
two (2) different digital signals with phases shifted 90 degrees. The I/Q output is provided through a
continuously isochronous USB 2.0 standard interface. By using the I/Q digital output, the streamed data
can be stored on a PC hard disk for future signal analysis.
The I/Q digital output of the AR5001D has a wide dynamic range (without AGC processing) floating point
data format.
FFT (Fast Fourier Transform)
The AR5001D utilizes T ( ast ourier Transform) technology for high speed spectrum scanning.
T enables refreshment of the spectrum display more than 10 times per second for a 10 MHz span
(at 500 Hz RBW). The AR5001D scans 10 MHz of bandwidth.
LAN (Local Area Network) connection
When an optional (external) LAN interface is connected, the AR5001D can be remotely controlled
through the internet.
Triple channel reception (Receive three frequencies simultaneously)
Any frequency below 25 MHz can be received independently, separate from a frequency above
25 MHz. Therefore, two (2) separate frequencies can be received simultaneously. urthermore, any
two (2) frequencies above 25 MHz (within a range of +/- 5 MHz from the receive frequency) can also
be selected and received simultaneously. Therefore, up to three (3) frequencies can be received at
the same time.
Receive Mode / Additional Features
WFM (Wide FM)
 Stereo sound (auto detected), Selectable de-emphasis 50 μS/75 μS
 Stereo output is available from the 3.5 mm stereo jack on the front panel. (External stereo
headphones or speakers required to monitor stereo transmissions.)
NFM (Narrow FM)
 Built-in DCS (Digital Coded Squelch)
 Built-in CTCSS (Continuous Tone Coded Squelch System)
 Built-in Voice Inversion Descrambler (2,000 Hz ~ 7,000 Hz in 50 Hz step) (Not available on
US consumer version)
 P25 (APCO25) decoding (with optional APCO25 board) (conventional non-encrypted mode only)

11
 Built-in A C (Automatic requency Control)
AM (Amplitude Modulation)
 Envelope Detection (Normal AM decoder)
 Synchronous Detection
1. DSB (Double Side Band) synchronous
2. SSB (Single Side Band) USB/LSB (Upper Side Band/Lower Side Band)
selectable synchronous
 AGC (Automatic Gain Control) mode/Manual R gain mode
B ( ingle ide Band)
 USB/LSB selectable
 AGC mode/Manual R gain mode
I B (Independent ide Band)
 Simultaneously decoded LSB and USB (Stereo Output)
 AGC mode/Manual R gain mode
CW (Continuous Wave)
 Built-in narrow band I filter 200 Hz/500 Hz
 Adjustable tone pitch 300 ~ 1100 Hz (50 Hz step)
NB (Noise Blanker)
 Operates in AM, SSB, and ISB modes
Auto Notch Filter
 Effective to suppress a cyclic noise signal.
IF hift
 Operates in SSB, AM, and CW mode.
 Shift width: -1200 Hz ~ +1200 Hz (50 Hz step)
electable quelch mode
 VSQ (Voice Squelch) or LSQ (Level Squelch) can be selected.
DVR (Digital Voice Recorder)
 Received audio can be recorded on a SD memory card in WAV format.
Analog output for DRM® (Digital Radio Mondiale)
 12 kHz I (I/Q) analog output for DRM® PC receiver

12
2 CONTROL AND FUNCTION

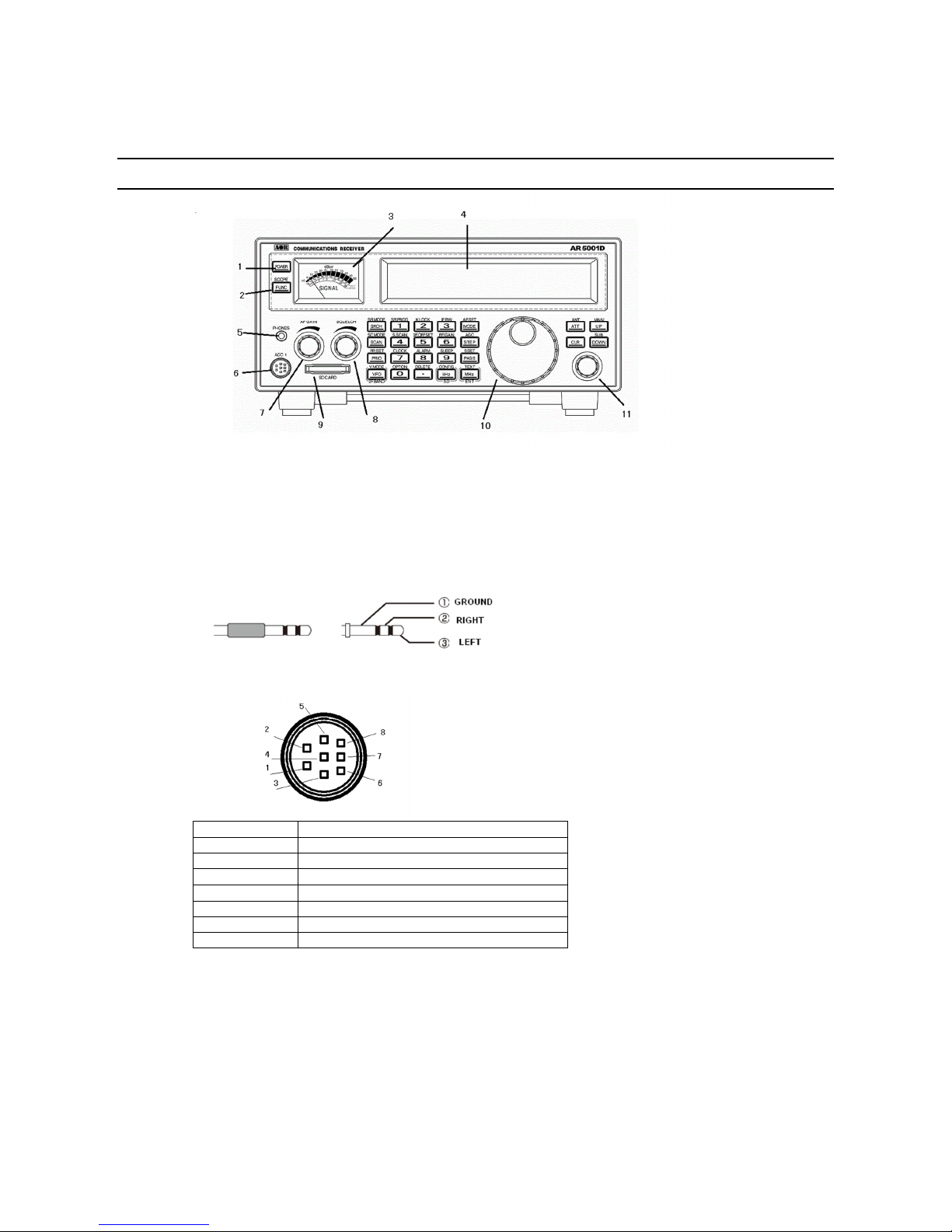

2-1 FRONT PANEL
1. Power On/Off switch
2. unction switch
3. Analog S meter
4. LCD (Liquid Crystal Display)
5. Stereo headphone jack (3.5 mm stereo type)
6. ACC1 (Accessory connector)
Pin #1 12 VDC output (30 mA max.)
Pin #2 Detector Output
Pin #3 External Mute input
Pin #4 Control 1
Pin #5 Control 2
Pin #6 GPS time pulse input
Pin #7 Low level audio output (2.5 mV @600 ohm)
Pin #8 Ground
7. A Gain control
8. Squelch control
9. SD card slot
10. Main dial
11. Sub dial

13
2-2 REAR PANEL
1. Antenna connector 1 (N type) (25MHz~3.15GHz)
2. Antenna connector 2 (N type) (40kHz~3.15GHz)
3. ACC2 (Accessory 2) connector
Pin #
Description
Pin #
Description
1 12V DC output
(50mA max.)
5 Antenna switch A
2 No Connection 6 Antenna switch B
3 No Connection 7 No connection
4 No Connection 8 Ground
4. Composite video output (RCA type) 75 ohm 1V p-p
5. External 10 MHz reference signal input connector (SMA type) (2 dBm +/- 2dB)
6. Power cable clamp
7. Main power switch
8. 45.05 MHz I output connector (BNC type)
(A 50 ohm terminator needs to be connected while not in use.)
9. External speaker output (3.5 mm mono)
10. Line output connector (3.5 mm stereo, -10 dBm/600 ohm).
(Can be selected as 12 kHz I/Q output)
11. AUX2 (Auxiliary connector 2) Interface for an optional GPS unit
12. I/Q output connector (Optional, USB type B connector)
13. AUX1 (Auxiliary connector 1) D-Sub 9 Male, for expanded function (optional)
or RS-232C serial control interface
14. USB (2.0) connector (USB type B connector)
15. 12 VDC power input (2 A)

14
2-3 LCD DI PLAY
requency display mode
Band scope mode
Icon unction
unction switch
O Dual channel receive (offset mode)
D Dual band receive (H and V/U)
GPS status (optional)
Lit: requency reference 0.01 ppm
Blink: requency reference 0.1 ppm
Not lit: No GPS installed
Key lock/Remote control mode
ALARM Alarm function activated
SLEEP Sleep function activated
REC SD card status (REC: Recording, SD: Card detected)
PRIO Priority function activated
ANT Antenna input
B Busy (Squelch open)
-120. 0dB S reading / Antenna input level (in dBm when amplifier is off.)
ATT Attenuation level
AMP R amplifier on
AUTO Auto receive mode
ST: 009.000k requency step
L-BANK Bank link
V O Operation mode (V O, MEM, SCAN, S.SCAN, SRCH, CYBER)
PAUSE Scan/Search pause
VCS Voice scan mode
PASS requency pass
AS-M Auto memory store function activated
DCS DCS (Digital Code Squelch) function activated
TONE CTCSS function activated
STEP-ADJ Step adjust function activated
145.000000 Receiving frequency
= AGC off
BW 15k I bandwidth
M Receive mode
VA V O, channel number
SPAN T display span (0.4 ~ 10.0 MHz)
Audio balance (displayed in offset mode, dual band receive mode)

15
2-4 KEYPAD
Keypad conventions
Most keys have secondary functions; their functions are printed on the panel. However, due to the
restriction of available size, not all functions can be shown on the keypad printing.
or the secondary functions of the AR5001D, they are indicated with white characters above each
key. To access the secondary function, press the [FUNC] key, and then press the respective key.
2-4-1 FRONT PANEL KEY
POWER
This key is located on the upper left corner of the front panel.
Press this key to power on the AR5001D. To power off the AR5001D, press and hold this key for
two seconds.
FUNC
The function key is used to select secondary functions on the keypad. When pressed, “ ” in reverse
contrast appears on the top left corner of the LCD. The first function of the keys are printed on their
faces; the secondary functions are printed in white directly above the corresponding key.
To cancel the “ UNC”, press this key again.
Press and hold the [FUNC] key for two seconds to go into the T display mode. To cancel the T
display mode, press the [FUNC] key again.
RCH - R. MODE
Press this key to go into search mode and initiate EARCH. If the receiver stops on an unwanted busy
channel during search, it can be resumed using the [UP] key or [DOWN] key or by rotating the main
dial.
To cancel search, press the [ RCH] key again or press the [VFO] key.
Press the [FUNC] key, and press the [ RCH] key to activate a sub menu where bank link, pause,
delay, voice search, and auto-store function can be configured.
CAN – C. MODE
Press this key to go into memory recall mode.
The bank number can be selected using the sub dial, channel number using the main dial and four
digit bank/channel number using the numeric key switch.

16
Press the [ CAN] key again to initiate CAN. If the receiver stops on an unwanted busy channel during
scan, it can be resumed using the [UP] key or [DOWN] key or by rotating the main dial.
To cancel scan, press the [ CAN] key again or press the [VFO] key.
Press the [FUNC] key, and press the [ CAN] key to activate a sub menu where bank link, pause,
delay, level squelch, and voice squelch function can be configured.
PRIO – PR. ET
Press the [PRIO] key to activate/deactivate the priority function.
“PRIO” appears on the center top of the LCD when priority frequency is currently active (busy).
Press the [FUNC] key, and press the [PRIO] key to select the priority channel followed by the interval
of sampling.
VFO – V. MODE / 2F. BAND
Press this key to select VFO mode. The AR5001D has 5 VFOs (VFO-A through VFO-E) and the
selected V O is identified by “VA”, “VB”, “VC”, “VD”, and “VE” icons on the right bottom of the LCD.
Press the [FUNC] key, and press the [VFO] key to access the V O search menu where Delay, Voice
squelch and Mode squelch can be configured.
Press the [FUNC] key, then press and hold the [VFO] key for two seconds to activate/deactivate the
dual band receive function.
1 – R. PROG
igure ONE for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [1] key to activate the Search Program menu where bank number,
lower frequency limit, upper frequency limit, receive mode, and text tag can be programmed.
2 – K. LOCK
igure TWO for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [2] key to activate the Key lock function. While activated, all front
panel keys except the [FUNC] key, and [POWER] key are disabled to prevent accidental misoperation of
the receiver. However, the volume and squelch controls remain operative.

17
3 – IF BW
igure THREE for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [3] key to activate the I bandwidth menu. In normal operation,
“AUTO” will be displayed on the LCD and the I bandwidth will be automatically selected according to the
band plan. To change the bandwidth manually, rotate the sub dial to select the desired bandwidth. To
accept the new bandwidth, press the [MHz] key.
4 – . CAN
igure OUR for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [4] key to activate SELECT SCAN. Select scan enables you to ‘tag’
memory channels to make a temporary list of up to 100 channels in the same memory bank for scanning
in a separate list called SELECT SCAN LIST.
5 – 2F. OFF ET
igure IVE for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [5] key for two seconds to activate/deactivate the dual frequency
receive function in offset mode.
6 - RF. GAIN
igure SIX for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [6] key to activate the manual R gain control. To change the R
gain manually, rotate the squelch knob. To cancel the manual R gain control, repeat the above steps.
Note The manual RF gain control is not available while the receiver is in AGC mode.
7 - CLOCK
igure SEVEN for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [7] key to display the current time.
Rotating the sub dial allows you to select between the two clocks.
To set the clock, press the [FUNC] key and then press and hold the [7] key for two seconds.
On the screen, you can select 12H/24H, set the date and time using the sub dial.
Press the [MHz] key to confirm entry.

18
8 - ALARM
igure EIGHT for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [8] key to activate the alarm function which automatically turns on
the receiver at the preprogrammed time or sound a beep.
9 - LEEP
igure NINE for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [9] key to activate the sleep function to turn the receiver off
automatically at the preprogrammed time.
0 - OPTION
igure ZERO for the numeric input of frequencies, bank, channel numbers, etc.
Press the [FUNC] key, and press the [0] key to activate the option menu.
. - DELETE
Use during the MHz frequency input to separate the MHz from the rest of the entry of kHz and Hz.
or example, the entry of 88.300000 MHz would be [8][8][.][3] [MHz].
Note Frequencies below 3.0 MHz (3000 kHz) are always displayed as kHz regardless of input format.
In memory mode, press the [FUNC] key, and press the [.] to display the memory channel to be deleted.
Press the [FUNC] key, and then press and hold the [.] key for two seconds to activate the delete menu.
kHz – CONFIG/ D
The [kHz] key is used to accept frequency input from the numeric keypad in kHz format.
or example, entering of 954 kHz, press [9][5][4][kHz]. The LCD will display 954.000 kHz.
Note Entering a decimal [.] before the number will result a preceding zero to be added automatically.
Press the [FUNC] key, and press the [kHz] key to activate the configuration menu.
Press the [kHz] while an SD memory card is inserted to activate the audio playback function.
Using the [UP] key or [DOWN] key to select the recorded file, press the [MHz] key to playback audio. To
stop playback, press the [CLR] key.

19
Press and hold the [kHz] for two seconds while an SD memory card is inserted to start recording audio.
To stop recording, press the [CLR] key.
MODE – AF. ET
Press this key to select the receive mode. Rotate the sub dial to select the desired received mode, and
press the [MHz] key to confirm the selection.
To select AUTOMODE, press and hold the [MODE] key for two seconds. The AR5001D will
automatically select the receive mode, I bandwidth, and frequency step from the pre-programmed band
plan. When in auto mode, “AUTO” is displayed above the frequency on the LCD.
Press the [FUNC] key, and press the [MODE] key to activate the A . SET (Audio frequency setup) menu
to configure the LP (Low Pass ilter), HP (High Pass ilter), De-emphasis, and CW pitch frequency.
TEP - AGC
Press this key to select the frequency step size for tuning the receiver. If “AUTO” is displayed on the LCD,
the frequency step will automatically be determined from the receiver’s bandplan.
To change the frequency step, press the [ TEP] key. Rotate the sub dial to select the desired frequency
step, and then press the [MHz] key.
Press the [FUNC] key, and then press the [ TEP] key to activate the AGC (Automatic Gain Control)
menu. In this menu, “ AST”, “MIDDLE”, “SLOW”, or “O ” can be selected. Usually, FA T is used to
receive CW, MEDIUM for AM and M, and LOW for SSB mode. However, this option cannot be
configured in the M mode.
When AGC is set to O , two horizontal bars are displayed on the LCD above the “kHz” or “MHz” icon.
PA – . ET
This key is used to PASS (skip over) unwanted active frequencies in search mode and scan mode.
In search mode, the unwanted frequencies are stored in the PASS LIST where they may be added to,
deleted, or edited.
In scan mode, the memory is locked out and is skipped. While in scan mode or memory channel read
mode, press the [FUNC] key, and then press the [PA ] key. This will add the displayed channel to the
SELECT SCAN list. This is a special temporary notepad memory bank.
